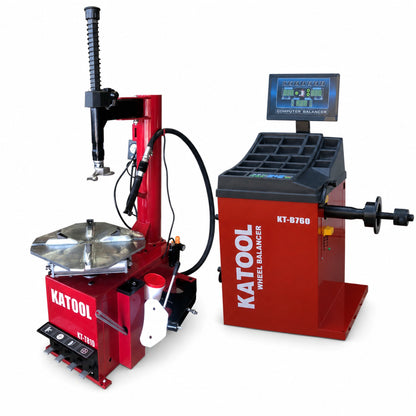

Katool KT-T810 + KT-B760 – Tire Changer + Wheel Balancer (Combo)

Both units in this tire changer and balancer combo operate on standard 120V single-phase power, making them accessible for most garage environments without requiring specialized electrical infrastructure. The KT-T810 tire changer requires 2.0HP (1.5kW) and the KT-B760 balancer uses 0.25kW. Dedicated 20-30A breakers are recommended for each unit to ensure reliable operation and prevent circuit overloading during peak power draw. This standard power requirement eliminates the need for costly 3-phase electrical installations required by many commercial-grade competitors.

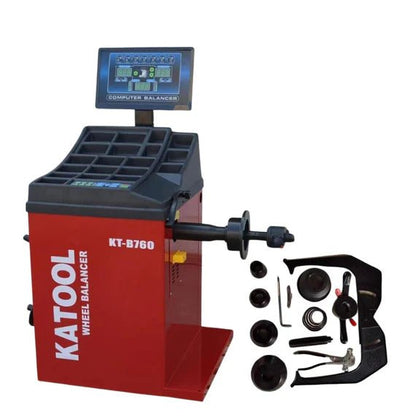

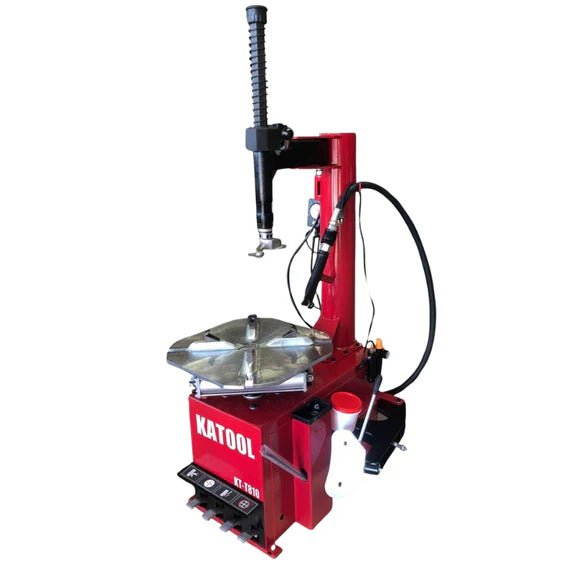

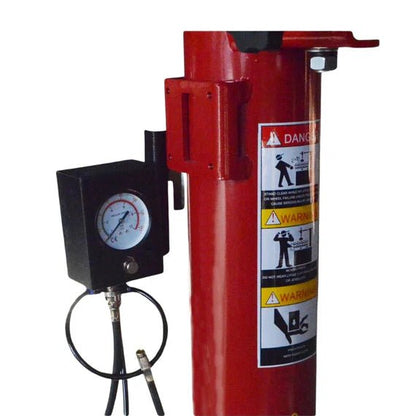

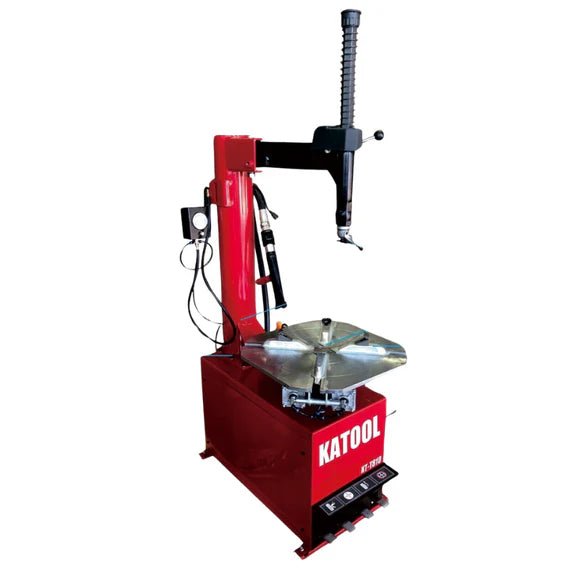

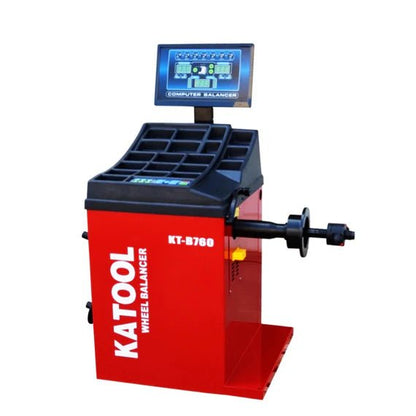

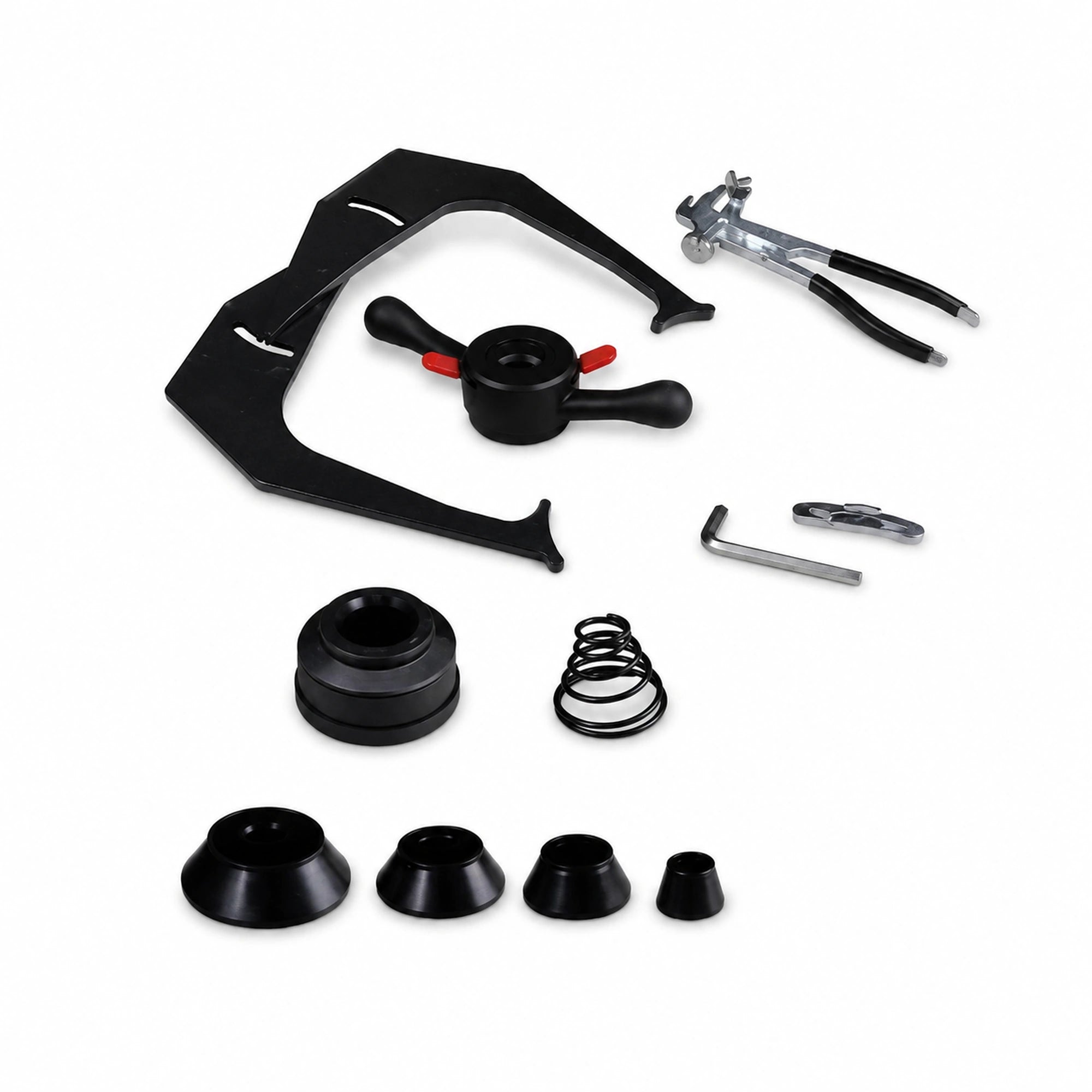

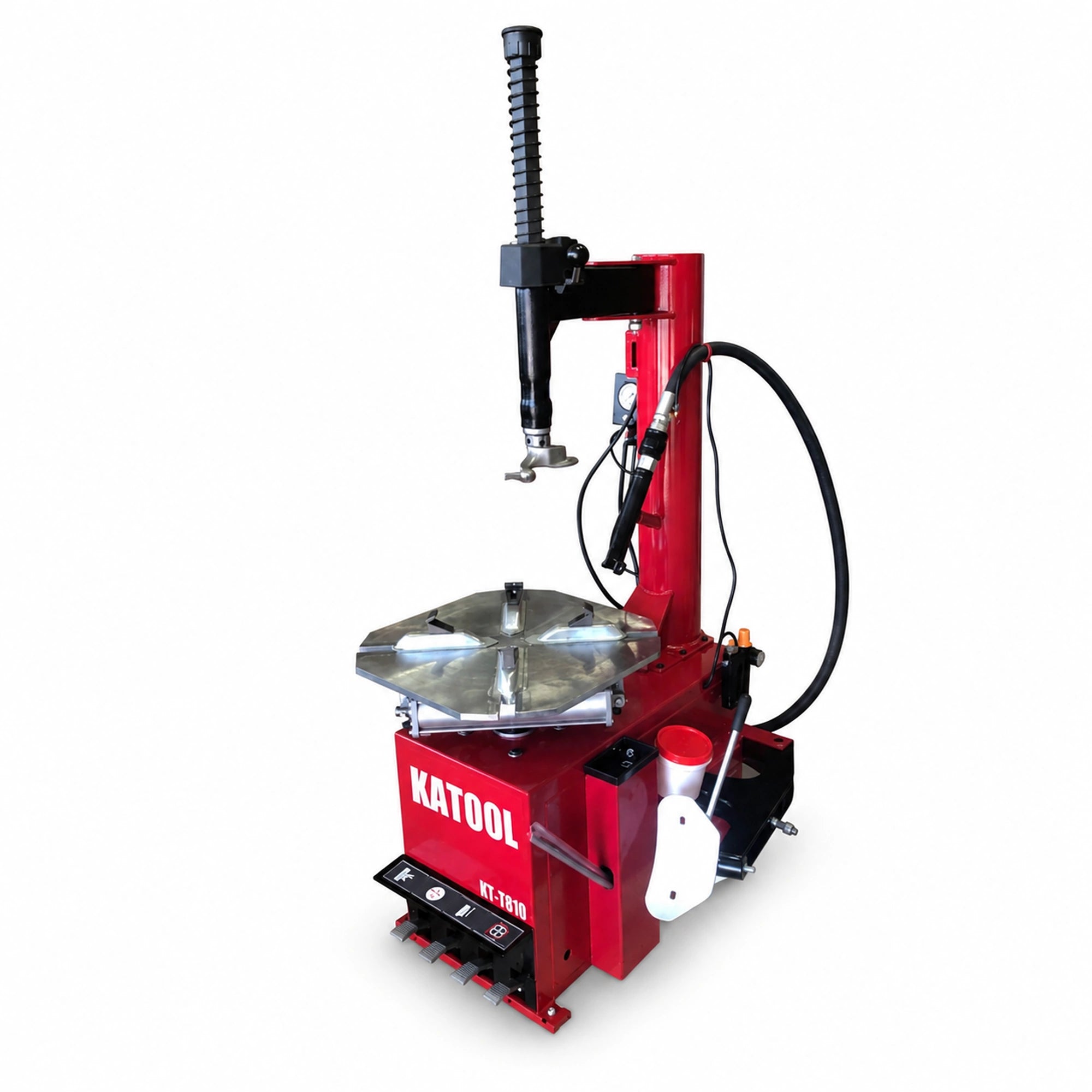

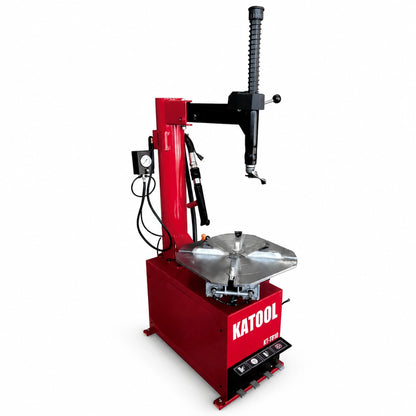

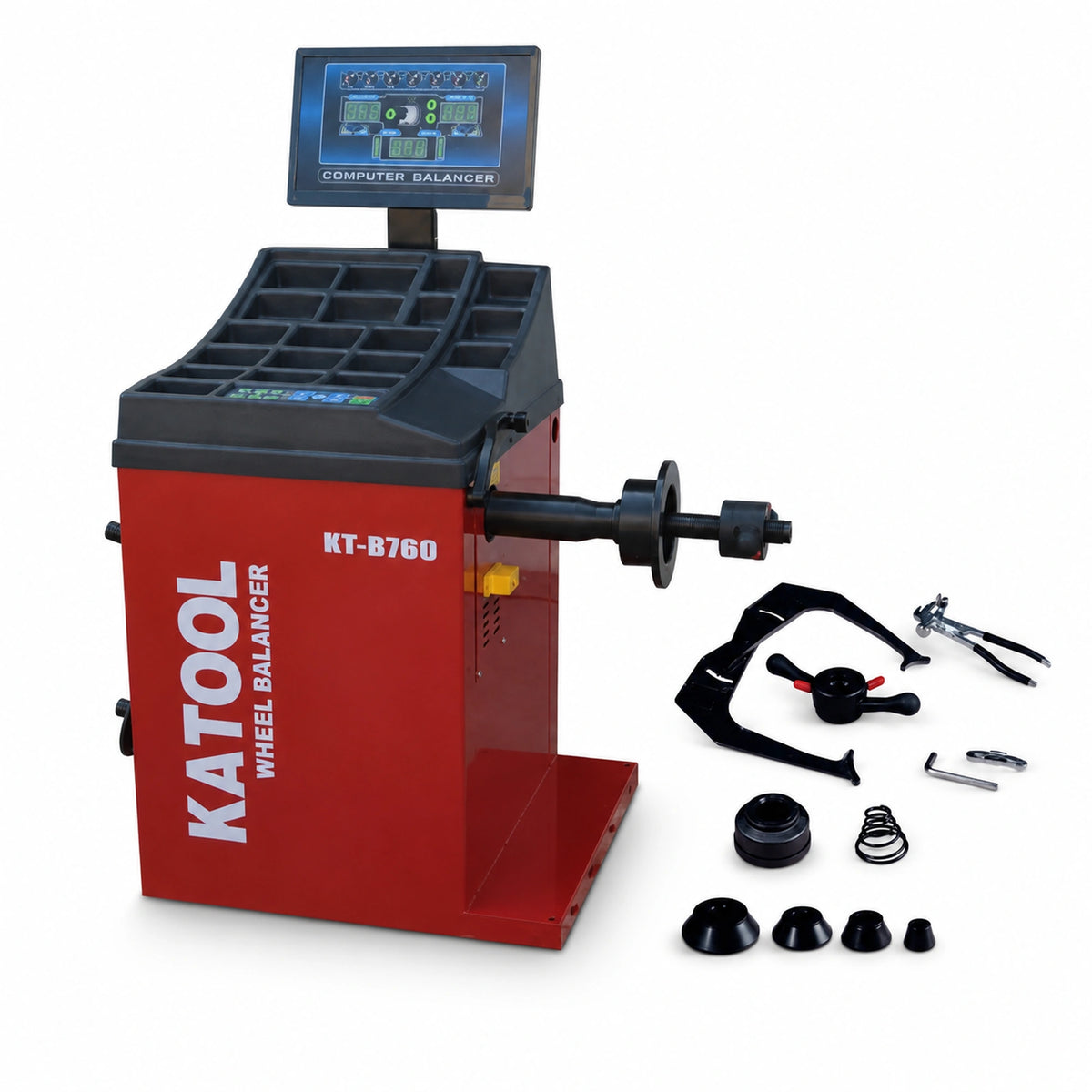

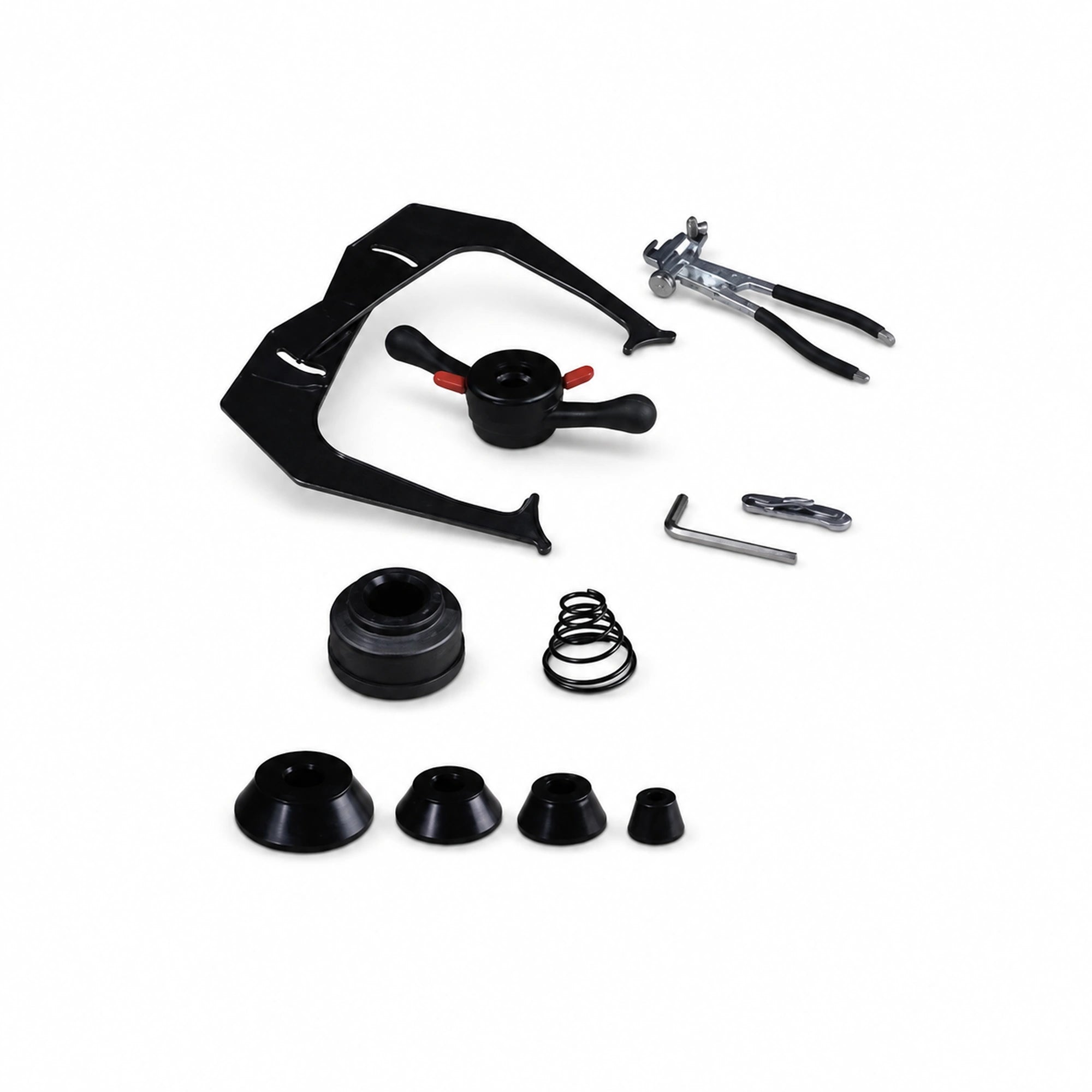

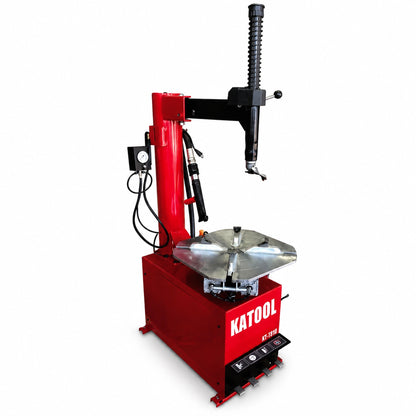

The KT-T810 includes tire changer base unit, stainless steel mounting head with plastic rim protectors, integrated bead blaster system, inflation gauge, coiled air hose, and basic tool set for immediate operation. The KT-B760 includes wheel balancer unit, automatic measurement ruler, standard cone set, calibration weight, and operation manual with setup instructions. Both units arrive ready for installation with all essential components included, though professional installation is recommended for proper calibration and optimal performance. Additional accessories like motorcycle adapters are available separately for expanded service capabilities.

The KT-T810 tire changer handles wheels up to 41 inches in diameter and 15 inches in width, with clamp ranges of 12-22 inches outside and 14-24 inches inside, accommodating most passenger vehicles and light trucks. The KT-B760 balancer accommodates rims up to 30 inches in diameter and wheel widths of 3-12 inches, with maximum wheel weight of 143 lb (65kg). This capacity range covers modern large-diameter wheel packages that exceed the limits of basic tire service equipment, enabling shops to service newer vehicles with oversized wheels without turning away customers or investing in more expensive commercial-grade systems.

The system requires 116-145 PSI (0.8-1.0 MPa) continuous air pressure for optimal operation of the integrated bead blaster and pneumatic functions. A compressed air system with adequate CFM capacity is needed to support the bead blaster system during high-volume operations without pressure drop. Filtered air is recommended to prevent contamination of internal pneumatic components and extend equipment life. Most shop compressor systems can handle these requirements, but verifying adequate supply pressure and volume before installation ensures reliable operation during peak service periods.

This combo is suitable for passenger cars, SUVs, and light trucks up to 41-inch diameter wheels, covering the majority of vehicles in typical automotive service environments. Primary applications include automotive repair shops, tire service centers, and commercial garages handling fleet maintenance and customer service work. The extended capacity range accommodates modern vehicles with large wheel packages that basic equipment cannot handle. Optional motorcycle adapter KT-MC2 enables motorcycle wheel service for shops serving diverse vehicle types, expanding revenue opportunities and customer base without requiring separate specialized equipment.

The KT-B760 provides ±1g balancing accuracy with 7-second measurement cycles at 180 RPM balancing speed, delivering precision typically found in higher-priced professional equipment. This accuracy level enables shop-grade results for consistent wheel balancing operations while maintaining fast cycle times for efficient workflow. The automatic measurement system eliminates manual setup errors and provides repeatable results across different wheel sizes and types. Built-in calibration and fault diagnosis systems help maintain accuracy over time and alert operators to potential issues before they affect service quality.

Both units come with a 12-month all-parts warranty from the manufacturer, providing comprehensive coverage for replacement components with shipping costs included. Coverage includes replacement parts with shipping costs, but excludes labor and installation costs, which is standard for equipment in this category. Warranty claims are processed through authorized dealers or direct manufacturer contact with proper documentation including proof of purchase and installation records. This warranty period exceeds many competitors in the mid-range tire service equipment category and demonstrates manufacturer confidence in build quality and component durability.

Free freight shipping to commercial addresses in continental US, with possible additional fees for residential delivery depending on location and accessibility. Estimated 3-5 business days from order processing to delivery, subject to inventory availability and shipping zone. Forklift or dock facility required for unloading due to substantial weight (KT-T810: 410 lb), and customer is responsible for unloading equipment from delivery truck. Proper receiving area with adequate clearance for freight truck access is necessary, and inspection of all packages before signing the bill of lading helps prevent concealed damage claims after delivery.
