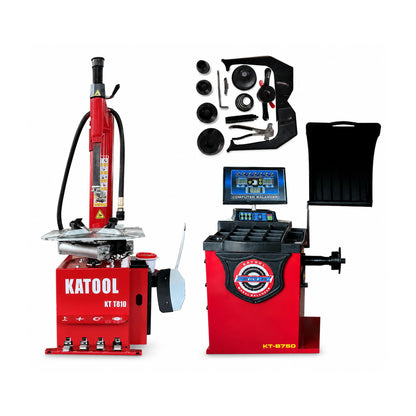

Katool KT-T810 + KT-B750 – Tire Changer + Wheel Balancer (Combo)

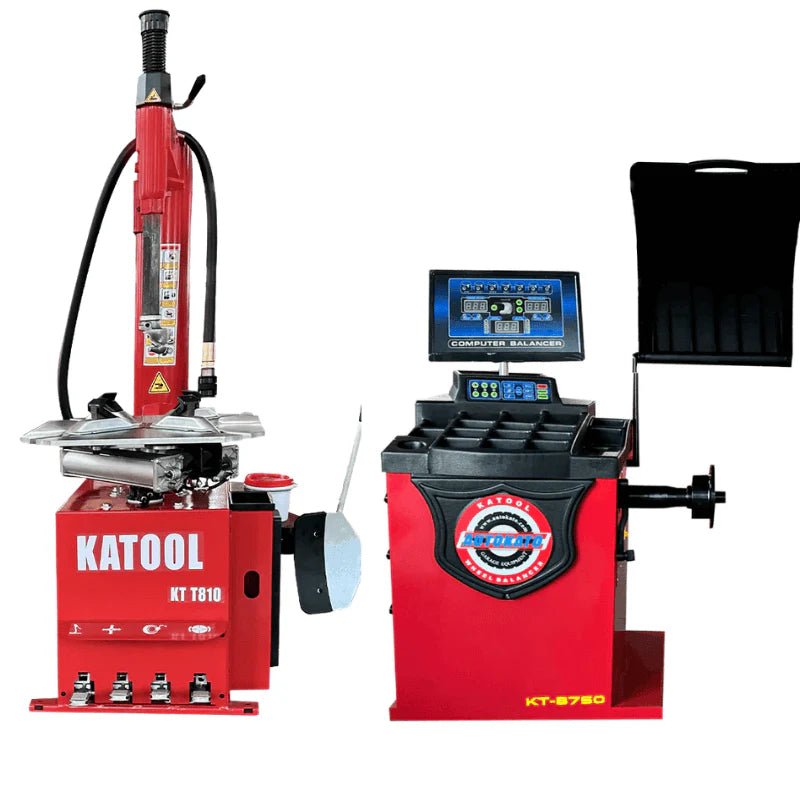

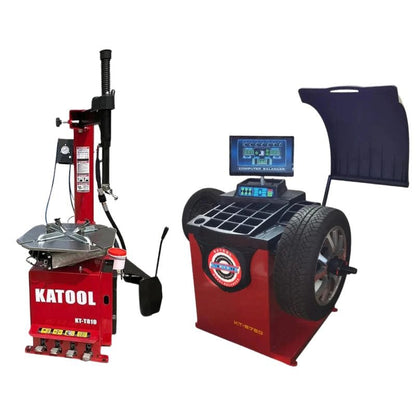

The Katool KT-T810 and KT-B750 tire changer and balancer combo pairs a swing arm tire changer with an automatic measurement wheel balancer for complete tire service, handling wheels up to 41 inches with 120V single phase power, ±1g balancing accuracy, and 7 second cycles.
Complete Tire Service Solution
This tire changer and balancer combo pairs a 41 inch swing arm tire changer with an automatic measurement balancer (7 second cycles). The system packages both functions with coordinated 120V power and unified 12 month warranty coverage.
The KT-T810 and KT-B750 deliver 41 inch wheel capacity, standard electrical compatibility, and ±1g precision balancing. This tire changer wheel balancer combo sits between entry level 26 to 30 inch systems and premium three phase commercial equipment.
Best Tire Changer and Balancer Combo: Buying Guide
How to Choose the Right Tire Machine Combo
Entry level units max out at 26 to 30 inch wheels (passenger cars only). Mid range systems like the KT-T810 extend to 41 inches (light trucks and performance vehicles). Premium systems reach 47+ inches but require three phase power.
The best tire changer and balancer combo depends on customer mix. Shops serving mainly passenger cars with occasional SUV or truck service benefit from 41 inch capacity.
Tire Machine and Wheel Balancer Combo vs Separate Units
Factory matched systems offer coordinated power requirements (both run on same electrical service), lower cost than separate units, and single manufacturer warranty and support.
For most shops, coordinated specifications outweigh separate selection flexibility.
Key Specifications for Tire Changer Combo Selection
Wheel Diameter Capacity: This system handles 41 inches (covers passenger cars, SUVs, light trucks, performance vehicles). Passenger car focused shops can use 30 to 35 inches. Commercial facilities need 47+ inches.
Balancing Precision: ±1g precision prevents vibration comebacks. Entry level balancers at ±5g often require multiple attempts.
Power Requirements: Single phase 120V eliminates electrical upgrade costs that 220V or three phase systems require.
Cycle Time: 7 seconds processes 8 to 10 wheels hourly. Slower 15 to 30 second systems reduce throughput significantly.
Tire Changer and Balancer Combo for Sale: What to Look For
Professional systems range from basic 26 inch capacity units to premium three phase commercial equipment. Mid range packages like the KT-T810 and KT-B750 balance capacity and power requirements.
When comparing listings, verify included accessories (bead seaters, rim protection, automatic measurement). Budget systems often exclude these items.
Key Features & Benefits
120V Single Phase Operation

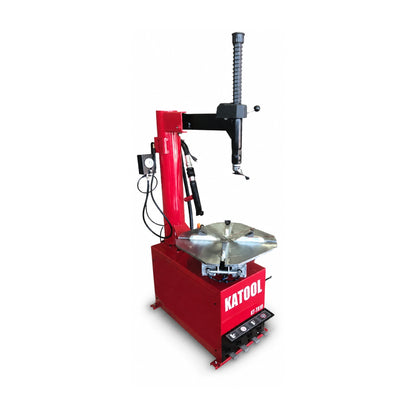

Both the KT-T810 and KT-B750 operate on standard 120V single phase power, eliminating 3 phase electrical infrastructure. The KT-T810's 2.0HP motor provides performance while the KT-B750's 0.25kW motor delivers precision balancing from standard electrical outlets.
Where traditional professional equipment requires expensive 3 phase power installation, this tire machine combo provides commercial grade capabilities using standard household style electrical connections.
Install in virtually any location without electrical contractor costs or facility rewiring.
Extended Clamping Range

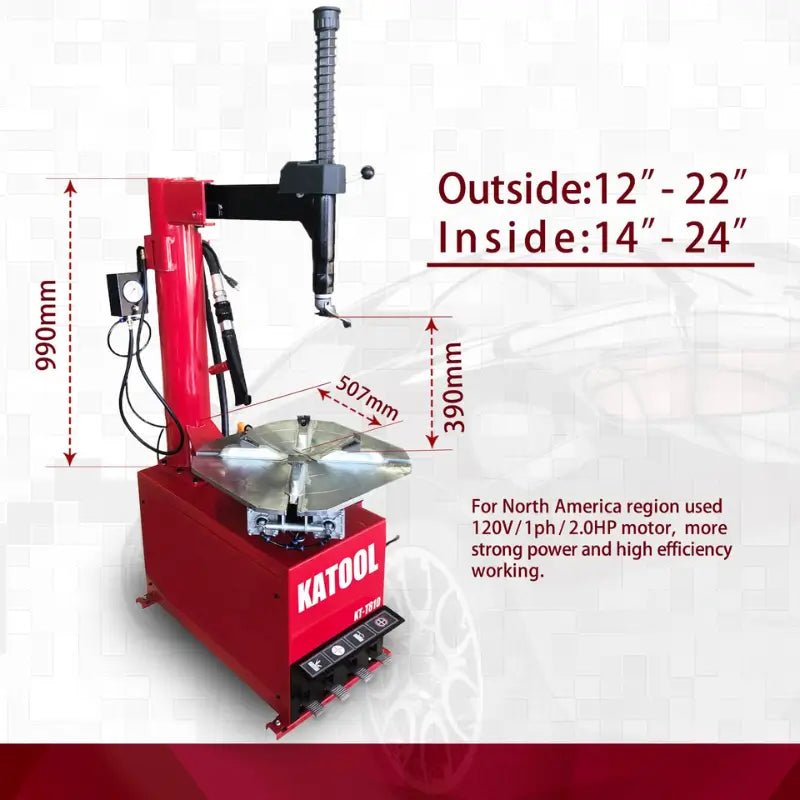

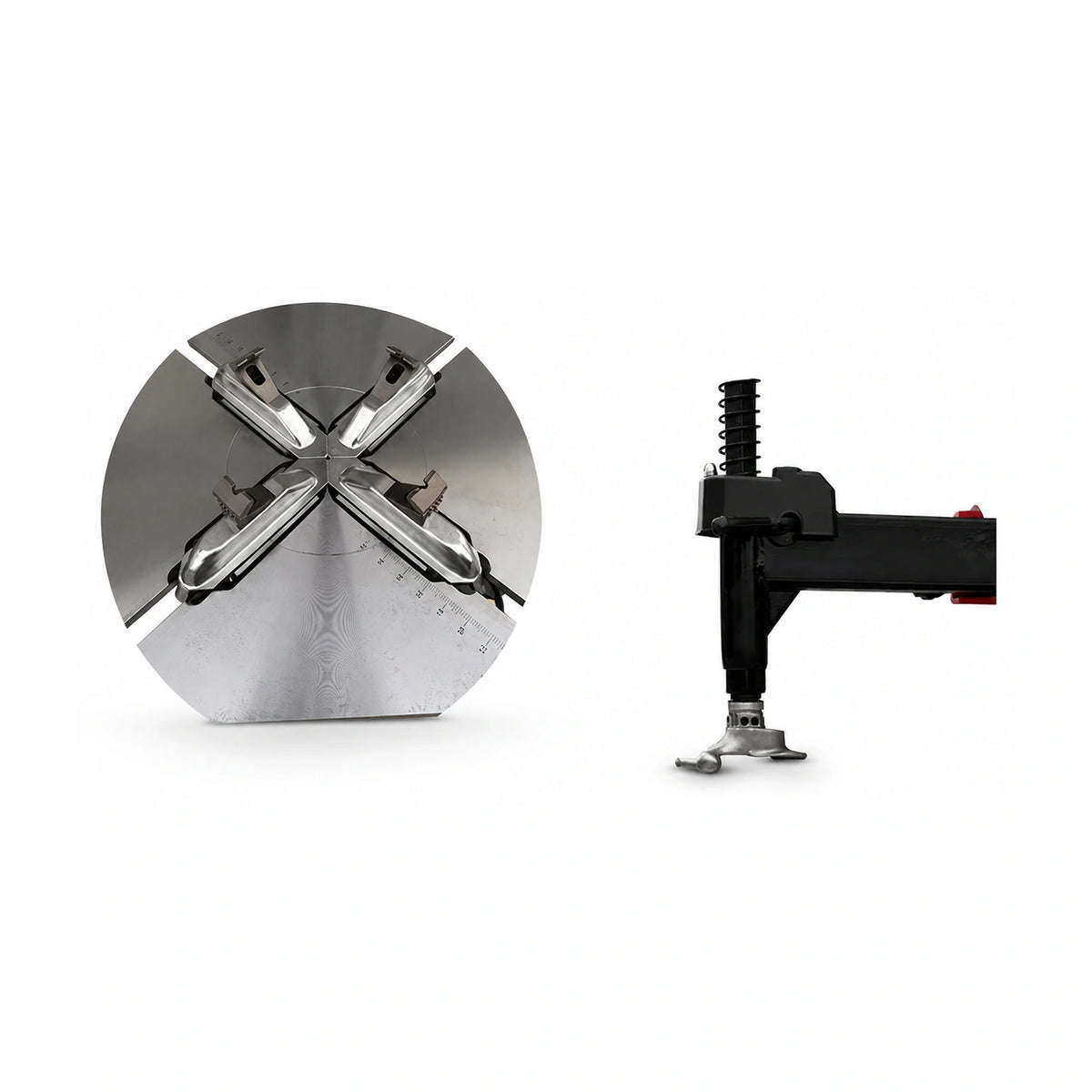

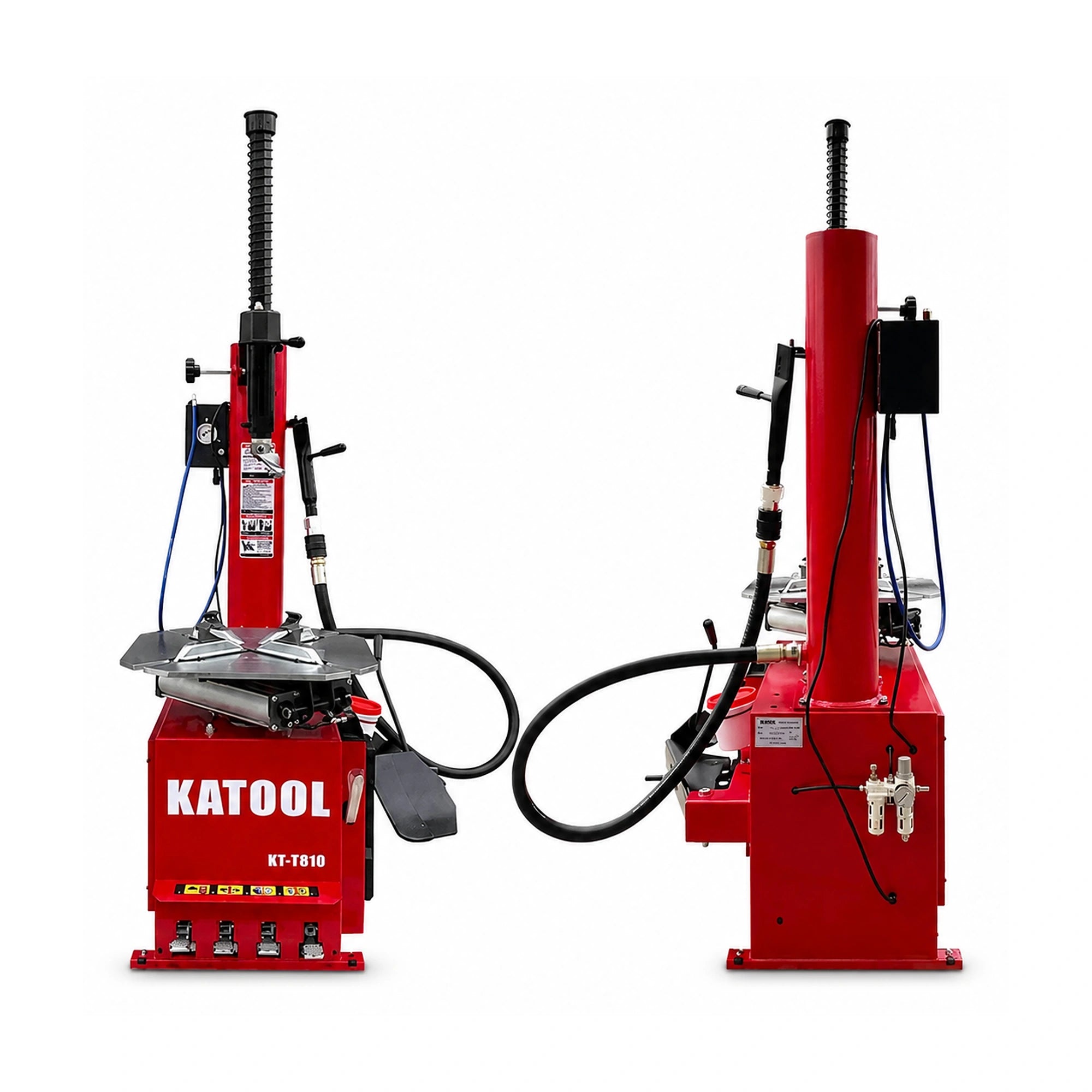

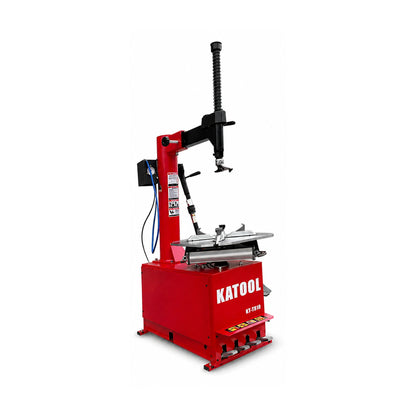

The KT-T810 features 14 to 24 inch inside clamp capacity and handles wheels up to 41 inch diameter. The carburized alloy steel jaws deliver secure clamping force with 3mm steel body construction for durability.
Where many entry level tire changers max out at 20 to 22 inch inside clamp range, this tire changing machine combo extended capacity addresses growing demand for oversized wheel service.
Eliminate need to turn away customers with large wheels or invest in multiple machines.
7 Second Balancing Cycles

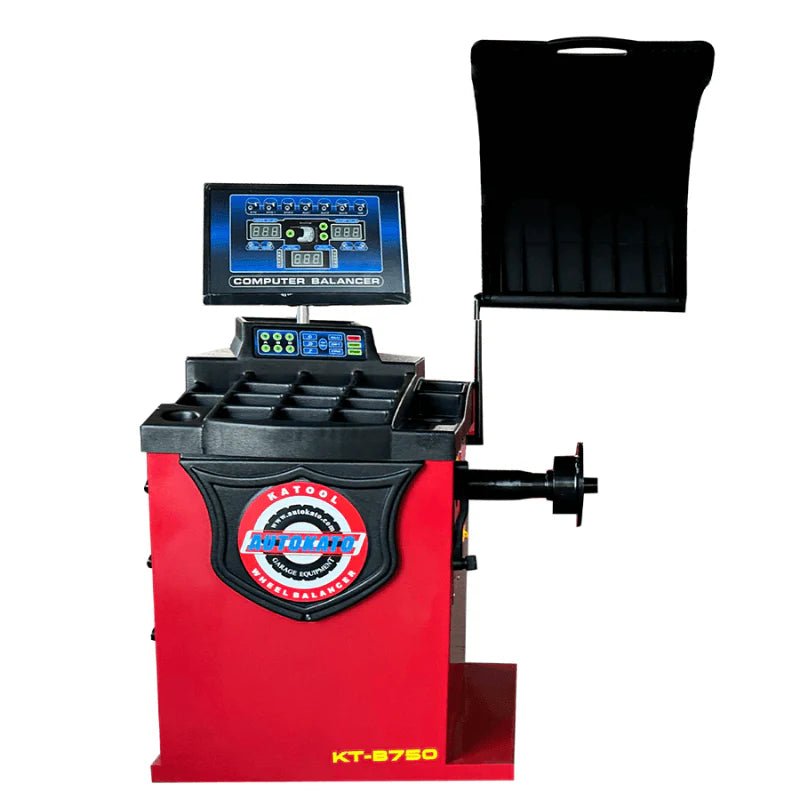

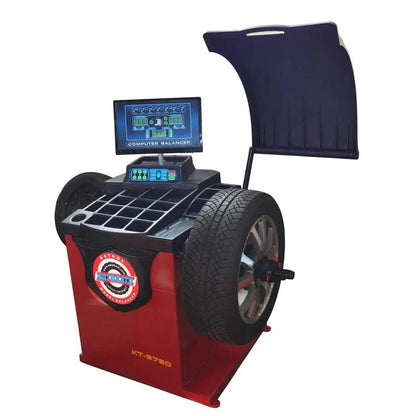

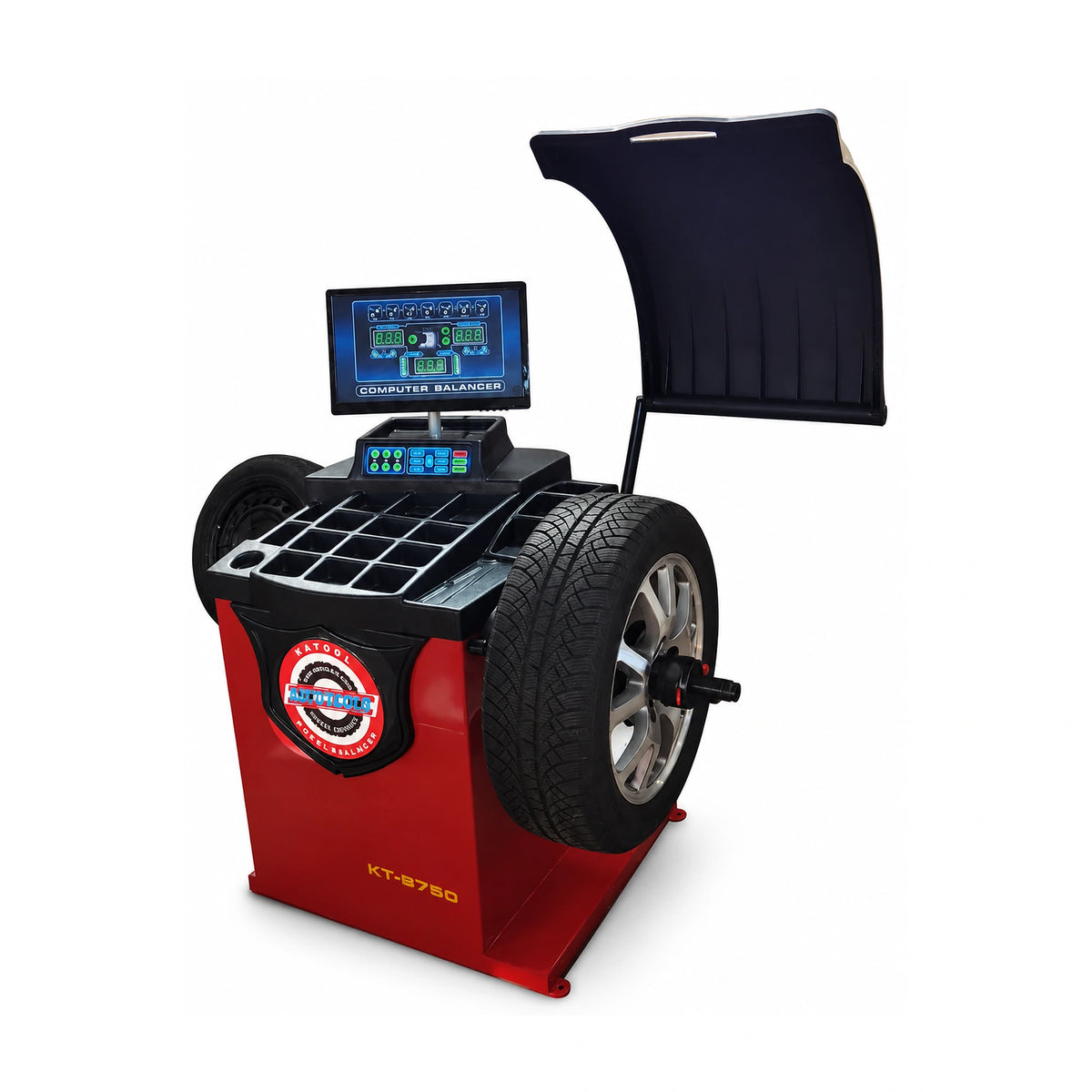

The KT-B750 delivers ±1g accuracy with 7 second measurement cycle at 180 RPM. The automatic measurement system with built in fault diagnosis provides consistent results while moisture proof, dustproof computer board ensures reliable operation.
Where basic balancers require 15 to 30 seconds per measurement and lack automatic features, rapid cycle time becomes critical in high volume operations.
Process more vehicles per day while maintaining professional grade precision.
Heavy Duty Construction

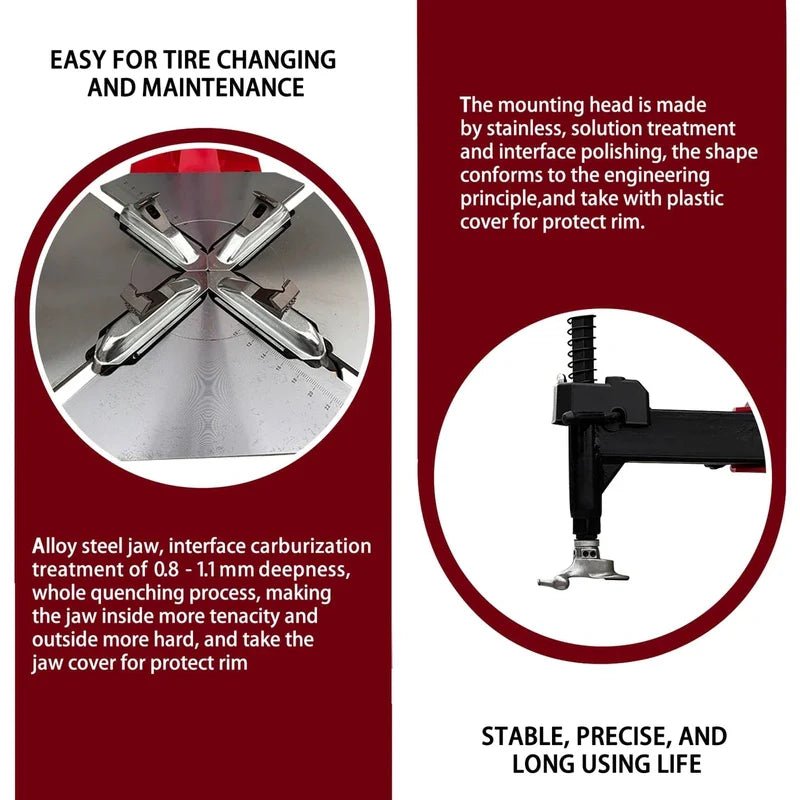

Both machines feature 3mm steel body construction with the KT-T810 using carburized alloy steel jaws and stainless steel mounting head. The KT-B750 includes sensor stability plates and composite slash guard protection.
Where value oriented competitors use standard steel construction without carburization treatment, heavy duty materials maintain precise tolerances after thousands of tire changes.
Reduce long term maintenance costs while ensuring consistent performance throughout equipment service life.
Integrated Bead Blasting

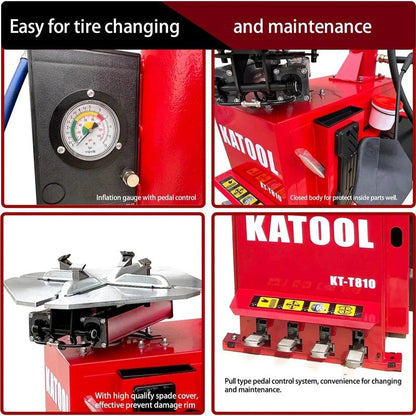

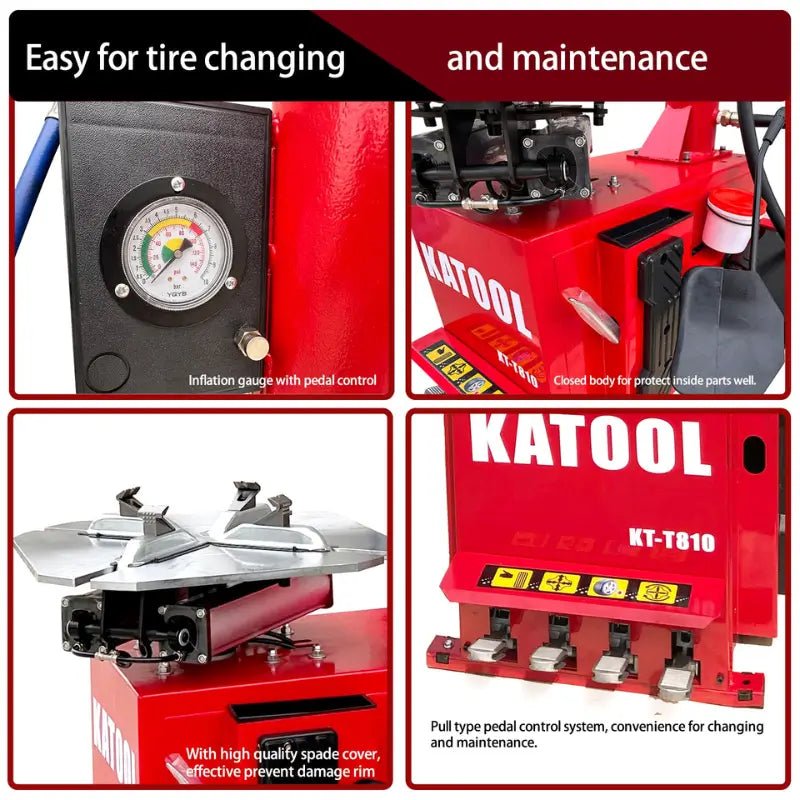

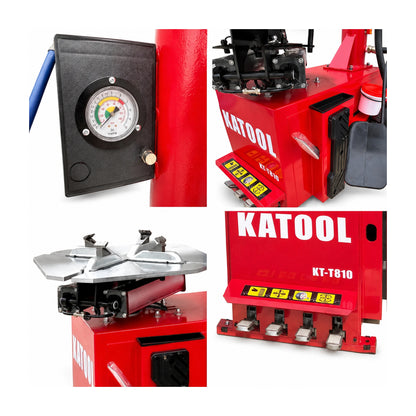

The KT-T810 includes built in bead blast seater head with post tank and pedal controlled inflation gauge, eliminating separate bead seating equipment. The system operates within 116 to 145 PSI air pressure range with dedicated controls.
Where traditional setups require separate bead blasters or inflation equipment, integrated approach saves floor space while providing instant access to bead blasting.
Consolidate tire changing and bead seating into single workstation.
Automatic Measurement Features

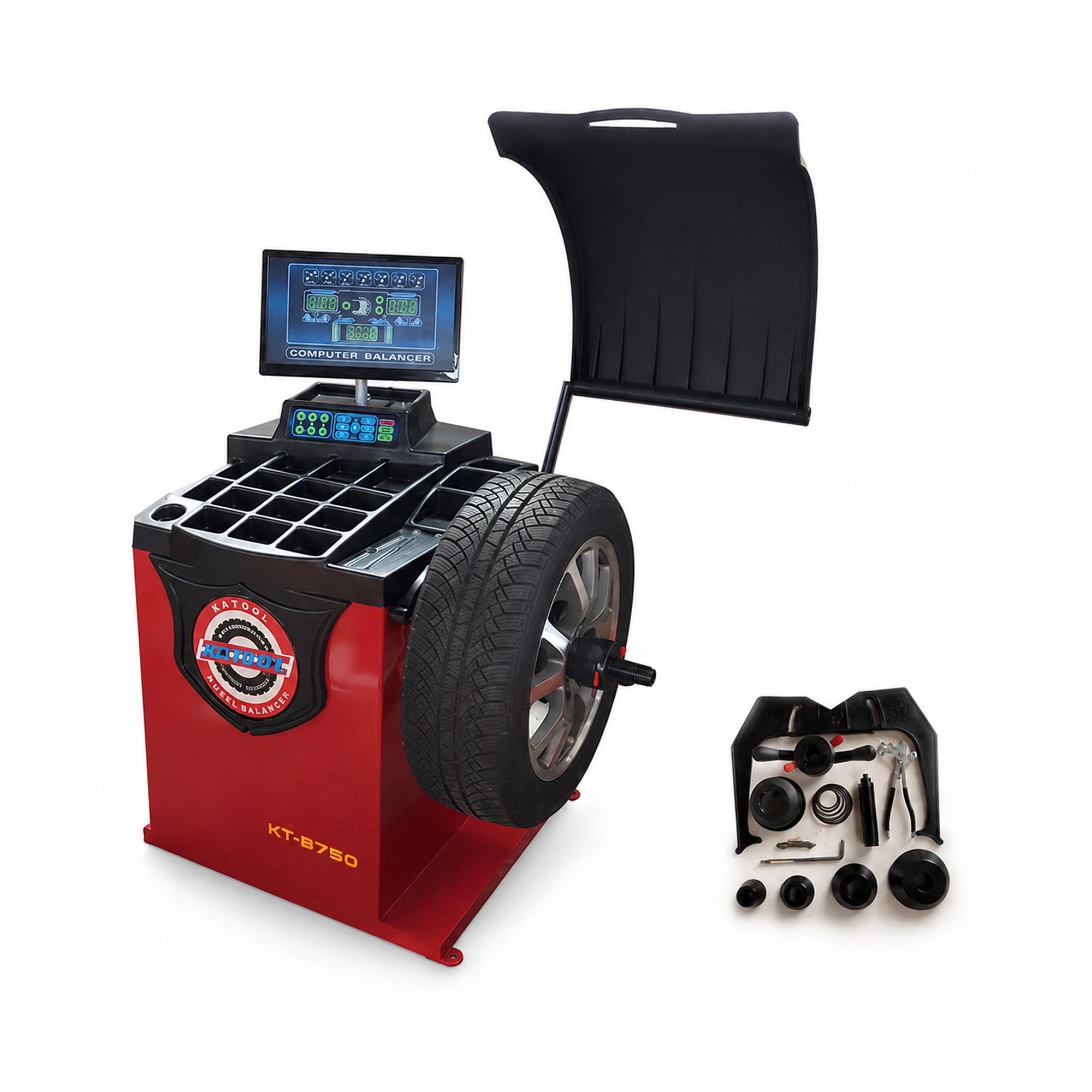

The KT-B750 includes automatic measurement ruler, built in fault diagnosis, and self calibration capabilities. The system handles wheels up to 65kg (143 lbs) with automatic detection of wheel dimensions and imbalance locations.
Where manual systems require technicians to input wheel data for each wheel, automatic detection eliminates measurement errors and calculates optimal weight placement.
Reduce rework and improve first pass success rates.
Product Demonstration
Applications & Use Cases
- Passenger Car Tire Service: Standard and low profile tire applications with a tire changer combo for compact cars, sedans, and coupes
- Light Truck and SUV Applications: Tire service for pickup trucks, SUVs, and crossover vehicles with a tire machine and balancer combo
- Professional Automotive Service Centers: Commercial tire service operations with a tire changer and balancer combo for daily high volume changing and balancing
- High Volume Tire Service Operations: Busy tire shops and service centers where fast cycle times and precision balancing improve throughput
- Advanced Home Garage Setups: Serious automotive enthusiasts requiring professional grade equipment for personal tire service
Technical Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41" (1,040mm) |
| Max Wheel Width | 15" (380mm) |
| Outside Clamp Range | 12"-22" |
| Inside Clamp Range | 14"-24" |
| Motor Power | 2.0HP / 1.5kW |
| Power Supply | 120V, single-phase |
| Rotation Speed | 6.8 RPM |
| Air Pressure Requirement | 116-145 PSI (0.8-1.0 MPa) |
| Net Weight | 410 lb (186kg) |
| Specification | Value |
|---|---|
| Rim Diameter Range | up to 30" |
| Max Wheel Diameter | up to 880mm (~34.6") |
| Wheel Width Capacity | up to 15" |
| Max Wheel Weight | 143 lb (65kg) |
| Balancing Accuracy | ±1g |
| Measuring Time | 7 seconds |
| Balancing Speed | 180 RPM |
| Power Supply | 120V, single-phase |
| Motor Power | 0.25kW |
Installation Requirements
Power Requirements
- Electrical Supply: 120V single phase electrical supply for both units
- KT-T810 Motor: 2.0HP / 1.5kW motor specification
- KT-B750 Motor: 0.25kW motor specification
Air Supply Requirements
- Operating Pressure: 116 to 145 PSI (0.8 to 1.0 MPa) continuous supply
- Air Quality: Clean, dry compressed air recommended
- Connection: Standard air fitting compatible with shop air systems
Foundation and Clearance
- Floor Surface: Level concrete floor recommended for optimal operation
- Clearance: Adequate clearance for 41 inch wheel swing radius
- Workspace: Sufficient space around both units for safe operation and maintenance access
Product Manuals & Documentation
KT-T810 Tire Changer Manual
Installation, Operation & Maintenance: Comprehensive manual covering setup procedures, operational guidelines, safety protocols, and maintenance schedules for the KT-T810 tire changer.
KT-B750 Wheel Balancer Manual
Operation Manual: Complete operational guide covering wheel balancer setup, calibration procedures, measurement protocols, and operational best practices for the KT-B750.
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to continental U.S. only. Free shipping to commercial addresses.
Residential Delivery: Residential delivery incurs additional charges with liftgate service available for additional fee.
Delivery Requirements
Unloading Equipment: Forklift recommended for safe unloading (buyer responsible for unloading).
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
12 Month Parts Warranty
KT-T810: Parts warranty on tire changer including mechanical components and motor
KT-B750: Parts and electronics warranty on wheel balancer including computer board and sensors
Extended Coverage: Optional extended warranty available through authorized dealers
Ready to Upgrade Your Tire Service?
Get expert guidance on the right tire service equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and components.
Frequently Asked Questions
What is the maximum wheel size capacity of the KT-T810 tire changer?
The KT-T810 tire changer combo handles wheels up to 41 inches diameter with 15 inch maximum width capacity. The inside clamp range spans 14 to 24 inches while outside clamp range covers 12 to 22 inches, providing coverage for passenger car and light truck applications.
What components are included with the Katool KT-T810 and KT-B750 combo?

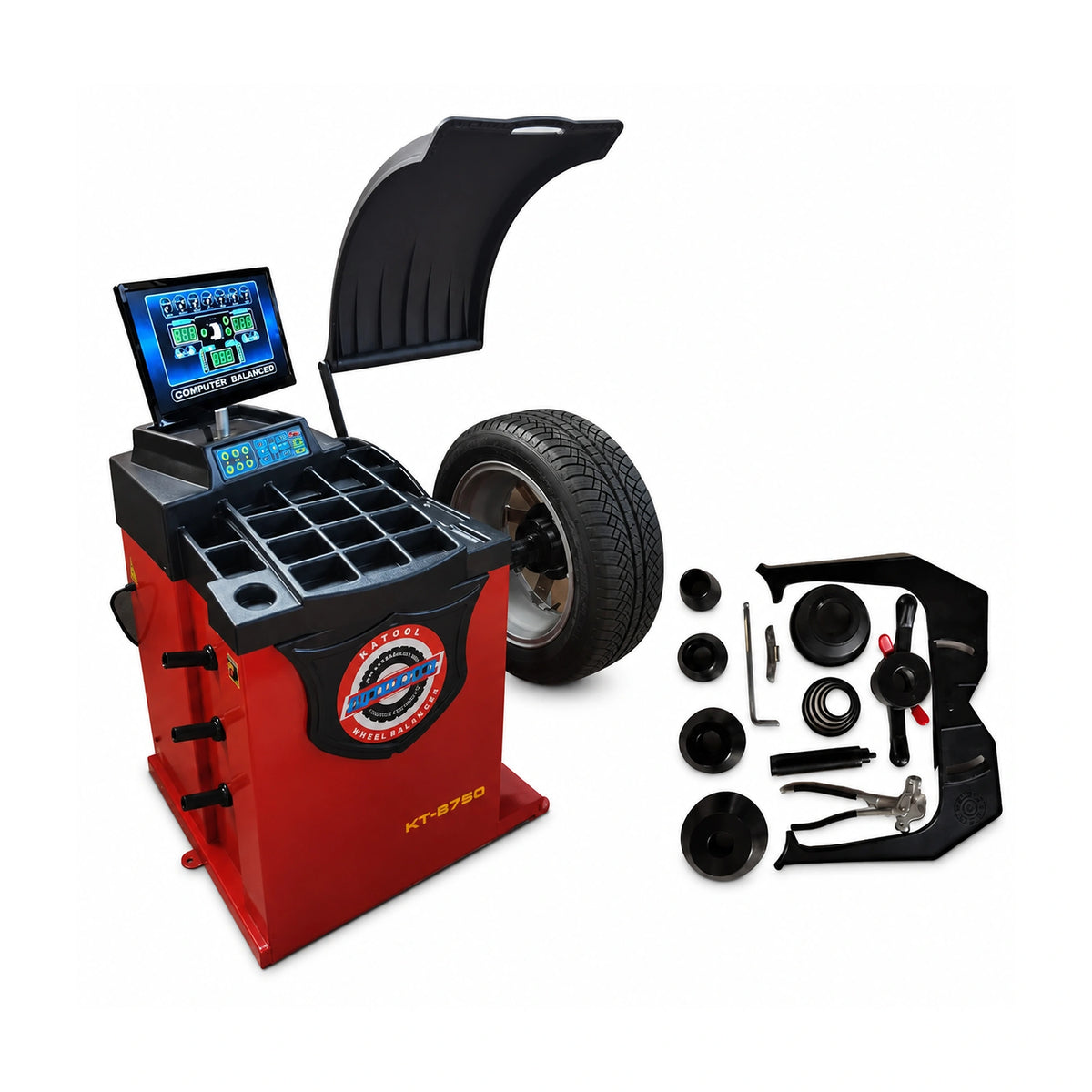

The combo includes KT-T810 tire changer with alloy steel jaws, plastic rim covers, stainless steel mounting head, and bead blast seater head with post tank. The KT-B750 balancer includes automatic measurement ruler, composite slash guard, and safety guards with 3mm steel body construction.
What are the electrical requirements for the KT-T810 and KT-B750?
Both machines operate on standard 120V single phase power. The KT-T810 features a 2.0HP (1.5kW) motor while the KT-B750 uses a 0.25kW motor. No 3 phase electrical installation required, allowing connection to standard electrical outlets.
What air pressure is required for the KT-T810 tire changer operation?
The KT-T810 requires 116 to 145 PSI (0.8 to 1.0 MPa) continuous air supply for proper operation including pneumatic clamping system and integrated bead blast seater functionality. Clean, dry compressed air recommended for optimal performance.
How accurate is the KT-B750 wheel balancer and how fast does it measure?
The KT-B750 provides ±1g balancing accuracy with 7 second measurement cycle at 180 RPM balancing speed. It features automatic measurement capabilities with built in fault diagnosis and can handle wheels up to 143 pounds (65kg).
What type of vehicles can be serviced with this tire changer and balancer combo?
This tire changer and balancer combo is suitable for passenger cars, light trucks, and SUVs within specified capacity limits. It handles standard and low profile tires for compact cars, sedans, pickup trucks, and crossover vehicles up to 41 inch wheel diameter and 143 pound wheel weight.
What warranty coverage is provided with the Katool KT-T810 and KT-B750?
Both machines include 12 month parts warranty coverage. The KT-T810 tire changer warranty covers mechanical components and motor, while KT-B750 includes parts and electronics warranty covering computer board and sensor systems. Extended warranty options available through authorized dealers.
How is the equipment shipped and what are the delivery requirements?
Equipment ships via freight to continental U.S. with free shipping to commercial addresses. Residential delivery incurs additional charges. Forklift recommended for unloading as buyer responsible for unloading. Liftgate service available for additional fee for locations without loading dock.
