Katool KT-T810 + KT-B700 – Tire Changer + Wheel Balancer (Combo)
Katool KT-T810 & KT-B700 Tire Changer and Balancer Combo for Sale

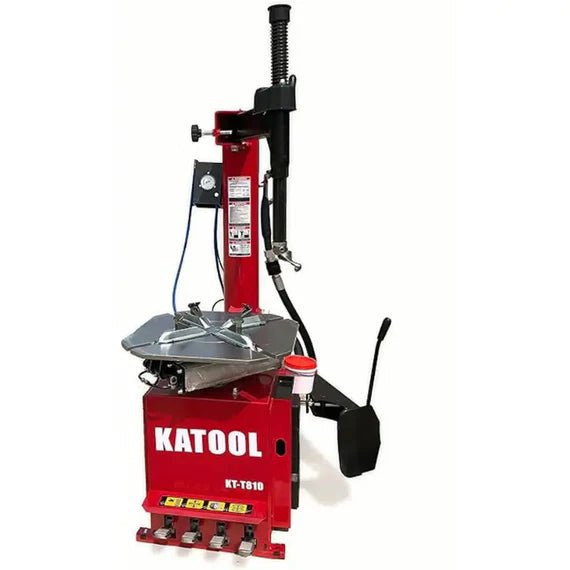

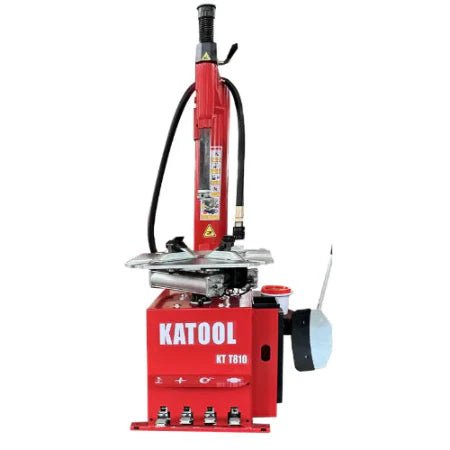

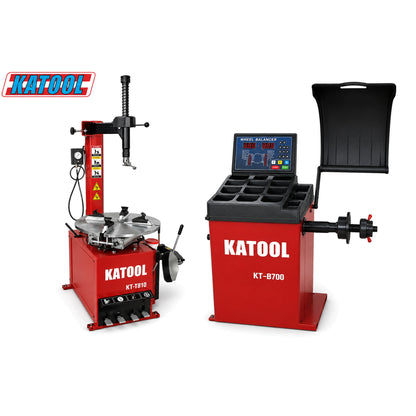

The Katool KT-T810 & KT-B700 tire machine and balancer combo pairs a 2.0 HP swing-arm tire changer with an automatic wheel balancer for passenger car, SUV, and light-truck service. This tire changer combo handles wheels up to 41 inches in diameter with 12-22 inch clamping range, while the KT-B700 delivers ±1 g accuracy in 7 seconds. Both units run on 120V single-phase power for straightforward installation in pro shops and serious home garages.
Key Features & Benefits
Carburized Alloy Steel Jaw System
The KT-T810's alloy steel jaws feature 0.8-1.1 mm carburization depth with full quenching treatment, creating hardened surfaces that resist wear from repeated clamping. Each jaw includes protective covers to prevent rim damage, while the stainless mounting head comes with a plastic protective sleeve. Traditional tire changers use basic steel jaws without advanced heat treatment, leading to premature wear and increased risk of rim scratching during high-volume operation. This carburization process enables safer wheel service for modern alloy rims by combining structural strength with surface protection, maintaining consistent clamping force over thousands of tire changes.
Pure Copper Motor Winding
Both the KT-T810 tire changer and KT-B700 wheel balancer use motors with pure copper winding construction, delivering faster heat dissipation and lower defect rates compared to aluminum-wound alternatives. The tire changer's 2.0 HP / 1.5 kW motor operates at 6.8 RPM, while the balancer's 0.25 kW motor achieves 180 RPM. Standard imported tire service equipment often uses aluminum windings to reduce costs, resulting in overheating during continuous operation and shorter motor lifespan. This tire changing machine combo improves operational uptime by preventing premature motor failure, with superior heat dissipation maintaining consistent performance during high-volume seasonal tire changeover periods.
Structural Stability Design

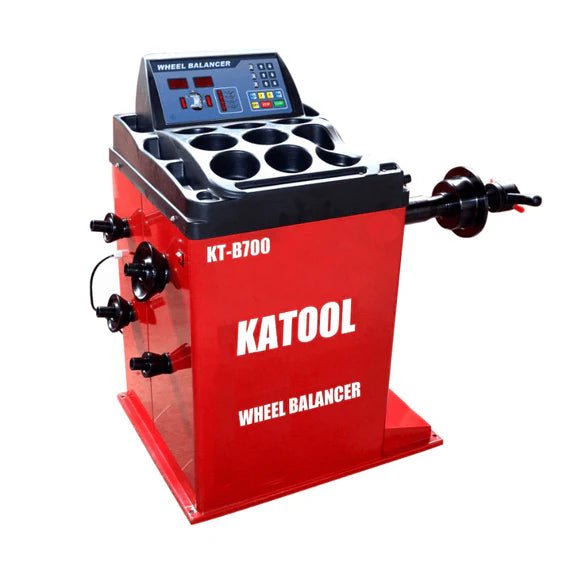

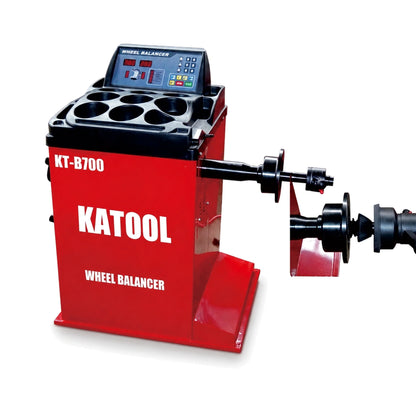

The KT-B700 wheel balancer features a 3 mm-thick high-strength steel cabinet with fully welded construction, plus pressure sensor support built from 8 mm-thick bottom and side plates. The 36 mm diameter shaft uses quenched thread treatment for strength and longevity. Many competing balancers in this price range rely on thinner gauge steel that introduces flex and vibration during high-speed spin cycles. This tire changer wheel balancer combo enables consistent balancing precision by minimizing structural flex, while the moisture-proof, dust-proof, anti-static electronic control board protects measurement accuracy in typical shop environments.
Self-Calibration and Fault Diagnosis
The KT-B700 includes built-in fault diagnosis and self-calibration with double-side calibration programming that requires no stored parameters. This automated system continuously monitors sensor performance and calibrates measurement accuracy without operator intervention, maintaining the published ±1 g accuracy throughout the machine's service life. Traditional wheel balancers require periodic manual calibration using calibration weights and multi-step procedures, creating downtime and requiring technician training. This best tire changer and balancer combo reduces maintenance complexity and eliminates guesswork from accuracy verification, alerting operators when the system detects sensor drift.
Pneumatic System Protection

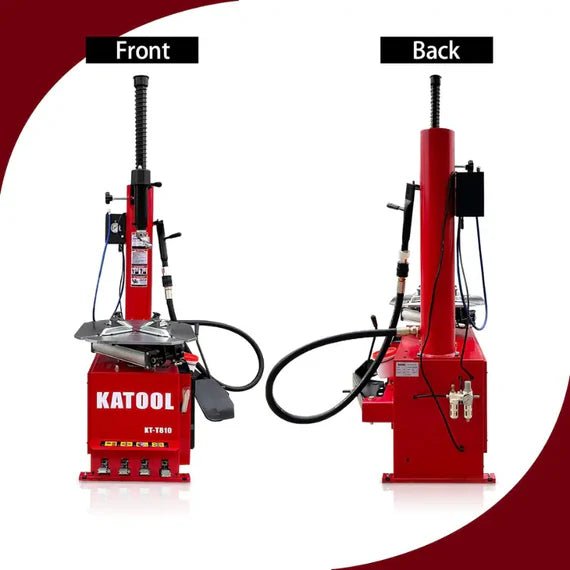

The KT-T810 tire changer includes a high-quality air filter and lubricator unit designed to protect pneumatic components from moisture, particulate contamination, and inadequate lubrication. Operating at 0.8-1.0 MPa (116-145 psi), the pneumatic system powers clamping, bead breaking, and bead seating functions. Compressed air in automotive shops often contains water vapor, oil carryover, and rust particles that damage cylinder seals, valves, and actuators without proper filtration. This tire machine and balancer combo for sale extends pneumatic system reliability by keeping internal components clean and properly lubricated, maintaining full bead-breaker force throughout the machine's service life.

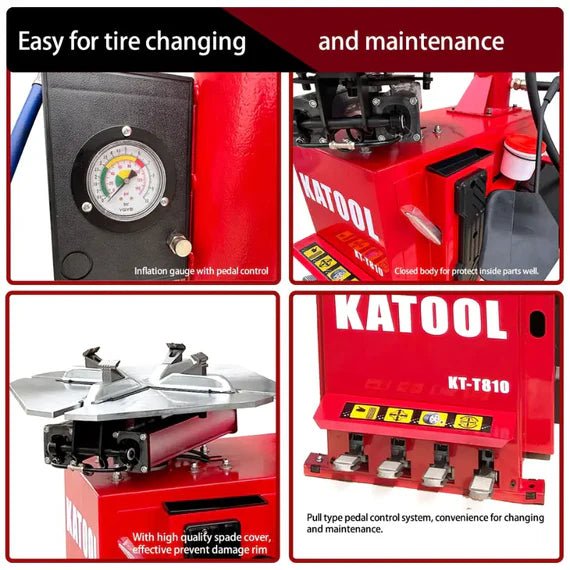

Closed Body Design
The KT-T810 features a closed body cabinet that shields internal mechanical and electrical components from shop environment exposure, protecting drive mechanisms, electrical connections, and pneumatic routing from tire debris, water splash, and accidental impact. Open-frame tire changers expose critical components to shop floor contaminants, increasing wear on moving parts and creating electrical short risks when moisture contacts wiring. This tire changer balancer combo improves machine longevity and reduces contamination-related failures by creating a protective barrier around vulnerable systems while improving shop appearance by containing mechanical components within a finished cabinet structure.
Product Demonstration
Applications & Use Cases
- Professional Auto Repair Shops: Routine tire replacement and repair for passenger cars, SUVs, and light trucks within the published 41-inch diameter and 15-inch width limits
- Seasonal Tire Changeover Service: High-volume summer and winter tire set changes in small to mid-size automotive shops requiring efficient throughput with ±1 g balancing accuracy
- Independent Tire Service Centers: Wheel balancing operations where fast 7-second measuring cycles and precise ride-quality results are important for customer satisfaction
- Serious Home and Enthusiast Garages: Advanced DIY facilities requiring 120V equipment rather than 220V industrial units, suitable for personal vehicle maintenance and hobbyist projects
Technical Specifications
| Specification | Value |
|---|---|
| Max Wheel Diameter | 41 inches (1,040 mm) |
| Max Wheel Width | 15 inches (380 mm) |

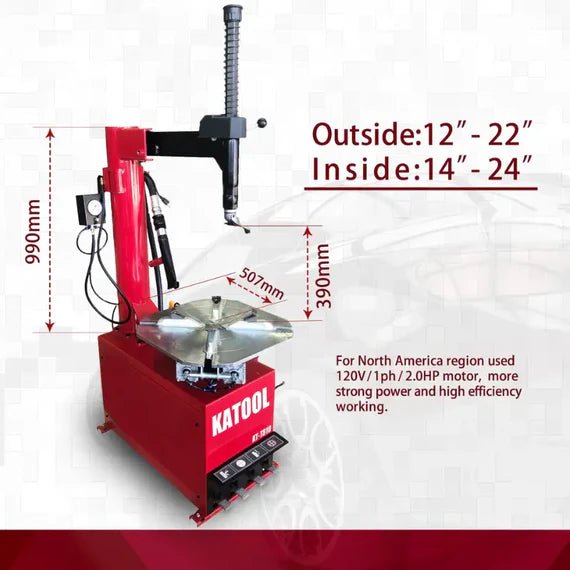

| Outside Clamping Range | 12-22 inches |
| Inside Clamping Range | 14-24 inches |
| Power Supply | 120V, single-phase |
| Motor Power | 2.0 HP / 1.5 kW |
| Rotation Speed | 6.8 RPM |
| Working Air Pressure | 0.8-1.0 MPa (116-145 psi) |
| Net Weight | 410 lb (186 kg) |
| Specification | Value |
|---|---|
| Rim Diameter Capacity | Up to 30 inches |
| Wheel Width Range | 3-12 inches |
| Overall Wheel Diameter | Up to 880 mm (34.6 inches) |
| Max Wheel Weight | 143 lb (65 kg) |
| Balancing Accuracy | ±1 g |
| Balancing Speed | 180 RPM |
| Measuring Time | 7 seconds |
| Power Supply | 120V, single-phase |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | Up to 135 mm |
Installation Requirements
Power Requirements
- Voltage: 120V, single-phase for both KT-T810 tire changer and KT-B700 wheel balancer
- Tire Changer Motor: 2.0 HP / 1.5 kW
- Wheel Balancer Motor: 0.25 kW
- Circuit Requirements: Verify electrical circuit amperage capacity with manufacturer or installation manual to ensure adequate power delivery
Compressed Air Requirements
- Working Pressure: 0.8-1.0 MPa (116-145 psi) for tire changer pneumatic systems
- Air Quality: Clean, dry compressed air required for clamping, bead breaking, and bead seating operations
- Filter and Lubricator: Integrated air filter and lubricator unit protects pneumatic components from moisture and contaminants
- Compressor Capacity: Adequate CFM output required to maintain pressure during continuous operation; confirm specifications with manufacturer
Installation Notes
- Footprint and Clearance: Installation footprint dimensions and clearance requirements not consistently published; obtain from manufacturer or installation manual for facility planning
- Floor Surface: Level, stable floor surface recommended for optimal operation and measurement accuracy
- Permits: Verify local code compliance and permit requirements before installation
Model Comparison
| Katool KT-T810 Tire Changer | • Max wheel diameter: 41" (1040 mm) • Max wheel width: 15" (380 mm) • Outside clamp: 12"-22" • Inside clamp: 14"-24" |
• Motor: 2.0 HP / 1.5 kW • Power: 120 V, single-phase • Turntable speed: 6.8 RPM • Air: 0.8-1.0 MPa (116-145 psi) |
• Swing-arm rim clamp tire changer with bead blaster and alloy-steel jaws with protective covers. • Stainless mounting head with protective sleeve for rim-safe operation. • Closed cabinet to protect internal components; 120 V input is friendly to typical shop power. • Broad 12-22" outside clamp range for modern passenger and light-truck wheels. Limitation: No built-in assist tower and 41" max tire diameter, so not ideal for very large or stiff truck/off-road assemblies. |
|---|---|---|---|
| Triumph NTC-950 Tire Changer | • Inside clamp: 16"-28" • Outside clamp: 14"-26" • Max wheel width: 15" • Max tire diameter: 43" |
• Motor: 1.5 HP • Power: 110 V • Bead breaker force: 5,500 lb • Max inflation pressure: 120 psi |
• Stand-alone swing-arm rim clamp changer with bead breaker and bead blast system for car/light-truck work. • Handles up to 43" tires and 28" rims, suitable for general repair shops. • Designed to allow adding one or two helper arms later as the shop grows. Limitation: Ships as a basic machine with no assist arms included and relies on add-on upgrades for heavy, low-profile, or run-flat tires; footprint benefits from being lagged to the floor. |
| Ranger R980XR Tire Changer | • Internal rim clamping: 10"-30" • External rim clamping: 9"-28" • Turntable tire width (mounting): 4"-18" • Max tire diameter: 50" |
• Motor: 3 HP • Power: 220 V (single-phase) • Bead breaker tire width: 1.5"-16" |
• NextGen swing-arm rim clamp changer with TurboBlast bead seating and RimGuard adjustable clamps for up to 30" wheels. • Robust pneumatic bead-breaker and adjustable clamping for a broad range of passenger and light-truck tires. • High-torque drive and heavy-duty construction suited to high-volume shops. Limitation: Requires 220 V and has a larger, higher-cost footprint than KT-T810, which may be overkill for smaller garages focused on standard passenger work. |
Choose the Katool KT-T810 when you need a 120 V swing-arm tire changer with strong 2 HP output and modern 12-22" clamping, but don't require an assist tower or 50" truck capacity. It outperforms alternatives on power-to-price at 120 V and rim-protection focus, making it a great fit for passenger and light-truck tire service in small to mid-volume automotive shops.
| Katool KT-B700 Wheel Balancer | • Rim diameter: up to 30" • Wheel width: 3"-12" • Max wheel diameter: 880 mm (≈34.6") • Max wheel weight: 65 kg (143 lb) |
• Balancing speed: 180 RPM • Measuring time: ~7 s per cycle • Motor power: 0.25 kW • Power: 120 V, single-phase |

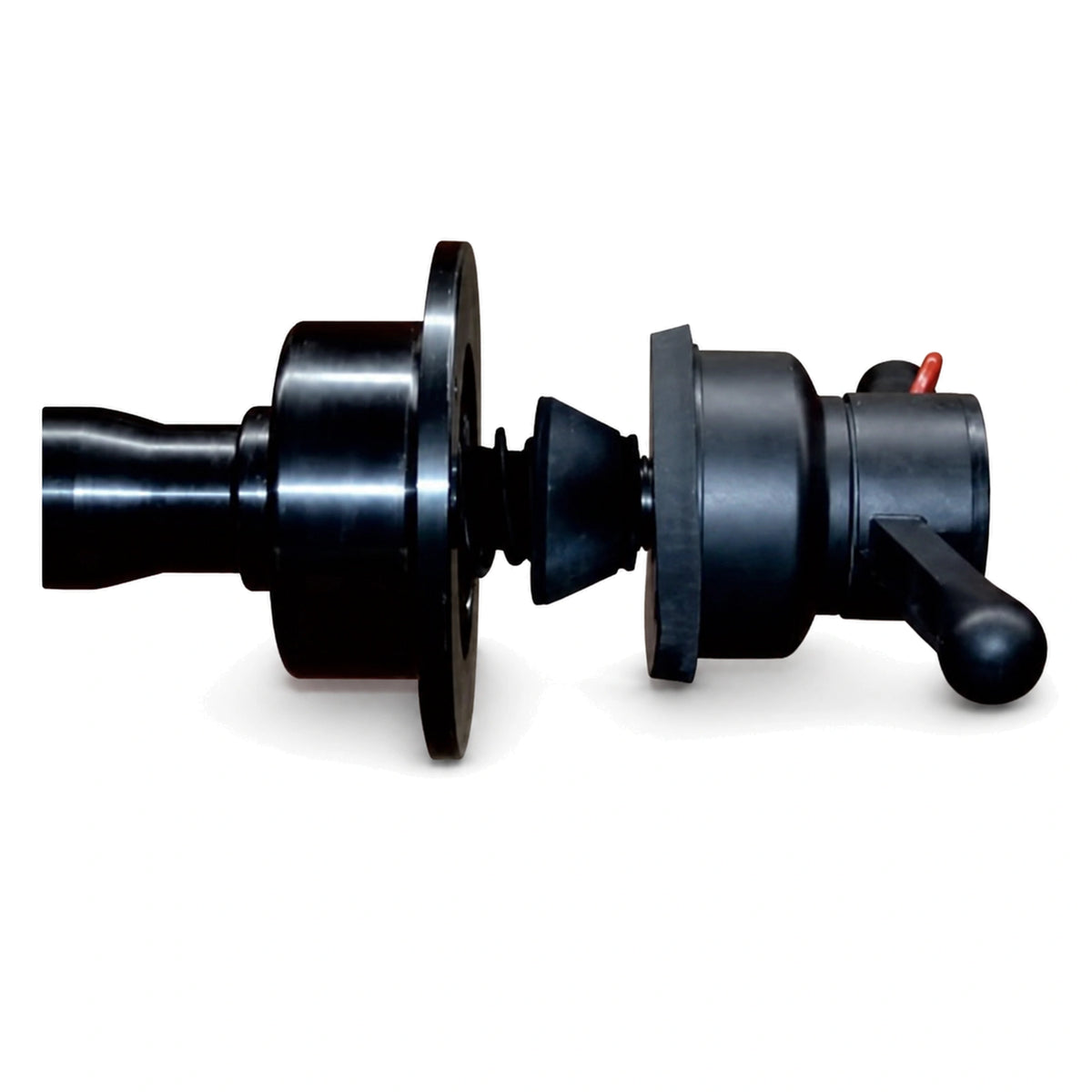

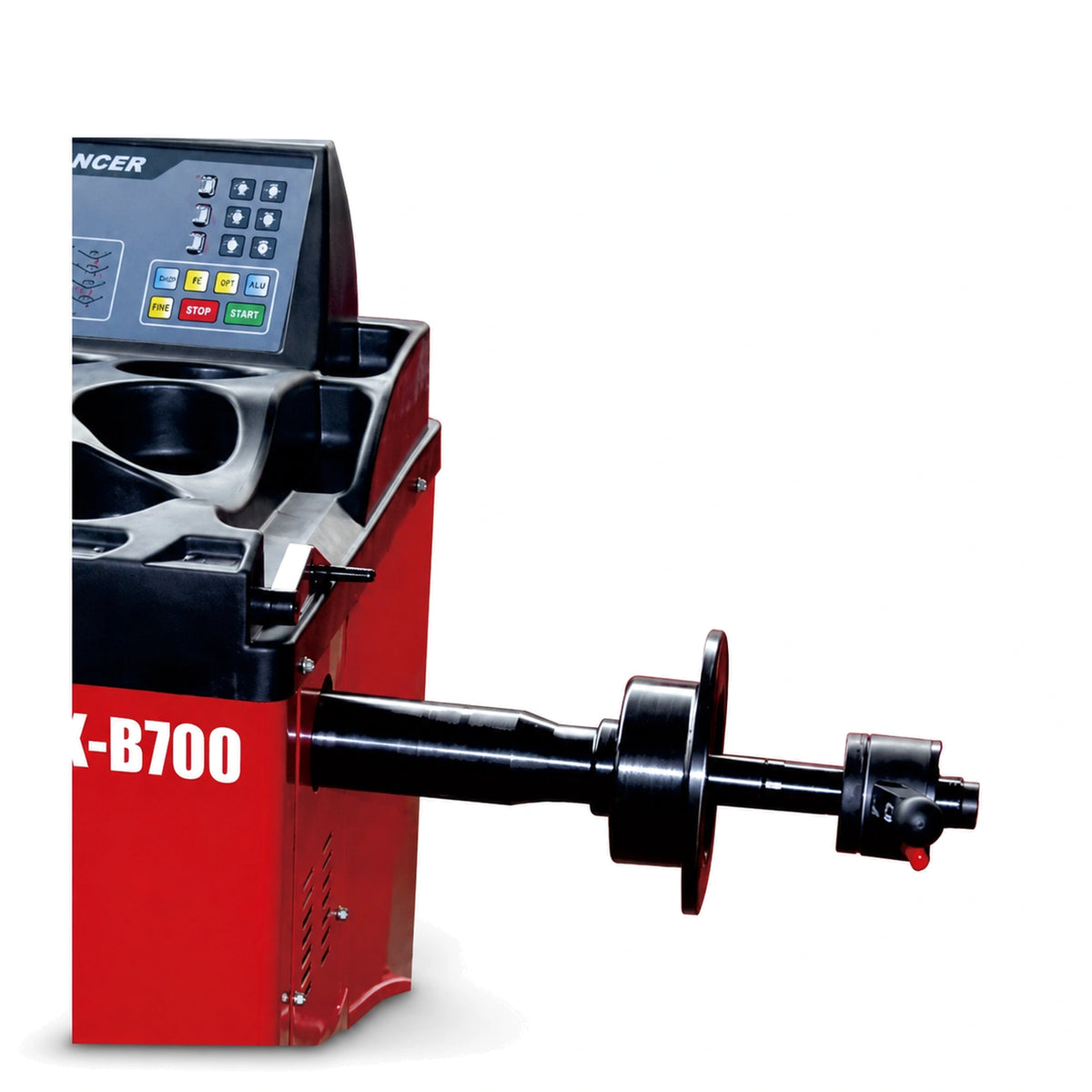

• Electronic balancer with ±1 g accuracy and multiple balance modes for different rim types. • 36 mm shaft and steel cabinet designed for stability and longevity in shop environments. • Self-calibration and diagnostic functions for easier maintenance. Limitation: 65 kg / 34.6" capacity keeps it focused on passenger and light-truck wheels; not suitable for larger commercial truck/bus wheels and has less motor power than some premium 1.5 HP units. |
|---|---|---|---|
| Triumph NTB-800 Wheel Balancer | • Wheel size (rim diameter): 10"-28" • Rim width: 1.5"-20" • Max tire diameter: 44" (1118 mm) • Max wheel weight: 150 lb |
• Cycle time: 6-9 s • Accuracy: ±1 g • Motor: 1/4 HP • Power: 110 V |
• Electronic wheel balancer for cars, SUVs and light trucks with automatic data entry for diameter and offset. • LED display and multiple static/dynamic modes for flexible balancing setups. • Handles larger-diameter tires (up to 44") than KT-B700, with higher max wheel weight. Limitation: Still limited to passenger/light-truck wheels and, compared to KT-B700, may require more floor space; relies on 1/4 HP motor without the integrated combo pairing that KT-B700 has with KT-T810. |
| Ranger DST-2420 Wheel Balancer | • Wheel diameter capacity: 10"-30" • Wheel width: 2"-18" • Max tire diameter: 47" (1194 mm) • Max tire weight: 65 kg (145 lb) |
• Motor: 1.5 HP, 110/220 V, 1-ph • Balancing speed: 180 RPM • Cycle time: 6-9 s • Accuracy: ±1 g |
• Dynamic, static, and multiple alloy modes with Ranger Digital Sensor Technology for high-volume tire stores. • Includes cone package and wheel-weight starter kit; built for continuous shop duty. • Similar diameter and weight range to KT-B700 but with a significantly stronger 1.5 HP drive and richer feature set. Limitation: Larger, heavier and typically more expensive than KT-B700; 1.5 HP platform is over-spec'd for low-volume garages and may demand more power and space than some shops want to allocate. |
Choose the Katool KT-B700 when you want a compact 120 V balancer that matches the KT-T810's capacity, delivers ±1 g accuracy at 180 RPM, and comfortably handles up to 30" passenger/light-truck rims. It outperforms alternatives on simplicity, plug-and-play installation, and tight pairing with the KT-T810 changer, making it the best fit for shops that need complete tire service capability without stepping up to larger 1.5 HP balancers.
Shipping & Delivery
Freight Coverage
Shipping: Units ship via LTL freight within the contiguous United States (lower 48 states). Many offers include free or reduced-cost shipping to commercial addresses; residential or remote deliveries may incur surcharges.
International: Verify international shipping availability and terms directly with the seller, as coverage varies by destination.
Delivery Requirements
Unloading Equipment Required: Buyer is responsible for unloading freight. A forklift or equivalent equipment is strongly recommended at delivery, as carriers generally do not handle offloading for this class of equipment.
Delivery Type: Standard freight delivery to address provided. If initial delivery cannot be completed due to no unloading capability or missed appointment, re-delivery charges typically fall on the buyer.
Receiving: Inspect all packages and equipment for damage before signing the delivery receipt or Bill of Lading. Note any visible damage on BOL before driver departs; failing to note damage can be treated as acceptance in good condition.
Damage Reporting Protocol
Buyers should inspect packaging and equipment for damage prior to signing delivery documentation. Report any concealed damage according to the seller's specific damage reporting timeframe, which typically ranges from 15 to 30 days after delivery. Coverage percentages and responsibility for replacement parts and freight costs vary by seller policy and reporting timeframe.
Warranty Coverage
Katool Limited Parts Warranty
12 Months - All Parts (KT-T810): Coverage for cylinders, motors, displays, electronics, and all mechanical components on the tire changer for one year from purchase date.
12-15 Months - All Parts (KT-B700): Wheel balancer coverage varies by sales channel; Katool-controlled pages state 15 months, while some dealers and marketplaces specify 12 months. Verify exact coverage duration with seller at time of purchase.
Extended Coverage Option: Optional paid 2-year extended warranty plan available for Katool automotive equipment through select authorized dealers.
Warranty Requirements
Eligibility: Warranty is parts-only; labor is not included. Valid for original purchaser only and is non-transferable.
Proof of Purchase: Proof of purchase and a valid warranty period are required for all claims. Warranty typically tied to original order number.
Approved Claims: Approved defective parts are shipped at no cost to the customer where explicitly stated by the seller. Replacement part shipping coverage varies by sales channel.
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories with your tire changer combo package.
Frequently Asked Questions
What is the maximum wheel size this tire changer and balancer combo can handle?
The KT-T810 tire changer handles wheels up to 41 inches in diameter and 15 inches in width, with clamping range of 12-22 inches outside and 14-24 inches inside. The KT-B700 balances wheels up to 30 inches rim diameter, 3-12 inches width, and up to 143 lb, making this tire machine and balancer combo suitable for modern passenger car, SUV, and light-truck wheels.
What is the balancing accuracy of this tire changer wheel balancer combo?
The KT-B700 wheel balancer provides ±1 g balancing accuracy with a 180 RPM balancing speed and 7-second measuring time per cycle. It can balance wheels up to 30 inches rim diameter, 3-12 inches width, and up to 143 lb wheel weight. The balancer includes self-calibration and fault diagnosis to maintain accuracy over time in this tire changing machine combo.
Can I run this tire machine and balancer combo on standard 120V power?
Yes, both the KT-T810 tire changer and KT-B700 wheel balancer operate on 120V single-phase power, making them compatible with standard North American shop electrical systems. The tire changer uses a 2.0 HP motor while the balancer uses a 0.25 kW motor. Verify your electrical circuit has adequate amperage capacity for both units in this tire changer machine combo.
What air pressure does this tire changer combo require?
The KT-T810 tire changer requires compressed air at 0.8-1.0 MPa (116-145 psi) working pressure for pneumatic operations including clamping, bead breaking, and bead seating. The machine includes an integrated air filter and lubricator unit to protect pneumatic components. Ensure your shop compressor can maintain this pressure range during continuous operation with this best tire changer and balancer combo.
What types of vehicles can I service with this tire machine and wheel balancer combo?
The KT-T810 and KT-B700 combo is designed for passenger cars, SUVs, and light trucks within the published capacity limits. The tire changer handles up to 41-inch diameter wheels with 15-inch width, while the balancer accommodates up to 30-inch rim diameter wheels weighing up to 143 lb. This makes it suitable for routine tire service, seasonal changeovers, and wheel balancing in small to mid-size automotive shops and serious home garages.
What warranty coverage comes with this tire machine and balancer combo for sale?
The combo includes a parts-only warranty with coverage duration that varies by sales channel. The KT-T810 tire changer typically includes 12 months all-parts warranty. The KT-B700 wheel balancer warranty ranges from 12 to 15 months depending on where purchased. Warranty is non-transferable, valid for the original purchaser only, and requires proof of purchase. Labor is not included. Optional 2-year extended warranty plans may be available through select dealers.
What comes included with this tire changer and balancer combo for sale?

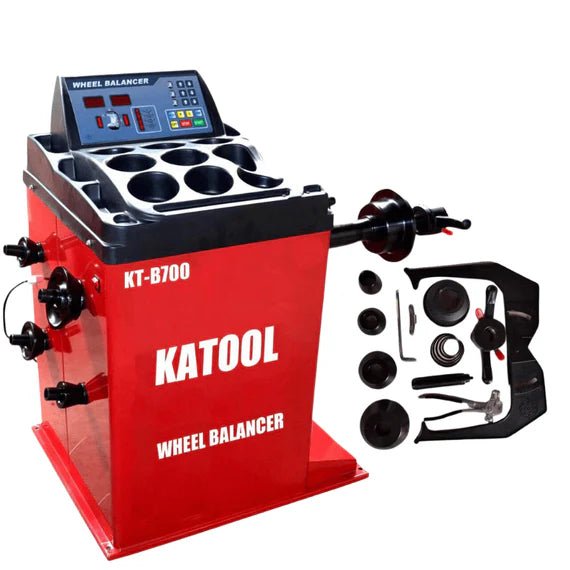

The combo includes the KT-T810 wheel clamp tire changer machine and KT-B700 wheel balancer machine as the verified main components. Accessories such as mounting cones, quick-release nut, calibration weight, tire irons, and rim protectors are typical for this equipment category but are not consistently itemized across all authorized listings. Call to confirm the complete accessory package included with your specific purchase of this tire changer balancer combo.
How is this tire changing machine combo shipped?
Units ship via LTL freight on pallets or in crates within the contiguous United States. Buyer is responsible for unloading the freight; a forklift or equivalent equipment is strongly recommended at delivery as carriers do not typically provide offloading for this equipment class. Inspect all packaging for damage before signing the Bill of Lading. Residential deliveries and remote locations may incur additional surcharges for this tire changer and balancer combo.
