Katool KT-M110 – Two-Post Lift (11,000 lb, Symmetric)
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

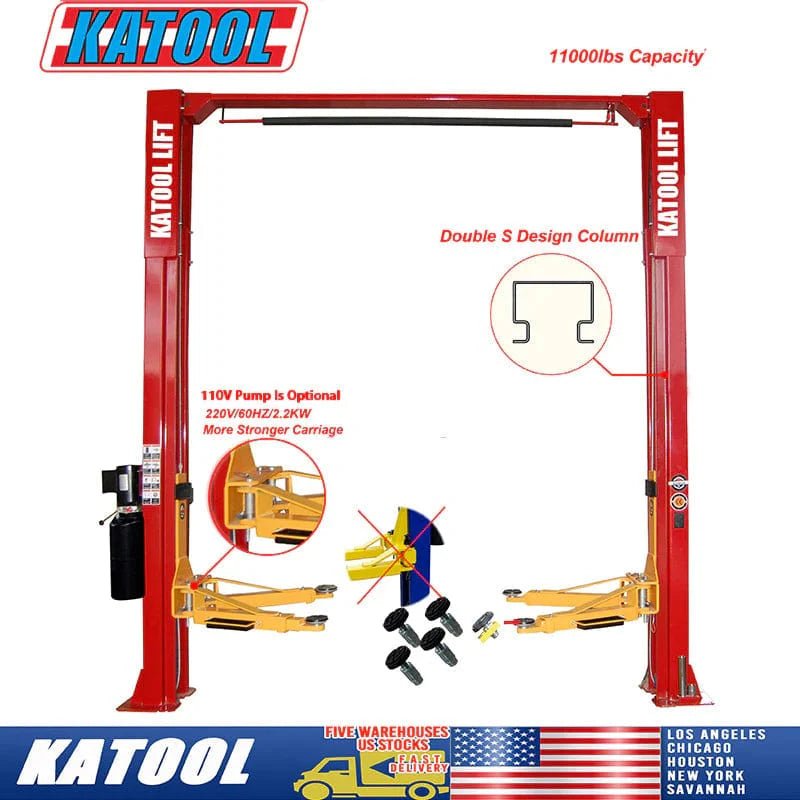

Katool KT-M110 – 11,000 lb Symmetric Two Post Car Lift with Overhead Design
The Katool KT-M110 is an 11,000 lb symmetric two post lift engineered for professional shops and serious home garages. This overhead two post lift features dual hydraulic chain-drive cylinders, 20 mechanical safety lock positions, and 94.5-inch drive-through clearance for trucks and SUVs. The two post symmetric lift configuration delivers full underbody access while keeping the bay floor completely clear.
Key Features & Benefits

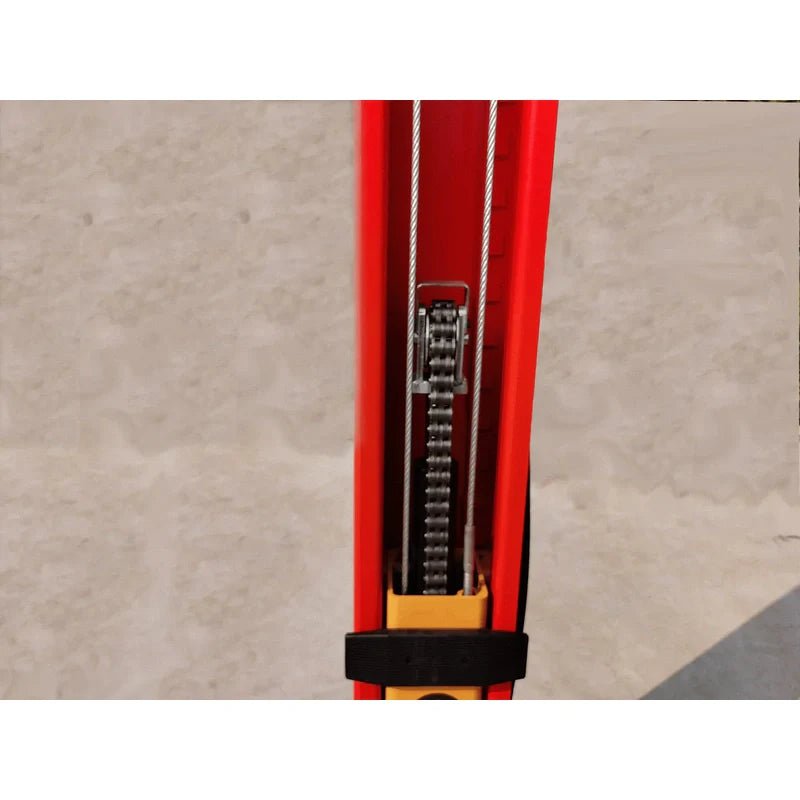

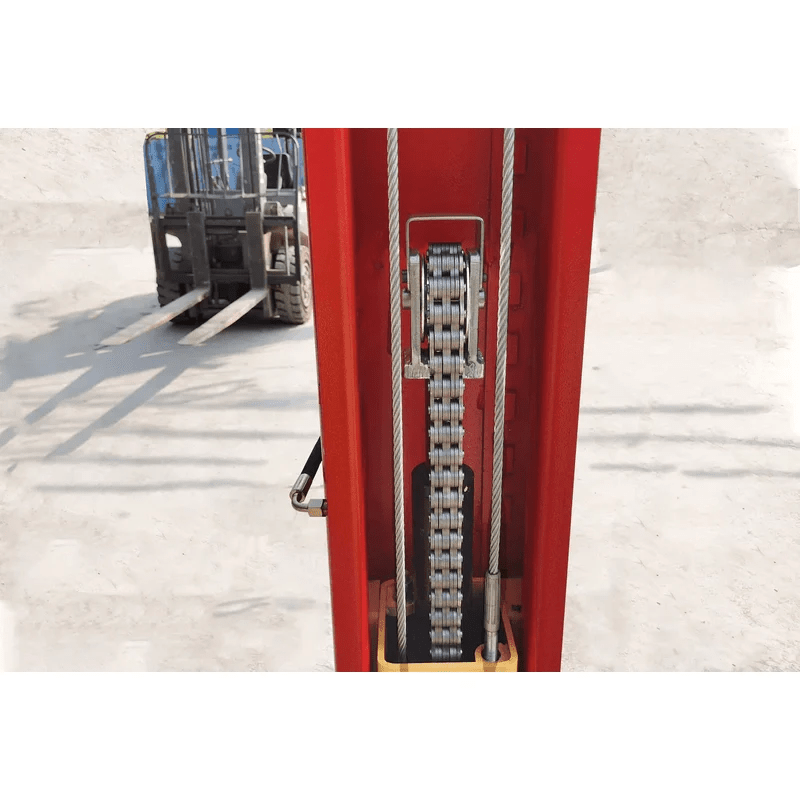

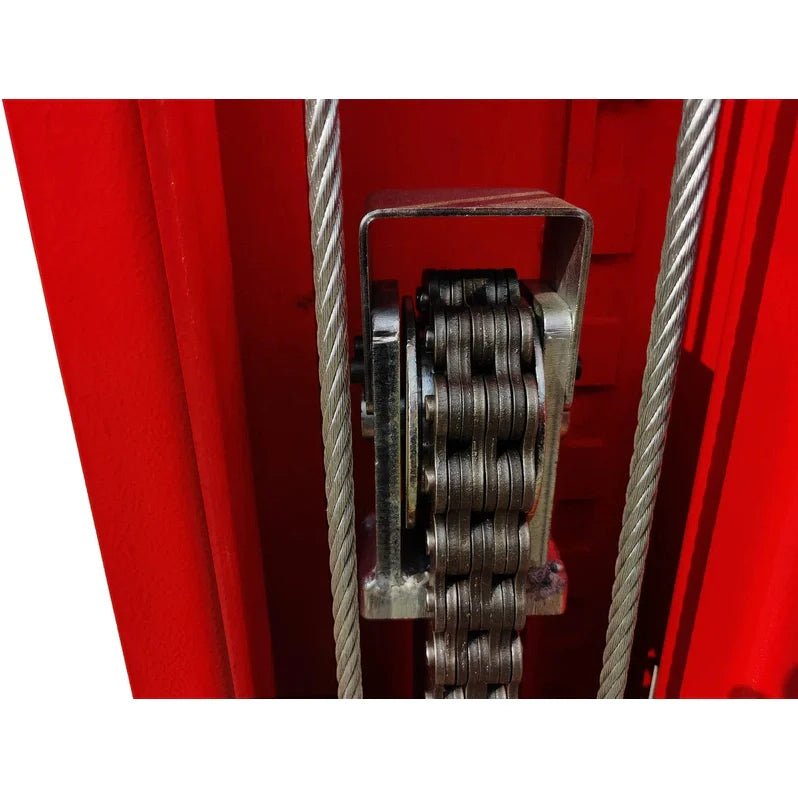

Dual Hydraulic Chain-Drive System
Dual hydraulic cylinders with chain-drive engagement deliver synchronized lifting at both columns. The 2.2 kW motor reaches full height in 50 seconds, enabling rapid vehicle rotation and improved shop throughput.
Symmetric Overhead Design with Clear-Floor Access
The overhead cross-beam construction creates 94.5-inch drive-through clearance with zero floor obstructions between columns. This two post car lift design provides unrestricted floor space for jacks, toolboxes, and technician movement during brake, suspension, and driveline work on trucks and SUVs.

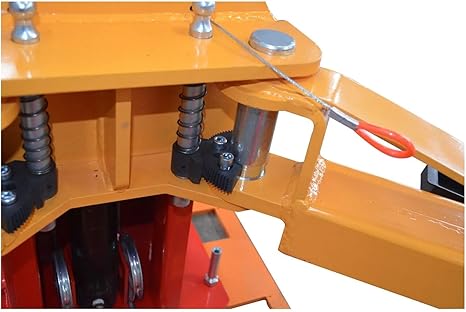

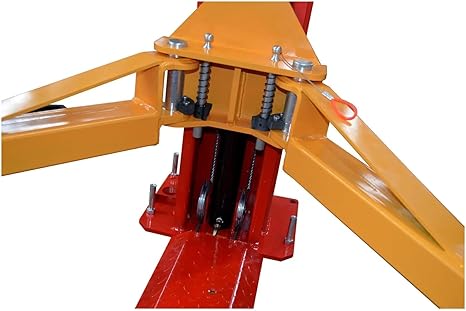

20-Position Mechanical Lock System
Twenty mechanical safety locks spaced 2.8 inches apart provide precise height control across the full 70.75-inch range. Dual independent mechanisms engage automatically when the pump stops, delivering exact working heights for brake service, suspension work, and underbody access without manual activation.
CE Certified with Verified Load Testing
CE certification confirms conformity with European EN 1493 vehicle lift safety standards. The manufacturer conducts proof testing to 115% of rated capacity dynamically and 150% statically, with documented reports demonstrating structural integrity beyond normal operating loads for continuous professional use.

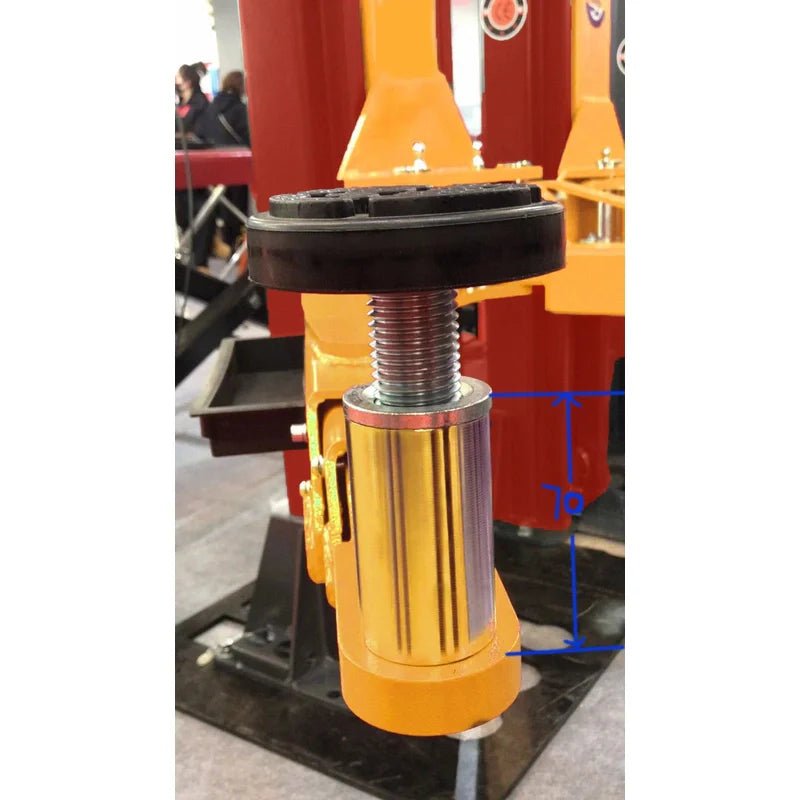

Stackable Height Adapters for Varied Vehicle Profiles
Stackable rubber-contact adapters in multiple heights raise pad contact points for vehicles with lowered suspensions or lifted trucks. The adapters secure directly to existing pads without modification, enabling service across diverse vehicle profiles without additional equipment purchases.
Documented Installation Requirements
Official documentation specifies 5.9-inch (150 mm) minimum concrete slab thickness with 3,000 PSI minimum compressive strength, paired with clear anchoring procedures. This transparency eliminates ambiguity for contractors and inspectors, enabling facility managers to verify concrete adequacy and obtain accurate installation quotes before purchase.
Applications & Use Cases
- Professional Auto Repair Shops: Full-service facilities handling brakes, suspension, exhaust, transmission, and driveline work across passenger cars, SUVs, and light trucks requiring consistent 11,000 lb capacity with clear-floor bay access.
- Tire & Wheel Service Centers: High-volume tire changes and wheel balancing operations benefiting from the symmetric arm geometry and quick 50-second rise time for rapid vehicle rotation.
- Fleet Maintenance Facilities: Mixed-vehicle maintenance operations including company trucks, service vans, and utility vehicles where the 94.5-inch drive-through supports longer wheelbase vehicles and positioned floor jacks simultaneously.
- Serious Home Garages: Advanced DIY facilities and hobby mechanics performing underbody service, suspension upgrades, and engine work on personal vehicles including full-size SUVs and trucks within the 11,000 lb rating.
- Truck & Suspension Shops: Specialized facilities requiring clear-floor design to work with lifted trucks, lowered vehicles, and vehicles with aftermarket suspension where standard bay layouts must remain unobstructed during extended service procedures.

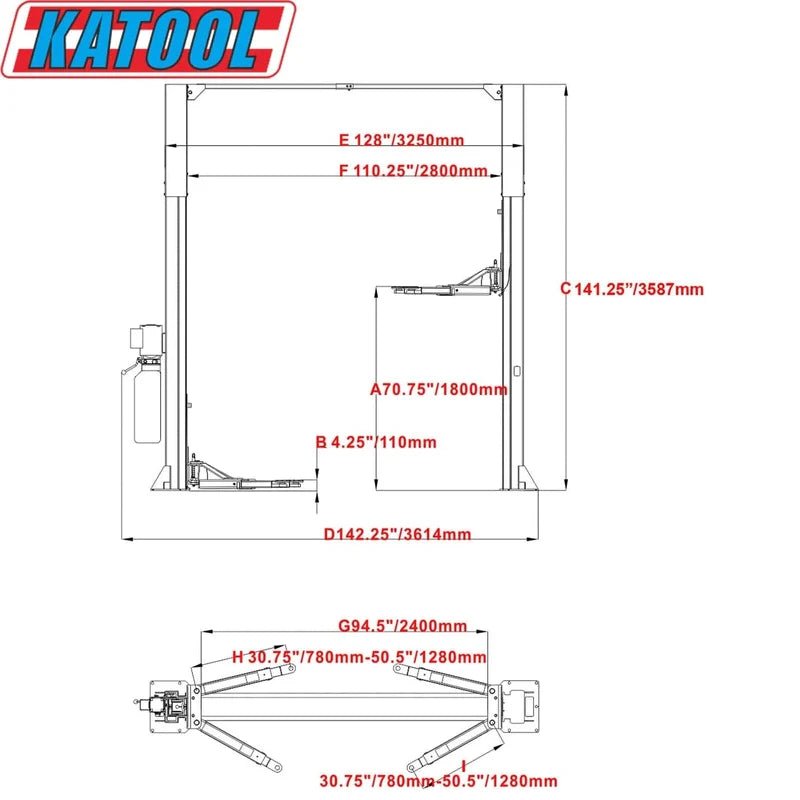

Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lifting Capacity | 11,000 lb (5,000 kg) |
| Overall Height | 141.25 inches (3,587 mm) |
| Overall Width | 142.25 inches (3,614 mm) |
| Outside Column Width | 128 inches (3,250 mm) |
| Inside Column Width | 110.25 inches (2,800 mm) |
| Drive-Through Clearance | 94.5 inches (2,400 mm) |
| Specification | Value |
|---|---|
| Maximum Lifting Height (Pads) | 70.75 inches (1,800 mm) |
| Minimum Pad Height | 4.25 inches (110 mm) |
| Time to Full Rise | 50 seconds or less |
| Swing Arm Reach (Front, 2-Stage) | 30.75 to 50.5 inches (781 to 1,283 mm) |
| Swing Arm Reach (Rear, 2-Stage) | 30.75 to 50.5 inches (781 to 1,283 mm) |
| Mechanical Safety Lock Positions | 20 positions (2.8 inch spacing) |
| Specification | Value |
|---|---|
| Drive System | Dual hydraulic cylinders with chain-drive |
| Power Unit Motor | 2.2 kW, 220 V AC, 60 Hz, single phase |
| Optional Power Unit | 110 V power unit available (consult dealer) |
| Lift Type | Symmetric 2-post, clear-floor, overhead cross-beam |
| Net Weight | 1,367 lb (620 kg) |
| Component | Details |
|---|---|
| Main Lift Structure | Two-post frame with overhead cross-beam, dual vertical columns, and carriage assemblies |

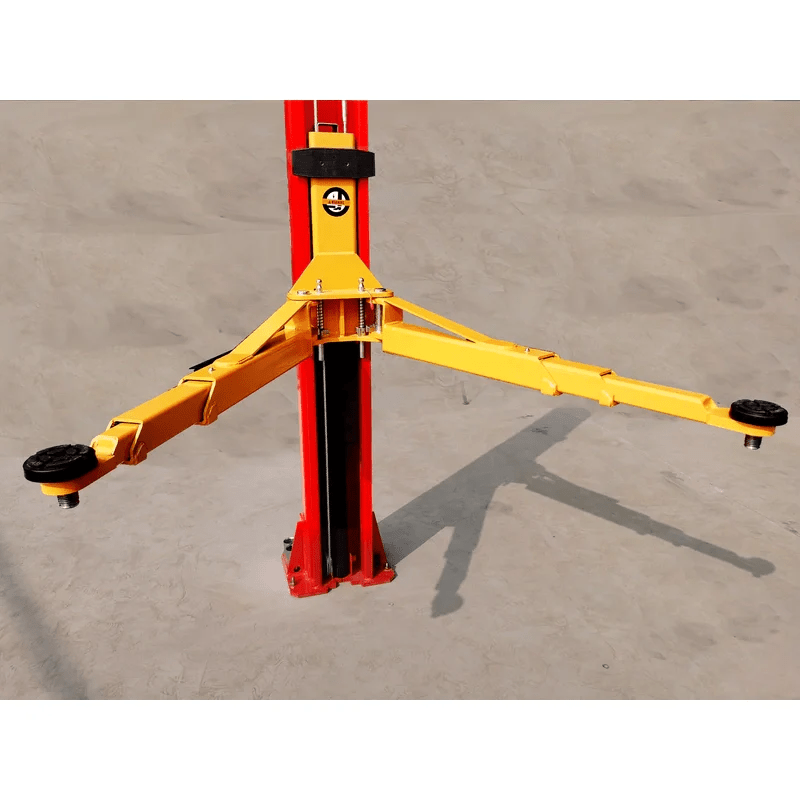

| Swing Arms | Four symmetric 2-stage swing arms with adjustable rubber contact pads |
| Height Adapters | Stackable rubber-contact height adapter set for taller vehicles (see dealer for specific configuration) |
| Safety Systems | Overhead limit bar, 20-position mechanical locks with dual engagement, door-protection pads, base guardrail elements |
| Hydraulic Power Unit | 2.2 kW 220 V single-phase unit with pump, valves, and control system |
| Mounting Hardware | Concrete anchor bolts, fasteners, and complete installation kit |
| Documentation | Installation manual, operation guide, warranty certificate, and safety documentation — Download Installation & Operation Manual (PDF) |
Installation Requirements
Installation & Operation Manual
Review the complete installation and operation manual before purchase to verify facility requirements and plan your installation. The manual includes detailed assembly instructions, hydraulic system diagrams, electrical wiring specifications, safety procedures, and maintenance schedules.

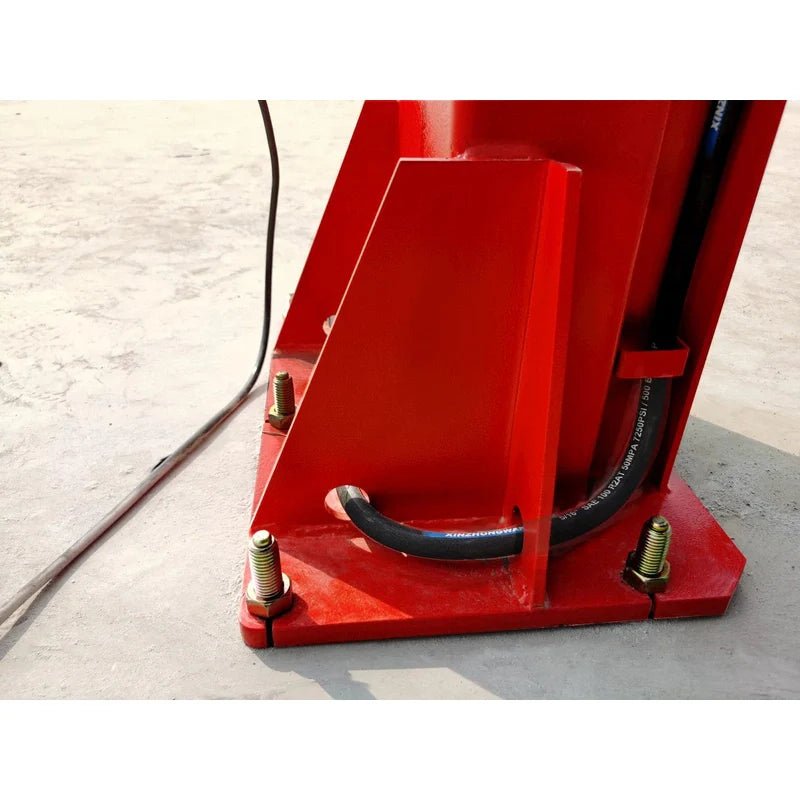

Foundation & Concrete Requirements
- Concrete Thickness: Minimum 5.9 inches (150 mm) of properly cured concrete slab
- Concrete Strength: Minimum 3,000 PSI compressive strength
- Surface Condition: Level floor, free of major cracks, suitable for concrete anchoring
- Environmental Conditions: Concrete must be cured and installed in a dry, climate-controlled space—not suitable for asphalt, block construction, or non-structural slabs without engineering approval
Electrical & Power Requirements
- Standard Configuration: 220 V AC, 60 Hz, single-phase dedicated power supply to the motor unit
- Optional Configuration: 110 V power unit available as an alternative (consult with dealer for availability and application suitability)
- Installation: All electrical work must comply with local code and be performed by a qualified electrician. Consult local electrical code for required circuit breaker size, wire gauge, and installation procedures.
Environmental & Placement Requirements
- Location: Indoor use only in a stable, level concrete bay
- Ceiling Height: Must exceed the 141.25-inch lift height with additional clearance for the highest lifted vehicles in your service mix (typically an additional 36–48 inches depending on vehicle height)
- Bay Clearances: Adequate space required in front, rear, and both sides for vehicle spotting and arm swing during lifting and lowering operations
- Ventilation: Standard shop ventilation is appropriate; no special cooling or environmental control required
Installation Notes
- Professional Installation Recommended: This lift should be installed by qualified technicians experienced with 2-post automotive lifts. Improper installation can affect safety, performance, and warranty coverage.
- Concrete Verification: Before ordering or scheduling installation, verify that your facility's concrete meets the 5.9-inch thickness and 3,000 PSI minimum requirements. Consult a structural engineer if uncertain about existing slab capacity.
- Permits & Inspection: Check with your local building department regarding permit requirements and inspection procedures. Some jurisdictions require formal sign-off on equipment installation before operational use.
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping to the continental 48 United States. Surcharges apply for Alaska, Hawaii, and remote delivery locations.
Delivery Timeframe: Ships in 7–10 business days from order placement when item is in stock (subject to inventory availability and geographic location).
Delivery & Unloading Requirements
Freight Type: Ships via LTL (less-than-truckload) freight on a standard pallet; crated weight 1,367 lb, dimensions 112 x 18 x 35.4 inches.
Unloading Equipment Required: A forklift, tractor with forks, or similar material handling equipment rated for 1,500 lb minimum is required to unload the crate safely. Liftgate service is not included; customer is responsible for unloading using appropriate equipment.
Receiving & Inspection: Inspect the shipment immediately upon arrival and note any visible damage on the bill of lading before the driver departs. Damage claims must be filed promptly with documentation to ensure coverage.
Freight Damage Reporting
Within 15 Days: Full replacement parts and freight covered for any damage identified and documented during delivery inspection.
Within 30 Days: Partial coverage (shared cost between buyer and shipper) for concealed damage discovered after unloading.
After 30 Days: No coverage—customer responsible for all parts and freight costs.
Warranty Coverage
Multi-Tier Warranty Program
3 Years - Structural Components: Full coverage on the lift structure, posts, cross-beam, swing arms, and all primary welds—the engineered skeleton of the lift.
1 Year - Operating Components: Full coverage on the hydraulic power unit, cylinders, valves, hoses, pump, controls, and mechanical safety lock systems. This aligns with typical industry standards while providing extended structural protection that exceeds single-year programs.
Coverage Requirements: Warranty is valid for the original purchaser and non-transferable. Purchase must be from an authorized dealer, and the lift must be installed following the manufacturer's installation manual. Labor for installation or repair is not included in warranty coverage.
Warranty Administration
Claims Process: Contact the dealer or manufacturer directly with documentation of the defect or failure. Most warranty claims can be expedited through authorized distributors with minimal downtime.
Optional Extended Warranties: Many authorized dealers offer extended warranty programs that layer additional coverage on top of the manufacturer's base warranty—consult your dealer for available options and pricing.
Ready to Upgrade Your Shop?
The Katool KT-M110 combines professional engineering with accessible mid-market pricing. Get expert guidance on sizing, installation requirements, concrete verification, and technical specifications for your specific facility.
Frequently Asked Questions
What makes the KT-M110 a symmetric two post lift?
The KT-M110 is a symmetric two post lift with equal-length swing arms front and rear, providing balanced lifting for vehicles centered between the columns. The symmetric configuration works across passenger cars, SUVs, and light trucks up to 11,000 lb capacity.
Is this two post car lift suitable for home garage installation?
Yes, this two post car lift works for serious home garages with adequate concrete (5.9-inch thickness, 3,000 PSI), 220V or optional 110V power, and sufficient ceiling height (200+ inches for tall vehicles). The 11,000 lb capacity handles most personal vehicles including full-size SUVs and trucks.
What is the maximum weight capacity of the Katool KT-M110?
The KT-M110 is rated for 11,000 lb (5,000 kg) maximum lifting capacity. This capacity accommodates most passenger cars, SUVs, and light-duty pickup trucks and vans within their operating weight ranges. Always verify individual vehicle weight before lifting.
What is included with the KT-M110 when it arrives?
The package includes the complete 2-post lift structure, four swing arms with pads, stackable height adapters, the 220 V hydraulic power unit, overhead safety bar, mechanical lock system with 20 positions, door-protection pads, anchor hardware, and complete documentation including the installation manual.
What are the concrete foundation requirements for the Katool KT-M110?
The lift requires a minimum 5.9-inch (150 mm) thick concrete slab with a minimum 3,000 PSI compressive strength. The concrete must be properly cured, level, and free of major cracks. The installation is suitable only for concrete—not asphalt, block, or non-structural slabs without engineering approval.
What ceiling height do I need for the Katool KT-M110?
The lift itself is 141.25 inches (3,587 mm) tall. Your ceiling must exceed this height plus additional clearance for the tallest vehicles you plan to service (typically an additional 36-48 inches depending on vehicle height). For example, lifting a full-size SUV or truck may require 200+ inches of ceiling height. Measure your bay and vehicle heights to confirm suitability.
Does the KT-M110 come with a 110V power option?
A 110V power unit is available as an optional add-on instead of the standard 220V configuration. This option accommodates facilities where 110V is the only available power supply. Contact your dealer to confirm availability, pricing, and ordering for the 110V option.
How long is the warranty on the Katool KT-M110?
The KT-M110 includes a 3-year structural warranty on the lift frame, posts, and cross-beam plus a 1-year parts warranty on the hydraulic power unit, cylinders, valves, and controls. Warranty is valid for the original purchaser and requires purchase from an authorized dealer. Labor is not covered.
What is the drive-through clearance, and why does it matter?
The drive-through clearance is 94.5 inches (2,400 mm)—the open space between the lift columns where vehicles pass through. This width accommodates longer wheelbase trucks and SUVs while keeping the bay floor unobstructed for jacks, toolboxes, and equipment movement during service operations.
Where can I download the installation manual for the Katool KT-M110?
The complete Installation & Operation Manual is available for download as a PDF. It includes detailed assembly instructions, hydraulic system diagrams, electrical wiring specifications, safety procedures, and maintenance schedules. Download the manual here.
