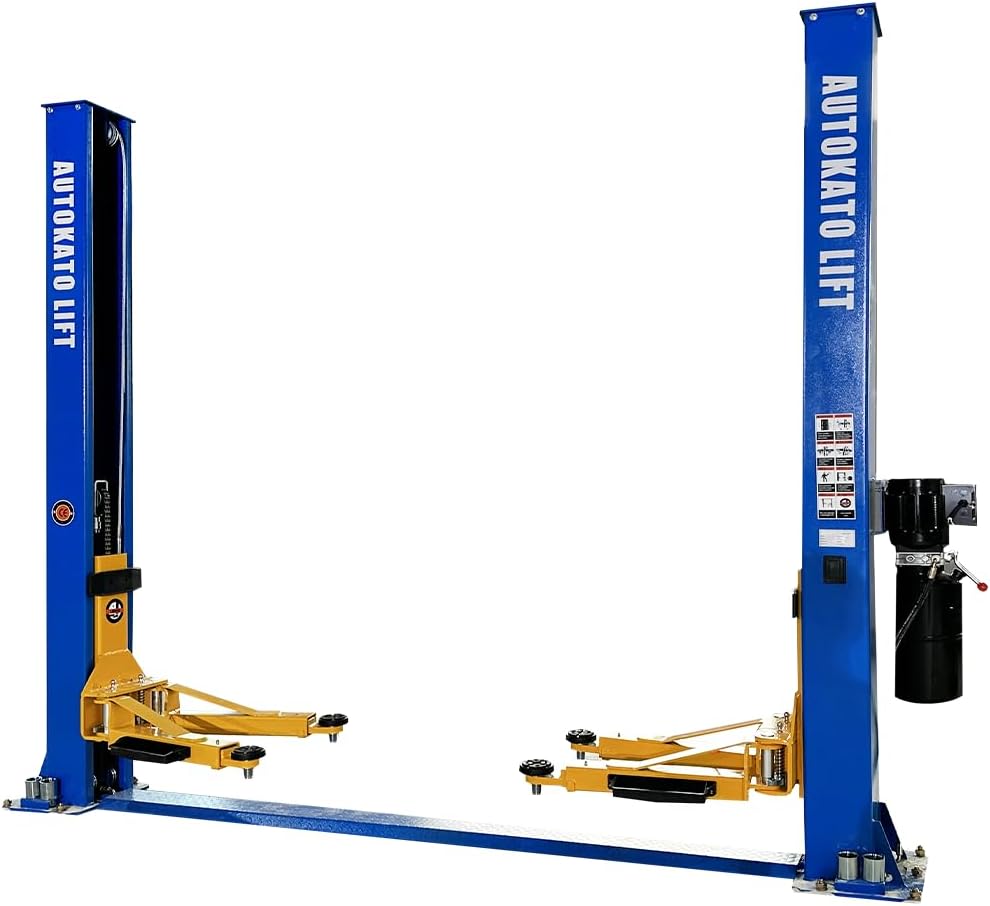

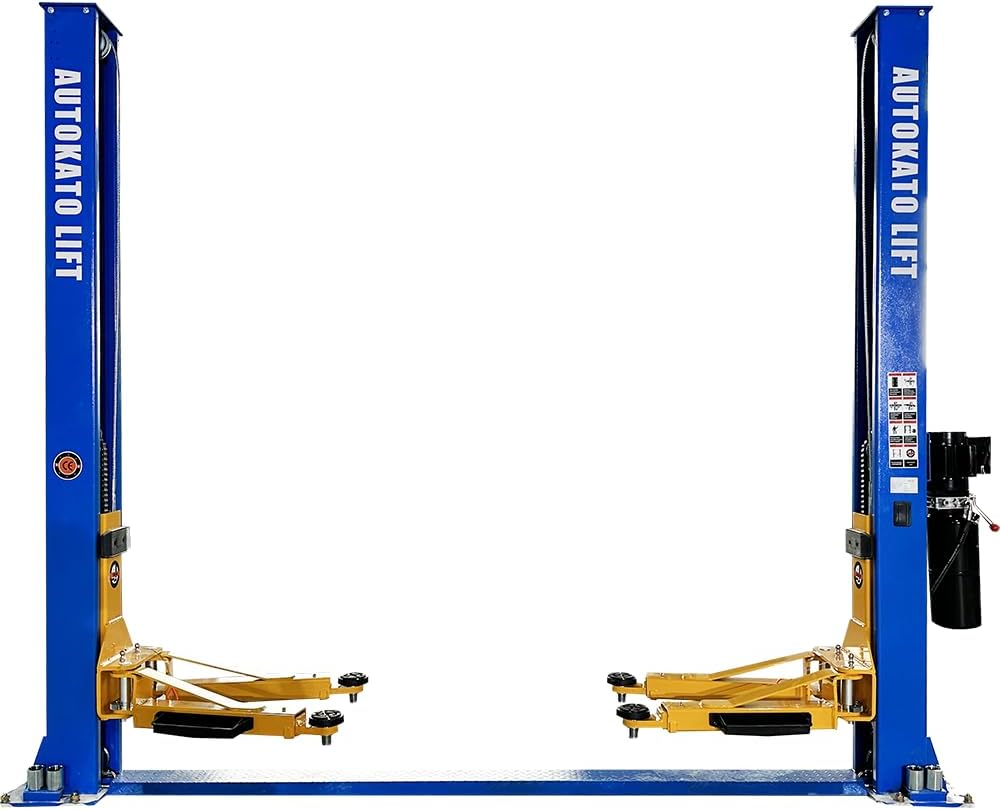

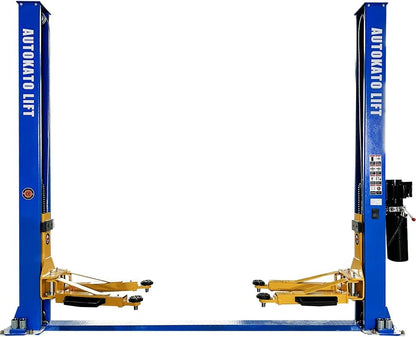

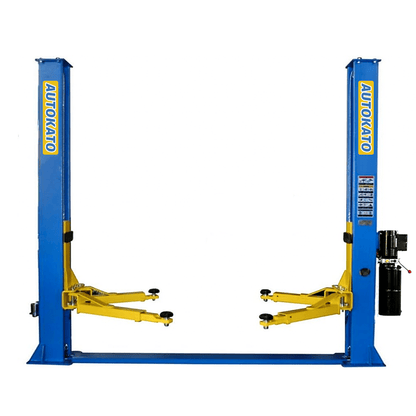

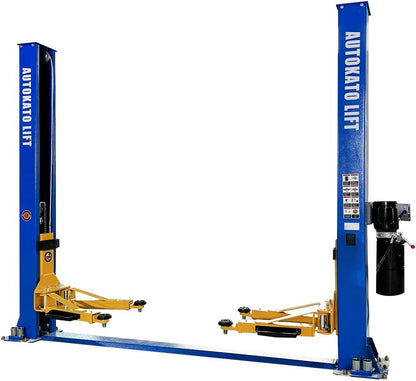

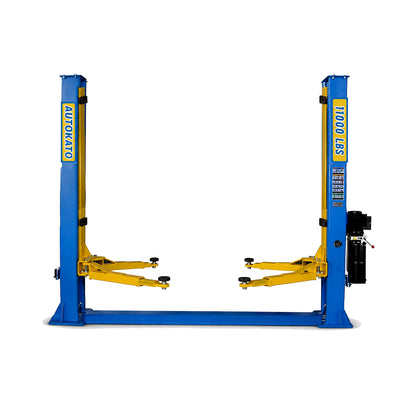

Katool H115Z - 11,000 lb Symmetric Two-Post Floor Plate Lift
The Katool H115Z delivers 11,000 lb capacity in a symmetric floor plate design, engineered for professional auto repair shops and serious home garages with low ceiling clearance. Featuring dual hydraulic chain-drive cylinders, CE certification with documented 115% dynamic and 150% static load testing, and 12 manual safety lock positions, this lift handles passenger cars, light-duty trucks, mid-sized SUVs, and vans for comprehensive service operations.
Also designated: KT-H115Z, AK-H115Z
Key Features & Benefits
Enhanced Capacity with Floorplate Convenience
The 11,000 lb capacity exceeds standard 10,000 lb floorplate lifts by 10%, providing headroom for heavier loaded SUVs, light-duty trucks, and commercial vans without approaching capacity limits. The floorplate (base plate) design eliminates the overhead beam assembly required by clear-floor models, reducing installation complexity and making it suitable for facilities with ceiling heights as low as 12 feet.
Many shops and home garages face constraints where overhead clear-floor lifts can't be installed due to low ceilings, insufficient structural support for overhead beams, or the need for simplified DIY installation by 2-3 people with basic tools. Traditional clear-floor lifts require complex overhead assembly and often need professional installation.
This enables shops with low ceiling clearance to install a heavy-capacity lift that would otherwise be impractical. The floorplate configuration also simplifies shipping and unloading, with 1,257 lb total weight that's easier to handle than heavier overhead beam systems.
Documented CE Load Testing
CE certification with explicit 115% dynamic (12,650 lb) and 150% static (16,500 lb) load testing provides third-party safety validation beyond the lift's rated capacity. This testing verifies that the hydraulic system, structural columns, and safety lock mechanisms maintain integrity under loads substantially exceeding normal operating conditions.
While the lift lacks ALI certification (which may be required for commercial insurance or code compliance in certain jurisdictions), the documented CE test factors exceed vague "certified" or "tested" claims common among budget-tier imports that don't specify actual test loads. This addresses buyer concerns about unverified safety claims on low-cost equipment.
This improves confidence for shops evaluating total cost of ownership and risk. The documented test loads provide a verifiable safety margin, reducing liability concerns while maintaining price accessibility below ALI-certified premium brands.
Low-Profile 3.9" Pad Access
The 3.9" (100 mm) minimum pad height provides clearance for lowered vehicles, sports cars, and low-ground-clearance SUVs that can't be serviced on lifts with standard 5"-5.5" minimum heights typical in the budget 10K-11K category. Combined with included +100 mm (+3.9") extension adapters, the system accommodates vehicle ground clearances from extreme low-profile performance cars to lifted trucks.
Shops that service diverse vehicle types frequently encounter low-riding customer vehicles that won't clear standard lift pads without risky improvisation using wood blocks or makeshift spacers. This creates safety hazards and limits the range of vehicles a shop can efficiently service on a single lift.
This enables shops to handle a wider vehicle range on one lift platform without purchasing separate aftermarket pad kits or turning away low-clearance vehicles. The telescoping 2-stage arms (front: 29.5"-46", rear: 35.4"-58.2") further expand compatibility across compact cars through full-size pickups.
Compact 98.4" Drive-Thru Clearance
The 98.4" (2,500 mm) drive-thru clearance fits narrower bay configurations while still accommodating vehicle wheelbases from compact sedans through full-size pickups. The 140.4" overall width allows installation in bays as narrow as 12 feet, maximizing floor space utilization in shops where every foot of bay width affects the number of lifts that can be installed.
Independent shops and home garages often operate in facilities with bay widths under 13-14 feet, where wider clear-floor lifts (150"-160" overall width) either can't fit or leave insufficient clearance for technicians to work comfortably alongside the lifted vehicle. This space constraint is a primary pain point when upgrading from mobile jacks to permanent lifts.
This enables shops to install permanent lift capacity in tight bays that previously relied on floor jacks and jack stands. The compact footprint also allows multi-lift configurations in smaller facilities, increasing throughput without facility expansion costs.
Simplified Installation with Integrated Base Plates
The integrated floor plate design eliminates complex overhead beam assembly, enabling competent DIY installation by 2-3 people with basic tools. The lower shipping weight of 1,257 lb (compared to 1,500-1,600 lb typical for direct-drive overhead clear-floor lifts) reduces both freight costs and the difficulty of unloading and positioning components during installation.
Overhead clear-floor lifts require precise beam alignment, overhead structural verification, and often professional installation, adding $500-1,500 to total project cost. Home garage buyers and smaller independent shops often lack the equipment or expertise for complex overhead installations, creating a barrier to lift ownership.
This eliminates the need for professional installation in many cases, reducing total project cost and enabling installation over a weekend. Liftgate delivery options available from most dealers further eliminate the forklift requirement for residential buyers, making the lift accessible to home enthusiasts without commercial unloading equipment.
Extended 3-Year Structural Warranty
The 3-year structural component warranty (combined with 1-year parts coverage) matches or exceeds mid-range competitors in the $2,300-3,500 price bracket. The structural warranty covers columns, base plates, and load-bearing components against defects in materials and workmanship, providing protection for the lift's core safety-critical systems beyond the typical 1-year industry standard for budget-tier equipment.
Budget lift buyers often face a choice between unbranded imports with minimal or no warranty support and premium brands with robust 5-10 year programs but substantially higher upfront costs. The gap in warranty coverage creates uncertainty about long-term reliability and the true total cost of ownership when repair parts or replacements may be needed.
This reduces risk for shops and home users evaluating total cost of ownership over 5-10 years of service. While not matching the 5-year programs of premium brands, the 3-year structural coverage provides a middle ground that addresses the most common failure points (structural fatigue, weld integrity) without the price premium of top-tier warranties.
Applications & Use Cases
- Professional Auto Repair Shops: General maintenance and repairs on passenger cars, light-duty trucks, mid-sized SUVs, and vans under 11,000 lb capacity. Suitable for oil changes, brake service, tire rotation, exhaust work, and undercarriage inspection.
- Serious Home & Enthusiast Garages: DIY maintenance and project vehicle work where low ceiling clearance (12 feet minimum) makes overhead clear-floor lifts impractical. Simplified installation enables competent DIY setup.
- Small Commercial Vehicle Service: Vans and small commercial vehicles under 11,000 lb for fleet maintenance operations requiring accessible undercarriage access.
- Multi-Bay Shop Configurations: Facilities with bay widths as narrow as 12 feet where compact 140.4" overall width maximizes the number of lifts that can be installed within existing floor space.
- Low-Clearance Vehicle Specialists: Shops servicing lowered vehicles, sports cars, and performance cars requiring 3.9" minimum pad height that standard 5"-5.5" lifts can't accommodate.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 11,000 lb (5,000 kg) |
| Maximum Lifting Height | 70.8 inches (1,800 mm) |
| Minimum Pad Height | 3.9 inches (100 mm) |
| Lock Positions | 12 |
| Specification | Value |
|---|---|
| Overall Height | 110.9 inches (2,818 mm) |
| Overall Width | 140.4 inches (3,565 mm) |
| Width Outside Columns | 124.8 inches (3,170 mm) |
| Width Inside Columns | 110.2 inches (2,800 mm) |
| Drive-Thru Clearance | 98.4 inches (2,500 mm) |
| Specification | Value |
|---|---|
| Front Arm Min/Max | 29.5 inches / 46 inches (750 mm / 1,170 mm) |
| Rear Arm Min/Max | 35.4 inches / 58.2 inches (900 mm / 1,480 mm) |
| Specification | Value |
|---|---|
| Voltage | 220V / 60Hz / Single-Phase |
| Net Weight | 1,257 lb (570 kg) |
| Design Type | Symmetric floor plate / base plate |

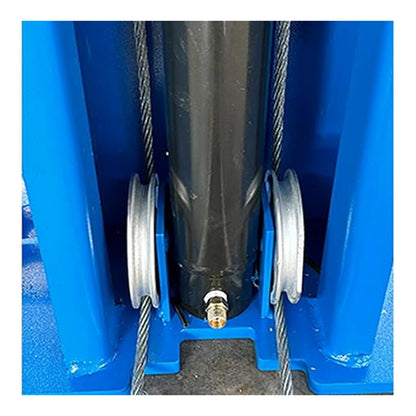

| Drive System | Dual hydraulic chain-drive cylinders |
| Finish | Blue powder coat |
What's Included

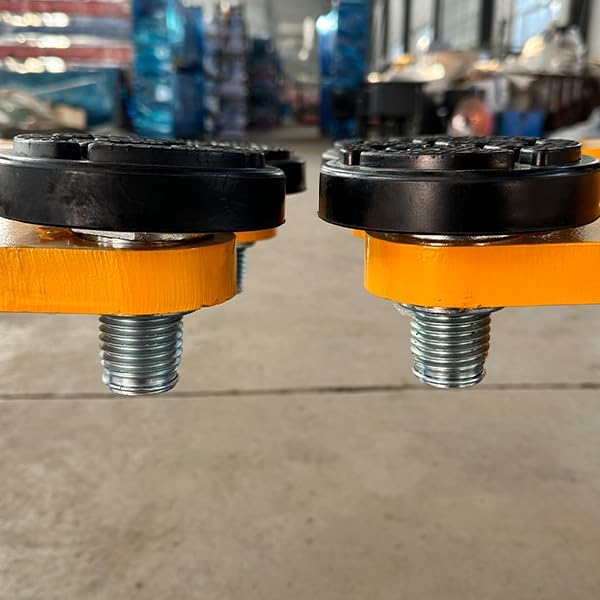

- Screw-on lifting pads with height adjustment (2 inch / 51 mm adjustment range)
- Extension support adaptor sets (+100 mm / +3.9 inches)
- Rubber door guards/protectors mounted on columns

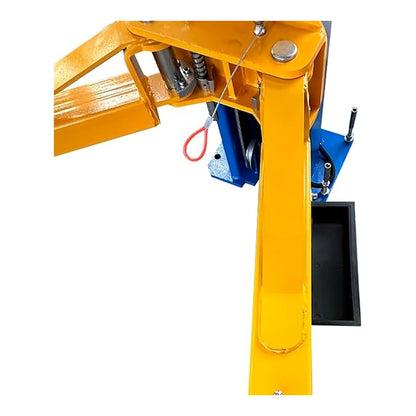

- Manual safety release mechanism (accessible from both sides)
- Mounting hardware and anchor bolts
Documentation & Resources
Installation & Operation Manual: Download PDF Manual
The complete manual includes detailed installation instructions, safety warnings, hydraulic and electrical system diagrams, maintenance schedules, troubleshooting guides, and operational procedures. Review the manual thoroughly before installation and operation.
Safety & Compliance
- CE Certified: Tested to 115% dynamic loading capacity (12,650 lb) and 150% static loading capacity (16,500 lb)
- NOT ALI Certified: No ALI Gold Label (ANSI/ALI ALCTV standard) - important consideration for commercial applications requiring ALI compliance for insurance or code requirements
- Manual mechanical safety locks engaging automatically during lift operation

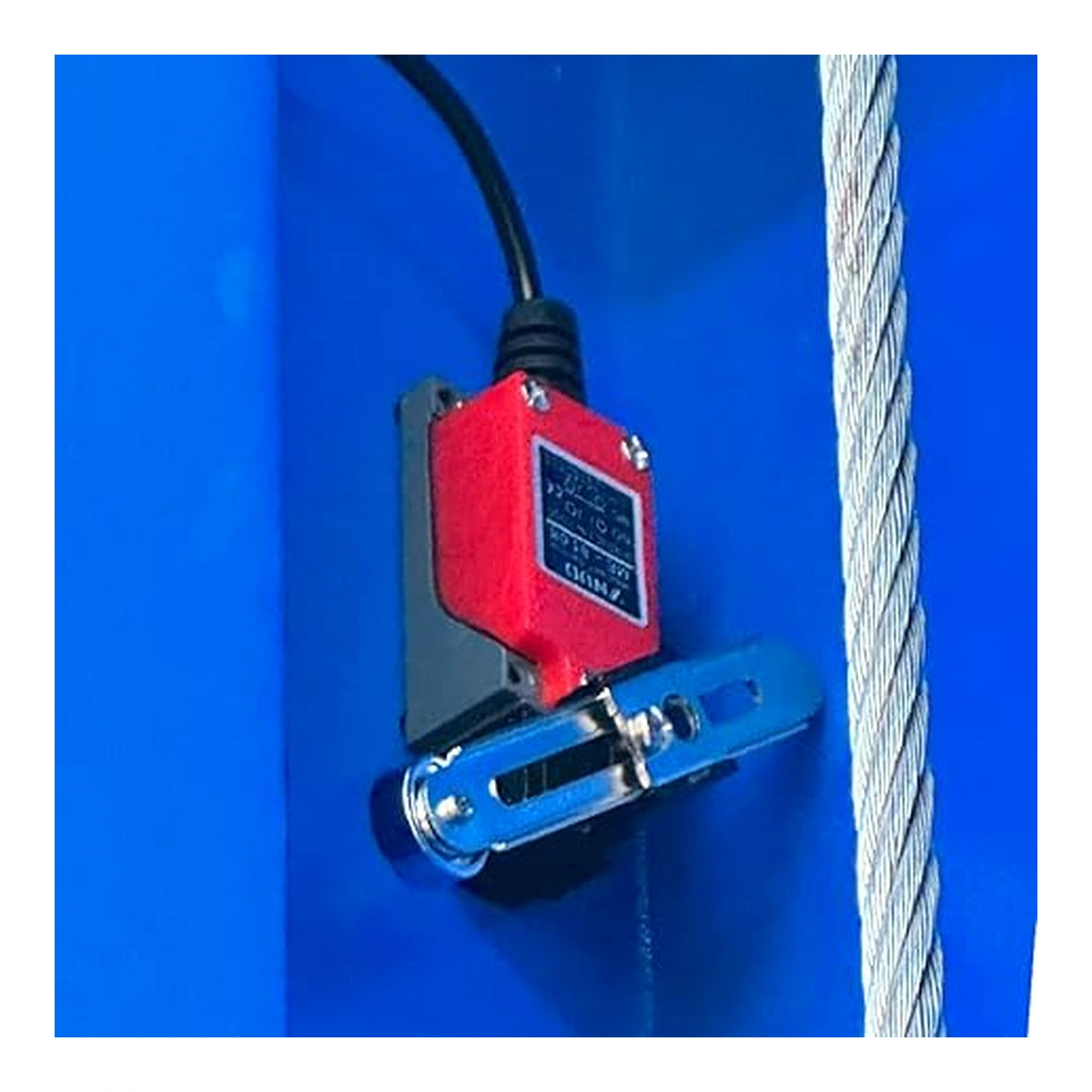

- Overhead limit switch with padded shut-off bar preventing over-lifting
- Dual-point lock release system (accessible from either column)
- Self-locking hydraulic safety feature
Installation Requirements
Concrete Foundation
- Thickness: Minimum 6 inches (150 mm)
- Strength: 3,000 PSI minimum
- Reinforcement: Rebar or wire mesh recommended per industry standard
- Condition: Continuous single slab with no expansion joints or cracks within 6 inches of anchor points
- Curing: Minimum 28 days before installation
Space Requirements
- Ceiling Height: Minimum 12 feet (to accommodate 110.9 inch overall height plus clearance)
- Bay Width: Minimum 12 feet (to accommodate 140.4 inch overall width)
- Bay Length: Minimum 24 feet recommended for vehicle maneuvering
Electrical Requirements
- Voltage: 220V single-phase dedicated circuit required
- Frequency: 60Hz
Installation Notes
- Installation Complexity: Floorplate design enables competent DIY installation by 2-3 people with basic tools; professional installation recommended if unfamiliar with lift systems
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping Method: LTL (Less Than Load) freight carrier
Typical Transit: 3-10 business days depending on location
Shipping Weight: 1,257 lb (570 kg)
Delivery Requirements
Liftgate Service: Available for residential delivery, eliminating forklift requirement at destination. Liftgate option simplifies unloading for home garage installations.
Customer Responsibility: Unloading from truck (forklift or loading dock required if no liftgate service selected)
Delivery Type: Curbside standard; liftgate eliminates need for commercial unloading equipment
Receiving Instructions
Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs. Floorplate design simplifies unloading compared to overhead beam models.
Warranty Coverage
Katool H115Z Warranty Program
1 Year - All Parts: Limited warranty on all parts and product defects
3 Years - Structural Components: Limited warranty on columns, base plates, and structural load-bearing components (exceeds typical 1-year budget lift standard)
Warranty Requirements
Eligibility: Non-transferable; requires original order number from authorized vendor
Optional Extended Coverage: 2-year extended warranty plans available for purchase from select dealers
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and verify installation requirements for your specific bay configuration.
Frequently Asked Questions
What are the concrete foundation requirements for the Katool H115Z?
The H115Z requires a minimum 6 inch (150 mm) thick concrete slab with 3,000 PSI minimum strength. The slab must be reinforced with rebar or wire mesh, fully cured for at least 28 days, and must be a continuous single slab with no expansion joints or cracks within 6 inches of anchor points. The foundation must meet these specifications to safely support the lift's 11,000 lb capacity and maintain structural integrity under dynamic loading conditions.
What is included with the Katool H115Z purchase?
The H115Z includes screw-on lifting pads with 2 inch height adjustment range, extension support adaptor sets adding 100 mm (3.9 inches), rubber door guards/protectors mounted on columns, manual safety release mechanism accessible from both sides, and all mounting hardware and anchor bolts required for installation. This complete package provides the components needed for standard installation without requiring separate accessory purchases.
What types of vehicles can the Katool H115Z lift?

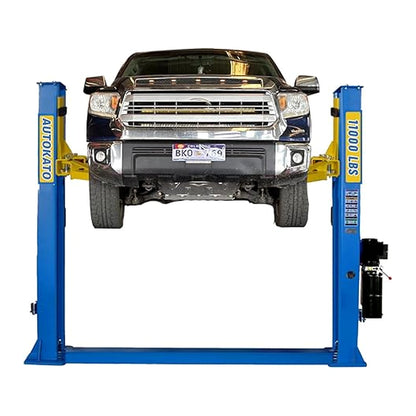

The H115Z accommodates passenger cars, light-duty trucks, mid-sized SUVs, and vans under its 11,000 lb capacity. The 3.9 inch minimum pad height handles lowered vehicles and sports cars that won't clear standard 5-5.5 inch lifts, while the telescoping 2-stage arms (front: 29.5-46 inches, rear: 35.4-58.2 inches) and 98.4 inch drive-thru clearance accommodate wheelbases from compact sedans through full-size pickups. Extension adapters add another 3.9 inches for lifted trucks and high-clearance vehicles.
What is the drive-thru clearance of the Katool H115Z?
The H115Z provides 98.4 inches (2,500 mm) of drive-thru clearance between the columns. This compact clearance allows installation in bays as narrow as 12 feet while still accommodating vehicle wheelbases from sedans through full-size pickups. The 140.4 inch overall width and 110.2 inch width inside columns maximize floor space utilization in smaller shops and home garages, enabling multi-lift configurations where wider clear-floor designs won't fit.
Is the Katool H115Z ALI certified?
No, the H115Z is not ALI certified and does not carry the ALI Gold Label (ANSI/ALI ALCTV standard). However, it is CE certified with documented 115% dynamic loading (12,650 lb) and 150% static loading (16,500 lb) testing, providing third-party safety validation beyond the rated capacity. ALI certification may be required for commercial insurance or code compliance in certain jurisdictions, so buyers should verify local requirements before purchase. The CE certification provides safety assurance for many applications while maintaining price accessibility.
What are the electrical requirements for the Katool H115Z?
The H115Z requires a dedicated 220V single-phase circuit at 60Hz frequency. A qualified electrician should install the dedicated circuit per local electrical codes and NEC requirements. Specific amperage draw specifications are not provided in available documentation, so consult with an electrician regarding appropriate circuit breaker sizing during installation planning. The single-phase requirement makes the lift suitable for most residential and light commercial facilities where three-phase power may not be available.
What warranty coverage does the Katool H115Z include?
The H115Z includes a 1-year limited warranty on all parts and product defects, plus a 3-year (36-month) limited warranty on structural components including columns, base plates, and load-bearing elements. The 3-year structural coverage exceeds typical 1-year budget lift standards and matches mid-range competitors. The warranty is non-transferable and requires the original order number from an authorized vendor. Optional 2-year extended warranty plans are available for purchase from select dealers for additional protection.
How much does the Katool H115Z weigh for shipping?
The H115Z has a shipping weight of 1,257 lb (570 kg). The floorplate design's lower weight compared to heavier overhead clear-floor lifts (typically 1,500-1,600 lb) reduces freight costs and simplifies unloading at the destination. Liftgate delivery service is available for residential installations, eliminating the need for a forklift or loading dock. The lift ships via LTL freight carrier with typical transit times of 3-10 business days depending on location.
