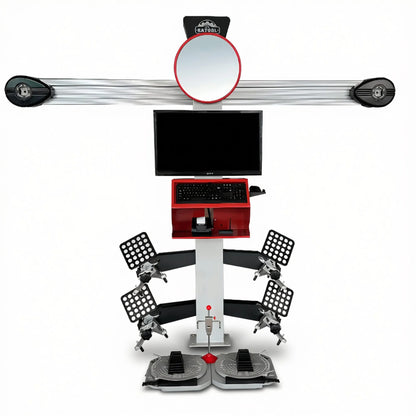

Katool AV533 – Wheel Alignment Machine (3D)
3D Wheel Alignment Machine - Katool AV533 with Advanced Imaging Technology
Also referenced as KT-AV533; KT-AV533F denotes the Android console variant of this four-wheel alignment system.
This 3D wheel alignment machine delivers precise measurements for cars, SUVs, and light trucks using advanced imaging technology. The compact system provides accurate camber, caster, and thrust angle data with a streamlined workflow for professional shops.
Features · Why Choose AV533 · Specs · FAQ
Key Takeaways
- Minute-level accuracy (±2′–±4′) with stable 3D imaging.
- Compact cabinet fits tight bays; pro accessories included.
- Windows or Android console options to match your workflow.
- 12-month parts coverage; commercial use approved.
Key Features of the Katool AV533 3D Wheel Aligner

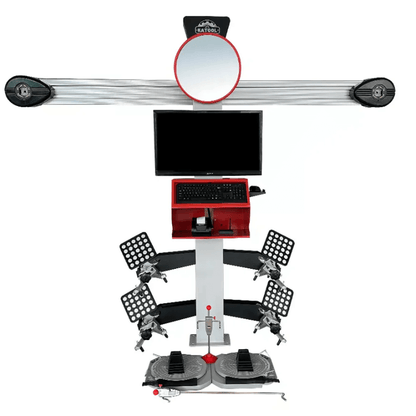

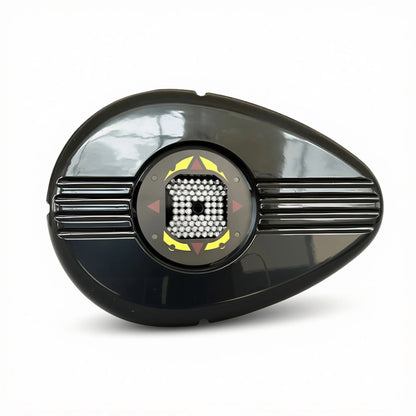

Four-Wheel Alignment Machine — 3D Imaging Accuracy
The 3D imaging system captures accurate camber, caster, and thrust angle data with ±2′–±4′ stability. Precise measurements help reduce tire wear and improve vehicle handling during high-volume shop use.
The system maintains zero-drift stability within ±4′ over a 30-minute session, ensuring consistent results throughout busy service days. Measurement accuracy reaches professional standards across all parameters. Total front toe/beam measurements achieve ±4′ accuracy within the ±2° range, while wheel camber readings maintain ±2′ precision within ±4°. This level of accuracy helps technicians diagnose and correct alignment issues that affect tire wear, fuel efficiency, and vehicle handling. See full technical specifications

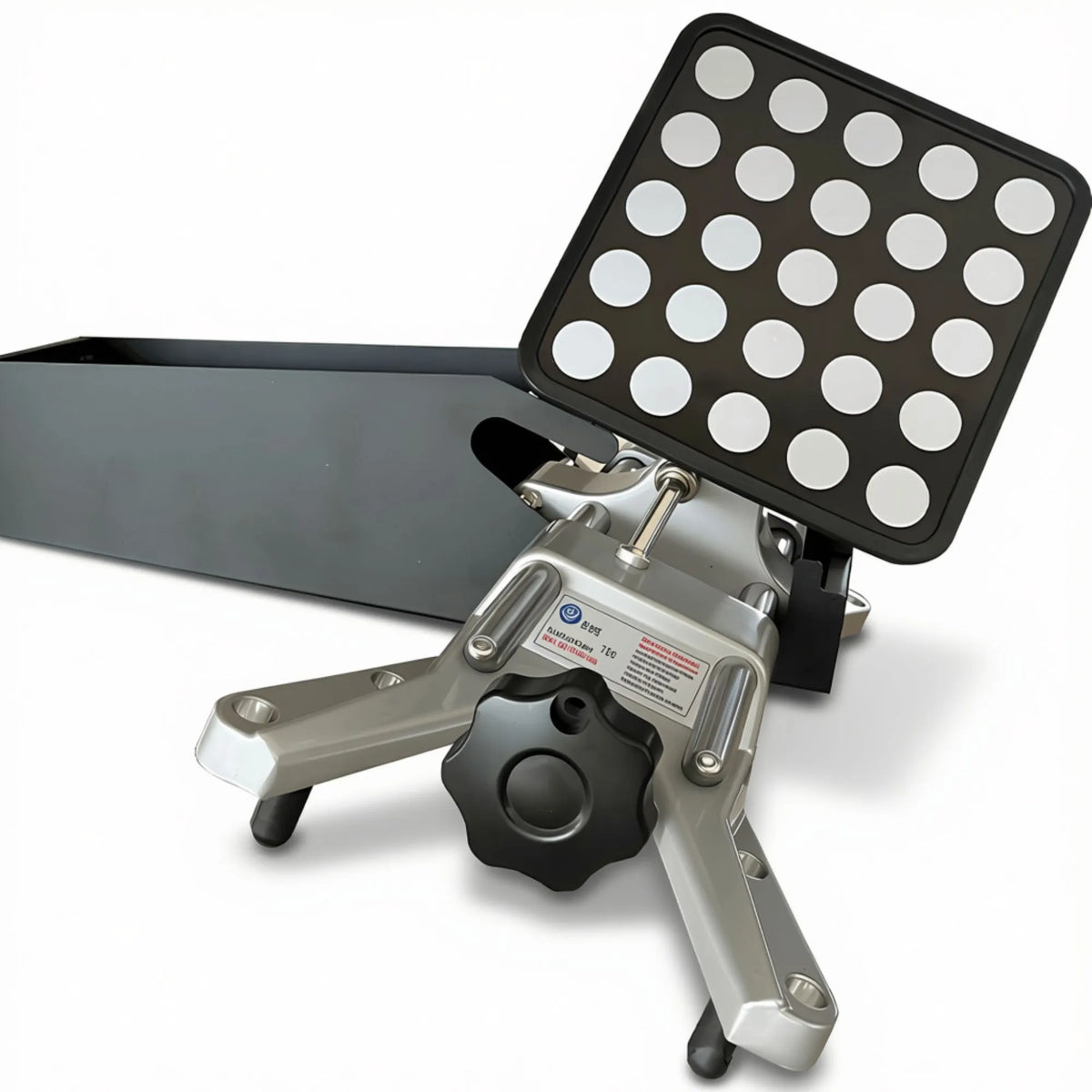

Precision Calibration Components

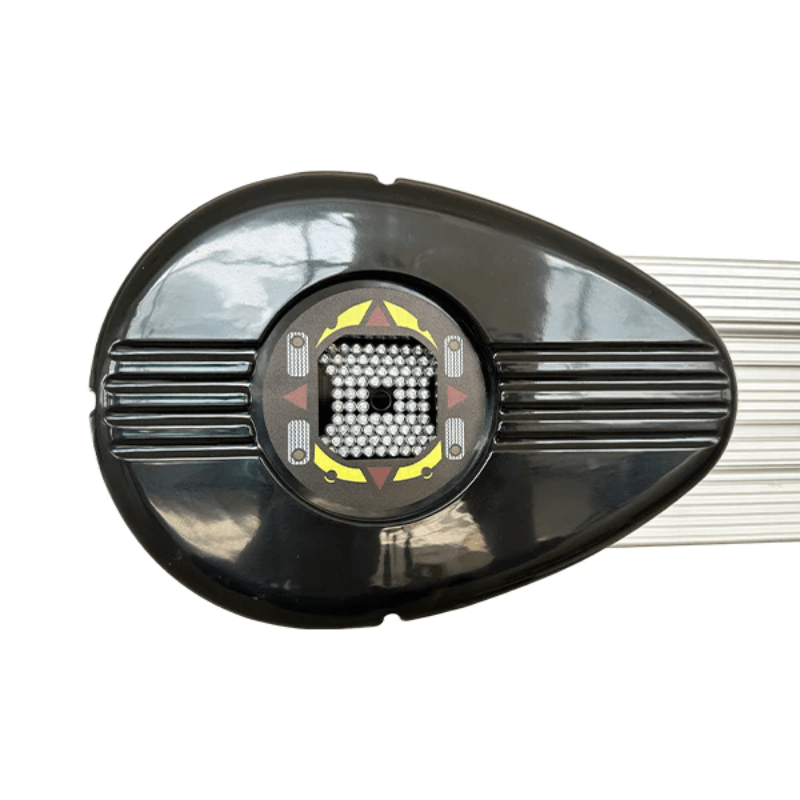

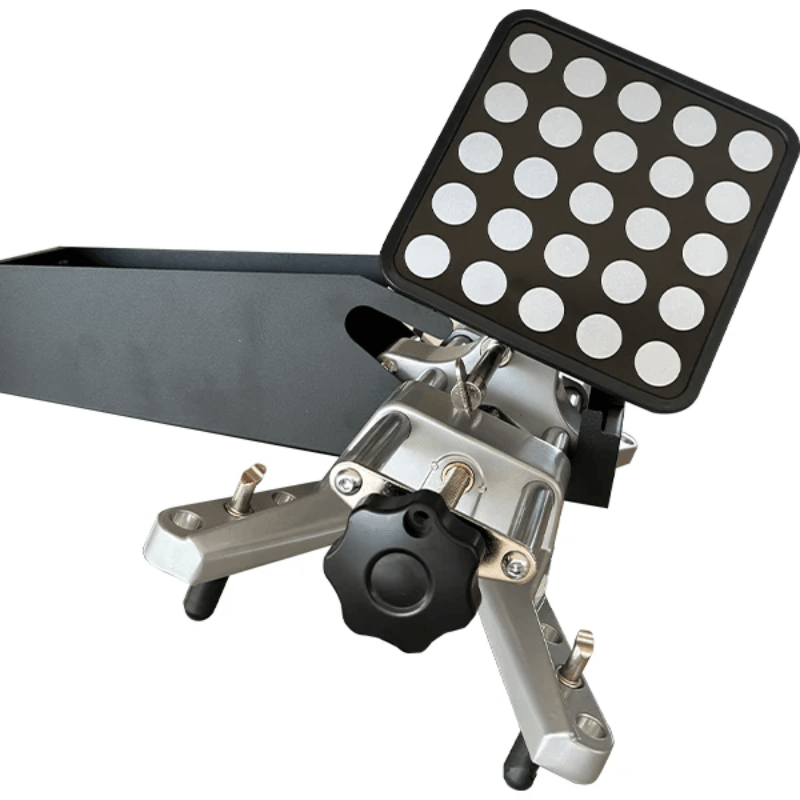

The reflective target board works seamlessly with the imaging sensors to deliver precise calibration, enhancing measurement reliability and ensuring repeatable results across multiple vehicle types. This advanced calibration system is essential for maintaining the exceptional accuracy that professional shops demand.
The reflective targets maintain alignment accuracy across multiple vehicle types. Stable calibration reduces re-checks and supports consistent measurements throughout daily operations.
Professional Alignment Components

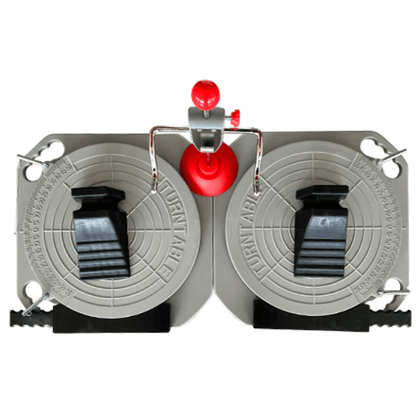

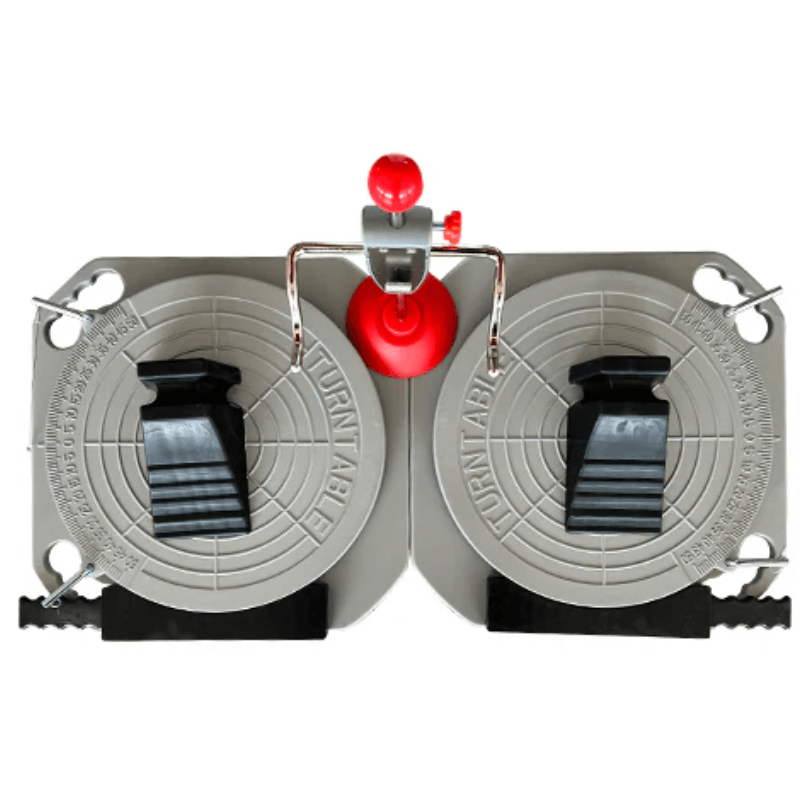

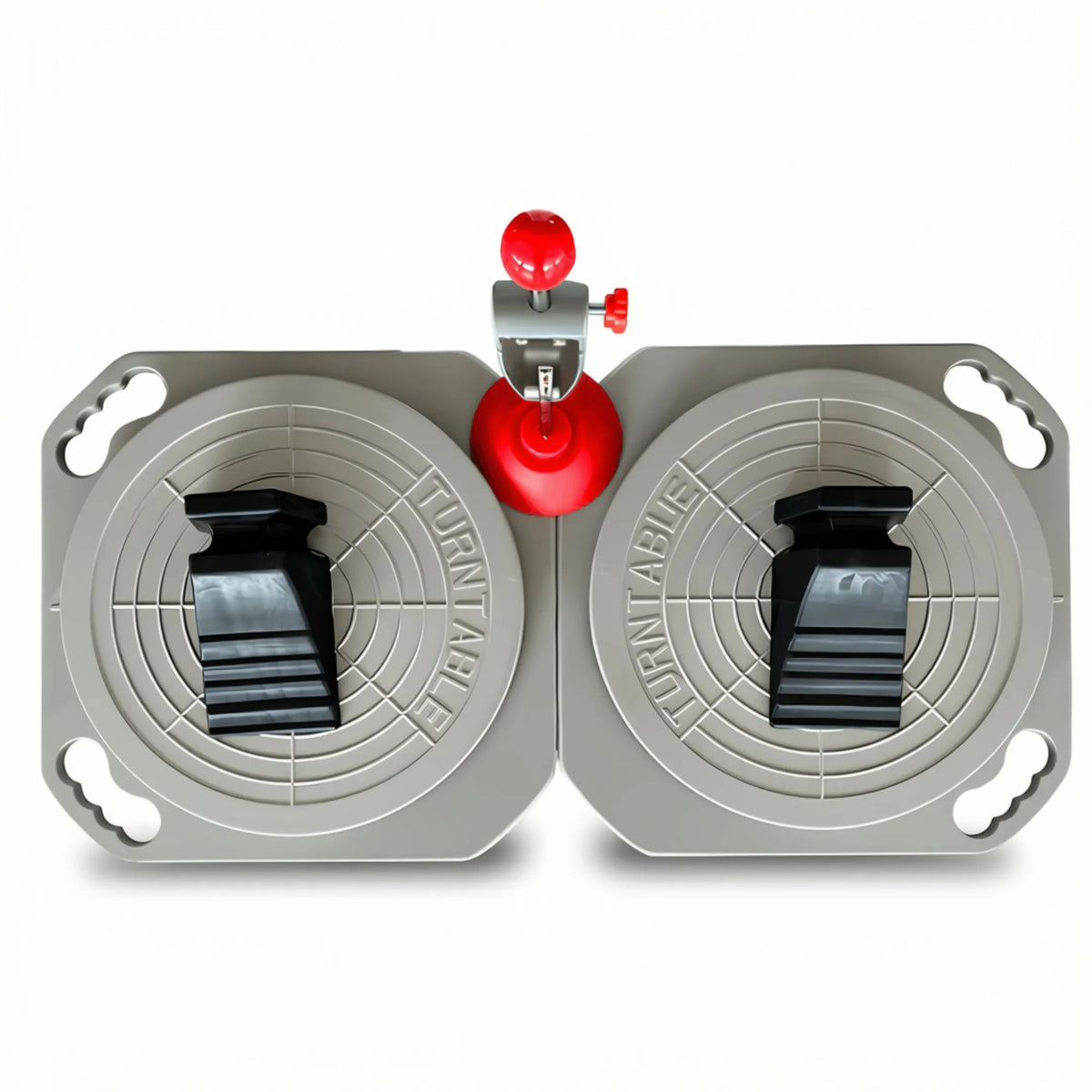

Dual alignment turntables with precision angle scales allow smooth rotation of front wheels, enabling accurate caster and toe measurements while reducing friction for consistent readings. These professional-grade turntables are built to withstand thousands of alignment procedures while maintaining their smooth operation and measurement accuracy.
The turntables work in conjunction with the 3D imaging system to capture dynamic measurements as wheels are turned through their range of motion. This allows for comprehensive analysis of suspension geometry and helps identify issues that might not be apparent in static measurements alone.
Vehicle Stabilization System

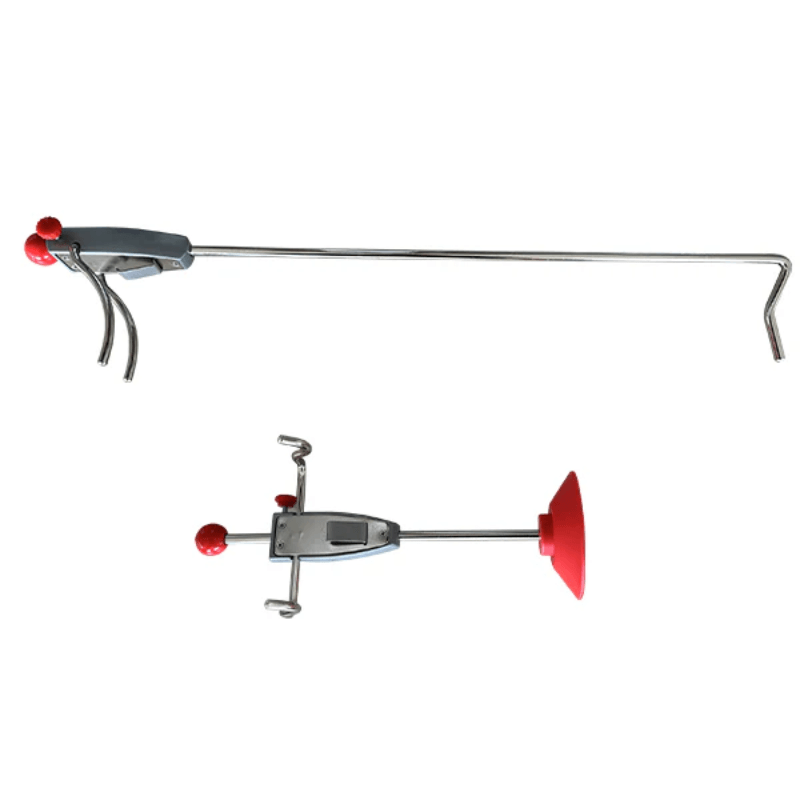

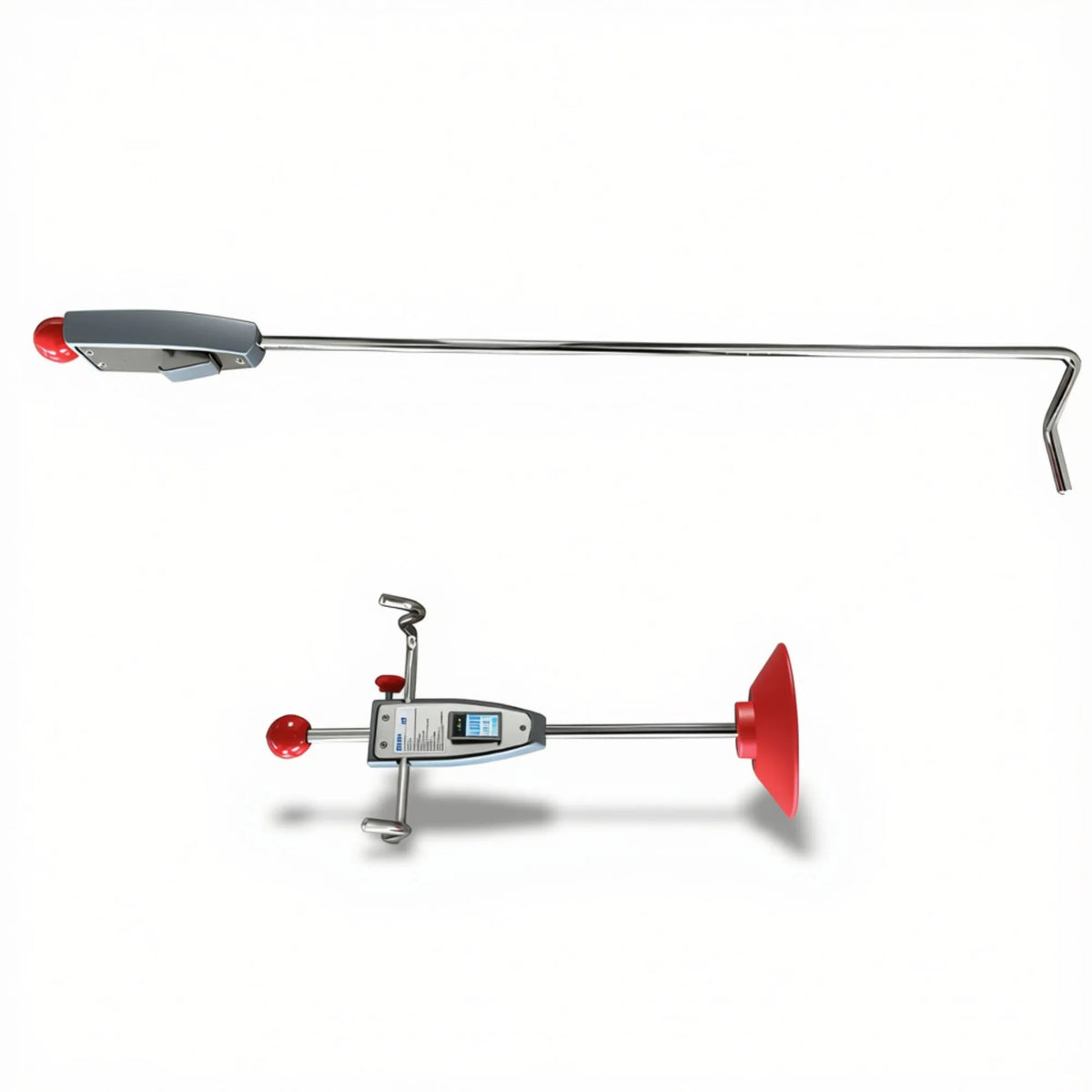

Proper vehicle stabilization is critical for accurate alignment measurements. The included steering wheel lock and brake pedal depressor stabilize the vehicle during measurement, maintaining correct positioning and preventing unwanted movement for precise alignment results. These professional-grade tools ensure that the vehicle remains perfectly still during critical measurement phases.
The stabilization system prevents the small movements that can throw off sensitive 3D measurements, ensuring that every reading reflects the true alignment state of the vehicle. This attention to stability is what separates professional alignment equipment from basic systems.

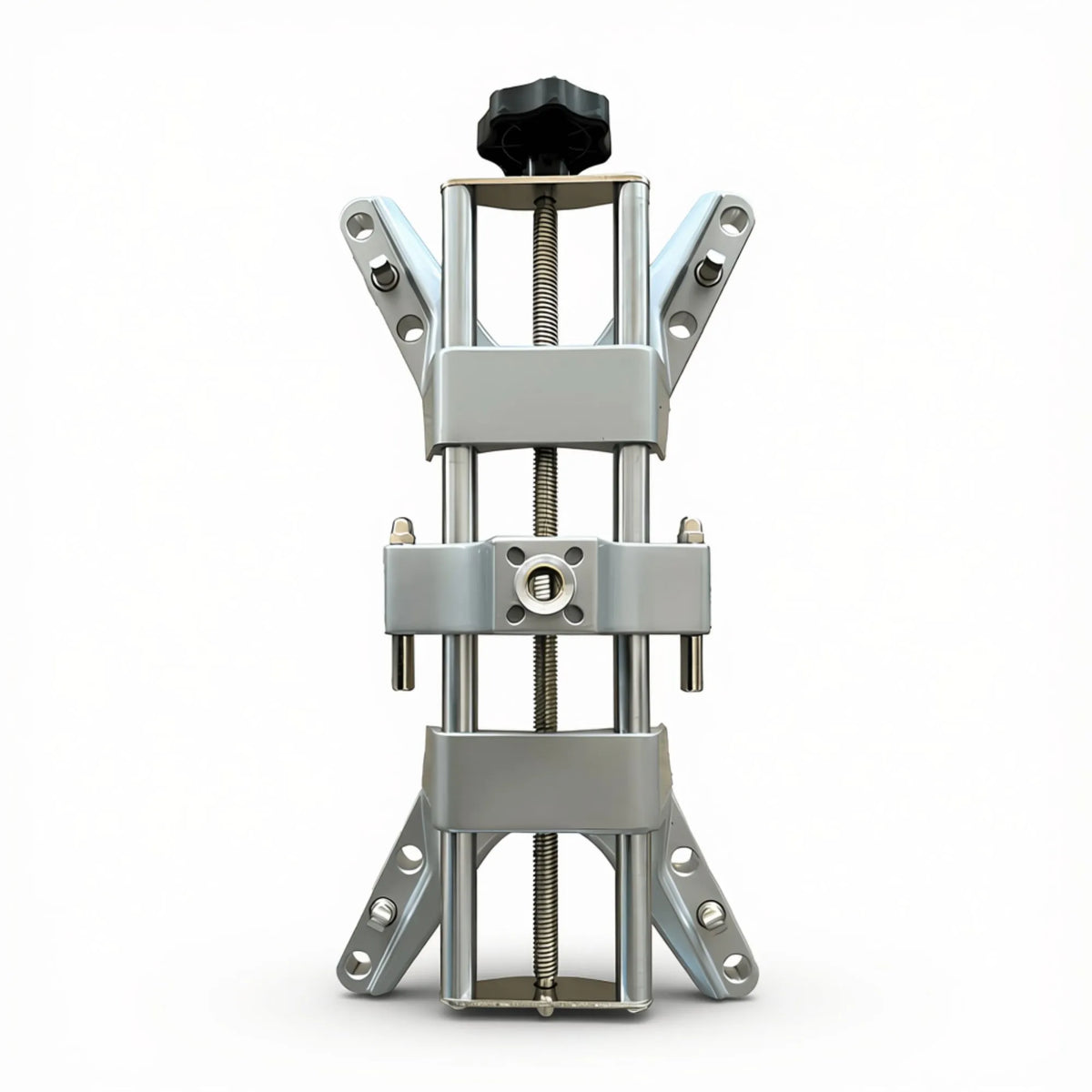

Secure Wheel Mounting System

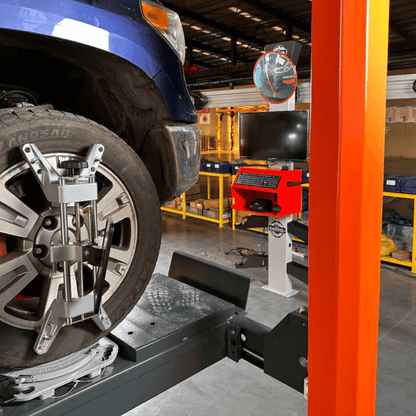

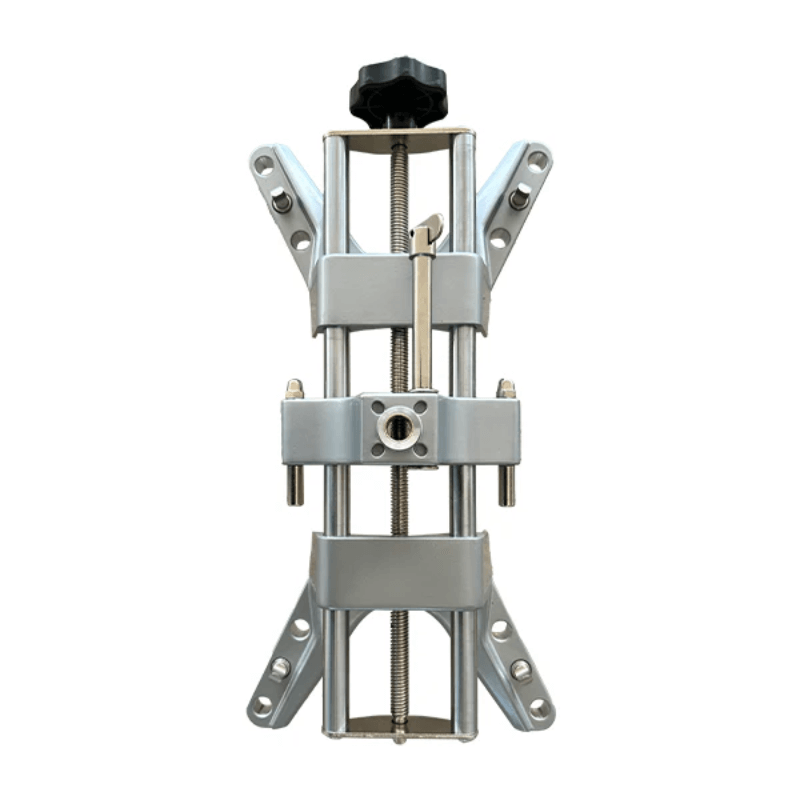

The heavy-duty rim clamp provides a secure, adjustable grip on various wheel sizes, ensuring accurate positioning for 3D imaging while minimizing slippage during alignment procedures. This versatile clamping system accommodates a wide range of wheel designs, from steel wheels to premium alloys, without risk of damage.
The adjustable design means technicians can quickly and securely mount the alignment targets to virtually any wheel configuration. The clamps' robust construction ensures they maintain their grip throughout the alignment process, preventing the measurement errors that can occur with inferior mounting systems.

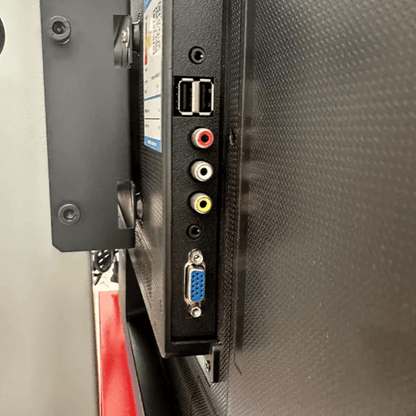

Advanced Connectivity and Interface
Modern alignment machines must integrate seamlessly with shop management systems and diagnostic equipment. The integrated USB, VGA, and AV ports allow seamless connectivity with sensors, cameras, and accessories, ensuring stable data transfer and reliable system operation during high-volume alignment work.
The comprehensive connectivity options enable shops to export alignment data for customer reports, integrate with shop management software, and connect external displays for customer education. The system includes an intuitive interface that streamlines the alignment process, reducing training time for new technicians while improving efficiency for experienced operators. The display provides clear angular resolution at 1′ intervals, with front toe/beam values shown in either angle measurements or millimeters.

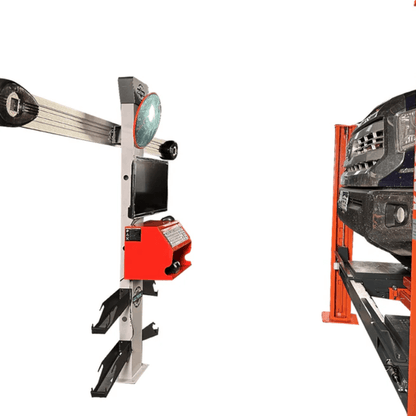

Space-Efficient Design for Modern Workshops
The compact 39.6 × 25.6 × 35.4 inch cabinet fits tight bays without limiting function. The sawtooth chain system supports various vehicle types, making the unit suitable for cars, SUVs, and light trucks.
The thoughtful design extends beyond dimensions. The sawtooth chain system improves chain adjustability for various vehicle types, while the long stretching stroke accommodates larger repair areas. This versatility means one machine handles everything from compact cars to full-size SUVs.
Powerful Hydraulic System Performance
The 50 kN hydraulic system provides controlled alignment force using 0.7–1.0 MPa shop air. Downward pulling capability supports additional repair tasks beyond standard alignment.
This hydraulic capability enables downward pulling for versatile repair applications, expanding the machine's utility beyond standard alignment procedures. The included quick repair pulling tower, hand pump, and 3.5-meter chain with hook create a complete system for comprehensive alignment tasks.
Commercial Applications for 3D Wheel Alignment Machines
Professional automotive service centers require versatile equipment that adapts to diverse customer needs. The Katool AV533 serves multiple market segments, from independent repair shops to dealership service departments. Explore our complete Shop 3D Wheel Alignment Machines to compare different alignment solutions for your specific requirements.
- Independent Auto Repair Shops: Generate additional revenue streams by offering precision alignment services alongside routine maintenance and repairs.
- Tire Service Centers: Protect tire warranty claims and customer satisfaction by ensuring proper alignment with every tire installation or rotation.
- Fleet Maintenance Facilities: Maximize tire life and fuel efficiency across commercial vehicle fleets through regular alignment checks and adjustments.
- Automotive Dealerships: Meet manufacturer specifications for warranty work and certified pre-owned vehicle inspections with accurate alignment data.
- Specialty Performance Shops: Fine-tune suspension geometry for track vehicles, lowered cars, and custom builds requiring precise alignment specifications.
- Mobile Mechanics: The compact design and portability make the AV533 suitable for mobile service operations expanding into alignment work.
Technical Specifications - Katool AV533
| Brand | Katool |
|---|---|
| Model | AV533 |
| Technology | 3D Imaging System |
| Hydraulic Force | 50 kN |
| Air Pressure (shop air) | 0.7–1.0 MPa (7–10 bar) |
| Weight | 143.3 lb |
| Dimensions | 39.6 in L × 25.6 in W × 35.4 in H |
| Vehicle Compatibility | Cars, SUVs, Light Trucks |
| Total Front Toe/Beam | ±6° range, ±4′ accuracy |
|---|---|
| Single Wheel Beam | ±3° range, ±2′ accuracy |
| Wheel Camber | ±10° range, ±2′ accuracy |
| Kingpin Rear Angle | ±15° range, ±2′ accuracy |
| Kingpin Inclination | ±20° range, ±6′ accuracy |
| Thrust Angle | ±6° range, ±2′ accuracy |
| Display Resolution | 1′ angular, 0.1 mm linear |
Why Choose the AV533 Over Other 3D Aligners?
- Better out-of-box kit: Includes pro turntables, rim clamps, steering lock & brake depressor—fewer add-ons to buy later.
- Accuracy & stability: Minute-level angular resolution with documented zero-drift stability over working sessions.
- Space-efficient cabinet: Compact dimensions fit tighter bays than many value peers.
- KT-AV533F option: Android console variant for faster boot and a simplified, touch-first workflow.
- Clear warranty terms: 12-month parts support with straightforward coverage on critical components.

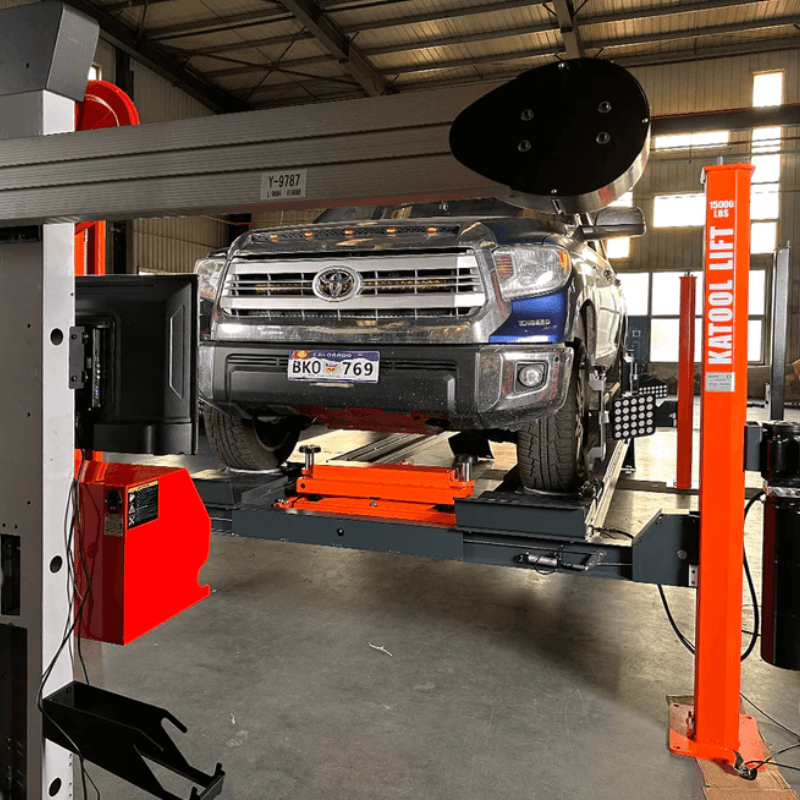

Professional Installation Requirements for 3D Wheel Aligners
Foundation & Power Specifications
Proper installation maintains measurement accuracy and equipment lifespan. A level platform and stable power source prevent sensor drift and protect electronic components.
- Level Foundation: The car lift platform must be perfectly firm and level to maintain measurement accuracy. Regular level checks prevent sensor drift and ensure consistent alignment readings.
- Electrical Requirements: Verify power connection reliability and inspect for cable damage before each use. An AC voltage regulator is essential for locations with unstable power supply to protect sensitive electronic components.
- Environmental Controls: Position the 3D camera system away from direct sunlight, excessive humidity, and vibration sources. The precision sensors cannot be placed on vibrating surfaces or tilted platforms.
- Workspace Clearance: Remove all obstacles around the lift area to ensure safe vehicle positioning and unrestricted technician movement during alignment procedures.
- Liquid Protection: Prevent any liquid splashing on the equipment surface. Fluid infiltration can cause permanent damage to internal components and void warranty coverage.
Operator Training & Certification
Professional alignment equipment requires trained operators for optimal results:
- Factory Training: Operators must complete manufacturer training covering system operation and four-wheel positioning principles.
- Computer Proficiency: Basic computer application knowledge required for navigating the interface and interpreting measurement data.
- Safety Protocols: Understanding of proper vehicle lifting procedures and alignment safety practices.
Note: Training documentation and certification programs available through authorized Katool distributors.
Complete AV533 Wheel Aligner Package Includes
- 3D imaging camera system with mounting hardware
- High-resolution 3D sensor heads
- Calibration reflective target boards
- Precision alignment turntables
- Steering wheel lock and brake pedal depressor
- Heavy-duty adjustable rim clamps
- Multi-function connectivity panel with USB, VGA, and AV ports
- Quick repair pulling tower assembly
- Manual hand pump for hydraulic operation
- 3.5-meter chain with heavy-duty hook
- Six-claw pulling hooks for versatile applications
- Comprehensive operator manual and training materials
- Calibration tools and initial setup support
Explore Related Options
Warranty Protection for Commercial Use
The Katool AV533 wheel alignment machine warranty provides comprehensive coverage designed for commercial environments:
- 12-Month Parts Protection: Complete coverage for all components including cylinders, power units, motors, displays, and electronics against manufacturing defects.
- 36-Month Structural Coverage: Extended three-year warranty on structural components for qualifying Katool automotive equipment.
- Commercial Use Approved: Warranty remains valid for professional automotive service applications with proper maintenance documentation.
- Extended Warranty Available: Optional 2-year extended warranty plan provides additional protection for high-volume operations.
Warranty claims require original purchase documentation and apply only to the original buyer. Replacement parts ship free of charge during the coverage period, though labor costs remain the responsibility of the equipment owner.
Commercial Delivery for Wheel Alignment Equipment
Freight Shipping Requirements
This professional wheel alignment machine shipping requires proper unloading equipment. The 143.3 lb unit ships in a protective crate to prevent damage during transit. Commercial locations with loading docks can receive standard freight delivery, while locations without dock access should arrange liftgate service.
Professional delivery options include:
- Terminal pickup: Save on shipping costs by collecting your alignment machine directly from the freight terminal using your own vehicle and loading equipment.
- Commercial delivery: Standard freight service to businesses with proper unloading capabilities including forklift or loading dock access.
- Distribution center pickup: Select locations offer warehouse pickup for immediate equipment availability.
Note: Inspect all shipments immediately upon arrival. Document any visible damage before signing delivery receipts to protect warranty claims.
Professional Documentation & Support
Access comprehensive resources for your Katool AV533 3D Wheel Alignment Machine:
- Download Professional Installation & Operation Manual (PDF)
- Technical support for commercial installation and troubleshooting
- Maintenance schedules optimized for high-volume use
- Parts availability guarantee for commercial customers
- Software updates and calibration procedures
If you're still evaluating options, browse our complete selection of Shop 3D Wheel Alignment Machines to compare different technologies and price points for your specific needs.
Ready to Upgrade Your Wheel Alignment Services?
Have questions about installation requirements, delivery times, or technical specifications? Our wheel alignment specialists are ready to help you choose the right configuration for your shop.
Frequently Asked Questions
What vehicles can the Katool AV533 3D wheel alignment machine service?
The AV533 handles cars, SUVs, and light trucks with its versatile 3D imaging system and adjustable components. The long stretching stroke and sawtooth chain system accommodate various vehicle sizes and wheelbases.
How accurate is the 3D imaging technology compared to traditional alignment methods?
The 3D imaging system provides exceptional accuracy with total front toe/beam measurements within ±4′ in the ±2° range. Wheel camber readings maintain ±2′ precision, significantly more accurate than older laser or mechanical systems.
What are the power requirements for installing the AV533 wheel aligner?
The machine requires a reliable electrical connection with stable voltage. If your facility experiences voltage fluctuations, installing an AC voltage regulator is recommended to protect the sensitive 3D imaging components and ensure consistent operation.
Does the warranty cover commercial use in a busy auto shop?
Yes, the 12-month parts warranty covers commercial applications. The warranty includes cylinders, power units, motors, displays, and electronics. An optional 2-year extended warranty provides additional protection for high-volume operations.
How much space do I need for the AV533 in my shop?
The compact design measures just 39.6 inches long, 25.6 inches wide, and 35.4 inches tall. You'll need additional clearance around the lift area for safe vehicle positioning and technician movement. The 143.3 lb weight allows repositioning if needed.
What training is required to operate this 3D wheel alignment machine?
Operators need factory training from Katool covering system operation and four-wheel positioning principles. Basic computer skills are required for the interface. Training documentation and certification programs are available through authorized distributors.
Do I need a lift for the AV533?
It works best on a level, vibration-free alignment bay or lift with clear approach, ensuring the 3D cameras hold calibration and accuracy.
How often should the system be calibrated?
Follow the manufacturer's schedule and re-check after major moves, firmware updates, or any incident that could affect camera alignment.
