Katool AM120SD 12,000 lb Two-Post Lift - Commercial Clear-Floor Design with Single-Point Lock Release
The Katool AM120SD 12,000 lb 2 post lift delivers professional-grade performance with 12,000-pound capacity, 70.87-inch maximum lifting height, and innovative single-point lock release technology with overhead limit switch for added protection. This clear floor two post car lift is built for commercial shops that need a 12k two post lift for trucks, SUVs, and passenger vehicles. This commercial clear-floor design provides unrestricted undercarriage access for automotive shops servicing heavy-duty vehicles, helping reduce service time while maximizing technician safety.
Is this a good 12k clear floor 2 post lift for commercial shops?
Yes, the Katool AM120SD is a 12k clear floor 2 post lift designed for commercial auto and truck repair shops that need 12,000 lb capacity, single-point lock release, and full undercarriage access for heavy-duty vehicles.
Why Choose This 12,000 lb Two-Post Lift for Your Professional Shop
When selecting a commercial 2 post lift for daily heavy-duty use, the Katool AM120SD addresses critical shop owner concerns: safety compliance, operational efficiency, and long-term reliability. As a 12,000 lb clear floor 2 post lift, it's designed specifically for high-volume automotive and truck repair facilities that need unrestricted undercarriage access. This 12000 pound car lift undergoes rigorous testing with 150% static load capacity while enabling single-technician operation that can help reduce labor costs.
12,000 lb Heavy-Duty Lifting Capacity for Trucks and SUVs
This professional 2 post lift 12000 lbs capacity safely handles the heaviest vehicles in your shop. Built with Q235 and Q245 structural steel, the heavy-duty automotive lift supports full-size pickup trucks, commercial vans, and large SUVs without compromising stability or safety. This makes it an ideal truck 2 post lift for shops that regularly service three-quarter-ton and one-ton pickups.
Synchronized wire-rope carriages keep the lift level, and the lift is validated at 115% dynamic and 150% static load capacity for enhanced safety in commercial automotive lifts.
Single-Point Lock Release System Saves Time and Labor
The innovative 2 post lift with single point lock release mechanism transforms shop efficiency. This bilateral unlocking system allows one technician to control both columns simultaneously, eliminating the need to walk between posts during operation. This is a key feature for busy commercial shops.
With 12 mechanical locking positions and an overhead shutoff limit switch for added safety, this professional car lift single operator system provides secure vehicle holding at any service height while helping reduce technician fatigue and potentially increasing daily vehicle throughput.
Clear-Floor Design Maximizes Workspace Efficiency
The clear floor 2-post lift design eliminates base plate obstructions between columns, providing complete access for transmission work, exhaust repairs, and drivetrain service. This commercial automotive lift clear floor configuration can help increase technician productivity compared to baseplate designs.
With approximately 94-inch drive-through clearance and 110-inch inside column width, this 2 post lift for heavy duty trucks with clear floor design accommodates extended wheelbase vehicles while maintaining the structural integrity required for 12,000-pound lifting capacity.
Three-Stage Telescoping Arms for Confident Positioning
The 12000 lb 2 post lift features four swing, sliding telescopic arms that rotate up to 90° and lock mechanically once positioned. Front arms extend 23–45 inches while rear arms reach 34–55.5 inches, accommodating everything from compact cars to dually pickup trucks.
Synchronized carriages maintain level travel via wire rope system, while audible safety pawls confirm engagement at each lock position during ascent. Included drop-in adapters extend reach for lifted trucks and SUVs, making this the ideal professional lift for mixed fleet service operations.
Commercial Applications for the Katool AM120SD 12000 lb Lift
This professional grade 2 post lift for auto shops meets demanding commercial requirements while helping reduce total cost of ownership through durable construction and minimal maintenance needs. The AM120SD is part of our extensive Katool two-post lift collection, engineered for professional reliability.
- High-volume repair shops requiring reliable 12,000 lb 2 post lift capacity for diverse vehicle types
- Truck and SUV service bays needing a clear floor 2 post lift for heavy-duty pickups and large SUVs
- Fleet maintenance facilities servicing mixed commercial and passenger vehicles daily
- Dealership service departments needing professional lifting equipment for warranty work
- Specialty performance shops working on lifted trucks and modified SUVs
- Quick-lube centers maximizing efficiency with single-point lock release operation
- Government fleet garages requiring durable commercial-grade lifting equipment
Technical Specifications - Katool AM120SD Commercial Two-Post Lift
| Brand | Katool |
|---|---|
| Model | AM120SD |
| MPN | AM120SD |
| Maximum Lifting Capacity | 12,000 lbs (5,443 kg) |
| Maximum Lifting Height | 70.87" (1800mm) |
| Minimum Pad Height | 4.25" (110mm) |
| Full Rise Time | 50 seconds |
| Safety Lock Positions | 12 mechanical positions |
| Overhead Protection | Overhead limit switch |
Note: Inside column width (post-to-post) differs from drive-through clearance. Contact us for a bay fit check.
| Overall Height | 144" (12 feet) |
|---|---|
| Inside Column Width | ~110" (post-to-post) |
| Drive-Through Clearance | ~94" usable opening |
| Power Requirements | 220V/60Hz/1-Phase |
| Motor Power | 3.0 HP (2.2 kW) |
| Hydraulic Oil Capacity | 8L tank capacity |
| Concrete Thickness | ≥6" (150mm), 3000 PSI |
| Ceiling Height Required | 12 feet minimum |
| Recommended Bay Width | 14 feet for comfort |
Katool AM120SD vs Similar 12,000 lb Clear-Floor Lifts
| Model | Lock Release | Key Features |
|---|---|---|
| Katool AM120SD | Single-point | 70.87" lift height, 3.0HP motor, CE approved |
| APlusLift AP-12SR | Single-point | Direct-drive, includes truck adapters |
| Tuxedo TP12KAC | Single-point | Asymmetric arms, commercial duty |
| Stratus C12X | Single-point | Direct-drive, commercial focused |
Professional Installation Requirements for 12,000 lb Two-Post Lift
Foundation & Power Specifications
Proper installation of this 12,000 lb commercial lift ensures safety compliance and maximizes equipment lifespan:
- Reinforced concrete: ≥6" (150mm) thickness, 3,000 PSI strength for secure anchoring
- Electrical requirements: Dedicated 220V/60Hz circuit with 30-amp breaker (110V conversion available but increases lift time)
- Shop clearance: 12-foot minimum ceiling height for full 70.87" lifting range
- Bay configuration: 14-foot width recommended for comfortable vehicle positioning
- Foundation levelness: Within 3mm tolerance across anchor points
- Cure time: 28 days for new concrete before installation
Safety Testing & Compliance
The Katool AM120SD undergoes rigorous safety testing that exceeds industry standards:
- CE Approved: Meets European safety standards for machinery
- 115% Dynamic Load Testing: Tested with moving loads at 115% of rated capacity
- 150% Static Load Testing: Verified at 1.5x capacity for ultimate safety margin
- Overhead Shutoff System: Automatic limit switch prevents over-extension
Note: This model is CE approved. For applications requiring ALI certification, please contact us about premium lift options.
Complete Commercial Lift Package Includes
- Heavy-duty two-post lift assembly rated for 12,000 lbs

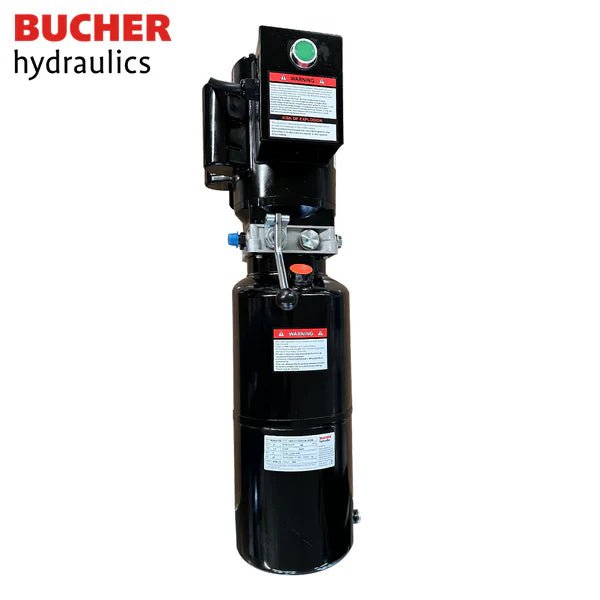

- 3.0 HP (2.2 kW) hydraulic power unit with integrated control system
- Eight commercial-grade anchor bolts for concrete mounting
- Height adapter set for lifted trucks and high-clearance vehicles
- Rubber door protection pads to prevent vehicle damage
- Single-point lock release cable system with overhead shutoff
- Professional installation and operation manual
Warranty Protection for Commercial Use
The Katool AM120SD professional 2 post lift warranty provides comprehensive coverage designed for commercial shop environments:
- 36-Month Structural Coverage: Complete protection for columns, arms, and carriage assembly against manufacturing defects
- 12-Month Parts Protection: Hydraulic cylinders, power unit, and electrical components covered with free replacement shipping
- Commercial Use Approved: Warranty valid for high-volume professional shop applications
- Parts-Only Coverage: Professional installation required to maintain warranty validity
Commercial Delivery for 12,000 lb Two-Post Lift
Freight Shipping Requirements
This commercial automotive lift shipping requires proper unloading equipment. The 12000 lb two post lift ships via freight carrier in a 1,500-pound crate (118" x 30" x 18"). Customers must provide forklift or suitable equipment for safe unloading.
Professional delivery options include:
- Terminal pickup: Collect from freight terminal with your equipment (most economical)
- Commercial delivery: Direct to shops with loading dock or forklift (additional fee)
- Distribution center pickup: Available at select locations by appointment
Note: Due to size/weight, lift-gate service unavailable. Inspect immediately upon arrival and document any damage before signing.
Professional Documentation & Support
Access comprehensive resources for your Katool AM120SD commercial 2 post lift:
- Download Professional Installation & Operation Manual (PDF)
- Technical support for commercial installation and troubleshooting
- Maintenance schedules optimized for high-volume shop use
- Parts availability guarantee for commercial customers
If you're still evaluating options, browse our complete selection of professional two-post lifts to compare different weight capacities and configurations for your shop's specific needs.
Ready to Order Your 12,000 lb Two-Post Lift?
Have questions about installation, delivery times, or specifications? Our lift specialists are ready to help you choose the right configuration for your shop.
Frequently Asked Questions
What vehicles can a 12,000 lb two post car lift safely handle?
The Katool AM120SD safely lifts vehicles up to 12,000 pounds including F-350 dually trucks, Chevrolet Suburban, commercial vans, and all passenger vehicles. Its telescoping arms accommodate wheelbases from compact cars to extended cab trucks.
What concrete specifications are required for installation?
Installation requires reinforced concrete minimum 6 inches thick with 3,000 PSI strength. New concrete must cure 28 days before installing. The foundation must be level within 3mm across anchor points for proper operation.
Can this 12,000 lb lift operate on 110V power supply?
Standard configuration requires 220V/60Hz single-phase power. A 110V conversion kit may be available but increases lifting time significantly. Most commercial shops prefer 220V for maximum efficiency and throughput.
How does single-point lock release improve shop efficiency?
Single-point lock release allows one technician to control both columns from either side, eliminating walks between posts. This reduces operation time, potentially increasing daily vehicle throughput and reducing labor costs in high-volume shops.
What warranty coverage does the Katool AM120SD include?
The AM120SD includes 36-month structural warranty covering columns, arms, and carriage assembly. Hydraulic cylinders, power unit, and electrical components have 12-month parts coverage. Warranty is valid for commercial use with professional installation.
