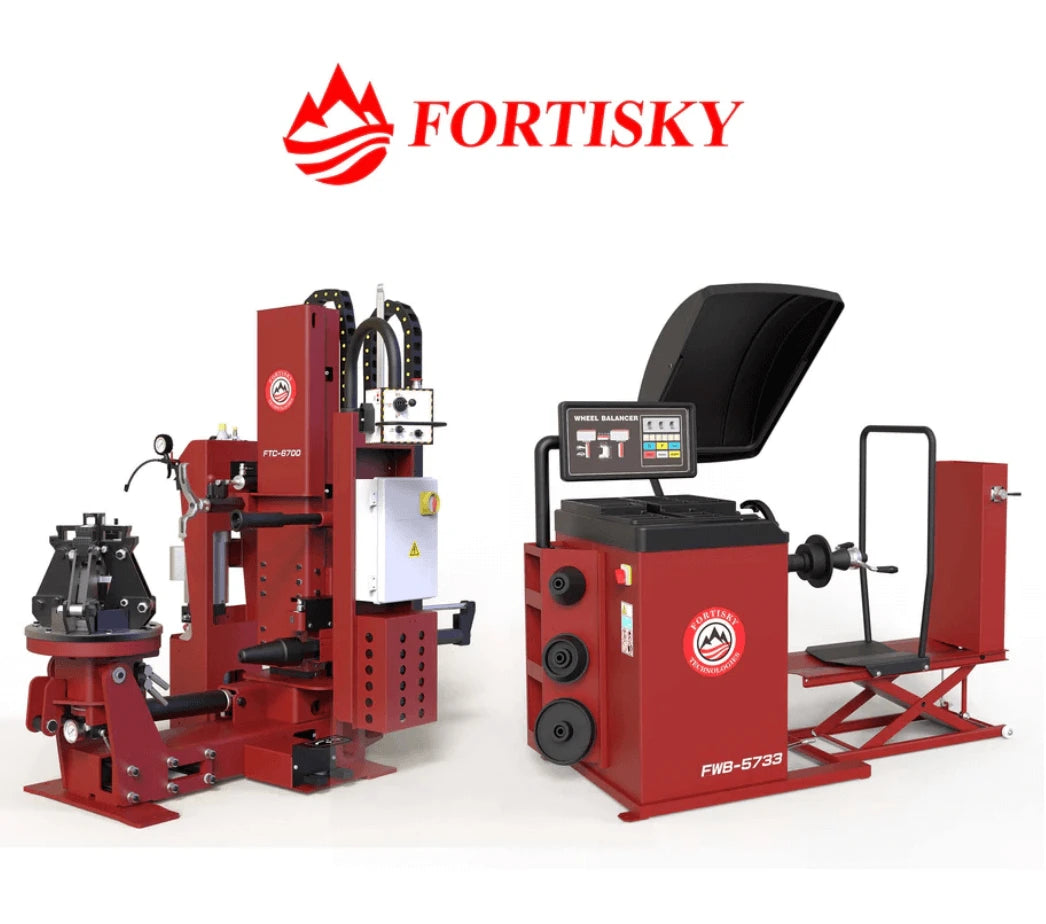

Fortisky FWB-5733 Heavy-Duty Truck Wheel Balancer with Tire Lift Cart
Also searched as: FWB-5733 / Fortisky truck wheel balancer / heavy duty wheel balancer / commercial truck tire balancer
The Fortisky FWB-5733 is a heavy-duty computerized wheel balancer built for truck tires up to 441 lbs and 28" rims. Includes pneumatic tire lift cart for safe handling of commercial truck wheels. Dual shaft speeds: 180 RPM for passenger, 90 RPM for truck. Five balance modes cover steel and alloy wheels. Runs on 220V single-phase.
Who It's For
Truck Service Centers
Built for commercial truck tires. The 441 lb capacity and included tire lift cart handle medium and heavy-duty truck wheels safely. Dual shaft speed automatically adjusts for truck vs passenger applications.
Fleet Maintenance Operations
Balance everything from delivery vans to class 6/7 trucks on one machine. The pneumatic lift cart keeps technicians from manually handling 200+ lb assemblies. Five balance modes cover steel steer wheels and alloy hub-piloted applications.
Full-Service Tire Shops
One balancer for passenger cars through medium trucks. Car mode runs at 180 RPM for quick cycles. Truck mode drops to 90 RPM for the heavier assemblies. No separate machines needed.
Features
441 lb Wheel Capacity
Handles wheels up to 200kg (441 lbs), 28" rim diameter, 47" overall diameter, and 20" width. Covers passenger cars, SUVs, light trucks, and medium-duty commercial trucks on one machine.
Pneumatic Tire Lift Cart
Included wheel lifter handles tires over 15kg (33 lbs) safely. Pneumatic operation lifts wheel to shaft height. Adjustable positioning aligns center hole with balancer shaft. Requires shop air at 0.5-0.8 MPa (73-116 PSI).
Dual Shaft Speed
180 RPM for passenger car wheels. 90 RPM for truck wheels. Lower speed on heavy assemblies reduces stress on bearings and improves measurement accuracy. Select car or truck mode with one button.
5 Balance Modes
Dynamic: Clip weights both sides. Static: Single-plane balance. ALU1: Clip on rim shoulders. ALU2: Hidden adhesive inside. ALU3: Combination placement. Covers steel and alloy wheels.
Self-Calibration and Diagnostics
User-performed calibration with 200g test weight maintains accuracy. Built-in error codes (Err 1-7) identify sensor, power, and calibration issues. Stored parameter adjustment for fine-tuning.
Low Noise Operation
Under 69dB during operation. Vibration-damping design and premium motor reduce shop noise. High-precision bearings on main shaft for smooth, quiet spin cycles.
Product Video
Specifications
| Spec | Value |
|---|---|
| Rim Size Range | 10" - 28" |
| Max Wheel Diameter | 1200mm (47") |
| Wheel Width Range | 1.5" - 20" |
| Max Wheel Weight | 200kg (441 lbs) |
| Spec | Value |
|---|---|
| Balancing Precision | ±10g |
| Main Shaft Speed (Car) | 180 RPM |
| Main Shaft Speed (Truck) | 90 RPM |
| Balance Modes | 5 (Dynamic, Static, ALU1-3) |
| Spec | Value |
|---|---|
| Power Requirements | 220V / 60Hz / 1 Phase |
| Power Consumption | ~600W |
| Machine Weight | 230kg (507 lbs) with lift cart |
| Packing Dimensions (L×W×H) | 1230 × 990 × 1180mm (48.4" × 39" × 46.5") |
| Noise Level | ≤69dB |
| Wheel Lift Air Supply | 0.5-0.8 MPa (73-116 PSI) |
Installation Requirements
Space and Floor
Solid, level floor required. Anchor bolt mounting at 3 points mandatory for accuracy, especially with wheels over 35kg. Allow 80cm (31") behind machine, 50cm (20") on left side, 200cm (79") on right for tire lift cart operation.
Utilities
Electrical: 220V / 60Hz / Single Phase. 15A circuit breaker with overload protection required. Wire gauge minimum 1.5mm². Voltage stabilizer recommended if supply fluctuates more than 10%. Air: 0.5-0.8 MPa (73-116 PSI) for tire lift cart. 5μm filter required.
Before First Use
Mount thread shaft to main shaft with alcohol-cleaned surfaces. Anchor machine to floor. Connect air supply to lift cart. Run self-calibration with 200g test weight before balancing customer wheels.
Shipping
Ships freight to lower 48 states. Free to commercial address or nearest carrier terminal. Residential, farmland, construction site, and liftgate service available for additional fee. Forklift required for unloading (507 lbs with lift cart). Inspect for damage before signing delivery receipt. Call +1 (855) 498-2147 with questions.
Warranty
Coverage
1 Year Standard: All operating components. Defective parts repaired or replaced. Parts returned freight prepaid for inspection.
2 Year Extended Warranty: Available at purchase.
Not covered: Normal wear, abuse, misuse, shipping damage, improper maintenance. Serial number required for claims.
Documentation
Buy the Fortisky FWB-5733
Questions about installation, air requirements, or specs?
FAQs
What's the difference between this and the FWB-70B?
The FWB-5733 is built for truck tires. 441 lb wheel capacity vs 143 lb. 28" max rim vs 26". Includes pneumatic tire lift cart. Dual shaft speeds (90/180 RPM). Requires 220V and shop air. The FWB-70B is lighter duty for passenger vehicles only, runs on 110V, no air required.
What size trucks can it handle?
Wheels up to 441 lbs, 28" rim, 47" diameter, 20" width. Covers delivery vans, box trucks, buses, and medium-duty commercial trucks. Not rated for Class 8 over-the-road truck tires.
Why two shaft speeds?
Heavy truck wheels need slower rotation for accurate measurement and reduced bearing stress. 90 RPM for truck mode, 180 RPM for car mode. Select with the car/truck mode button.
What air pressure does the lift cart need?
0.5-0.8 MPa (73-116 PSI) working pressure. Requires 5μm filtered air supply. Medium flux over 0.15 m³/min. Connect with 8mm (inside diameter) hose to quick union on lift cart.
Does it need to be bolted down?
Yes. Anchor bolt mounting at 3 points is mandatory, especially for wheels over 35kg (77 lbs). Without anchoring, vibration affects accuracy.
How do I calibrate it?
Mount a balanced wheel. Press calibration button combination until display shows "CAL-CAL." Run spin cycle. Add 200g test weight at any outside position. Run again. Display shows "End-CAL" when complete. Recommended every 6 months.
What's ±10g precision mean for trucks?
Truck tires are heavier and tolerances are wider than passenger applications. ±10g is appropriate for commercial truck balancing. The system displays values under 5g when high-precision mode is selected.
Can it balance passenger car wheels too?
Yes. Select car mode for 180 RPM shaft speed. Works for all standard passenger car, SUV, and light truck wheels. The lift cart is optional for lighter wheels under 33 lbs.
