Coats 800MAXX80 Electric Rim Clamp Tire Changer with Robo-Arm for High-Volume Tire Service
The Coats Maxx 80 is Coats' most popular rim clamp tire changer - the company's strongest and most fully-equipped model for high-volume tire dealerships and professional repair shops. It handles wheels from 6" to 24" in diameter and up to 16" wide with a maximum tire diameter of 50", powered by a 220V 2HP electric motor (110V, 2-speed 220V, and air-drive models also available). The Maxx 80 stands above the Maxx 70 with the addition of the patented RoboRoller bead pressing arm, dual hand and foot bead loosener controls, Grip Max 2.0 protective clamps included standard, and the most comprehensive factory accessory package in the Maxx lineup. Ships at 850 lbs and backed by Coats' 3-year parts / 6-month labor warranty with a 5-year pro-rated transmission warranty.
Coats Maxx 80 Features

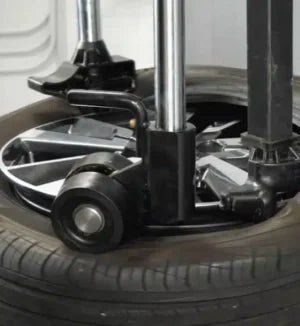

RoboRoller - Additional Bead Pressing Power for Difficult Assemblies
The RoboRoller is a powered bead depressor arm that applies direct pressure to the tire sidewall during mounting, keeping the bead in the drop center and preventing it from rolling back over the mount tool. This is the key upgrade the Maxx 80 carries over the Maxx 70 - it adds the extra mechanical control that technicians need when mounting stiff low-profile, run-flat, and performance tires that resist standard bead depressor methods.

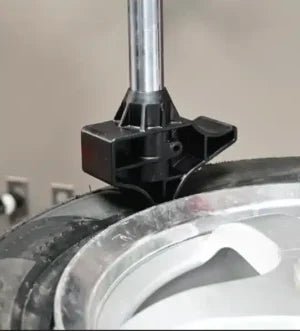

Robo-Arm Bead Depressor
In addition to the RoboRoller, the Maxx 80 includes Coats' patented Robo-Arm, which pushes the tire bead directly into the rim drop center during mounting and dismounting. Together, the Robo-Arm and RoboRoller form a two-system helper approach that gives technicians more mechanical advantage on the most challenging wheel assemblies - reducing effort, reducing cycle time, and protecting expensive alloy rims from tool contact damage.

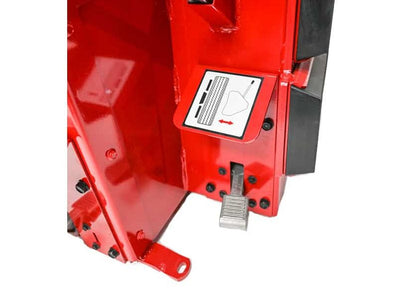

Dual Hand and Foot Bead Loosener Controls
The Maxx 80 includes both hand and foot operated bead loosener controls - the only model in the Maxx lineup to offer both simultaneously. This gives each technician the flexibility to choose the control method that suits their technique and the specific assembly in front of them: foot pedal for fast throughput on standard tires, or hand control for more finesse and precision on delicate or high-value wheels. The bead loosener handles widths up to 22".
Grip Max 2.0 Clamps - Included Standard
Grip Max 2.0 clamps (set of 4, PN 85612106) come included as standard equipment on the Maxx 80, not as an add-on. These clamps feature built-in plastic protective inserts that eliminate metal-to-metal contact between the clamp jaws and the wheel rim, dramatically reducing the risk of scratching or gouging alloy and chrome wheels during clamping. The standard 4-clamp air cylinder system covers 6" to 24" external rim diameter.
Three Duckhead Tools and No-Index Tabletop
The Maxx 80 ships with three mount/demount duckheads: the Polymer Duckhead for alloy-safe service, the Steel Duckhead for standard steel wheels, and the High Spoke Duckhead for spoke-style and specialty wheels - the most complete duckhead set in the Maxx lineup. The no-index tabletop eliminates the need to reposition the table when working on large assemblies, reducing pedal presses and keeping technicians moving at full production pace.
Broadest Motor Options - Including 2-Speed 220V
The Maxx 80 offers the widest range of motor configurations of any model in the Maxx Series: 220V 2HP electric (800MAXX80220), 220V 2-speed electric (800MAXX802SPD) with 10 and 22 RPM clockwise / 10 RPM counterclockwise speeds for precise control on difficult assemblies, 110V electric (800MAXX80), and air drive up to 4HP (800MAXX80A). All electric 220V models require a 220V, 10A, single-phase, NEMA L6-20 outlet. Ship weight is 850 lbs.
Coats Maxx 80 Applications
- High-Volume Tire Dealerships: The dual hand/foot bead loosener, RoboRoller, Robo-Arm, and no-index tabletop combine to produce the fastest floor-to-floor cycle times in the Maxx lineup - making the Maxx 80 the preferred choice for shops turning large daily volumes of mixed passenger car and light truck tires across multiple service bays.
- Performance and Low-Profile Tire Specialists: The RoboRoller bead depressor and Robo-Arm provide the additional mechanical assistance required to mount stiff low-profile and run-flat tires without rim damage - applications that consistently challenge tire changers without active helper systems.
- New Car and Truck Dealerships: The Grip Max 2.0 clamps with plastic protective inserts, Polymer Duckhead, and patented helper tools ensure that high-value OEM alloy and chrome wheels are not scratched or gouged during service - meeting the appearance standards dealership customers demand.
- General Repair Shops Serving Diverse Wheel Types: The three-duckhead set (Polymer, Steel, and High Spoke) and 6" to 24" clamping range mean the Maxx 80 handles every wheel type encountered in a mixed-service shop environment without requiring additional tooling or adapter purchases.
- Fleet and Light Truck Service Operations: The 250,000-cycle-tested chassis, 850 lb stable footprint, and broadest power option range - including the 2-speed model for heavy assemblies - make the Maxx 80 a reliable production workhorse for fleet and commercial light truck tire service with continuous daily operation demands.
Coats Maxx 80 Specifications
| Specification | Value |
|---|---|
| Wheel Type | Alloy and Steel - Car and Light/Medium Truck |
| External Rim Diameter Range | 6" - 24" (standard) / up to 30" with optional extended clamps |
| Maximum Tire Diameter | 50" |
| Maximum Rim Width | 16" |
| Bead Loosening Width | Up to 22" wide |
| Wheel Clamping System | 4 clamps, air cylinder operated |
| Helper Devices | Robo-Arm bead depressor, RoboRoller, Polymer Duckhead |
| Specification | Value |
|---|---|
| Footprint (W x H x D) | 74" x 86" x 44" |
| Ship Weight | 850 lbs |
| Specification | Value |
|---|---|
| Electric Drive (220V Model) | 220V, 2HP, single-phase, 60Hz |
| 220V Outlet Requirement | 220V, 10A, 1PH, NEMA L6-20 |
| Electric Drive (110V Model) | 110V electric motor |
| Electric Drive (2-Speed Model) | 220V, 2-speed - 10 and 22 RPM CW / 10 RPM CCW |
| Air Drive System | Up to 4HP air motor |
| Air Motor Requirements | 110 - 175 psi, 15 scfm |
| Specification | Value |
|---|---|
| Bead Seating Air Volume | 5.4 gallons in tower |
| Bead Sealing System | High-pressure dual nozzle |
| Bead Loosening System | Dual mode - hand and foot control (both included) |
| Model | Part Number |
|---|---|
| Electric 220V | 800MAXX80220 |
| Electric 220V with Wheel Lift | 800MAXX80220L |
| Electric 220V 2-Speed | 800MAXX802SPD |
| Electric 220V 2-Speed with Wheel Lift | 800MAXX802SPDL |
| Electric 110V | 800MAXX80 |
| Electric 110V with Wheel Lift | 800MAXX80L |
| Air Drive | 800MAXX80A |
| Air Drive with Wheel Lift | 800MAXX80AL |
Coats Maxx 80 Video
Coats Maxx 80 Installation Requirements

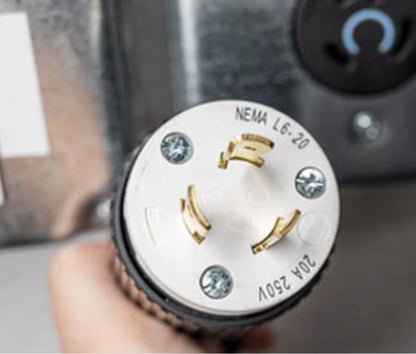

Electrical Requirements - 220V Models
Power: The 800MAXX80220 and 800MAXX802SPD require a dedicated 220V, single-phase, 60Hz circuit at 10 amps with a NEMA L6-20 outlet. A licensed electrician must install, inspect, and verify the electrical supply prior to machine operation. The 110V model (800MAXX80) operates on a standard 110V circuit - verify amperage draw with your electrician. The air model (800MAXX80A) requires no dedicated electrical circuit for the drive motor.
Air Supply Requirements
Air Pressure: All models require a shop air supply capable of delivering 110 - 175 psi at 15 scfm for bead loosening and bead seating functions. The air-drive model (800MAXX80A) additionally requires sufficient volume to sustain continuous air motor operation. Ensure your compressor and supply lines maintain consistent pressure during peak demand without significant pressure drop.
Space Requirements
Footprint: 74" wide x 44" deep x 86" high. Allow adequate clearance on all sides for safe wheel handling, swing-arm operation, and technician movement around the machine. The no-index tabletop and RoboRoller arm both require clear working space around the machine - ensure the floor area is free of obstructions within the full arm arc before placing the Maxx 80 in its permanent position.
Professional Installation and Free Training
Professional installation and setup is included with the Coats Maxx 80. Coats provides free setup and training through their authorized factory-trained service network - contact your Coats representative to schedule. Customers must have the machine placed in its final location with all required electrical and air connections in place prior to the technician's arrival. Wheel lift installation is not included in the standard setup service.
What's Included with the Coats Maxx 80
- Coats Maxx 80 rim clamp tire changer (part number 800MAXX80220 for 220V model)
- Robo-Arm bead depressor
- RoboRoller bead pressing arm
- Polymer Duckhead mount/demount tool
- High Spoke Duckhead mount/demount tool (PN 8184432)
- Steel Duckhead mount/demount tool (PN 8182788)
- Grip Max 2.0 protective clamps - set of 4 (PN 85612106)
- Steel clamps - set of 4 (PN 8184126EX)
- Dual hand and foot operated bead loosener controls
- Bead loosener shoe socks - set of 2 (PN 8183606)
- Dual nozzle high-pressure bead sealer with 5.4-gallon tower reservoir
- Lift tool socks - set of 10 (PN 85000783)
- Premium storage cabinet (PN 85610105)
- Paste lube bracket and brush (PN 85009048)
- Swing-away mount/demount arm with no-index tabletop
- Operator manual
Optional Accessories: Grip-Max 30" extended clamps set of 4 (PN 85607986) for wheels up to 30" external diameter, auxiliary bead sealer (PN 85606545), EL-X Express Lane inflation system, Maxx Wheel Lift (factory-installed, order as 800MAXX80220L or 800MAXX80AL).
Not Included: Electrical installation and wiring, air compressor and supply lines, installation labor beyond standard Coats setup service, wheel lift (available as factory option on L-suffix model variants).
Coats Maxx 80 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Alaska, Hawaii, US territories, and international orders are excluded - contact sales for a quote. Ship Weight: 850 lbs - ships via common carrier LTL freight. Lead Time: Contact us for current availability and estimated lead time.
Delivery Requirements
Unloading: A forklift or loading dock is required to unload the Maxx 80 due to its 850 lb ship weight - ensure equipment is available at the delivery address prior to scheduling. Delivery Type: Standard LTL curbside delivery - liftgate, inside delivery, and residential delivery fees are not included. Inspection: Inspect all packages thoroughly for damage before signing the bill of lading. Note any visible damage on the delivery receipt before the driver departs.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. A 20% restocking fee applies to all returned items. Buyer is responsible for return freight costs.
Coats Maxx 80 Warranty
Coats Maxx Series Limited Warranty
The Coats Maxx 80 (Maxx Series 2023) is covered under the Coats Company LLC Limited Warranty. Coverage begins on the date of delivery to the first retail buyer or the date of first use, whichever is earlier.
- 3 Years: Parts coverage on the machine (defects in materials and workmanship)
- 5 Years: Transmission coverage, pro-rated after year 3 - customer pays 60% of current list part price in year 4 and 80% in year 5
- 1 Year: Air-operated cylinder components, valves, seal kits, rotary coupling, rubber hoses, and air lines
- 6 Months: Labor and on-site service charges
Requirements and Exclusions: Air-operated components must be supplied with clean, dry air - failures caused by water, rust, or debris contamination are not covered. Warranty excludes misuse, abuse, neglect, unauthorized alterations, and wear items including wheel protectors, nylon mount/demount head, drive belt, grip max clamp inserts, and bead loosener pads. Warranty is non-transferable and applies only to equipment sold and used in the US and Canada. For warranty service call 1-800-688-9240 (US) or 1-877-801-1405 (Canada).
Documents
Click to open in a new tab.
Questions About the Coats Maxx 80?
Our equipment specialists can help with model selection, motor variant comparisons, accessory questions, and lead time for the Coats Maxx 80 and the full Maxx Series lineup.
Coats Maxx 80 FAQ
What is the difference between the Coats Maxx 80 and the Maxx 70?
The Maxx 80 adds several significant upgrades over the Maxx 70. The most important is the addition of the RoboRoller bead pressing arm, which works alongside the Robo-Arm to provide a two-system helper approach for the most difficult low-profile and run-flat assemblies. The Maxx 80 also adds dual hand and foot bead loosener controls (the Maxx 70 has hand control only), includes Grip Max 2.0 protective clamps as standard equipment, includes three duckhead tools (vs. one polymer duckhead on the Maxx 70), and ships with the premium storage cabinet and full accessory set. Ship weight increases to 850 lbs from 805 lbs.
What size wheels can the Coats Maxx 80 handle?
The Coats Maxx 80 handles wheels with an external rim diameter of 6" to 24" using the standard 4-clamp system, with a maximum rim width of 16" and maximum tire diameter of 50". This covers the full range of OE passenger car, light truck, SUV, performance, and low-profile applications. With the optional Grip-Max 30" extended clamps (PN 85607986), clamping capacity extends to 30" external diameter for oversized custom applications.
What motor options are available for the Coats Maxx 80?
The Maxx 80 offers four motor configurations - the broadest of any model in the Maxx Series. The 800MAXX80220 is the standard 220V, 2HP, single-phase electric model requiring a NEMA L6-20 outlet at 10 amps. The 800MAXX802SPD is a 220V 2-speed model offering 10 and 22 RPM clockwise / 10 RPM counterclockwise for added control on difficult assemblies. The 800MAXX80 runs on a 110V circuit. The 800MAXX80A is an air-drive model (up to 4HP at 110-175 psi / 15 scfm) for shops without 220V infrastructure.
What is the RoboRoller and how is it different from the Robo-Arm?
The Robo-Arm is an articulating arm that applies direct pressure to push the tire bead into the drop center of the rim during mounting and dismounting. The RoboRoller is a separate powered bead depressor that applies rolling pressure to the tire sidewall, keeping the bead seated in the drop center and preventing it from riding back up over the mount tool during the mounting process. They address the same problem from different angles - together they provide significantly more mechanical control on run-flat, low-profile, and other stiff-sidewall tires than either device alone.
What warranty does the Coats Maxx 80 carry?
The Coats Maxx 80 (Maxx Series 2023) carries a 3-year parts warranty and 6 months of labor and on-site service coverage. The transmission is covered for 5 years on a pro-rated basis - fully covered through year 3, with customer co-pays of 60% in year 4 and 80% in year 5. Air-operated components including cylinders, valves, and hoses carry a 1-year parts warranty. The warranty is non-transferable and applies to equipment sold and used in the US and Canada. For warranty service call 1-800-688-9240 (US) or 1-877-801-1405 (Canada).
What is included with the Coats Maxx 80 out of the box?
The Maxx 80 ships with the most comprehensive standard accessory package in the Maxx lineup: Robo-Arm, RoboRoller, Polymer Duckhead, High Spoke Duckhead, Steel Duckhead, Grip Max 2.0 protective clamps (set of 4), steel clamps (set of 4), dual hand and foot bead loosener controls, bead loosener shoe socks (set of 2), lift tool socks (set of 10), paste lube bracket and brush, and a premium storage cabinet. The dual nozzle bead sealer with 5.4-gallon tower and no-index tabletop are built into the machine.
Does the Coats Maxx 80 come with a wheel lift?
The standard Maxx 80 does not include a wheel lift. Coats offers the Maxx Wheel Lift as a factory-installed option across all motor variants - add the "L" suffix when ordering (e.g., 800MAXX80220L, 800MAXX80AL). The Maxx Wheel Lift supports assemblies up to 150 lbs at 150 psi and is foot-pedal operated, lifting heavy wheel assemblies to tabletop height. Note that wheel lift installation is not included in the standard Coats setup service.
What optional accessories are available for the Coats Maxx 80?
The primary optional accessories for the Maxx 80 are: Grip-Max 30" extended clamps (set of 4, PN 85607986) to extend clamping capacity to 30" external diameter, auxiliary bead sealer (PN 85606545) for additional bead seating power on extremely difficult assemblies, and the EL-X Express Lane inflation system for faster post-change inflation. The factory-installed Maxx Wheel Lift is available on all variants by ordering the L-suffix model number.
What are the electrical requirements for the Coats 800MAXX80220?
The 800MAXX80220 requires a dedicated 220V, single-phase, 60Hz circuit at 10 amps with a NEMA L6-20 receptacle. This must be installed by a licensed electrician. The 2-speed model (800MAXX802SPD) uses the same 220V, NEMA L6-20 electrical requirement. If your shop runs on 110V only, the 800MAXX80 electric model is available. For shops without adequate electrical capacity at the tire changer location, the air-drive 800MAXX80A requires no dedicated high-voltage circuit.
How does the Coats Maxx 80 compare to the Maxx 90?
The Maxx 80 is Coats' most popular and most comprehensively equipped mid-tier rim clamp tire changer, described by Coats as their strongest, most robust model for high-volume dealers. The Maxx 90 is the flagship of the series, adding further advanced features and the highest capacity for the most demanding shop environments. For most high-volume tire dealerships and general repair shops, the Maxx 80 provides the most value - the Maxx 90 targets shops with the most extreme daily throughput or the most complex wheel mix. Contact us to compare both models.
What is the footprint of the Coats Maxx 80 and how much space is needed?
The Coats Maxx 80 has a footprint of 74" wide x 44" deep x 86" high. When planning floor space, allow additional clearance on all sides for the swing-away mount/demount arm arc, the RoboRoller arm swing, wheel handling, and safe technician movement around the machine during operation. The wide 74" chassis provides stability when working with large, heavy assemblies. Ship weight is 850 lbs, requiring a forklift or loading dock for unloading at delivery.
How is the Coats Maxx 80 shipped and what delivery equipment is needed?
The Maxx 80 ships via common carrier LTL freight at a ship weight of 850 lbs. Free freight delivery is included to commercial addresses in the 48 contiguous United States. A forklift or loading dock is required at the delivery location due to the machine's weight - confirm this equipment is available before scheduling delivery. Standard LTL delivery does not include liftgate, inside delivery, or residential delivery services. Inspect all packaging before signing the bill of lading and note any damage on the delivery receipt prior to the driver departing.
