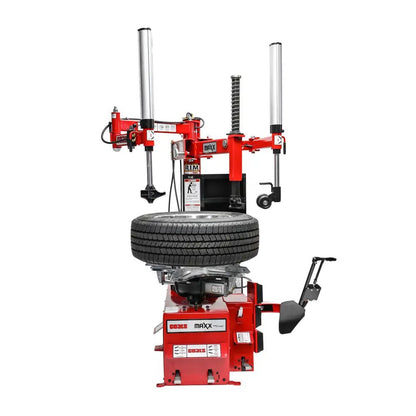

Coats 800MAXX80A Air Rim Clamp Tire Changer with Robo-Arm for High-Volume Tire Service
The Coats 800MAXX80A is the air-driven configuration of Coats' most popular rim clamp tire changer, delivering the full Maxx 80 feature set to shops that run on shop air rather than a dedicated 220V electrical circuit. It handles wheels from 6" to 24" in diameter and up to 16" wide with a maximum tire diameter of 50", powered by an air motor rated at up to 4HP at 110-175 psi and 15 scfm. The 800MAXX80A includes the complete Maxx 80 helper and accessory package: patented Robo-Arm and RoboRoller bead pressing systems, dual hand and foot bead loosener controls, Grip Max 2.0 protective clamps, three duckhead tools, and a premium storage cabinet - all backed by Coats' 3-year parts / 6-month labor warranty with a 5-year pro-rated transmission warranty. Ships at 850 lbs.
Coats Maxx 80A Features
Air-Driven Motor - Up to 4HP, No 220V Circuit Required
The 800MAXX80A delivers the complete Maxx 80 feature set through a pneumatic air drive system rated at up to 4HP, operating on shop air at 110-175 psi at 15 scfm. Actual output scales with available shop air pressure. This is the right choice for shops with a capable compressor already in place that want the full power and capability of the Maxx 80 without the cost and disruption of adding a 220V dedicated electrical circuit to the tire changing bay.

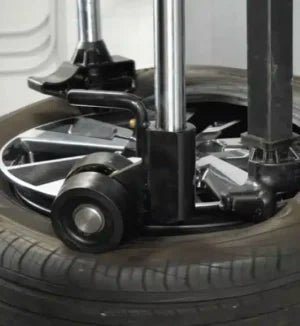

RoboRoller - Powered Bead Depressor for Difficult Assemblies
The RoboRoller applies powered rolling pressure to the tire sidewall during mounting, keeping the bead seated in the drop center and preventing it from riding back over the mount tool. This is the critical upgrade that separates the Maxx 80A from the Maxx 70A - it provides the additional mechanical control required for run-flat, low-profile, and performance tires that consistently challenge standard bead depressor methods and drive up cycle times on difficult assemblies.
Robo-Arm Bead Depressor
Working alongside the RoboRoller, the patented Robo-Arm applies direct articulating pressure to push the tire bead into the rim drop center during mounting and dismounting. The two-system approach - RoboRoller keeping the bead down, Robo-Arm guiding it into the drop center - gives technicians significantly more mechanical advantage on the most demanding wheel assemblies than either tool alone, reducing effort and protecting expensive rims from tool contact damage.

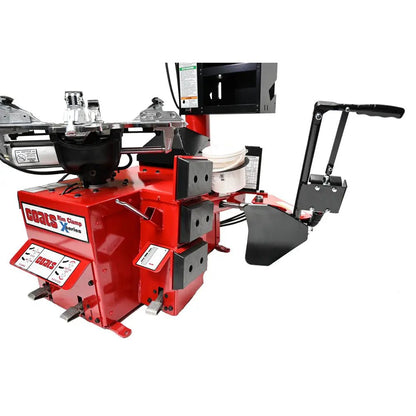

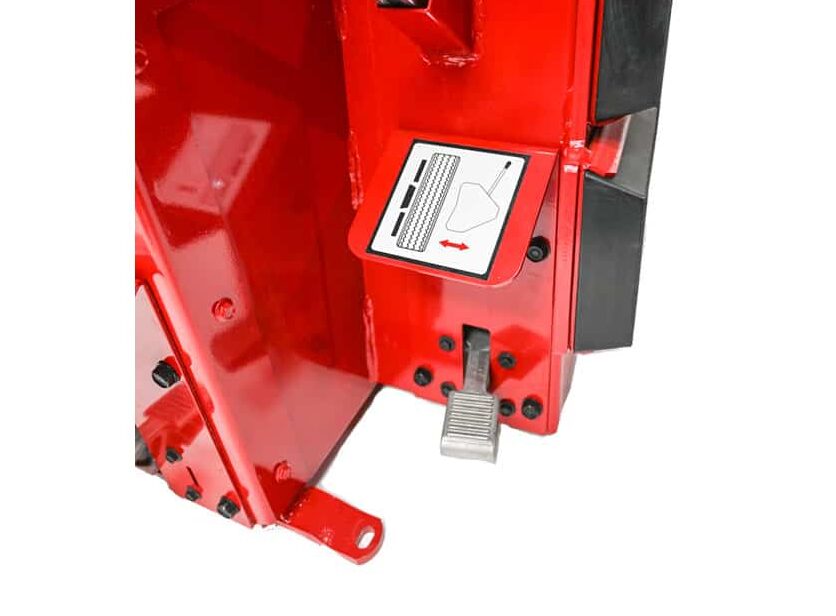

Dual Hand and Foot Bead Loosener Controls
The 800MAXX80A includes both hand and foot operated bead loosener controls as standard equipment - the only air-drive configuration in the Maxx lineup that ships with both. Foot pedal control drives fast throughput on standard passenger car and light truck tires; hand control provides the precision and finesse needed on delicate, high-value, or specialty wheels. The bead loosener handles widths up to 22".

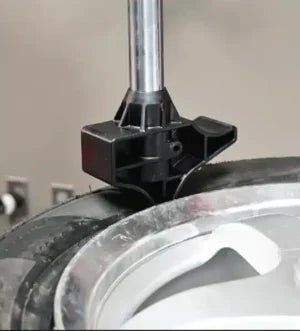

Grip Max 2.0 Clamps and Three Duckhead Tools - Included Standard
Grip Max 2.0 protective clamps (set of 4) come standard on the 800MAXX80A with built-in plastic inserts that eliminate metal-to-metal contact between clamp jaws and wheel rims. Three mount/demount duckheads are also included: the Polymer Duckhead for alloy-safe service, the Steel Duckhead for standard steel wheels, and the High Spoke Duckhead for spoke-style and specialty applications. The standard 4-clamp air cylinder system covers 6" to 24" external rim diameter.
Dual Nozzle Bead Sealer, No-Index Tabletop, and Premium Storage Cabinet
The dual nozzle high-pressure bead sealer with a 5.4-gallon tower delivers simultaneous two-point airflow for fast, consistent bead seating on difficult assemblies. The no-index tabletop eliminates table repositioning during large assembly service, reducing pedal presses and keeping technicians at pace. The premium storage cabinet (PN 85610105) ships as a standard inclusion - organizing the full accessory set within arm's reach of the machine.
Coats Maxx 80A Applications
- Shops Without 220V Infrastructure at the Tire Bay: The 800MAXX80A delivers the full Maxx 80 capability - including RoboRoller, dual bead loosener, and Grip Max 2.0 clamps - without requiring a dedicated 220V circuit, making it the right choice when adding high-voltage electrical is not practical or cost-effective.
- High-Volume Tire Dealerships: The dual hand and foot bead loosener, RoboRoller, Robo-Arm, and no-index tabletop combine to reduce floor-to-floor cycle times on mixed passenger car and light truck volumes - keeping technicians moving efficiently across busy service bays.
- Performance and Low-Profile Tire Specialists: The RoboRoller and Robo-Arm provide the two-system mechanical control required to mount stiff low-profile and run-flat tires cleanly without wheel damage - applications that consistently challenge machines without active helper systems at both bead-in and mount points.
- New Car and Truck Dealerships: The Grip Max 2.0 clamps with plastic protective inserts, Polymer Duckhead, and dual patented helper systems protect high-value OEM alloy and chrome wheels from contact damage, meeting the finish standards dealership service departments require on customer vehicles.
- Fleet and Mixed Commercial Light Truck Service: The 250,000-cycle-tested chassis, 850 lb stable footprint, up to 4HP air drive, and broadest standard accessory set in the Maxx lineup make the 800MAXX80A a dependable production machine for fleet service operations running continuous shifts on a range of passenger car and light truck wheel sizes.
Coats Maxx 80A Specifications
| Specification | Value |
|---|---|
| Wheel Type | Alloy and Steel - Car and Light/Medium Truck |
| External Rim Diameter Range | 6" - 24" (standard) / up to 30" with optional extended clamps |
| Maximum Tire Diameter | 50" |
| Maximum Rim Width | 16" |
| Bead Loosening Width | Up to 22" wide |
| Wheel Clamping System | 4 clamps, air cylinder operated |
| Helper Devices | Robo-Arm bead depressor, RoboRoller, Polymer Duckhead |
| Specification | Value |
|---|---|
| Footprint (W x H x D) | 74" x 86" x 44" |
| Ship Weight | 850 lbs |
| Specification | Value |
|---|---|
| Drive System | Air motor - up to 4HP (HP dependent on shop air pressure) |
| Air Pressure Requirement | 110 - 175 psi |
| Air Volume Requirement | 15 scfm |
| Bead Seating Air Volume | 5.4 gallons in tower |
| Bead Sealing System | High-pressure dual nozzle |
| Bead Loosening System | Dual mode - hand and foot control (both included) |
| Model | Part Number |
|---|---|
| Air Drive - No Wheel Lift | 800MAXX80A |
| Air Drive - With Wheel Lift | 800MAXX80AL |
| Electric 220V | 800MAXX80220 |
| Electric 220V with Wheel Lift | 800MAXX80220L |
| Electric 220V 2-Speed | 800MAXX802SPD |
| Electric 220V 2-Speed with Wheel Lift | 800MAXX802SPDL |
| Electric 110V | 800MAXX80 |
| Electric 110V with Wheel Lift | 800MAXX80L |
Coats Maxx 80A Video
Coats Maxx 80A Installation Requirements
Air Supply Requirements
Pressure and Volume: The 800MAXX80A requires a shop air supply capable of sustaining 110-175 psi at 15 scfm to operate the air motor and bead seating functions simultaneously. Actual motor output - up to 4HP - scales with available shop air pressure. A compressor that maintains consistent pressure under continuous load is critical; significant pressure drop below 110 psi during operation will reduce motor output and affect performance on difficult assemblies. Verify your compressor and supply lines are sized appropriately before installation.
Electrical Requirements
No dedicated high-voltage circuit required. The 800MAXX80A is fully air-driven and does not require a 220V or dedicated 110V outlet for the drive motor, making it ideal for shops that lack high-voltage capacity at the tire changing bay. Confirm with your Coats service representative whether any minimal electrical connection is needed for auxiliary machine functions prior to setup.
Space Requirements
Footprint: 74" wide x 44" deep x 86" high. Plan for additional clearance on all sides to accommodate the swing-away mount/demount arm arc, RoboRoller arm swing, dual bead loosener pedal access, and safe technician movement around the machine during operation. Ensure the floor area is clear of obstructions within the full operational zone of the machine before selecting a permanent location.
Professional Installation and Free Training
Coats provides free setup and training through their authorized factory-trained service network for the 800MAXX80A. Customers must have the machine placed in its final location with all required air line connections in place and ready prior to the service technician's arrival. Wheel lift installation is not included in the standard Coats setup service. Contact your Coats representative at 1-855-876-3864 to schedule.
What's Included with the Coats 800MAXX80A
- Coats Maxx 80A air rim clamp tire changer (part number 800MAXX80A)
- Robo-Arm bead depressor
- RoboRoller bead pressing arm
- Polymer Duckhead mount/demount tool (PN 8183061)
- High Spoke Duckhead mount/demount tool (PN 8184432)
- Steel Duckhead mount/demount tool (PN 8182788)
- Grip Max 2.0 protective clamps - set of 4 (PN 85612106)
- Steel clamps - set of 4 (PN 8184126EX)
- Dual hand and foot operated bead loosener controls
- Bead loosener shoe socks - set of 2 (PN 8183606)
- Dual nozzle high-pressure bead sealer with 5.4-gallon tower reservoir
- Lift tool socks - set of 10 (PN 85000783)
- Premium storage cabinet (PN 85610105)
- Paste lube bracket and brush (PN 85009048)
- Swing-away mount/demount arm with no-index tabletop
- Operator manual
Optional Accessories: Grip-Max 30" extended clamps set of 4 (PN 85607986) for wheels up to 30" external diameter, auxiliary bead sealer (PN 85606545), EL-X Express Lane inflation system, Maxx Wheel Lift (factory-installed, order as 800MAXX80AL).
Not Included: Air compressor and supply lines, installation labor beyond standard Coats setup service, wheel lift (available as factory option on the 800MAXX80AL variant).
Coats Maxx 80A Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Alaska, Hawaii, US territories, and international orders are excluded - contact sales for a quote. Ship Weight: 850 lbs - ships via common carrier LTL freight. Lead Time: Contact us for current availability and estimated lead time.
Delivery Requirements
Unloading: A forklift or loading dock is required to unload the 800MAXX80A due to its 850 lb ship weight - ensure unloading equipment is available at the delivery address before scheduling. Delivery Type: Standard LTL curbside delivery - liftgate, inside delivery, and residential delivery fees are not included. Inspection: Inspect all packages thoroughly for damage before signing the bill of lading. Note any visible damage on the delivery receipt before the driver departs.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. A 20% restocking fee applies to all returned items. Buyer is responsible for return freight costs.
Coats Maxx 80A Warranty
Coats Maxx Series Limited Warranty
The Coats 800MAXX80A (Maxx Series 2023) is covered under the Coats Company LLC Limited Warranty. Coverage begins on the date of delivery to the first retail buyer or the date of first use, whichever is earlier.
- 3 Years: Parts coverage on the machine (defects in materials and workmanship)
- 5 Years: Transmission coverage, pro-rated after year 3 - customer pays 60% of current list part price in year 4 and 80% in year 5
- 1 Year: Air-operated cylinder components, valves, seal kits, rotary coupling, rubber hoses, and air lines
- 6 Months: Labor and on-site service charges
Requirements and Exclusions: Air-operated components must be supplied with clean, dry air - failures caused by water, rust, or debris contamination are not covered. Warranty excludes misuse, abuse, neglect, unauthorized alterations, and wear items including wheel protectors, nylon mount/demount head, drive belt, grip max clamp inserts, and bead loosener pads. Warranty is non-transferable and applies only to equipment sold and used in the US and Canada. For warranty service call 1-800-688-9240 (US) or 1-877-801-1405 (Canada).
Documents
Click to open in a new tab.
Questions About the Coats Maxx 80A?
Our equipment specialists can help with compressor sizing, model comparisons, accessory questions, and lead time for the Coats 800MAXX80A and the full Maxx Series lineup.
Coats Maxx 80A FAQ
What is the difference between the Coats 800MAXX80A and the 800MAXX70A?
The 800MAXX80A adds the RoboRoller bead pressing arm, dual hand and foot bead loosener controls (the 800MAXX70A has hand control only), Grip Max 2.0 protective clamps as standard equipment, three duckhead tools (Polymer, Steel, and High Spoke vs. Polymer only on the 70A), and a premium storage cabinet. Both are air-driven at up to 4HP on 110-175 psi / 15 scfm. Ship weight increases to 850 lbs from 805 lbs. The 800MAXX80A is designed for shops handling a broader range of tire types - especially run-flat and low-profile applications - that require the additional mechanical control the RoboRoller provides.
What is the difference between the 800MAXX80A and the 800MAXX80220?
The 800MAXX80A and 800MAXX80220 are the same Maxx 80 machine with the same features and accessory package - the only difference is the drive system. The 800MAXX80A uses a pneumatic air motor (up to 4HP at 110-175 psi / 15 scfm) and requires no 220V dedicated circuit. The 800MAXX80220 uses a 220V, 2HP, single-phase electric motor requiring a NEMA L6-20 outlet at 10 amps. Choose the 800MAXX80A if your shop has a capable air compressor but lacks adequate electrical capacity at the tire bay.
What air compressor is needed to run the Coats 800MAXX80A?
The 800MAXX80A requires a shop air supply capable of sustaining 110-175 psi at 15 scfm to run the air motor and bead seating functions. Actual motor horsepower - up to 4HP - scales directly with available pressure. A compressor that drops significantly below 110 psi under load will reduce motor output and affect performance on difficult assemblies. If your existing compressor is marginally sized, running multiple air tools simultaneously may create pressure conflicts. Contact us if you need guidance on compressor sizing before purchase.
What size wheels can the Coats 800MAXX80A handle?
The 800MAXX80A handles wheels with an external rim diameter of 6" to 24" using the standard Grip Max 2.0 4-clamp air cylinder system, with a maximum rim width of 16" and maximum tire diameter of 50". This covers passenger car, light truck, SUV, performance, and low-profile applications. With the optional Grip-Max 30" extended clamps (PN 85607986), the external clamping range extends to 30" for oversized custom and specialty wheel applications.
What is the RoboRoller and what does it do?
The RoboRoller is a powered bead depressor arm that applies continuous rolling pressure to the tire sidewall during mounting, keeping the bead seated in the rim's drop center and preventing it from riding back up over the mount tool. It works in combination with the Robo-Arm, which guides the bead into the drop center initially. Together, the two systems give technicians the mechanical control needed to consistently mount stiff run-flat, low-profile, and performance tires that would otherwise require multiple attempts or cause rim damage without active helper devices.
What is included with the Coats 800MAXX80A out of the box?
The 800MAXX80A ships with the complete Maxx 80 standard accessory package: Robo-Arm, RoboRoller, Polymer Duckhead, High Spoke Duckhead, Steel Duckhead, Grip Max 2.0 protective clamps (set of 4), steel clamps (set of 4), dual hand and foot bead loosener controls, bead loosener shoe socks (set of 2), lift tool socks (set of 10), paste lube bracket and brush, and a premium storage cabinet. The dual nozzle bead sealer with 5.4-gallon tower and no-index tabletop are built into the machine.
Does the Coats 800MAXX80A come with a wheel lift?
The standard 800MAXX80A does not include a wheel lift. The Maxx Wheel Lift is available as a factory-installed option by ordering the 800MAXX80AL. It supports wheel assemblies up to 150 lbs at 150 psi, is operated via foot pedal, and lifts heavy assemblies to tabletop height to reduce technician strain on large light truck and SUV wheels. Wheel lift installation is not included in the standard Coats setup service - confirm logistics with your Coats representative.
What optional accessories are available for the Coats 800MAXX80A?
Optional accessories for the 800MAXX80A include: Grip-Max 30" extended clamps (set of 4, PN 85607986) to extend clamping range to 30" external diameter, auxiliary bead sealer (PN 85606545) for additional bead seating power on the most difficult assemblies, and the EL-X Express Lane inflation system for faster post-change tire inflation. The factory-installed Maxx Wheel Lift is available by ordering the 800MAXX80AL variant.
What warranty does the Coats 800MAXX80A carry?
The 800MAXX80A (Maxx Series 2023) carries a 3-year parts warranty and 6 months of labor and on-site service coverage. The transmission is covered for 5 years pro-rated - fully covered through year 3, with customer co-pays of 60% of current list price in year 4 and 80% in year 5. Air-operated components including cylinders, valves, and hoses carry a 1-year parts warranty. The warranty is non-transferable and applies only to equipment sold and used in the US and Canada. For warranty service call 1-800-688-9240 (US) or 1-877-801-1405 (Canada).
Does professional installation come with the Coats 800MAXX80A?
Coats provides free setup and training through their authorized factory-trained service network for the 800MAXX80A. Before the technician arrives, the machine must be placed in its final location with all required air line connections in place and ready. Wheel lift installation is not part of the standard setup service. Contact your Coats representative at 1-855-876-3864 to arrange scheduling after the machine is delivered.
What is the footprint of the Coats 800MAXX80A?
The Coats 800MAXX80A has a footprint of 74" wide x 44" deep x 86" high. Allow additional clearance beyond these dimensions for the swing-away arm arc, RoboRoller arm reach, foot pedal access for both bead loosener and tabletop controls, and safe technician movement around the machine on all sides. Ship weight is 850 lbs, requiring a forklift or loading dock for unloading at the delivery address.
How is the Coats 800MAXX80A shipped and what delivery equipment is needed?
The 800MAXX80A ships via common carrier LTL freight at a ship weight of 850 lbs. Free freight delivery is included to commercial addresses in the 48 contiguous United States - Alaska, Hawaii, US territories, and international destinations are excluded. A forklift or loading dock is required at the delivery location. Standard LTL delivery does not include liftgate, inside delivery, or residential delivery services. Inspect all packaging before signing the bill of lading and document any damage on the delivery receipt before the driver departs.
