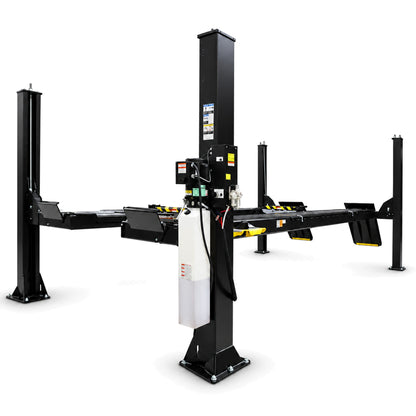

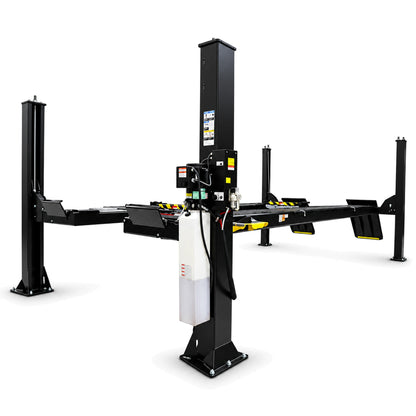

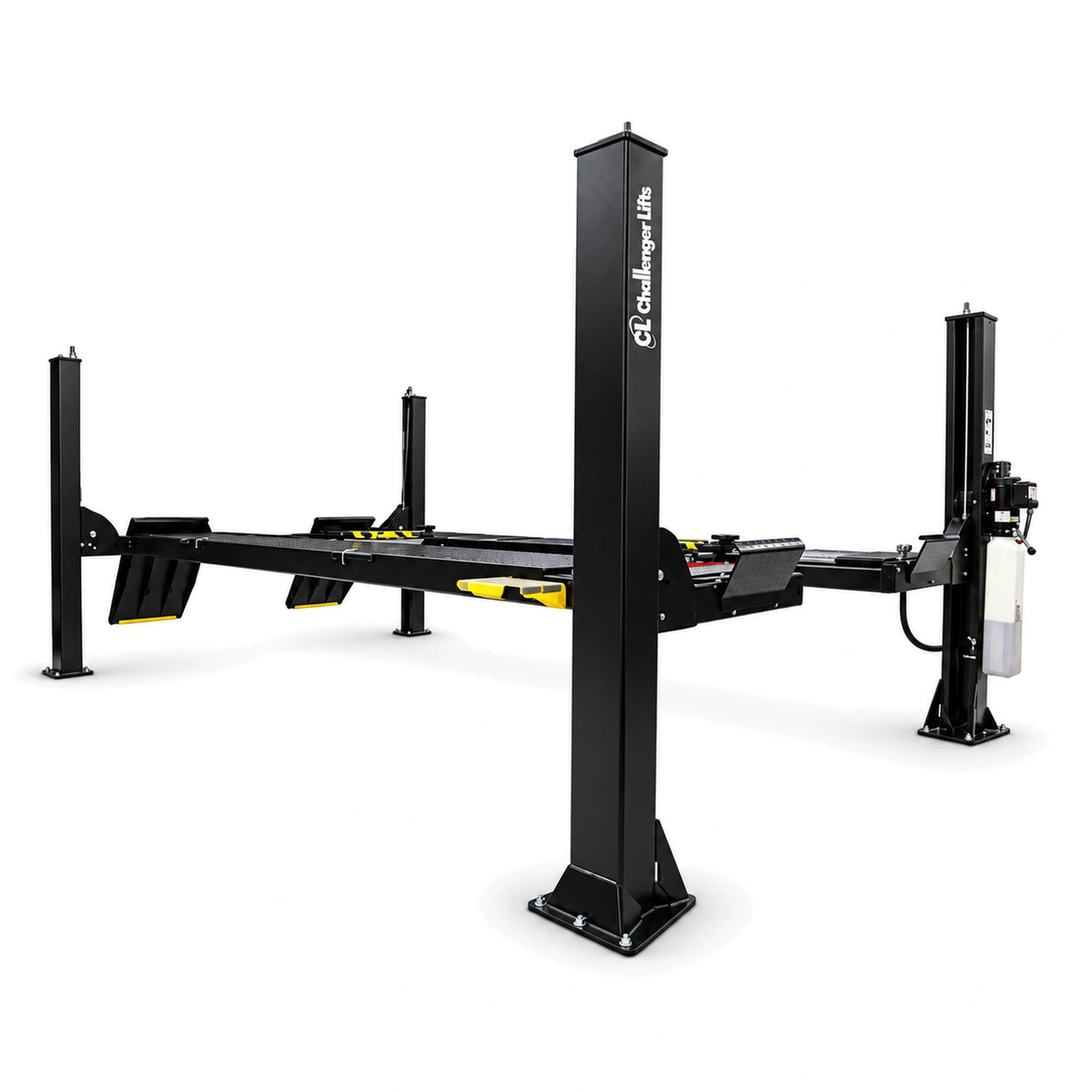

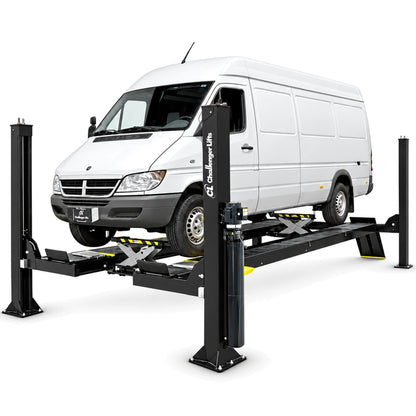

Challenger Lifts AR4115XAO 15,000 lb Four Post Alignment Lift for Professional Service Shops
The Challenger Lifts AR4115XAO is a 15,000 lb capacity open-front four post lift with a complete alignment rack package, designed for professional automotive service shops. Featuring an industry-leading 78" rise height, 22" wide runways, and a 210.5" maximum wheelbase, this lift handles everything from compact cars to medium-duty trucks and fleet vehicles. The alignment package includes dual 7,500 lb rolling jacks, stainless steel turning radius gauges, rear slip plates, and automatic wheel stops. Powered by a 2HP motor operating on 208-230V single-phase power, the AR4115XAO is ALI/ETL certified and backed by Challenger's comprehensive warranty.
Challenger AR4115XAO Features
Industry-Leading 78" Rise Height
The AR4115XAO delivers the highest rise in the industry at 78", providing maximum headroom for technicians working underneath vehicles. Combined with a low-profile 7" runway height, this lift accommodates both low-clearance sports cars and taller trucks without sacrificing workspace below.
Complete Alignment Rack Package
This lift comes fully equipped with a professional alignment package including two 7,500 lb rolling jacks, internal air line system, flush-mount stainless steel turning radius gauges, 80" rear slip plates, multi-position work steps, and automatic wheel stops. Compatible with the latest imaging alignment systems for precise four-wheel alignments.
Open Front Design for Better Ergonomics
The open front configuration allows technicians to easily move around the vehicle frame and access front-end adjustment points without obstruction. This design improves workflow efficiency and reduces fatigue during extended alignment and service work.
Extra-Wide 22" Runways
All-new 22" wide runways with increased drive-through clearance accommodate wider vehicles and dual-tire configurations. The louvered approach ramps prevent wheel spin and provide superior traction compared to traditional diamond tread or abrasive surfaces.
17-Position Locking System
The improved lock design features 17 locking positions with single-point air-actuated release that disengages all column locks simultaneously. This allows technicians to quickly position the lift at the ideal ergonomic working height, maximizing productivity and minimizing fatigue.
Heavy-Duty Cable Lifting System
Built for longevity with 9.5" steel pulleys featuring Teflon bearings and 1/2" cable diameter. The offset wrapped column design, fully gusseted base plates, and UHMW internally encapsulated slide blocks ensure smooth operation and extended service life.
Challenger AR4115XAO Applications
- Four-Wheel Alignment Services: The complete alignment package with rolling jacks, turning radius gauges, and slip plates makes this lift ideal for shops offering professional alignment services on vehicles with wheelbases from 68" to 158".
- General Automotive Repair: With 15,000 lb capacity and open front access, technicians can perform brake work, suspension repairs, exhaust service, and undercarriage inspections on a wide range of passenger vehicles.
- Medium-Duty Truck Service: The extended wheelbase capacity of 210.5" and 15,000 lb rating accommodates medium-duty trucks, delivery vehicles, and larger work trucks that smaller lifts cannot handle.
- Fleet Maintenance Operations: Service multiple vehicle types from a single lift bay - ideal for fleet operations with mixed vehicle sizes including vans, trucks, and passenger vehicles.
- Tire and Wheel Service: The extra-wide runways and dual rolling jacks simplify tire rotations, mounting, and balancing operations while the alignment features support TPMS service and wheel upgrades.
Challenger AR4115XAO Specifications
| Specification | Value |
|---|---|
| Model Number | AR4115XAO |
| Lifting Capacity | 15,000 lb |
| Rolling Jack Capacity | 7,500 lb each (2 included) |
| ALI/ETL Certified | Yes |
| Specification | Value |
|---|---|
| Overall Length | 277" |
| Overall Width | 142" |
| Inside Columns (Front) | 120.75" |
| Inside Columns (Rear) | 125.5" |
| Between Columns | 222.5" |
| Column Height (Front) | 99.25" |
| Column Height (Rear) | 98" |
| Runway Height | 7" |
| Runway Width | 22.375" |
| Width Between Runways | 40.625" |
| Rise Height | 78" |
| Maximum Wheelbase | 210.5" |
| Specification | Value |
|---|---|
| Max 2-Wheel Alignment | 195.25" |
| Max 4-Wheel Alignment | 68" - 158" |
| Rear Slip Plates | 80" free-floating |
| Turning Radius Gauges | Flush-mount stainless steel |
| Specification | Value |
|---|---|
| Motor | 2HP |
| Voltage | 208-230V, 60Hz, 1-Phase |
| Air Supply Required | 90-120 PSI |
| Rise Time | 85 seconds |
| Specification | Value |
|---|---|
| Minimum Bay Size | 14' x 26' |
| Front Design | Open |
| Lock Positions | 17 |
Challenger AR4115XAO Installation Requirements
Electrical Requirements
Power: 208-230V, 60Hz, single-phase electrical supply with 2HP motor. Optional 3-phase power configuration available. A licensed electrician must install and verify the electrical supply meets all local codes.
Air Supply Requirements
Compressed Air: 90-120 PSI air supply required for the single-point lock release system and internal air line system for rolling jacks. Ensure your shop compressor can maintain adequate pressure during operation.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength required. The fully gusseted base plate design reduces column deflection and is more forgiving on slightly uneven floors. All anchor hardware included.
Space Requirements
Minimum Bay Size: 14' x 26'. Overall Footprint: 277" L x 142" W. Ceiling Height: Allow clearance for 99.25" column height plus vehicle height at full rise. Consider additional space for alignment equipment positioning.
Professional Installation
Professional installation by an ALI-certified installer is strongly recommended to ensure proper setup, calibration, and warranty compliance. Contact our equipment specialists for installer referrals in your area.

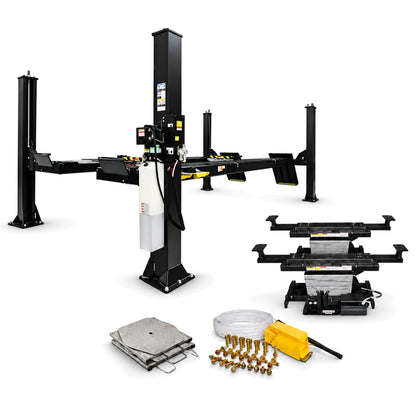

What's Included with the Challenger AR4115XAO
- Complete four-post lift with open front design
- 22" wide runways with louvered approach ramps
- Two 7,500 lb rolling jacks
- Internal air line system for rolling jacks
- Flush-mount stainless steel turning radius gauges
- 80" rear slip plates
- Multi-position work steps
- Automatic wheel stops
- 2HP power unit (208-230V, 1-phase)
- All mounting hardware and anchor bolts
- Installation and operation manual
Optional Accessories: 3-phase power conversion, additional rolling jacks, drip trays, and caster kits available separately.
Not Included: Electrical wiring and installation, concrete work, compressed air system, alignment machine/computer, and installation labor.
Challenger AR4115XAO Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. This is a heavy shipment that cannot be unloaded by hand. Delivery Type: Curbside delivery to commercial address is standard. Inspection: Inspect all packages for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt and photograph if necessary.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Installed or used equipment is not eligible for return.
Challenger AR4115XAO Warranty
Challenger Lifts Limited Warranty
Challenger Lifts stands behind their equipment with comprehensive warranty coverage:
- 5 Years: Structural components including columns, runways, and base plates
- 2 Years: Mechanical components including cables, pulleys, and hydraulics
- 1 Year: Electrical components including power unit and controls
Requirements: Warranty coverage requires installation by a qualified technician and adherence to the maintenance schedule outlined in the owner's manual. Normal wear items and damage from misuse or overloading are not covered. See warranty document for complete terms and conditions.
Documents
Click to open in a new tab.
Questions About the Challenger AR4115XAO?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger AR4115XAO FAQ
What is the lifting capacity of the Challenger AR4115XAO?
The AR4115XAO has a lifting capacity of 15,000 lb, making it suitable for passenger cars, light trucks, medium-duty trucks, vans, and fleet vehicles. The included rolling jacks are rated at 7,500 lb each.
What size bay do I need for the AR4115XAO?
Challenger recommends a minimum bay size of 14' x 26' for the AR4115XAO. The lift has an overall footprint of 277" (23') in length and 142" (11'10") in width. You'll also need ceiling clearance for the 99.25" column height plus the height of vehicles at full rise.
What electrical power does the AR4115XAO require?
The AR4115XAO operates on 208-230V, 60Hz, single-phase electrical power with a 2HP motor. Optional 3-phase power configuration is available. You'll also need 90-120 PSI compressed air supply for the lock release and rolling jack air lines.
Is professional installation required?
While not strictly required, professional installation by an ALI-certified installer is strongly recommended. Proper installation ensures safe operation, accurate alignment capabilities, and full warranty coverage. Contact us for installer referrals in your area.
What warranty comes with the Challenger AR4115XAO?
Challenger provides a comprehensive warranty: 5 years on structural components, 2 years on mechanical components including cables and hydraulics, and 1 year on electrical components. Warranty requires proper installation and adherence to maintenance schedules.
What's included in the alignment rack package?
The alignment rack package includes two 7,500 lb rolling jacks, internal air line system for the rolling jacks, flush-mount stainless steel turning radius gauges, 80" rear slip plates, multi-position work steps, and automatic wheel stops. An alignment machine/computer is sold separately.
How is the AR4115XAO shipped and delivered?
The lift ships via freight truck with free delivery to commercial addresses in the 48 contiguous states. Lead time is typically 5-10 business days. A forklift or loading dock is required for unloading. Curbside delivery is standard - inside delivery or liftgate service may be available for an additional fee.
What vehicles can the AR4115XAO accommodate?
The AR4115XAO handles vehicles with wheelbases up to 210.5" and weights up to 15,000 lb. This includes small passenger cars, full-size trucks and SUVs, medium-duty trucks, vans, and fleet vehicles. The 4-wheel alignment range accommodates wheelbases from 68" to 158".
What's the difference between open front and closed front four post lifts?
The AR4115XAO features an open front design that provides unobstructed access to the front of the vehicle. This makes it easier for technicians to reach front-end adjustment points during alignments and access the engine bay. Closed front models have a crossbeam connecting the front columns, which some shops prefer for additional rigidity.
What maintenance does the AR4115XAO require?
Regular maintenance includes inspecting cables and pulleys for wear, checking hydraulic fluid levels, lubricating moving parts per the manual, and verifying lock mechanisms engage properly. Follow the maintenance schedule in the owner's manual to ensure safe operation and maintain warranty coverage.
Is the AR4115XAO compatible with modern alignment systems?
Yes, the AR4115XAO is compatible with the industry's latest imaging alignment systems. The flush-mount stainless steel turning radius gauges and 80" slip plates provide precise alignment readings for accurate four-wheel alignments.
Why does the AR4115XAO have the highest rise in the industry?
The 78" rise height combined with the low 7" runway profile gives technicians maximum headroom underneath vehicles. This reduces strain and fatigue during extended service work and allows easier access to undercarriage components on lifted vehicles.
