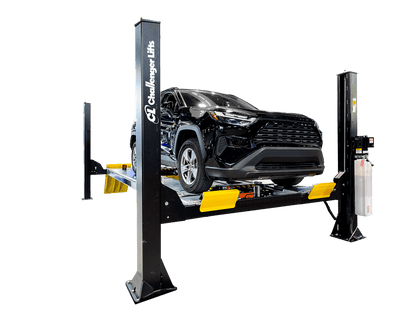

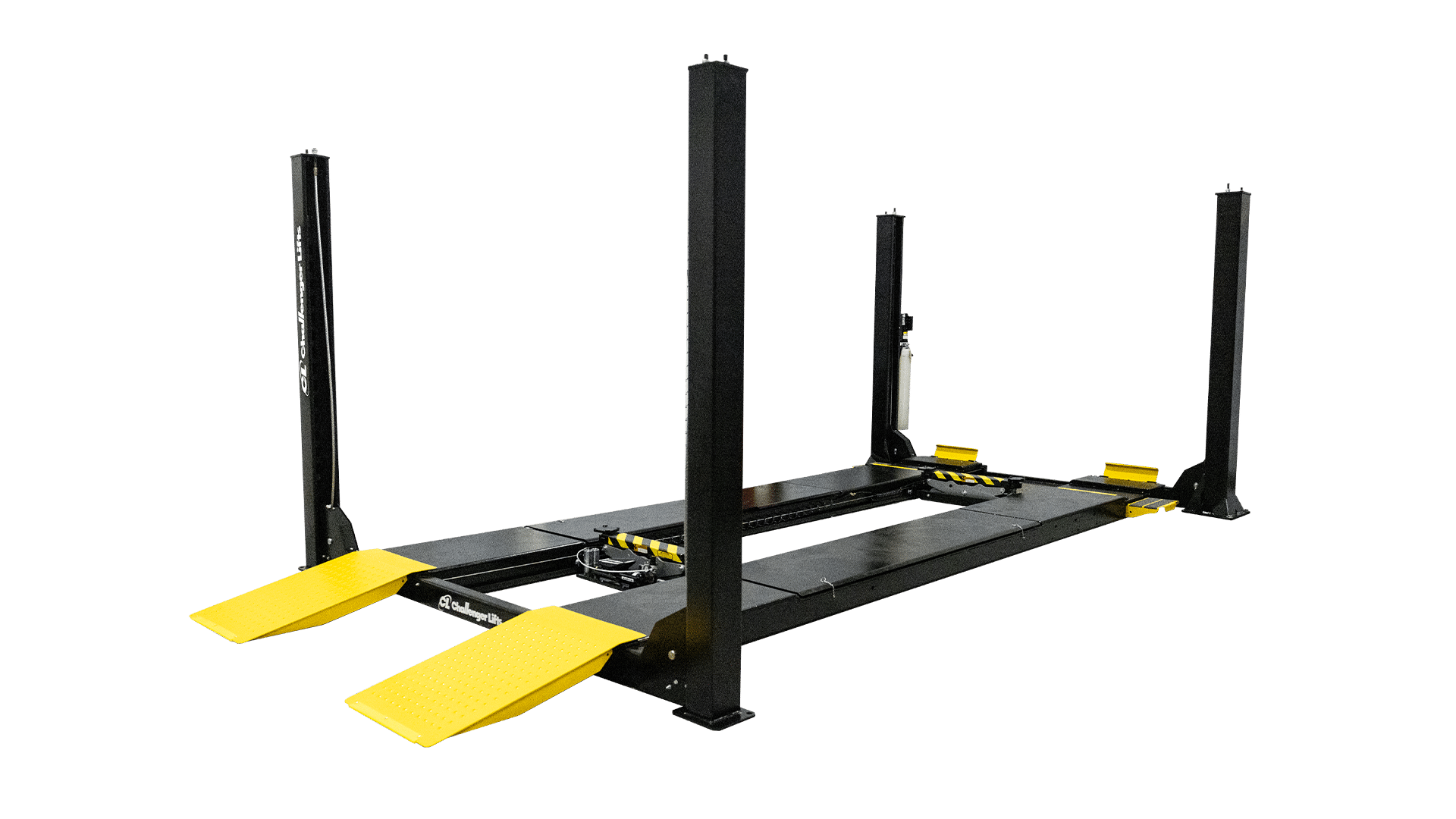

Challenger AR4115EAX 15,000 lb Four Post Alignment Lift for Professional Service Shops
The Challenger AR4115EAX is a 15,000 lb capacity closed-front four post lift with a complete alignment rack package, designed to expand your service capabilities and revenue potential. Featuring an industry-leading 78" rise height, ultra-low 7" runway profile, and 22" wide runways, this ALI/ETL certified lift accommodates everything from passenger cars to medium-duty trucks, vans, and fleet vehicles. The alignment rack package includes dual 7,500 lb rolling jacks, stainless steel turning radius gauges, rear slip plates, and automatic wheel stops. Operates on 208-230V single phase power with a 2HP motor and requires a minimum bay size of 14' x 24'.
Challenger AR4115EAX Features
Industry-Leading 78" Rise Height
The AR4115EAX delivers the highest rise in the industry at 78", providing maximum headroom for technicians working underneath vehicles. Combined with 17 level lock positions, technicians can work at ergonomic heights that increase productivity and minimize fatigue throughout the day.
Complete Alignment Rack Package

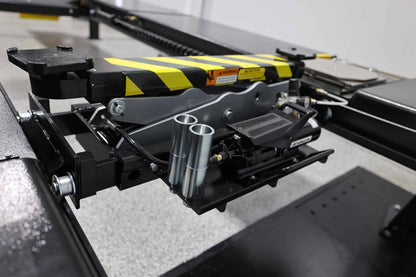

This lift includes everything needed for professional wheel alignment service: two 7,500 lb rolling jacks with internal air line system, flush-mount stainless steel turning radius gauges, 80" rear slip plates for extended wheelbase accommodation, multi-position work-steps, and automatic wheel stops. Compatible with the industry's latest imaging alignment systems.
Extra-Wide 22" Runways
The all-new 22" wide runways provide a wider drive-through clearance that accommodates wider vehicles and dual tires with confidence. The 7" runway height is the lowest profile in the industry, allowing easy access for lower-profile vehicles without additional ramps.
Heavy-Duty Cable Lifting System
Built for longevity with 9-1/2" steel pulleys featuring Teflon bearings and 1/2" diameter cables that minimize wear and extend operational life. Heavy-duty front bearing and yoke assemblies distribute contact load to reduce column stress for longer product life.
Single-Point Air Actuated Lock Release
The single-point air actuated lock release disengages all column locks simultaneously, maximizing productivity and workflow efficiency. This system operates on 90-120 psi shop air for consistent, reliable operation.
Safety-Focused Construction

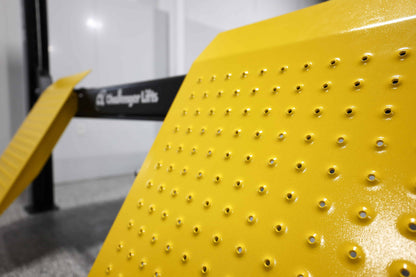

Features a fully gusseted base plate design that reduces column deflection and makes the lift less sensitive to uneven floors. The louvered approach ramps prevent wheel spin and provide positive traction, while the UHMW internally encapsulated slide block ensures smooth, long-lasting operation.
Challenger AR4115EAX Applications
- Professional Alignment Shops: The complete alignment rack package with turning radius gauges, slip plates, and rolling jacks makes this lift ideal for dedicated alignment service centers requiring precise four-wheel alignment capabilities.
- General Service Repair: With 15,000 lb capacity and 78" rise height, this lift handles routine maintenance, brake service, suspension work, and exhaust repairs on a wide range of vehicles.
- Fleet Maintenance Facilities: The extended wheelbase capacity up to 183" accommodates fleet vehicles including medium-duty trucks, delivery vans, and service vehicles for efficient fleet maintenance operations.
- Dealership Service Departments: The professional appearance with enclosed column and crossbeam design, combined with versatile service capabilities, makes this lift suitable for high-volume dealership environments.
- Truck and Van Service Centers: The wide runways, high capacity, and generous working room underneath make this lift perfect for servicing medium-duty trucks, cargo vans, and passenger vans.
Challenger AR4115EAX Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 15,000 lb |
| Rolling Jack Capacity (each) | 7,500 lb |
| ALI/ETL Certified | Yes |
| Specification | Value |
|---|---|
| Overall Length | 247.625" |
| Overall Width | 142" |
| Inside Columns (Front) | 125.5" |
| Inside Columns (Rear) | 125.5" |
| Between Columns | 196" |
| Height of Columns | 98" |
| Height of Runways | 7" |
| Width of Runways | 22.375" |
| Width Between Runways | 40.625" |
| Rise Height | 78" |
| Max Wheelbase | 183" |
| Specification | Value |
|---|---|
| Max 2-Wheel Alignment | 167.75" |
| Max 4-Wheel Alignment | 68" - 158" |
| Front/Rear Configuration | Closed Front |
| Specification | Value |
|---|---|
| Motor | 2HP |
| Voltage | 208-230V, 60Hz, 1Ph |
| Optional Electrical | 3-Phase Available |
| Air Supply Required | 90-120 psi |
| Rise Time | 85 seconds |
| Specification | Value |
|---|---|
| Minimum Bay Size | 14' x 24' |
| Standard Colors | Red, Blue, or Black |
Challenger AR4115EAX Installation Requirements
Electrical Requirements
Power: 208-230V, 60Hz, single phase with 2HP motor. Optional 3-phase electrical configuration available. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength required. The fully gusseted base plate design reduces column deflection and makes the lift less sensitive to minor floor variations. All anchor hardware included.
Space Requirements
Minimum Bay Size: 14' x 24'. Overall Dimensions: 247.625" length x 142" width x 98" column height. Allow additional clearance for vehicle access, technician movement, and alignment equipment operation.
Air Supply
Compressed Air: 90-120 psi shop air required for the single-point air actuated lock release system and internal air line system for the rolling jacks. Ensure adequate air supply capacity for continuous operation.
Professional Installation
Professional installation by qualified technicians is strongly recommended to ensure proper setup, calibration, and safe operation. Proper installation is required to maintain warranty coverage. Installation services available through Garage Supply Guys.
What's Included with the Challenger AR4115EAX
- Challenger AR4115EAX four post lift with closed front design
- Two 7,500 lb rolling jacks
- Internal air line system for dual rolling jacks

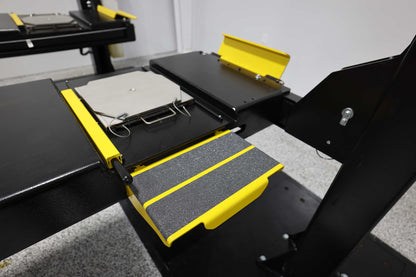

- Flush-mount stainless steel turning radius gauges
- 80" rear slip plates
- Multi-position work-steps
- Automatic wheel stops
- Louvered approach ramps with anti-skid surface
- Single-point air actuated lock release system
- Anchor hardware
- Installation and operation manual

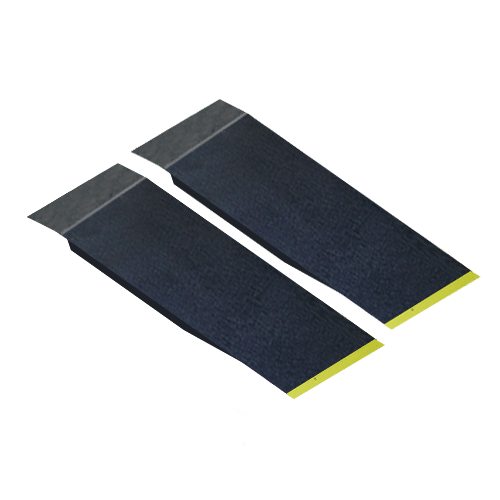

Optional Accessories: Extended length runways, drip trays, caster kits, and additional rolling jack accessories available separately.
Not Included: Electrical wiring and installation, concrete work, compressed air supply, hydraulic oil, unloading equipment, and installation labor.
Challenger AR4115EAX Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Lift ships on pallets and requires equipment capable of handling heavy freight. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Thoroughly inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Damaged or defective items should be reported within 48 hours of delivery.
Challenger AR4115EAX Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts stands behind the AR4115EAX with comprehensive warranty protection for professional use.
- 5 Years: Structural components including columns, runways, and main frame
- 2 Years: Mechanical and hydraulic components including cylinders, cables, and pulleys
- 1 Year: Electrical components including motor, power unit, and controls
Requirements: Warranty coverage requires professional installation per manufacturer specifications, use of approved hydraulic fluid, and adherence to recommended maintenance schedule. Commercial use only. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger AR4115EAX?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger AR4115EAX FAQ
What is the lifting capacity of the Challenger AR4115EAX?
The Challenger AR4115EAX has a lifting capacity of 15,000 lb, making it suitable for passenger cars, light trucks, medium-duty trucks, vans, and fleet vehicles. The lift is ALI/ETL certified to meet industry safety standards.
What vehicles can I service with the AR4115EAX?
The AR4115EAX accommodates vehicles with wheelbases up to 183" and handles everything from compact cars to medium-duty trucks and cargo vans. The 22" wide runways and 40.625" width between runways accommodate wider vehicles and dual tire configurations.
What are the electrical requirements for this lift?
The AR4115EAX requires 208-230V, 60Hz, single phase power with a 2HP motor. Optional 3-phase electrical configuration is available. A licensed electrician should install and verify the electrical supply meets local codes.
What is the minimum bay size needed for installation?
The minimum recommended bay size is 14' x 24'. The lift measures 247.625" in length and 142" in width, with columns standing 98" tall. Additional clearance should be allowed for vehicle access and technician movement.
What alignment equipment is included with the AR4115EAX?
The alignment rack package includes two 7,500 lb rolling jacks with internal air line system, flush-mount stainless steel turning radius gauges, 80" rear slip plates, multi-position work-steps, and automatic wheel stops. The lift is compatible with the industry's latest imaging alignment systems.
What is the rise height and how many lock positions does it have?
The AR4115EAX features a 78" rise height, the highest in the industry, providing maximum headroom for working underneath vehicles. It has 17 locking positions with an improved lock design, allowing technicians to work at ergonomic heights.
What warranty coverage does Challenger provide?
Challenger provides 5-year coverage on structural components, 2-year coverage on mechanical and hydraulic components, and 1-year coverage on electrical components. Professional installation and proper maintenance are required for warranty validity.
What is included with the lift and what is not included?
Included: Complete lift assembly, rolling jacks, air line system, turn plates, slip plates, work-steps, wheel stops, approach ramps, anchor hardware, and manual. Not included: Electrical wiring, concrete work, compressed air supply, hydraulic oil, and installation labor.
How is the AR4115EAX shipped and what do I need for delivery?
The lift ships via freight to commercial addresses in the 48 contiguous US states with free shipping. You will need a forklift or loading dock to unload. Delivery is curbside; inspect all packages before signing the bill of lading and note any damage.
What is the difference between open front and closed front models?
The AR4115EAX is a closed front model, featuring an enclosed front column and crossbeam design for a cleaner appearance. Open front models have asymmetric columns that provide easier access to vehicle front ends. Both configurations offer the same lifting capacity and alignment capabilities.
What air supply is required for operation?
The lift requires 90-120 psi compressed air supply for the single-point air actuated lock release system and the internal air line system for the rolling jacks. Ensure your shop compressor can maintain adequate pressure during continuous operation.
How long does it take to raise a vehicle?
The AR4115EAX has a rise time of 85 seconds to reach full height. The cable-driven lifting system with 9-1/2" steel pulleys and Teflon bearings provides smooth, reliable operation throughout the lift cycle.
