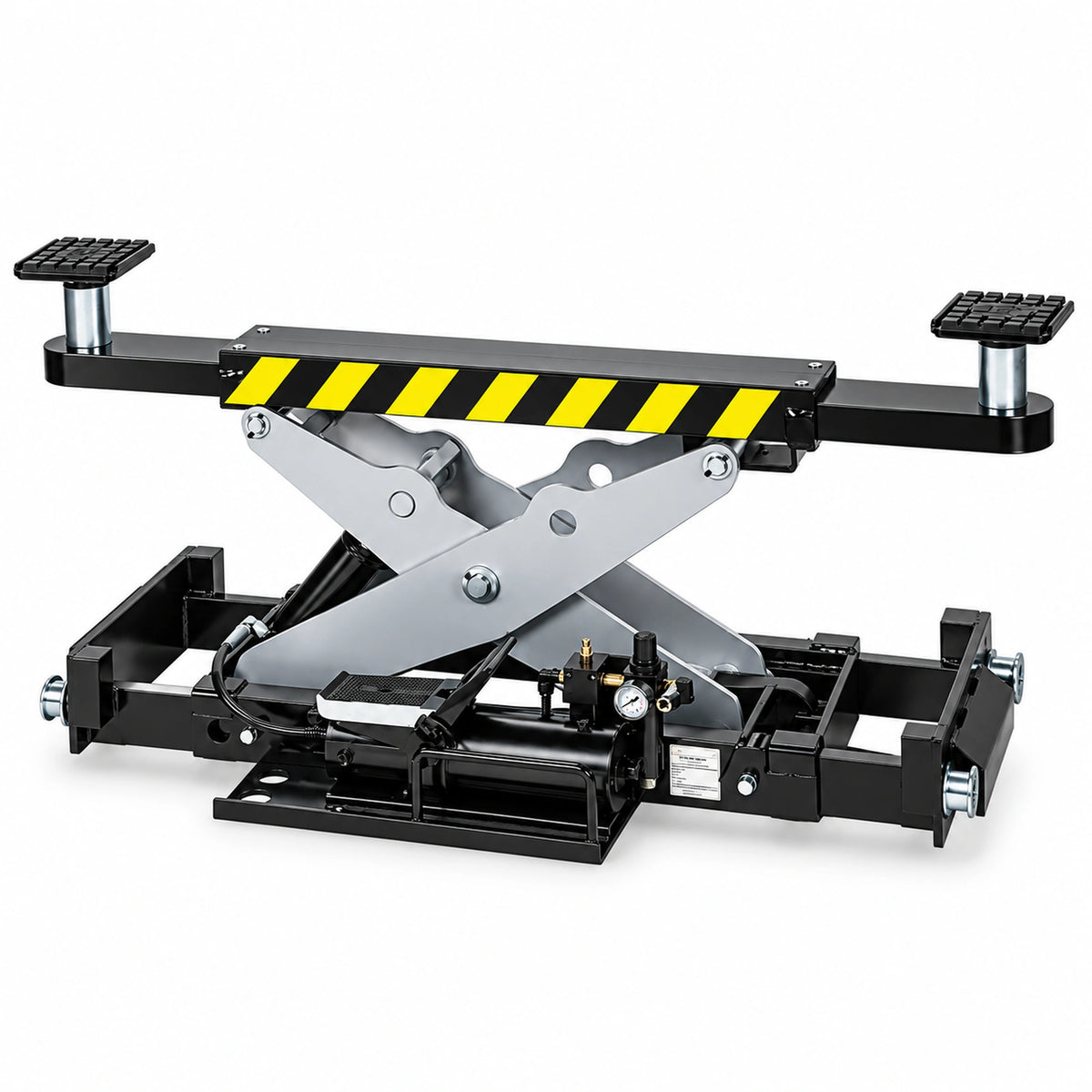

Popular Add-ons
Challenger 4030XAX Four Post Alignment Lift 30000 lb
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Challenger 4030XAX 30,000 lb Heavy-Duty Four Post Alignment Lift for Commercial Service Centers
The Challenger 4030XAX is an ALI/ETL certified heavy-duty four post alignment lift engineered for commercial fleet service, truck shops, and high-volume automotive repair facilities. With a 30,000 lb lifting capacity and extra-long 380" overall length accommodating wheelbases up to 317", this closed-front alignment lift handles everything from full-size trucks to heavy-duty commercial vehicles. The time-proven cable-driven design delivers 71.75" of rise height for maximum working clearance, while requiring a 3HP, 208v-230v single phase power supply. Built in Louisville, Kentucky, this lift is backed by Challenger's comprehensive warranty and American manufacturing quality.
Challenger 4030XAX Features
Time-Proven Cable-Driven Lift System
The 4030XAX utilizes Challenger's proven cable and cylinder design system with heavy-duty steel sheaves and cables for optimal performance and reliability. This design delivers smooth, consistent lifting action while minimizing maintenance requirements and maximizing service life in demanding commercial environments.
Single-Point Air Actuated Lock Release
The single-point air actuated lock release disengages all column locks simultaneously, making operation simple and efficient. Multiple locking positions accommodate a variety of alignment and general service tasks, while adjustable lock ladders allow versatile installation with sensitivity to uneven floors.
Alignment-Ready Closed Front Design
The closed front configuration with recessed turnplate pockets provides easy drive-on access and accurate alignment readings. Compatible with the industry's latest camera imaging alignment systems, the available recessed heavy-duty steel turnplates ensure precise measurements for professional alignment services.
Maximum Working Clearance
With a 71.75" rise height, the 4030XAX provides exceptional headroom for technicians working underneath vehicles. The 92.25" column height and 8.5" runway height create an optimal working environment for heavy-duty service tasks.
Built-In Runway Rail System
The integrated runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pans (sold separately). This feature streamlines workflow and keeps essential tools within easy reach during service procedures.
Durable Safety Features
Diamond-plate non-skid louvered approach ramps ensure positive vehicle traction and technician safety. The heavy-duty cylinder design delivers optimal performance with minimal maintenance, while the robust steel construction provides years of reliable commercial service.
Challenger 4030XAX Applications
- Commercial Fleet Service: Ideal for servicing delivery trucks, box trucks, and commercial fleet vehicles requiring heavy-duty lifting capacity and extended wheelbase accommodation.
- Heavy-Duty Truck Shops: Perfect for shops specializing in medium and heavy-duty truck maintenance, providing the 30,000 lb capacity needed for larger commercial vehicles.
- Professional Alignment Centers: The closed front design with recessed turnplates and camera system compatibility makes this lift excellent for dedicated alignment service operations.
- RV and Motorhome Service: The extra-long 317" wheelbase capacity accommodates Class A motorhomes, travel trailers, and other recreational vehicles requiring alignment and undercarriage service.
- Municipal and Government Fleets: Suitable for servicing fire trucks, ambulances, utility vehicles, and other government fleet equipment requiring heavy-duty lift capacity.
Challenger 4030XAX Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 30,000 lbs |
| Max Wheelbase | 317" |
| Max 2-Wheel Alignment | 292" |
| ALI/ETL Certified | Yes |
| Specification | Value |
|---|---|
| Overall Length | 380" |
| Overall Width | 172.75" |
| Rise Height | 71.75" |
| Height of Columns | 92.25" |
| Height of Runways | 8.5" |
| Width of Runways | 24" |
| Width Between Runways | 46" - 52" |
| Inside Columns | 152" |
| Between Columns | 318.625" |
| Min Recommended Bay Size | 34' x 17' |
| Specification | Value |
|---|---|
| Motor | 3HP |
| Voltage (Single Phase Std) | 208v - 230v |
| Air Supply Required | 90 - 120 psi |
Challenger 4030XAX Installation Requirements
Electrical Requirements
Power: 3HP motor, 208v - 230v single phase standard. A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Air Supply Requirements
Compressed Air: 90 - 120 psi required for the air actuated lock release system. Ensure your shop compressor can maintain adequate pressure and volume for reliable operation.
Concrete Foundation
Anchoring: Minimum 4" thick concrete with 3,000 PSI compressive strength required. Reinforced concrete recommended for heavy-duty applications. Adjustable lock ladders allow installation flexibility for floors with minor variations.
Space Requirements
Minimum Bay Size: 34' x 17' recommended. Overall Dimensions: 380" length x 172.75" width. Allow additional clearance for vehicle approach, technician movement, and alignment equipment positioning.
Professional Installation
Professional installation by qualified technicians is strongly recommended. Proper installation ensures safe operation, optimal performance, and maintains warranty coverage. Contact Garage Supply Guys for installation service recommendations in your area.
What's Included with the Challenger 4030XAX
- Complete four post lift structure with columns and runways
- Heavy-duty cable and sheave system
- Hydraulic power unit with 3HP motor
- Single-point air actuated lock release mechanism
- Adjustable lock ladders
- Diamond-plate non-skid louvered approach ramps
- Recessed turnplate pockets (alignment model)
- Built-in runway rail system
- Anchor bolts and mounting hardware
- Installation and operation manual
Optional Accessories: Heavy-duty steel turnplates, rolling jacks, sliding oil drain pan, alignment system integration components (sold separately).
Not Included: Electrical installation and wiring, concrete work or floor preparation, compressed air supply system, alignment equipment, installation labor.
Challenger 4030XAX Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. This is a heavy-duty commercial lift shipped on pallets. Delivery Type: Curbside delivery to commercial address standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact customer service before initiating any return.
Challenger 4030XAX Warranty
Challenger Lifts Limited Warranty
Challenger Lifts stands behind their products with comprehensive warranty coverage for commercial installations.
- 5 Years: Structural components including columns, runways, and frames
- 2 Years: Hydraulic cylinders and power unit components
- 1 Year: Cables, sheaves, and other wear components
Requirements: Professional installation required. Lift must be used in accordance with manufacturer specifications and maintained per the operation manual. Warranty does not cover damage from misuse, overloading, or improper installation. See warranty document for complete terms and conditions.
Documents
Click to open in a new tab.
Questions About the Challenger 4030XAX?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 4030XAX FAQ
What is the lifting capacity of the Challenger 4030XAX?
The Challenger 4030XAX has an ALI/ETL certified lifting capacity of 30,000 lbs. This heavy-duty capacity makes it suitable for commercial trucks, fleet vehicles, RVs, and other heavy equipment requiring professional service.
What is the maximum wheelbase this lift can accommodate?
The 4030XAX extra-long configuration accommodates wheelbases up to 317". The overall length of 380" and between-column measurement of 318.625" provides ample room for extended wheelbase vehicles including commercial trucks and motorhomes.
What are the electrical requirements for the 4030XAX?
The lift requires a 3HP motor operating on 208v - 230v single phase power (standard configuration). A licensed electrician should install and verify the electrical supply. The lift also requires 90 - 120 psi compressed air supply for the lock release system.
What size bay do I need for this lift?
Challenger recommends a minimum bay size of 34' x 17' for the 4030XAX. The lift itself measures 380" in length and 172.75" in width. Allow additional space for vehicle approach, technician movement, and alignment equipment if applicable.
Is professional installation required?
While not strictly required, professional installation is strongly recommended. Proper installation ensures safe operation, optimal performance, and maintains warranty coverage. The lift requires concrete anchoring, electrical connections, and compressed air hookup that should be performed by qualified technicians.
What warranty coverage does the 4030XAX include?
Challenger provides comprehensive warranty coverage including 5 years on structural components, 2 years on hydraulic cylinders and power unit, and 1 year on cables, sheaves, and wear items. Warranty requires professional installation and proper maintenance per manufacturer specifications.
What is included with the lift purchase?
The 4030XAX includes the complete lift structure, cable and sheave system, hydraulic power unit, air actuated lock release, approach ramps, runway rail system, mounting hardware, and installation manual. Turnplates, rolling jacks, and oil drain pans are available separately.
How is the lift shipped and delivered?
The lift ships via freight to commercial addresses in the lower 48 states with free shipping. A forklift or loading dock is required for unloading. Delivery is curbside to your commercial location. Always inspect shipments for damage before signing the bill of lading.
Can I use this lift with modern alignment systems?
Yes, the 4030XAX is compatible with the industry's latest camera imaging alignment systems. The closed front design with recessed turnplate pockets provides accurate readings. Heavy-duty steel turnplates are available separately for complete alignment capability.
What accessories are available for the 4030XAX?
Optional accessories include heavy-duty recessed steel turnplates for alignment work, rolling jacks that utilize the built-in runway rail system, and sliding oil drain pans. These accessories are sold separately and enhance the lift's versatility for various service tasks.
How does the lock release system work?
The 4030XAX features a single-point air actuated lock release that disengages all column locks simultaneously with one action. This simplifies operation compared to manual lock release systems. Multiple locking positions accommodate various service heights and tasks.
What makes this lift different from the standard 4030 series?
The 4030XAX is the extra-long alignment model in Challenger's 4030 series. It features the maximum 317" wheelbase capacity, closed front design for alignment work, and recessed turnplate pockets. Other 4030 series models offer shorter lengths (244.5" or 281" wheelbase) and general service configurations.
