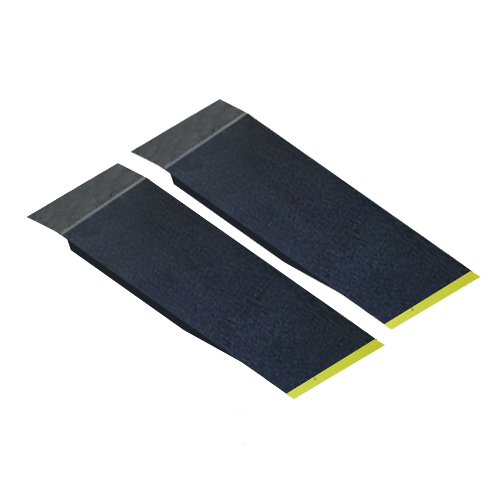

Challenger 4030-RA Drive-Thru Ramp Assembly for 30K 4-Post Lifts
When vehicles can only enter and exit your lift from the same end, your bay turns into a bottleneck. Every car needs to back off or get pushed out before the next one can load. The Challenger 4030-RA drive-thru ramp assembly eliminates that problem by adding 36" rear ramps to your 4030 Series 4-post lift, giving you a true one-way traffic flow where vehicles drive on from the front and roll off the back.
The 4030-RA is the standard-length drive-thru kit for Challenger's 30,000 lb capacity 4-post lift family. At 36", these ramps provide a direct, compact transition off the rear of the runways without adding excessive length to your lift footprint. For shops where bay depth is tight but drive-thru capability is still a priority, the standard ramp keeps things efficient. If you're running longer-wheelbase trucks or low-profile vehicles that need a gentler departure angle, Challenger also offers the 4030-RA6 with 72" extended ramps.
Compatibility covers every model in the 4030 Series, both general service configurations (4030SFX, 4030EFX, 4030XFX) and alignment deck models (4030SAX, 4030EAX, 4030XAX). Whether you're doing general undercar work or running alignments, the 4030-RA lets you keep vehicles moving in one direction through your bay.
Specifications
| SKU | 4030-RA |
| Ramp Length | 36" |
| Type | Drive-Thru Ramp Assembly |
| Compatible Lift Series | Challenger 4030 Series 4-Post Lifts |
| Compatible Models | 4030SFX, 4030EFX, 4030XFX, 4030SAX, 4030EAX, 4030XAX |
| Lift Capacity (Parent Lift) | 30,000 lb |
What's Included
Call to confirm included accessories.
Applications
Oil changes, tire rotations, and multi-point inspections move faster when vehicles don't have to back off the lift. The 36" ramps keep your express lane flowing in one direction without adding significant length to the lift footprint.
Fleet operations that cycle a high volume of vehicles through the same bay benefit from drive-thru flow. Trucks and vans roll on, get serviced on the 30,000 lb capacity 4030, and exit out the back.
Multi-bay dealerships can route vehicles through dedicated service lanes instead of staging them for reverse exits. Keeps your shop floor organized and reduces the chance of parking lot fender benders during busy service days.
Alignment deck models (4030SAX, 4030EAX, 4030XAX) paired with the 4030-RA let you drive vehicles onto the rack, complete the alignment, and roll them off the rear. No repositioning between jobs.
Shipping
Our team coordinates the freight shipment and helps manage scheduling details. Challenger accessories are typically shipped via freight truck and may require a forklift or similar equipment for unloading at your location.
Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
Challenger Lifts provides a limited warranty to the original purchaser covering repair or replacement of defective parts, including reasonable labor and transportation costs. The product must be installed, used, and maintained according to Challenger's official specifications. Ramps are classified as structural parts under Challenger's warranty terms.
Coverage applies to products installed within the United States and Canada and is not transferable. Exclusions include normal wear and tear, damage from misuse or improper installation, and repairs performed by unauthorized service representatives. Use of unapproved parts or accessories voids coverage.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Call our team at (855) 498-2147 to confirm compatibility with your 4030 Series model, compare the standard 4030-RA against the extended 4030-RA6, or get help with shipping and installation questions.
Frequently Asked Questions
Which Challenger lifts are compatible with the 4030-RA?
The 4030-RA fits all models in the Challenger 4030 Series 4-post lift family. That includes the three general service models (4030SFX, 4030EFX, 4030XFX) and the three alignment deck models (4030SAX, 4030EAX, 4030XAX). These are the 30,000 lb capacity 4-post lifts only. It does not fit the 4018, 4P14, 4115, or 440 Series lifts.
What's the difference between the 4030-RA and the 4030-RA6?
Ramp length. The 4030-RA uses 36" ramps, while the 4030-RA6 uses 72" (6 ft) extended ramps. The standard 36" kit is more compact and works well when bay depth is limited. The extended 72" kit provides a gentler approach angle for low-profile vehicles or heavier trucks where a gradual transition reduces the risk of undercarriage scraping.
How does drive-thru operation work with this ramp kit?
The 4030 Series lifts come with front approach ramps for vehicle loading. The 4030-RA adds rear ramps so vehicles can exit from the opposite end of the lift. You drive in from the front over the standard approach ramps, service the vehicle on the 24" wide runways, then drive off the back over the 36" drive-thru ramps. One-way flow, no reversing needed.
Will the 36" ramps work with low-profile vehicles?
The 36" ramp length provides a functional approach angle for most passenger vehicles. If you regularly service low-slung sports cars or vehicles with minimal ground clearance, the 4030-RA6 with its 72" ramps offers a gentler transition that further reduces scrape risk. Call us to discuss which option fits your vehicle mix best.
Does this ramp assembly add to the overall lift length?
Yes. The 36" ramps extend from the rear of the lift runways, so you'll need to account for that additional length in your bay layout. The 4030 Series overall lengths range from 308" (4030SFX/SAX) to 380" (4030XFX/XAX) before adding the ramp kit. Confirm your available bay depth before ordering.
Can I install the 4030-RA ramp kit myself?
Challenger accessories should be installed according to the manufacturer's specifications. The ramp assembly mounts to the rear of the 4030 Series lift per the included instructions. If you have questions about the installation process, call us before you start.
How does the 4030-RA ship?
Our team coordinates freight shipment for the 4030-RA. You may need a forklift or similar equipment to unload at your location. Contact us before ordering to confirm the best delivery setup, especially if you need liftgate service or a scheduled delivery window.
Is the 4030-RA covered under Challenger's warranty?
Yes. Challenger classifies ramps as structural parts under their limited warranty, which covers repair or replacement of defective parts for the original purchaser. The product must be installed and maintained per Challenger's specifications. Warranty registration may be required after purchase.
