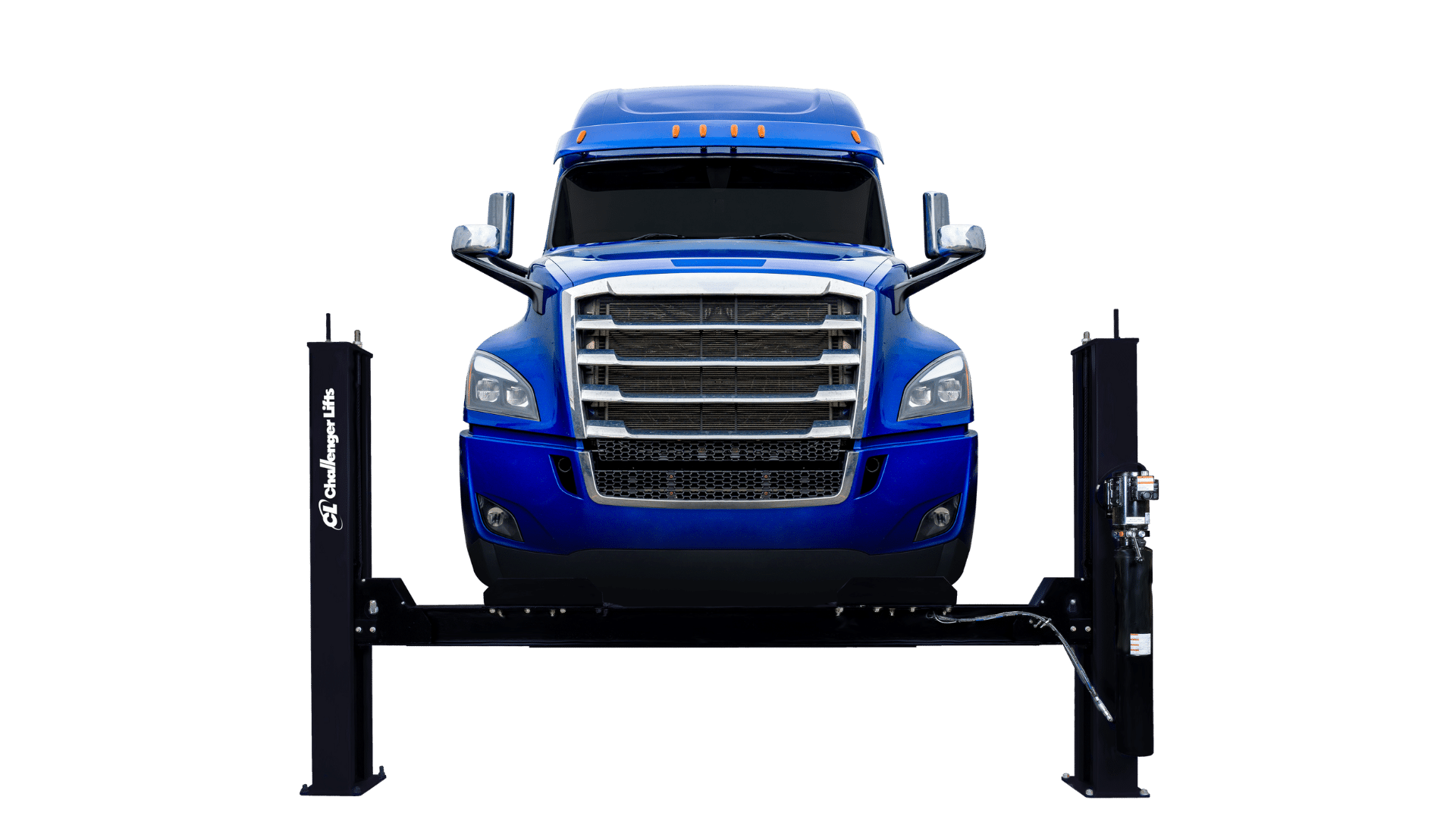

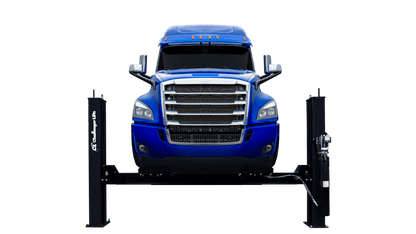

Challenger Lifts 4030EAX 30,000 lb Heavy-Duty Four Post Alignment Lift for Commercial Service Centers
The Challenger Lifts 4030EAX is an ALI/ETL certified heavy-duty four post alignment lift engineered for commercial fleet service, heavy-duty truck maintenance, and professional alignment work. Built on Challenger's time-proven cable-driven system with a 30,000 lb lifting capacity, this closed-front alignment lift features a 71.75" rise height for maximum working clearance and accommodates wheelbases up to 281". The lift requires 208V-230V single-phase power and operates with 90-120 PSI air supply. Backed by Challenger's comprehensive warranty with 5 years structural coverage, this American-manufactured lift delivers the durability and precision alignment capability professional shops demand.
Challenger 4030EAX Features
Time-Proven Cable-Driven Lift System
The 4030EAX utilizes Challenger's proven cable and cylinder design system with heavy-duty steel sheaves and cables for reliable, consistent performance. This robust lifting mechanism delivers smooth operation and requires minimal maintenance, reducing downtime and long-term operating costs for busy service centers.
Single-Point Air Actuated Lock Release
A convenient single-point air actuated lock release disengages all column locks simultaneously, allowing technicians to quickly and safely adjust lift height. Multiple locking positions provide versatility for both alignment tasks and general service work at various working heights.
Alignment System Compatibility
Designed for professional alignment work, the 4030EAX is compatible with the industry's latest camera imaging alignment systems. Recessed turn plate pockets enable easy drive-on positioning, while available recessed heavy-duty steel turnplates provide accurate alignment readings for precise wheel alignment service.
Heavy-Duty Cylinder Design
The lift features a heavy-duty hydraulic cylinder engineered for optimal performance under demanding conditions. This robust cylinder design minimizes maintenance requirements while delivering consistent lifting power across the full 30,000 lb capacity rating.
Adjustable Lock Ladders
Factory-adjustable lock ladders allow for versatile installation with sensitivity to uneven floors. This adaptability ensures proper lock engagement and safe operation even in facilities where floor conditions are less than ideal, expanding installation possibilities.
Built-In Runway Rail System

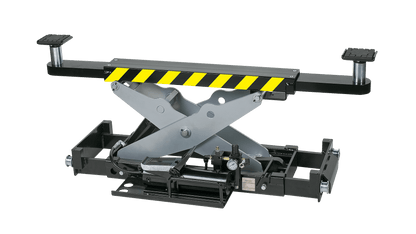

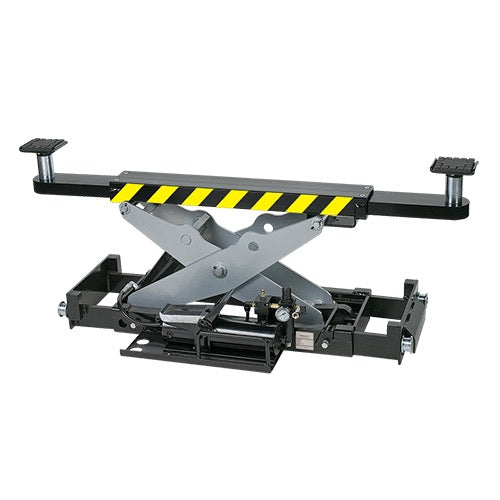

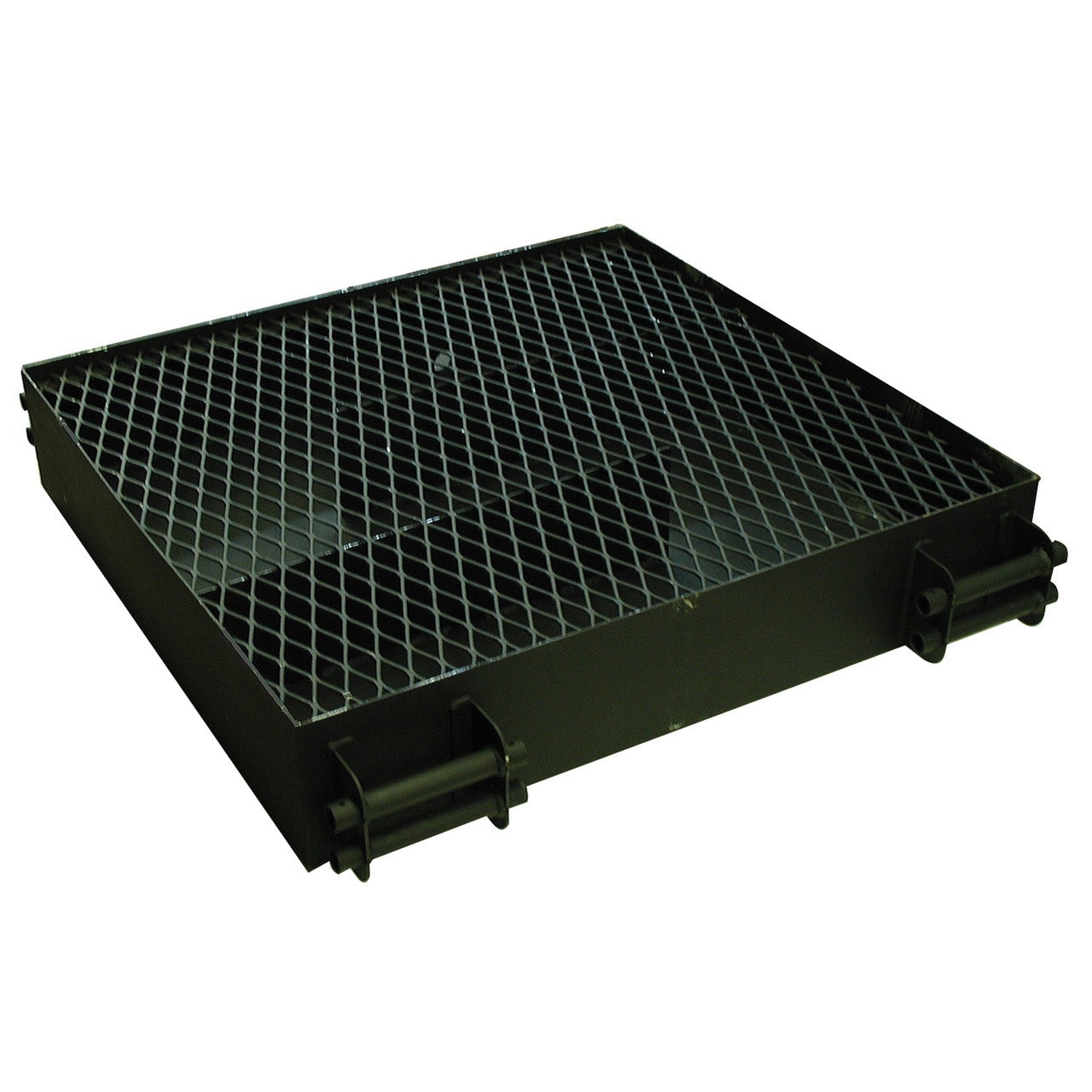

The integrated built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pans (sold separately). Durable diamond-plate non-skid louvered approach ramps ensure positive vehicle traction and technician safety during drive-on operations.
Challenger 4030EAX Applications
- Heavy-Duty Truck Service: With a 30,000 lb capacity, the 4030EAX handles medium and heavy-duty trucks, delivery vehicles, and fleet vehicles requiring undercarriage service, brake work, and drivetrain repairs.
- Commercial Fleet Maintenance: Ideal for fleet service centers maintaining box trucks, transit vehicles, and commercial vans with the rise height and capacity needed for efficient scheduled maintenance.
- Professional Wheel Alignment: The closed-front alignment configuration with recessed turnplate pockets and compatibility with modern camera alignment systems makes this lift perfect for commercial alignment service operations.
- RV and Motorhome Service: The extended wheelbase capacity and heavy-duty construction accommodate recreational vehicles and motorhomes for chassis service, suspension work, and alignment.
- Municipal and Government Fleets: Service fire apparatus, emergency vehicles, transit buses, and other municipal equipment with the capacity and durability required for government fleet operations.
Challenger 4030EAX Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 30,000 lb |
| Maximum Wheelbase | 281" |
| Max 2-Wheel Alignment | 256" |
| ALI/ETL Certified | Yes |
| Specification | Value |
|---|---|
| Overall Length | 344" |
| Overall Width | 172.75" |
| Rise Height | 71.75" |
| Height of Columns | 92.25" |
| Height of Runways | 8.5" |
| Width of Runways | 24" |
| Width Between Runways | 46" - 52" |
| Inside Columns | 152" |
| Between Columns | 282.625" |
| Min Recommended Bay Size | 31' x 17' |
| Specification | Value |
|---|---|
| Motor | 3 HP |
| Voltage (Single Phase Standard) | 208V - 230V |
| Air Supply Required | 90 - 120 PSI |
Challenger 4030EAX Installation Requirements
Electrical Requirements
Power: 208V-230V single-phase, 3 HP motor. A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications. Ensure proper circuit protection and grounding.
Air Supply Requirements
Compressed Air: 90-120 PSI clean, dry air supply required for the single-point air actuated lock release system. Ensure adequate compressor capacity and proper air line sizing to maintain consistent pressure during operation.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength required. Concrete must be fully cured before installation. Adjustable lock ladders accommodate minor floor variations, but significant slope or damage should be addressed before installation.
Space Requirements
Minimum Bay Size: 31' x 17'. Overall Lift Dimensions: 344" L x 172.75" W. Ensure adequate ceiling clearance above the 92.25" column height plus vehicle height at full rise. Allow additional space around the lift for technician access and equipment.
Professional Installation
Professional installation by qualified technicians is strongly recommended. Proper installation ensures safe operation and maintains warranty coverage. Challenger Lifts requires product registration at challengerlifts.com to activate the full warranty period.
What's Included with the Challenger 4030EAX
- Complete 4030EAX four post alignment lift assembly
- Heavy-duty cable-driven lift system with steel sheaves
- 3 HP power unit (208V-230V single phase)
- Single-point air actuated lock release system

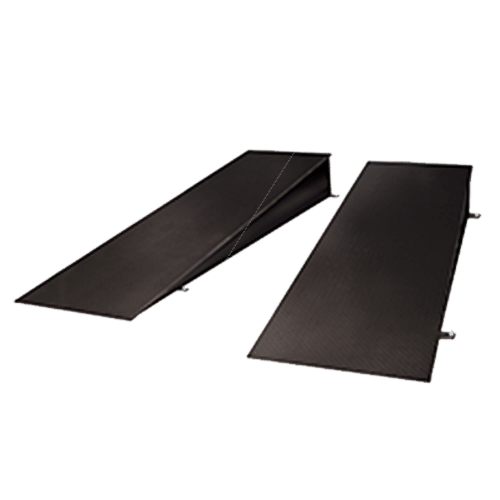

- Diamond-plate non-skid louvered approach ramps
- Recessed turn plate pockets (alignment model)
- Built-in runway rail system
- Adjustable lock ladders
- Anchor hardware
- Installation and operation manual

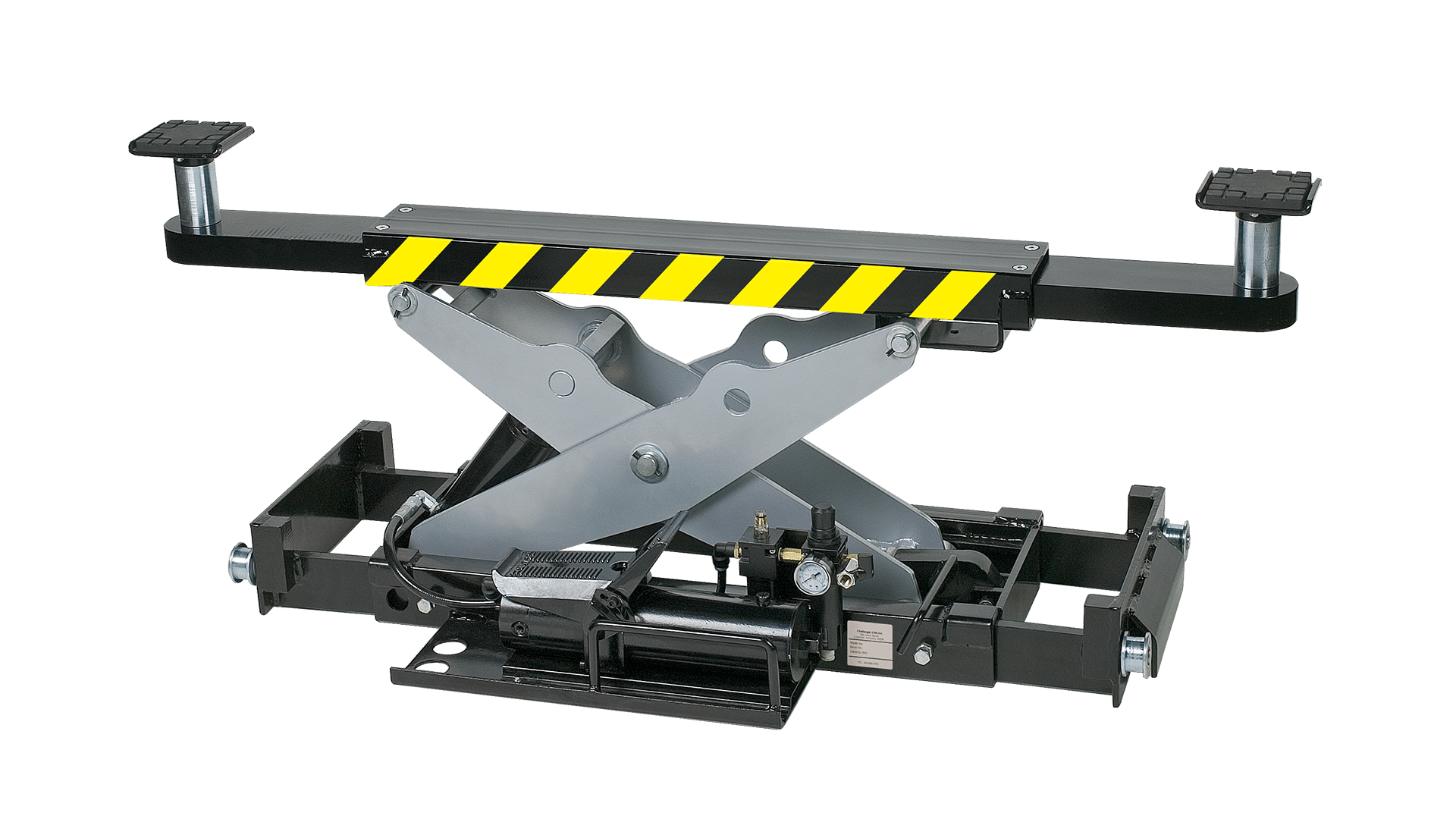

Optional Accessories: Rolling jacks, sliding oil drain pan, recessed heavy-duty steel turnplates for alignment readings (sold separately).
Not Included: Electrical wiring and installation, compressed air supply system, concrete work or repair, professional installation labor, alignment equipment and cameras.
Challenger 4030EAX Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days when in stock. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. This is a heavy-duty lift shipped on pallets and crates. Delivery Type: Curbside delivery to commercial address is standard. Inspection: Inspect all packages thoroughly for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact customer service before initiating any return.
Challenger 4030EAX Warranty
Challenger Lifts Limited Warranty
The Challenger 4030EAX is backed by Challenger Lifts' comprehensive warranty for the original purchaser when properly installed, used, and maintained according to manufacturer specifications.
- 5 Years: Structural parts including columns, runways, cross beams, ramps, and carriages
- 2 Years: Functional parts including power unit, cylinders, sheaves, cables, hoses, valves, and controls
- 1 Year: Labor coverage for warranty repairs
Requirements: Warranty registration must be completed online at challengerlifts.com/register-your-lift or the warranty period begins from the invoice date. Use of unapproved parts or accessories voids warranty. This warranty is non-transferable and extends only to the original purchaser.
Documents
Click to open in a new tab.
Questions About the Challenger 4030EAX?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 4030EAX FAQ
What is the lifting capacity of the Challenger 4030EAX?
The Challenger 4030EAX has an ALI/ETL certified lifting capacity of 30,000 lb. This heavy-duty capacity handles medium and heavy-duty trucks, fleet vehicles, RVs, and commercial vehicles with ease.
What is the maximum wheelbase the 4030EAX can accommodate?
The 4030EAX accommodates vehicles with wheelbases up to 281". For two-wheel alignment, the maximum wheelbase is 256". The 4030 Series is also available in other lengths to accommodate wheelbases from 244.5" to 318.625" depending on the model configuration.
What are the electrical requirements for the 4030EAX?
The 4030EAX requires 208V-230V single-phase power for the standard 3 HP motor. A licensed electrician should install and verify the electrical supply. Additionally, the lift requires 90-120 PSI compressed air for the lock release system.
What size bay do I need for the Challenger 4030EAX?
Challenger recommends a minimum bay size of 31' x 17' for the 4030EAX. The lift itself measures 344" long by 172.75" wide. Ensure adequate ceiling clearance above the 92.25" column height plus the height of your tallest vehicle at full rise.
Is the 4030EAX compatible with wheel alignment systems?
Yes, the 4030EAX is designed for professional alignment work and is compatible with the industry's latest camera imaging alignment systems. The alignment model features recessed turn plate pockets for easy drive-on, and optional recessed heavy-duty steel turnplates are available for accurate alignment readings.
What warranty does the Challenger 4030EAX include?
The 4030EAX includes Challenger's comprehensive warranty: 5 years on structural parts (columns, runways, cross beams), 2 years on functional parts (power unit, cylinders, cables, sheaves), and 1 year on labor. Warranty must be registered online at challengerlifts.com to activate the full coverage period.
What is included with the Challenger 4030EAX purchase?
The 4030EAX includes the complete lift assembly, power unit, cable-driven lift system, single-point air actuated lock release, diamond-plate approach ramps, recessed turn plate pockets, built-in runway rail system, adjustable lock ladders, anchor hardware, and installation manual. Optional accessories like rolling jacks, oil drain pans, and turnplates are sold separately.
How is the 4030EAX shipped and delivered?
The 4030EAX ships via freight with free delivery to commercial addresses in the 48 contiguous states. A forklift or loading dock is required for unloading. Delivery is curbside to commercial addresses. Always inspect shipments for damage before signing the Bill of Lading.
Can I add rolling jacks or oil drain accessories to the 4030EAX?
Yes, the 4030EAX features a built-in runway rail system specifically designed to accept optional rolling jacks and sliding oil drain pans. These accessories enhance productivity and are available separately.
What makes the 4030EAX different from other four post lifts?
The 4030EAX is a closed-front alignment configuration with ALI/ETL certification at 30,000 lb capacity. Key differentiators include the time-proven cable-driven system with heavy-duty steel sheaves, single-point air actuated lock release, 71.75" rise height for maximum working clearance, and compatibility with modern camera alignment systems.
Does the 4030EAX require professional installation?
Professional installation is strongly recommended to ensure safe operation and maintain warranty coverage. The lift must be properly anchored to adequate concrete (minimum 4" thick, 3,000 PSI), and electrical connections must be made by a licensed electrician. Challenger requires product registration to activate the full warranty.
What maintenance does the Challenger 4030EAX require?
The 4030EAX is designed for minimal maintenance thanks to its heavy-duty cylinder and robust cable system. Regular maintenance includes inspecting cables and sheaves, checking hydraulic fluid levels, lubricating moving parts, and verifying lock engagement. Refer to the installation and operation manual for the complete maintenance schedule.
