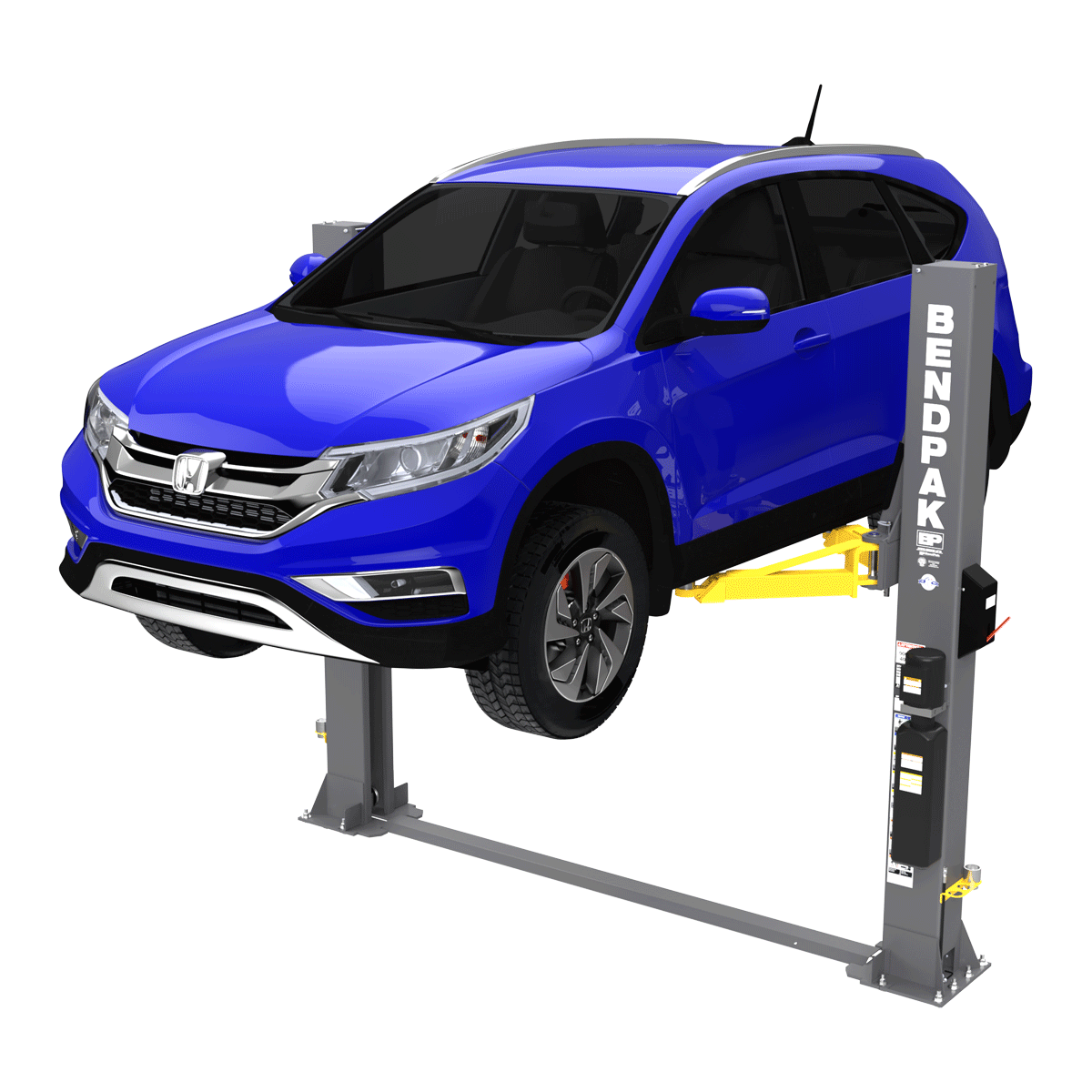

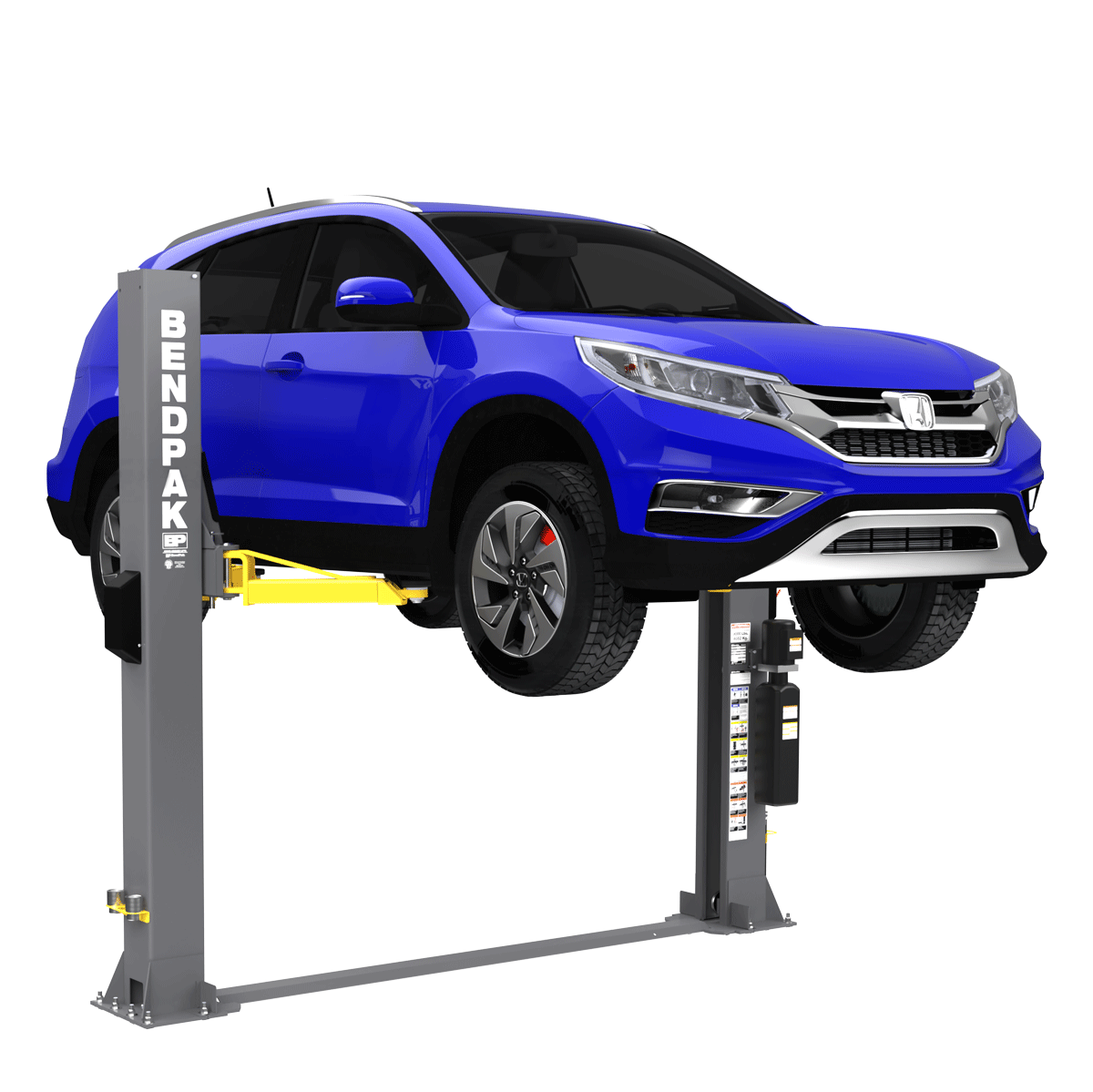

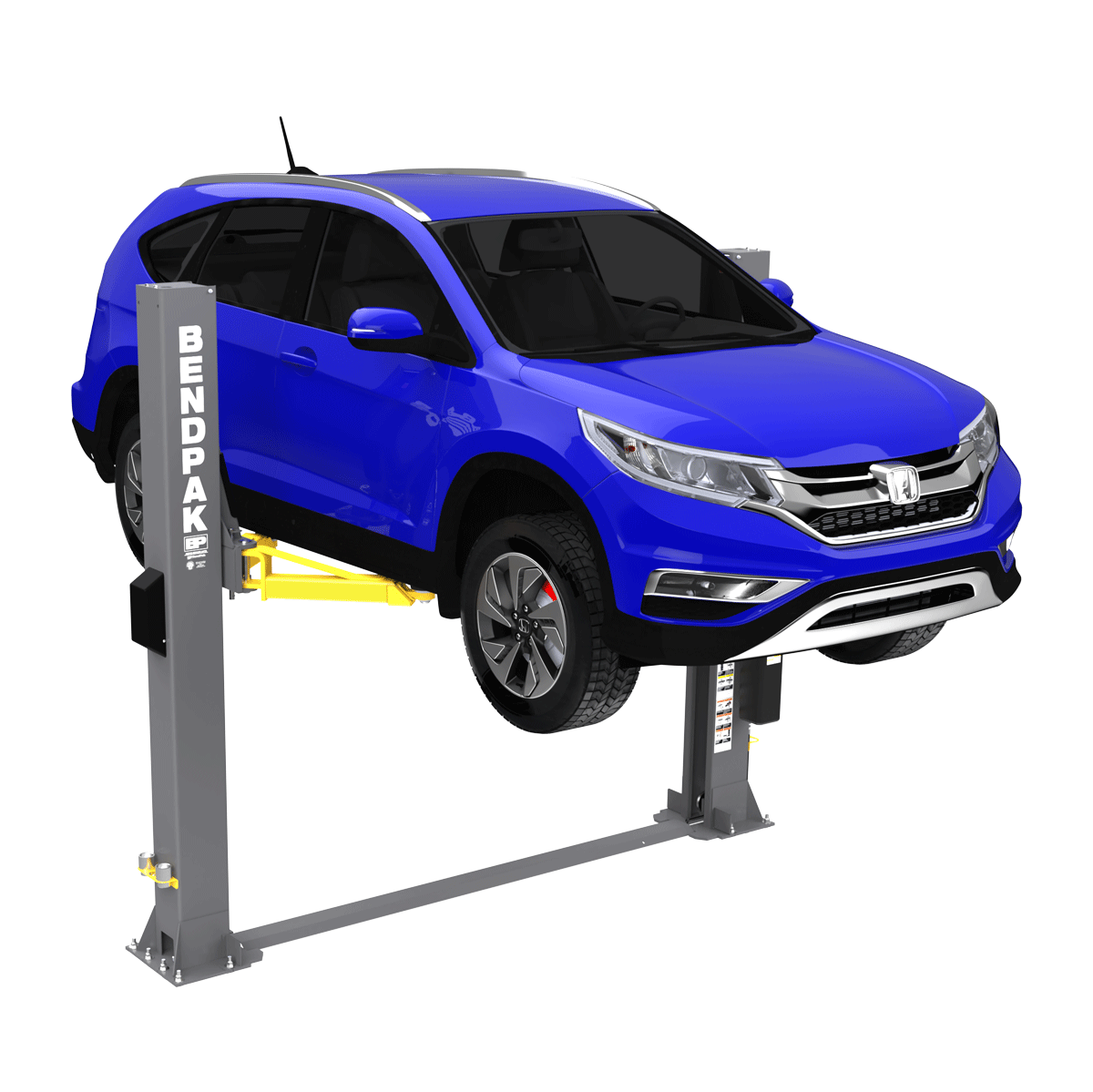

BENDPAK XPR-9TF Two Post Car Lift, 9,000 lbs Capacity
View Original XPR-9TF Product Information & Specifications

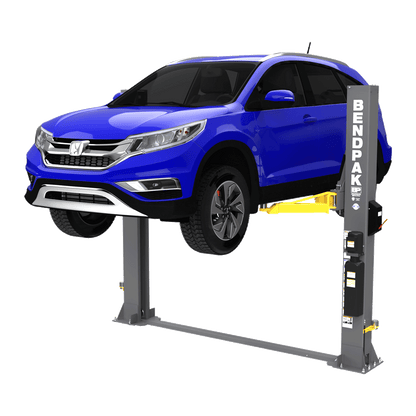

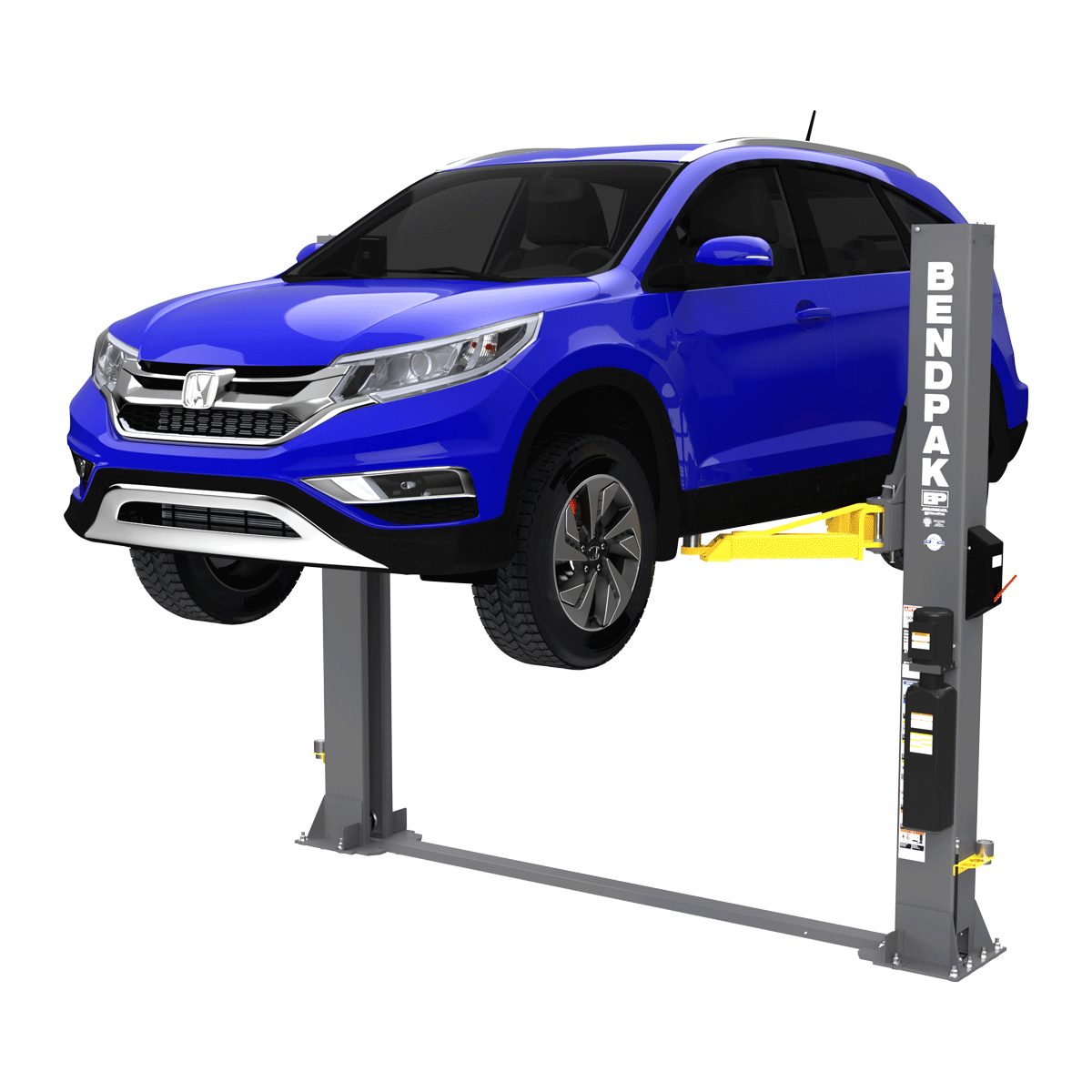

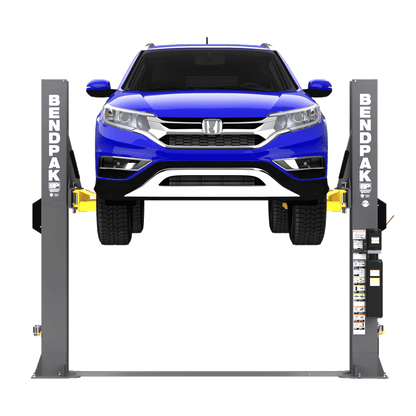

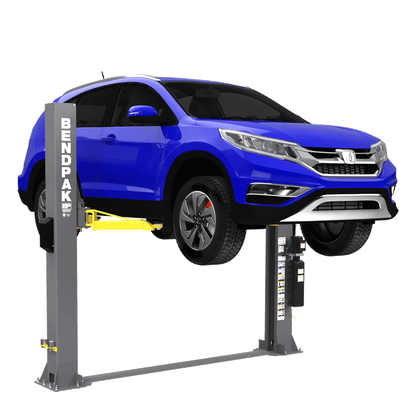

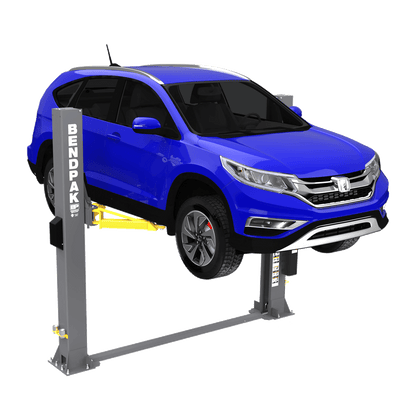

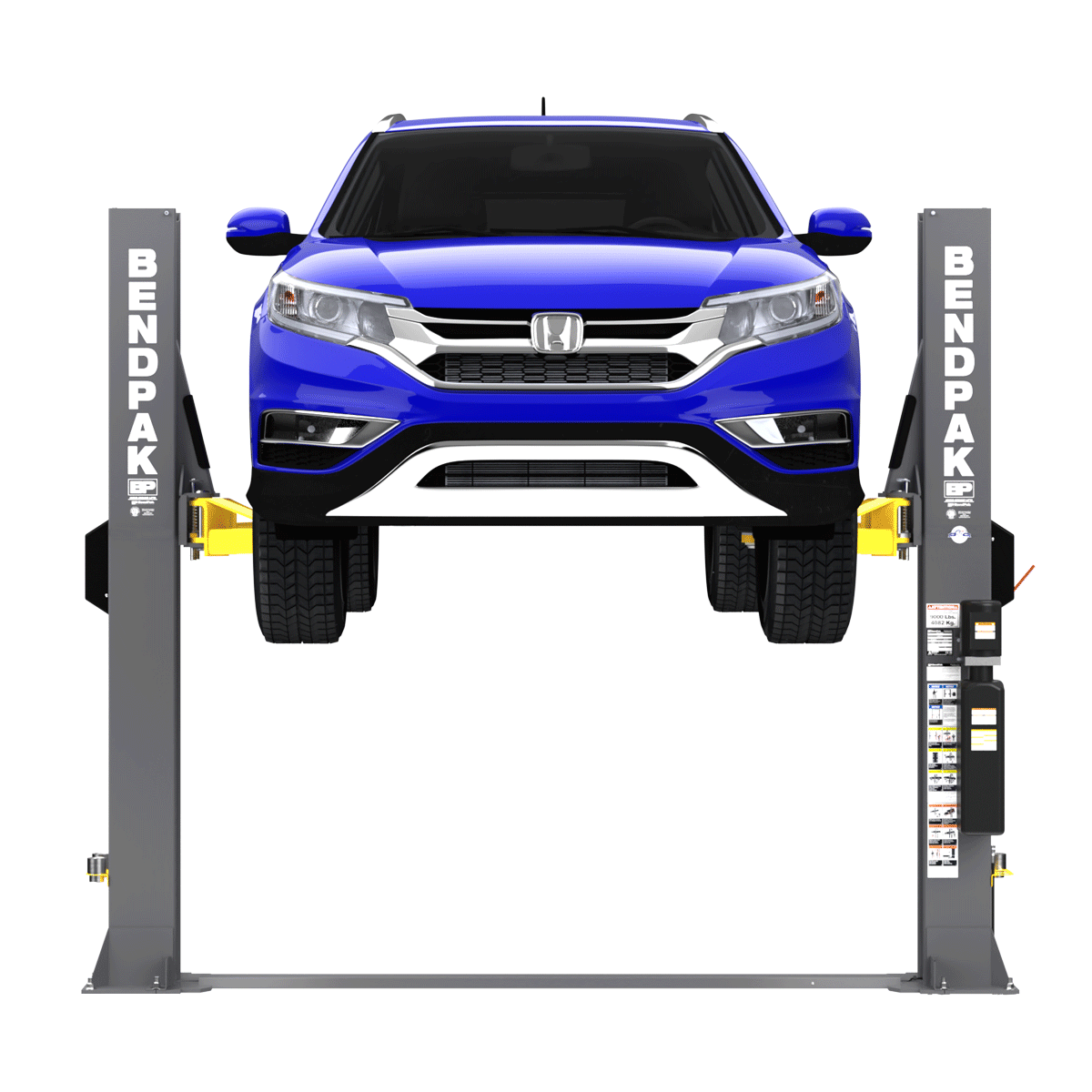

BendPak XPR-9TF Two-Post Lift Overview
The XPR-9TF was a 9,000 lb capacity floorplate two-post lift featuring direct-drive hydraulics and adjustable width installation. It combined chain-over lifting with dual hydraulic cylinders for smooth, reliable operation in professional shops and serious home garages.
XPR-9TF Key Features
Wide or Narrow Configuration
The XPR-9TF offered adjustable column spacing to accommodate different vehicle widths and shop layouts. Wide configuration provided 104 inch drive-thru clearance, while narrow setup offered 91 inches for tighter spaces.
Dual Hydraulic Cylinders
Direct-drive hydraulic system with dual cylinders provided smooth, reliable lifting without chain stretch issues. Equalizing cables ensured synchronized carriage movement for level lifting throughout the stroke.
Automatic Arm Restraints
Plated arm restraints and pins engaged automatically to prevent accidental arm movement during service. The rust-resistant plating extended service life in demanding shop environments.
UHMW Load Bearings
Maintenance-free UHMW polyethylene load bearings required no lubrication and resisted wear, chemicals, and environmental conditions. Single-piece column construction provided long-term structural integrity.
Floorplate Design
Open-top floorplate configuration eliminated overhead obstructions for lifting tall vehicles like vans and lifted trucks while keeping hydraulic lines protected under low-profile floor covers.
XPR-9TF Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lbs (4,082 kg) |
| Max Capacity - Front Axle | 4,500 lbs (2,041 kg) |
| Max Capacity - Rear Axle | 4,500 lbs (2,041 kg) |
| Max Load Per Arm | 2,250 lbs (1,021 kg) |
| Rise Distance | 69 in (1,753 mm) |
| Time to Full Rise | ~45 seconds |
| Specification | Value |
|---|---|
| Overall Height | 123.25 in (3,128 mm) |
| Width Overall | 132-145 in (3,353-3,683 mm) |
| Inside Columns (Narrow) | 103.5 in (2,629 mm) |
| Inside Columns (Wide) | 116.5 in (2,959 mm) |
| Drive-Thru Width (Narrow) | 91 in (2,315 mm) |
| Drive-Thru Width (Wide) | 104 in (2,642 mm) |
| Lifting Height with Pad | 73.75 in (1,870 mm) |
| Max Lifting Height | 78.25 in (1,987 mm) |
| Min Pad Height | 4.75 in (118 mm) |
| Specification | Value |
|---|---|
| Front Arm Reach (Min) | 25.5 in (646 mm) |
| Front Arm Reach (Max) | 49.5 in (1,255 mm) |
| Rear Arm Reach (Min) | 32.25 in (821 mm) |
| Rear Arm Reach (Max) | 52.5 in (1,331 mm) |
| Screw Pad Adjustment | 1.75 in (44.5 mm) |
| Specification | Value |
|---|---|
| Motor | 220 VAC, 60 Hz, 1 Phase |
| Safety Lock Positions | 13 |
| Floorplate Height | 1.5 in (37 mm) |
| Floorplate Width | 8.5 in (216 mm) |
| Sound Level | <43 dB |
XPR-9TF Documentation (Archive)
Frequently Asked Questions
Why was the XPR-9TF discontinued?
BendPak replaced the XPR series with the new AP Series, which features significant safety and design improvements including the Automatic Swing Arm Restraint System (ASARS™), Bi-Metric™ arms for both symmetric and asymmetric lifting, and enhanced EV-ready construction for heavier modern vehicles.
What is the direct replacement for the XPR-9TF?
The BendPak 9APF is the direct replacement. It maintains the same 9,000 lb capacity and open-top floorplate design while adding AP Series features like ASARS™ automatic arm restraints and Bi-Metric™ arms.
Are XPR-9TF replacement parts still available?
BendPak maintains parts support for discontinued models. Contact BendPak directly or an authorized dealer for replacement parts availability and pricing.
What are the main differences between the XPR-9TF and 9APF?
The 9APF features BendPak's new AP Series technology including: ASARS™ (Automatic Swing Arm Restraint System) with 2,000+ lbs of holding force, Bi-Metric™ arms that work in both symmetric and asymmetric configurations without switching, enhanced safety lock system, and higher-tensile steel construction designed for heavier EVs.
Is the XPR-9TF still covered under warranty?
Original warranty coverage applies based on purchase date. Contact BendPak with your lift's serial number for warranty status verification.
