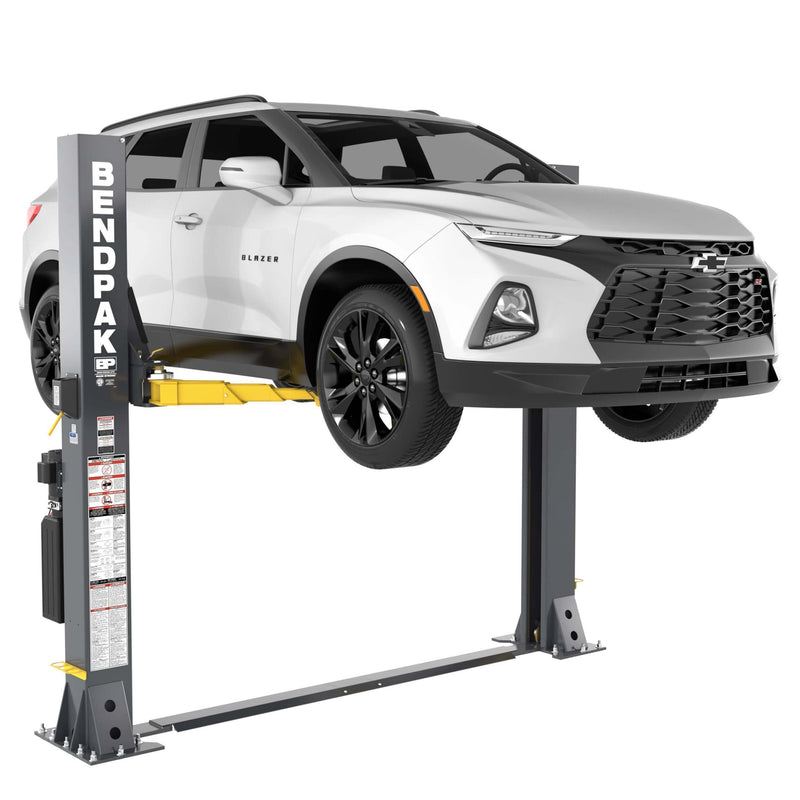

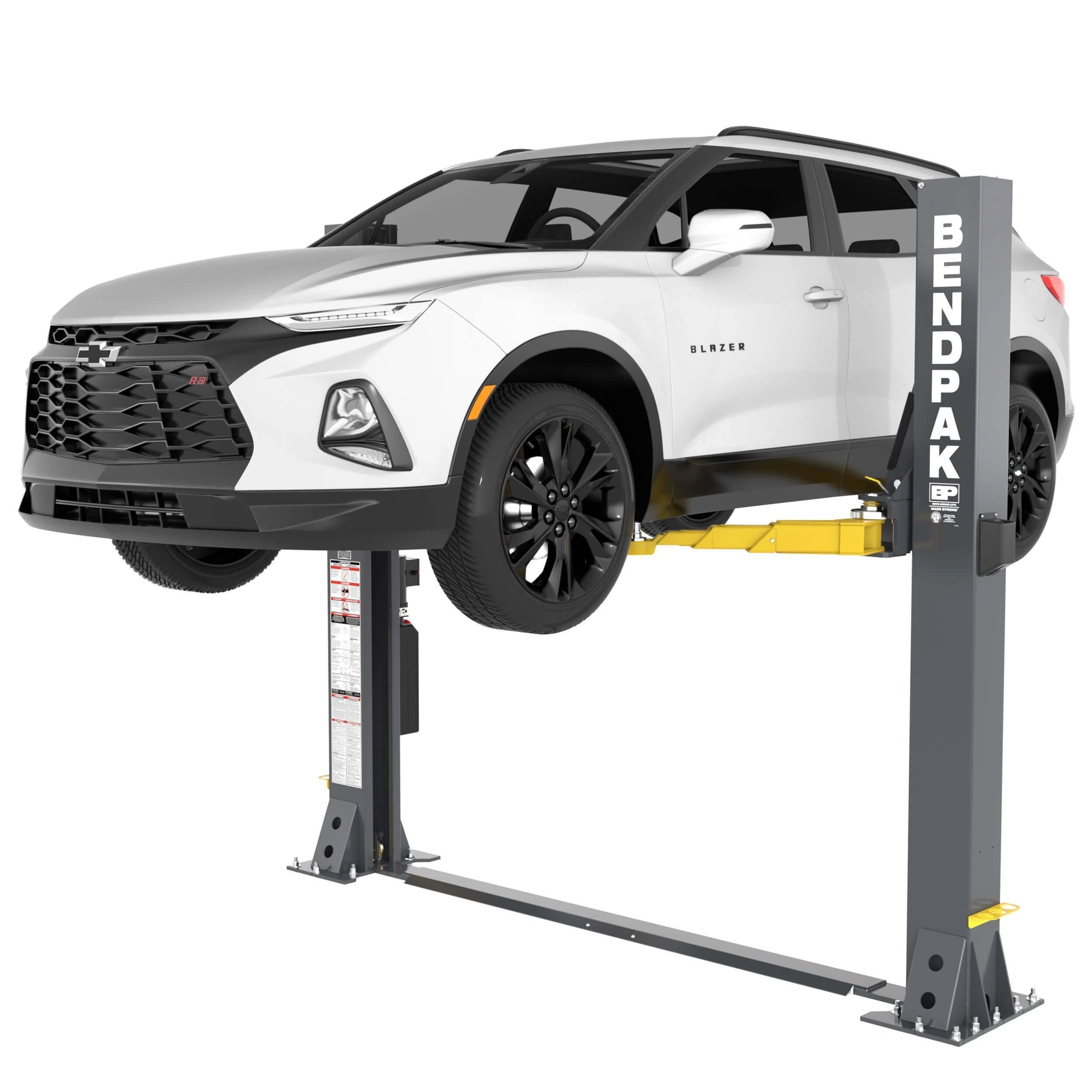

BendPak 9APF Open-Top Two-Post Lift for Low Ceilings - 9,000 lb Capacity
Product Highlights
Heavy-duty vehicle lifting
Optimized for low ceilings
Easy, smooth drive-over
Maximum reach versatility
BendPak 9APF Open-Top Two-Post Lift - 9,000 lb Low Ceiling Model
The BendPak 9k 2 post lift (model 9APF) is a professional-grade automotive lift engineered specifically for low-ceiling installations. This 9,000 lb capacity lift features an open-top design with 123-inch post height, making it ideal for shops with ceiling restrictions. With AP-Series triple-telescoping arms and an extra-low 1.4-inch floorplate, the 9APF handles everything from compact cars to tall vans while maintaining full service capability.
Key Features & Benefits
True Low-Ceiling Optimization
The BendPak 9000 lb 2 post lift stands just 123 inches tall - that's 15-19 inches shorter than standard overhead beam models. The open-top configuration eliminates the overhead beam entirely while maintaining full 9,000 lb capacity through reinforced floorplate construction.
Traditional two-post lifts require 11.5 to 12.5 feet of ceiling clearance for overhead beams and safety bars. The 9APF addresses this industry-wide challenge by routing all hydraulics and equalizer cables through the floorplate, allowing service of tall vans and vehicles with roof racks that would collide with overhead structures.
This enables full-service capability in converted storage areas, older buildings with low ceilings, or shops with overhead obstructions. The design maintains complete structural integrity while maximizing your usable vertical workspace.
Extra-Low Floorplate Design
The 9APF features an ultra-low 1.4-inch floorplate height - 20-30% lower than standard floorplate designs. This steel cover plate spans 9.5 inches wide with tapered edges, protecting the hydraulic lines and equalizer cables while minimizing obstruction.
Standard floorplate models use 1.5-2.0 inch tall plates that interfere with rolling transmission jacks and tool carts. This extra-low profile addresses the workflow challenge, allowing smooth equipment movement without the lifting or tilting required with taller floorplates.
This improves shop efficiency by eliminating constant equipment repositioning. Technicians can roll jacks and carts freely across the bay, reducing fatigue and speeding up service operations while maintaining the structural benefits of the floorplate design.

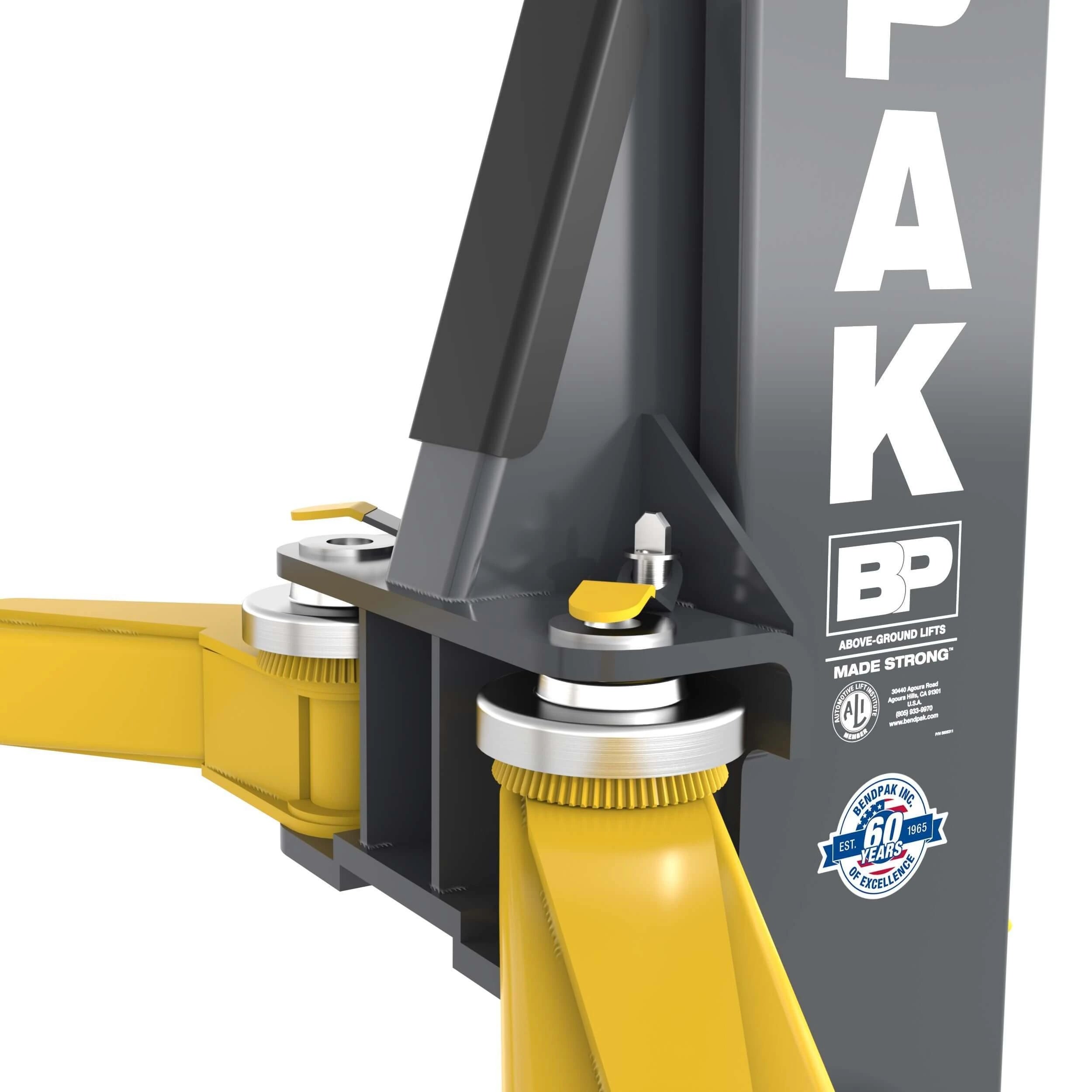

AP-Series Triple-Telescoping Arms with Bi-Metric Technology
The AP-Series arms on this BendPak 2 post car lift model feature three-stage telescoping technology providing 22.25-47.5 inch asymmetric reach and 29.5-57 inch symmetric reach. The Bi-Metric arm geometry allows true symmetric or asymmetric vehicle positioning without requiring arm changes or adapters.
While standard two-stage arms limit reach flexibility, this triple-telescoping design provides extended reach for long-wheelbase trucks while maintaining precision for compact cars. The system includes dropped pad receivers for lowered vehicles, making it versatile for any application.
This enables faster vehicle spotting with fewer adjustments. The extended reach eliminates auxiliary adapters on most vehicles, reducing setup time and improving lifting accuracy across your entire fleet.
ASARS Automatic Swing Arm Restraint System
The patented ASARS system delivers 360-degree automatic arm engagement that locks swing arms the moment lifting begins. This heavily forged steel mechanism provides continuous holding force with 14 safety lock positions at 3.62-inch intervals.
Unlike basic restraint systems that require manual pin insertion, ASARS automatically engages without operator intervention. The system maintains arm position even during high-torque operations like suspension work or engine removal, addressing critical safety challenges in professional shops.
This eliminates arm movement risks during service operations. The single-lever quick release provides instant disengagement when needed, while maintaining protective grip throughout the service process - a key safety advantage.
Dual-Width Configuration Flexibility
The 9APF offers adjustable installation at either 136-inch or 146-inch overall width. The narrow configuration provides 91-inch drive-through clearance for tight multi-bay layouts, while the wide setup offers 101-inch clearance for easier truck positioning.
Fixed-width models force compromises between space and accessibility. This dual-width capability lets installers choose optimal configuration during setup based on bay dimensions and typical vehicle mix without requiring different models.
This maximizes space utilization in any shop environment. Install narrow configurations to maximize lift count in multi-bay facilities, or wide configurations for easier maneuvering of full-size trucks - flexibility that sets this model apart.
Applications & Use Cases
- General Automotive Service: Complete maintenance and repair operations for passenger vehicles, SUVs, and light trucks up to 9,000 lb with this professional two-post lift solution.
- Low-Ceiling Quick Lanes: Dealer service departments with low door rails or overhead ductwork requiring full lifting capability for oil changes, tire rotations, and multi-point inspections.
- Independent Repair Shops: Mixed-fleet servicing from lowered sports cars to lifted trucks using the AP-Series arms' extended reach and Bi-Metric positioning.
- Fleet Maintenance Garages: Commercial van and truck servicing where tall vehicles need clearance that overhead beam lifts cannot provide.
- Performance Shops: Specialized work on lowered vehicles using dropped pad receivers and stackable adapters for precise lifting point access.
- Home Garage Installations: Residential workshops with standard ceiling heights where this model fits when traditional two-post lifts won't.
- Converted Service Bays: Facilities repurposing storage areas into service bays where ceiling height restrictions prevent standard lift installation.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Max Per Lift Arm | 2,250 lb (1,021 kg) |
| Max Per Axle | 4,500 lb (2,041 kg) |
| Time to Full Rise | ≈60 seconds |
| Sound Level | < 85 dB during operation |
| Specification | Value |
|---|---|
| Post Height | 123 inches (3,128 mm) |
| Overall Width (Narrow) | 136 inches |
| Overall Width (Wide) | 146 inches |
| Drive-Thru Clearance (Narrow) | 91 inches |
| Drive-Thru Clearance (Wide) | 101 inches |
| Inside Posts Distance (Narrow) | 108.25 inches |
| Inside Posts Distance (Wide) | 118.25 inches |
| Maximum Lifting Height | 73.5 inches (1,867 mm) |
| Maximum Rise | 70 inches (1,775 mm) |
| Minimum Pad Height | 4.5 inches (114 mm) |
| Floorplate Height | 1.4 inches (36 mm) |
| Floorplate Width | 9.5 inches (240 mm) |
| Specification | Value |
|---|---|
| Arm Configuration | AP-Series Triple-Telescoping |
| Asymmetric Reach Range | 22.25-47.5 inches |
| Symmetric Reach Range | 29.5-57 inches |
| Arm Restraint System | ASARS with 360° engagement |
| Safety Lock Positions | 14 positions at 3.62 inch (92 mm) intervals |
| Specification | Value |
|---|---|
| Power Requirements | 208-230 VAC, 50/60 Hz, 1-Phase |
| Amperage Draw | Consult installation manual for exact specifications |
| Circuit Protection Required | 25 amp circuit breaker |

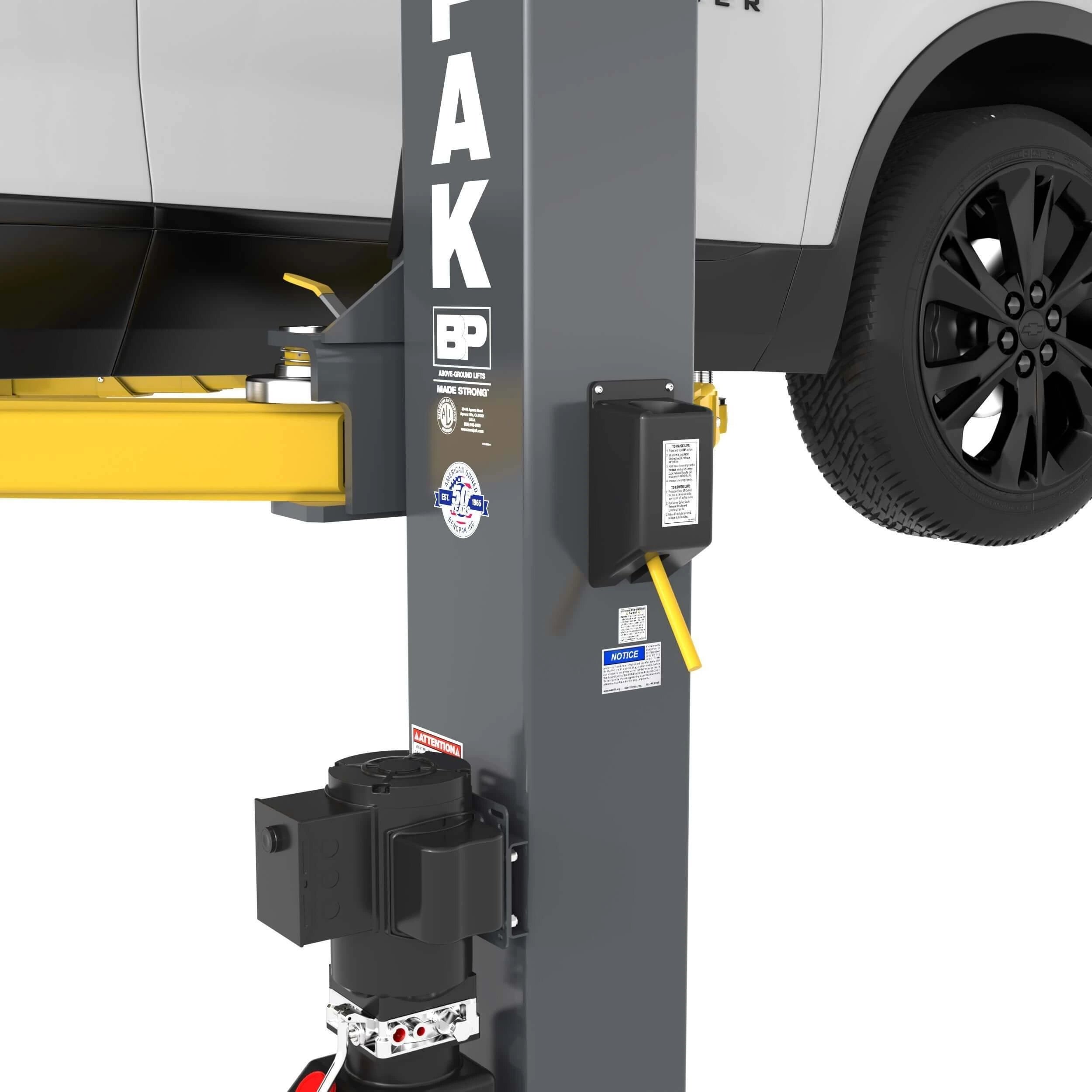

| Hydraulic System | Dual hydraulic cylinders |
| Drive System | Chain-over with UHMW sliders |
Installation Requirements
Foundation Requirements
- Concrete Thickness: Minimum 4.25 inches (typical requirement)
- Compressive Strength: 3,000 PSI minimum (typical requirement)
- Reinforcement: Steel reinforced concrete required
- Cure Time: 28-day full cure before installation
- Surface: Level within 3 degrees
Note: Always follow the current BendPak installation manual and local building codes for exact specifications.
Anchor Specifications
- Anchor Diameter: 3/4 inch
- Anchor Length: 6.3 inches
- Drill Depth: 4.5 inches minimum
- Torque Specification: 85-95 ft-lb
- Anchors Included: Yes, with installation kit
Electrical Requirements
- Voltage: 208-230 VAC, 1-Phase
- Frequency: 50/60 Hz
- Circuit Protection: 25 amp dedicated circuit required
- Disconnect: Manual disconnect switch recommended for safety compliance
Note: Consult the installation manual for exact amperage specifications.
Space Requirements for Low Ceiling 2 Post Car Lift
- Ceiling Height: Minimum 123 inches (10.25 feet) - ideal for low ceiling 2 post lift applications
- Working Height: 12+ feet recommended for comfortable operation
- Bay Dimensions: Minimum 12 ft width x 24 ft length recommended
- Environment: Indoor installation only, protected from moisture
- Operating Temperature: 41°F to 104°F (5°C to 40°C)
Installation Notes
- Professional Installation: Recommended for warranty compliance with this BendPak low ceiling lift
- Installation Time: Approximately 4-6 hours with experienced installer
- Equipment Required: Forklift for positioning columns, hammer drill for anchors
- Permits: Verify local code compliance and permit requirements before installation
Model Comparison
| BendPak 9APF – Open-Top Floorplate 2-Post Lift |
9,000 lb capacity (cars, SUVs, light trucks). Max lifting height w/ pads: 73.5"; max rise: 70". Min pad height: 4.5"; floor plate height: 1.4" (extra-low). |
Dual hydraulic cylinders with electric-hydraulic power unit. Time to full rise ≈ 60 seconds under load. Motor: 208–240 VAC, 1-phase. |
Open-top, low-ceiling floorplate design keeps overhead clear for tall vans and lifted trucks while tucking hydraulics and equalizer cables under an extra-low steel cover plate for a clean, rollable bay. AP-Series triple-telescoping, low-profile swing arms with Bi-Metric geometry for true symmetric or asymmetric spotting in one bay. Automatic Swing Arm Restraint System (ASARS) with 360° load-holding grip and single-lever quick release; 14 safety-lock positions and heavy-duty equalizer cables on oversized sheaves. Includes dropped pad receivers and stackable adapters for low vehicles and varied lift points; large base plates and one-piece columns for rigidity. |
|---|---|---|---|
| Challenger CLFP9 – 9K Open-Top Floorplate 2-Post Lift |
9,000 lb capacity, symmetric lifting. Rise height ~78 1/8"; screw pad height 4"–5 7/8". Open-top, floorplate layout for low-ceiling bays (overall column height 10' 7/8"). |
Electric/hydraulic chain-over floorplate 2-post lift. Rise time ≈ 50 seconds to full height. 2 HP, single-phase 208/230 V motor (20 A circuit). |
Open-top, low-ceiling-optimized design with 10' 7/8" columns and low-profile drive-over floor plate for easier vehicle positioning in tight bays. Standard 3-stage front and rear arms to handle short- and long-wheelbase vehicles; double-telescoping screw pads and durable powder-coat finish. Dual-point mechanical pull-lock cable release and heavy-duty chain lifting system. Limitation: symmetric-only arm geometry and required ceiling height of ~10' 2" mean less flexibility in very low (<10') ceilings and for extreme asymmetric spotting compared with the Bi-Metric arm design on the BendPak 9APF. |
| Triumph NT-9 – 9K Floorplate 2-Post Lift |
9,000 lb capacity, bi-symmetric floorplate lift. Lifting height approx. 72"; min pad height 4.5". Floor plate covers cables/hoses for low-ceiling garages. |
Hydraulic 2-post with floorplate design. Lift time ≈ 40 seconds to full height. Motor: 3 HP, 110 V single-phase (runs on standard high-amp shop circuit). |
Compact floorplate layout designed for low-ceiling home or light-commercial garages, with three-stage front arms for better reach and included truck adapters and mounting hardware at a value-oriented price point. Dual-point mechanical lock release with multiple lock positions; widely distributed with "in stock" availability and straightforward installation documentation. Limitation: floorplate strip is taller and narrower than the 9APF's extra-low plate, which can interfere more with rolling jacks or creepers; additionally, there is no integrated electric safety shutoff bar and the design lacks the advanced automatic arm-restraint system seen on AP-Series lifts. |
Choose the BendPak 9APF when low-ceiling clearance, mixed symmetric/asymmetric spotting, and maximum arm stability are top priorities. Its open-top, extra-low floorplate design and AP-Series arm/ASARS safety package give it a clear edge for busy professional bays that see everything from low sports cars to tall vans, making it the best fit when you need one lift that minimizes compromises across a wide range of vehicles.
Shipping & Delivery
Freight Coverage
Shipping: Free shipping to commercial addresses in the 48 contiguous United States. Additional charges may apply for residential delivery, limited access locations, or destinations in Alaska, Hawaii, and Puerto Rico.
Delivery Timeframe: Approximately 7-10 business days from order placement (subject to inventory availability).
International: International shipping available - contact for quote and delivery options.
Delivery Requirements
Unloading Equipment: Forklift with 2,000 lb minimum capacity required for unloading. Driver does not assist with unloading.
Delivery Type: Curbside delivery to commercial addresses with loading dock or forklift. Inside delivery available for additional fee.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Damage Reporting
Within 15 days: 100% coverage for replacement parts and freight
Within 30 days: 75% coverage for replacement parts and freight (shared cost)
After 30 days: No coverage (customer responsible for parts and freight costs)
Warranty Coverage
BendPak's Current 5-2-1 Warranty Program
5 Years - Structure: Complete structural components including columns, carriages, and base plates - exceeds typical 1-year industry standard
2 Years - Hydraulic Components: Cylinders, power unit, hoses, and fittings - double the typical industry coverage
1 Year - Electrical/Mechanical: Motor, switches, cables, chains, and all other components including parts and labor
Warranty Requirements
Registration: Product registration required within 30 days of purchase
Eligibility: Valid for original purchaser only (non-transferable)
Installation: Installation must be performed following manufacturer installation manual specifications
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the maximum lifting capacity of the BendPak 9k 2 post lift?
The BendPak 9k 2 post lift has a maximum lifting capacity of 9,000 lb (4,082 kg) total, with 2,250 lb per arm and 4,500 lb per axle maximums. This capacity handles passenger cars, SUVs, and light-duty trucks safely within certified load ratings.
What makes this BendPak low ceiling lift different from standard models?
This BendPak low ceiling lift stands just 123 inches tall with an open-top design that eliminates overhead beams. Unlike standard models requiring 11.5-12.5 feet of ceiling clearance, this lift fits in spaces as low as 10.25 feet while maintaining full 9,000 lb capacity.
Can this low ceiling 2 post car lift handle tall vehicles?
Yes, this low ceiling 2 post car lift is ideal for tall vehicles. The open-top design provides unlimited overhead clearance for vans with roof racks, box trucks, and lifted vehicles that would hit overhead beams on traditional models.
What's included with the BendPak 9000 lb 2 post lift purchase?
The BendPak 9000 lb 2 post lift includes two lift posts, four AP-Series triple-telescoping swing arms, four screw lift pad assemblies, electric-hydraulic power unit, ASARS automatic arm restraint system, equalizer cable system, floorplate sections with fasteners, stackable height adapters, anchor bolts, and complete installation/operation manual.
What are the electrical requirements for this 9k 2 post lift?
This 9k 2 post lift requires 208-230 VAC single-phase power on a dedicated 25-amp circuit breaker. A manual disconnect switch is recommended for safety compliance. Consult the installation manual for exact amperage specifications.
How does the ASARS system improve safety on this BendPak 2 post car lift?
The ASARS system on this BendPak 2 post car lift provides 360-degree automatic arm engagement that locks swing arms immediately when lifting begins. With 14 safety lock positions at 3.62-inch intervals, it prevents arm movement during high-torque operations without requiring manual pin insertion.
What warranty comes with BendPak 2 post lifts like the 9APF?
BendPak 2 post lifts include the current 5-2-1 warranty program: 5 years on structural components, 2 years on hydraulic components, and 1 year on electrical/mechanical parts with labor. This exceeds typical industry standards. Registration is required within 30 days of purchase.
What's the drive-thru width of this 2 post low ceiling lift?
This 2 post low ceiling lift offers two width configurations: narrow setup provides 91-inch drive-thru clearance (108.25 inches between posts), while wide setup offers 101-inch clearance (118.25 inches between posts). This dual-width flexibility makes it versatile for any shop installation.
