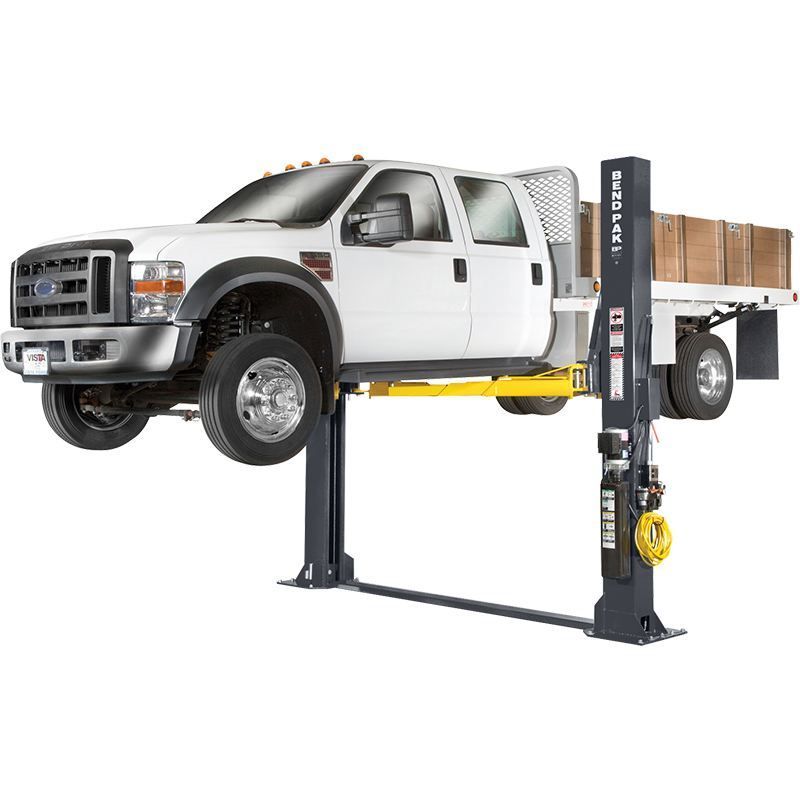

BENDPAK XPR-12FDL Two Post Car Lift, 12,000 lbs Capacity
View Original XPR-12FDL Product Information & Specifications
BendPak XPR-12FDL Two-Post Lift Overview
The XPR-12FDL was a 12,000 lb capacity open-top floorplate two-post lift featuring direct-drive dual hydraulics and triple-telescoping arms with extended reach up to 59 inches. The open-top design eliminated overhead obstructions, making it ideal for lifting taller vehicles like high-rise vans, Sprinters, and lifted trucks. It was engineered for shops needing extra arm reach for vehicles with long wheelbases or tricky lift points.
XPR-12FDL Key Features
Open-Top Design
The open-top floorplate design eliminated overhead obstructions, providing unrestricted vertical clearance for lifting taller vehicles like high-rise vans, Sprinters, and lifted trucks without worrying about clearance issues.
Dual Direct-Drive Hydraulics
Unlike chain or screw mechanisms, the direct-drive hydraulic system minimized moving parts, reducing maintenance requirements and the risk of breakdowns while providing smooth, dependable lifting operation.

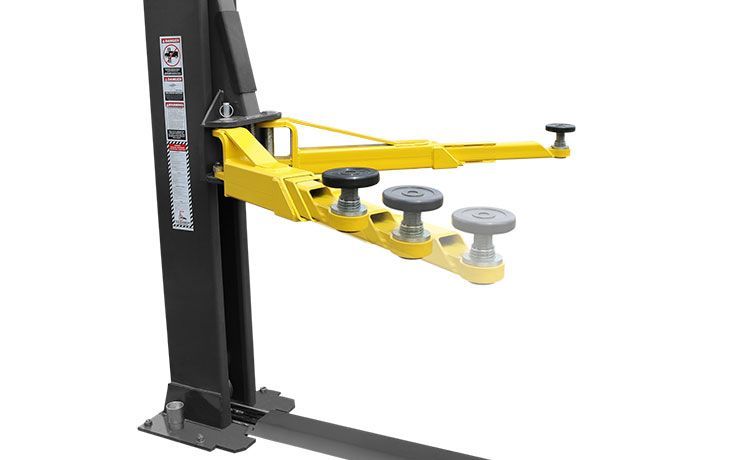

Triple-Telescoping Arms
The triple-telescoping arms extended from 39 to 59 inches, accommodating everything from wide trucks and SUVs to compact sports cars. The extended reach made it easier to access lift points on vehicles with long wheelbases.
Low-Profile Dropped-End Pads
The low-profile, dropped-end frame contact pads slipped easily under low-riding vehicles, protecting chassis and preventing damage during lifting operations. Minimum pad height was 5 inches.
16-Piece Adapter Set
The included adapter set featured stackable adapters (6" and 3"), polyurethane contact pads, and frame cradle pads, allowing safe lifting of vehicles with running boards, auxiliary fuel tanks, and various frame configurations.
Single-Point Safety Release
The user-friendly single-point safety release simplified the lowering process, making it quick and easy to disengage the safety locks. Safety locks engaged every 3 inches throughout the lift stroke.
XPR-12FDL Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Max Load Per Arm | 3,000 lbs (1,361 kg) |
| Rise | 69 in (1,753 mm) |
| Rise + Pad | 74 in (1,880 mm) |
| Rise + Pad + Adapter | 79 in (2,007 mm) |
| Time to Full Rise | 55 seconds |
| Specification | Value |
|---|---|
| Overall Height | 144 in (3,403 mm) |
| Width Overall | 155 in (3,937 mm) |
| Outside Columns | 146 in (3,708 mm) |
| Inside Columns | 118 in (2,997 mm) |
| Drive-Thru Clearance | 103 in (2,616 mm) |
| Min Height + Pad | 5 in (127 mm) |
| Specification | Value |
|---|---|
| Front Arm Reach (Min) | 39 in (991 mm) |
| Front Arm Reach (Max) | 59 in (1,499 mm) |
| Rear Arm Reach (Min) | 39 in (991 mm) |
| Rear Arm Reach (Max) | 59 in (1,499 mm) |
| Specification | Value |
|---|---|
| Floorplate Height | 2 in (51 mm) |
| Floorplate Width | 8.5 in (216 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise Level | 90 dB |
XPR-12FDL Documentation (Archive)
Frequently Asked Questions
Why was the XPR-12FDL discontinued?
BendPak replaced the XPR series with the new AP Series, featuring significant safety and design improvements. The AP Series was developed specifically for heavier modern vehicles including EVs, with enhanced features like the Automatic Swing Arm Restraint System (ASARS™), Bi-Metric™ arms, and higher-tensile steel construction.
What is the direct replacement for the XPR-12FDL?
The BendPak 12APF is the direct replacement. It maintains the same 12,000 lb capacity and open-top floorplate design while adding all AP Series features including ASARS™ automatic arm restraints, Bi-Metric™ arms for symmetric/asymmetric lifting, and EV-ready construction.
Are XPR-12FDL replacement parts still available?
BendPak maintains parts support for discontinued models. Contact BendPak directly or an authorized dealer for replacement parts availability and pricing.
What are the main differences between the XPR-12FDL and 12APF?
Key differences include:
- Arm System: Bi-Metric™ arms that work in both symmetric and asymmetric configurations without switching
- Safety: ASARS™ (Automatic Swing Arm Restraint System) with 2,000+ lbs of holding force and 360-degree grip
- Lock System: Patented automatic safety lock system for improved operator safety
- Construction: Higher-tensile steel designed for heavier EVs and modern vehicles
- Ceiling Height: 12APF is specifically optimized for low-ceiling environments
Is the XPR-12FDL still covered under warranty?
Original warranty coverage applies based on purchase date. Contact BendPak with your lift's serial number for warranty status verification.
Can the 12APF lift EVs with undercarriage battery packs?
Yes, the 12APF is designed as EV-ready with higher-tensile steel construction to handle the increased weight of electric vehicles. The Bi-Metric™ arms and adapter options allow for precise placement to safely lift EVs without damaging battery packs. Always consult the vehicle manufacturer's lifting guidelines for specific recommendations.
