BendPak 12APF 12,000 lb Open-Top Two-Post Lift

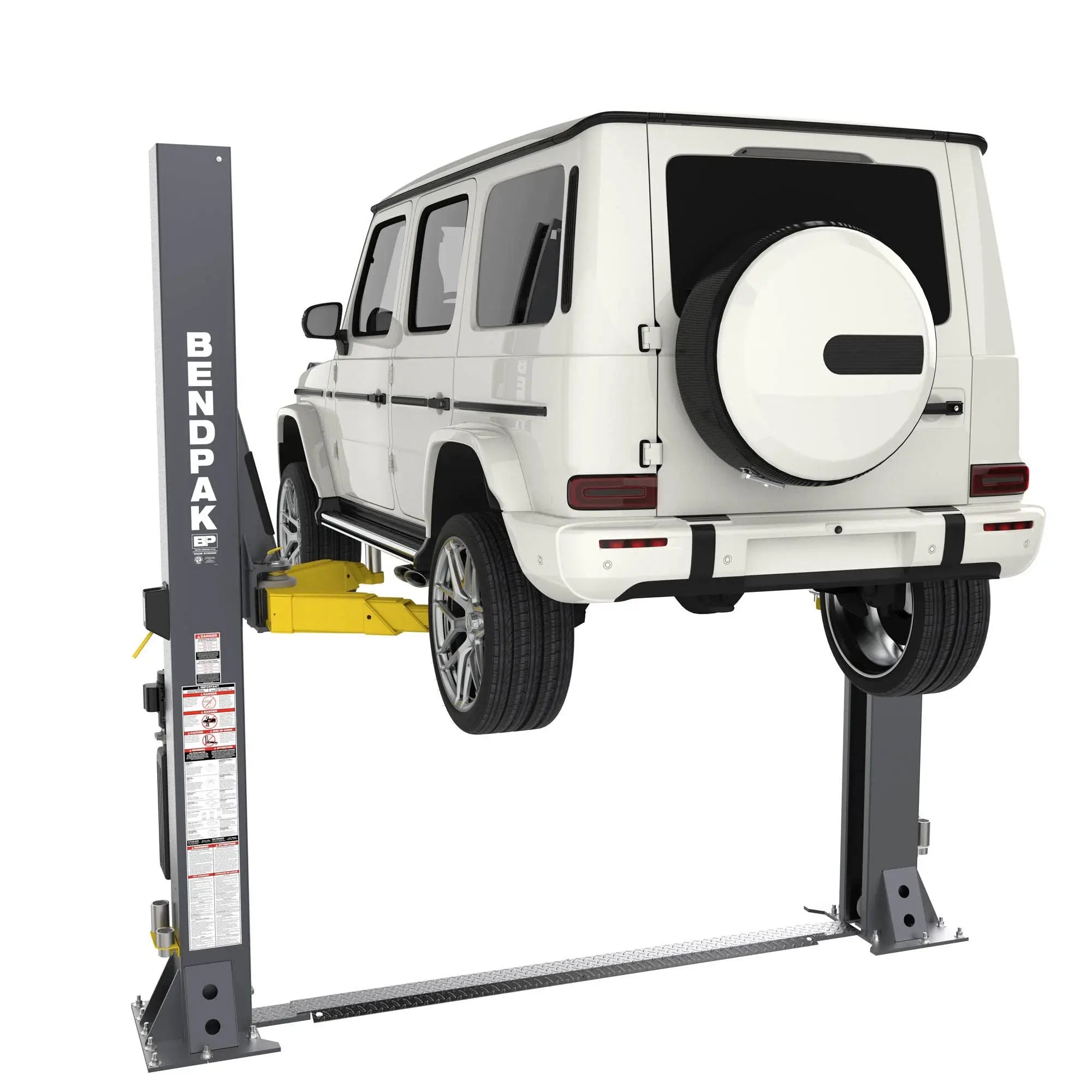

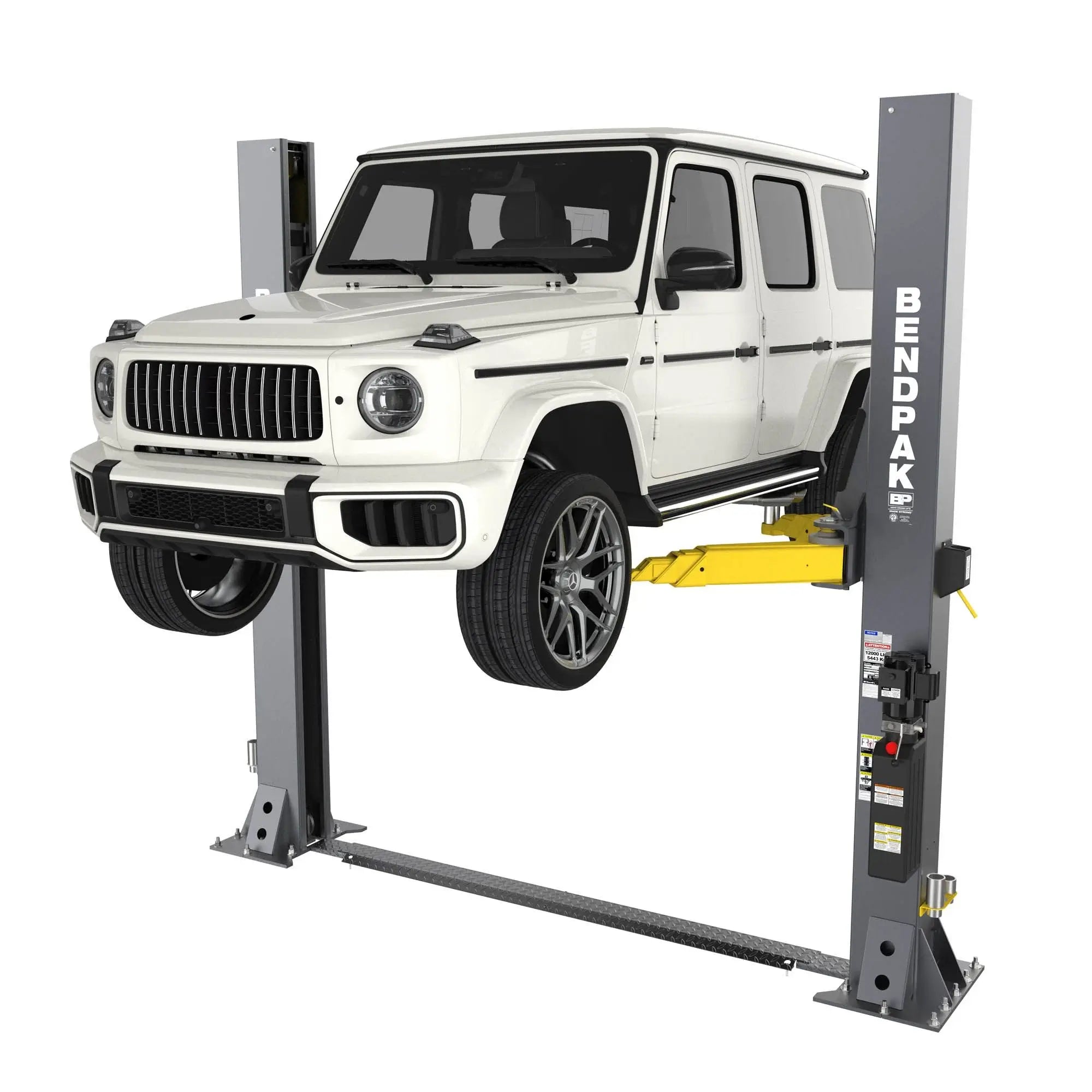

The BendPak 12APF is a 12,000 lb capacity open-top two-post lift engineered for low-ceiling installations and tall vehicles. The floorplate design eliminates overhead obstructions while concealing hydraulic lines and equalizer cables. Features Bi-Metric triple-telescoping arms for symmetric and asymmetric lifting, the patented ASARS automatic swing arm restraint system with 2,000+ lb holding force, and 70" rise with 15 lock positions. Handles 3/4-ton and 1-ton trucks, commercial vans, SUVs, and EVs. 208-230V single-phase power. 5-2-1 warranty.
Who It's For
- Low-Ceiling Shops: Open-top design with 144.75" post height fits spaces where standard clearfloor lifts won't work. No overhead crossbar to limit vehicle height.
- Fleet and Commercial Operations: Services Sprinter, Transit, ProMaster vans, and work trucks with ladder racks and upfit gear that exceed standard lift clearances.
- Heavy-Duty Service Centers: 12,000 lb capacity handles 3/4-ton and 1-ton pickups, loaded work trucks, and battery-heavy EVs that exceed typical 9,000-10,000 lb floorplate limits.
- Dealership Service Departments: Bi-Metric arms switch between symmetric (trucks/SUVs) and asymmetric (sedans/coupes) without changing hardware.
- Restoration and Performance Shops: Drop-end arms reach low-profile vehicles in the morning, while 12,000 lb capacity handles lifted trucks in the afternoon.
Features

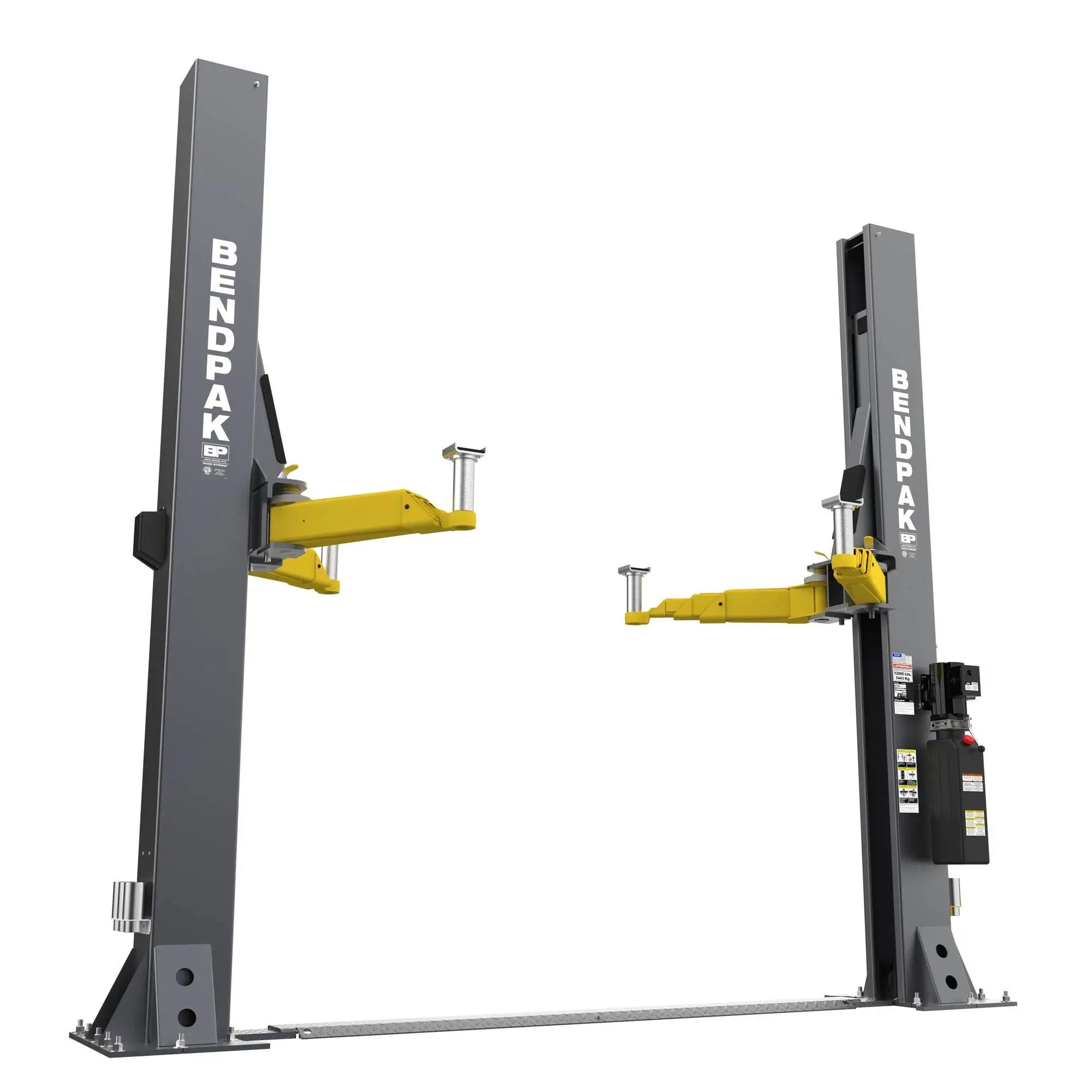

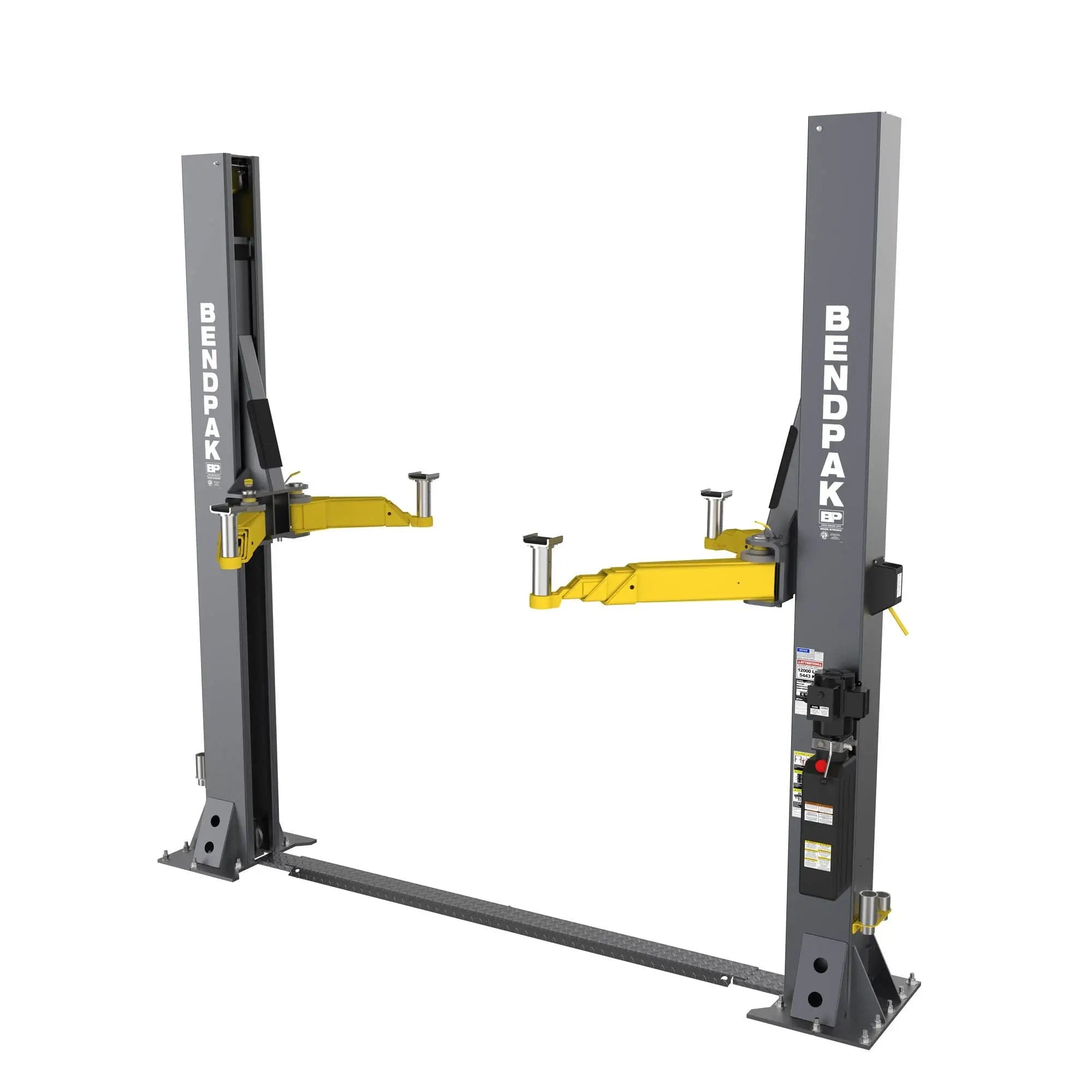

Open-Top Floorplate Design
The 12APF eliminates the overhead crossbar found on clearfloor lifts. Post height is 144.75" with no overhead obstructions, accommodating high-roof commercial vans, lifted trucks with ladder racks, and tall SUVs. A 1.5" steel floorplate between columns conceals all hydraulic lines, equalizer cables, and wiring, protecting components and eliminating trip hazards.

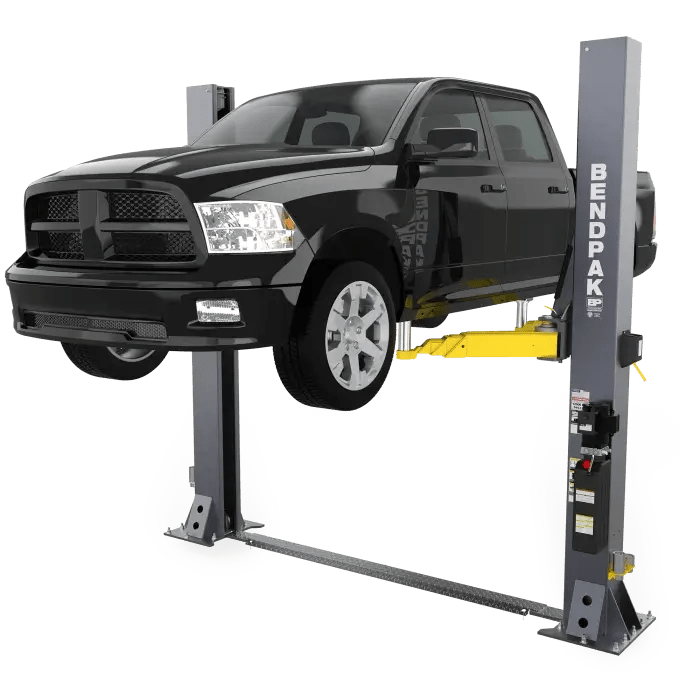

12,000 lb Lifting Capacity
Exceeds typical floorplate lifts that max out at 9,000-10,000 lb. Handles 3/4-ton and 1-ton pickups, full-size SUVs, high-roof commercial vans, and battery-heavy EVs. Front and rear axle capacity: 6,000 lb each. Per-arm capacity: 3,000 lb. Rise time to 70": approximately 68 seconds.
Bi-Metric Triple-Telescoping Arms
Single arm set supports both symmetric and asymmetric configurations without hardware changes. Asymmetric reach: 26" to 55.25" for sedans and coupes with better door clearance. Symmetric reach: 29.5" to 60" for centered truck and SUV positioning. Drop-end arms provide lower pad height for low-profile vehicles.

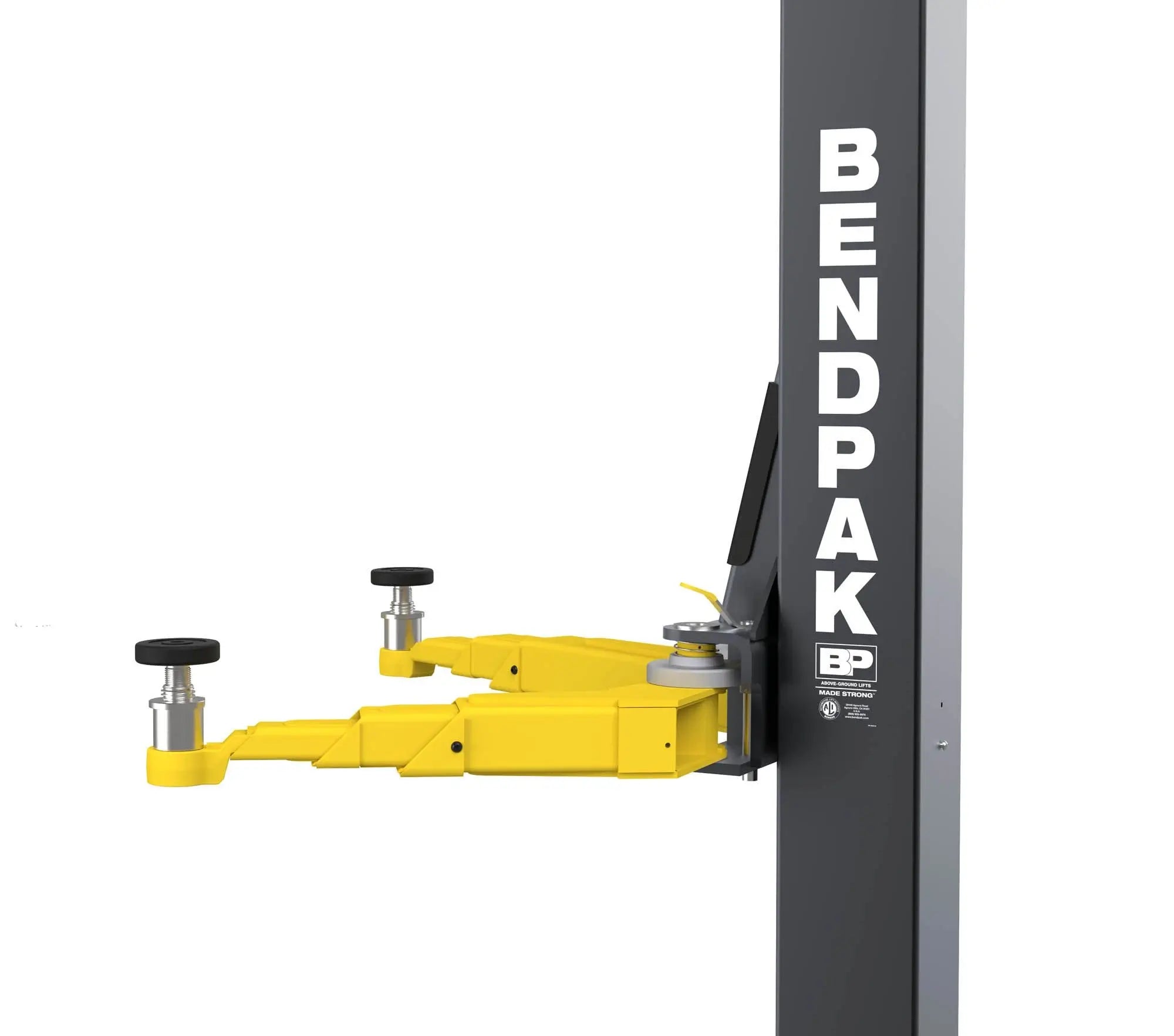

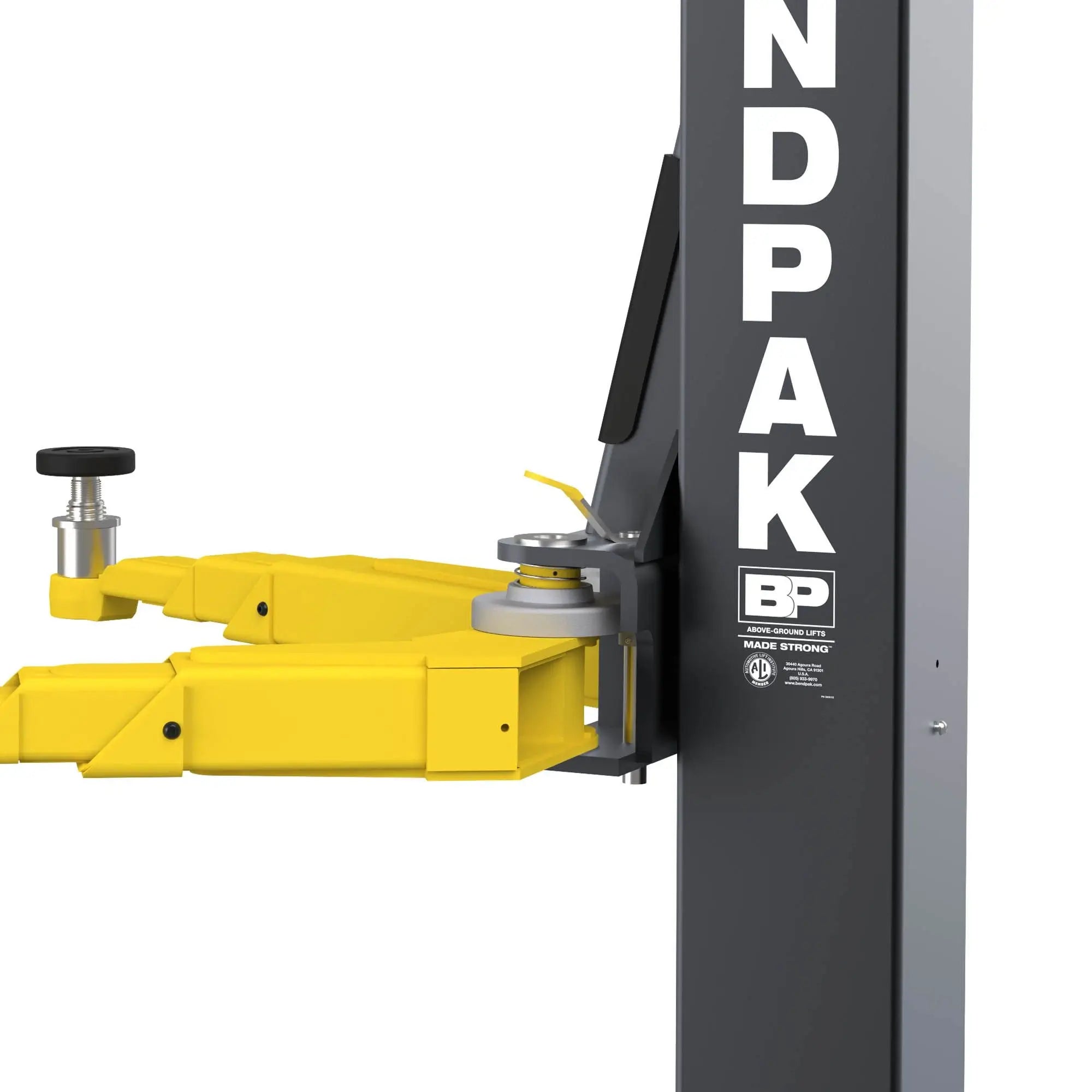

ASARS Automatic Swing Arm Restraint
Patented system (US Patent No. US11820632B2) delivers 2,000+ lb of clamping force through a 360-degree forged-steel grip. Arms automatically lock in position when vehicles are elevated, preventing rotation when weight shifts during engine pulls, transmission work, or suspension service. Quick-release lever for repositioning.

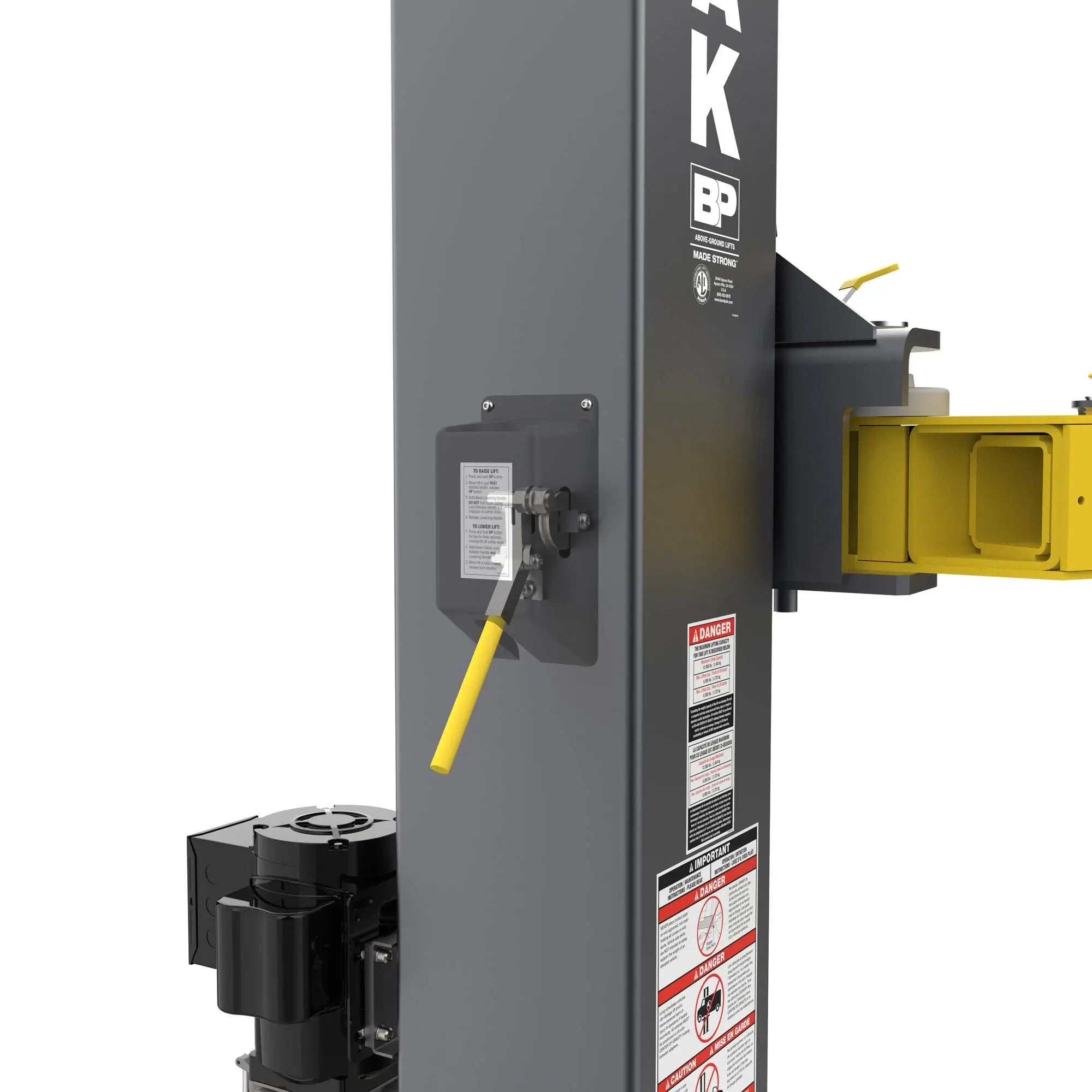

15-Position Safety Locks
Safety locks engage every 4" across the 70" rise, providing 15 height positions for precise working height selection. Single-point safety release simplifies lock disengagement. Single-piece columns maximize rigidity. Dual 3/8" equalizer cables with oversized sheaves ensure balanced lifting.
Heavy-Duty Construction
Single-piece columns for maximum rigidity. Self-lubricating Dura-Glide polyethylene carriage bearings for low-maintenance operation. Electric-hydraulic power system with 2,170 PSI operating pressure. Sound level under 85 dB during operation.
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lb (5,443 kg) |
| Max Capacity / Front Axle | 6,000 lb (2,722 kg) |
| Max Capacity / Rear Axle | 6,000 lb (2,722 kg) |
| Max Capacity Per Arm | 3,000 lb (1,361 kg) |
| Specification | Value |
|---|---|
| Overall Width | 155" (3,937 mm) |
| Post Height | 144.75" (3,676 mm) |
| Drive-Thru Clearance | 102.25" (2,599 mm) |
| Inside Posts | 119.125" (3,026 mm) |
| Outside Posts | 142.25" (3,612 mm) |
| Base Plate Width | 26.5" (674 mm) |
| Floor Plate Height | 1.5" (36 mm) |
| Floor Plate Width | 9.5" (240 mm) |
| Specification | Value |
|---|---|
| Max Rise | 70" (1,775 mm) |
| Max Lifting Height (with pad) | 73.5" (1,867 mm) |
| Min Height (with frame cradle) | 4.5" (114 mm) |
| Max Pad Adjustment | 2.25" (55 mm) |
| Time to Full Rise | ~68 seconds |
| Safety Lock Positions | 15 (every 4") |
| Specification | Value |
|---|---|
| Asymmetric Arm Reach | 26" to 55.25" (660-1,404 mm) |
| Symmetric Arm Reach | 29.5" to 60" (745-1,525 mm) |
| Specification | Value |
|---|---|
| Motor | 208-230 VAC, 50/60 Hz, 1-Ph, 5 HP, 23 Amps |
| Operating Pressure (max load) | 2,170 PSI |
| Sound Pressure | <85 dB |
Installation Requirements
Concrete Foundation
- Thickness: Minimum 4" for pre-existing concrete
- Strength: 3,000 PSI minimum (pre-existing); 4,000 PSI recommended for new pours
- Curing: Minimum 28 days before installation
- Anchor Clearance: Minimum 6" from expansion seams, control joints, or cracks
- Edge Clearance: Minimum 6" from baseplate edges to slab edges
Electrical
- Power: 208-230 VAC, 50/60 Hz, single-phase
- Amperage: 23 amps
- Motor: 5 HP
- Circuit: Dedicated circuit recommended
- Installation: Licensed electrician required
Space Requirements
- Overall Width: 155" (12'11")
- Post Height: 144.75" (12')
- Ceiling Height: Varies by vehicle height; open-top design provides unlimited vertical clearance above lift
Installation Notes
Do not install on hand-mixed, cracked, or defective concrete. Do not install over basements without structural authorization. Professional installation recommended for warranty compliance. Verify local code compliance and permit requirements before installation.
What's Included
- Two single-piece column assemblies with integrated carriages
- 1.5" steel floorplate with concealed hydraulic/cable routing
- Four Bi-Metric triple-telescoping swing arms with ASARS
- Drop-end arm receivers
- Adjustable screw pads
- Frame cradle pads with medium and tall adapters
- Electric-hydraulic power unit
- Complete hardware kit with concrete anchors
- Installation and operation manual
Note: Professional installation recommended for warranty compliance. Licensed electrician required for electrical connections.
Documents
Click to open in a new tab.
Shipping and Delivery
Freight Shipping
Free shipping to direct shipping points within the 48 contiguous United States. LTL freight delivery with 5-10 business days typical transit time.
Additional Services
- Rural/Remote Areas: Surcharges may apply
- Liftgate Service: Available for locations without forklift access (additional fee)
- Residential Delivery: Available with additional handling fee
Receiving Requirements
Unloading: Forklift or equivalent required. Carriers do not provide unloading assistance.
Inspection: Inspect all crates before signing the Bill of Lading. Note any visible damage on the BOL before the driver leaves.
Damage Claims
Within 15 days: 100% coverage. Within 30 days: 50% coverage. After 30 days: No coverage.
Warranty
BendPak 5-2-1 Warranty
- 5 Years: Structural components (columns, carriages, frame)
- 2 Years: Hydraulic cylinders and power unit
- 1 Year: Operating and electrical components
- 1 Year: Labor (on-site or factory)
- 1 Year: Free shipping on warranty parts (continental US)
Requirements: Proper installation per manufacturer's manual. Regular maintenance as specified. Non-transferable. Use of approved replacement parts only.
Questions About the 12APF?
Ceiling height requirements, vehicle fitment, or help choosing the right two-post lift.
FAQ
What is the lifting capacity?
12,000 lb total with 6,000 lb per axle and 3,000 lb per arm. This handles 3/4-ton and 1-ton pickups, commercial vans (Sprinter, Transit, ProMaster), full-size SUVs, and battery-heavy EVs that exceed typical 9,000-10,000 lb floorplate lift limits.
Why choose an open-top/floorplate design?
The open-top design eliminates the overhead crossbar, making it ideal for low-ceiling shops and tall vehicles like high-roof vans, lifted trucks with ladder racks, and large SUVs. The 1.5" floorplate conceals hydraulic lines and cables for a cleaner, safer workspace.
What is the Bi-Metric arm system?
Bi-Metric arms support both symmetric and asymmetric lifting from a single arm set. Asymmetric reach (26"-55.25") positions more vehicle mass toward the columns for better door clearance on sedans/coupes. Symmetric reach (29.5"-60") centers vehicles for balanced access on trucks/SUVs.
What is ASARS?
Automatic Swing Arm Restraint System. This patented mechanism delivers 2,000+ lb of holding force through a 360-degree forged-steel grip, automatically locking arms when vehicles are elevated. Prevents arm rotation during engine pulls, transmission work, or suspension service.
What ceiling height do I need?
Post height is 144.75" (12'). The open-top design provides unlimited vertical clearance above the lift, so ceiling height depends on your tallest vehicle. This is ideal for shops where standard clearfloor lifts with overhead beams won't fit.
What are the concrete requirements?
Minimum 4" thick concrete with 3,000 PSI compressive strength for pre-existing slabs (4,000 PSI for new pours). Concrete must be cured at least 28 days. Anchors must be at least 6" from seams, joints, or cracks.
What power is required?
208-230 VAC, 50/60 Hz, single-phase, 23 amps with a 5 HP motor. A dedicated circuit is recommended. Licensed electrician required for installation.
How many safety lock positions are there?
15 positions spaced every 4" across the 70" rise. Single-point safety release for easy lock disengagement.
What adapters are included?
Frame cradle pads with medium and tall adapters, adjustable screw pads, and drop-end arm receivers for low-profile vehicles.
What is the warranty?
BendPak 5-2-1 warranty: 5 years on structural components, 2 years on hydraulic cylinders and power unit, 1 year on operating/electrical components with labor and freight coverage.
