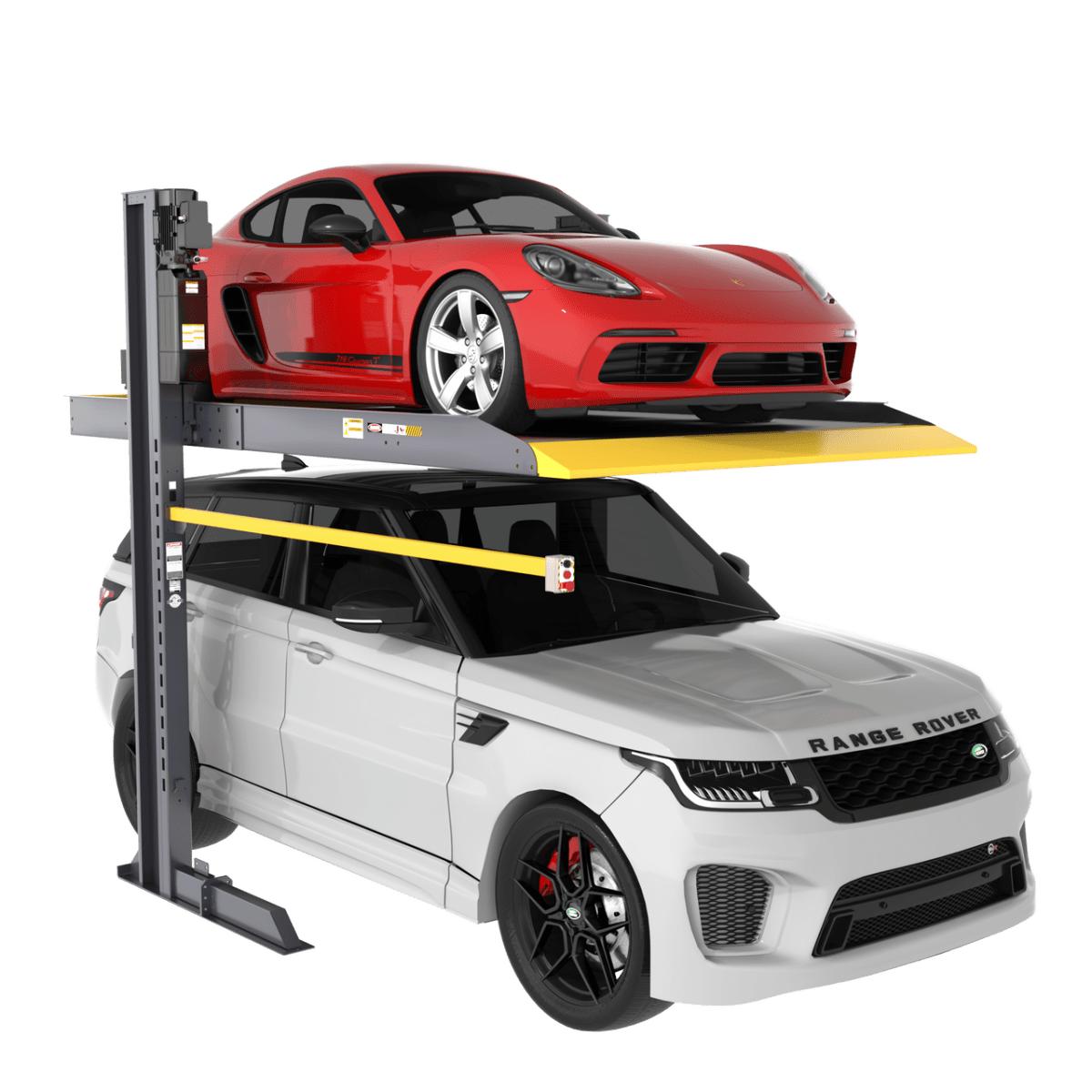

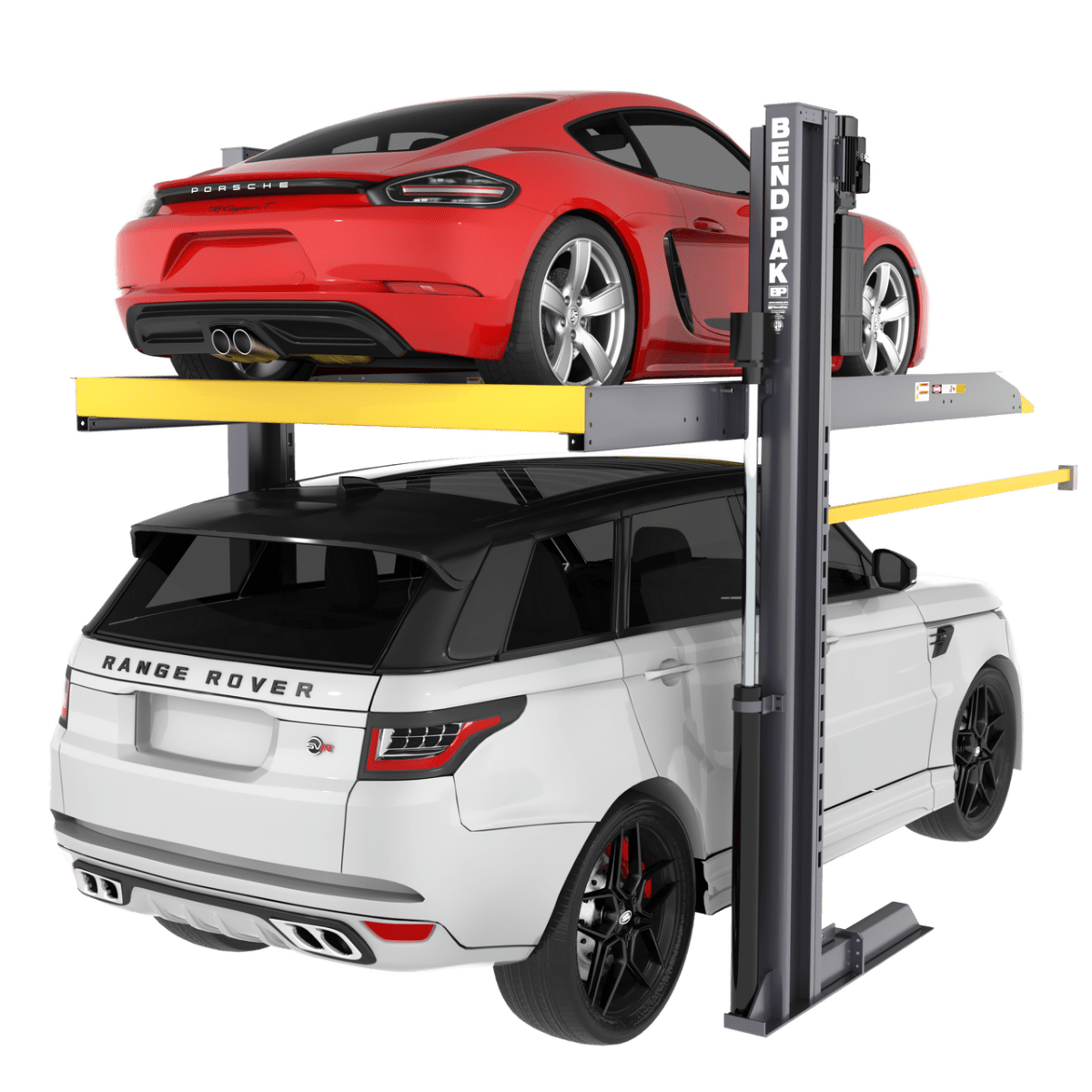

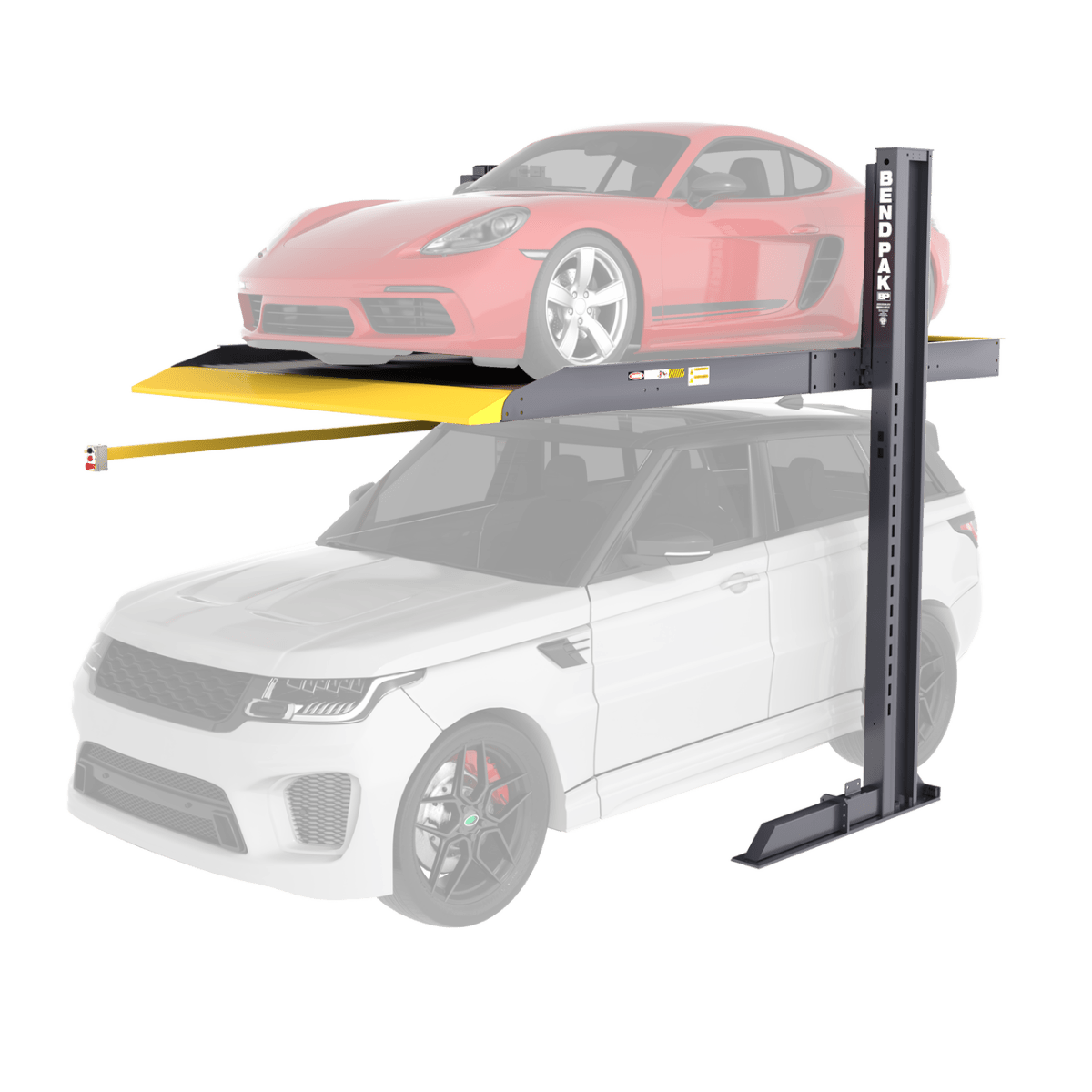

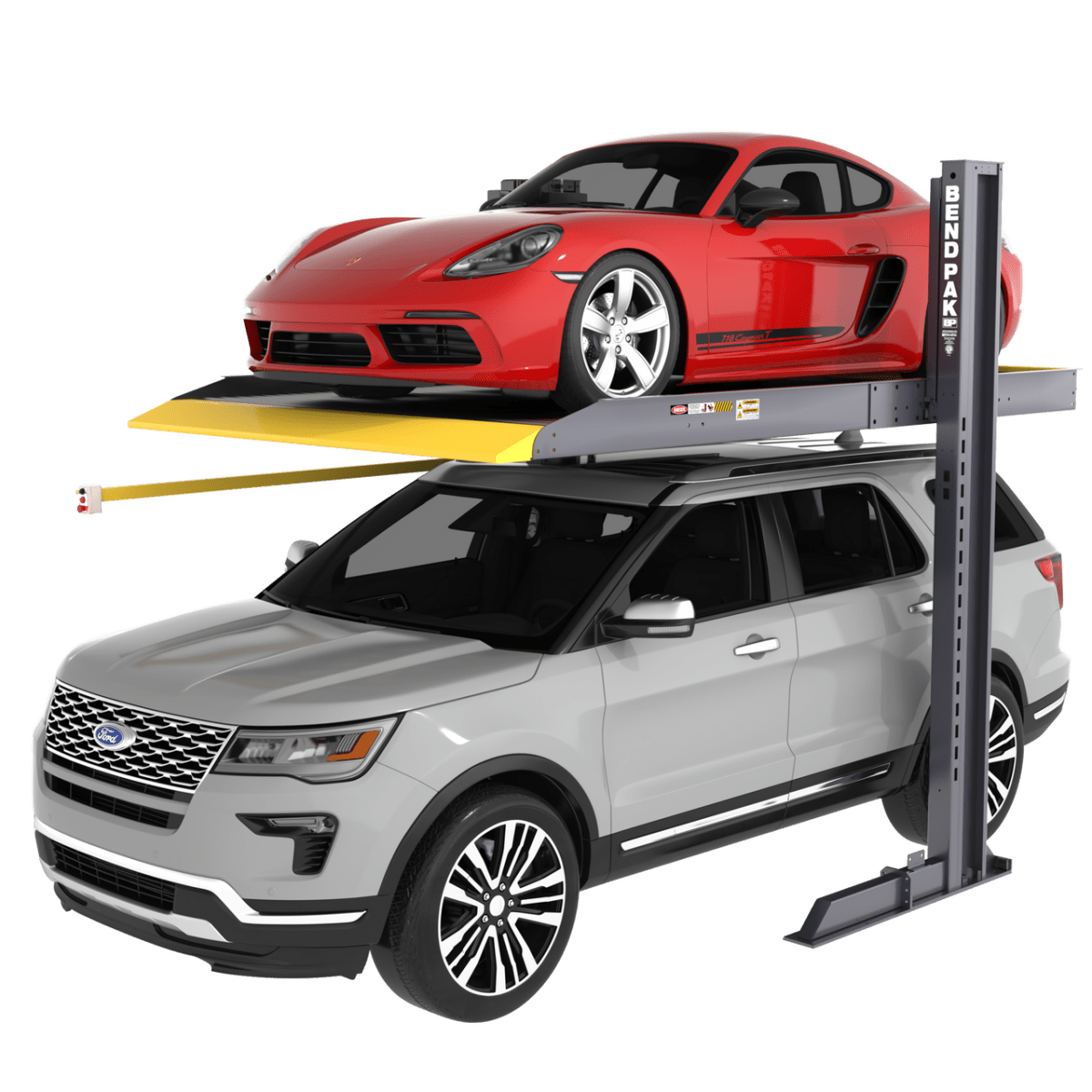

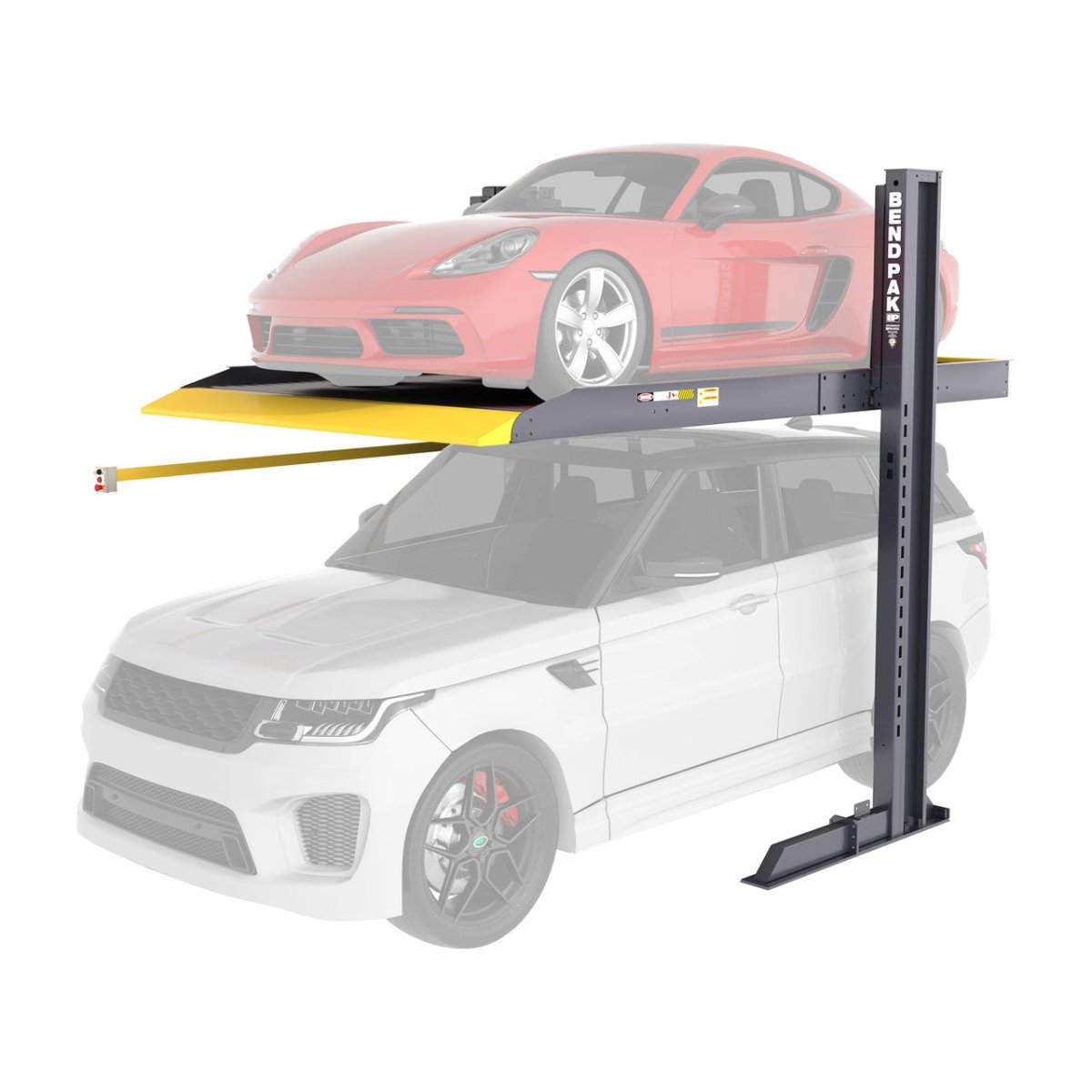

BendPak PL-6000DCX 6,000 lb Two-Post Parking Lift
The BendPak PL-6000DCX is a 6,000 lb capacity two-post parking lift with a shared/ganged column design that allows multiple lifts to be installed side-by-side in minimal space. Fits in a standard 8' parking space and works both indoors and outdoors. Features 82.5" lift height, 157" platform length, and 94.5" usable platform width. Gravity-driven lowering reduces operating costs. Galvanized anti-slip platform with full-width center panels protect the vehicle below. 208-240V single-phase power. Special order item.
Who It's For
- Commercial Parking Facilities: Shared column design allows multiple lifts side-by-side in minimum space. Double parking capacity without major construction.
- Automotive Dealerships: Store inventory vehicles on upper level, keep active inventory accessible below. Works indoors and outdoors.
- Real Estate Developers: Fits standard 8' parking spaces. Ideal for new construction or retrofit projects requiring high-density parking.
- Residential and Condo Garages: Double parking capacity in existing spaces. Freestanding design minimizes structural modifications.
- Fleet Operations: Long-term storage on upper level, short-term parking below. Gravity-driven lowering reduces operating costs.
Features

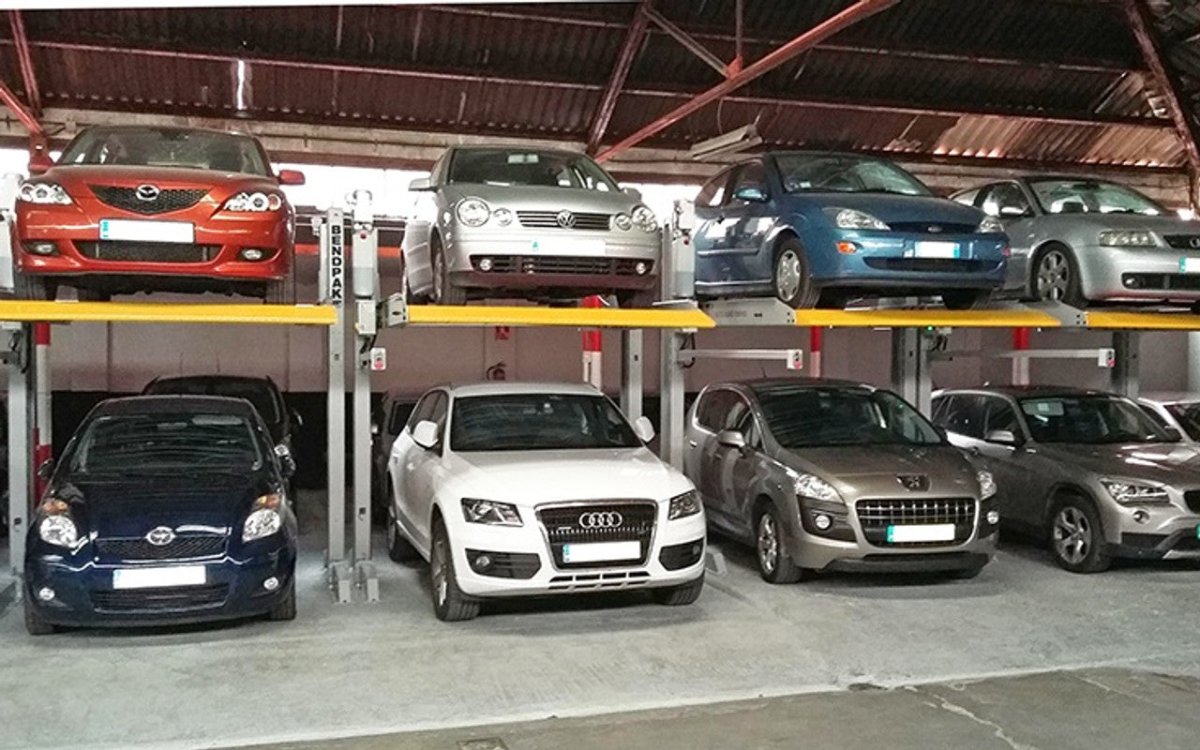

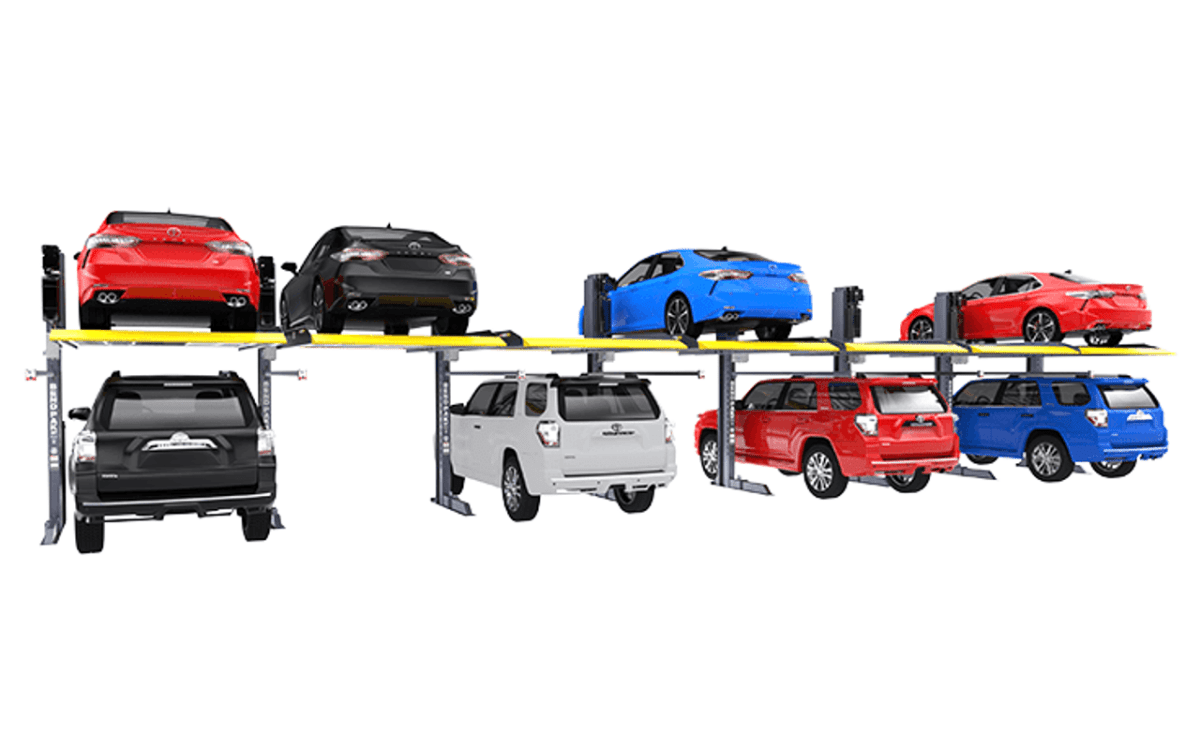

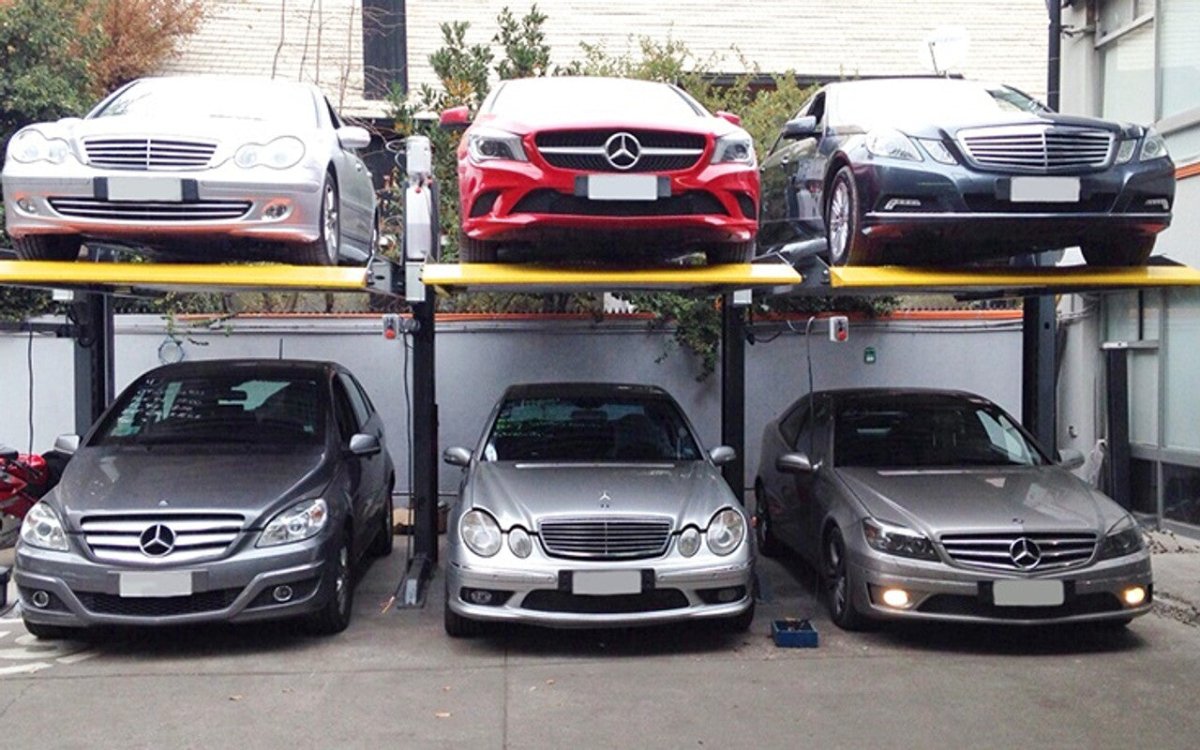

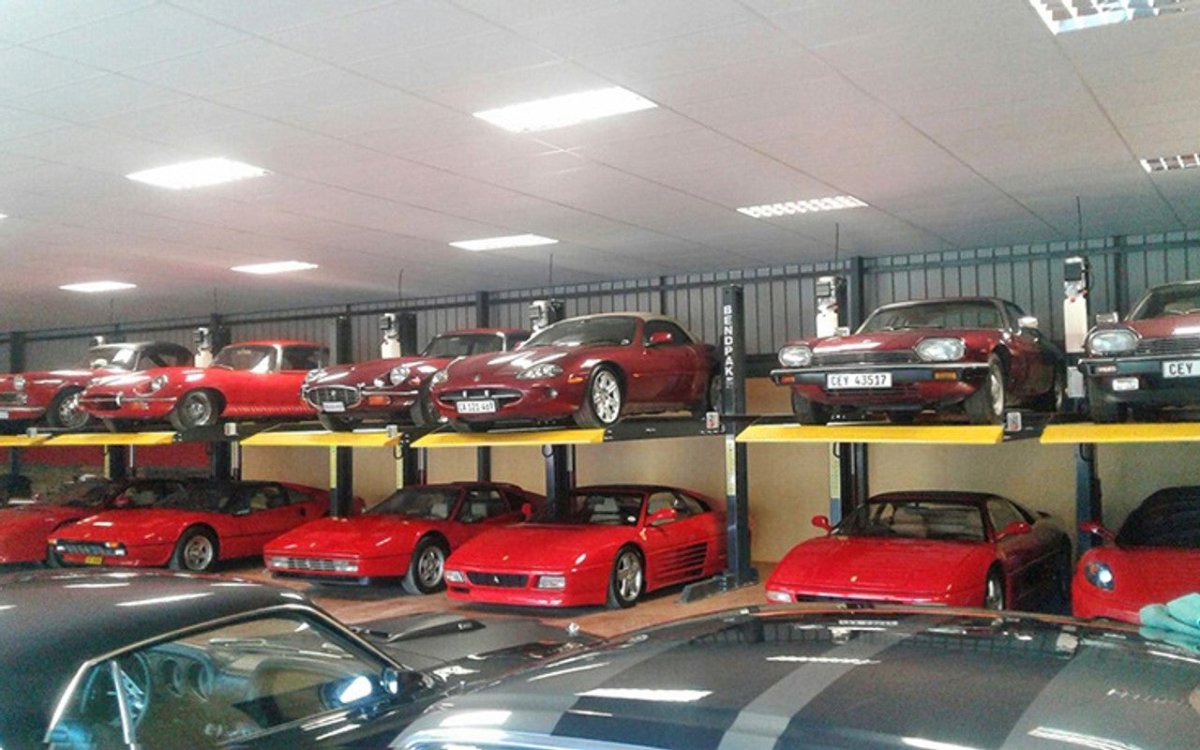

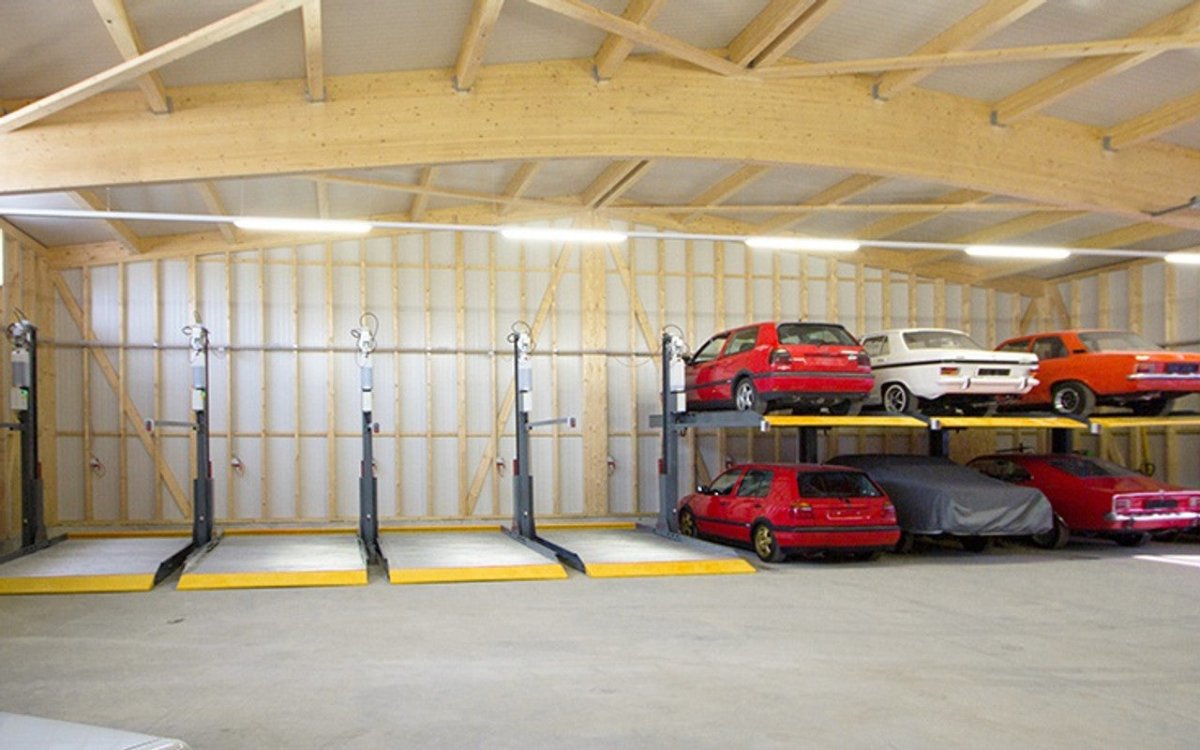

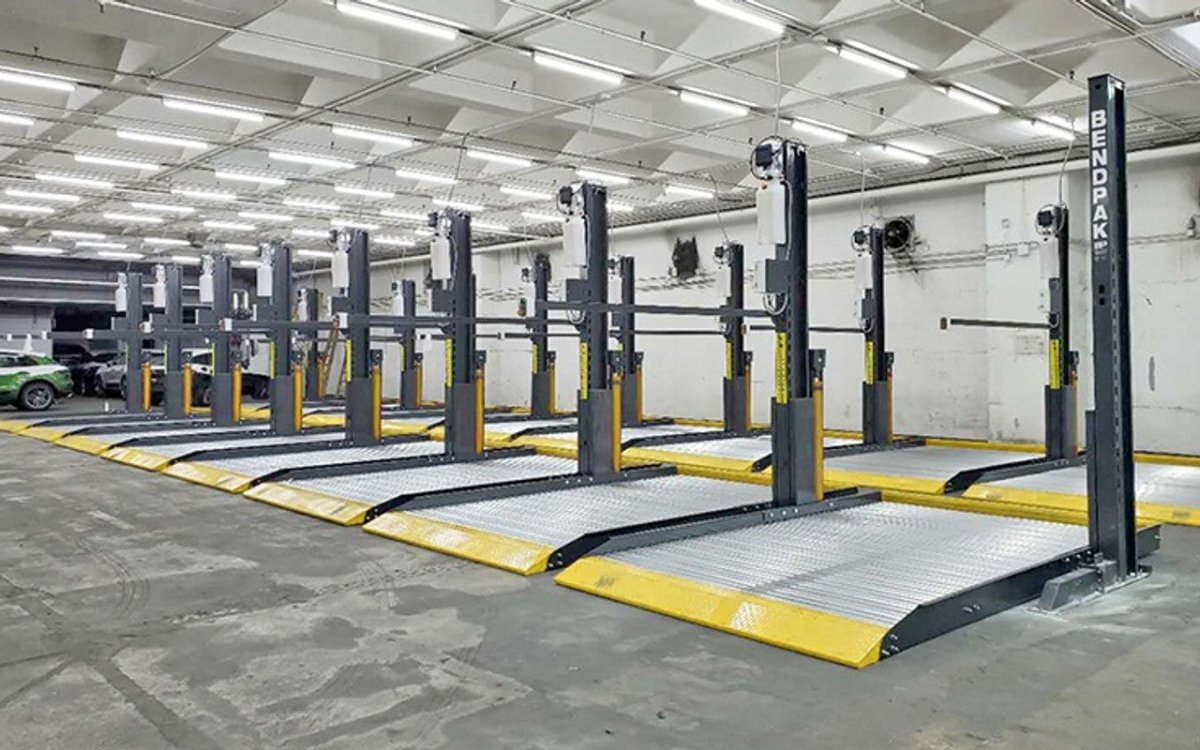

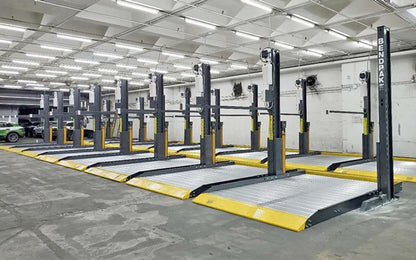

Shared/Ganged Column Design
The innovative shared column design allows multiple PL-6000DCX lifts to be installed side-by-side with columns shared between adjacent units. This maximizes parking density in limited space and reduces overall cost compared to installing separate lifts. Ideal for commercial facilities, parking garages, and dealerships needing high-density vehicle storage.
6,000 lb Lifting Capacity
Handles sedans, SUVs, sports cars, pickups, vans, and light trucks up to 6,000 lb. The 157" platform length and 94.5" usable width accommodate most passenger vehicles. Single dual-telescoping direct-drive hydraulic cylinder provides smooth, reliable operation with lower maintenance than screw-drive systems.
Gravity-Driven Lowering
The platform lowers using gravity rather than electric motor power, significantly reducing operating costs. The hydraulic system controls descent speed for safe, smooth lowering. This design also reduces wear on electrical components and simplifies maintenance.

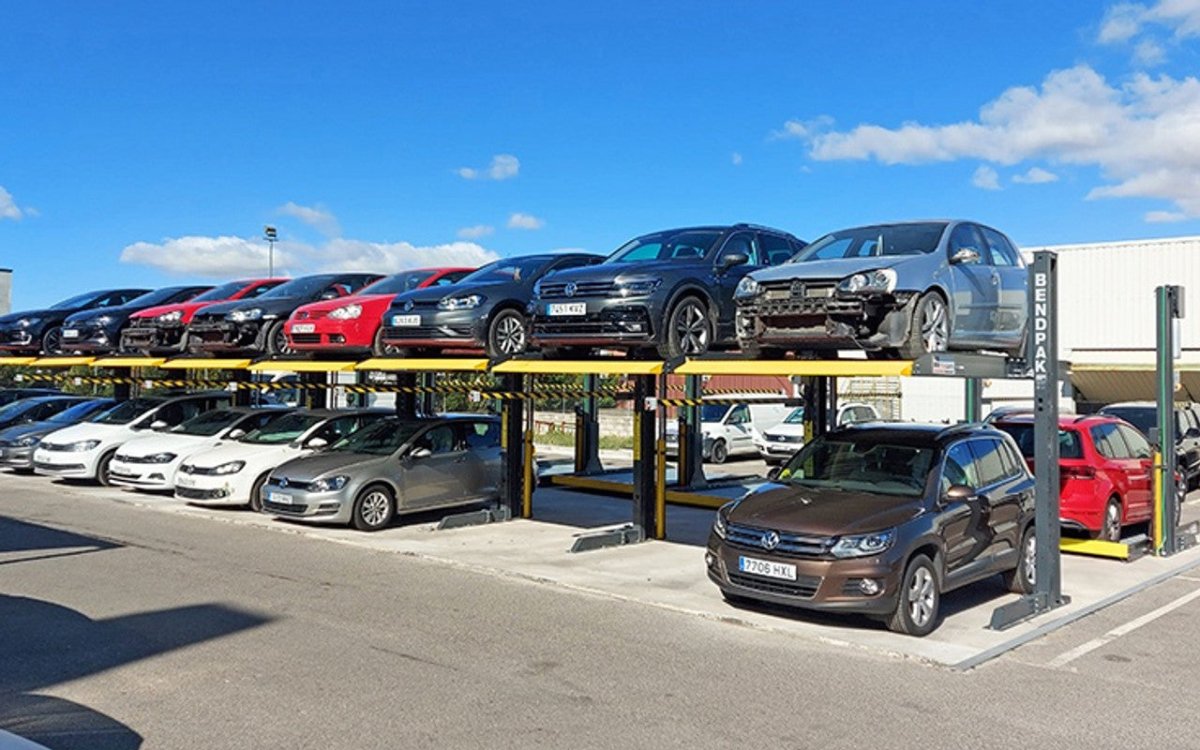

Indoor/Outdoor Installation
Commercial-grade construction works in both indoor and outdoor environments. Galvanized and corrugated anti-slip platform resists corrosion. Freestanding design installs on concrete surfaces without extensive structural modifications. Operating temperature range: 41°F to 104°F.
Automatic Safety Lock
Load-holding devices automatically engage as the lift raises, preventing sudden free fall if a suspension component fails. Once at height, lower the platform onto the locks to minimize wear on suspension components. Manual safety lock release for controlled lowering. Hydraulic overload protection prevents lifting beyond capacity.
Full-Width Platform Protection
Channel-locked center panels span the full platform width, protecting the vehicle stored below from drips and debris. Wide deck platform with galvanized anti-slip surface. Platform can stop at different heights to accommodate various vehicles and ceiling clearances. Electric key switch provides security and automatic shut-off.
Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 6,000 lb (2,700 kg) |
| Lifting Height | 82.5" (2,100 mm) |
| Lifting Time | <50 seconds |
| Specification | Value |
|---|---|
| Total Width (Outside Edge) | 112" (2,847 mm) |
| Overall Length | 163.5" (4,152 mm) |
| Post Height | 131" (3,320 mm) |
| Post Center to Center | 105.5" (2,682 mm) |
| Control Column Height | 71" (1,805 mm) |
| Specification | Value |
|---|---|
| Platform Length | 157" (3,990 mm) |
| Usable Platform Width | 94.5" (2,400 mm) |
| Post Support Length | 60.25" (1,532 mm) |
| Platform to Support | 36.25" (918 mm) |
| Side Clearance (Min) | 2" (51 mm) |
| Specification | Value |
|---|---|
| Motor | 208-240V, 50/60Hz, 1-Ph, 4 HP, 22 Amps |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Operating Humidity | 50% RH |
Installation Requirements
Concrete Foundation
- Surface: Reinforced concrete slab
- Strength: Minimum 3,000 PSI
- Condition: Level, properly cured
- Type: Freestanding design, anchored to concrete
Space Requirements
- Floor Space: 163.5" length x 112" width (fits standard 8' parking space width)
- Ceiling Height: Minimum 131" (10'11") for post height, plus vehicle clearance when raised
- Ganged Installation: Shared columns reduce width when installing multiple units side-by-side
Electrical
- Power: 208-240V, 50/60Hz, 1-Phase, 22 Amps
- Motor: 4 HP overhead power unit
- Installation: Licensed electrician required
Installation Process
Anchor shared columns to reinforced concrete following floorplan specifications. Connect electrical to overhead power unit. The gravity-driven lowering system requires no complex electronics. Detailed manual includes floorplan and foundation drawings. Professional installation recommended.
What's Included
- Two-post lift structure with shared column capability
- Galvanized anti-slip platform with center panels
- Single dual-telescoping direct-drive hydraulic cylinder
- Overhead hydraulic power unit
- Electric key switch control
- Manual safety lock system
- Anchoring hardware
- Installation manual with floorplan and foundation drawings
Note: This is a special order item. Professional installation recommended. Licensed electrician required for electrical connections.
Documents
Click to open in a new tab.
Shipping and Delivery
Freight Shipping
Free shipping to direct shipping points within the 48 contiguous United States. LTL freight delivery. This is a special order item; contact us for current lead time.
Additional Services
- Rural/Remote Areas: Surcharges may apply
- Liftgate Service: Available for locations without forklift access (additional fee)
- Residential Delivery: Available with additional handling fee
Receiving Requirements
Unloading: Forklift or equivalent required. Carriers do not provide unloading assistance.
Inspection: Inspect all crates before signing the Bill of Lading. Note any visible damage on the BOL before the driver leaves.
Damage Claims
Within 15 days: 100% coverage. Within 30 days: 50% coverage. After 30 days: No coverage.
Warranty
BendPak 5-2-1 Warranty
- 5 Years: Structural components
- 2 Years: Hydraulic cylinders and power unit
- 1 Year: Operating and electrical components
- 1 Year: Labor (on-site or factory)
- 1 Year: Free shipping on warranty parts (continental US)
Requirements: Proper installation per manufacturer's manual. Regular maintenance as specified. Non-transferable. Use of approved replacement parts only.
Questions About the PL-6000DCX?
Ganged installation planning, space requirements, or help choosing the right parking lift.
FAQ
What does "shared column" or "ganged" design mean?
Multiple PL-6000DCX lifts can be installed side-by-side with columns shared between adjacent units. Instead of each lift having four independent posts, neighboring lifts share the posts between them. This reduces the total footprint and cost when installing multiple units.
Will this fit in a standard parking space?
Yes. The PL-6000DCX is designed to fit in a standard 8' wide parking space. Total width is 112" (9'4") outside edge to outside edge, but the shared column design allows tighter spacing when installing multiple units.
Can this be installed outdoors?
Yes. Commercial-grade construction and galvanized platform allow indoor or outdoor installation. Operating temperature range is 41°F to 104°F. Install on a reinforced concrete surface.
What is gravity-driven lowering?
The platform lowers using gravity rather than electric motor power. The hydraulic system controls descent speed for safe, smooth lowering. This reduces operating costs and electrical component wear compared to motor-driven lowering systems.
What ceiling height do I need?
Post height is 131" (10'11"). Add your vehicle height when raised to determine total ceiling clearance needed. The platform can stop at different heights to accommodate various ceiling clearances.
What vehicles fit on this lift?
The 157" platform length and 94.5" usable width accommodate sedans, SUVs, sports cars, pickups, vans, and light trucks up to 6,000 lb. Verify your specific vehicle dimensions against the platform specs.
How does the safety lock work?
Load-holding devices automatically engage as the lift raises, preventing sudden free fall. Once at height, lower the platform onto the locks to minimize suspension wear during storage. Manual safety lock release controls lowering.
What power is required?
208-240V, 50/60Hz, single-phase, 22 Amps. The 4 HP overhead power unit provides smooth, quiet hydraulic operation. Licensed electrician required for installation.
Is this a special order item?
Yes. The PL-6000DCX is a special order item. Contact us for current lead time and pricing.
Does the platform protect the vehicle below?
Yes. Full-width channel-locked center panels span the platform, protecting the lower vehicle from drips and debris. The galvanized anti-slip surface also resists corrosion.
