BendPak PL-6000DC - 6,000 lb Two-Post Parking Lift

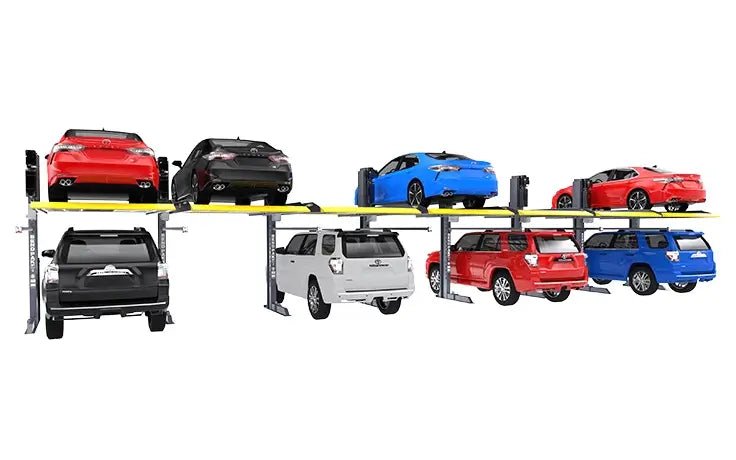

Dual-column parking lift for SUVs, sedans, sports cars, and light trucks. Freestanding design fits standard 8-foot parking bays. Ganged column architecture allows multiple units to share posts, maximizing parking density while reducing steel and anchor points per position.
BendPak PL-6000DC: Who It's For
Commercial parking operators: Valet garages, hotels, airports. Ganged column design lets you build rows sharing center posts—doubles parking density, cuts steel by up to 30%.
Real estate developers: Condos, mixed-use buildings. The 100.25" overall width fits standard 8-foot bays.
Dealerships and collectors: Indoor storage for inventory or private collections. Full-width galvanized platform protects lower vehicles from drips.
PL-6000DC Parking Lift Features
Ganged Column Design
Adjacent units share center posts. Single unit: 100.5" wide. Two ganged: 194" total. Three ganged: 287.5" total. Each shared column reduces steel, anchors, and installation costs. Post center-to-center: 93.5". Freestanding—no wall attachment required.
Full-Width Galvanized Platform
82.5" x 157" corrugated galvanized steel. Anti-slip surface with integrated rear wheel stop and entrance ramp. Full-width channel-locked center panels protect lower vehicle from fluids and debris.
Direct-Drive Hydraulic System
Single dual telescoping direct-drive cylinder with overhead power unit. No chains or screws. 50-second rise, 45-second gravity-assisted lowering. Pressure-compensated flow control keeps platform level. Power pack: 1,500W or 3,000W.
Mechanical Safety Locks
Locks engage every 4 inches throughout 82.5" range. 6 locking tabs with dynamic locking device. Automatic safety lock activates during power outage or hydraulic failure. Manual release required before lowering.
Safety Controls
Electric key switch, emergency stop, upper limit switch, pressure relief valve. Platform stops at adjustable heights. 220V controls. Automatic locking during power outage.
BendPak PL-6000DC Parking Lift Video
BendPak PL-6000DC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 6,000 lbs (2,721 kg) |
| Platform Width | 82.5" (2,100 mm) |
| Platform Length | 157" (3,990 mm) |
| Lifting Height | 82.5" (2,100 mm) |
| Platform Surface | Galvanized corrugated steel, anti-slip |
| Specification | Value |
|---|---|
| Overall Height | 131" (3,328 mm) |
| Overall Width | 100.25" (2,547 mm) |
| Overall Length | 157" (3,990 mm) |
| Drive-On Height | 71" (1,805 mm) |
| Specification | Value |
|---|---|
| Lifting / Lowering Time | 50 / 45 seconds |
| Safety Lock Spacing | Every 4" |
| Hydraulic System | Single dual telescoping direct-drive cylinder |
| Electrical Required | 220-420V, 1 or 3 Phase, 50/60Hz |
| Power Pack | 1,500W or 3,000W |
| Configuration | Total Width |
|---|---|
| Single Unit | 100.5" |
| Two Units (Ganged) | 194" |
| Three Units (Ganged) | 287.5" |
PL-6000DC Installation Requirements
Concrete
Minimum 4" thick reinforced concrete at 3,000 PSI, cured 28+ days. No cracks or expansion joints at anchor points. Post-tension slabs need engineer approval.
Ceiling Height
Overall height: 131" (10'11"). Add tallest vehicle height plus 18-24" clearance. Most need 12-13 ft minimum, 14-15 ft for SUVs.
Electrical
220-420V, single or three-phase, 50/60Hz. Each unit needs dedicated circuit. Licensed electrician required.
Environment
Indoor only. Operating range: 32°F–104°F, humidity below 80%.
Unloading
Forklift with 3,000 lb capacity or overhead hoist required. Liftgate trucks not sufficient.
What's Included
- Full-width galvanized platform (82.5" x 157")
- Dual-column assembly (freestanding)
- Overhead hydraulic power unit with direct-drive cylinder
- 220V control panel with key switch
- Emergency stop and upper limit switch
- Mechanical safety locks (4" spacing, 6 tabs)
- Pressure relief and flow control valves
- Entrance ramp and rear wheel stop
- Mounting hardware and installation manual
Not Included: Electrical installation, installation labor, forklift for unloading.
Documents
Click to open in a new tab.
PL-6000DC Shipping
Free freight shipping to lower 48 states. Ships LTL or flatbed.
Forklift required: 3,000 lb minimum. Liftgate trucks won't work.
Curbside delivery: Standard. You move equipment to installation location.
Receiving: Inspect packages before signing. Note damage on bill of lading while driver is present.
BendPak PL-6000DC Warranty
- 5 Years: Structural components
- 2 Years: Power unit, hydraulic cylinders
- 1 Year: Operating components, electrical, safety locks
Requires installation per manufacturer specs and use within rated capacity.
Questions About the PL-6000DC?
Need help planning a single or multi-unit installation?
PL-6000DC FAQ
What does "ganged column design" mean?
Adjacent units share center posts. Single: 100.5" wide. Two ganged: 194". Three ganged: 287.5". Reduces steel, anchors, and cost per position.
How many units can I gang together?
Multiple units in a row, depending on facility dimensions, electrical capacity, concrete conditions, and local codes. Consult installer or structural engineer.
What concrete do I need?
4" thick minimum, 3,000 PSI reinforced, cured 28+ days. No cracks at anchor points. Post-tension slabs need engineer approval.
What electrical is required?
220-420V, single or three-phase, 50/60Hz. Each unit needs dedicated circuit. Licensed electrician required.
What ceiling height do I need?
131" overall height plus vehicle height plus 18-24" clearance. Most need 12-13 ft minimum, 14-15 ft for SUVs.
Can I install it outdoors?
BendPak documentation specifies indoor only. Operating range: 32°F–104°F, humidity below 80%.
Is it ALI certified?
Designed to ALI/ANSI ALCTV safety requirements. Check autolift.org or contact BendPak for certification status.
What maintenance does it need?
Monthly: inspect locks/hoses, check hydraulic fluid, test emergency stop. Annual professional inspection recommended for commercial use.
How is it delivered?
LTL or flatbed freight. Forklift (3,000 lb) required—liftgate won't work. Curbside delivery standard.
What's the warranty?
5 years structural, 2 years hydraulic, 1 year operating components.
