BENDPAK GP-7LC Two Post Car Lift, GrandPrix Series, 7,000-lb. Capacity, 118.5" Overall Height, 68" Lifting Height
View Original GP-7LC Product Information & Specifications

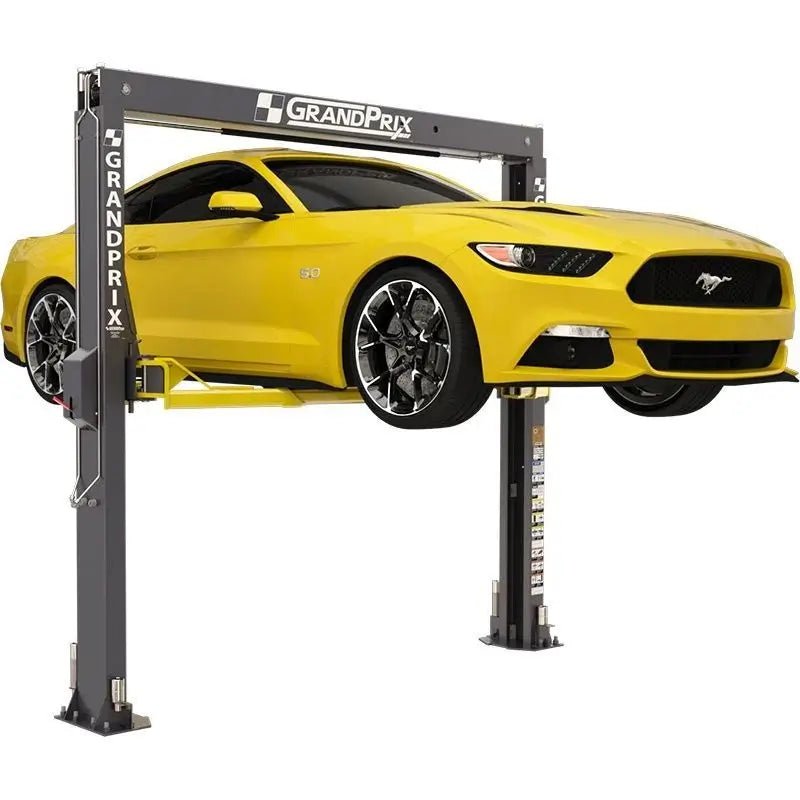

BendPak GP-7LC Two-Post Lift Overview
The GP-7LC was a shortened version of the standard GP-7, accommodating ceilings as low as 10 feet while offering an impressive 68 inch max rise. Designed for homeowners and shops with limited overhead clearance, this 7,000 lb capacity two-post lift featured a single overhead hydraulic cylinder paired with a quadruple lifting cable system for efficient lifting in a compact structure.
GP-7LC Key Features
Low-Ceiling Design
At 118.5 inches overall height, the GP-7LC was specifically engineered for garages with 10-foot ceilings where standard two-post lifts wouldn't fit. This opened up full-rise lifting capability for home garage owners and shops with limited overhead clearance.
Single Overhead Cylinder with Quad Cables
The GP-7LC used a single shortened overhead hydraulic cylinder paired with four aircraft-quality lifting cables. This design allowed for efficient lifting while maintaining slim column profiles. Two cables were redundant safety backups, ensuring reliable operation even in worst-case scenarios.
Bi-Metric Arm Configuration
The telescoping arms could be adjusted for either symmetric or asymmetric vehicle loading at any time. This flexibility accommodated different vehicle types and garage layouts without requiring additional purchases or modifications.
Low-Profile Arms
Low-profile arm design allowed easy access to vehicles with low ground clearance, including sports cars and other low-riding vehicles. This expanded the range of vehicles that could be safely lifted.
Dual-Point Safety Locks
Automatic dual-point safety locks engaged at multiple heights throughout the lift stroke, providing rock-solid support and preventing unexpected lowering during service operations.
Heavy-Duty Chain Lifting System
The robust chain lifting system delivered smooth, reliable performance built to handle the demands of daily use. Combined with the quadruple cable system, this provided consistent operation with minimal maintenance requirements.
GP-7LC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 7,000 lbs (3,175 kg) |
| Max Capacity Per Axle | 3,500 lbs (1,588 kg) |
| Rise | 64 in (1,626 mm) |
| Rise + Pad | 68 in (1,727 mm) |
| Rise + Pad + Adapter | 76 in (1,930 mm) |
| Minimum Pad Height | 4.5 in (114 mm) |
| Time to Full Rise | ~45 seconds |
| Specification | Value |
|---|---|
| Overall Height | 118.5 in (3,010 mm) |
| Width Overall | 125 in (3,168 mm) |
| Outside Columns | 119.5 in (3,035 mm) |
| Inside Posts | 110 in (2,794 mm) |
| Drive-Thru Width | 98.25 in (2,497 mm) |
| Floor to Trip Stop Tube | 108 in (2,743 mm) |
| Specification | Value |
|---|---|
| Front Arm Reach (Min) | 28 in (711 mm) |
| Front Arm Reach (Max) | 47 in (1,194 mm) |
| Rear Arm Reach (Min) | 27 in (688 mm) |
| Rear Arm Reach (Max) | 43.5 in (1,111 mm) |
| Specification | Value |
|---|---|
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Max Hydraulic Pressure | 2,300 PSI |
| Noise Level | ~70 dB |
GP-7LC Documentation (Archive)
Frequently Asked Questions
Why was the GP-7LC discontinued?
BendPak streamlined the GrandPrix low-ceiling lineup. The GP-9LC now serves as the primary low-ceiling two-post option, offering increased capacity (9,000 lb vs 7,000 lb), a floorplate design that eliminates overhead obstructions, and modern features like triple-telescoping arms and industrial-grade chain-over lifting.
What is the direct replacement for the GP-7LC?
The GrandPrix GP-9LC is the recommended replacement. It fits similar ceiling heights (109.5 inch overall height vs 118.5 inch), provides 2,000 lbs more capacity, and features a floorplate design that maximizes overhead clearance for taller vehicles.
Are GP-7LC replacement parts still available?
BendPak maintains parts support for discontinued models. Contact BendPak directly or an authorized dealer for replacement parts availability and pricing.
What are the main differences between the GP-7LC and GP-9LC?
Key differences include:
- Capacity: GP-9LC offers 9,000 lb capacity vs 7,000 lb
- Design: GP-9LC uses floorplate design eliminating overhead crossbar
- Height: GP-9LC is 109.5 inches tall vs 118.5 inches (actually shorter)
- Arms: GP-9LC has triple-telescoping front arms and dual-stage extended rear arms
- Lifting System: GP-9LC uses industrial-grade chain-over design vs overhead cylinder with cables
- Warranty: GP-9LC includes 36-month warranty
Is the GP-7LC still covered under warranty?
Original warranty coverage applies based on purchase date. Contact BendPak with your lift's serial number for warranty status verification.
Will the GP-9LC fit in my 10-foot ceiling garage?
Yes. The GP-9LC has a 109.5 inch overall height, which is actually 9 inches shorter than the GP-7LC's 118.5 inch height. It's specifically designed for 9-10 foot ceiling environments.
