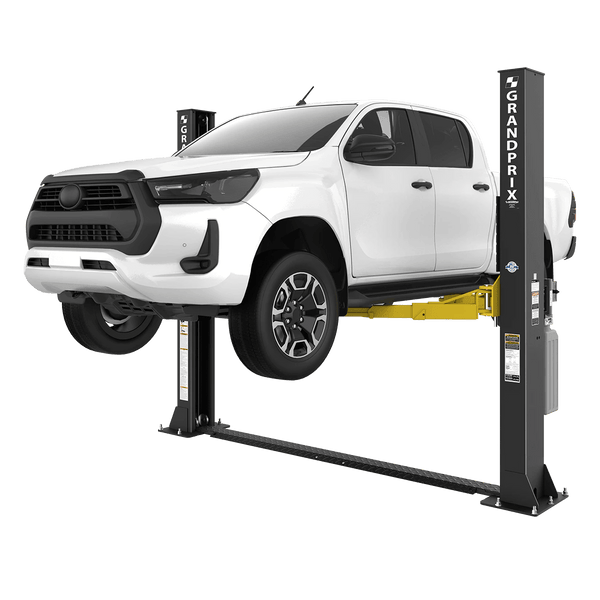

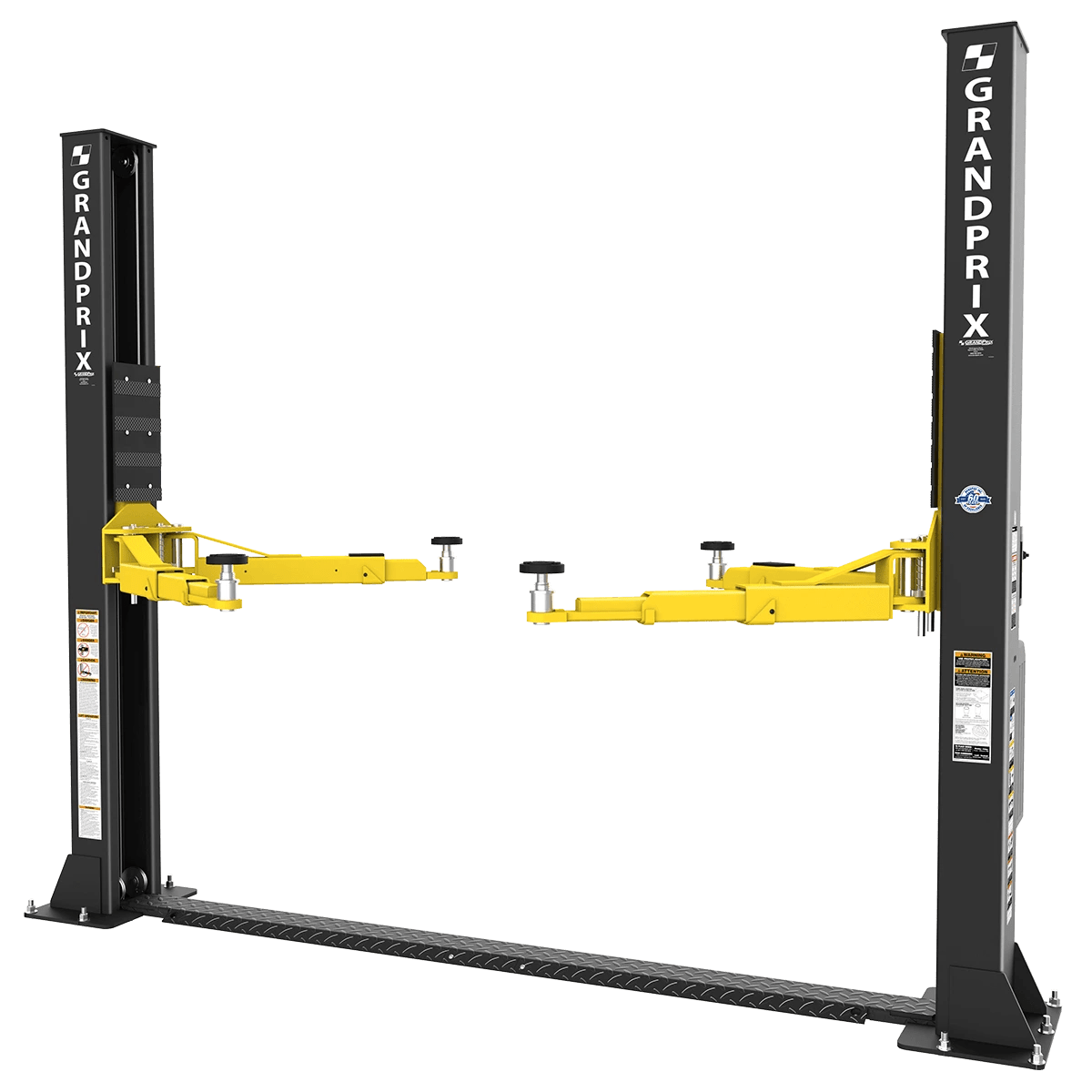

GrandPrix GP-9LC 9,000 lb Low-Ceiling Two-Post Lift
The GrandPrix GP-9LC is a 9,000 lb capacity floorplate two-post lift built for low-ceiling garages. At 109.5 inches tall, it fits 9-10 ft residential ceilings while handling compact cars through full-size pickups. Chain-over design with industrial-grade leaf chain, automatic safety locks every 3 inches, and a 5-2-1 warranty.
GrandPrix GP-9LC Two-Post Lift: Who It's For
- Home Garage Owners: The 109.5 in height fits standard residential ceilings where most two-post lifts won't work. DIY maintenance, restorations, enthusiast projects.
- Independent Repair Shops: Oil changes, suspension work, brake jobs, tire rotations on passenger vehicles and light trucks.
- Tire and Wheel Service Centers: Quick cycle times across compact cars through full-size SUVs. 65-second rise time keeps jobs moving.
GP-9LC Two-Post Lift Features
Floorplate Design for Low Ceilings
No overhead crossbar. The 109.5 in overall height, 127.5 in outside column width, and 103 in drive-through clearance fit garages with 9-10 ft ceilings where standard two-post lifts won't work.
The 1.25 in driveover height keeps entry easy for low-clearance vehicles. Full undercarriage access without structural modifications to your garage.
Triple-Telescoping Front Arms, Dual-Stage Rear Arms
Front arms extend 22.5 to 43.25 in in three stages. Rear arms reach 33.5 to 53.25 in. Handles sports cars, sedans, SUVs, and full-size trucks without swapping adapters.

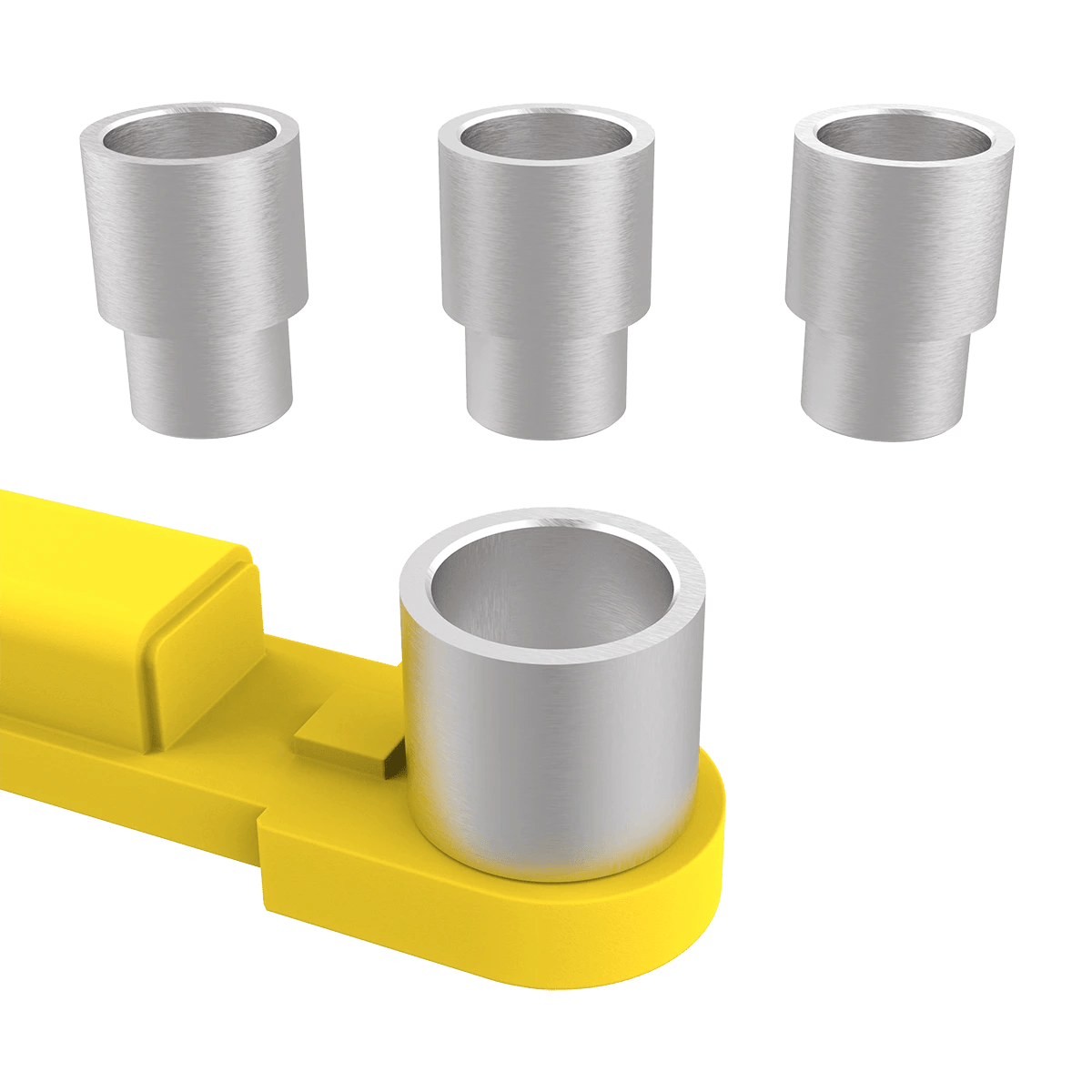

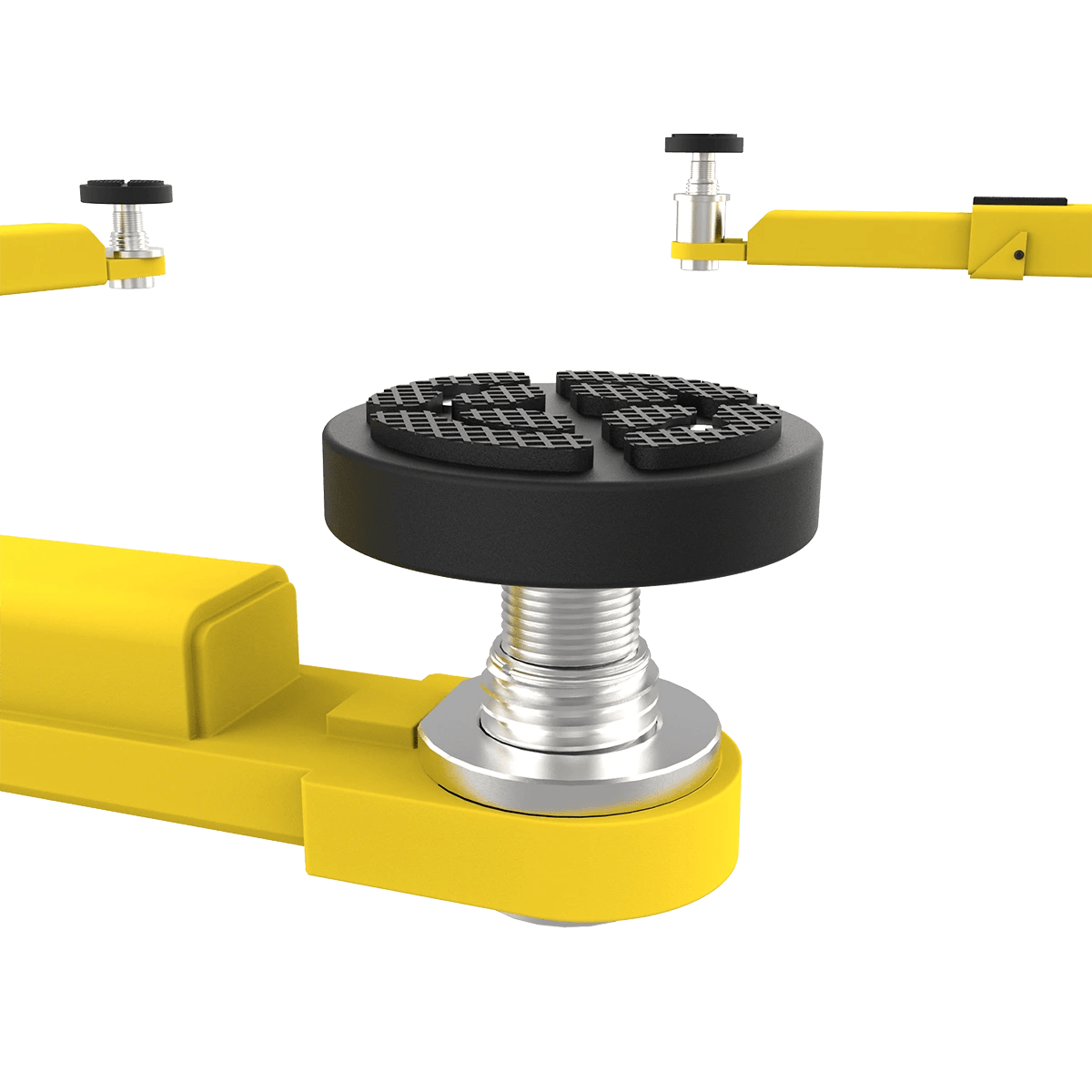

Double-telescoping screw pads with 2 in adjustment and tear-resistant polyurethane pads. Included 4-piece 63mm stackable adapter set extends max height to 76.5-78.5 in.
Automatic Safety Locks with Single-Pull Release
Safety locks engage automatically every 3 inches as the lift rises. No manual engagement. Single-pull lanyards on each carriage release the locks when lowering.

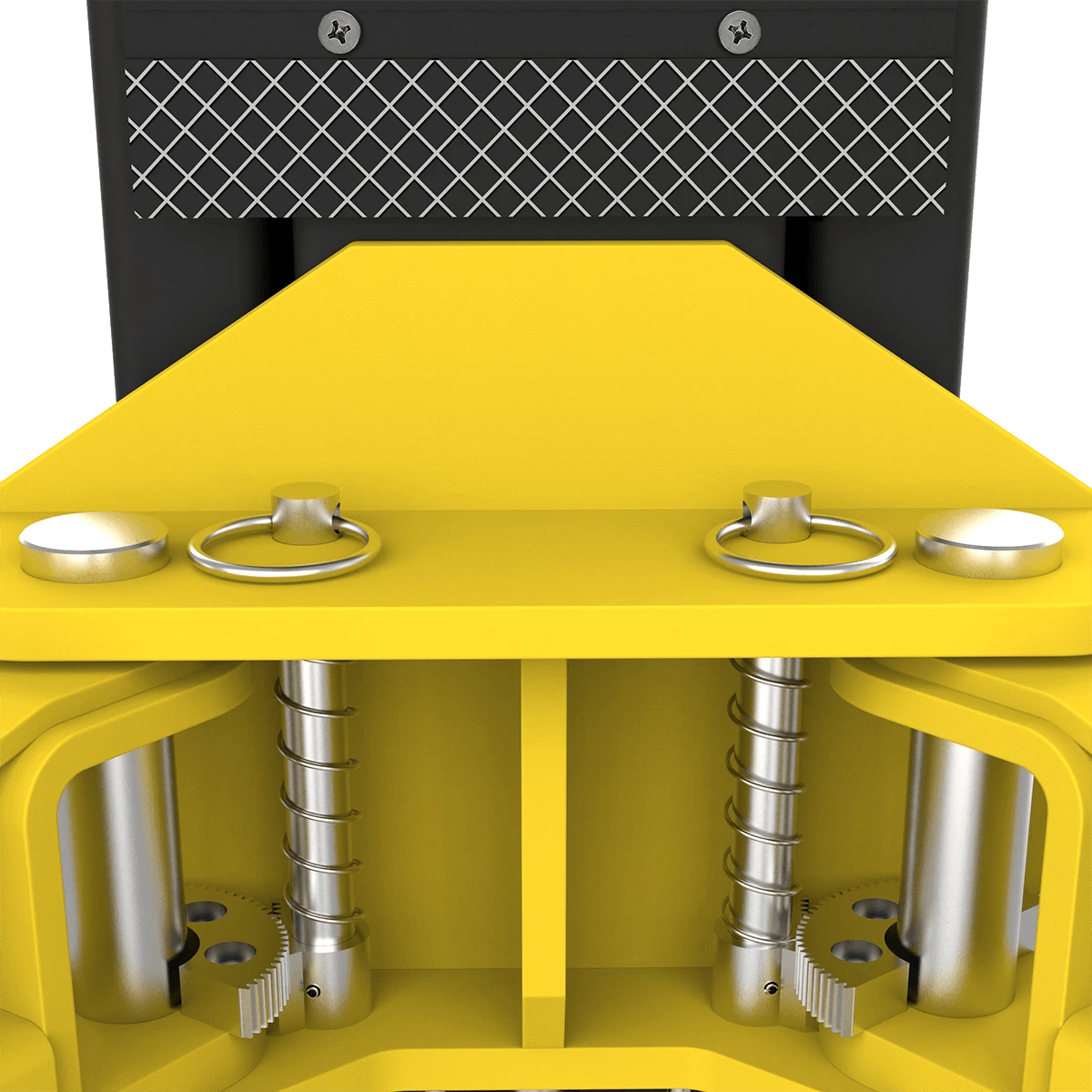

Automatic arm restraints secure arms in place when raised, preventing movement during service.
6x6 in Tubular Steel Construction

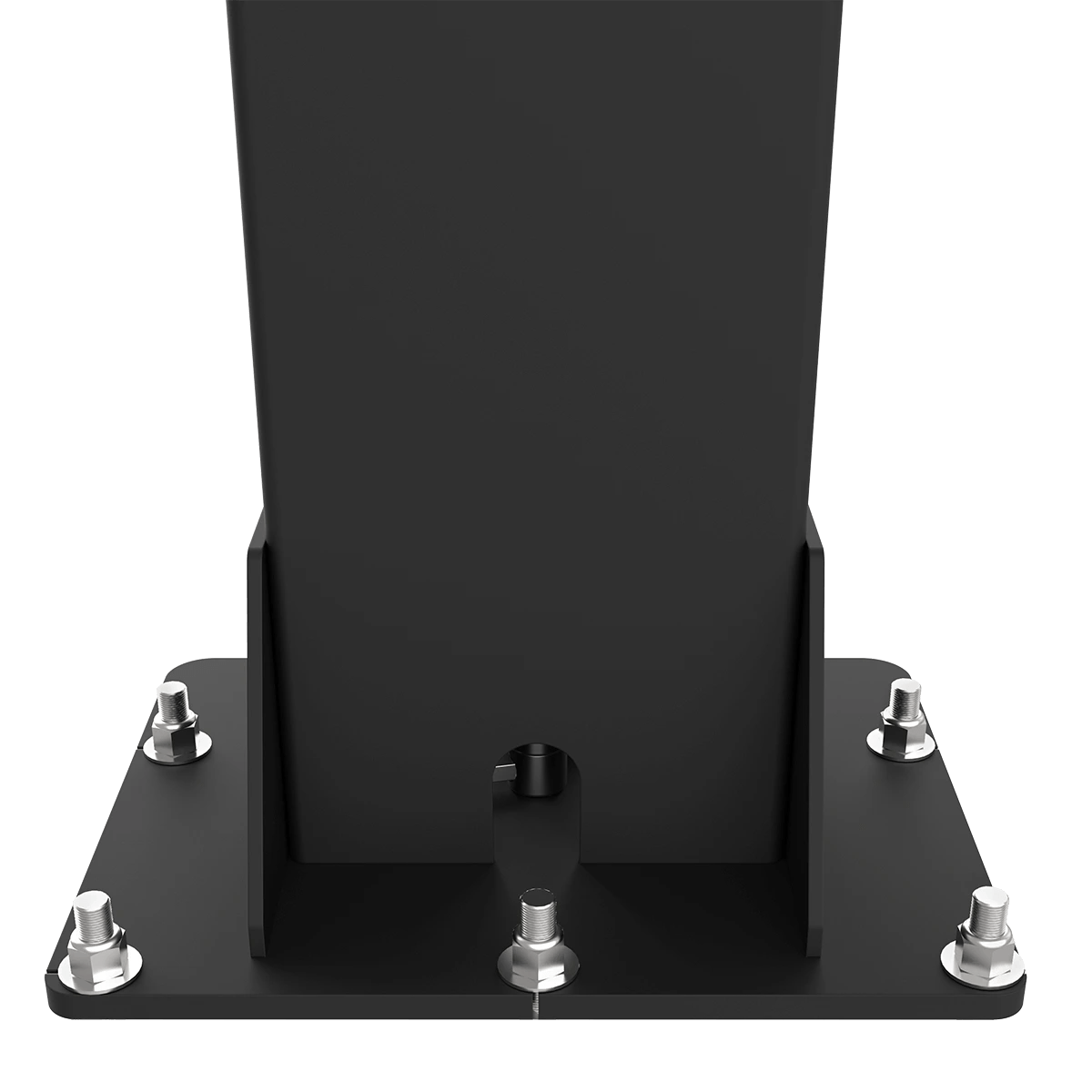

6 x 6 in tubular steel carriages with 20.5 x 15.5 in base plates for even weight distribution. Self-lubricating UHMW polyethylene guide blocks for smooth carriage travel.

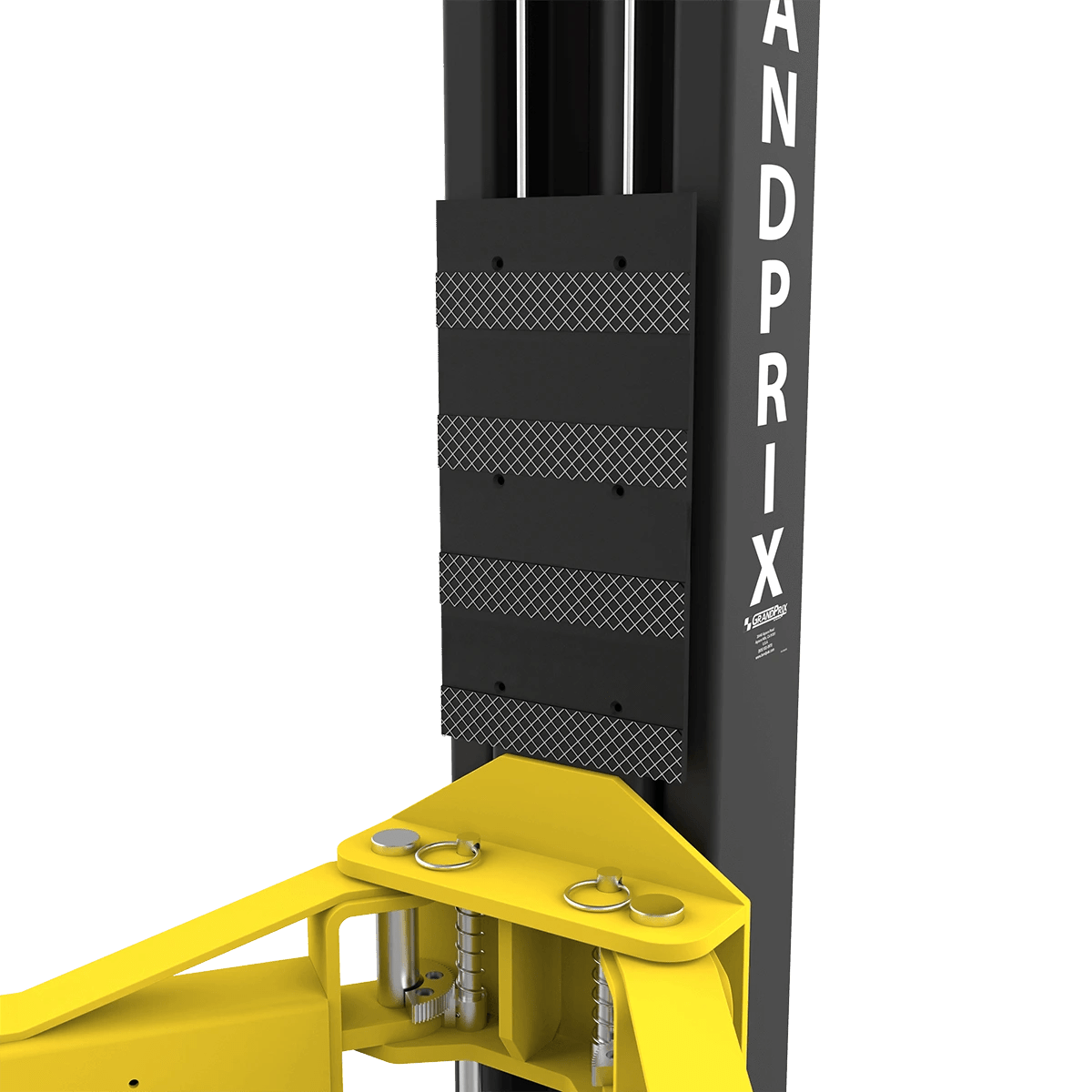

Full-size rubber carriage guards prevent door dings. Electric-hydraulic power system runs on 220V single-phase.

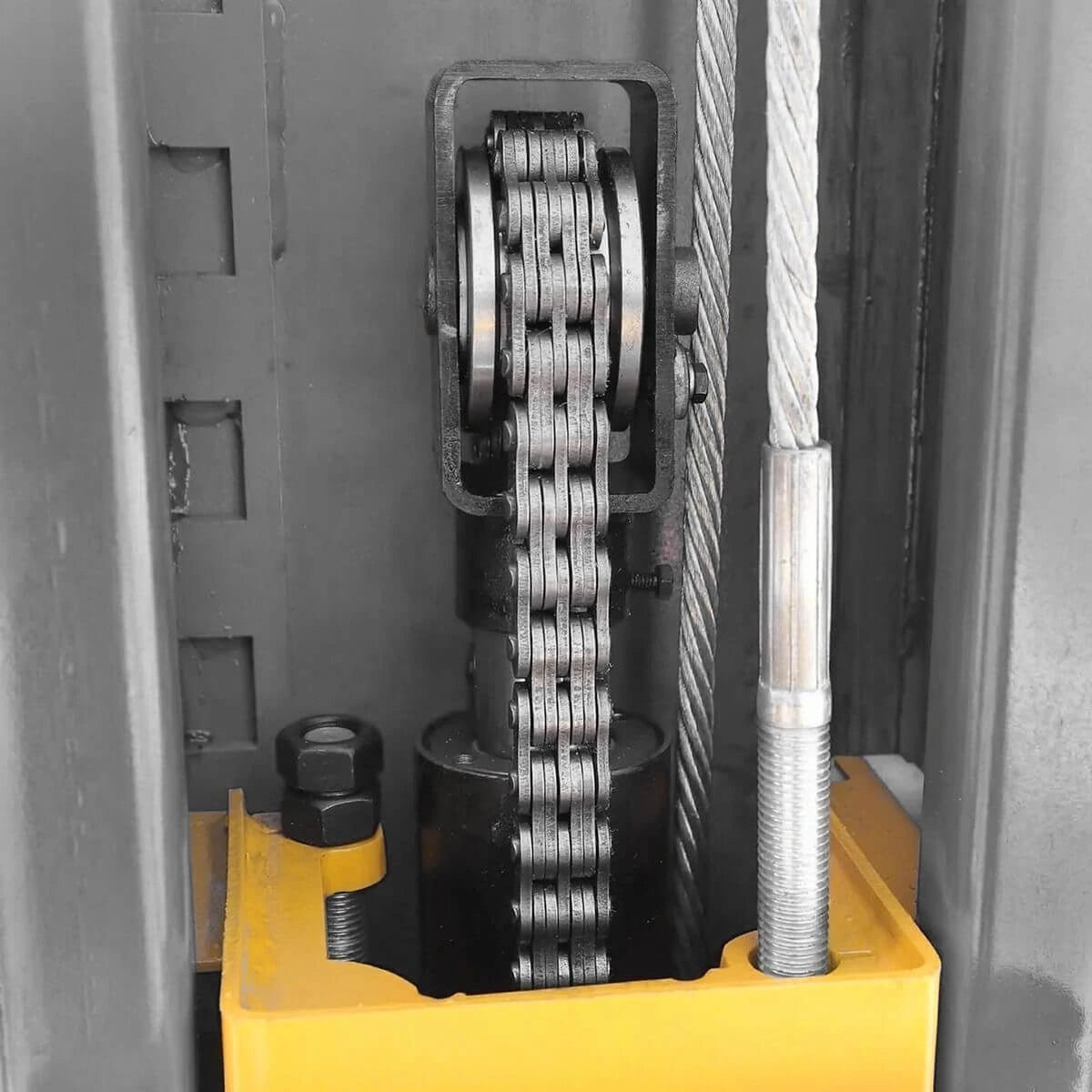

Chain-Over Design with Industrial-Grade Components
Industrial-grade leaf chain manufactured to ANSI standards. Maintains integrity under high stress and repeated cycles, unlike systems that stretch over time.
Oversized rollers with Zerk grease fittings for easy maintenance. 1/2 in aircraft-quality equalizer cables over oversized sheaves reduce fatigue.
Symmetric and Asymmetric Arm Positioning
Both symmetric and asymmetric configurations. Each arm adjusts independently. 2,250 lb max load per arm.
Works with front-engine RWD, FWD with offset weight, and SUVs with varied suspension geometry.
GrandPrix GP-9LC Product Video
GrandPrix GP-9LC Specifications
| Specification | Value |
|---|---|
| Maximum Lift Capacity | 9,000 lb (4,082 kg) |
| Front Axle Capacity | 4,500 lb (2,045 kg) |
| Rear Axle Capacity | 4,500 lb (2,045 kg) |
| Max Load Per Arm | 2,250 lb (1,023 kg) |
| Minimum Pad Height | 3.9 in (100 mm) |
| Specification | Value |
|---|---|
| Overall Height | 109.5 in (2,781 mm) |
| Overall Width (at Baseplate) | 137.25 in (3,486 mm) |
| Outside Column Width | 127.5 in (3,238 mm) |
| Inside Column Width | 113.5 in (2,880 mm) |
| Drive-Through Clearance | 103 in (2,618 mm) |
| Floor to Driveover Height | 1.25 in (30 mm) |
| Base Plate Dimensions | 20.5 x 15.5 in |
| Specification | Value |
|---|---|
| Maximum Rise Height | 70 in (1,778 mm) |
| Max Height with 63mm Adapters | 76.5-78.5 in (1,943-1,994 mm) |
| Time to Full Rise | 65 seconds |
| Front Arm Reach (Min/Max) | 22.5-43.25 in (571-1,099 mm) |
| Rear Arm Reach (Min/Max) | 33.5-53.25 in (845-1,353 mm) |
| Screw Pad Adjustment | 2 in (51 mm) |
| Safety Lock Positions | Every 3 in |
| Specification | Value |
|---|---|
| Electrical Supply | 220 VAC / 60 Hz / Single-phase |
| Motor Type | Electric-hydraulic |
| Shipping Weight | 1,385 lb (630 kg) |
Documents
Click to open in a new tab.
GP-9LC Installation Requirements
Concrete Foundation
- Thickness: Minimum 4.25 in, fully cured (28+ days)
- Strength: Minimum 3,000 PSI
- Anchor Spacing: Minimum 6 in from cracks, joints, or expansion seams
- Anchors: 10-piece concrete wedge anchor set included
Electrical
- Power: 220 VAC / 60 Hz / Single-phase dedicated circuit
- Installation: Licensed electrician recommended
- Note: Special voltages available upon request
Space and Environment
- Overhead Clearance: Minimum 109.5 in unobstructed. Check clearance above garage doors, openers, ceiling-mounted equipment.
- Environment: Indoor use only. Not rated for outdoor or wet exposure.
Certification Note
This lift is not ANSI/ALI ALCTV or ANSI/UL 201 certified. Some commercial applications or jurisdictions require ALI-certified equipment. Verify local permit, license, and code requirements before installation. See autolift.org for certified lift listings.
What's Included with the GP-9LC
- Double-telescoping screw pads with tear-resistant polyurethane pads
- 4-piece 63mm stackable adapter set
- 10-piece concrete wedge anchor set
- Full-size rubber carriage guards
- Installation and operation manual
Optional Accessories
- Frame Cradle Pads, Set of 4 (SKU 5210573)
- Tall Adapters, Set of 4 (SKU 5210535)
GP-9LC Shipping and Delivery
Freight Shipping
LTL freight throughout the continental US. Surcharges for Alaska, Hawaii, and rural zones. 5-10 business days typical, subject to inventory and carrier scheduling.
Receiving Requirements
Unloading: Forklift or equivalent with 4,000 lb minimum capacity required. Carriers do not provide unloading.
Delivery: Curbside or dock standard. Inside delivery available for additional fee.
Inspection: Check all crates before signing BOL. Note damage on paperwork before driver leaves.
Damage Claims
Within 15 days: 100% coverage for parts and freight. Within 30 days: 50% coverage. After 30 days: No coverage.
GP-9LC Warranty
BendPak 5-2-1 Warranty
- 5 Years: Structural components
- 2 Years: Hydraulic cylinders and power unit
- 1 Year: Operating and electrical components
- 1 Year: Labor (on-site or factory)
- 1 Year: Free shipping on warranty parts (continental US)
Requirements: Proper installation per manufacturer's manual. Regular maintenance as specified. Non-transferable. Use of approved replacement parts only.
Questions About the GP-9LC?
Installation planning, concrete requirements, electrical specs, accessories.
GrandPrix GP-9LC FAQ
What is the maximum weight capacity?
9,000 lb total with 4,500 lb front and rear axle ratings and 2,250 lb max per arm. Handles passenger cars, crossovers, SUVs, and light-duty pickups.
Will this fit in my garage with a 9-foot ceiling?
Yes. The GP-9LC is 109.5 in tall (just over 9 ft). Measure your ceiling and check clearance above garage doors, openers, and ceiling-mounted equipment before ordering.
What electrical power do I need?
220 VAC, 60 Hz, single-phase. Dedicated circuit recommended. Licensed electrician installation advised. Special voltages available upon request.
What concrete thickness is required?
Minimum 4.25 in thick, 3,000 PSI, fully cured 28+ days. Anchors must be 6 in minimum from cracks, joints, or expansion seams. 10-piece anchor set included.
How long does it take to reach full height?
65 seconds to full rise of 70 in. With 63mm adapters, max height is 76.5-78.5 in.
What vehicles can this lift handle?
Passenger cars, crossovers, SUVs, and light-duty pickups within the 9,000 lb total and 4,500 lb per-axle limits. Front arms reach 22.5-43.25 in, rear arms reach 33.5-53.25 in.
What comes included?
Double-telescoping screw pads with polyurethane pads, 4-piece 63mm stackable adapter set, 10-piece concrete wedge anchor set, full-size rubber carriage guards, installation manual.
Is this lift ALI certified?
No. The GP-9LC is not ANSI/ALI ALCTV or ANSI/UL 201 certified. Some commercial applications require ALI-certified equipment. Check local requirements.
What warranty coverage is included?
5-2-1 warranty: 5 years structural, 2 years hydraulic cylinders and power unit, 1 year operating/electrical components, 1 year labor, 1 year free shipping on warranty parts. Valid with proper installation per manufacturer's manual. Non-transferable.
Do I need a forklift for delivery?
Yes. Ships at 1,385 lb. Requires forklift or equipment with 4,000 lb minimum capacity. Carriers do not provide unloading.
Can I install this myself?
Professional installation recommended. Some jurisdictions require licensed installation and inspection. At minimum, you need a licensed electrician for power connection.
What optional accessories are available?
Frame Cradle Pads (Set of 4, SKU 5210573) and Tall Adapters (Set of 4, SKU 5210535). Call for pricing.
