BENDPAK 10APX, Two Post Car Lift, 10000 lb Capacity, Adaptable Clearfloor Adjustable Width Screw Pads HIGH-RISE

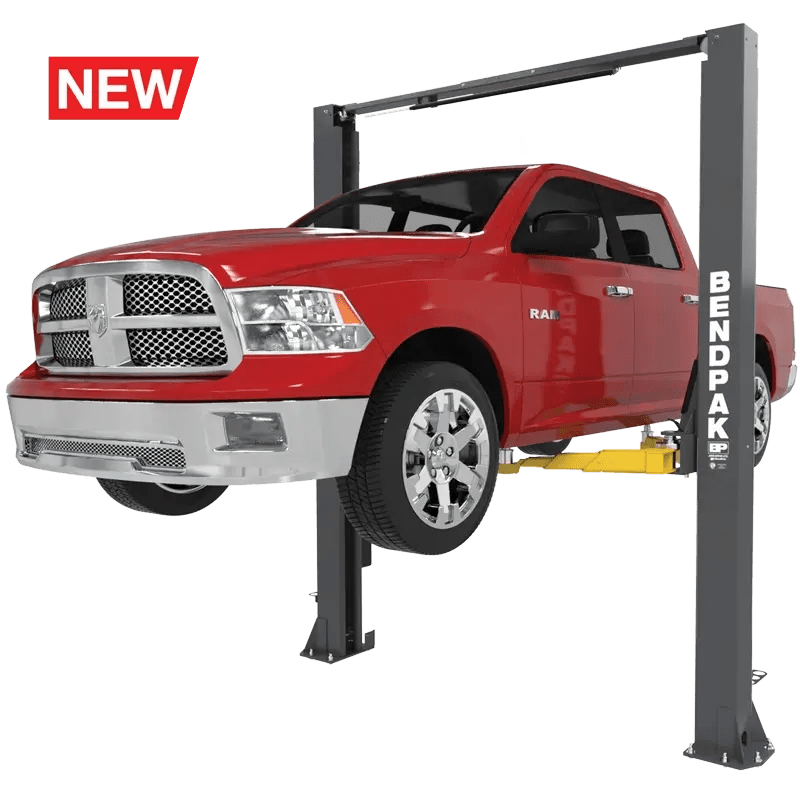

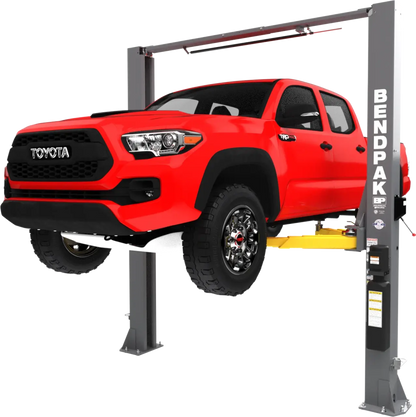

BendPak 10APX - Professional High-Rise Two-Post Lift for Electric Vehicles and Cargo Vans
The BendPak 10APX delivers 10,000 lb capacity in a clearfloor design, engineered for professional repair shops and advanced home garages. Featuring patent-protected ASARS safety system, Bi-Metric triple-telescoping arms, and 79.5" lifting height, this high-rise lift handles everything from electric vehicles to cargo vans with exceptional under-car access.
Key Features & Benefits

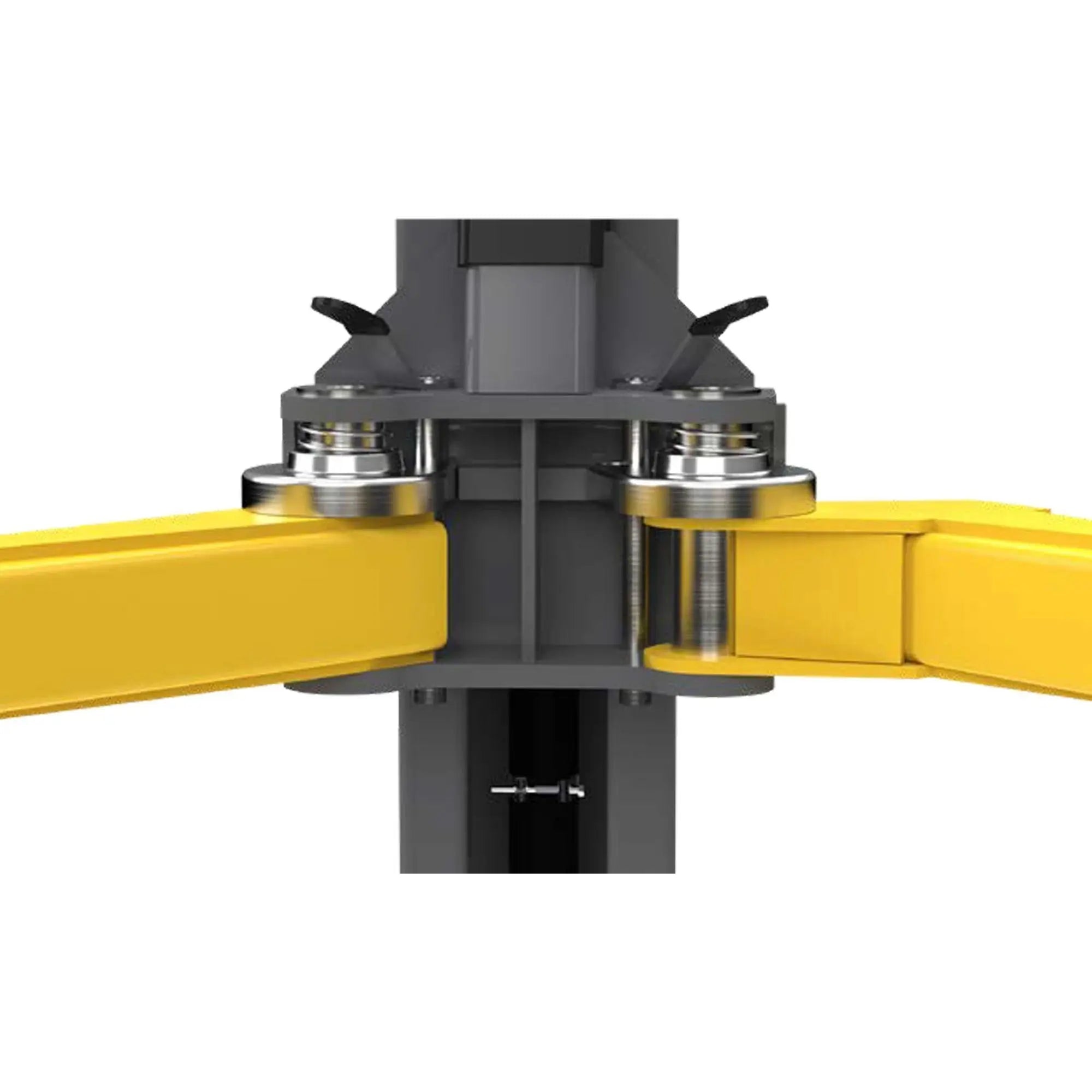

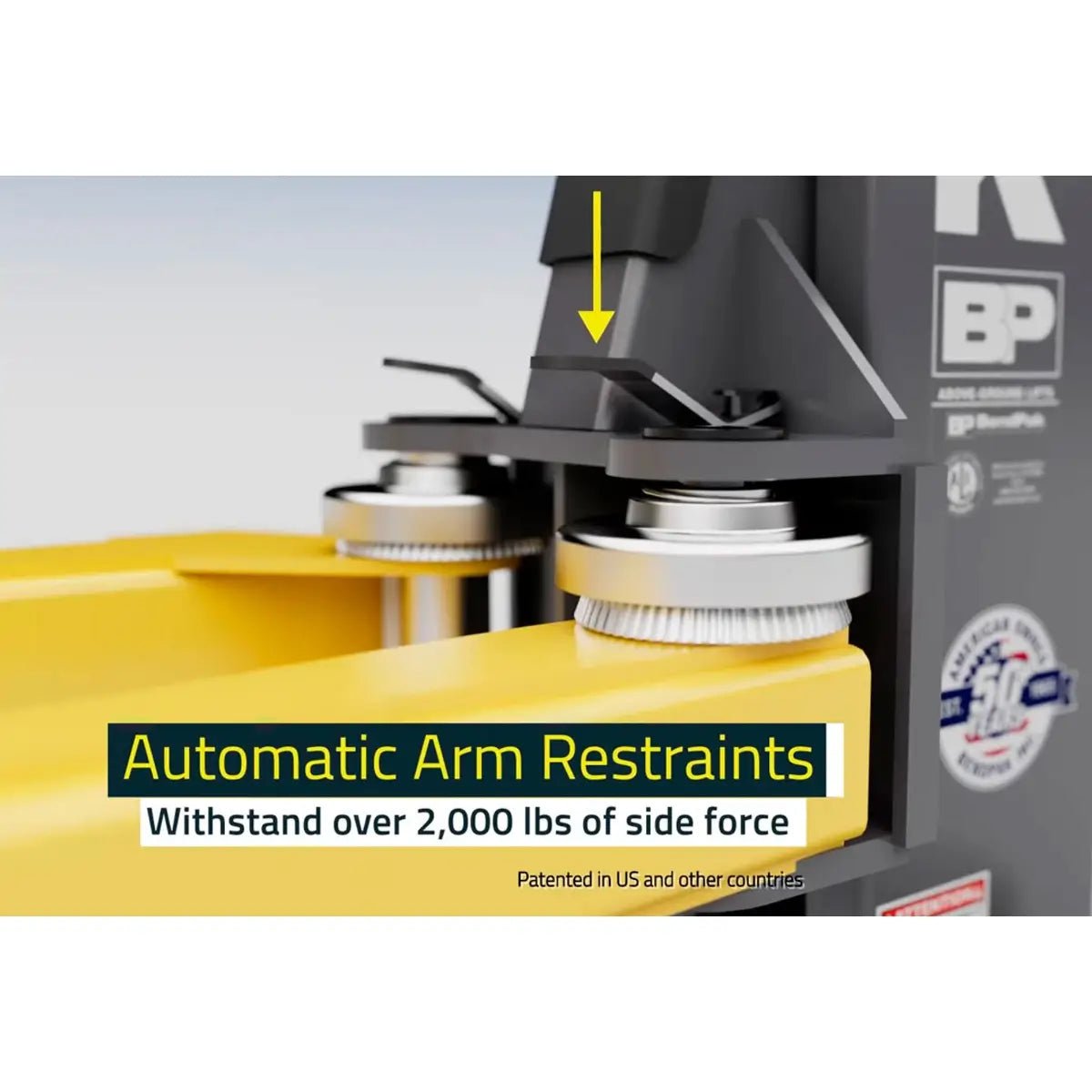

Patent-Protected ASARS Safety System
The Automatic Swing Arm Restraint System (ASARS) delivers 2,000+ lb of clamping force through a 360-degree load-holding grip engineered from heavily forged steel. This patented mechanism automatically secures swing arms against unplanned movement when lifting vehicles, maintaining position even under elevated forces.
Traditional restraint systems fail when technicians remove heavy drivetrain components like engines, transmissions, or axles. ASARS addresses this industry-wide challenge by providing automatic adaptive grip that engages on contact with the vehicle, requiring no manual lock activation or adjustment during the process.
This enables safer component extraction and installation by eliminating arm slippage risks. The quick-release operator lever provides instant pressure release when needed, without compromising the system's holding strength during active service operations.
High-Rise Ergonomic Design
The 10APX's 79.5" lifting height with 157" overhead clearance specifically addresses technician comfort and efficiency for extended under-car service work. This high-rise configuration provides exceptional standing room and eliminates awkward positioning that plagues standard-height lifts when servicing larger vehicles.
Traditional lifts force technicians into cramped positions during engine work, transmission service, and exhaust repairs on trucks and vans. The 10APX's extended height design allows full upright positioning underneath lifted vehicles, reducing fatigue and improving work quality during long service intervals.
This improves shop productivity by reducing technician fatigue and enabling faster, more accurate work on heavy-duty vehicles. The extra clearance is particularly beneficial for taller mechanics and when using service equipment like transmission jacks or engine hoists underneath the lift.

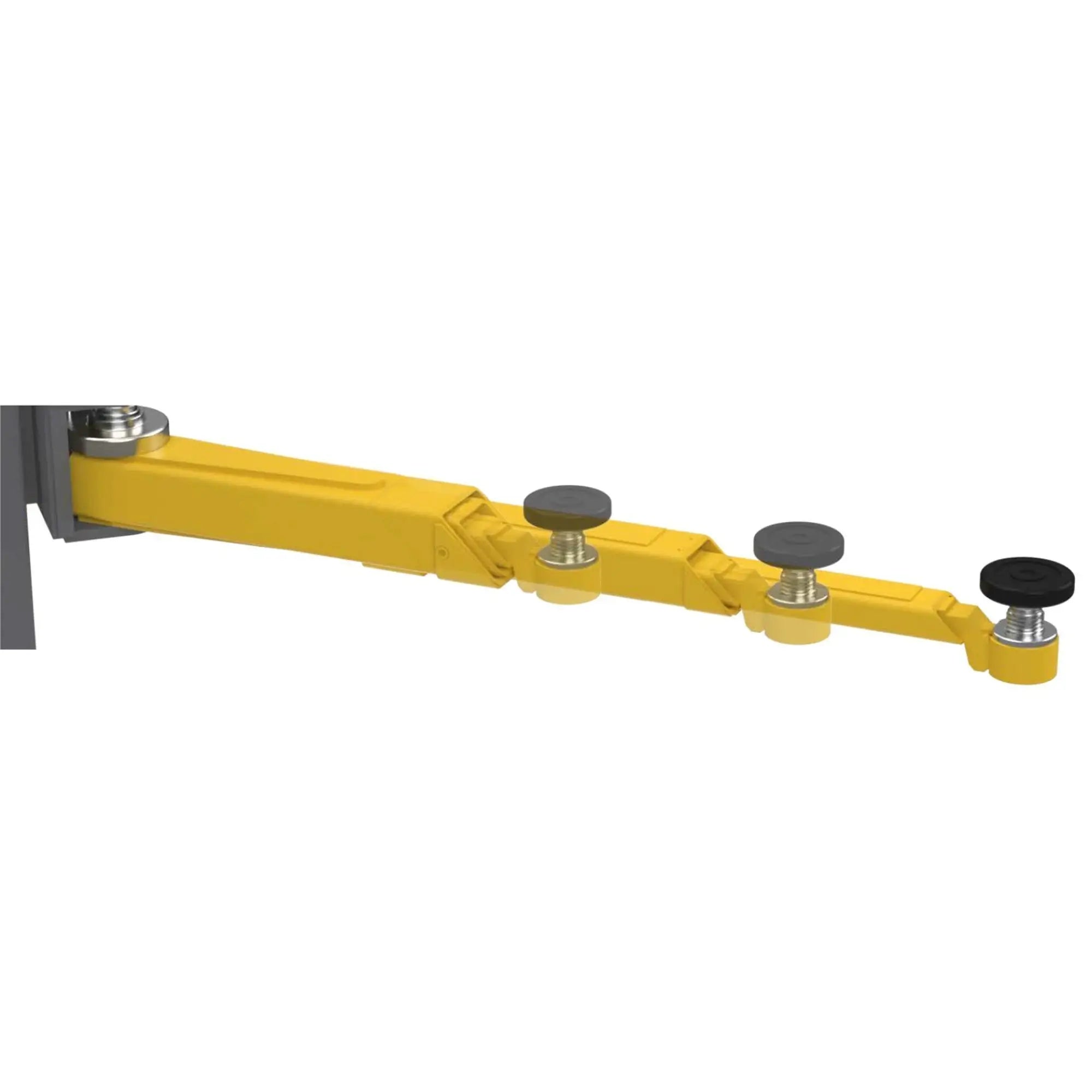

Bi-Metric Triple-Telescoping Arms
The revolutionary triple-telescoping arm design offers 22" to 57" reach range with inner sliding arms that extend beyond pivot pins for exceptional positioning versatility. These Bi-Metric arms support both symmetric and asymmetric lifting configurations, adapting to vehicle-specific lifting point requirements without adapter changes.
Conventional two-stage arms limit technicians to narrow positioning windows, often requiring multiple lift attempts to locate optimal contact points on modern vehicles with varied lifting points. The 10APX's triple-telescoping system provides 25% greater travel range than typical competitor designs, enabling service of both low-clearance sports cars and high-clearance trucks.
This eliminates time-consuming repositioning cycles and enables faster vehicle setup. The extended reach accommodates outer-positioned electric vehicle lifting points and wide-body commercial vehicles that exceed the capacity of standard lift arms.
EV-Optimized Load Handling
Purpose-built for heavier electric vehicles with reinforced frameworks using high tensile-strength steels and specialized swing arm profiles for outer-positioned EV lifting points. The system's documented capability handles 6,000+ lb vehicles that often exceed typical lift practical limits while maintaining structural integrity.
Electric vehicles present unique challenges with battery pack weight distribution and non-standard lifting points positioned further outboard than conventional vehicles. Standard lifts often struggle with EVs due to inadequate reach and insufficient load-handling capability at extended arm positions.
This enables confident EV service by providing verified capacity ratings at maximum arm extension. The reinforced construction and optimized geometry ensure stable lifting of Tesla Model S, BMW i-series, and other heavy electric vehicles without compromising safety margins.
Performance-Optimized Hydraulics
The HVLP direct-drive system achieves full rise in 45 seconds while operating under 70 dB noise levels, delivering faster cycle times than chain-driven alternatives. The 3 HP motor with 220 VAC single-phase power provides consistent performance without the complexity of three-phase electrical requirements.
Chain-driven systems create operational delays and maintenance overhead that impact shop efficiency during high-volume days. Direct-drive hydraulics eliminate chain stretch, sprocket wear, and the associated downtime while providing more responsive lifting control for precise vehicle positioning.
This reduces service bay downtime by 15-20% compared to slower-rising competitive lifts. The quieter operation improves shop environment while the simplified hydraulic design minimizes maintenance requirements and reduces long-term operating costs.
5-2-1 Warranty Coverage
BendPak's comprehensive warranty structure provides 5 years structural, 2 years hydraulic, 1 year components coverage that exceeds typical industry standards. This tiered approach reflects the engineered durability of critical load-bearing components while providing practical coverage for operational systems and electrical components.
Standard industry warranty coverage typically provides only 1-year comprehensive protection, leaving shops vulnerable to major repair costs on structural components and hydraulic systems that should provide decades of service. The 10APX's extended coverage structure demonstrates manufacturer confidence in long-term reliability.
This reduces total cost of ownership by protecting against unexpected repair expenses during the lift's most productive years. The 2-year hydraulic coverage particularly benefits high-usage commercial shops where hydraulic components experience greater wear cycles.
Product Demonstration
Applications & Use Cases
- Professional Automotive Repair Shops: Mixed vehicle fleets including passenger cars, SUVs, light trucks, and electric vehicles requiring versatile lifting capability
- Commercial Fleet Service Centers: Cargo vans, delivery vehicles, and commercial trucks needing high-rise access for drivetrain and exhaust service
- Electric Vehicle Service Centers: Tesla, BMW i-series, Audi e-tron, and other heavy EVs with specialized lifting point requirements
- Advanced Home Garages: Enthusiast workshops with adequate ceiling height and power requirements for professional-grade vehicle maintenance
- Specialty Truck and SUV Shops: High-clearance vehicles requiring extended under-car access for suspension, exhaust, and drivetrain work
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Capacity per Axle | 5,000 lb (2,268 kg) |
| Max Load per Arm | 2,500 lb (1,134 kg) |
| Time to Full Rise | 45 seconds |
| Sound Level | < 70 dB |
| Motor | 220 VAC, 60 Hz, 1-phase, 3 HP |
| Specification | Value |
|---|---|

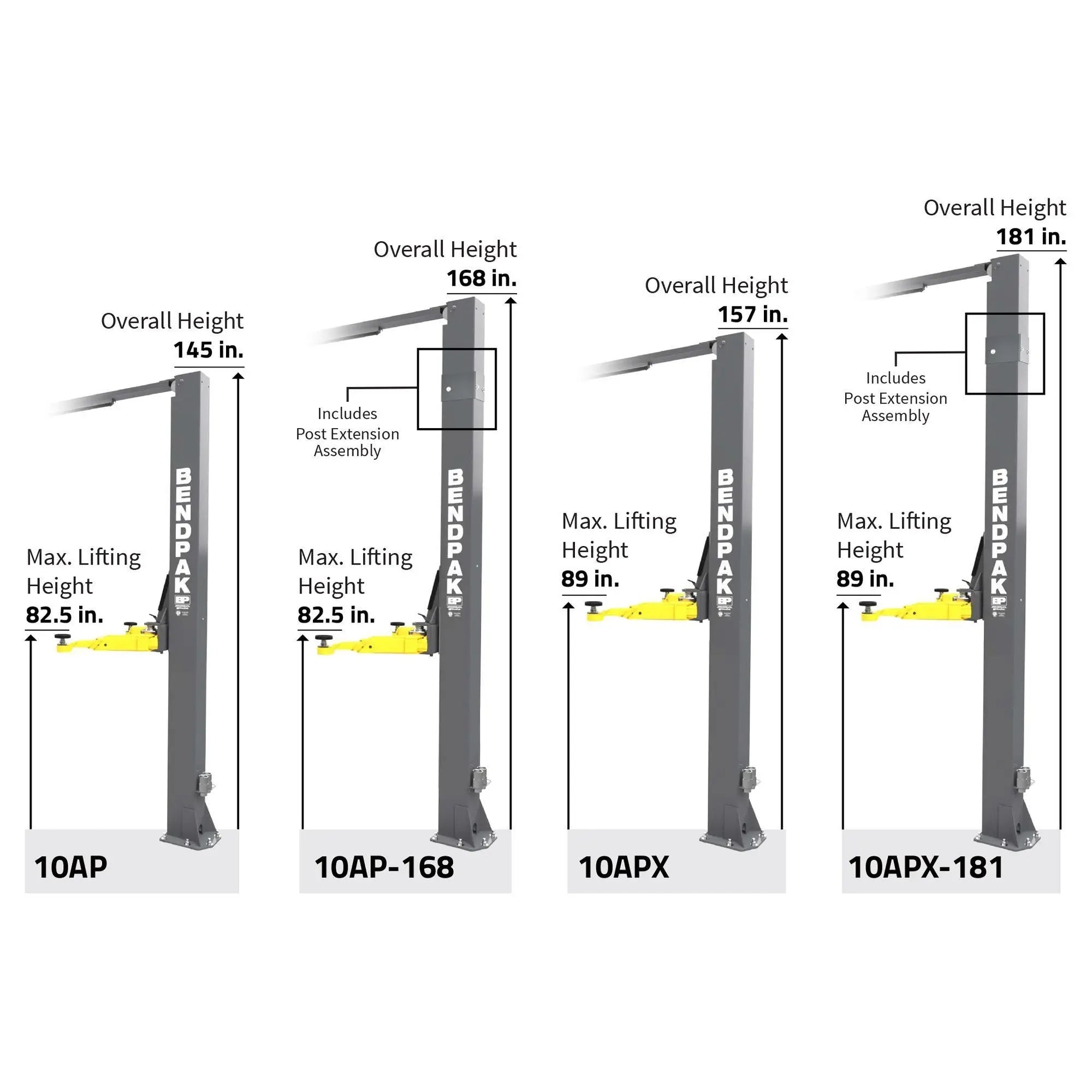

| Lifting Height | 79.5 in (2,019 mm) |

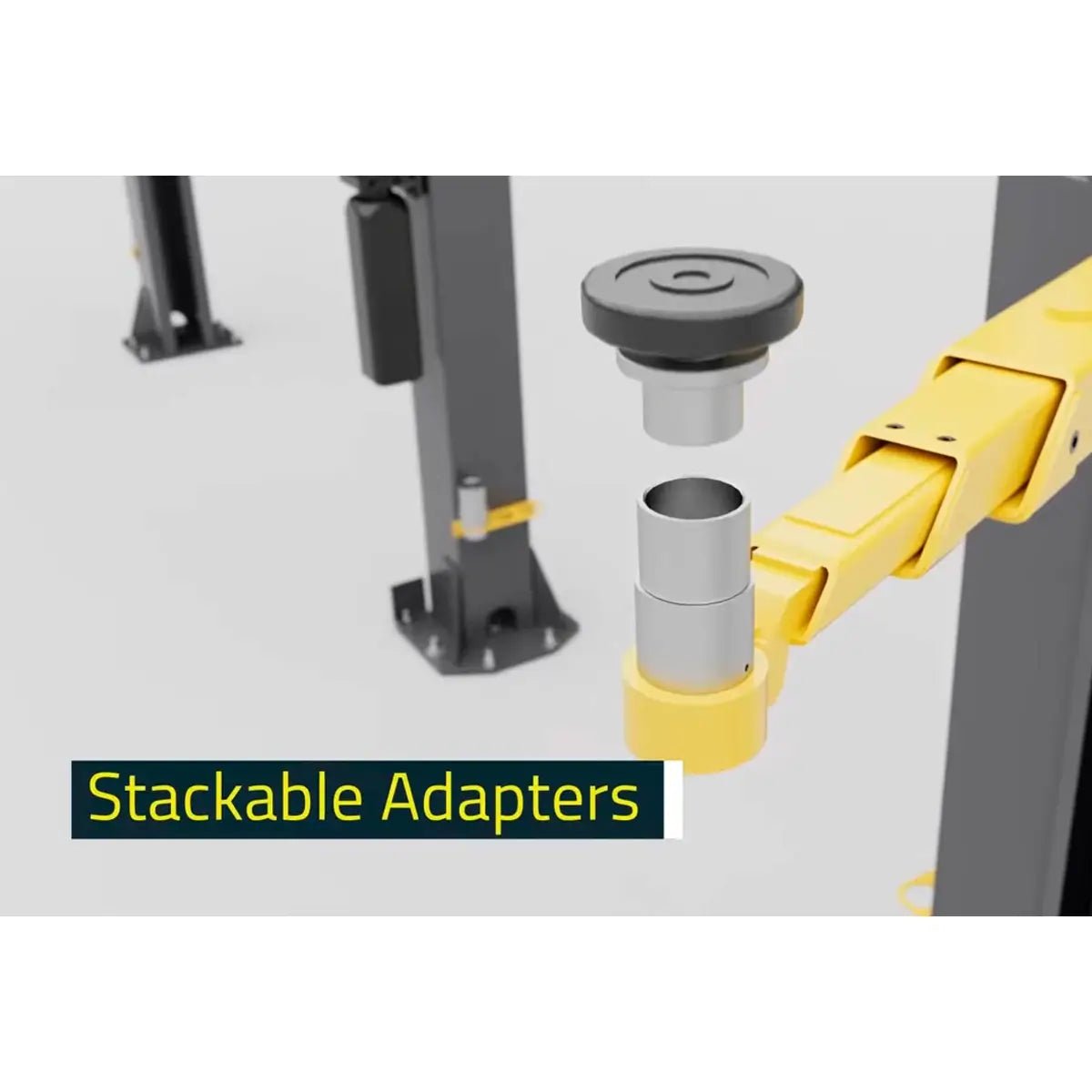

| Max Lifting Height | 89 in (2,261 mm) |
| Overall Height | 157 in (3,988 mm) |
| Overall Width | 135 in (narrow) / 145 in (wide) |
| Drive-Through Clearance | 92 in (narrow) / 102 in (wide) |
| Minimum Pad Height | 4 in (102 mm) |
| Specification | Value |
|---|---|
| Front Arm Reach | 22 in minimum to 50 in maximum (559-1,270 mm) |
| Rear Arm Reach | 29.5 in minimum to 59.25 in maximum (749-1,504 mm) |
| Screw Pad Adjustment | 2 in (51 mm) |
Installation Requirements
Foundation Requirements
- Concrete Thickness: Minimum 4.25" thick, 3,000 PSI compressive strength
- Curing Time: Minimum 28 days before installation
- Anchor Bolts: 6.3" length, 0.75" diameter, 85-95 ft-lb torque specification
- Clearances: 6" minimum from anchor bolts to cracks or expansion joints
- Floor Slope: Maximum 30 degrees from level
Power Requirements
- Electrical Supply: 220 VAC, 60 Hz, single phase
- Circuit Protection: 30-amp circuit breaker recommended
- Installation: Licensed electrician required for electrical connections
Environmental Requirements
- Ceiling Height: Minimum 157" (13.1 ft) to accommodate overhead beam plus operational clearance
- Installation Space: Professional installation recommended with certified installer
Installation Notes
- Professional Installation: Recommended for optimal safety and performance
- Permits: Verify local code compliance and permit requirements before installation
Model Comparison
| BendPak 10APX | 10,000 lb capacity; 79.5" rise to pad, up to 89" with 63 mm adapters (high-rise clearfloor); adaptable width installation options. | 45 s to full rise; electric/hydraulic HVLP power unit, 220 VAC, 60 Hz, 1-phase. | Bi-Metric™ arms for symmetric/asymmetric lifting; ultra low-profile triple-telescoping arms ideal for EVs and low cars; expandable top beam for wide or narrow drive-through; automatic swing arm restraint system with >2,000 lb side-load holding force; padded overhead shutoff bar; ALI certified. Limitation: Tall overall height (157") requires a higher ceiling than many light-duty shops and 220 V single-phase power only. |
|---|---|---|---|
| Standard Two-Post Overhead Design | 10,000 lb capacity; overhead asymmetric 2-post design with lifting height 72 3/4"–78 1/4"; drive-through clearance 95 1/4". | Motor rated 2 HP, 208–230 V, 60 Hz, 1-phase; manufacturer varies by configuration. | Industry-standard asymmetric 2-post lift; direct-drive hydraulic cylinders; automatic hydraulic safety system and single-point lock release; rubber door guards and padded overhead shutoff bar; ALI certified for durability and cycle testing. Limitation: Asymmetric-only arm design and lower maximum rise than the 10APX can make under-car access more constrained on some taller vehicles. |
| Versymmetric Configuration Models | 10,000 lb capacity; Versymmetric® configuration (symmetric & asymmetric in one); rise height 74.125" with 3-stage front and rear arms; drive-through clearance 100"/104.5" depending on width setting. | Speed of rise 38 s; 2 HP motor, 208–230 V, 60 Hz, 1-phase; ALI/ETL certified. | Versymmetric® arms with directSPOT™ design for easier first-try spotting; multiple width and height extension options (including 3 ft extensions); padded overhead shutoff; elongated carriages and oversized pulleys to reduce cable stress; dual integrated rubber door guards. Limitation: Overall height (up to 140" / 143" cylinder extended) still demands ~12 ft ceilings, and the standard rise is lower than the 10APX's tall-rise configuration, giving slightly less standing room underneath tall vehicles. |
| Wide Clearfloor Models | 10,000 lb capacity; clearfloor design; max lifting height ~76 3/4" without adapters and ~83 1/16" with truck adapters; extra-wide drive-through up to ~112". | Rise time ~50 s; 3 HP motor, 220 V, 60 Hz, 1-phase, 30 A breaker recommended. | Extra-wide asymmetric & symmetric 2-in-1 functionality; direct-drive system with single-point manual lock release; electric safety lock release; heavy-duty 14-fold columns; four 3-stage arms plus included truck adapters; dual top limiter switches and automatic arm restraints. Limitation: Requires thicker 6", 3,000-psi concrete per spec and has a relatively long rise time (~50 s), which may slow high-volume bays compared to faster lifts. |
Choose the BendPak 10APX when maximum under-car clearance, EV-ready Bi-Metric™ arms, and a tall-rise clearfloor design are priorities. It outperforms alternatives by combining higher working height with highly adjustable triple-telescoping arms and advanced automatic arm restraints, making it the best fit for modern shops servicing a wide mix of heavier EVs, low-profile cars, and light trucks.
Shipping & Delivery
Freight Coverage
Shipping: Free shipping to direct shipping points within the 48 contiguous United States. Rural area surcharges and special services may apply.
Delivery Timeframe: Typical delivery timeframe is 1–3 weeks from order placement (subject to inventory availability).
International: Available with quote - contact for details and arrangements.
Delivery Requirements
Unloading Equipment: Customer responsible for forklift or equivalent unloading equipment for 1,902 lb shipping weight. Driver will not unload.
Delivery Type: LTL freight or flatbed depending on destination. Premium delivery services available at additional cost.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Damage Reporting
Within 15 days: Full coverage for replacement parts and freight
Within 30 days: Partial coverage for replacement parts and freight (shared cost)
After 30 days: No coverage (customer responsible for parts and freight costs)
Warranty Coverage
5-2-1 BendPak Warranty Program
5 Years - Structural: Columns, overhead beam, and critical load-bearing components
2 Years - Hydraulics: Hydraulic cylinders and power unit components - exceeds typical 1-year industry standard
1 Year - Components: Operating and electrical components including labor coverage with installation requirements
Warranty Requirements
Registration: Product registration required within 30 days of purchase
Eligibility: Valid for original purchaser only (non-transferable)
Installation: Installation must be performed by qualified personnel following manufacturer installation manual
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and verify compatibility with your specific application.
Frequently Asked Questions
What are the lifting capacity specifications of the BendPak 10APX?
The 10APX has a 10,000 lb total capacity with 5,000 lb maximum per axle and 2,500 lb maximum per arm. It can lift to 79.5" standard height or 89" with adapters, making it suitable for a wide range of vehicles from passenger cars to light trucks and electric vehicles.
What components are included with the BendPak 10APX?

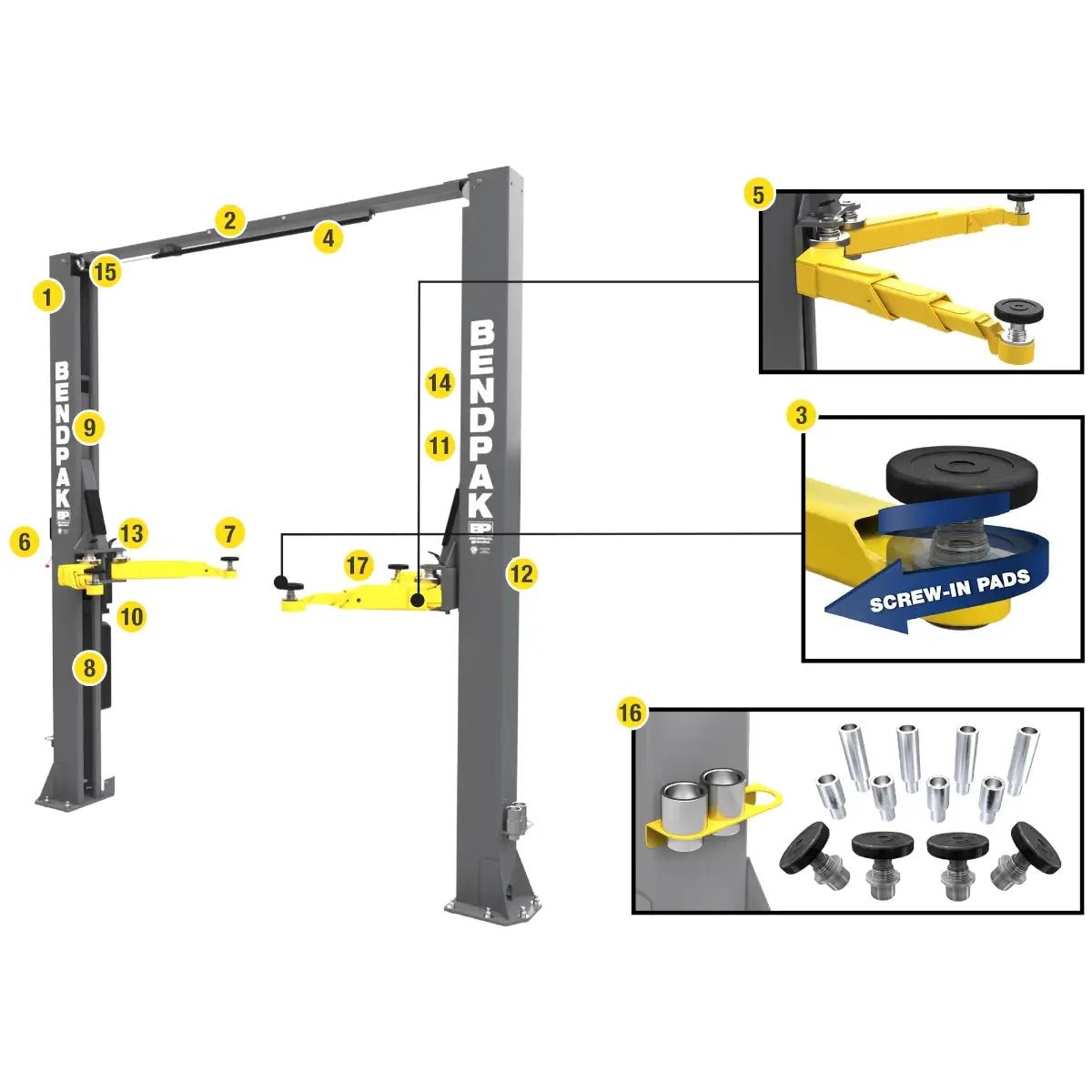

The complete lift includes four triple-telescoping swing arms with Bi-Metric design, ASARS safety system, HVLP hydraulic power unit, screw pad assemblies, multi-position safety locks, padded overhead shutoff bar, equalizing cables, and owner's manual with installation documentation. Professional installation is recommended.
What are the concrete and electrical requirements for installing the 10APX?
Foundation requires minimum 4.25" thick concrete with 3,000 PSI compressive strength, cured at least 28 days. Electrical needs 220 VAC, 60 Hz, single-phase power with 30-amp circuit breaker. You'll also need minimum 157" (13.1 ft) ceiling height to accommodate the overhead beam clearance.
Is the BendPak 10APX suitable for electric vehicles?
Absolutely. The 10APX is specifically engineered for electric vehicles with reinforced high tensile-strength steel construction, triple-telescoping arms that reach outer EV lifting points, and verified capacity ratings for 6,000+ lb vehicles. It confidently handles Tesla Model S, BMW i-series, and other heavy electric vehicles.
How does the ASARS safety system work on the 10APX?
The Automatic Swing Arm Restraint System (ASARS) automatically secures the lift arms with over 2,000 lb of clamping force through a 360-degree grip mechanism. It engages automatically when lifting vehicles and prevents unplanned arm movement during service, requiring no manual activation. A quick-release lever allows instant pressure release when needed.
What warranty coverage does BendPak provide for the 10APX?
BendPak provides comprehensive 5-2-1 warranty coverage: 5 years on structural components (columns and overhead beam), 2 years on hydraulic systems (exceeding typical industry standard), and 1 year on electrical and operating components. Product registration within 30 days and proper installation are required for coverage.
Can the 10APX lift both symmetric and asymmetric configurations?
Yes, the 10APX features Bi-Metric arms that support both symmetric and asymmetric lifting configurations. The triple-telescoping design provides 22" to 57" reach range, allowing optimal positioning for various vehicle types and lifting point requirements without needing adapter changes.
How fast does the 10APX lift and what are the noise levels?
The 10APX reaches full rise in 45 seconds using its HVLP (High Volume Low Pressure) direct-drive hydraulic system. It operates at less than 70 dB, making it quieter than many chain-driven alternatives while providing faster cycle times for improved shop productivity.
