BendPak 10AP-168 10000 lb Extended Height Two Post Lift
BendPak 10AP-168 Extended Height Two Post Lift
Also known as: 10AP-168, AP-168, AP Series 168, BendPak 10AP
The BendPak 10AP-168 is a 10000 lb two post lift built for professional shops that handle everything from compact cars to high-roof cargo vans. With an extended 168 in overall height and the versatile BI-METRIC arm system, this clearfloor lift switches between symmetric and asymmetric setups in seconds - no arm swaps, no downtime. If you're running mixed fleets or adding EV service, the BendPak 10AP gives you the reach, capacity, and workflow flexibility to say yes to more jobs without dedicating separate bays.
BendPak 10AP Key Features
BI-METRIC Symmetric and Asymmetric Arms
Why it matters: You're not swapping arms every time you switch between symmetric and asymmetric vehicle positioning. Each arm handles 2,500 lb (1,134 kg) and reconfigures in seconds. That's what makes the BendPak 10AP adaptable - from center-of-gravity loading on sedans to asymmetric placement on long-wheelbase trucks, it's all handled by the same hardware.
Real-world benefit: When your shop handles mixed fleets, this 2-in-1 design cuts setup time dramatically. No arm storage, no hunting for the right configuration. Just position and lift.
Technical reach: The triple-telescoping design retracts to 22 in (559 mm) on front arms and extends to 57 in (1,448 mm). You're hitting virtually any OEM lift point without repositioning vehicles or searching through adapter kits.
Extended 168 in Height for High-Roof Cargo Vans
The height advantage: Standard two post lifts top out around 140-144 in, which means you're hunched over or fighting for headspace when working under tall vehicles. The BendPak 10AP-168 extended height model stands 168 in (4,267 mm) tall with the overhead shutoff at 163.5 in (4,153 mm). That's the difference between crouching and standing upright under a Sprinter or Transit.
Better working conditions: That extra clearance translates directly into comfortable standing height when servicing high-roof cargo vans, box trucks, and commercial vehicles. No more stooping or craning your neck for overhead work.
Vehicle compatibility: If you're running fleet service or handling mixed commercial work alongside passenger cars and SUVs in the same bay, this extended height configuration gives you the versatility to say yes to more jobs.

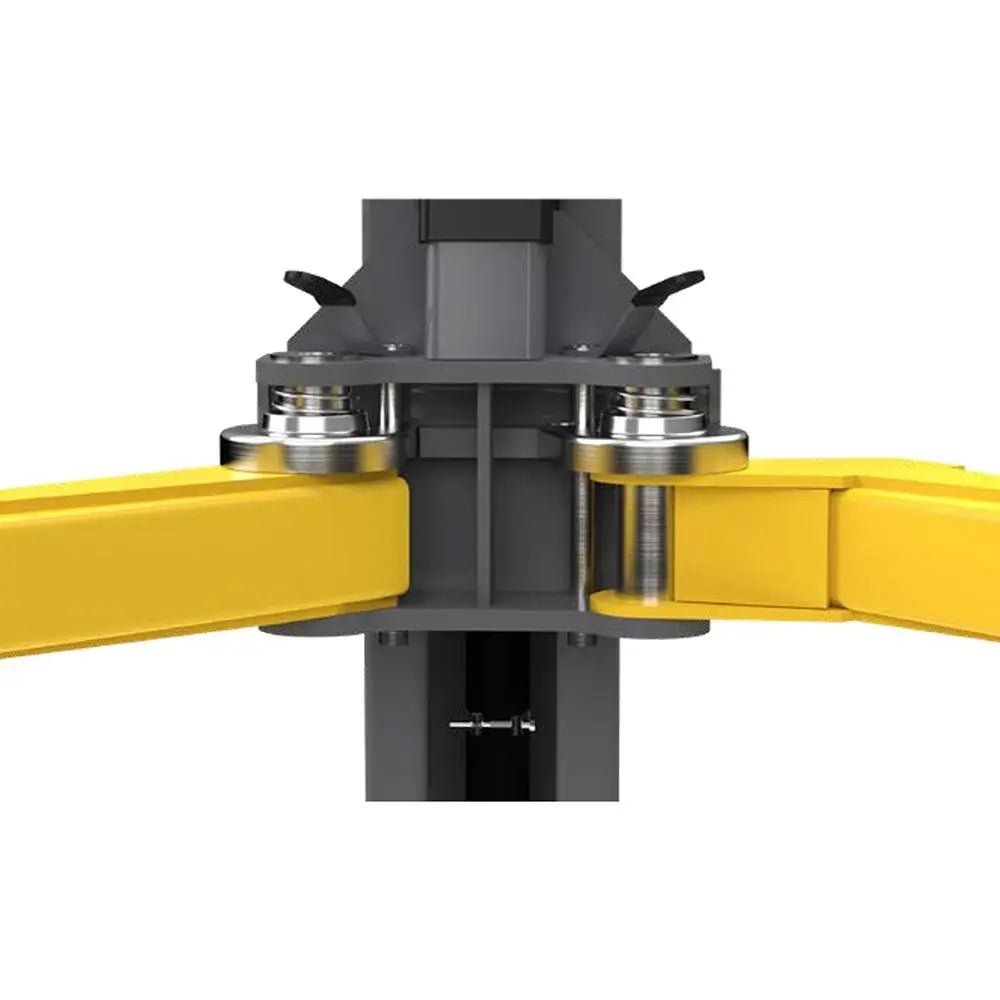

Automatic Swing Arm Restraint System (ASARS)
Beyond traditional restraints: Traditional swing arm restraints rely on pins or manual locks that can fail under unexpected loads. BendPak's ASARS generates over 2,000 lb of automatic restraining force the moment arms move into position.
How it works: The system secures arms against the column without operator intervention - no pins to insert, no latches to check. If a vehicle shifts during loading or you're working on uneven weight distribution, ASARS holds the arms firmly in place.
Safety first: Integrated directly into the column design and activates automatically every time you position an arm. In high-volume shops where technicians move fast, there's no step to forget.

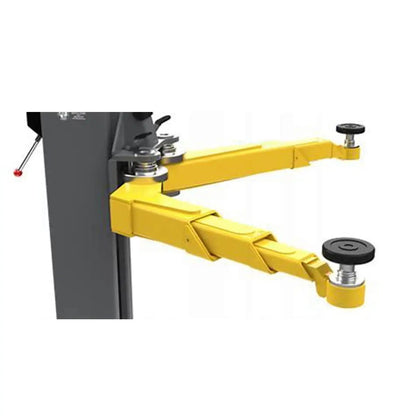

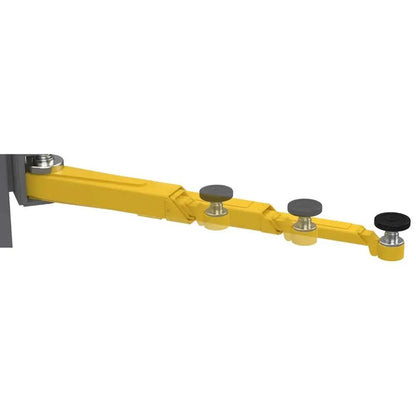

Low-Pro Arms for Electric Vehicles and Low-Profile Cars
EV-compatible design: BendPak's patented Low-Pro arm design features three telescoping stages with a dropped-end pad receiver. Minimum pad height drops to just 4 in (102 mm) - critical when you're lifting modern EVs, lowered performance cars, or vehicles with factory aero packages and battery packs. That low clearance is what makes this lift EV-ready without forcing you to buy separate equipment.
Extended range without damage: The arms retract shorter and extend farther than traditional two-stage designs. That nested configuration eliminates bind points, giving you clean access to challenging lift points without scraping side skirts or ground effects.
Precision adjustment: Each arm includes adjustable screw pads with 2 in (51 mm) of vertical fine-tuning. Polyurethane contact surfaces resist tearing and won't gouge aluminum or composite OEM lift points. Stack on adapters and you reach 89 in (2,261 mm) maximum lifting height.

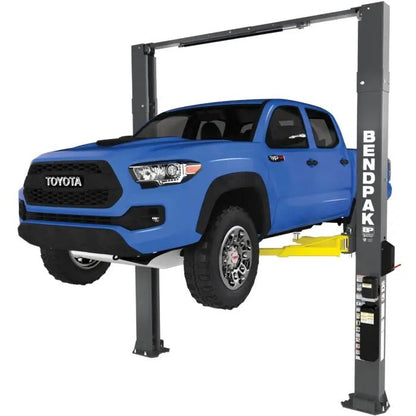

Adjustable Width Clearfloor Design
Installation flexibility: The BendPak 10AP two post lift mounts in narrow or wide configuration - inside column spacing of 108.5 in or 118.5 in (2,756 mm or 3,010 mm) with drive-thru clearance of 92 in or 102 in (2,337 mm or 2,591 mm). That adjustable width means you can fit it into a slightly narrower bay or open it up for wider vehicles without compromising the 10000 lb capacity.
Unobstructed workflow: The overhead beam leaves the floor between columns completely clear. Roll your tool carts, transmission jacks, oil drains, and diagnostic equipment right under the vehicle. No tripping over base plates or maneuvering around crossbeams. That's the clearfloor advantage.
Real productivity gain: In busy shops where floor space is tight and techs are moving fast, that clearfloor layout shaves time off every job and reduces frustration.
Dual Direct-Drive Hydraulic System
Direct-drive advantage: Each column on the 10AP-168 is powered by a dedicated hydraulic cylinder with direct-drive actuation - no chains, cables, or screw mechanisms that require frequent adjustment and maintenance.
Performance specs: The HVLP (high volume, low pressure) power unit runs on 220 VAC, 60 Hz, 1-phase power and lifts the full 10,000 lb capacity to maximum rise in 45 seconds with operating sound below 70 dB.
Reliability: Direct-drive hydraulics deliver smooth, consistent lifting speed across the entire stroke and reduce wear points that can lead to cylinder drift or uneven lifting. Multi-position safety locks in each column engage automatically at preset intervals for redundant mechanical lockout protection.
Video: BendPak 10AP-168 Demonstration
Watch the 10AP-168 in action to see the BI-METRIC arm system, extended height, and clearfloor design in real-world shop conditions.
Applications
Professional automotive repair shops: Built for facilities servicing cars, light trucks, SUVs, and mixed fleets. The extended 168 in height and adaptable BI-METRIC arms handle everything from compact sedans to high-roof cargo vans in the same bay. If you're running a professional shop that needs one lift to cover the full spectrum, this is it.
Fleet service and commercial work: When you're maintaining delivery vans, box trucks, and commercial vehicles alongside passenger cars, the clearfloor design and 10000 lb two post lift capacity give you the flexibility to say yes to more work without dedicating separate bays. The BendPak 10000 lb car lift configuration handles the weight and reach you need.
EV-capable facilities: The Low-Pro arms reach down to 4 in minimum pad height, making this BendPak 10000 lb lift compatible with low-chassis electric vehicles and battery pack designs. Polyurethane pads protect aluminum and composite lift points common on EV chassis.
High-volume shops prioritizing workflow: The clearfloor layout keeps the bay floor unobstructed for jacks, drains, and diagnostic equipment. BI-METRIC arms switch between symmetric and asymmetric configurations without hardware swaps, cutting turnaround time on mixed vehicle types.
BendPak 10AP-168 Specifications
The BendPak 10AP-168 is rated at 10000 lb (4,536 kg) total capacity with a maximum of 5,000 lb (2,268 kg) per axle and 2,500 lb (1,134 kg) per individual swing arm. These BendPak 10AP specs give you clear safety margins for typical passenger vehicles, light trucks, SUVs, and commercial vans. Always verify against the latest BendPak 10AP manual before installation.
| Lifting Capacity | 10,000 lb / 4,536 kg |
|---|---|
| Max Capacity per Axle | 5,000 lb / 2,268 kg (front); 5,000 lb / 2,268 kg (rear) |
| Max Load per Lift Arm | 2,500 lb / 1,134 kg |
| Max Rise | 75.5 in / 1,918 mm |
| Lifting Height, Pad Low | 79.5 in / 2,019 mm |
| Max Lifting Height with Adapters | 89 in / 2,261 mm |
| Min Pad Height | 4 in / 102 mm |
| Overall Height | 168 in / 4,267 mm |
| Overall Width | 135 in / 3,431 mm (narrow); 145 in / 3,683 mm (wide) |
| Outside Columns | 127.5 in / 3,238 mm (narrow); 137.5 in / 3,492 mm (wide) |
| Inside Posts | 108.5 in / 2,756 mm (narrow); 118.5 in / 3,010 mm (wide) |
| Drive-Thru Clearance | 92 in / 2,337 mm (narrow); 102 in / 2,591 mm (wide) |
| Floor to Top Switch | 163.5 in / 4,153 mm |
| Front Arm Reach | 22 in / 559 mm (min); 57 in / 1,448 mm (max) |
| Rear Arm Reach | 29.5 in / 750 mm (min); 57 in / 1,448 mm (max) |
| Screw Pad Adjustment | 2 in / 51 mm |
| Time to Full Rise | 45 seconds |
| Motor | 220 VAC, 60 Hz, 1-phase |
| Sound Level | <70 dB |
BendPak 10AP Installation Requirements
Concrete Foundation
Foundation basics: BendPak 10AP installation requires a properly engineered concrete slab - a single, continuous slab under both columns. No seams, separate pads, or expansion joints spanning the lift footprint. This isn't optional - it's critical for safe operation and warranty coverage.
Minimum specifications (per BendPak 2025 AP Series installation instructions):
- Slab thickness: 12 in (305 mm) minimum
- Slab width: 48 in (1,219 mm) minimum
- Slab length: At least 12 in (305 mm) wider than the lift's overall width
- Concrete strength: 4,000 PSI minimum, machine-mixed, cured 28 days before anchor installation
- Reinforcement: Grade 60 #4 rebar in grid pattern, see manual for spacing
- Anchors: 3/4 in (19 mm) wedge anchors with 6.3 in (160 mm) minimum embedment
- Anchor placement: Minimum 6 in (152 mm) from control joints, cracks, or edges
Not permitted: Installation over expansion joints, hollow decks, suspended floors, asphalt, pavers, or hand-mixed concrete without written BendPak engineering approval. These surfaces won't hold the anchors safely under load.
Ceiling Height and Bay Clearance
Minimum clearance required: You need 168 in (4,267 mm) clear ceiling height directly above and between the columns. That means no beams, garage door tracks, HVAC ducts, sprinklers, or lighting fixtures in the lift's path.
Practical planning: Plan for a true 14 ft clear bay to accommodate the overhead beam, shutoff hardware at 163.5 in (4,153 mm), plus the vehicle's roof height and safe working clearance above. If you've got obstructions like door openers or ductwork, measure carefully - you don't want surprises after the lift arrives.
Important fitment note: If your facility has a 12 ft or 13 ft ceiling, this extended height model won't fit. Contact your BendPak distributor about standard-height 10AP models instead.
BendPak 10AP Electrical Requirements
Power supply: The BendPak 10AP operates on 220 VAC, 60 Hz, 1-phase power as standard. Other voltage configurations are available by special request - confirm your shop's electrical setup before ordering.
Breaker sizing: Refer to the BendPak 10AP installation instructions for exact BendPak 10AP breaker size and wire gauge requirements. Your electrician will need this info during the install to ensure safe, code-compliant hookup.
Compare BendPak 10AP-168 vs Competitors
The BendPak 10AP-168 competes directly with other professional-grade 10000 lb two post lifts from Rotary and Challenger. Here's how it stacks up on the features that matter most - arm flexibility, height options, safety systems, and EV compatibility.
| BendPak 10AP-168 | 10,000 lb; BI-METRIC arms; extended 168 in overall height; adjustable-width clearfloor | Direct-drive; 45 s rise; 220V, 60 Hz, 1-ph; <70 dB | BI-METRIC symmetric/asymmetric setup, triple-telescoping Low-Pro arms, clearfloor design, automatic swing arm restraints (ASARS), multiple locking positions, EV and low-profile friendly | Requires tall ceiling (168 in+ recommended clearance); professional install and proper slab spec critical; extended height not ideal for low-bay shops |
|---|---|---|---|---|
| Rotary SPOA10-AV | 10,000 lb; asymmetric with All-Vehicle (AV) arms | 45 s rise (standard); faster with Shockwave option; 208-230V, 1-ph | All-vehicle arm system for broad EV/exotic coverage, very low adapter height, ALI certified, multiple adapter extensions included, proven Rotary Double-S column design | Higher minimum ceiling height requirement than many standard lifts; primarily asymmetric (less symmetric loading flexibility); Shockwave performance is an added-cost option |
| Challenger CL10AV3 | 10,000 lb; Versymmetric configuration | 38 s rise (standard); faster QuickCycle variants; 2-3 HP, 208-230V, 1-ph | Versymmetric arms for symmetric/asymmetric use, multiple height/width settings, ALI certified, wide adapter and accessory ecosystem (EV kits, stack adapters, etc.) | Standard rise and column heights may require extension kits for taller vans; less integrated arm/lock system innovation versus AP-series design; optimal flexibility depends on chosen configuration |
Choose the BendPak 10AP-168 when ceiling height, EV/low-profile coverage, and setup flexibility in a single clearfloor bay are your priorities. The BI-METRIC arm system, extended 168 in height, and integrated ASARS safety give you measurable advantages over alternatives - particularly for shops running mixed fleets from low EVs to high-roof cargo vans. For professional shops that need symmetric and asymmetric capability without hardware swaps, this lift delivers.
BendPak 10AP Shipping and Delivery
Packaging: The 10AP-168 (SKU 5175305) ships as heavy truck freight in a single crate measuring 150 in L x 24 in W x 30 in H (3,810 mm x 610 mm x 762 mm). BendPak 10AP shipping weight is 1,840 lb (835 kg) - you'll need proper unloading equipment at your receiving location.
Free shipping eligibility: Most BendPak lifts qualify for freight-prepaid or free shipping to eligible commercial direct shipping points in the 48 contiguous United States. Rural, residential, limited-access, or special-service deliveries typically incur additional surcharges.
Receiving requirements: The receiving location must have forklift, telehandler, or dock-height capability. Lift-gate service on a 1,800+ lb, 12.5 ft crate isn't standard and often isn't feasible. Plan ahead - the carrier won't unload without proper equipment on-site.
Buyer responsibilities:
- Unloading from truck (carrier delivers curbside only)
- Inspecting for freight damage at delivery and documenting any issues on the bill of lading
- Moving components indoors and staging for installation
Not included: Installation, permits, engineered slabs, and electrical work are separate. Most buyers arrange professional installation through certified installers recommended by their BendPak distributor.
Warranty
BendPak 5-2-1 Warranty Coverage:
- 5 years: Lift structure (columns, arms, carriage, and structural components)
- 2 years: Hydraulic cylinder and power unit
- 1 year: Operating components (mechanical), electrical components, labor, and ground-freight shipping on approved warranty claims
Coverage requirements: Warranty applies to lifts purchased from authorized BendPak distributors and installed/used per BendPak instructions. Commercial use is covered - the 10AP-168 is built and warranted as professional-grade equipment.
Registration: Warranty registration and proof of purchase typically required for full coverage. Misuse, improper installation, or installation on non-compliant concrete can void warranty coverage.
Full terms: Refer to the official BendPak warranty documentation included with the lift or available from your authorized distributor for complete terms and conditions.
Documentation
Refer to the official BendPak documentation for detailed BendPak 10AP installation instructions, operation, and maintenance specific to the 10AP-168.
- BendPak 10AP Manual (PDF) - Complete installation and operation manual for the 10AP-168
- AP Series Sales Sheet (PDF) - Specifications and features for the BendPak AP Series two post lift lineup
For additional support or technical questions, contact your authorized BendPak distributor or visit the BendPak collection for related products and accessories.
Questions About the BendPak 10AP-168?
Our team is here to help with lift selection, installation planning, and concrete requirements. Contact us for expert guidance on whether this lift is the right fit for your facility.
Frequently Asked Questions
What is the minimum ceiling height required for the BendPak 10AP-168?
The 10AP-168 requires a minimum clear ceiling height of 168 in (4,267 mm) with no obstructions. Plan for a true 14 ft clear bay to accommodate the overhead beam, shutoff hardware at 163.5 in, and vehicle height plus safe working clearance.
How does the BI-METRIC arm system work?
BI-METRIC arms can be configured for either symmetric or asymmetric vehicle loading without swapping arms or hardware. Each arm supports 2,500 lb and adjusts instantly to match your loading requirements, eliminating setup time when switching between vehicle types.
What are the concrete requirements for installing the 10AP-168?
BendPak requires a single continuous concrete slab with minimum 12 in thickness, 4,000 PSI compressive strength, and Grade 60 number 4 rebar reinforcement in a grid pattern. Anchors must be 3/4 in wedge anchors with 6.3 in embedment, positioned at least 6 in from control joints, cracks, or edges. See BendPak's 2025 concrete foundation document for complete specifications.
What are the BendPak 10AP dimensions and specifications?
The BendPak 10AP-168 has an overall height of 168 in (4,267 mm), overall width of 135 in or 145 in (narrow/wide), and inside column spacing of 108.5 in or 118.5 in. Drive-thru clearance is 92 in (narrow) or 102 in (wide). Lifting capacity is 10,000 lb with 5,000 lb max per axle and 2,500 lb per arm. See the full BendPak 10AP specs table above for complete dimensions.
What are the BendPak 10AP electrical requirements and breaker size?
The BendPak 10AP operates on 220 VAC, 60 Hz, 1-phase power as standard. Breaker size and wire gauge requirements are specified in the BendPak 10AP installation instructions included with the lift. Consult a licensed electrician for code-compliant installation, as requirements vary by local jurisdiction.
Where can I find the BendPak 10AP manual and installation instructions?
The BendPak 10AP manual is included with your lift purchase and available for download from the Documentation section above. It contains complete installation instructions, anchor layouts, electrical specifications, and operation guidelines. Always follow the manual for safe installation and warranty compliance.
Can the BendPak 10AP lift electric vehicles?
Yes, the BendPak 10AP is EV-compatible. The Low-Pro triple-telescoping arms reach a minimum pad height of 4 in (102 mm), making them suitable for low-profile EVs and battery pack designs. The adjustable screw pads feature polyurethane contact surfaces that protect aluminum and composite lift points common on electric vehicle chassis.
How does the Automatic Swing Arm Restraint System (ASARS) enhance safety?
ASARS automatically secures the swing arms with over 2,000 lb of load-holding force without operator intervention. The system activates as soon as the arms are positioned, preventing unplanned arm movement if a vehicle shifts during loading or service, eliminating the risk of forgetting to engage manual restraints.
