BendPak 10AP - 10,000 lb Clearfloor Two-Post Lift with Bi-Metric Arms
Also available as: 10AP, 10AP-168, 10APX, 10APX-181
The BendPak 10AP is a professional-grade, 10,000-lb capacity clearfloor two-post lift engineered for automotive service environments. Combining direct-drive dual hydraulic cylinders with proprietary Bi-Metric triple-telescoping arms, this lift provides safe, efficient lifting for passenger cars, light trucks, SUVs, and commercial vans with both symmetric and asymmetric positioning capability in 45 seconds rise time.
Key Features & Benefits

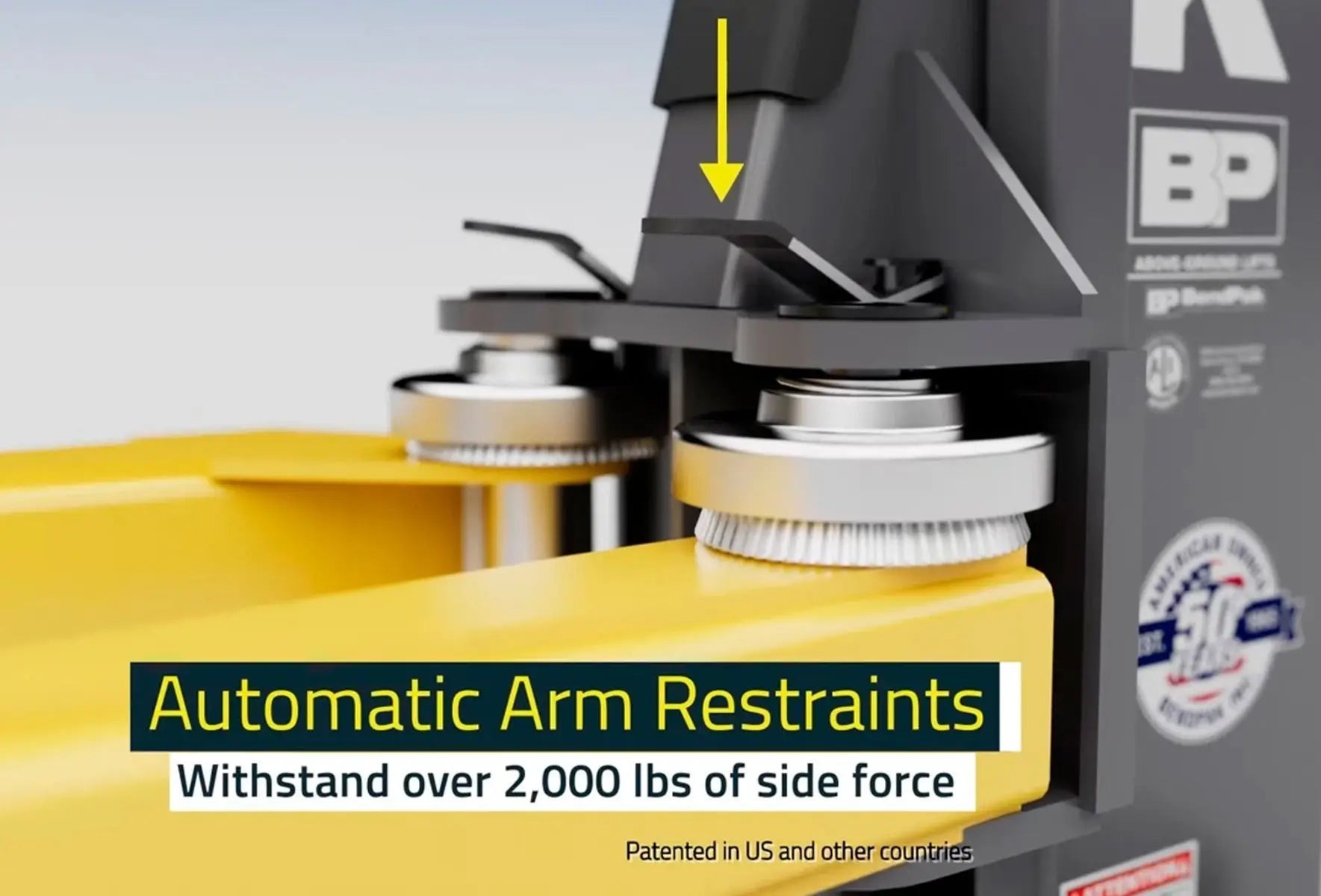

ASARS Automatic Swing Arm Restraint System
The Automatic Swing Arm Restraint System (ASARS) delivers 2,000+ lb of clamping force through a 360-degree load-holding grip engineered from heavily forged steel. This patented mechanism automatically secures swing arms against unplanned movement when vehicles shift during service, maintaining position even under elevated forces from engine or transmission removal.
Traditional restraint systems fail when technicians remove heavy drivetrain components or perform suspension work that changes the vehicle's center of gravity. ASARS addresses this industry-wide challenge by providing automatic adaptive grip that engages on contact with the vehicle, requiring no manual lock activation or adjustment during the lift process.
This enables safer component extraction and installation by eliminating arm slippage risks during critical service operations. The quick-release operator lever provides instant pressure release when repositioning is needed, without compromising the system's holding strength during active service work.

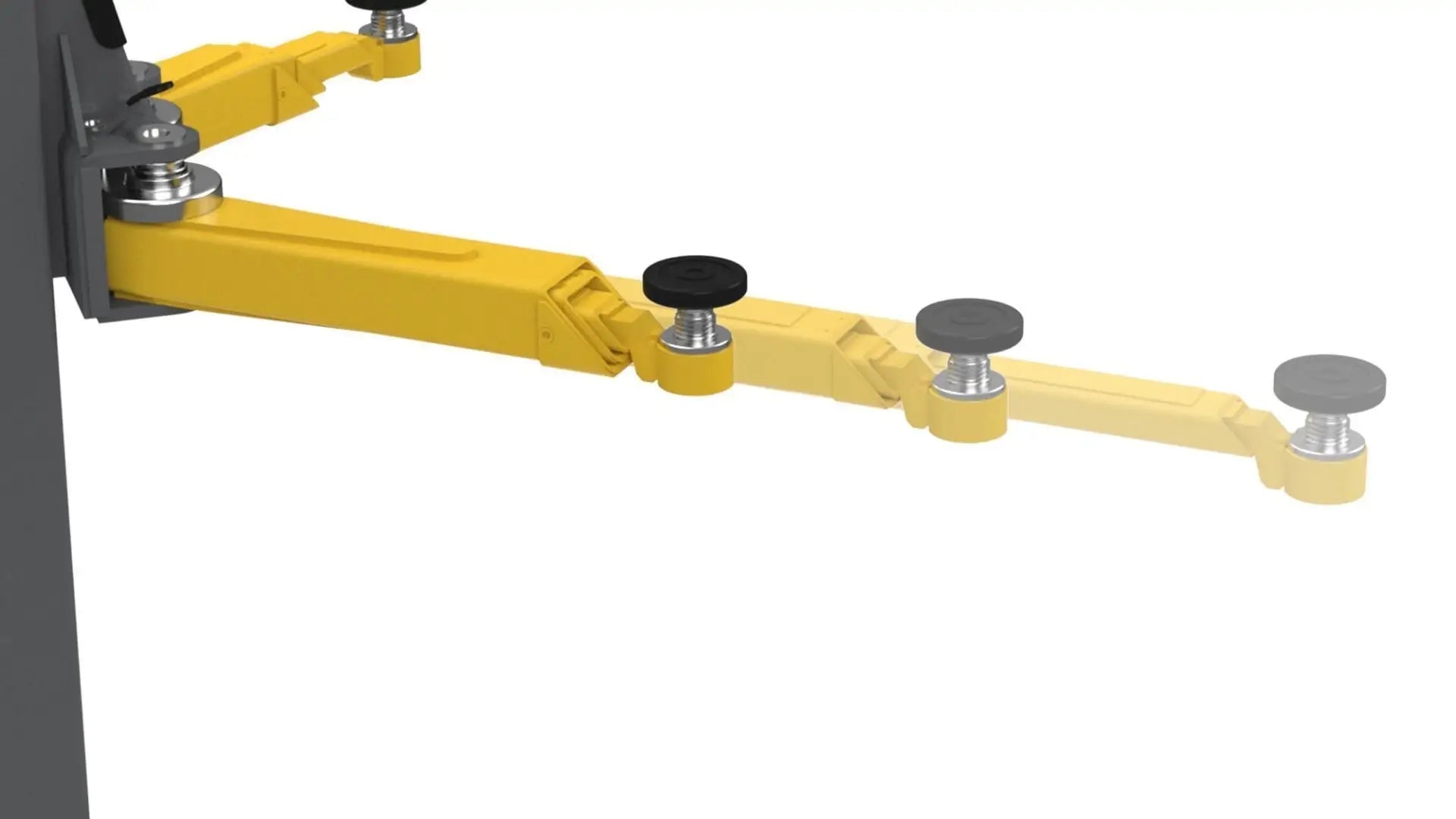

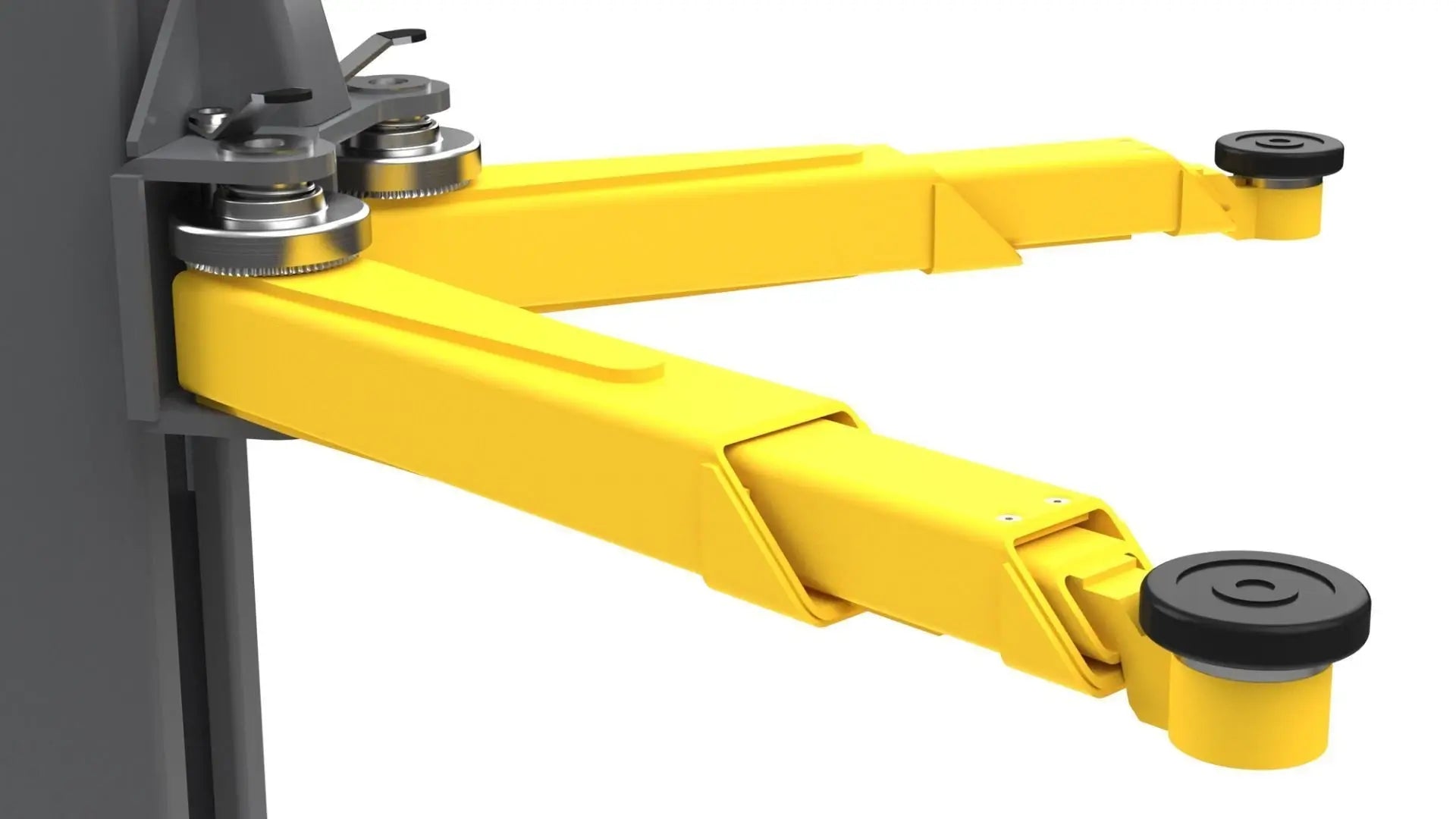

Bi-Metric Triple-Telescoping Arms for Symmetric and Asymmetric Loading
The Bi-Metric arm system provides triple-telescoping reach from 33" to 50" (838-1,270 mm) with tool-free conversion between symmetric and asymmetric positioning configurations. Each arm extends through three stages to accommodate vehicles from compact hatchbacks through extended-cab pickups, while the Low-Pro design maximizes clearance for low-slung performance cars.
Most shops struggle with mixed vehicle fleets that require both centered truck loading and rear-biased car positioning. Traditional lifts lock you into one configuration or require time-consuming hardware swaps between different vehicle types, causing workflow delays and limiting bay flexibility.
This eliminates the need for separate lift configurations or multiple lift installations for different vehicle classes. Technicians can switch from symmetric truck positioning to asymmetric car setup in 2 minutes using pull pins and slide adjustments, maximizing bay utilization and reducing vehicle throughput delays.
Direct-Drive Dual Hydraulic System for Rapid Rise Performance
Dual direct-drive electric/hydraulic HVLP units provide 45-second rise time to full lift height with 220 VAC single-phase power requirements. Each column operates its own hydraulic pump system, eliminating lifting chains, cables, and sheave mechanisms that require regular tensioning and maintenance in conventional chain-drive systems.
Chain-driven lifts experience synchronization issues, cable stretch, and require monthly tension adjustments plus sheave lubrication every 90 days. These maintenance requirements increase downtime and labor costs while reducing lifting consistency as components wear or stretch over time.
This reduces long-term maintenance requirements and provides more consistent lifting performance throughout the lift's service life. The direct-drive configuration eliminates cable tensioning schedules and sheave service while delivering faster, more reliable rise cycles that improve shop productivity during high-volume periods.

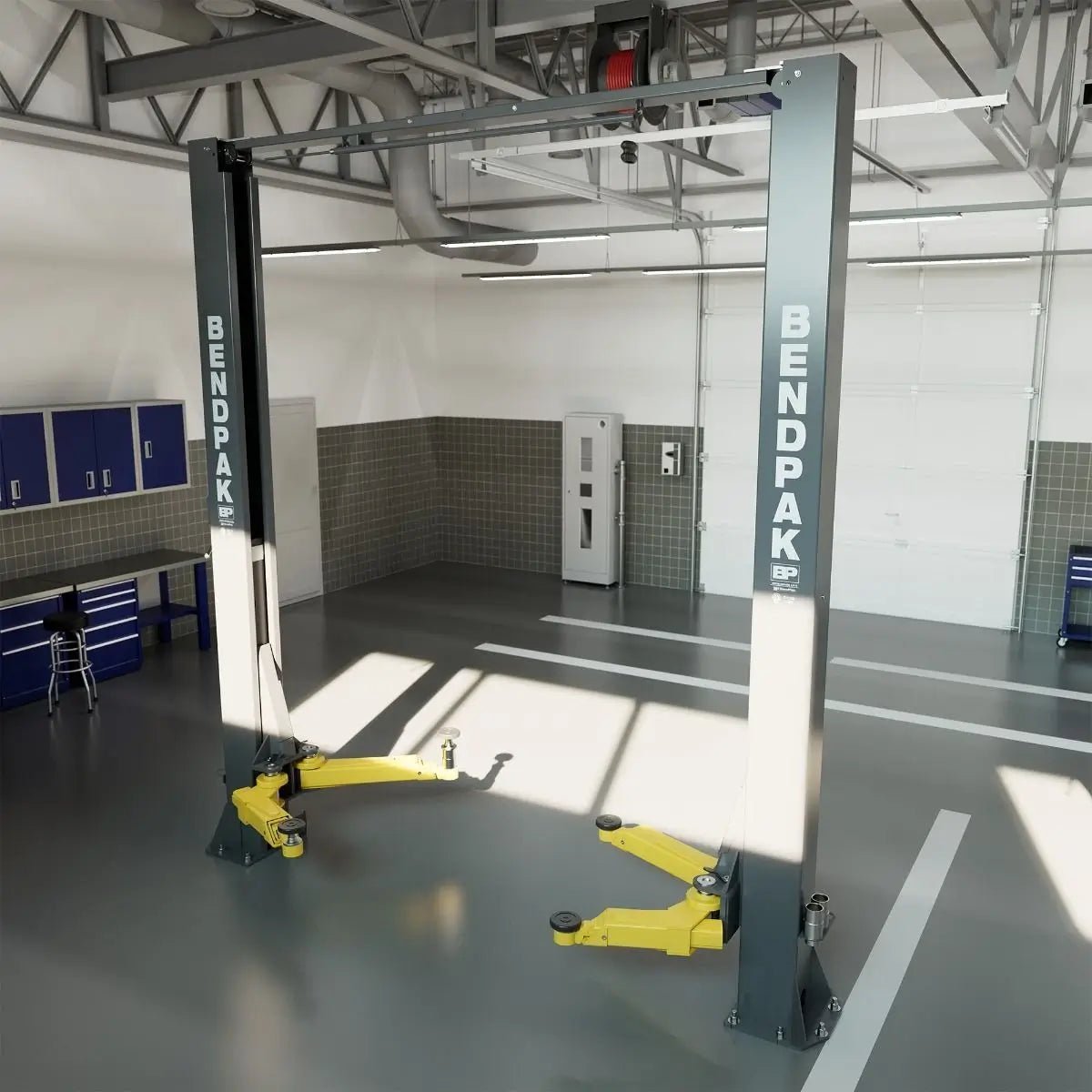

Adjustable-Width Clearfloor Design with Installation Flexibility
The field-adjustable width top beam accommodates 135" or 145" column spacing (3,429 or 3,683 mm) with positive locking pins at each setting, while the clearfloor design eliminates floor obstructions between columns. This configuration allows post-installation width changes to match evolving bay layouts or vehicle mix requirements without reinstallation.
Fixed-width installations lock shops into single bay configurations that become problematic when vehicle mix changes or facility layouts evolve. Floor-mounted crossbeams and non-adjustable column spacing limit future flexibility and can interfere with transmission jacks, creepers, or undercarriage access during service operations.
This enables bay reconfiguration as business needs change without requiring new lift installations or facility modifications. The clearfloor design provides unobstructed drive-through access for lowered vehicles and ground-effects packages while maintaining full undercarriage access from bumper to bumper during service work.
ALI Certification with Multi-Position Safety Lock System
ALI/ETL certification validates 10,000 lb rated capacity through independent third-party testing for structural integrity, load performance, and safety system function. The ladder-style lock system provides safety engagement positions every 3 inches with single-point manual release, meeting ANSI/ACLA standards for commercial automotive service applications.
Non-certified lifts lack third-party validation and may not meet insurance requirements or liability protection standards required for commercial operations. Generic lock systems often provide fewer engagement positions and less precise height control, creating safety gaps during partial-lift service operations.
This provides the regulatory compliance and liability protection expected by commercial customers and insurance providers. The multi-position lock system enables precise height positioning for different service operations while maintaining automatic safety engagement during rise cycles and manual control during lowering procedures.
Product Demonstration
Applications & Use Cases
- Professional Auto Repair Shops: Mixed passenger car and light truck service for brake work, transmission service, and engine maintenance up to 10,000 lb capacity
- Automotive Dealership Service Departments: Warranty service, maintenance, and repair operations for diverse vehicle fleets including electric vehicles and high-roof commercial vans
- Fleet Maintenance Facilities: Commercial and municipal fleet service for delivery trucks, service vehicles, and specialty equipment requiring symmetric or asymmetric positioning
- Advanced Home Garages: Enthusiast and collector vehicle maintenance requiring commercial-grade lifting capacity and professional safety systems
- Electric Vehicle Service: EV-ready design accommodates battery pack configurations and specialized lifting points for hybrid and electric powertrains
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Overall Height (Standard 10AP) | 145" (3,683 mm) |
| Max Lifting Height | 72.25" (1,835 mm) |
| Rise Time | ~45 seconds |
| Arm Reach (Telescoping) | 33"-50" (838-1,270 mm) |
| Safety Lock Positions | Multiple positions every 3" |
| Specification | Value |
|---|---|
| Power Requirements | 220 VAC, 60 Hz, single-phase |
| Drive System | Dual direct-drive hydraulic |
| Overall Width Options | 135" or 145" adjustable |
| Arm Configuration | Bi-Metric triple-telescoping |
| Safety System | ASARS automatic restraint |
| Certification | ALI/ETL certified |
Installation Requirements
Foundation Requirements
- Concrete Strength (Existing): 3,000 psi minimum compressive strength
- Concrete Strength (New): 4,000 psi minimum compressive strength
- Concrete Thickness: 4.25" (108 mm) minimum thickness
- Concrete Cure Time: 28 days minimum for new slabs before drilling anchor holes
- Foundation Condition: No expansion seams, cracks, or structural defects in anchor zones
Power Requirements
- Supply Voltage: 220 VAC, 60 Hz, single-phase dedicated circuit
- Recommended Breaker: 20 Amp single-pole breaker minimum
- Wire Gauge (under 100 ft): 12 AWG copper minimum
- Wire Gauge (over 100 ft): 10 AWG copper minimum
- Disconnect Switch: NEMA 3R disconnect within sight of lift per NEC requirements
Clearance Requirements
- Ceiling Height (Standard 10AP): 145" (3,683 mm) + 6-12" clearance for obstructions
- Ceiling Height (10AP-168): 168" (4,267 mm) + 6-12" clearance
- Overhead Safety Switch Position: 139.25" (3,537 mm) from floor
- Bay Width: Adequate clearance for selected column spacing plus vehicle approach zones
Installation Notes
- Professional Installation: Required for warranty validation and ALI certification compliance
- Unloading Equipment: Forklift rated for 2,500 lb minimum capacity required for positioning
- Installation Time: 6-8 hours for first-time installers, 4-5 hours for experienced technicians
- Permits: Verify local code compliance and permit requirements before installation
Model Comparison
| BendPak 10AP | 10,000 lb; max lifting height ~82.5"; adaptable clearfloor 2-post with adjustable-width top beam (narrow or wide bay) | Dual direct-drive hydraulic cylinders; 220 VAC, 60 Hz, single-phase electric-hydraulic system; ~45 s time to full rise | Bi-Metric arms allow symmetric or asymmetric loading without changing hardware; triple-telescoping low-profile arms improve reach on compact cars and trucks; automatic arm restraints and single-point safety lock release; ALI certified |
|---|---|---|---|
| Rotary SPOA10 (Shockwave-equipped) | 10,000 lb asymmetric 2-post surface lift; clearfloor overhead design; multiple arm / adapter packages (standard 2-stage or 3-stage arms) | Standard AC power: 2 HP, 208–230 V motor with ~45 s rise; Shockwave DC power option with onboard 110 V charger cuts rise time to ~25 s and descent to ~19 s | AV (All-Vehicle) arm options designed to accommodate EVs, low-profile exotics, unibody cars and light trucks on one lift; 3-stage low-profile arms improve spotting; ALI Gold Certified and performance-tested to 20,000 cycles |
| Challenger CL10AV3-QC (QuickCycle) | 10,000 lb Versymmetric 2-post lift; adjustable width (multiple inside-column and drive-through clearances) and adjustable column height options | QuickCycle configuration: ~27 s rise / 17 s lower; 3 HP, 208–230 V, 60 Hz, single-phase motor. Standard versions use 2 HP motor with ~38 s rise | Versymmetric offset front arms allow both symmetric and asymmetric lifting in the same bay; 3-stage front and 3-stage rear arms with directSPOT design for faster first-try spotting; padded overhead shutoff and ALI/ETL certification |
Choose the BendPak 10AP when mixed-fleet versatility, modern safety systems, and a configurable clearfloor bay are the priority. It outperforms alternatives by combining direct-drive lifting, adjustable-width overhead design, and Bi-Metric arms, making it the best fit for professional shops that frequently switch between cars, SUVs, and light trucks while keeping one lift flexible enough for symmetric or asymmetric work.
Shipping & Delivery
Freight Coverage
Shipping: Free shipping to all direct shipping points located within the 48 contiguous United States when delivered to commercial addresses with forklift or loading dock access.
Delivery Timeframe: Contact for current delivery estimates based on inventory availability and destination.
Preferred Carrier Surcharge: Additional 5% freight surcharge applies if specific carrier is requested instead of designated shipper.
Delivery Requirements
Unloading Equipment: Forklift rated for 2,500 lb minimum capacity required for largest crate/pallet positioning into final location.
Residential Delivery: Liftgate service required for residential addresses at additional $200-300 surcharge. Driver will lower crate to ground level at curb only.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
5-2-1 Warranty Program
5 Years - Structural Components: Main columns, base plates, crossbeams, and structural welds covered for manufacturing defects affecting structural integrity or rated load capacity
2 Years - Hydraulic Components: Hydraulic cylinders, pump assemblies, and power unit components - exceeds typical 1-year hydraulic coverage in the industry
1 Year - Operating Components: Mechanical operating components including lift arms, locking mechanisms, carriage assemblies, and Bi-Metric adjustment hardware
Warranty Requirements
Installation: Professional installation required following manufacturer installation manual for warranty validation and ALI certification compliance
Foundation: Installation must be performed on concrete meeting specified 3,000 psi minimum compressive strength
Operation: Operation within rated 10,000 lb load limit and proper hydraulic fluid maintenance required for coverage
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the BendPak 10AP installation requirements, ceiling clearance verification, and Bi-Metric arm system configuration for your facility. Our team can help confirm concrete specifications and electrical requirements.
Frequently Asked Questions
What is the difference between the BendPak 10AP and 10APX models?
The standard BendPak 10AP has an overall height of 145" (3,683 mm) from floor to top of columns, while the 10APX extended-height variant is 157" (3,988 mm) tall. Both models have the same 10,000 lb lifting capacity, rise time, Bi-Metric arm system, and field-adjustable width top beam. Choose the 10APX if you need extra vertical reach for taller vehicles or if your shop has ceilings above 13 ft.
How quickly can I switch the BendPak 10AP between symmetric and asymmetric configurations?
The Bi-Metric arm system lets you reposition the lift arms in 2 minutes without tools. Release the locking pins, slide the arms along the column carriages to the new symmetric or asymmetric position, and re-engage the pins. The entire adjustment can be done between vehicle lifts without removing bolts or swapping arm assemblies.
What are the BendPak 10AP concrete foundation requirements?
Pre-existing concrete requires a minimum compressive strength of 3,000 psi and at least 4.25" (108 mm) thickness. New concrete slabs must be 4,000 psi minimum and cured for at least 28 days before drilling anchor bolt holes. The concrete cannot have expansion seams, cracks, or structural defects in the anchor zones.
What ceiling height do I need for the standard BendPak 10AP?
The standard BendPak 10AP requires 145" (3,683 mm) from floor to ceiling for the columns themselves, which fits most shops with 12 ft ceilings. Add 6-12" clearance for any ductwork, lighting fixtures, or ceiling obstructions. The overhead safety switch sits at 139.25" (3,537 mm), so that's your absolute minimum if you have a perfectly clear ceiling.
What are the electrical requirements for the BendPak 10AP?
The BendPak 10AP requires 220 VAC single-phase at 60 Hz with a dedicated 20 Amp single-pole breaker. Use 12 AWG copper wire for runs under 100 ft, or upgrade to 10 AWG for longer distances. Install a NEMA 3R disconnect switch within sight of the lift per NEC requirements.
Can the BendPak 10AP width be adjusted after installation?
Yes, the top beam is field-adjustable after initial installation to accommodate different bay widths and vehicle types. The width adjustment uses positive locking pins at each setting rather than friction clamps, so the beam stays securely locked even under full 10,000 lb hydraulic pressure. You can change the width configuration as your shop's needs evolve without calling an installation crew back.
What does ALI certification mean for the BendPak 10AP?
ALI (Automotive Lift Institute) certification confirms the BendPak 10AP meets North American industry standards for structural integrity, rated load testing, and safety lock system function. The lift passed third-party testing for its 10,000 lb capacity rating, lock mechanism reliability, and structural design compliance with ANSI/ALI ALCTV safety standards. This certification is often required for insurance coverage and liability protection in commercial shops.
Does the BendPak 10AP qualify for free shipping?
Most BendPak products including the 10AP qualify for free shipping to direct shipping points in the 48 contiguous United States when delivered to a commercial address with forklift or loading dock access. Residential addresses require liftgate service for an additional $200-300 surcharge. If you request a preferred freight carrier instead of the designated shipper, you'll pay an additional 5% freight surcharge.
