A/C Service - Robinair Vacumaster Vacuum Pump (3 CFM)

ROBIN AIR ROB-15300 VACUMASTER VACUUM PUMP (3 CFM)

Q: How does this compare to single-stage vacuum pumps?

The ROB-15300 two-stage design reaches 35 microns, while single-stage pumps typically achieve 115 microns or higher. This enables more complete moisture removal, faster evacuation on larger residential units, and better protection against compressor damage from residual moisture. The second stage maintains efficiency at lower pressures for improved deep-vacuum performance.

Q: What size AC systems can this pump handle?

This 3 CFM pump is specifically designed for residential air conditioning systems up to 30 tons capacity along with panel truck and RV refrigeration units. The high displacement rate makes it ideal for most residential and light commercial HVAC applications. For smaller systems under 10 tons, a 1.5 CFM pump might suffice, but the extra capacity ensures faster service calls.

Q: What maintenance does this vacuum pump require?

Regular oil changes are the primary maintenance requirement using the convenient angled drain valve for complete drainage and the sight glass for accurate level checking. Clean the intake screen periodically to prevent debris from entering the pumping chamber. Replace the internal exhaust filter as needed to maintain proper oil vapor separation and extend pump life through clean operation.

Q: Can this pump work with different refrigerant types?

Yes, the ROB-15300 is engineered for multi-refrigerant compatibility including CFCs, HCFCs, and HFCs when used with mineral oil, ester oil, alkyl benzene oil, and PAG oil lubricants. However, it cannot be used with ammonia-based systems or lithium bromide applications. It is also not suitable for A4L or other flammable refrigerants due to safety restrictions and pump design limitations.

$235.00 $285.00

Product variants

4 interest-free payments or as low as $20/mo with Affirm.

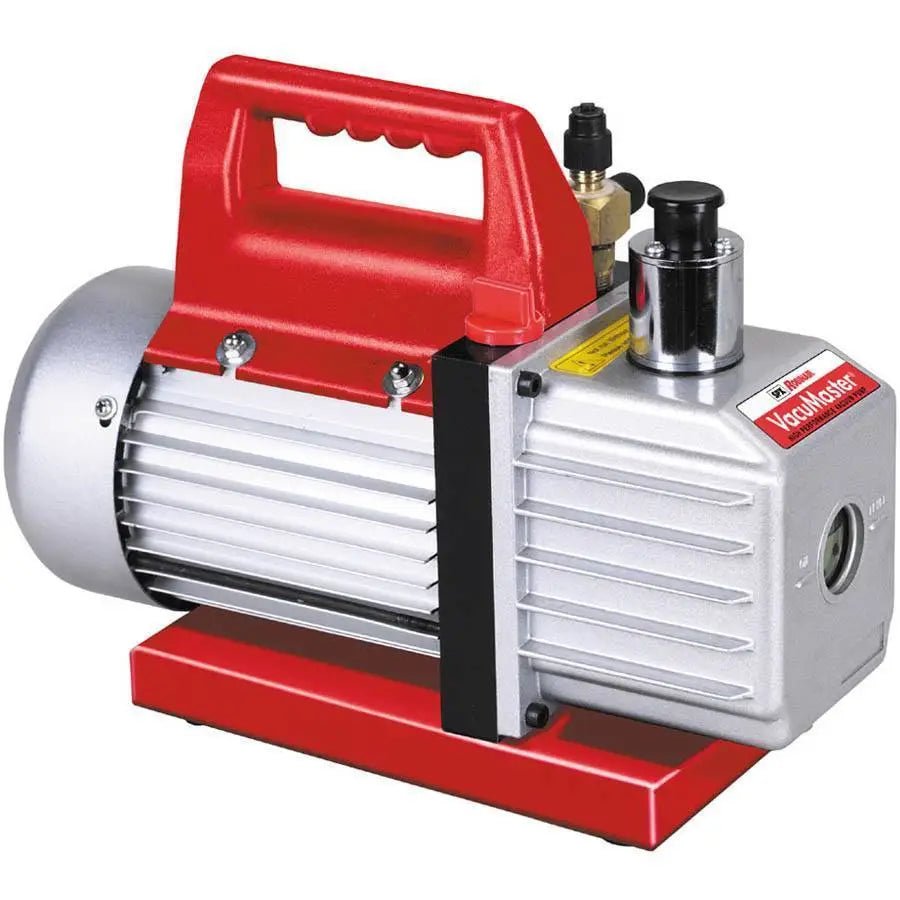

Robin Air VacuMaster 3 CFM two-stage vacuum pump with aluminum housing and brass fittings

Professional HVAC Performance - Robin Air VacuMaster Vacuum Pump (ROB-15300, 3 CFM)

Two-Stage Rotary Vane Design for Fast AC System Evacuation

The Robin Air VacuMaster ROB-15300 is a professional-grade vacuum pump engineered for air conditioning and refrigeration service. This 3 CFM two-stage pump delivers powerful vacuum capability down to 35 microns, making it the reliable choice for HVAC technicians who need thorough moisture removal and reduced evacuation time on residential AC systems up to 30 tons.

Key Performance Features

Fast System Evacuation - Two-stage rotary vane design pulls deeper vacuum faster than single-stage pumps, achieving 35 micron rating with 3 CFM displacement for thorough moisture removal from AC systems.

Professional Durability - Cast aluminum body withstands jobsite conditions while keeping weight low at 28 lbs, with sealed bearing motor for reliable startup and efficient operation across temperature ranges.

Complete Filtration System - Built-in intake screen prevents debris from entering the pumping chamber, while internal exhaust filter separates oil vapor for cleaner operation and longer pump life.

Ideal Applications

Perfect for HVAC professionals working on:

Residential air conditioning systems up to 30 tons (105 kW).
Panel truck and RV refrigeration units.
Commercial refrigeration service and maintenance.
Systems using CFCs, HCFCs, and HFCs with mineral, ester, alkyl benzene, or PAG oils.
Field service calls requiring portable, reliable vacuum performance.

ROB-15300 Technical Specifications

VacuMaster 15300 Specifications
Specification	Value
Free Air Displacement	3 CFM
Factory Micron Rating	35 microns
Pump Stages	2-stage rotary vane
Motor Size	1/3 HP
Voltage	115V 60Hz
Weight	28 lbs
Dimensions	10 x 5 x 13 in
Oil Capacity	7.5 oz (220 ml)
Intake Fittings	1/4" MFL, 3/8" MFL, 3/8" FFL x 1/2" ACME adapter
Cord Length	6 ft
Approvals	CSA Certified

Get Professional HVAC Vacuum Performance

The Robin Air VacuMaster delivers the reliability and power HVAC technicians trust for thorough system evacuation. With two-stage performance and durable construction, this vacuum pump handles demanding service calls with confidence.

Order your ROB-15300 VacuMaster vacuum pump today for faster, more complete AC system service.

Frequently Asked Questions

How does this compare to single-stage vacuum pumps?

The ROB-15300's two-stage design pulls deeper vacuum (35 microns vs 115+ microns) and removes moisture more completely than single-stage pumps, reducing evacuation time on larger systems.

What size AC systems can this pump handle?

This 3 CFM pump is designed for residential AC systems up to 30 tons (105 kW), panel trucks, and RV units. It's ideal for most residential and light commercial applications.

What maintenance does this vacuum pump require?

Regular oil changes using the angled drain valve and sight glass for level checking. The intake screen should be cleaned periodically to prevent debris buildup in the pumping chamber.

Can this pump work with different refrigerant types?

Yes, it's designed for systems using CFCs, HCFCs, and HFCs with mineral oil, ester oil, alkyl benzene oil, and PAG oil lubricants. Not for ammonia or flammable refrigerants.
