Triumph USA8000XLT, 8,000 lb Four Post Lift Extra Long and Tall

Triumph USA8000XLT, 8,000 lb Four Post Lift Extra Long and Tall

Triumph

SKU: USA8000XLT

$4,799.00

Product variants

Select Delivery Method

Select an option to activate Add to Cart

$ Save 2% with ACH / Wire Payment. Call for details

Financing options available

Financing estimates are based on the product price; selected add-ons and delivery services are excluded.

Talk to a lift specialistExpert product and freight support before you order855-498-2147

Authorized Triumph Dealer
Manufacturer Warrantyincluded with purchase
Price Match Guaranteefind it lower and we will beat it
No Sales Tax Collected Outside PAPA orders include sales tax

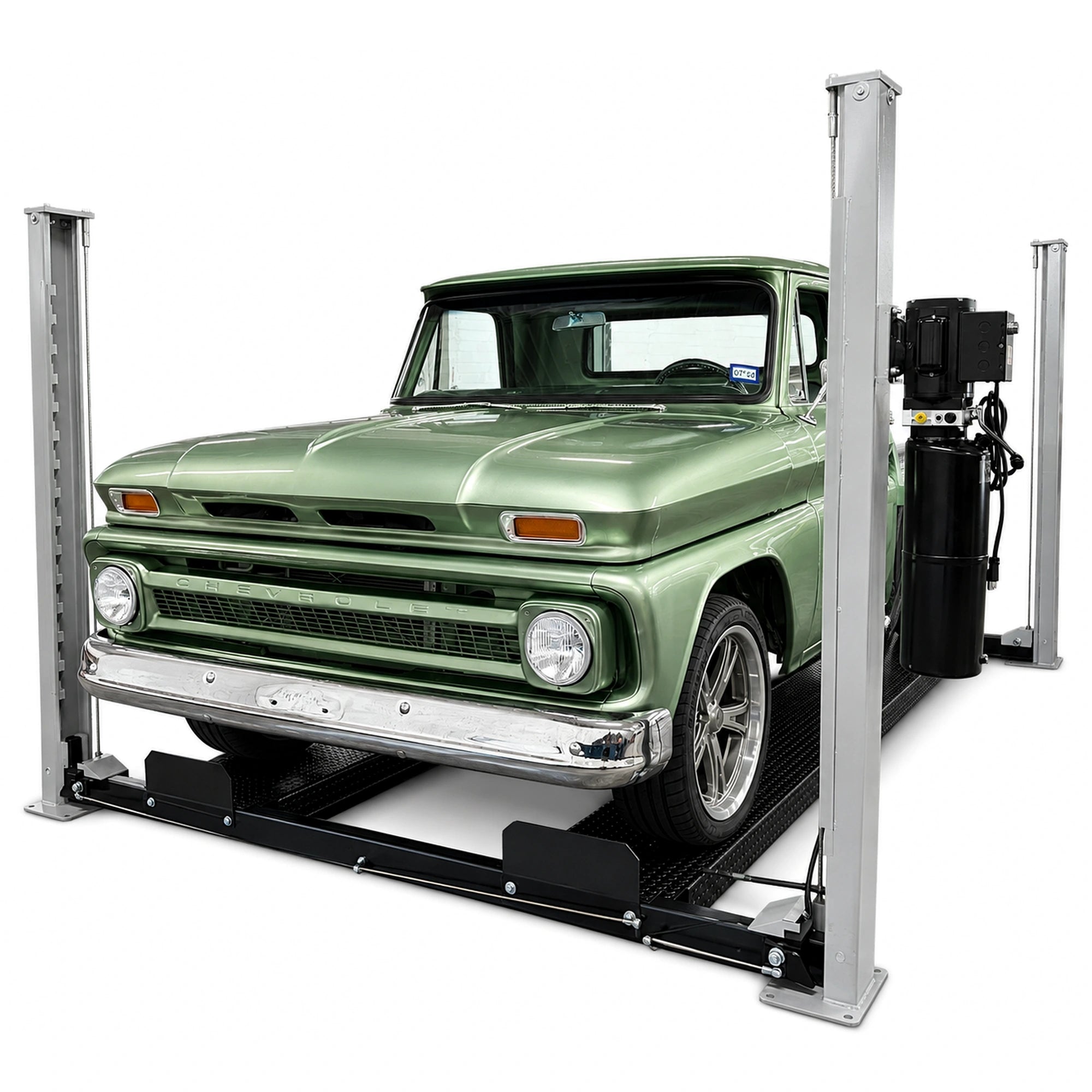

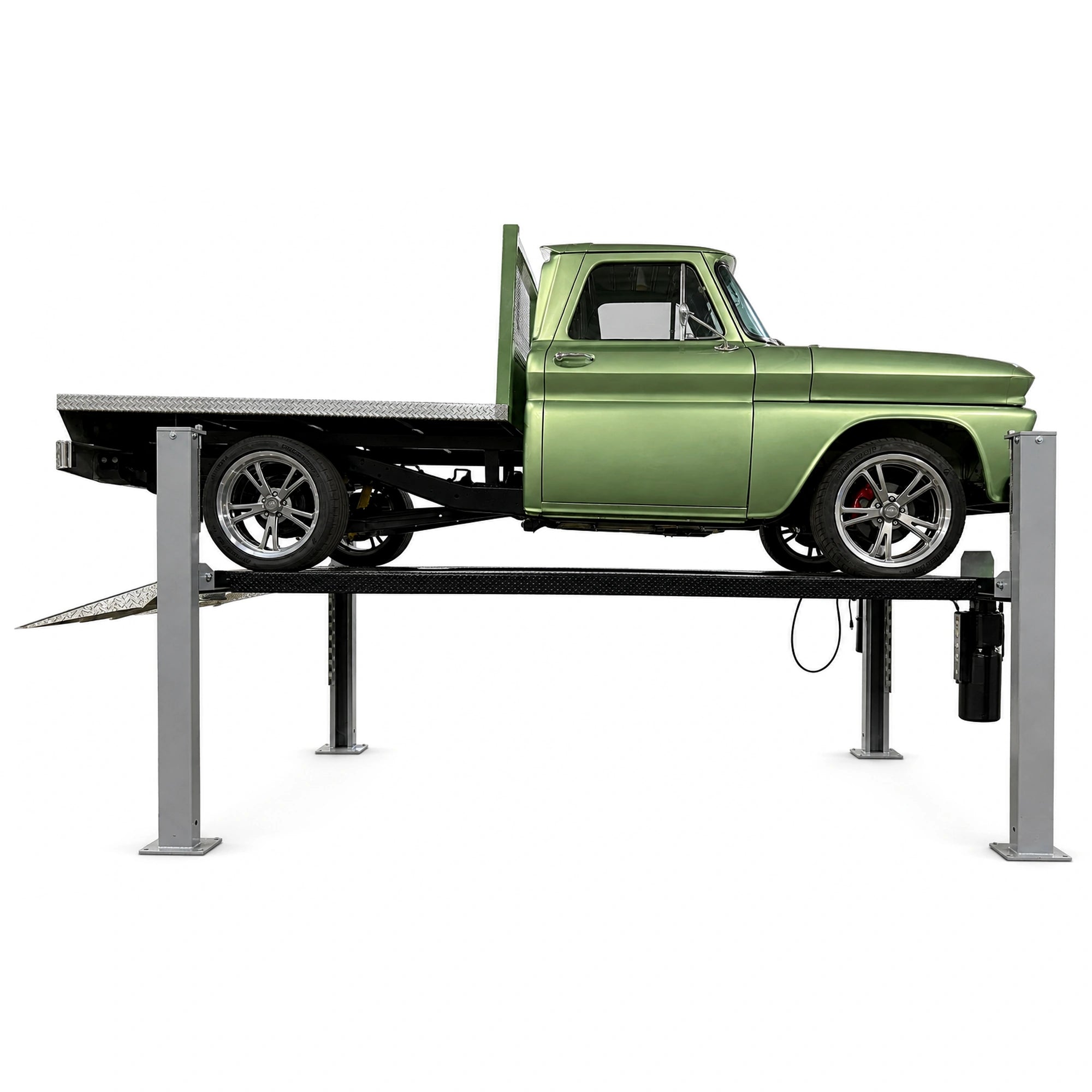

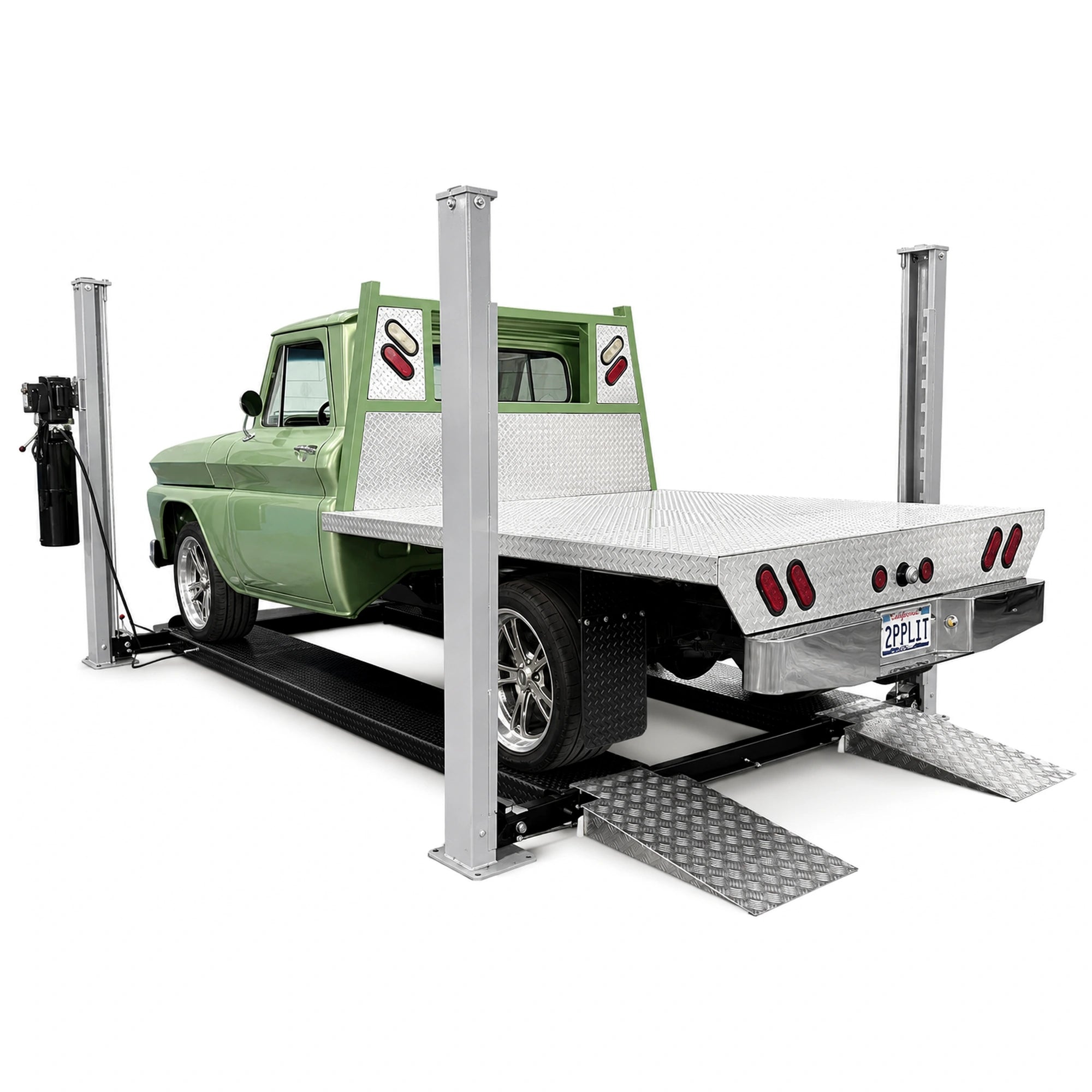

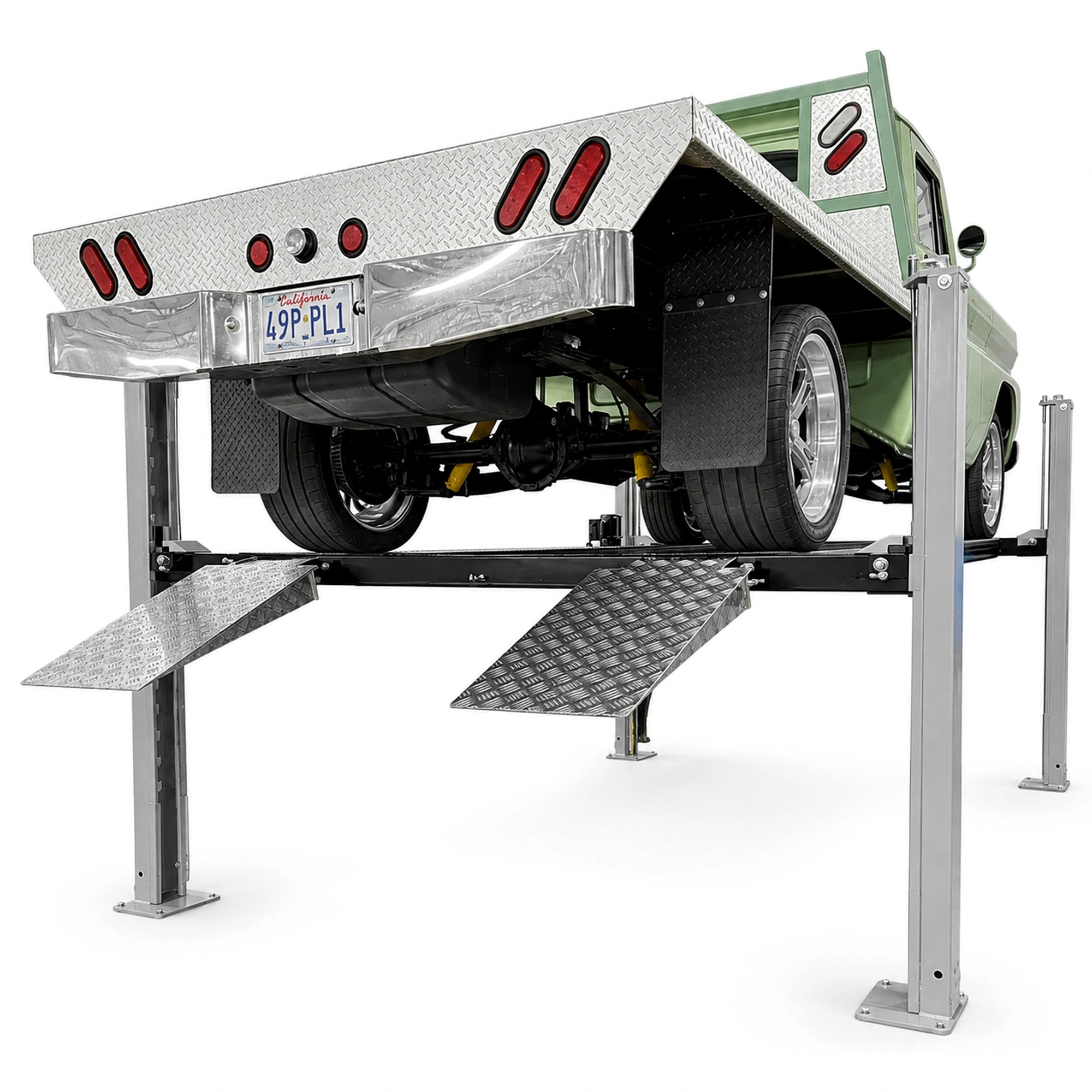

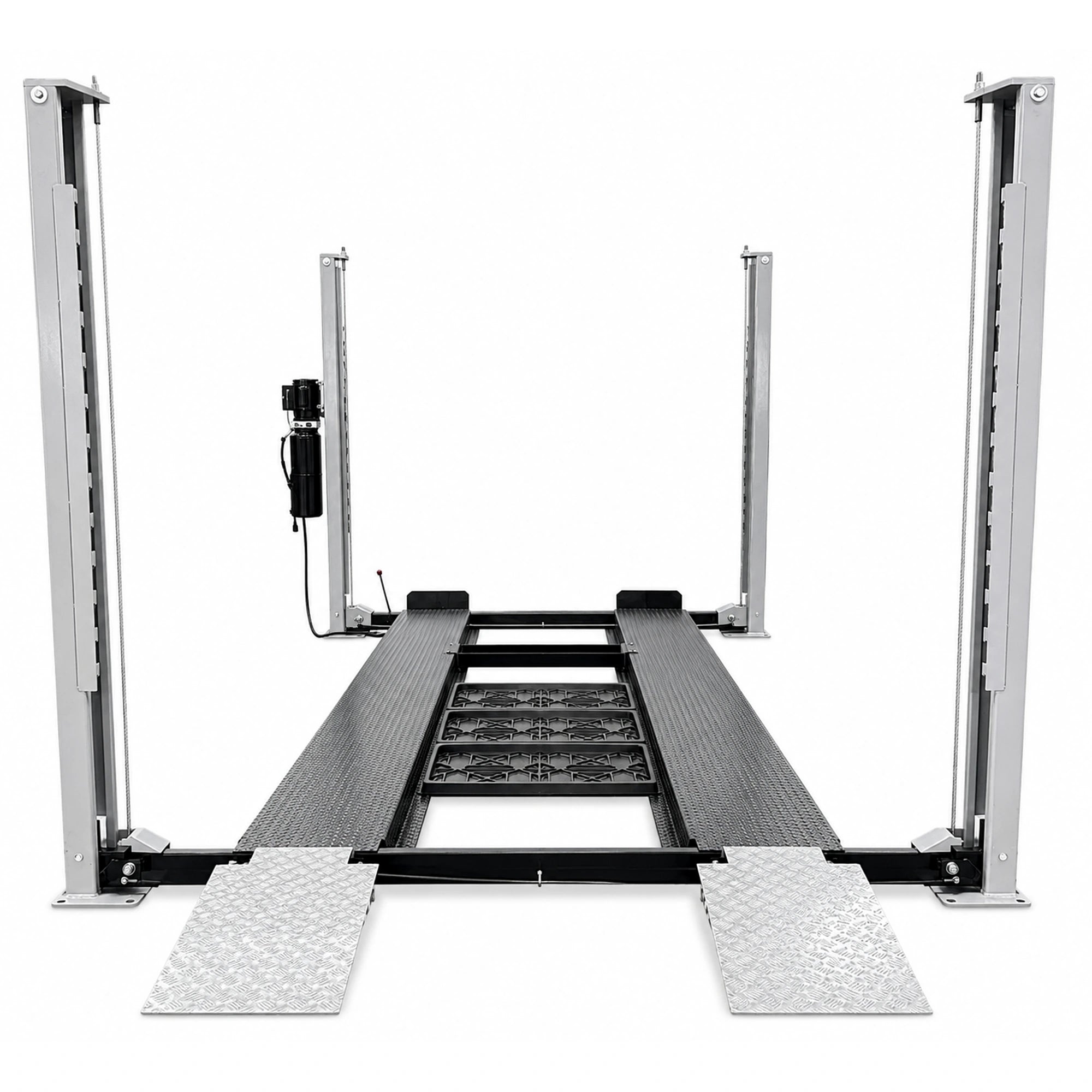

The Triumph USA8000XLT is an 8,000 lb four post lift built with extra length and extra height, which makes room for longer wheelbases and taller vehicles that will not fit a standard four post frame. It is manufactured in the USA.

Delivery and receiving

Freight to the lower 48 is a flat 200 dollars, calculated at checkout so there is no surprise after the order.

This unit ships by LTL freight and requires a forklift at delivery. The driver brings it to the curb, unloading is on the receiving end.

Questions before you order

Full specifications, install requirements and lead time are worth confirming for your bay before you buy. Call or message us and we will go through it with you.

Features

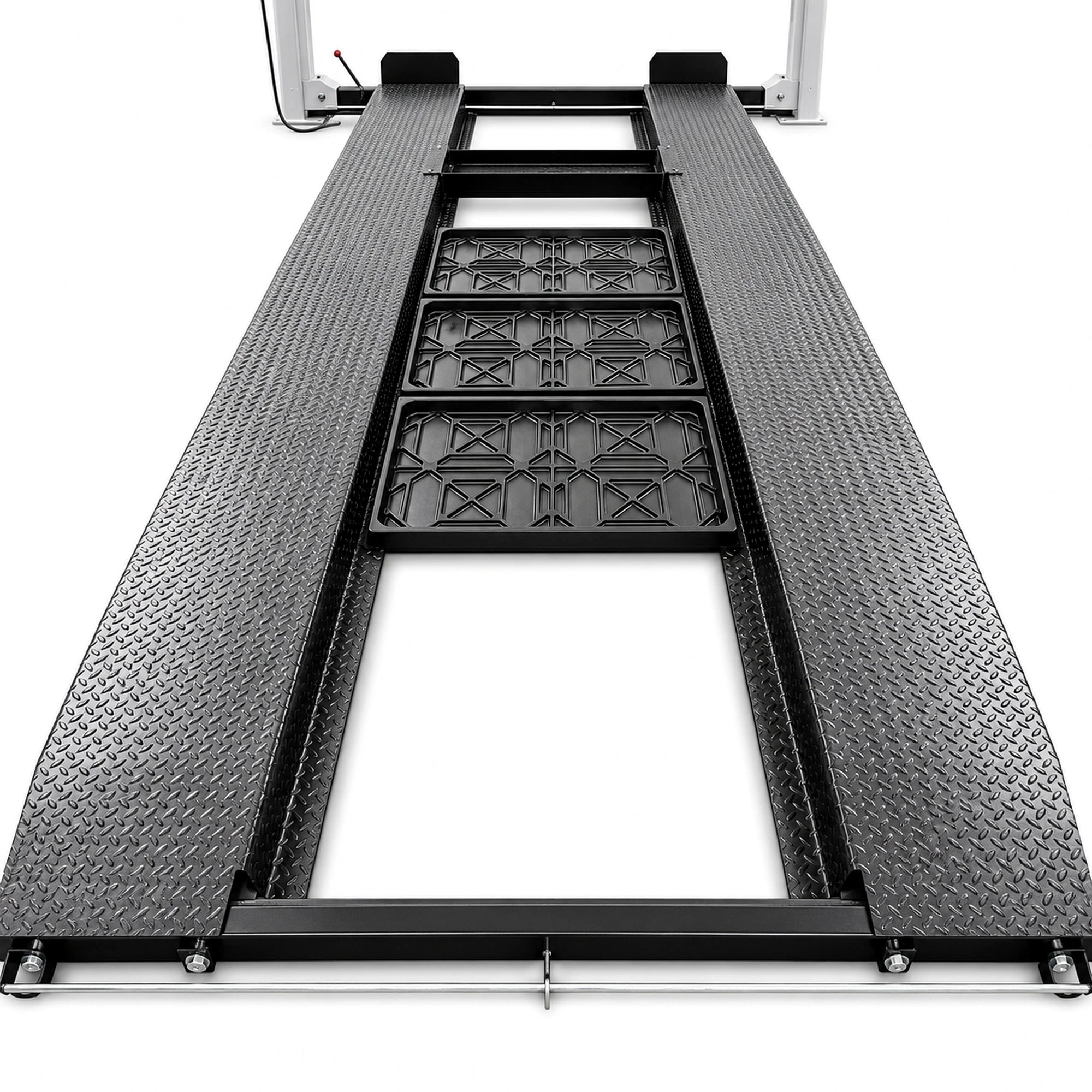

Drive-On Runways

The vehicle loads onto runways for storage or service.

Bay Planning

Footprint, clearances, power, and vehicle dimensions are checked together.

Pre-Order Site Review

Concrete, unloading, and installation requirements are confirmed before shipment.

Specifications

Product Identity
Model / Package	USA8000XLT
Product Type	Four-Post Vehicle Lift

Specifications
Rated Capacity	8,000 lb
Overall Height	90 in
Overall Length Without Ramps	190 in
Overall Length With Ramps	222 in
Overall Width	112 in
Lift Height	83 in
Runway Length	180 in
Drive-Through Width	102.5 in
Power	110V, 3 HP

Shipping & Delivery

Freight shipping within the lower 48 states; the delivery charge for your address is shown at checkout.

You are responsible for unloading. Lifts and large machines require a forklift, tractor, or other heavy machinery; liftgate service is not available for them and the driver does not assist. If unloading isn't possible at your location, choose a warehouse pickup option where offered.

Inspect your order before signing the Bill of Lading. Note visible freight damage or shortages on the delivery receipt at delivery, and report a missing power unit or motor at delivery. Other missing or incorrect equipment must be reported within 14 days.

Warranty

Triumph equipment is covered by the manufacturer's 1 year parts warranty; labor is not covered. Support is handled by phone: we troubleshoot the issue with you, then ship the needed replacement part at no cost, with ground shipping on warranty parts covered by Garage Supply Guys.

Hydraulic cylinders carry a 30 day full warranty; after 30 days, a seal kit and instructions are provided. Rubber lifting pads are wear items and are not covered.
