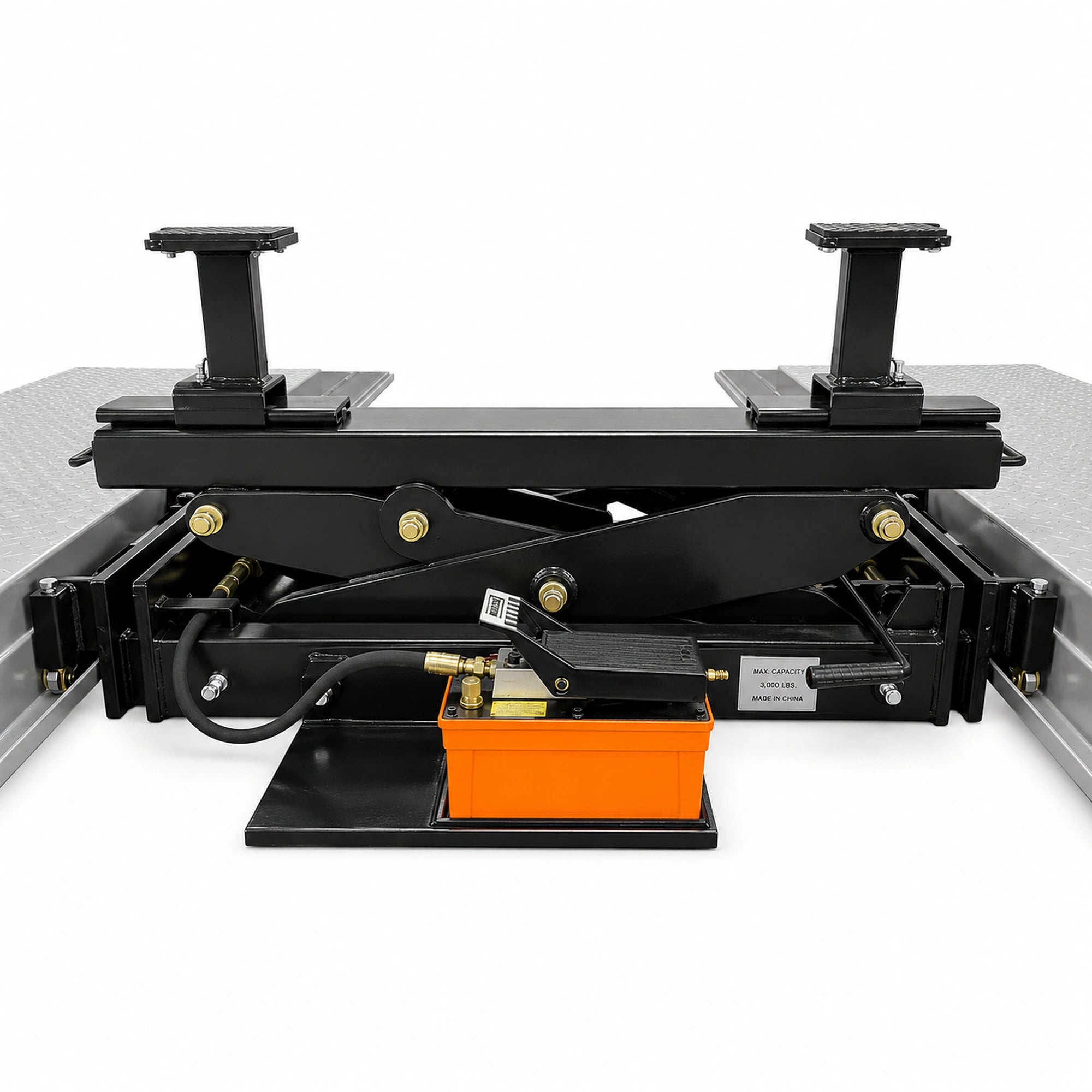

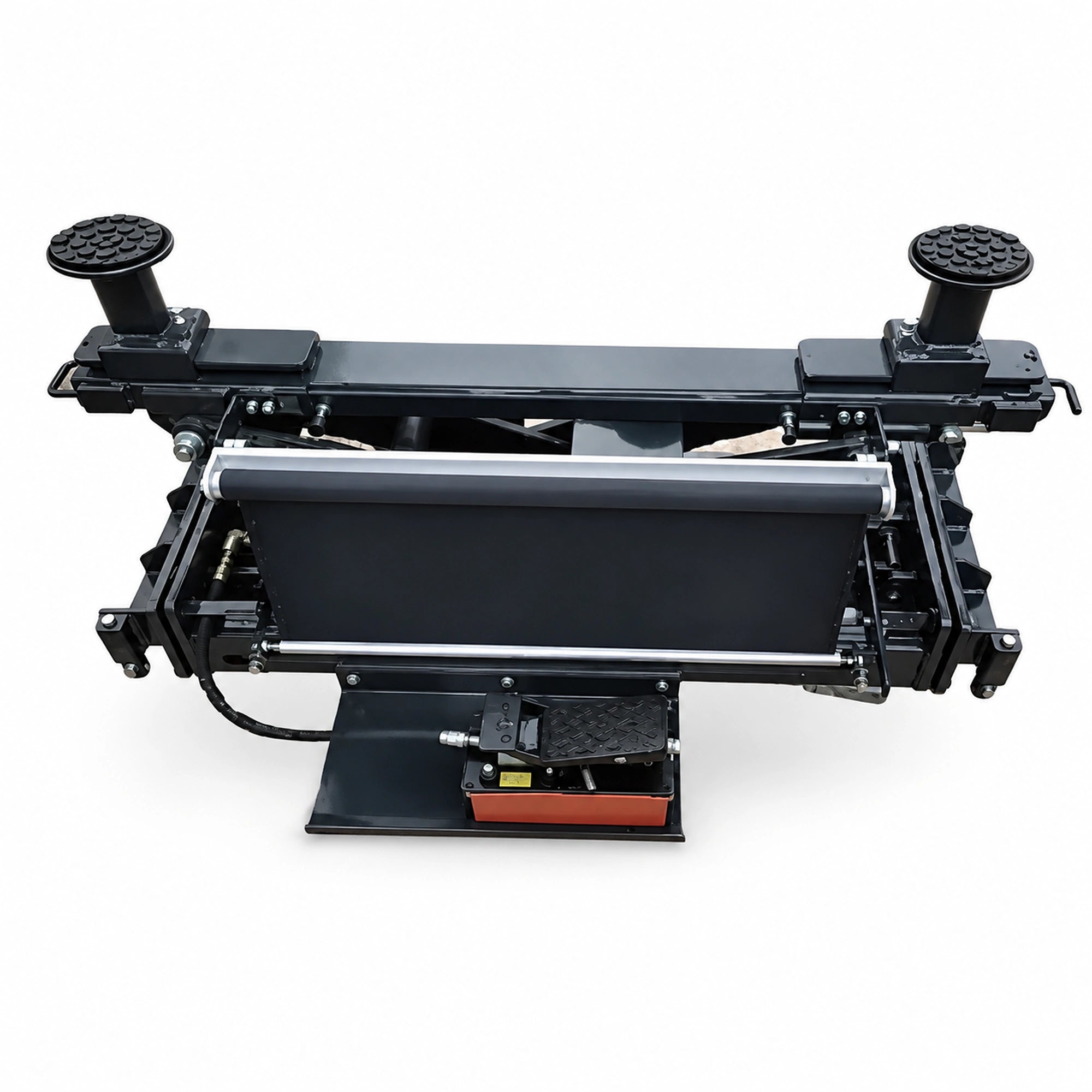

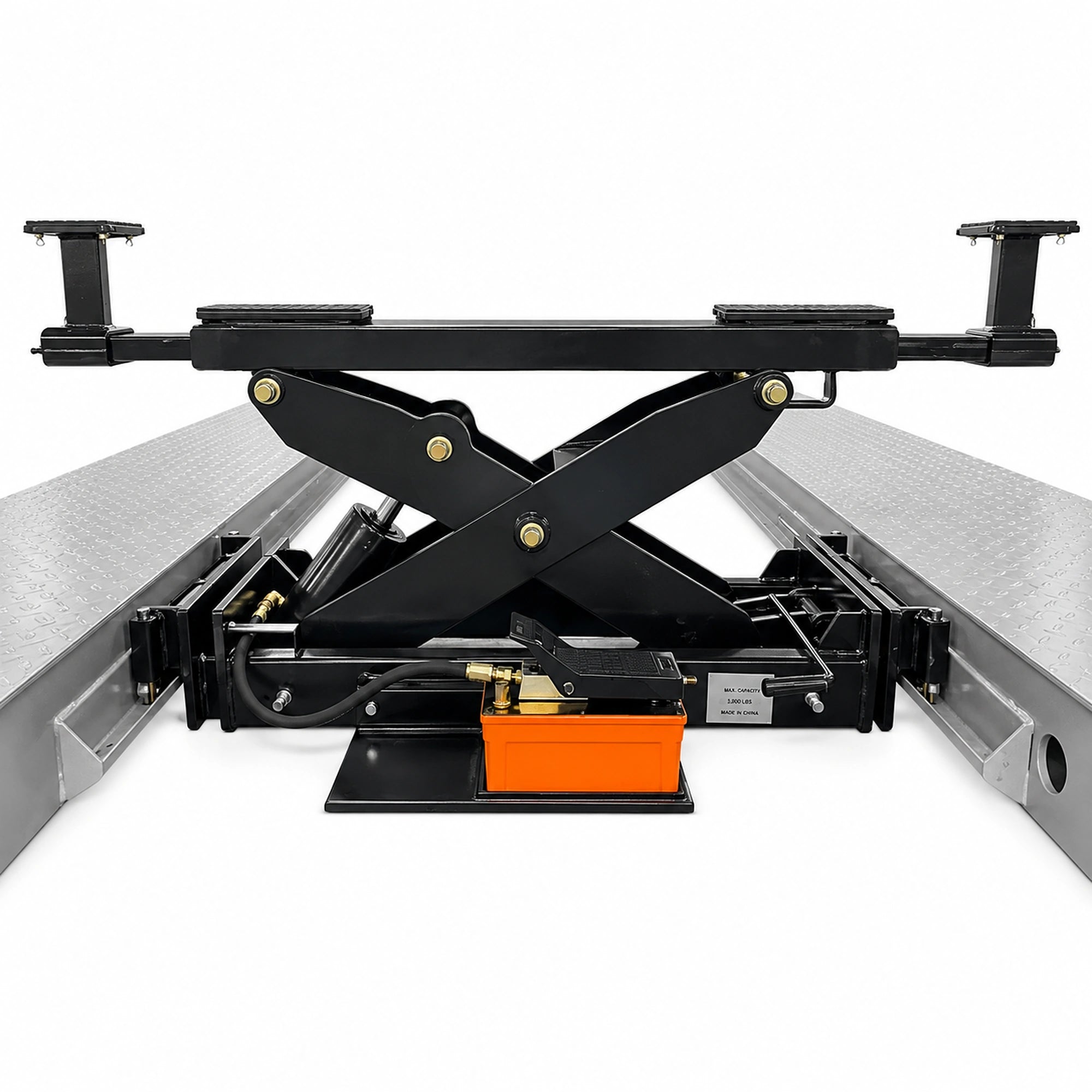

Triumph RJ-9000 Rolling Bridge Jack - 9,000 lb Capacity
Your four-post lift handles the heavy lifting, but the moment you need wheels off for brake work or suspension service, you're stuck. The Triumph RJ-9000 rolling bridge jack solves that problem. With a 9,000 lb lifting capacity, it slides along your lift runways and raises one end of the vehicle so you can pull wheels, service brakes, and access suspension components without ever moving the car off the lift.
The RJ-9000 runs on shop air alone, no electrical hookup required. Connect your compressed air line at 125 psi, step on the foot pedal, and you're lifting. Three lock positions let you set the height you need, and two sets of height adapters (1.5 in and 5 in) come included for working across different vehicle types. Pad width adjusts from 40.1 to 59.8 in, so you're covered whether you're under a compact car or a full-size truck.
Compatible with four-post lifts running runway widths between 43.8 and 52.3 in, including Triumph NTR-16 and NTR-24 models, the RJ-9000 fits into most existing shop setups without modification. Heavy-duty steel construction handles professional service environments where the jack sees daily use. When you're done, it rolls out of the way for storage. One purchase turns your four-post lift into a full wheels-free service station.
Specifications
| Lifting Capacity | 9,000 lb |
| Lowered Height | 16.9 in |
| Max Lifting Height | 32.4 in |
| Min Width Between Pads | 40.1 in |
| Max Width Between Pads | 59.8 in |
| Compatible Runway Width (Min) | 43.8 in |
| Compatible Runway Width (Max) | 52.3 in |
| Height Adapter Sets | 2 sets (1.5 in and 5 in) |
| Safety Lock Positions | 3 |
| Power Type | Air-Hydraulic |
| Air Pressure Required | 125 psi |
| Air Flow Required | 10 to 20 CFM |
| Control Method | Foot pedal |
| Shipping Weight | 600 lb |
| Shipping Dimensions | 48 in L x 28 in W x 16 in H |
What's Included
- RJ-9000 rolling bridge jack with hydraulic lifting system
- Air-hydraulic power unit with foot pedal control
- Steel contact pads for vehicle support
- Two sets of height adapters (1.5 in and 5 in)
- Shop air connection hose
- Owner's manual and safety documentation
Note: Shop air line and quick disconnect fittings are not included. These should be installed based on your shop's existing compressed air configuration.
Installation and Setup
Shop Air Requirements
You'll need a compressed air supply delivering 125 psi at 10 to 20 CFM. A dedicated air line to the jack gives you the best performance, though multiple RJ-9000 jacks can share a single shop air line using a split adapter. Install quick disconnects on the jack's air inlet so you can connect and store quickly between jobs.
Lift Compatibility
The RJ-9000 fits four-post lifts with runway widths between 43.8 and 52.3 in. It's fully compatible with Triumph NTR-16, NTR-24, and other Triumph four-post models, plus most lifts from other manufacturers within that runway width range. Keep runways clean and free of debris for smooth rolling operation.
Safety Guidelines
Only trained technicians should operate the jack. Always confirm the vehicle is stable on the main lift before engaging the rolling jack for wheels-free work. Engage a safety lock position any time the vehicle is suspended, and release hydraulic pressure before lowering so the locks bear the load. Have a second person present when suspending vehicle weight on the rolling jack.
Applications
Shops running four-post lifts for commercial fleet maintenance gain wheels-free access for brake, suspension, and wheel service without repositioning vehicles between stations.
Independent repair shops servicing heavy trucks and commercial vehicles get direct access to brake systems and suspension components for detailed service work.
Dealerships performing pre-delivery inspections and warranty work on truck and commercial vehicle brake and suspension systems benefit from fast, on-lift wheel removal.
Public works departments maintaining service vehicles and light commercial trucks use rolling jacks for comprehensive brake and suspension maintenance across their fleets.
Shipping
The RJ-9000 ships via LTL common carrier freight with free shipping to most continental U.S. locations. Transit time typically ranges from 3 to 14 days depending on your location. Our team coordinates the freight shipment and helps manage scheduling details. You'll receive an email notification with carrier information and tracking number upon shipment.
The unit weighs 600 lb and can typically be unloaded with a pallet jack or dolly. Some shops prefer a forklift for easier positioning. You're responsible for unloading. Check your equipment carefully upon receipt for any shipping damage and report issues to the freight carrier within 5 days.
Free shipping excludes Government Secure Locations, State and National Parks, construction sites, islands, Alaska, and Hawaii. Additional freight fees may apply for remote areas or special routing. Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
The RJ-9000 includes a 1-year parts warranty covering manufacturer defects in materials and workmanship. Parts and ground shipping are provided at no charge during the warranty period. Labor is not covered.
If an issue comes up, we troubleshoot over the phone and ship replacement parts at no cost. You or your technician handles the installation. Rubber contact pads and hydraulic seals are considered wear items and are covered for defects but not normal wear from service use.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Need help confirming lift compatibility, shop air requirements, or shipping details? Call us at (855) 498-2147.
Frequently Asked Questions
What is the maximum weight the RJ-9000 can lift?
The RJ-9000 has a rated lifting capacity of 9,000 lb, which covers one end of a vehicle up to 18,000 lb total weight. That's plenty for individual wheel and axle lifting on trucks, SUVs, and most commercial vehicles you'd run on a four-post lift.
Does the RJ-9000 require electricity to operate?
No. The RJ-9000 runs entirely on shop air using an air-hydraulic power unit. You need a compressed air supply delivering 125 psi at 10 to 20 CFM. A foot pedal controls all lifting and lowering, so there's no wiring or electrical hookup involved.
What four-post lifts is the RJ-9000 compatible with?
It fits four-post lifts with runway widths between 43.8 and 52.3 in. That includes Triumph NTR-16 and NTR-24 models, plus most four-post lifts from other manufacturers that fall within that runway width range. Measure your runways before ordering to confirm fit.
Can I use two RJ-9000 jacks at the same time on one lift?
Yes. Two jacks can share a single shop air line using a split adapter, and each operates independently with its own foot pedal. This setup lets you lift all four wheels off the runways for complete brake or suspension service without moving the vehicle.
What shop air pressure and flow do I need?
You need 125 psi shop air with 10 to 20 CFM of flow. Most professional shop compressors meet this requirement. A dedicated air line to the jack gives the best performance, and quick disconnects make it easy to connect and store between jobs.
Are the height adapters necessary, or can I use the jack without them?
You can use the jack without adapters. The standard range goes from 16.9 in lowered to 32.4 in at max height. The included 1.5 in and 5 in adapter sets give you extra clearance when you need it for taller vehicles or specific lift configurations, but they're optional for each job.
What maintenance does the RJ-9000 require?
Inspect the jack before each use for damage, leaks, or loose components. Keep it clean and dry, wipe away hydraulic fluid or dirt after use, and maintain clean, moisture-free air supply lines. Refer to the included owner's manual for detailed maintenance intervals and procedures.
How long does shipping typically take?
The RJ-9000 ships via LTL freight with free delivery to most continental U.S. locations. Transit time ranges from 3 to 14 days depending on your location. The unit ships at 600 lb on a pallet (48 in x 28 in x 16 in), and you'll receive tracking information by email once it ships.
Is the RJ-9000 covered by a warranty?
Yes. It includes a 1-year parts warranty covering manufacturer defects in materials and workmanship. Parts and ground shipping are provided at no charge. Labor isn't covered, so you or your tech handles installation of any replacement parts. Rubber pads and hydraulic seals are covered for defects but not normal wear.
How do I store the RJ-9000 when it's not in use?
The rolling design lets you slide it off the lift runways and park it anywhere in your shop. It doesn't require a fixed mounting location. Store it in a clean, dry area, disconnect the air line using your quick disconnect fitting, and it's out of the way until the next job.
Features
Wheel-Free Service
Bridge-Jack Format
Compatibility Check
Specifications
| Model / Package | RJ-9 |
|---|---|
| Product Type | Rolling Bridge Jack |
| Rated Capacity | 9,000 lb |
|---|---|
| Included Height Adapters | 1.5 and 5 in |
| Lowered Height | 5.5 in |
| Maximum Lifting Height | 32.4 in |
| Minimum Pad Width | 40.1 in |
| Maximum Pad Width | 59.8 in |
| Minimum Runway Spacing | 43.8 in |
| Maximum Runway Spacing | 52.3 in |
| Shipping Weight | 600 lb |
| Shipping Dimensions | 48 x 28 x 16 in |
