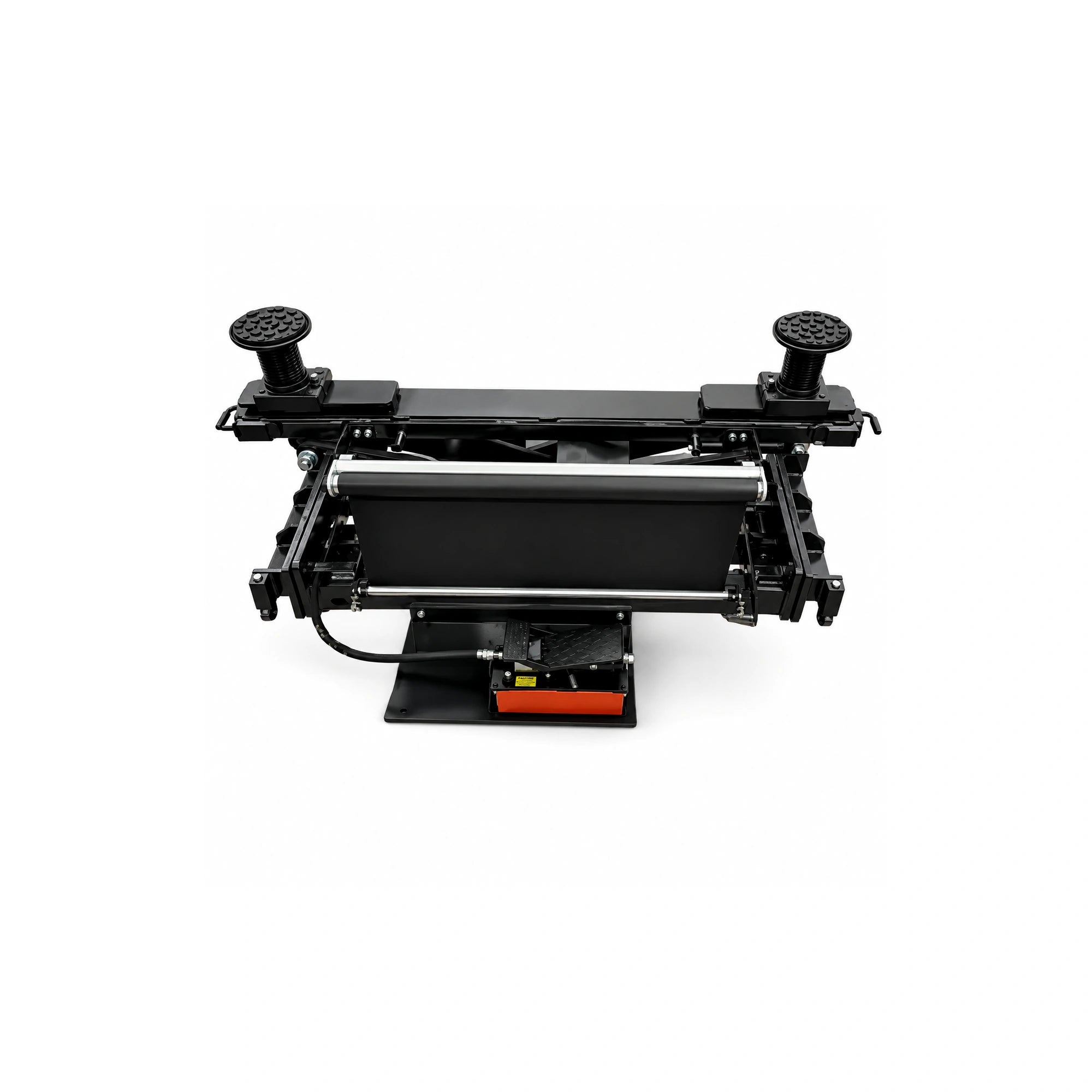

Triumph RJ-15000 Rolling Bridge Jack - 15,000 lb Capacity
You've got a four-post lift. It handles weight all day. But the second you need wheels off for brake work or suspension service, you're stuck unless you've got a rolling bridge jack underneath. The Triumph RJ-15000 fills that gap with 15,000 lb of air-hydraulic lifting capacity, giving you wheels-free access to commercial trucks, school buses, and heavy fleet vehicles without moving them off the lift.

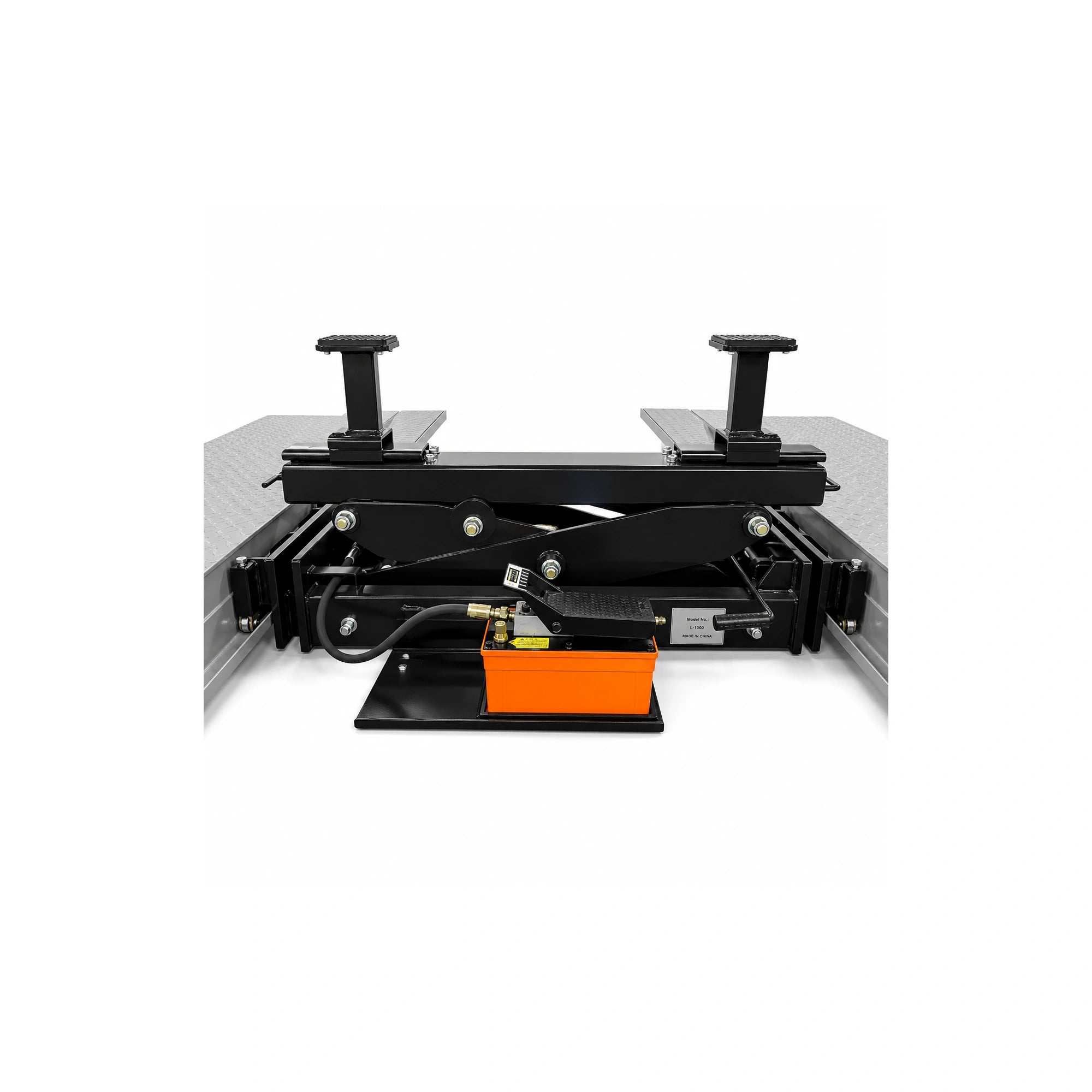

Drop it on the runways, roll it into position, and hit the foot pedal. Shop air does the heavy lifting, so there's no electrical hookup to deal with. Three lock positions let you dial in the height you need, whether it's minimal clearance for a tire swap or full extension for suspension work. Two sets of height adapters (5 in and 6.75 in) come standard, so you're covered across a wide range of vehicle heights without buying extras.
The RJ-15000 fits four-post lifts with runway widths between 48.7 and 55 in, including Triumph's own NTR-16, NTR-24, and NTR-32 models. It's also compatible with most other four-post lifts from other manufacturers within that runway range. If you already own a four-post lift and want to expand what you can do with it, this rolling bridge jack is one of the fastest upgrades you can make. And when the job's done, it rolls out of the way for storage.
Specifications
| Lifting Capacity | 15,000 lb |
| Lowered Height | 15.3 in |
| Max Lifting Height | 28.3 in |
| Min Width Between Pads | 42.6 in |
| Max Width Between Pads | 68.7 in |
| Compatible Runway Width | 48.7 to 55 in |
| Height Adapter Sets | 2 sets (5 in and 6.75 in) |
| Safety Lock Positions | 3 |
| Power Type | Air-Hydraulic |
| Air Pressure Required | 125 psi |
| Air Flow Required | 10 to 20 CFM |
| Control Method | Foot pedal |
| Shipping Weight | 661 lb |
| Shipping Dimensions | 51 in L x 33 in W x 17 in H |
What's Included
- RJ-15000 rolling bridge jack with hydraulic lifting system
- Air-hydraulic power unit with foot pedal control
- Steel contact pads for vehicle support
- Two sets of height adapters (5 in and 6.75 in)
- Shop air connection hose
- Owner's manual and safety documentation
Note: Shop air line and quick disconnect fittings are not included. These should be installed based on your shop's existing compressed air configuration.
Installation and Setup
Shop Air Requirements
You'll need a minimum of 125 psi shop air with 10 to 20 CFM of flow. A dedicated air line to the jack gives you the best performance, and installing quick disconnects on the air inlet makes it easy to connect and stow between jobs. Running two or more RJ-15000 jacks? They can share a single shop air line with a split adapter.
Four-Post Lift Compatibility
The RJ-15000 fits four-post lifts with runway widths between 48.7 and 55 in. It's fully compatible with Triumph NTR-16, NTR-24, NTR-32, and other Triumph four-post models, and it works with most other manufacturers' lifts that fall within that runway spec. Keep your runways clean and free of debris for smooth rolling operation.
Safety Guidelines
Only trained technicians should operate the jack. Make sure the vehicle is stable on the main lift before engaging the rolling jack, and always lock into one of the three safety positions when the vehicle is suspended. Release hydraulic pressure before lowering so the safety locks hold the load. Never work alone when suspending vehicle weight on the rolling jack.
Applications
Shops running four-post lifts for commercial truck fleets gain wheels-free access to brakes, suspension, and wheel assemblies without moving vehicles between stations.
Service departments handling pre-delivery inspections and warranty work on heavy trucks get full brake system and suspension access on the same lift.
Government and public works departments maintaining school buses, transit vehicles, and service trucks streamline brake and suspension work across their fleet.
RV dealers, fire truck service shops, and dump truck specialists get detailed undercarriage and wheels-off access on oversized vehicles.
Multi-lift shops working on various truck sizes benefit from the rolling jack's compatibility across different four-post lift models and brands.
If you already have a four-post lift, adding a rolling bridge jack is one of the most cost-effective ways to expand your service capabilities.
Shipping
The RJ-15000 ships via LTL common carrier freight with free shipping to most continental U.S. locations. Transit time typically ranges from 3 to 14 days depending on your location. You'll receive an email with carrier information and a tracking number once your order ships.
At 661 lb, the jack can typically be unloaded with a pallet jack or dolly. Some shops prefer to use a forklift for easier positioning. You're responsible for unloading. Inspect your equipment carefully upon receipt and report any shipping damage to the freight carrier within 5 days.
Free shipping excludes Government Secure Locations, State and National Parks, construction sites, islands, Alaska, and Hawaii. Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
The RJ-15000 includes a 1-year parts warranty covering manufacturer defects in materials and workmanship. Parts and ground shipping are provided free of charge during the warranty period. Labor is not covered.
Warranty claims are handled over the phone. We troubleshoot the issue and ship replacement parts at no cost. You or your technician installs the parts on-site.
Rubber contact pads and hydraulic seals are considered wear items. The warranty covers defects in these components but not normal wear from regular service use.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Need help confirming compatibility with your four-post lift, shop air setup, or shipping details? Our team is ready to help.
Call (855) 498-2147
Frequently Asked Questions
What four-post lifts is the RJ-15000 compatible with?
The RJ-15000 works with four-post lifts that have runway widths between 48.7 and 55 in. It's fully compatible with Triumph NTR-16, NTR-24, and NTR-32 models, and it fits most other manufacturers' four-post lifts within that runway width range. If you're unsure about your lift, give us a call and we can confirm compatibility.
Does the RJ-15000 require electricity to operate?
No. The RJ-15000 runs entirely on shop air. You need 125 psi at 10 to 20 CFM, which most shop compressors already provide. A foot pedal controls lifting and lowering, and there's no electrical connection to worry about.
Can I use two RJ-15000 jacks at the same time on one lift?
Yes. Two jacks can share a single shop air line using a split adapter. This lets you lift both axles simultaneously for full wheels-free access on a four-post lift, which is common for complete brake jobs and suspension overhauls on commercial trucks.
What shop air pressure and flow rate do I need?
You'll need a minimum of 125 psi air pressure and 10 to 20 CFM of flow. A dedicated air line with quick disconnects on the jack's inlet gives you the most reliable performance, especially if you're running multiple jacks off the same compressor.
What are the height adapters for, and do I need them?
The two included adapter sets (5 in and 6.75 in) give you additional clearance for taller vehicles or specific lift configurations. They're stackable, so you can adjust to the right height without extra purchases. You can also run the jack without them when you don't need the extra reach.
How heavy is this jack, and how do I unload it?
The RJ-15000 ships at 661 lb. Most shops unload with a pallet jack or dolly directly from the freight truck. A forklift works well if you have one available. Once it's on the ground, the rolling design makes it easy to position in your shop.
How long does shipping take?
The RJ-15000 ships via LTL freight with free delivery to most continental U.S. locations. Transit time typically ranges from 3 to 14 days depending on where you're located. You'll receive a tracking number and carrier info by email once it ships.
What does the warranty cover?
The 1-year parts warranty covers manufacturer defects in materials and workmanship. Parts and ground shipping are free during the warranty period. Labor isn't covered, but we troubleshoot over the phone and send replacement parts at no cost. Rubber pads and hydraulic seals are covered for defects but not normal wear.
What maintenance does the RJ-15000 require?
Inspect the jack before each use for damage, leaks, or loose components. Keep it clean and dry, and wipe away hydraulic fluid after use. Keep your shop air lines and quick disconnects free of moisture. The owner's manual covers specific maintenance intervals and procedures.
How much storage space does the RJ-15000 need?
The jack ships at 51 in long by 33 in wide by 17 in tall. Its rolling design means you can tuck it under the lift runways or wheel it out of the way when not in use. It doesn't require a dedicated footprint in your shop.
Features
Wheel-Free Service
Bridge-Jack Format
Compatibility Check
Specifications
| Model / Package | RJ-15 |
|---|---|
| Product Type | Rolling Bridge Jack |
| Rated Capacity | 15,000 lb |
|---|---|
| Lowered Height | 15.3 in |
| Maximum Lift Height | 28.3 in |
| Adjustable Pad Width | 42.6 to 68.7 in |
| Compatible Runway Spacing | 48.7 to 55 in |
| Shipping Weight | 661 lb |
