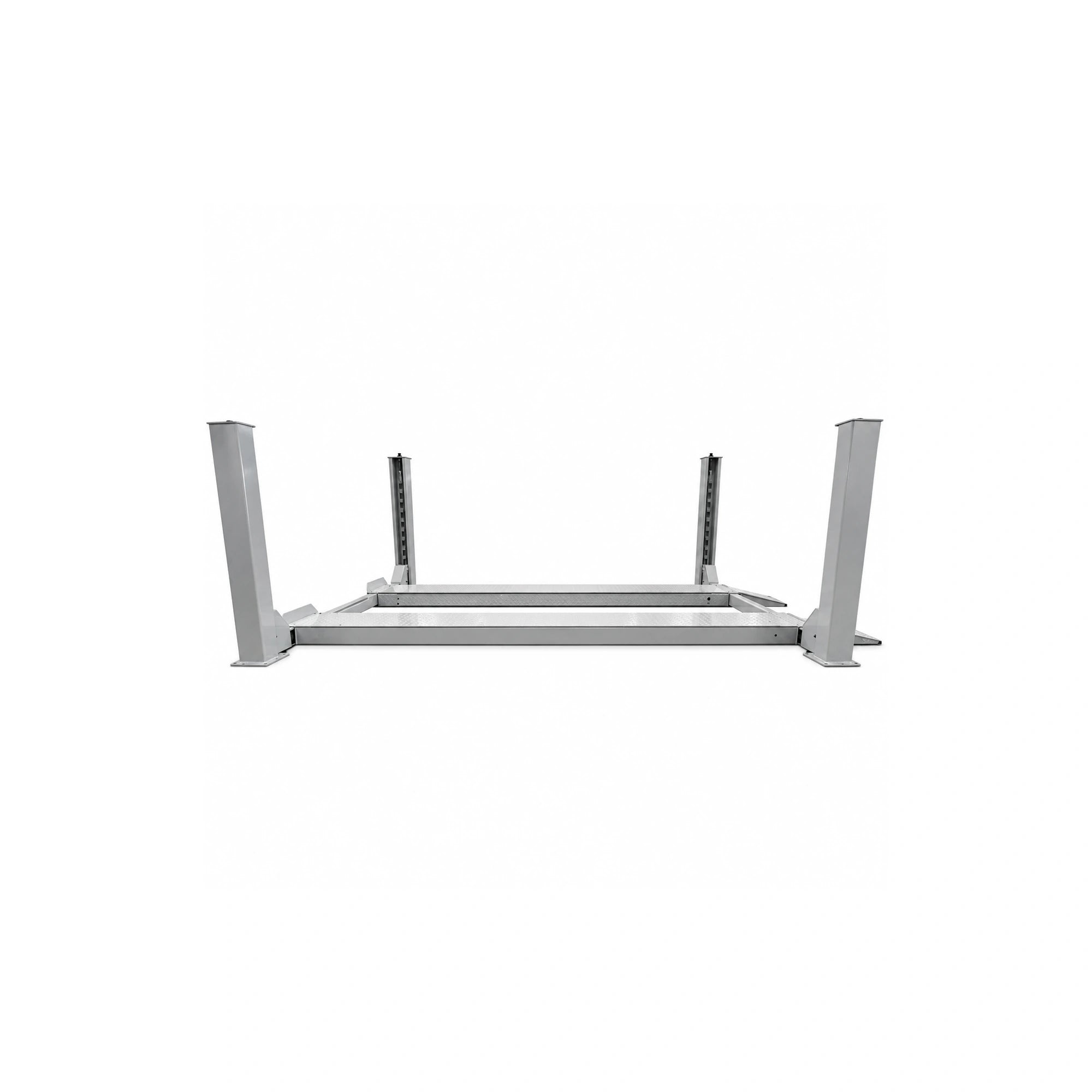

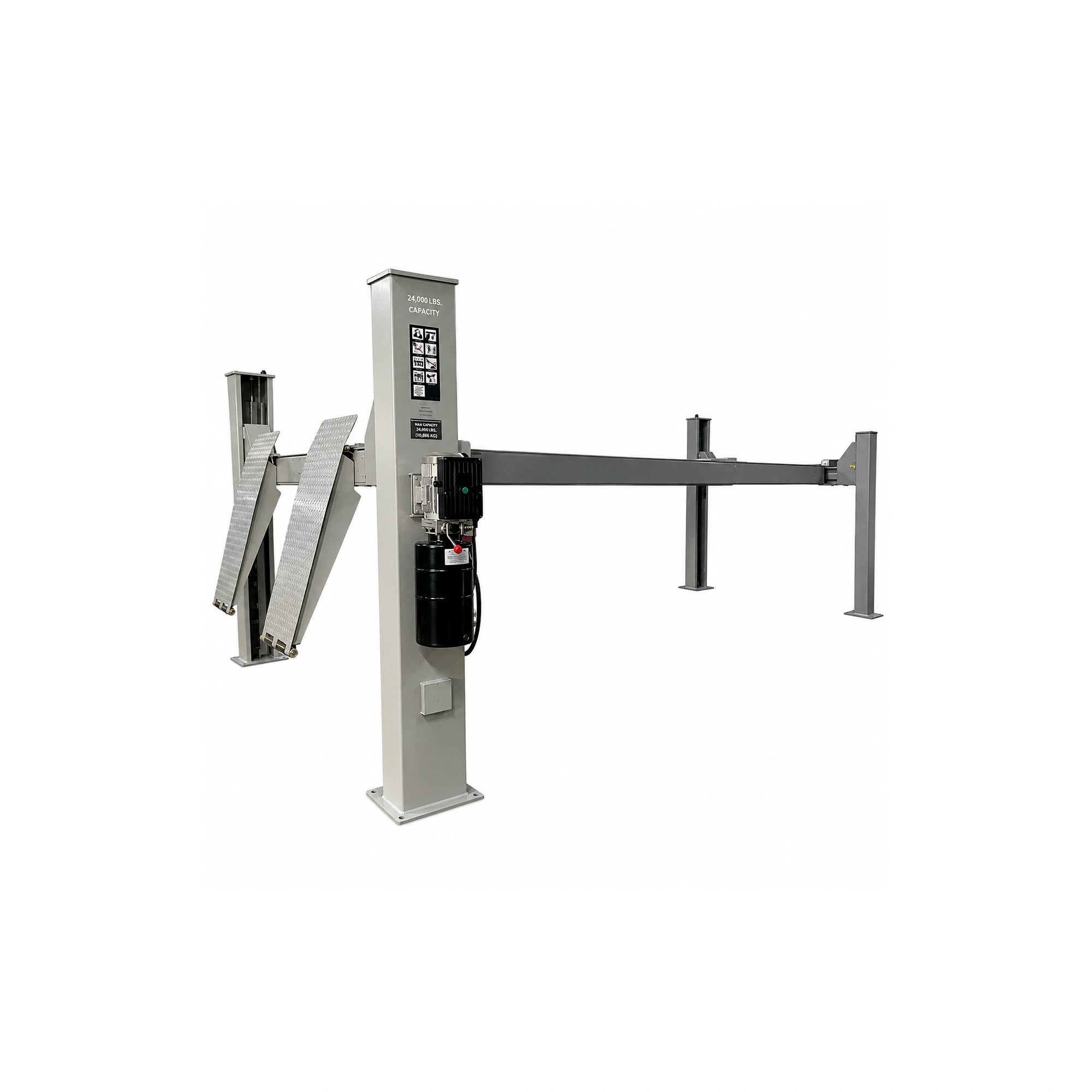

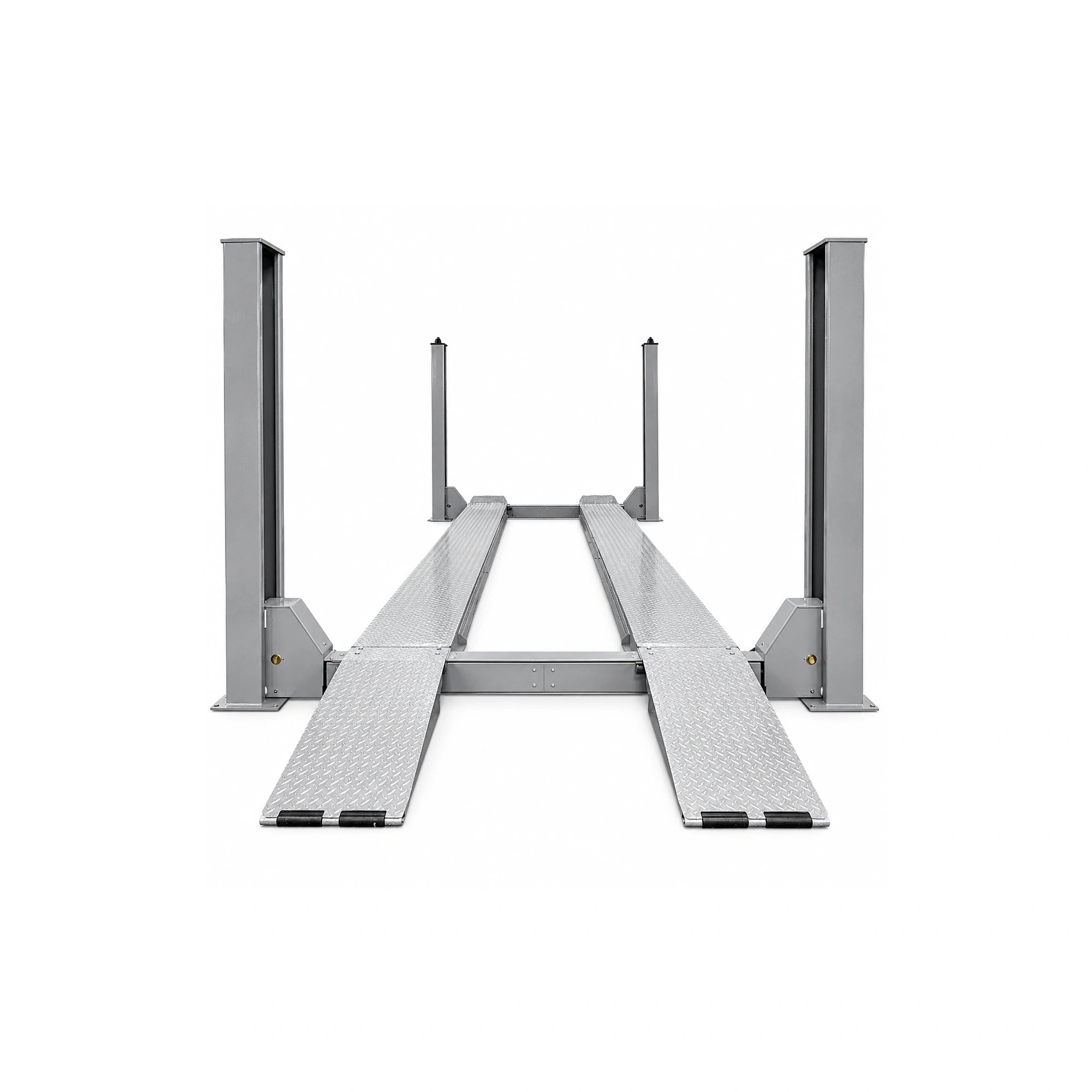

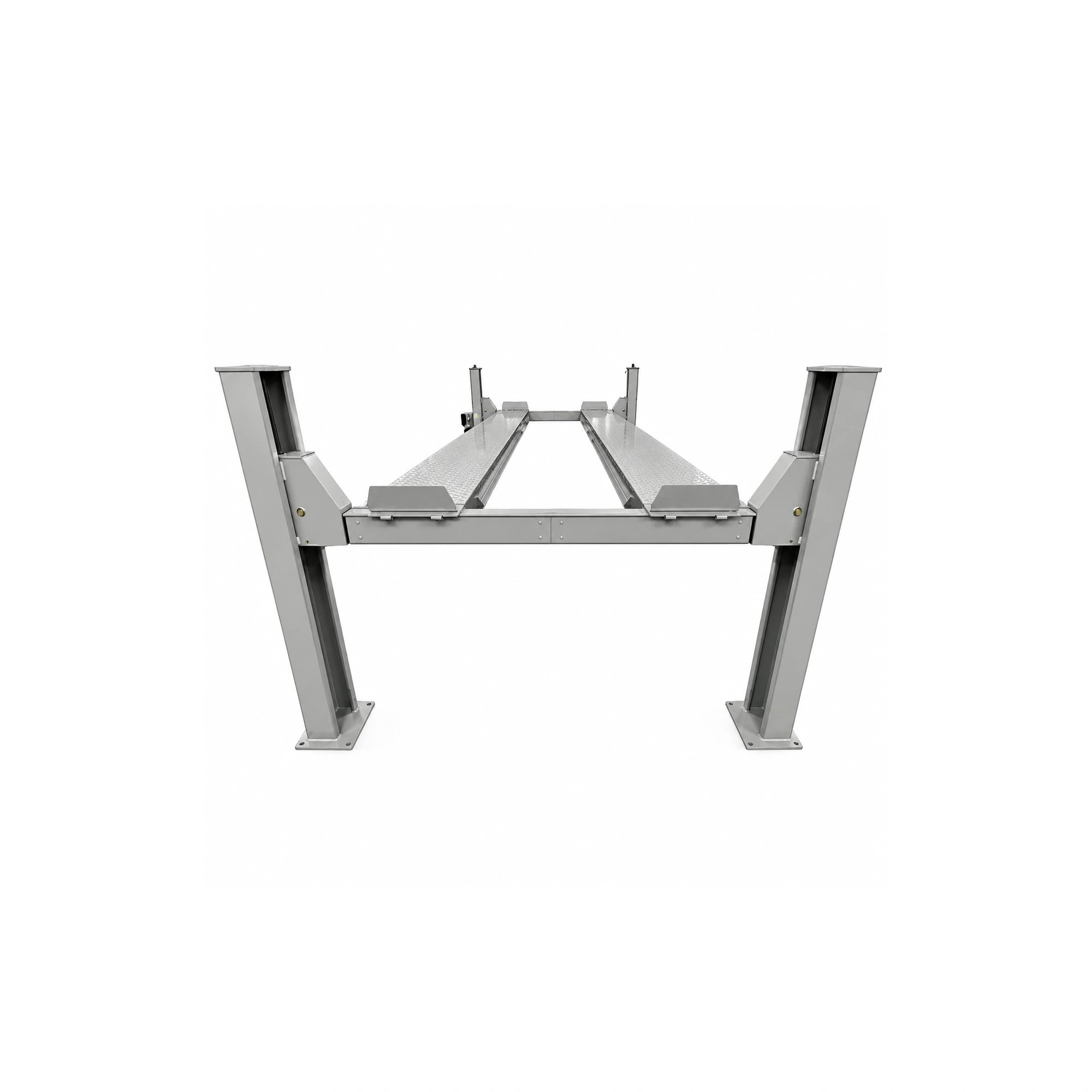

Triumph NTR-32 32,000 lb Four-Post Lift for Commercial Trucks
- Authorized Triumph Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable

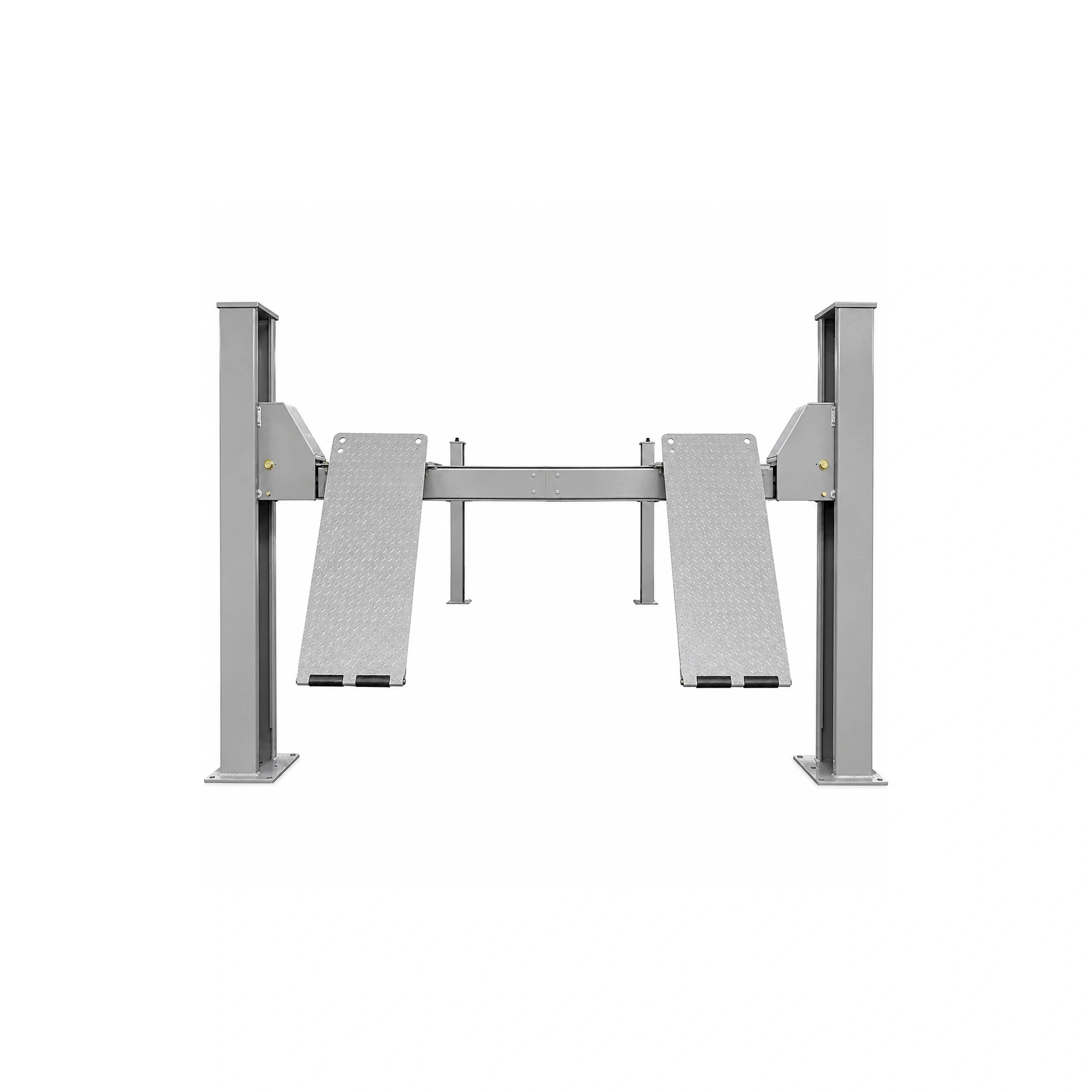

Triumph NTR-32 32,000 lb Four-Post Lift for Commercial Trucks, Buses, and Heavy Fleet Vehicles
The Triumph NTR-32 four-post lift delivers industrial-strength lifting capacity for fleet service centers, commercial operations, and heavy-duty automotive work. With a 32,000 lb capacity, this lift handles everything from commercial trucks and school buses to oversized vehicles that standard equipment can't manage. The robust steel frame design, nine lock positions, and 220V single-phase power system ensure stable, reliable performance under demanding loads. Includes a 1-year parts warranty with comprehensive technical support.
Triumph NTR-32: Who It's For
- Fleet Service Centers: Designed for shops managing commercial truck fleets, shuttle services, and transportation companies that need a lift capable of handling multiple vehicles of varying sizes and weights.
- Commercial Truck Dealers: Dealerships selling and servicing heavy commercial trucks require the capacity and stability of the NTR-32 for pre-delivery inspections, maintenance, and repairs.
- Municipal and Government Operations: Public works departments, transit agencies, and government fleet maintenance facilities need reliable equipment for school buses, public transportation vehicles, and service trucks.
- Heavy Equipment Service Shops: Shops specializing in dump trucks, cement mixers, fire trucks, and other specialized commercial vehicles benefit from the extra capacity and runway length.
- RV and Specialty Vehicle Dealers: Dealers handling recreational vehicles, motorhomes, and custom-built oversized vehicles need the adjustable runways and height capability of a four-post design.
Triumph NTR-32 Features
Heavy-Duty 32,000 lb Capacity
The NTR-32 is purpose-built for commercial trucks, buses, and oversized fleet vehicles. This exceptional capacity allows service shops to work on vehicles that smaller lifts simply cannot accommodate. Whether you're servicing a fully loaded cement mixer or a multi-axle commercial truck, the NTR-32 delivers the stability and strength needed for safe, secure lifting on all four wheels.
Nine Lock Positions for Flexible Work Heights
Multiple lock positions (9 total) give technicians the ability to position vehicles at the exact height needed for different repair tasks, from general maintenance work to full undercarriage service. This flexibility reduces the need for supplemental jacks and keeps the vehicle stable at any working height.
Extended Runway Length (295.2 in)
The 295.2-inch runway accommodates longer vehicles including extended-wheelbase trucks, dual-rear-wheel configurations, and vehicles with extended chassis. Approach ramps bring the total length to 344.6 in, allowing safe drive-on capability even for vehicles with steep approach angles or low ground clearance.

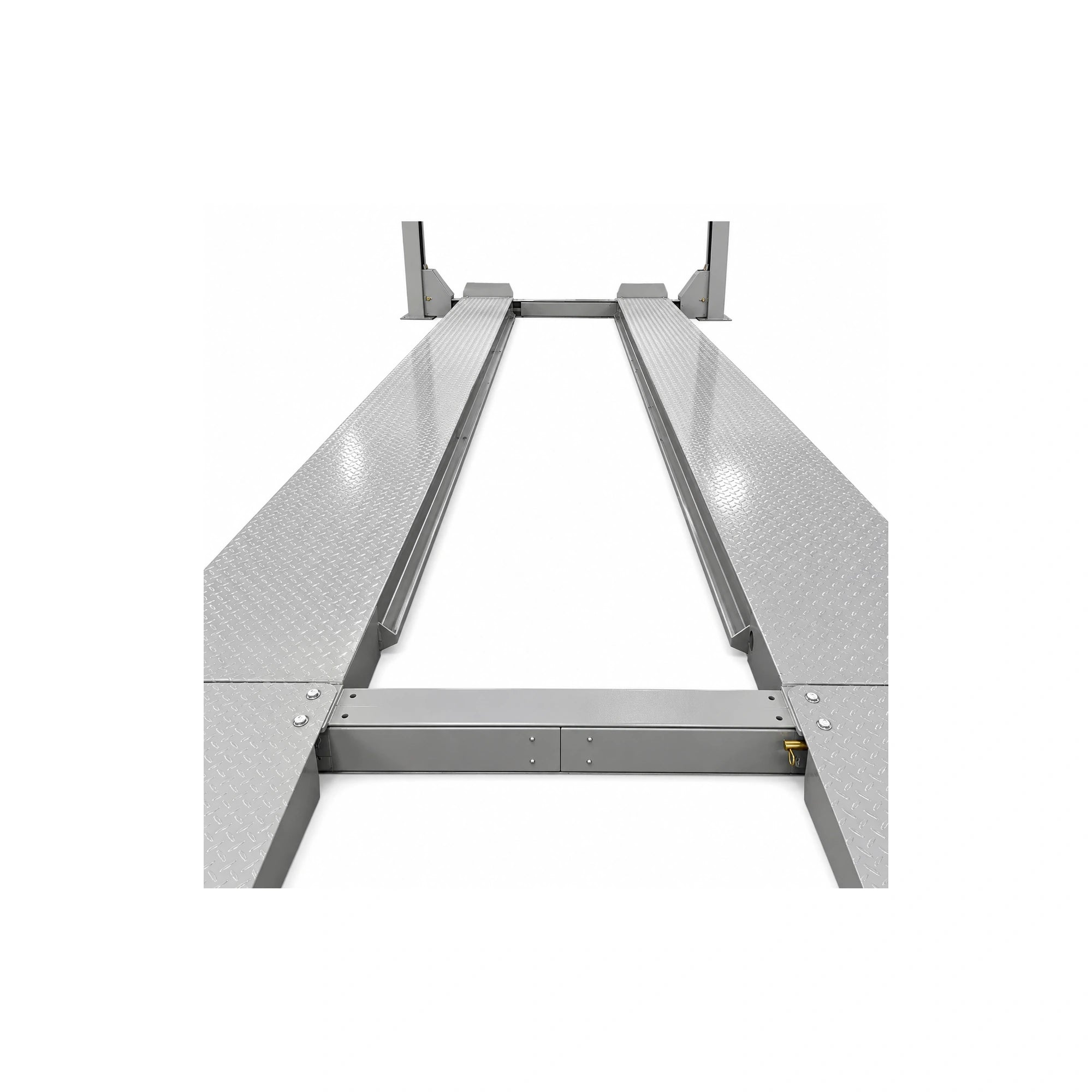

Adjustable Runway Width (48.75 to 52.7 in Between Runways)
Adjustable position runways ensure proper wheel placement and grip on vehicles of different widths. From single-axle vehicles to dual-axle trucks, the adjustable width ensures all four wheels are supported securely on the lift arms, distributing load evenly for maximum stability and safety.
Maximum Lift Height of 70.8 in
The generous 70.8-inch maximum lifting height provides ample clearance under the vehicle for technicians to work comfortably. This height is sufficient for brake system service, component replacement, and undercarriage inspection without requiring supplemental supports or jacks.
220V Single-Phase Power System
The single-phase 220V electrical requirement is standard for most commercial facilities and easier to install than three-phase power. The system delivers smooth, consistent hydraulic power for reliable lifting and lowering cycles, even under heavy loads.
Triumph NTR-32 Specifications
| Lifting Capacity | 32,000 lb |
|---|---|
| Per-Position Lifting Capacity | 8,000 lb per corner |
| Overall Height (lowered) | 93.1 in |
|---|---|
| Overall Width | 168.7 in |
| Overall Length (without approach ramps) | 305.5 in |
| Overall Length (with approach ramps) | 344.6 in |
| Width Between Columns | 139.2 in |
| Runway Length | 295.2 in |
|---|---|
| Runway Width | 24 in |
| Between Runway (adjustable) | 48.75 to 52.7 in |
| Minimum Runway Height (drive-on clearance) | 9 in |
| Maximum Lifting Height | 70.8 in |
|---|---|
| Number of Lock Positions | 9 |
| Voltage Requirement | 220V Single Phase |
|---|
| Shipping Weight | 9,037 lb |
|---|---|
| Shipping Dimensions | 301 in L x 30 in W x 43 in H |
Triumph NTR-32 Installation Requirements
Floor and Concrete Requirements
- Minimum Thickness: 4 to 4.25 inches of solid, reinforced concrete
- Compressive Strength: Minimum 3,000 PSI (pounds per square inch)
- Surface Condition: Level, undamaged concrete only. Do not install on asphalt, hand-mixed concrete, or cracked/defective slabs
- Anchor Embedment: Anchor bolts must be embedded a minimum of 3.25 inches. When using standard 3/4 in x 5.5 in anchors, no more than 2.25 inches should protrude above the floor
- Expansion Seams: Maintain minimum 6 inches distance from any slab edges, expansion seams, or control joints. Anchors must be a minimum of 6.5 inches apart from each other
- Curing Time: If installing on new concrete, allow minimum 28 days curing time before operating the lift under load
- Professional Assessment: We recommend having a concrete specialist evaluate your installation site to verify floor specifications, especially if you're unsure of existing floor strength or thickness
Electrical Requirements
- Power Supply: 220V single-phase dedicated circuit required
- Amperage: Dedicated circuit rated for lift amperage specifications
- Installation: Must be installed by a licensed electrician in compliance with local electrical codes
- Disconnect Switch: A disconnect switch must be installed within sight of the lift per code requirements
- Proper Grounding: All electrical connections must be properly grounded to prevent shock hazards
- Permits: Check with your local building authority regarding electrical permits and inspections required for your area
Space and Ceiling Height
- Minimum Ceiling Height: At least 10 feet (minimum) for standard four-post lift operation
- Recommended Ceiling: 12 feet or higher for comfortable vehicle access and technician work space
- Footprint Required: The lift footprint measures approximately 169 in wide x 305.5 in long (without ramps). Allow additional space for vehicle approach and clearance on all sides
- Drive-On Approach: Ensure clear, level approach with minimum 9-inch clearance to the runway front edge
- Side Clearance: Maintain minimum 3 to 4 feet on each side for workspace access and emergency exit
Professional Installation Strongly Recommended
Due to the weight of the NTR-32 (9,037 lbs) and the technical requirements for anchoring, electrical installation, and safety certification, we strongly recommend using a professional lift installation service. Proper installation ensures warranty coverage, safety compliance, and optimal equipment performance. Contact us for referrals to certified installers in your area.
What's Included with the Triumph NTR-32
- Four lift columns with hydraulic cylinders
- Two main runways with adjustable width positioning

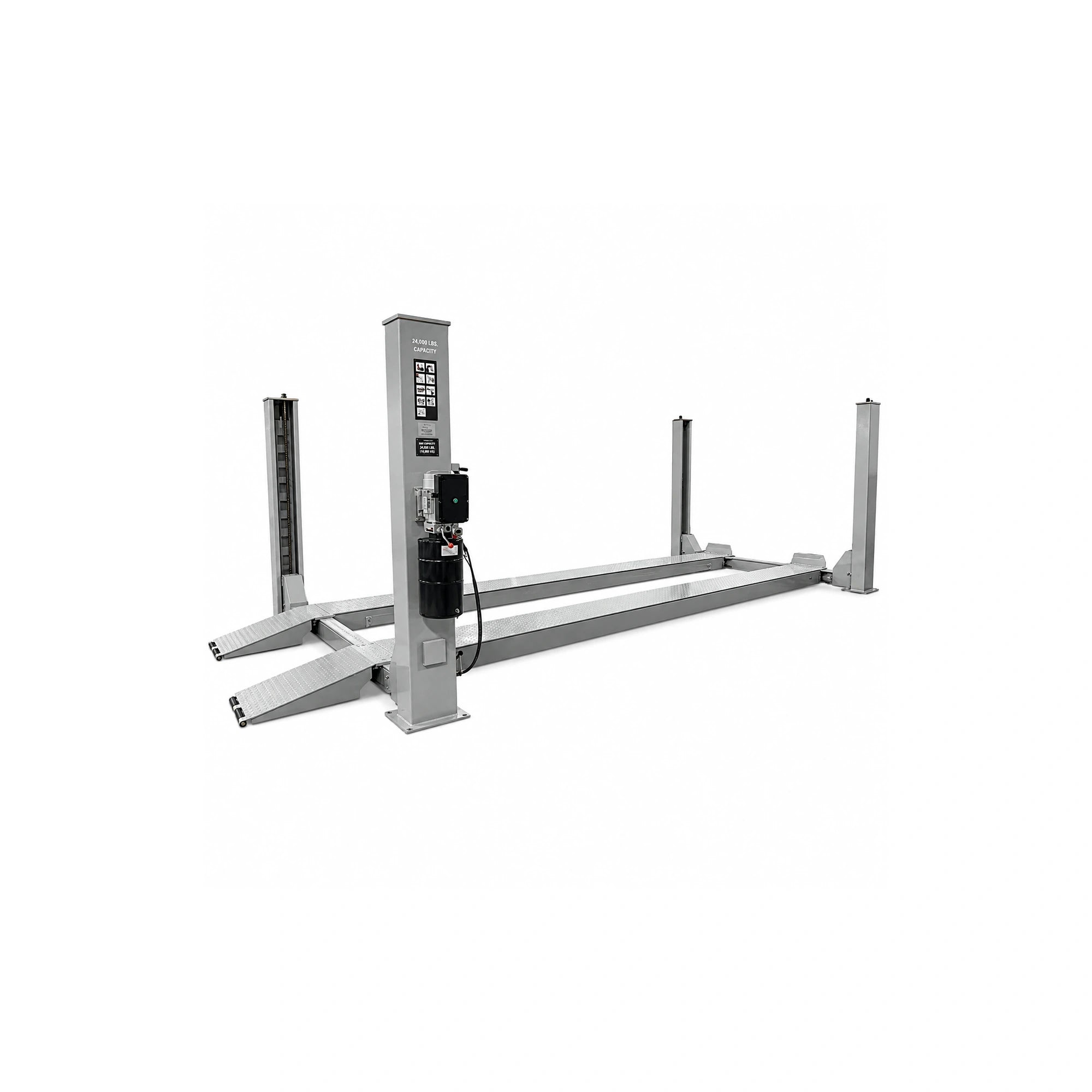

- Hydraulic power unit with pump and motor
- Control pedal and raise/lower controls
- Safety latches and lock mechanisms for all nine positions
- Anchor bolts and fasteners for concrete installation

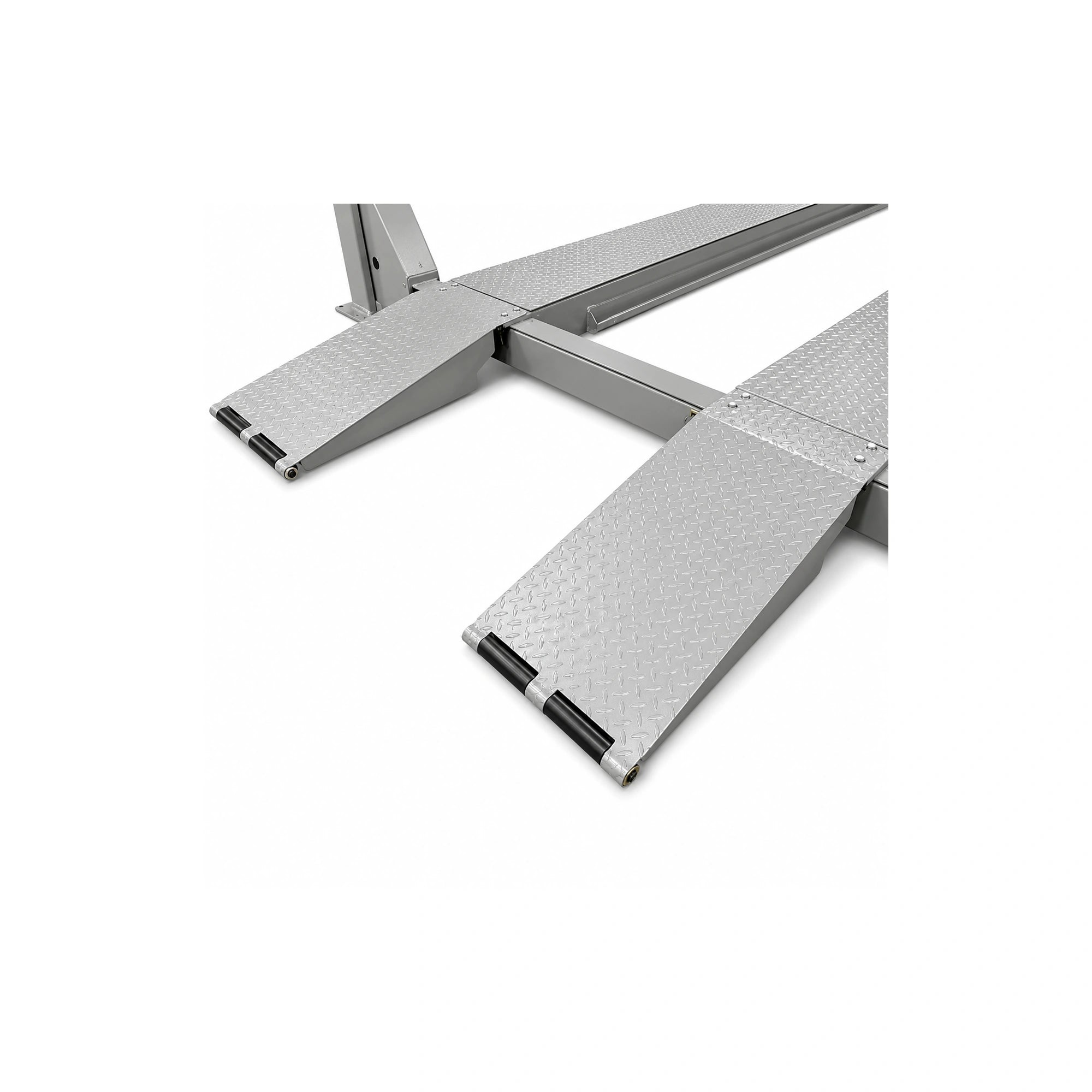

- Approach ramps (included)
Note: Rolling bridge jacks (such as the RJ-5000, RJ-9000, or RJ-15000) are sold separately and are not included with the lift. These optional accessories allow for wheels-free suspension work and are highly recommended for complete service capability.
Standard Color: Gray steel frame
Triumph NTR-32 Shipping and Delivery
LTL Freight Delivery
Your NTR-32 ships via LTL (Less Than Truckload) common carrier freight on a 48-foot semi-truck. Free shipping applies to most continental U.S. locations. Transit time ranges from 3 to 14 days depending on your location. Upon shipment, you will receive tracking information and carrier contact details via email.
Unloading and Delivery Requirements
You are responsible for unloading the lift from the truck. The truck driver does not provide unloading service. You cannot safely unload the lift by hand due to its 9,037 lb weight. You must have heavy machinery available, such as a forklift, bobcat, tractor, tow truck, or backhoe, to unload the lift from the truck and position it in your facility. If you do not have unloading equipment available, we can arrange freight delivery to your carrier's nearest terminal for pickup with your own trailer or moving van. Note that lift gate delivery service is not available for automotive lifts.
Coordination and Exclusions
You are responsible for calling the freight company to schedule your delivery appointment. We do not arrange appointments as we don't know your schedule or facility availability. Free shipping excludes Government Secure Locations, State and National Parks, construction sites, islands, Alaska, and Hawaii. Additional freight fees may apply for deliveries to remote locations or areas requiring special routing.
Triumph NTR-32 Warranty
1-Year Parts Warranty, No Labor
- Coverage: Triumph Lifts include a 1-year parts warranty covering defects in materials and workmanship. Parts are provided free of charge, and ground shipping is free.
- Warranty Process: Simply call us to discuss any issues. We troubleshoot the problem over the phone and ship replacement parts at no cost. You or a qualified technician must install the replacement parts (labor is not covered).
- Excluded Components: The warranty does not cover rubber lifting pads. Cylinders come with a 30-day full replacement warranty. After 30 days, seal kits are available at cost for cylinder maintenance.
- Claim Procedure: Contact us for warranty support, and we'll help diagnose the issue and arrange parts replacement.
Questions About the Triumph NTR-32?
Our team is ready to help you determine if the NTR-32 is right for your operation. Ask us about lifting capacity, floor and electrical requirements, installation support, shipping and unloading options, warranty coverage, or compatible accessories like rolling bridge jacks.
Triumph NTR-32 FAQ
What is the maximum vehicle weight the NTR-32 can lift?
The Triumph NTR-32 has a total lifting capacity of 32,000 lb, which means it can safely lift vehicles weighing up to 32,000 lb when all four wheels are on the runways. This capacity is designed for commercial trucks, buses, and oversized fleet vehicles.
Can the NTR-32 handle dual-axle trucks and long-wheelbase vehicles?
Yes. The NTR-32 features a runway length of 295.2 inches (extend to 344.6 inches with approach ramps), making it specifically designed for extended vehicles. The adjustable runway width (48.75 to 52.7 inches between runways) accommodates dual-axle configurations and provides proper wheel contact for safe, stable lifting.
What electrical setup does the NTR-32 require?
The NTR-32 requires a 220V single-phase dedicated circuit. A licensed electrician must install this according to local electrical codes. You'll also need a disconnect switch installed within sight of the lift, and proper grounding is essential. Check with your local building authority regarding any required permits or inspections.
What are the concrete requirements for installing the NTR-32?
The floor must be at least 4 to 4.25 inches of reinforced concrete with a minimum compressive strength of 3,000 PSI. The concrete must be level and undamaged. Anchor bolts require a minimum embedment depth of 3.25 inches. We recommend having a concrete specialist evaluate your site to confirm specifications before purchase.
How much ceiling height do I need for the NTR-32?
A minimum ceiling height of 10 feet is required, though 12 feet or higher is recommended for comfortable technician workspace. The lift itself measures 93.1 inches in height when lowered, and vehicles on the lift can extend well above the lift frame depending on vehicle height.
Is professional installation required for the NTR-32?
We strongly recommend professional installation due to the weight of the lift (9,037 lbs) and the technical requirements for anchoring and electrical work. Professional installation ensures proper safety, warranty coverage, and compliance with local codes. Contact us for referrals to certified installers in your area.
How is the NTR-32 shipped, and how do I unload it?
The lift ships via LTL freight on a 48-foot semi-truck. You are responsible for unloading using heavy machinery (forklift, bobcat, tractor, etc.). The truck driver does not provide unloading service. If you lack unloading equipment, we can arrange terminal pickup. You must coordinate delivery timing with the carrier. Transit time is typically 3 to 14 days.
What does the warranty cover?
The NTR-32 comes with a 1-year parts warranty, no labor. We provide free parts and ground shipping for covered defects. Rubber lifting pads are excluded. Cylinders have a 30-day full replacement warranty, and seal kits are available after 30 days. Contact us to start the warranty process, and we'll troubleshoot and ship parts as needed.
What is the difference between the NTR-32 and smaller four-post lifts like the NTR-24?
The NTR-32 offers an additional 8,000 lb of capacity (32,000 lb vs. 24,000 lb), a wider footprint (168.7 in vs. 150.1 in), and a longer runway (295.2 in vs. approximately 290 in). The NTR-32 is specifically designed for the heaviest commercial vehicles, while the NTR-24 suits lighter commercial and fleet applications. The extra capacity and size make the NTR-32 ideal for multi-axle trucks and oversized vehicles.
Are rolling bridge jacks included with the NTR-32?
No. Rolling bridge jacks like the RJ-5000, RJ-9000, and RJ-15000 are optional accessories sold separately. However, they are highly recommended as they allow you to lift individual wheels or axles for brake service, suspension work, and detailed undercarriage maintenance while the vehicle remains on the main lift.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
