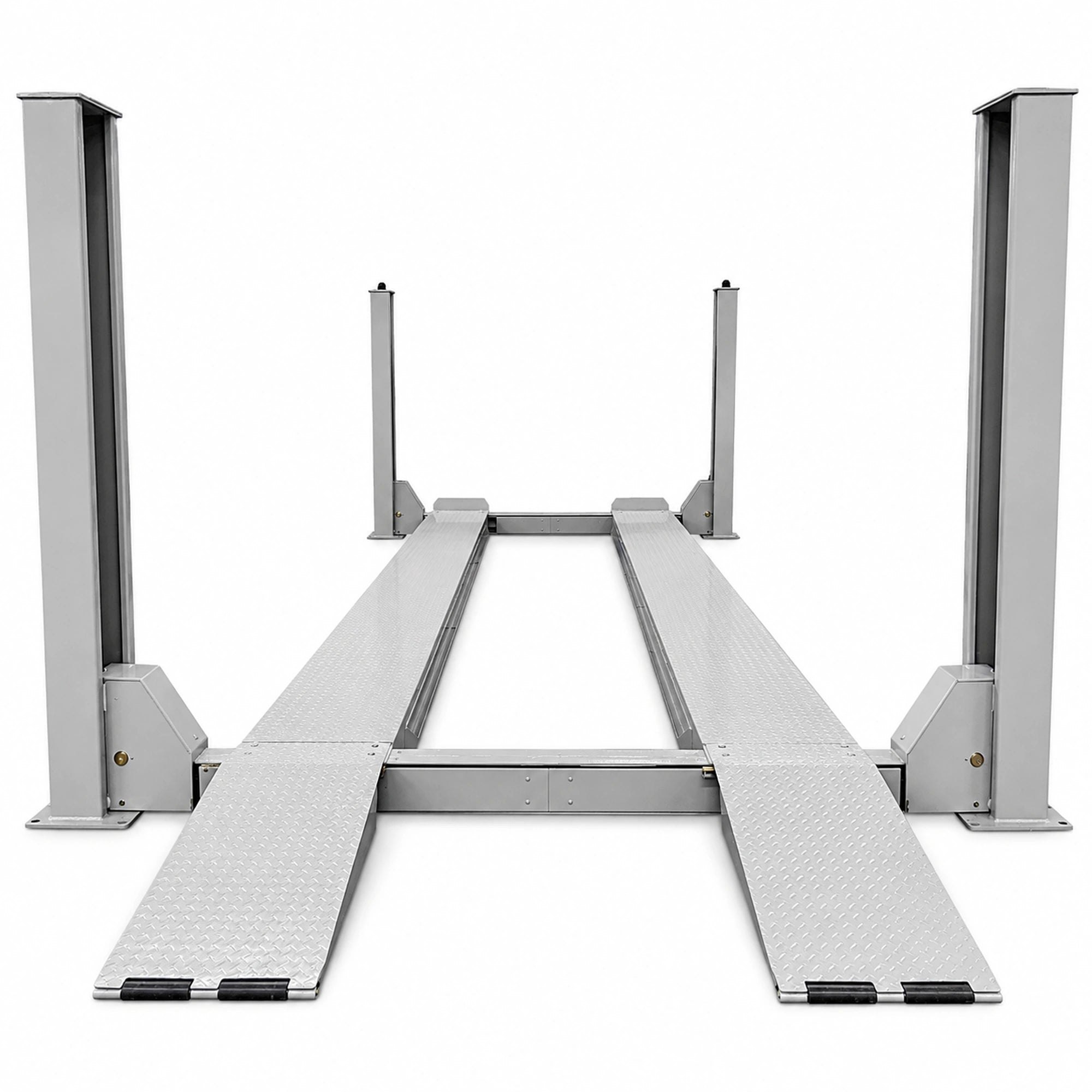

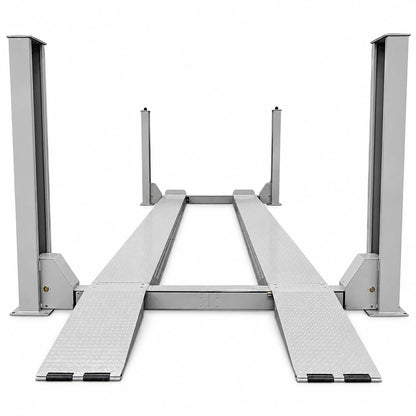

Triumph NTR-24 24,000 lb 4-Post Lift with 2 RJ-15 Rolling Jacks
- Authorized Triumph Dealer direct manufacturer relationship
- Manufacturer Warranty included with purchase
- Expert Product & Freight Support +1 (855) 498-2147
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- No Sales Tax outside PA where applicable

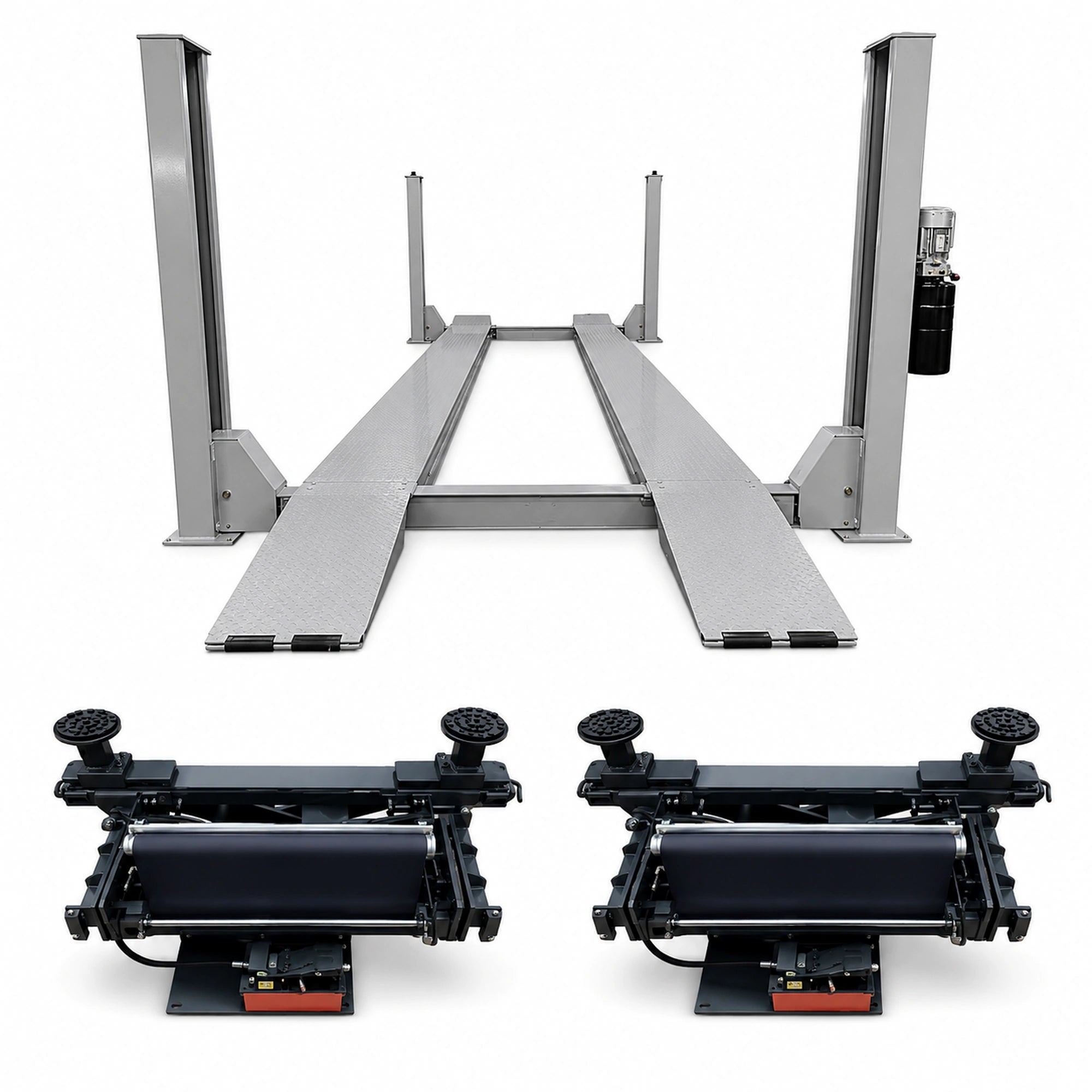

Triumph NTR-24 Four-Post Lift with Dual RJ-15000 Rolling Bridge Jacks
Buying the lift and the jacks separately means two orders, two shipments, and the nagging question of whether you picked the right rolling jacks for your four-post. This combo eliminates all of that. The Triumph NTR-24 paired with two RJ-15000 rolling bridge jacks gives you a complete 24,000 lb lifting station with 30,000 lb of combined rolling jack capacity, ready for serious commercial truck, bus, and fleet maintenance from day one.

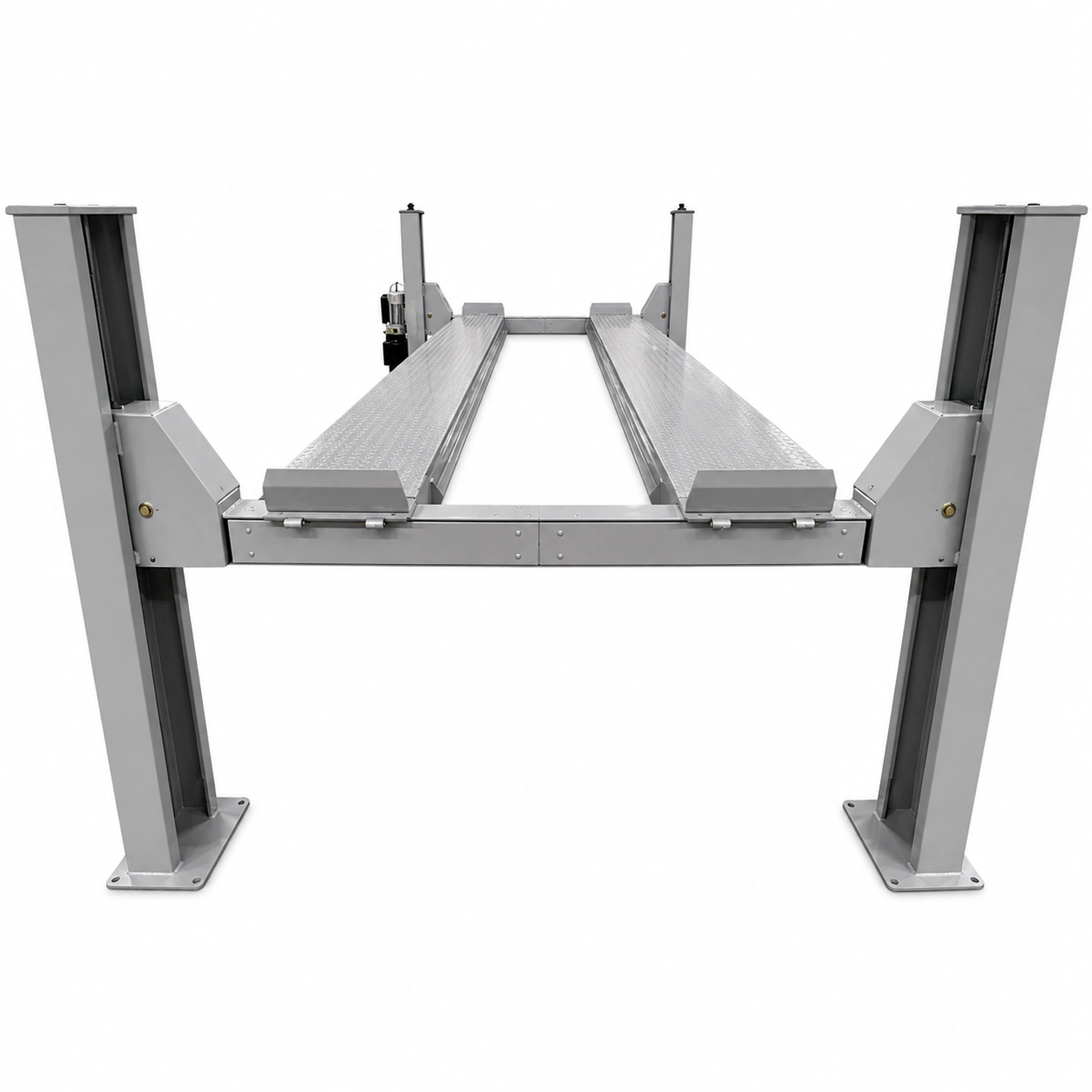

The NTR-24 handles vehicles up to 24,000 lb across 289.9 in runways with 9 lock positions and 70.8 in of maximum lift height. The dual RJ-15000 jacks roll between the runways and lift 15,000 lb each, adjusting from 42.6 to 68.7 in between pads to fit everything from narrow axles to the widest commercial truck configurations. Two sets of height adapters (5 in and 6.75 in) give you precise positioning for different suspension geometries. When the jacks aren't in use, they drop to 15.3 in and roll out of the way.
Everything runs on standard 220V single-phase power. CE certified with ISO9001 quality standards from the manufacturing facility. When you order this combo from Garage Supply Guys, you get matched components, single-source support, and a team that picks up the phone when you need help.
Specifications
NTR-24 Four-Post Lift
| Lifting Capacity | 24,000 lb |
| Per-Post Capacity | 6,000 lb |
| Max Lift Height | 70.8 in |
| Lock Positions | 9 |

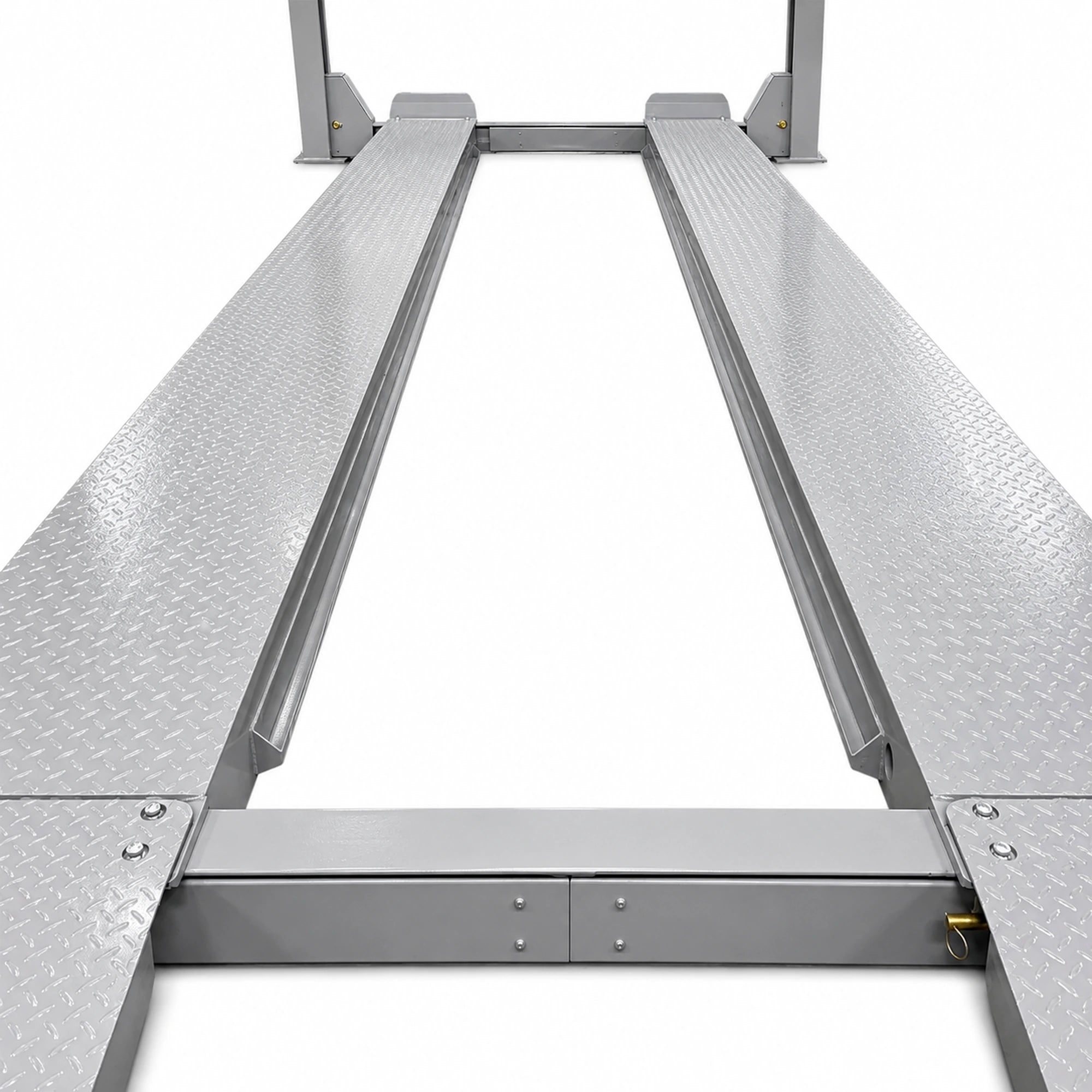

| Runway Length | 289.9 in |
| Runway Width | 24 in |
| Between Runways (Adjustable) | 45.3 to 49.2 in |
| Min Runway Height (Drive-On) | 9 in |
| Overall Height (Lowered) | 93.1 in |
| Overall Width | 150.1 in |
| Overall Length (Without Ramps) | 300 in |
| Overall Length (With Ramps) | 338.9 in |
| Width Between Columns | 131.8 in |
| Voltage | 220V Single Phase |
| Certifications | CE Certified, ISO9001 Quality Certified |
| Shipping Weight (Lift Only) | 6,614 lb |
| Shipping Dimensions (Lift) | 295 x 30 x 43 in |

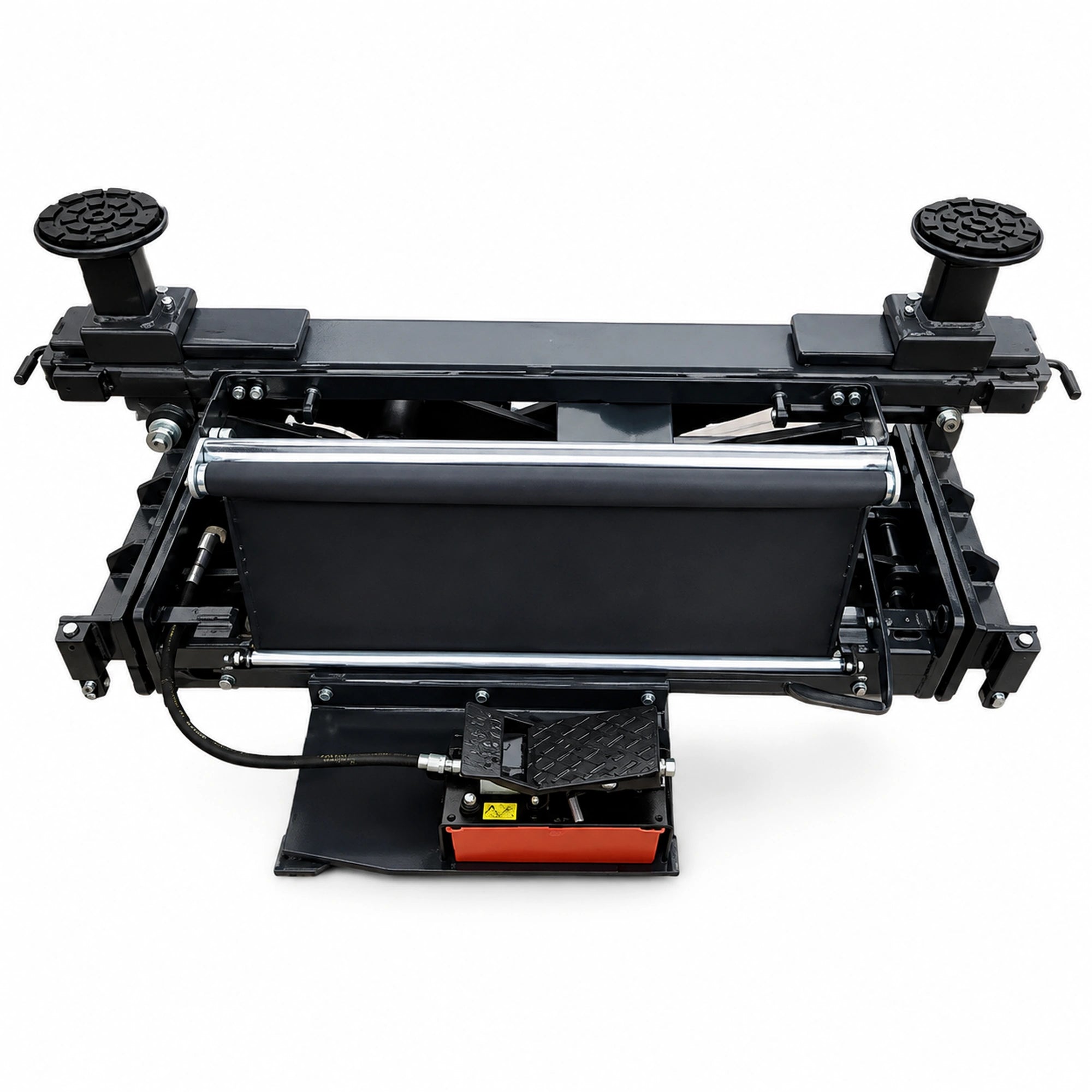

RJ-15000 Rolling Bridge Jacks (Each)
| Lifting Capacity (Each) | 15,000 lb |
| Quantity Included | 2 |
| Lowered Height | 15.3 in |
| Max Lifting Height | 28.3 in |
| Lifting Range | 13 in |
| Min Pad Width | 42.6 in |
| Max Pad Width | 68.7 in |
| Min Runway Width Compatibility | 48.7 in |
| Max Runway Width Compatibility | 55 in |
| Height Adapters Included | 5 in and 6.75 in |
| Shipping Weight (Each) | 661 lb |
| Shipping Dimensions (Each) | 51 x 33 x 17 in |
What's Included
- Triumph NTR-24 four-post lift with all structural components

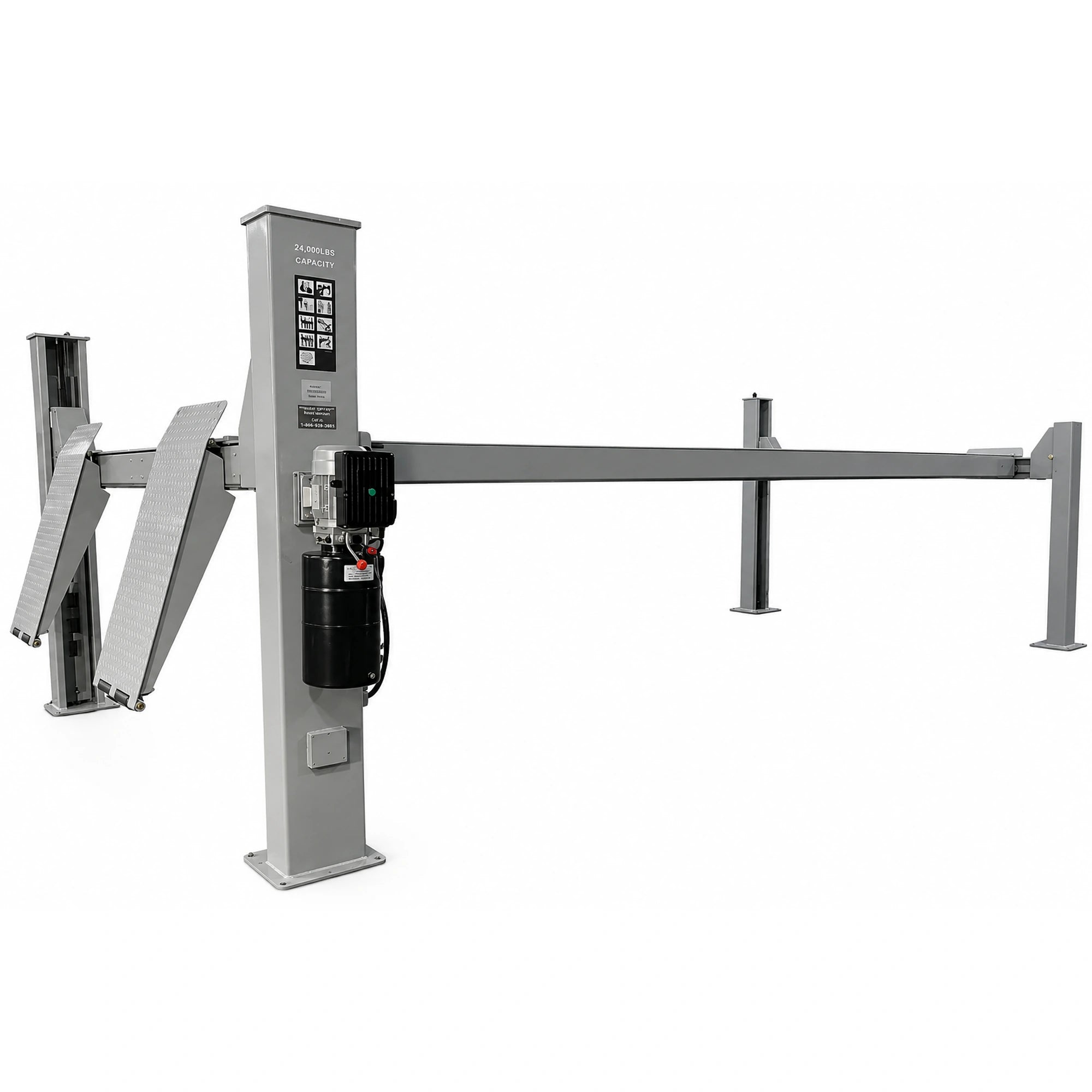

- Heavy-duty hydraulic power unit with 220V single-phase motor
- Two RJ-15000 rolling bridge jacks (15,000 lb each)
- Height adapters (5 in and 6.75 in sets) for both jacks
- Adjustable lifting pads for universal vehicle compatibility
- Control panel with raise/lower controls
- Safety locks for all 9 lock positions
- Anchor bolts and fasteners for concrete installation

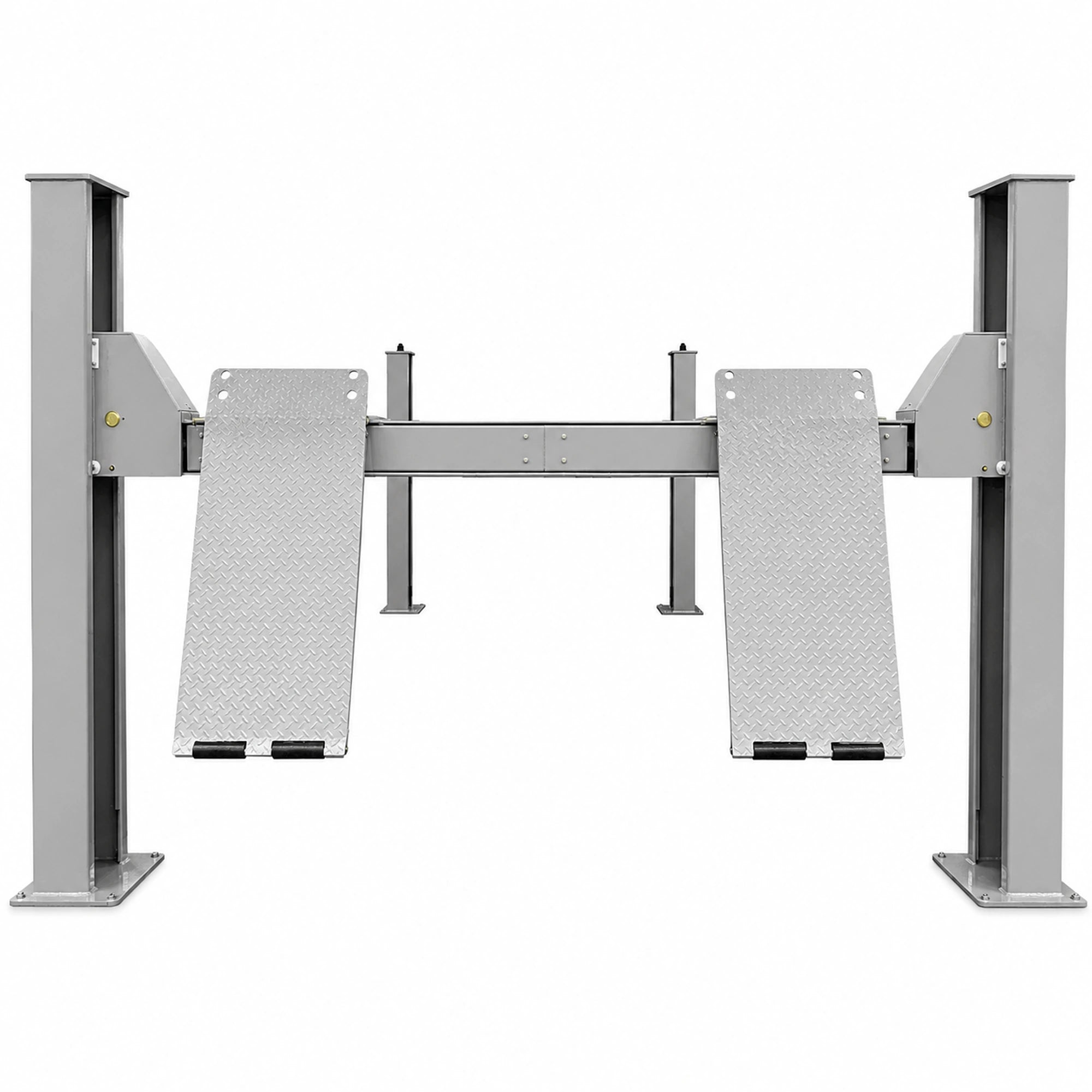

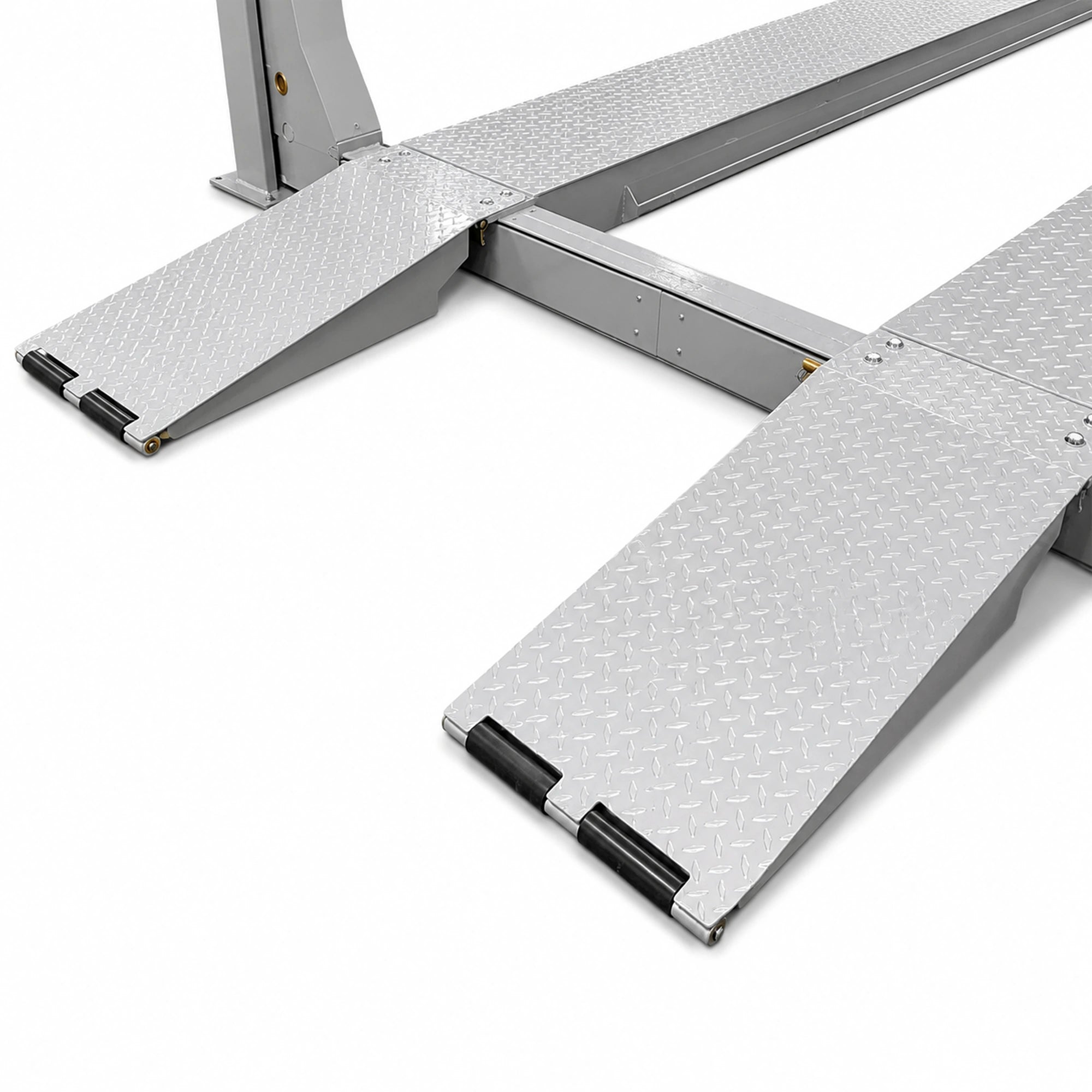

- Folding approach ramps for vehicle loading
Standard color is gray with blue accents (manufacturer standard).
Installation & Setup
Concrete Requirements
This is a heavy-duty commercial installation. You need 6 in of properly cured, reinforced concrete with a high PSI rating to support concentrated loads from vehicles up to 24,000 lb. New concrete must cure a full 28 days before the lift operates under load. Four contact points distribute significant weight, so have a concrete specialist evaluate your site before installation, especially if you're unsure of existing floor strength or thickness.
Electrical Requirements
The NTR-24 requires a dedicated 220V single-phase circuit installed by a licensed electrician following all local codes. Consult your electrician on wire gauge, breaker size, and proper grounding for your specific installation. Single-phase power is standard in most commercial facilities, so you likely won't need a utility upgrade.
Ceiling Height and Workspace
You'll need at least 12 ft 4 in of ceiling height to accommodate the 93.1 in frame height plus tall commercial vehicles on the runways. 14 ft or higher is recommended for maximum comfort when working on large trucks. The floor space footprint is 300 in long without ramps (338.9 in with ramps) by 150.1 in wide. Allow additional clearance on all sides for vehicle approach, technician access, and rolling jack movement.
Professional installation is strongly recommended. The combined shipping weight exceeds 7,900 lb, and proper assembly, alignment, anchoring, and electrical work are critical for safety and warranty coverage. Contact us for referrals to certified installers in your area.
Applications
High-volume fleet shops servicing commercial trucks, dump trucks, and heavy fleet vehicles get a complete lifting station with wheels-free capability for brake and suspension work.
Warranty work and scheduled maintenance on heavy-duty trucks benefit from the combined capacity and precision of the four-post lift plus dual rolling jacks.
Municipal and private transit operations lift buses and commercial vehicles safely while the RJ-15000 jacks provide targeted axle access for brake and suspension service.
Specialty trucks and equipment-carrying vehicles require the full flexibility of adjustable runways, 9 lock positions, and dual rolling jacks that accommodate varying axle widths.
Shops running multiple techs on the same vehicle use the spacious work platform and dual jacks to tackle different service tasks simultaneously without interference.
Shipping
This combo ships via LTL freight with a combined weight of 7,936 lb. Typical transit time is 3 to 7 business days depending on destination. Due to the size of the NTR-24, this product ships directly to your location and cannot be delivered to freight terminals.
You must have a forklift or similar material handling equipment available to unload the lift and rolling jacks. The truck driver cannot assist with hand unloading. Contact us before ordering to discuss your unloading situation if you don't have forklift access.
Free warehouse pickup is available at select locations including Columbus, OH, Fort Worth, TX, and North Las Vegas, NV. Liftgate service is included at no additional charge to lower the freight to street level, though forklift unloading is still required to position the equipment. Additional freight fees apply for delivery to Northern California, South Dakota, North Dakota, Montana, and Wyoming.
We deliver to both residential and commercial addresses nationwide. Need a delivery window or custom routing? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
1-Year Parts Warranty, No Labor
The NTR-24 and RJ-15000 jacks include a 1-year parts warranty covering defects in materials and workmanship. Parts and ground shipping are provided at no charge. Troubleshooting is handled over the phone, and replacement parts ship at no cost. You or a qualified technician must install replacement parts, as labor is not covered.
Rubber lifting pads are excluded from warranty coverage. Cylinders carry a 30-day full replacement warranty. After 30 days, seal kits are available at cost for maintenance.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Talk to our team about lifting capacity, vehicle fitment, ceiling height requirements, shipping logistics, or rolling jack compatibility. Call (855) 498-2147.
Frequently Asked Questions
Can the NTR-24 safely lift a fully loaded 24,000 lb commercial vehicle?
Yes. The NTR-24 is rated for 24,000 lb with 6,000 lb capacity per post. The four-post design distributes weight across four contact points on the runways, providing stable support for loaded commercial trucks, buses, and heavy fleet vehicles. Nine lock positions secure the vehicle mechanically at your chosen working height.
Why two RJ-15000 rolling jacks instead of one?
Two jacks let you lift both axles independently, which means you can service front and rear brakes, suspension, or drivetrain components without repositioning a single jack between axles. Each RJ-15000 handles 15,000 lb, giving you 30,000 lb of combined rolling jack capacity. On longer commercial vehicles, dual jacks also let two techs work different ends of the vehicle simultaneously.
What ceiling height do I need for this combo?
You need at least 12 ft 4 in to accommodate the 93.1 in frame height plus a tall commercial vehicle on the runways. 14 ft or higher is recommended for comfortable access when working on large trucks. The floor footprint is 300 in long without ramps (338.9 in with ramps) by 150.1 in wide, plus clearance on all sides.
What are the concrete requirements for installation?
You need 6 in of properly cured, reinforced concrete with a high PSI rating to support concentrated loads from vehicles up to 24,000 lb. New concrete must cure 28 days before the lift operates under load. A professional concrete assessment is recommended before installation, especially if you're unsure of your existing floor's strength or thickness.
What electrical setup does the NTR-24 require?
A dedicated 220V single-phase circuit installed by a licensed electrician. This is standard in most commercial facilities and doesn't require a three-phase upgrade. Consult your electrician on wire gauge, breaker size, and proper grounding for your specific location and local code requirements.
How is this combo shipped and what do I need to unload it?
The combo ships via LTL freight with a combined weight of 7,936 lb. Transit takes 3 to 7 business days. You must have a forklift or similar equipment on site to unload. The NTR-24 cannot be delivered to freight terminals due to its size. Free warehouse pickup is available in Columbus OH, Fort Worth TX, and North Las Vegas NV. Liftgate service is included to lower freight to street level.
Can I use the NTR-24 without the rolling bridge jacks?
Yes. The NTR-24 functions as a complete four-post lift on its own for drive-on service, inspections, and any work that doesn't require wheel removal. The RJ-15000 jacks add wheels-free capability for brake, suspension, and axle work. When not in use, the jacks lower to 15.3 in and roll out of the way for storage.
What vehicle widths can the RJ-15000 jacks accommodate?
Each RJ-15000 adjusts from 42.6 to 68.7 in between lifting pads, covering everything from narrow axles to the widest commercial truck configurations. The jacks are compatible with runway widths from 48.7 to 55 in. Two sets of height adapters (5 in and 6.75 in) provide additional positioning flexibility for different suspension geometries.
What does the warranty cover on this combo?
Both the NTR-24 and the RJ-15000 jacks carry a 1-year parts warranty covering defects in materials and workmanship. Parts and ground shipping are free. Rubber lifting pads are excluded. Hydraulic cylinders have a 30-day full replacement window, after which seal kits are available at cost. Labor is not covered.
What's the difference between 9 lock positions and continuous hydraulic holding?
Lock positions use mechanical safety latches that physically secure the lift at set heights, independent of hydraulic pressure. This means a hydraulic leak or power loss won't cause the lift to drop. The NTR-24's 9 lock positions across the full 70.8 in range give your techs multiple secure working heights for different tasks, which is critical when working under heavy commercial vehicles.
Features
Lift and Jack Pairing
Drive-On and Wheel-Free Work
Component-Level Fit Check
Specifications
| Model / Package | NTR-24 + 2x RJ-15 |
|---|---|
| Product Type | Four-Post Lift and Rolling Jack Package |
| Rated Capacity | 24,000 lb |
|---|---|
| Maximum Lift Height | 70.8 in |
| Minimum Runway Height | 9 in |
| Overall Height | 93.1 in |
| Overall Length Without Ramps | 300 in |
| Overall Length With Ramps | 338.9 in |
| Overall Width | 150.1 in |
| Runway Size | 289.9 x 24 in |
| Power | 220V, single phase |
| Motor | 4.0 kW |
| Lock Release | Pneumatic |
| Rated Capacity | 15,000 lb |
|---|---|
| Lowered Height | 15.3 in |
| Maximum Lift Height | 28.3 in |
| Adjustable Pad Width | 42.6 to 68.7 in |
| Compatible Runway Spacing | 48.7 to 55 in |
| Shipping Weight | 661 lb |
