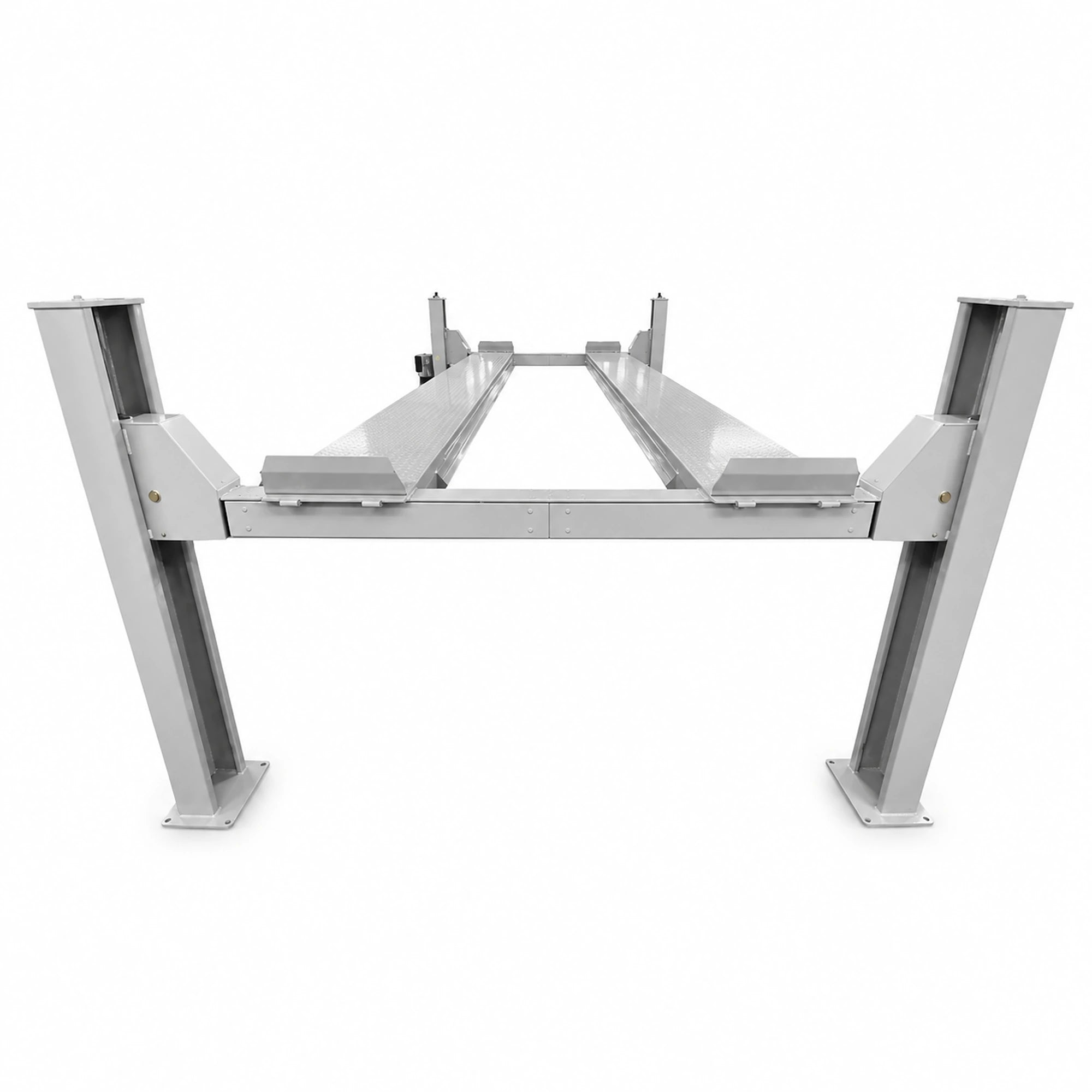

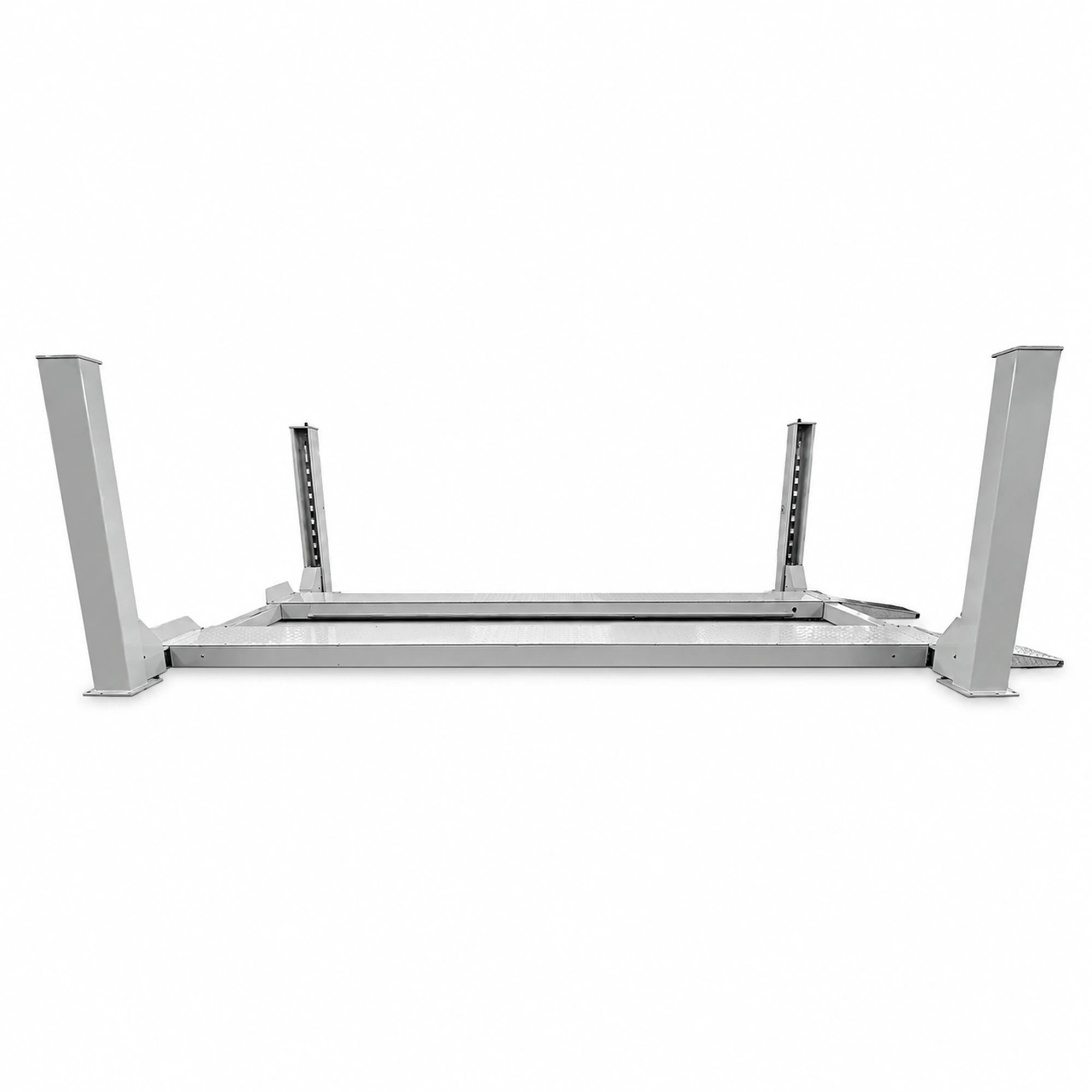

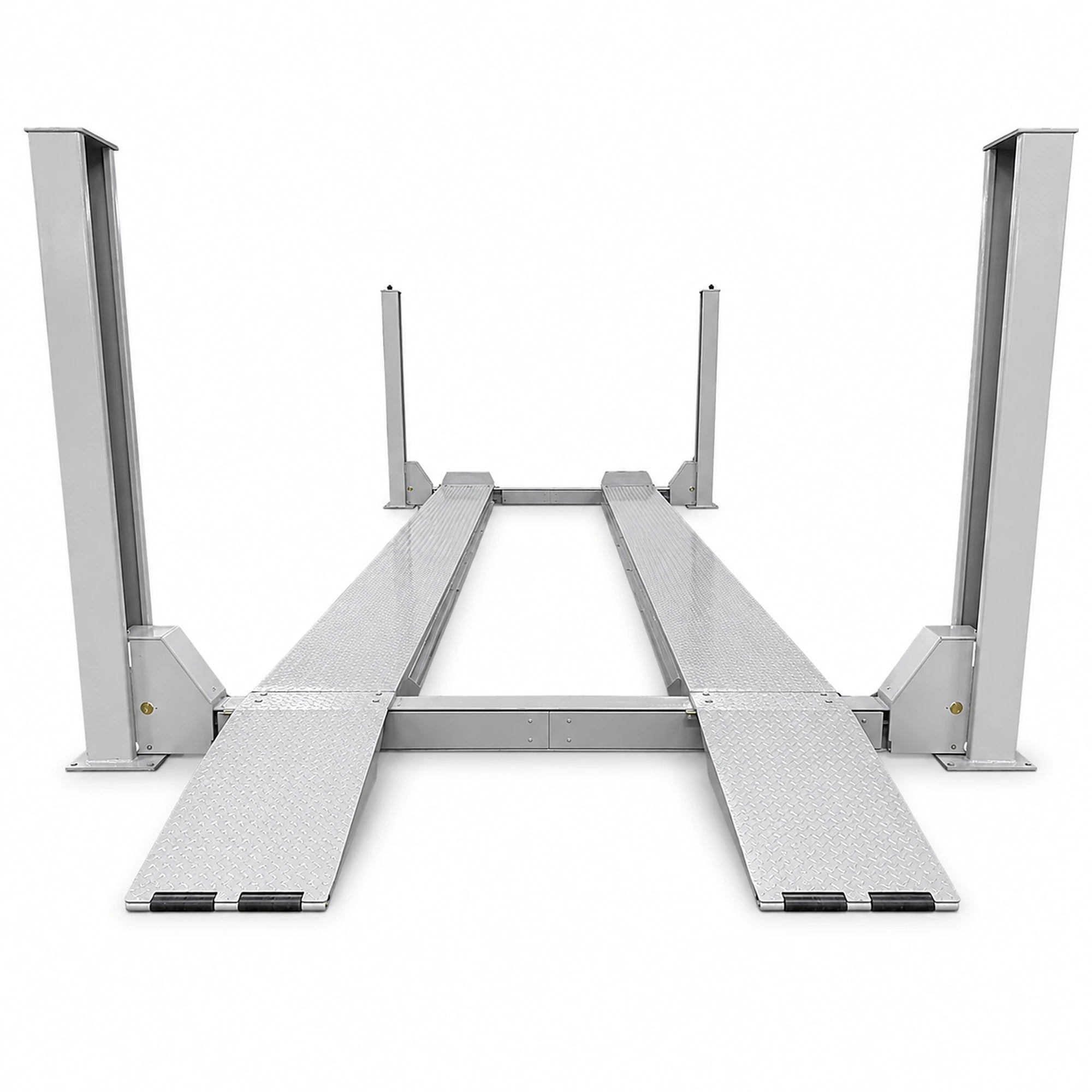

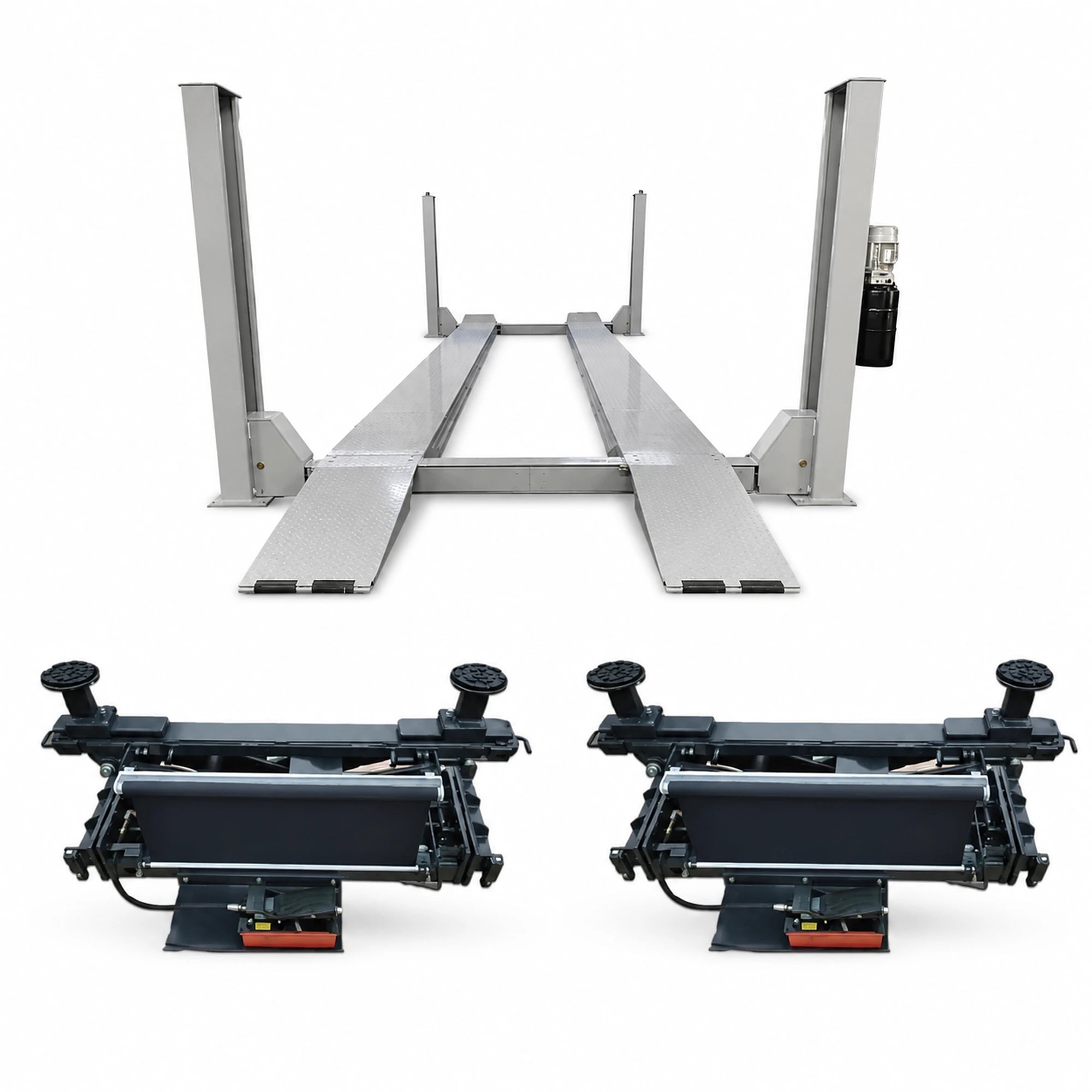

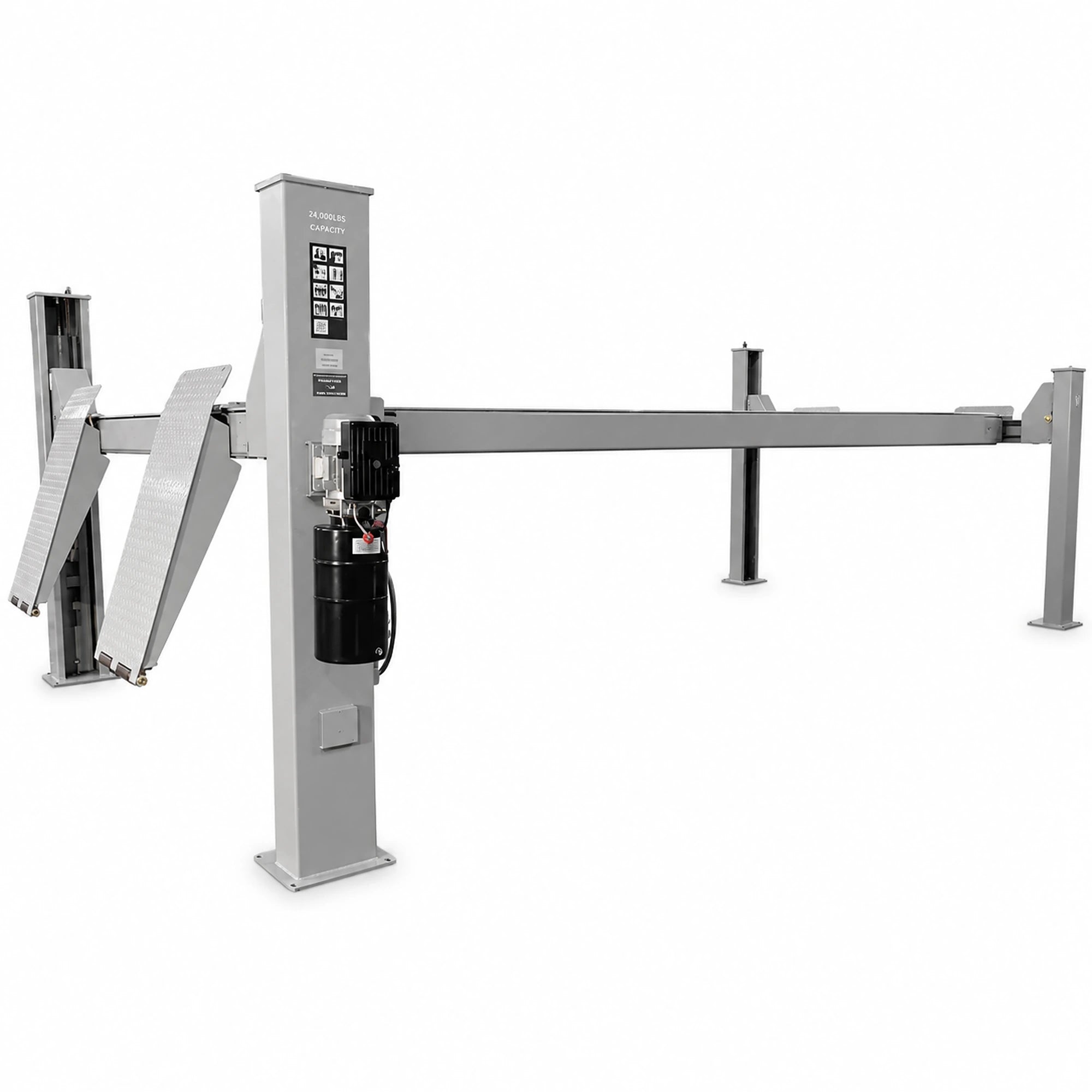

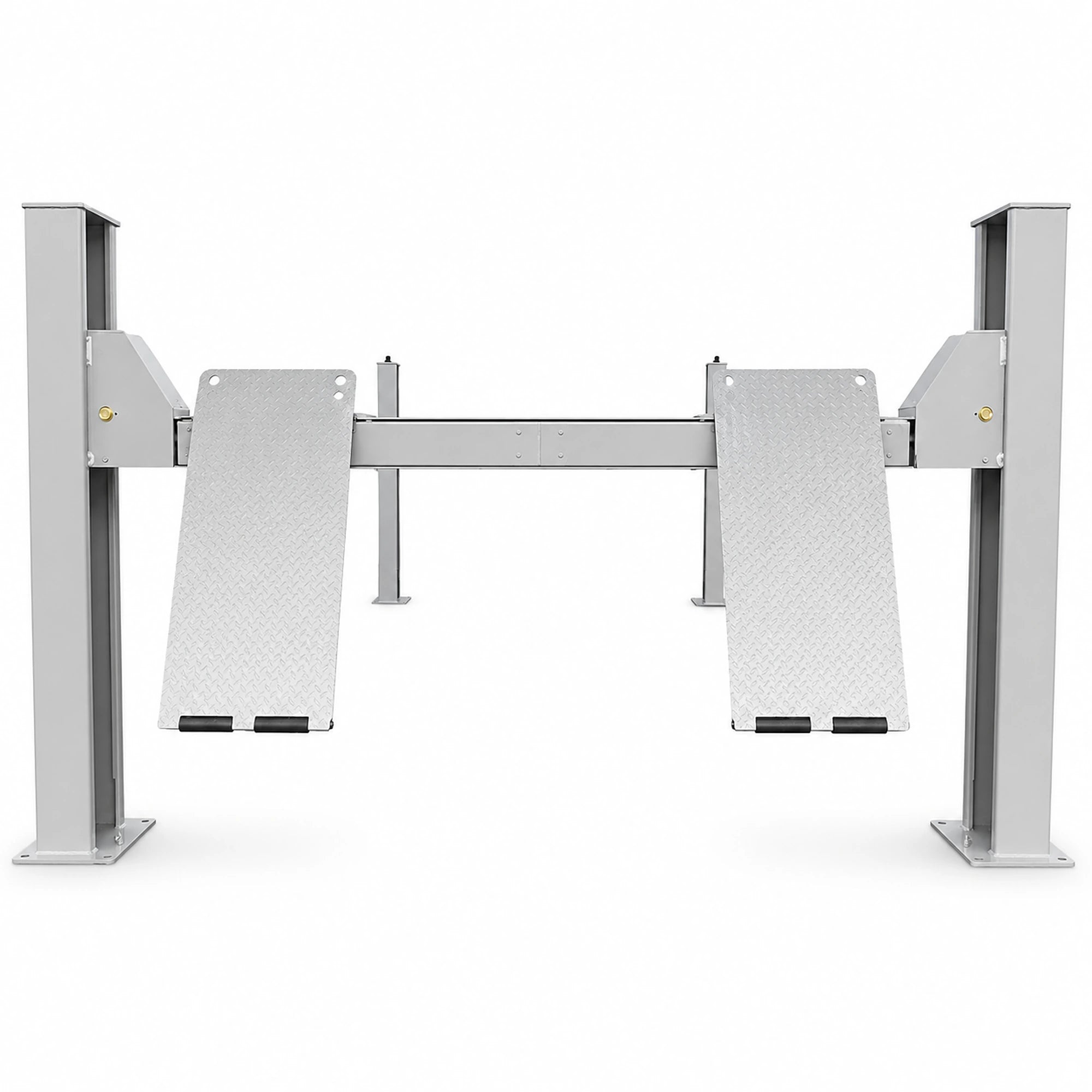

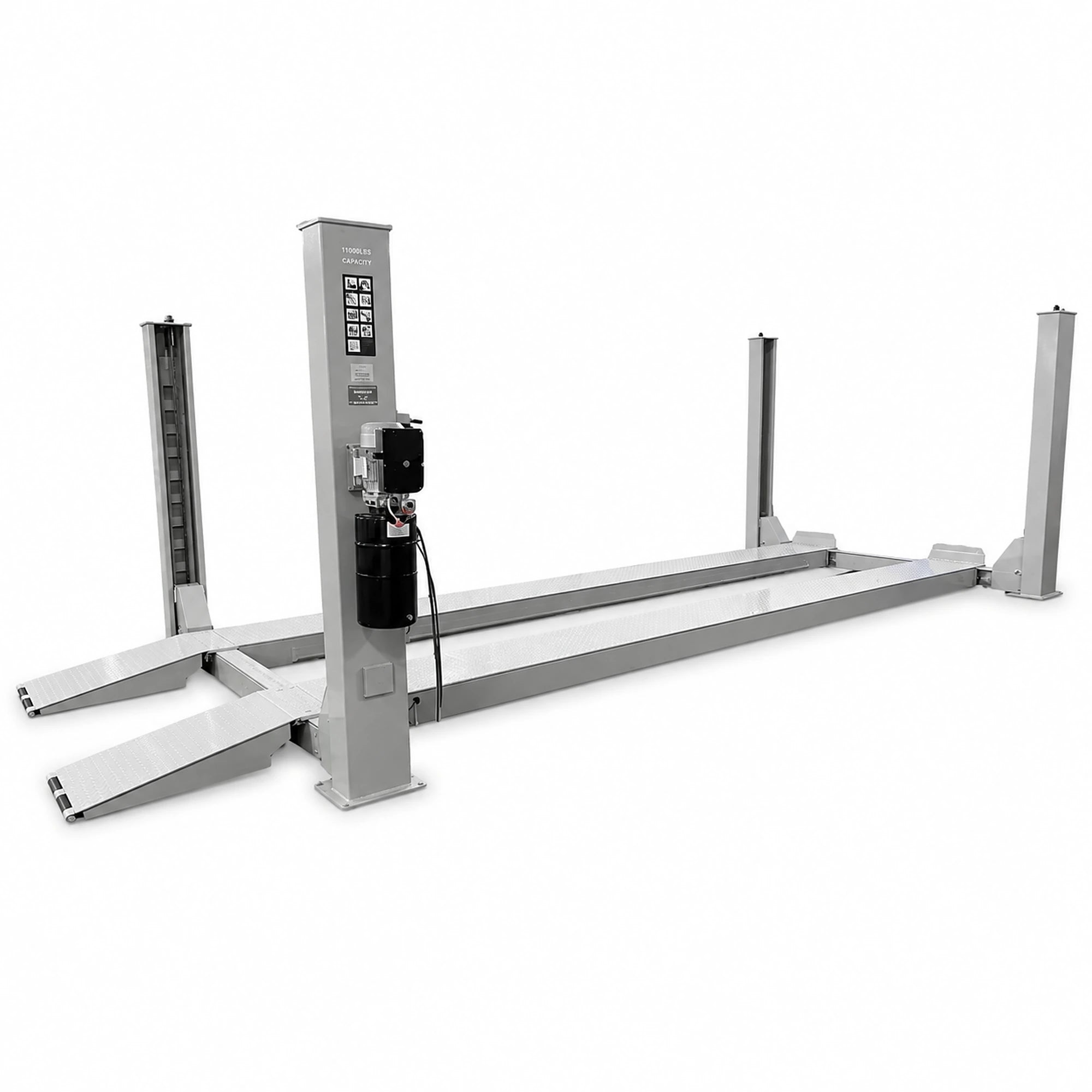

Triumph NTR-16 16000 lb 4-Post Lift with 2 RJ-9 Rolling Jack Combo

16,000 lb Lifting Capacity

The NTR-16 lifts vehicles up to 16,000 lb, making it ideal for full-size trucks, SUVs, and commercial vans. Its robust four-post design distributes weight evenly across four contact points, ensuring stability during extended maintenance and repairs. This capacity covers the vast majority of vehicles in professional and enthusiast garages.

12 Lock Positions for Secure Operations

Operators can lock the lift at multiple height positions throughout the 74.4-inch lifting range, providing flexibility for different task requirements. Lock positions secure the vehicle safely at intermediate heights, allowing technicians to work on brakes, suspension, and undercarriage systems without constant hydraulic pressure. This safety feature gives peace of mind during extended work sessions.

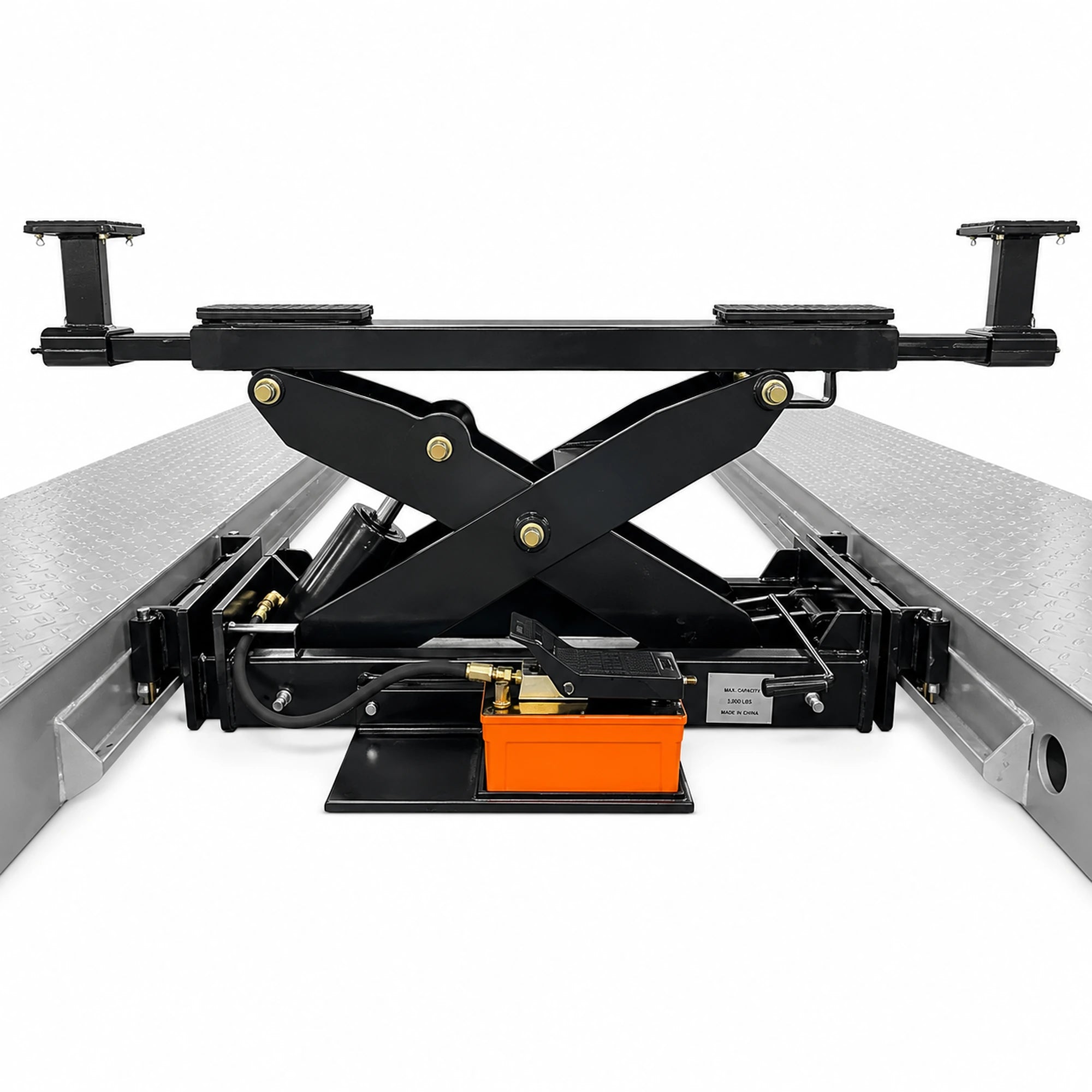

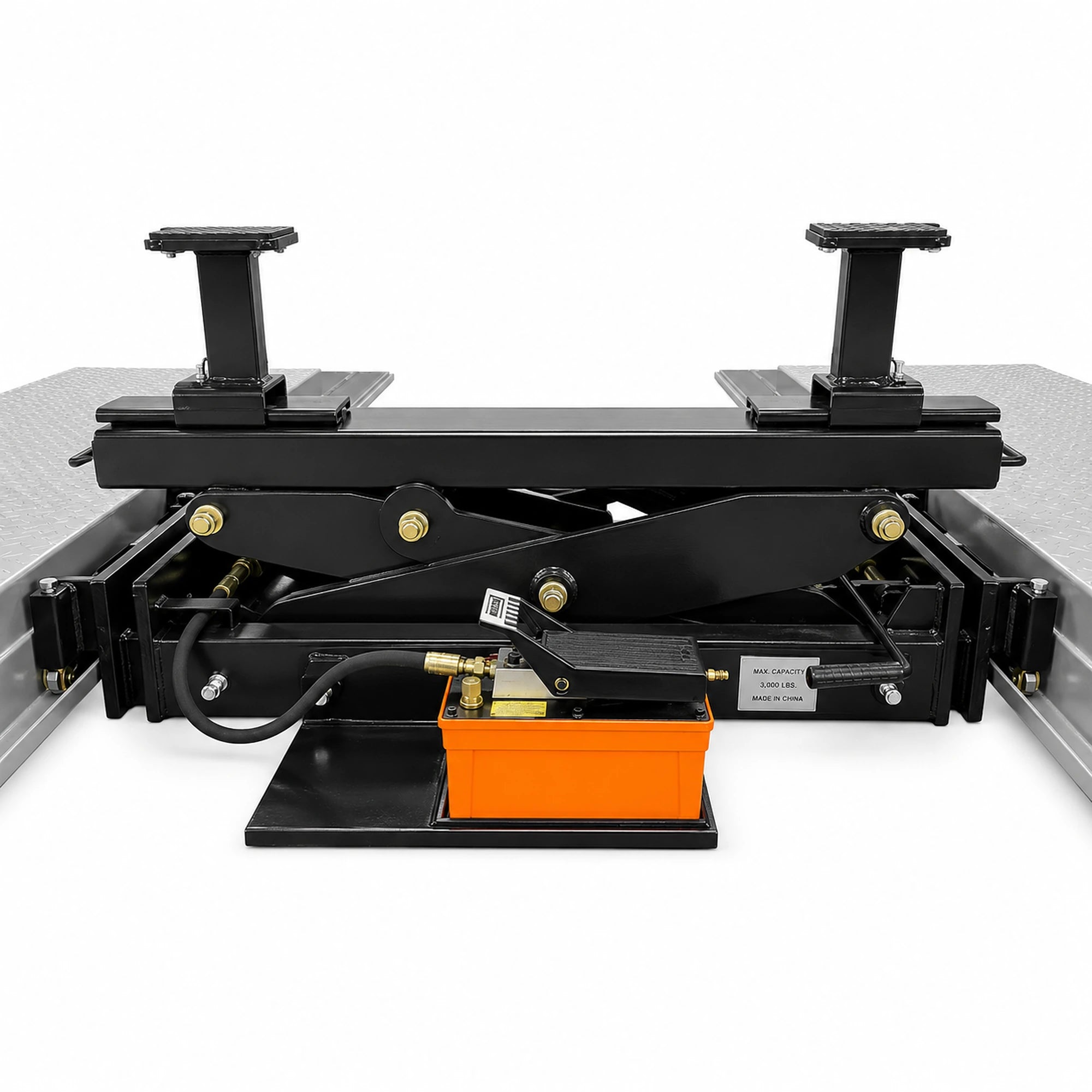

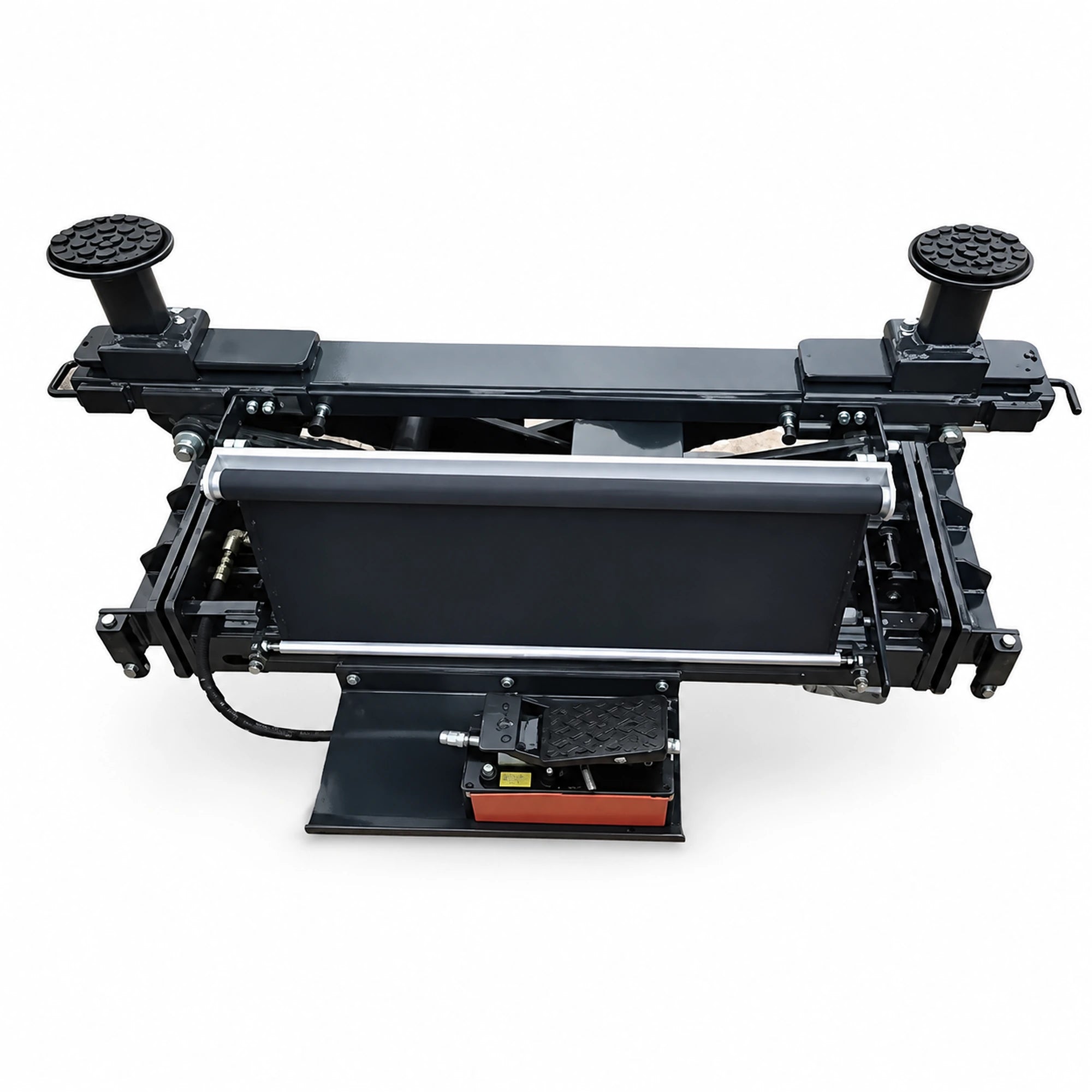

Dual RJ-9000 Rolling Bridge Jacks

Each RJ-9000 delivers 9,000 lb lifting capacity and features adjustable lifting pads from 40.1 to 59.8 inches apart, accommodating vehicles ranging from compact cars to SUVs. The rolling design allows easy positioning for front or rear axle work. Two height adapters (1.5-inch and 5-inch) enable precise lifting height adjustments for different suspension geometries and work angles.

Adjustable Runway Spacing

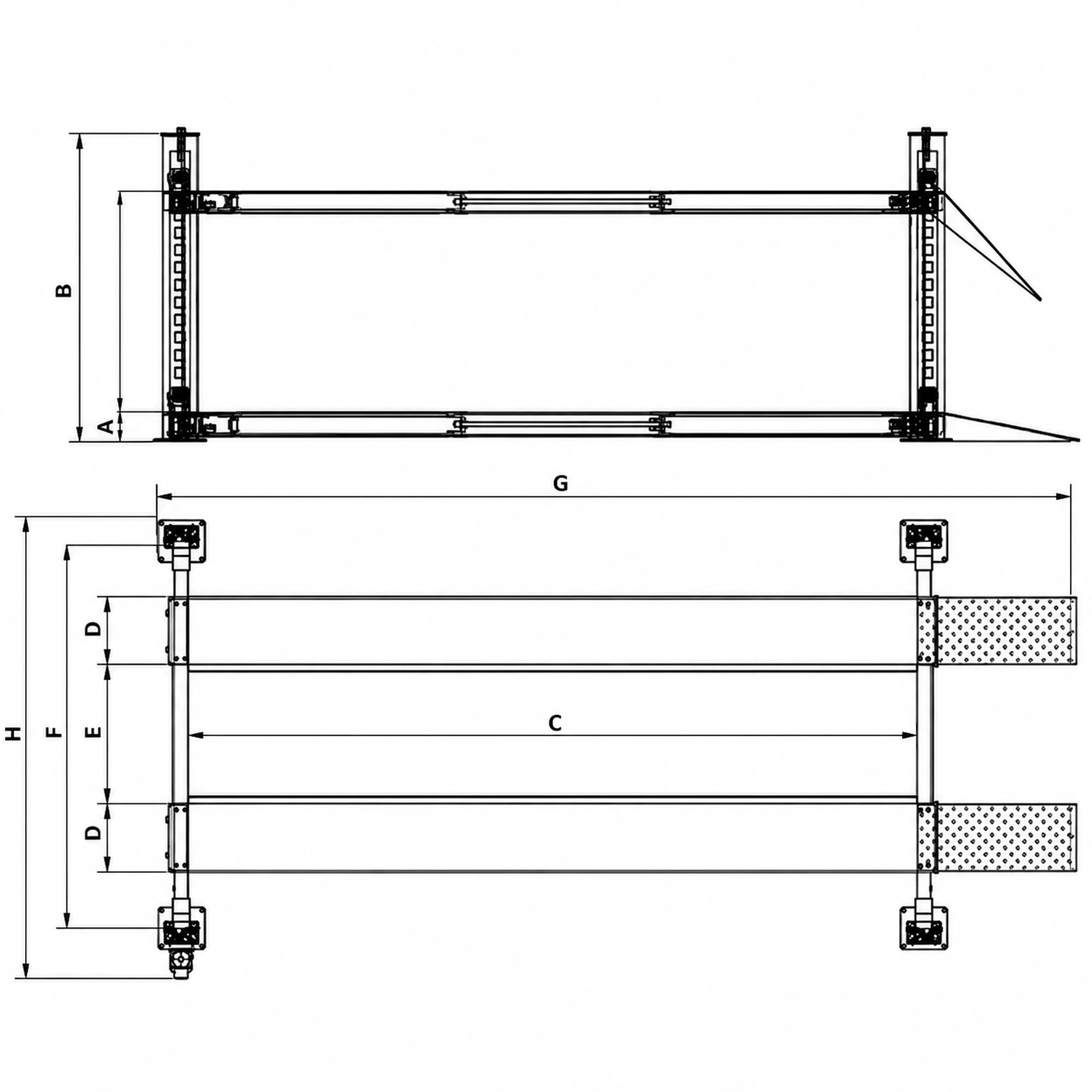

The runways can adjust from 42.5 to 46.4 inches between columns, accommodating narrow sports cars to wide SUVs and trucks. This flexibility means a single lift serves multiple vehicle types without compromise. Combined with 134.2-inch spacing between columns, the NTR-16 fits diverse vehicle footprints.

Spacious Work Environment

With 161-inch overall width, 224.5-inch runway length, and 114-inch drive-thru clearance, technicians have plenty of room for positioning vehicles, moving around the lift, and working on systems. The 20-inch wide runways provide stable contact with tires while maintaining accessibility to undercarriage areas. A 7.5-inch minimum runway height accommodates diverse vehicle suspension heights.

Heavy-Duty Steel Construction

Built with precision-engineered steel frames, both the NTR-16 and RJ-9000 withstand years of professional use. CE certification and ISO9001 quality certification from the manufacturing facility ensure consistent build quality and safety standards. The rugged design handles daily heavy-use environments without compromising structural integrity.

220V Single-Phase Electrical System

The lift requires 220V single-phase power, a standard configuration in most professional garages. This voltage requirement offers efficient operation with smooth hydraulic control and reliable power delivery. The single-phase design simplifies electrical infrastructure compared to three-phase systems, reducing installation complexity.

Compact Storage with Maximum Functionality

The lowered height of the RJ-9000 at just 16.9 inches allows easy rollaway storage when not in use, keeping shop floor space available. When raised to 32.4 inches maximum height, the jack provides ample clearance for comprehensive axle and suspension work. This range makes the rolling jacks practical for shops managing multiple work stations.

Floor and Concrete Requirements

• Surface Type: Level concrete floor with adequate PSI rating to handle concentrated load points
• Minimum Thickness: 4 to 6 inches of properly cured concrete recommended for heavy-duty installations
• Curing Time: Concrete should cure fully (typically 28 days) before lift installation and operation
• Load Distribution: Four contact points distribute the 16,000 lb load, requiring solid foundation support at each post location

Electrical Requirements

• Voltage: 220V single phase
• Circuit Type: Dedicated electrical circuit recommended for optimal performance
• Installation: Should be installed by qualified electrician following local electrical codes
• Proximity: Electrical outlet should be conveniently located near the lift control panel

Ceiling Height and Space Requirements

• Minimum Ceiling Height: 11 feet 8 inches to accommodate the 88.7-inch frame height plus vehicle height
• Recommended Ceiling Height: 13 feet or higher for maximum comfort and safety when working on taller vehicles
• Floor Space: 235 inches (without ramps) to 273.9 inches (with ramps) in length, plus 161 inches width
• Professional Installation: Qualified technicians should handle the assembly and positioning of the lift and rolling jacks

LTL Freight Delivery

This combo ships via LTL (less-than-truckload) freight due to the combined weight of approximately 3,712 lb. Typical transit time is 3-7 business days depending on destination. A delivery appointment will be scheduled before shipment, and the freight carrier will call to confirm delivery time at your location.

Unloading and Equipment Requirements

You will need a forklift or similar material handling equipment to unload both the NTR-16 lift and the rolling jacks at your location. The truck driver cannot assist with hand unloading due to liability and scheduling constraints. If you don't have access to a forklift, you can arrange delivery to a nearby freight terminal (typically within 30-60 minutes of your location) where the terminal will unload using their equipment.

Warehouse Pickup Option

Free warehouse pickup is available at select locations including Columbus, OH; Fort Worth, TX; and North Las Vegas, NV. Pickup eliminates shipping costs and can be arranged after your order is placed. Additional freight fees of $200 apply for delivery to Northern California, South Dakota, North Dakota, Montana, and Wyoming.

Residential and Commercial Delivery

We deliver to both residential and commercial addresses nationwide. Liftgate service is included at no additional charge, which lowers the freight to street level, though forklift unloading is still required to position the equipment in your garage or shop. Contact customer service for a custom delivery quote based on your specific address.
