Triumph NTR-16 16,000 lb Four-Post Lift
Back-to-back pickups, a fleet van squeezed in before lunch, an SUV waiting after. That's a normal Tuesday. The Triumph NTR-16 four-post lift handles all of it with 16,000 lb of capacity and a platform stable enough to double as vehicle storage between jobs. Drive it on, lock it down, get underneath.
Twelve lock positions give your techs height control that matches the task, not just "all the way up or all the way down." The 74.4-inch max lift height clears plenty of room for brake, suspension, exhaust, and drivetrain work. And at only 7.5 inches of drive-on height, even lowered cars and sport trucks roll up without scraping the front end on the approach.
Runways measure 224.5 inches and extend to 273.9 inches with the included approach ramps, so long-wheelbase crew cabs and extended vans sit with room to spare. The adjustable runway width (42.5 to 46.4 inches) accommodates everything from compact trucks to full-size SUVs. Power comes from a 220V single-phase circuit, which is standard in most commercial bays and cheaper to wire than three-phase.
Rolling bridge jacks like the RJ-9 are available separately if you need wheels-free lifting for brake and suspension service. Call us at (855) 498-2147 if you want help spec'ing the right accessories for your shop.
Specifications
Capacity
| Lifting Capacity | 16,000 lb |
| Per-Corner Capacity | 4,000 lb |
Dimensions
| Overall Height (Lowered) | 88.7 in |
| Overall Width | 161 in |
| Overall Length (Without Ramps) | 235 in |
| Overall Length (With Ramps) | 273.9 in |
| Width Between Columns | 134.2 in |
Runways
| Runway Length | 224.5 in |
| Runway Width | 20 in |
| Between Runways (Adjustable) | 42.5 to 46.4 in |
| Min Runway Height | 7.5 in |
Performance
| Max Lift Height | 74.4 in |
| Lock Positions | 12 |
Electrical
| Power Requirement | 220V Single Phase |
Shipping
| Shipping Weight | 3,112 lb |
| Shipping Dimensions | 234 in L x 23 in W x 43 in H |
What's Included
- Four lift columns with hydraulic cylinders
- Two main runways with adjustable width positioning

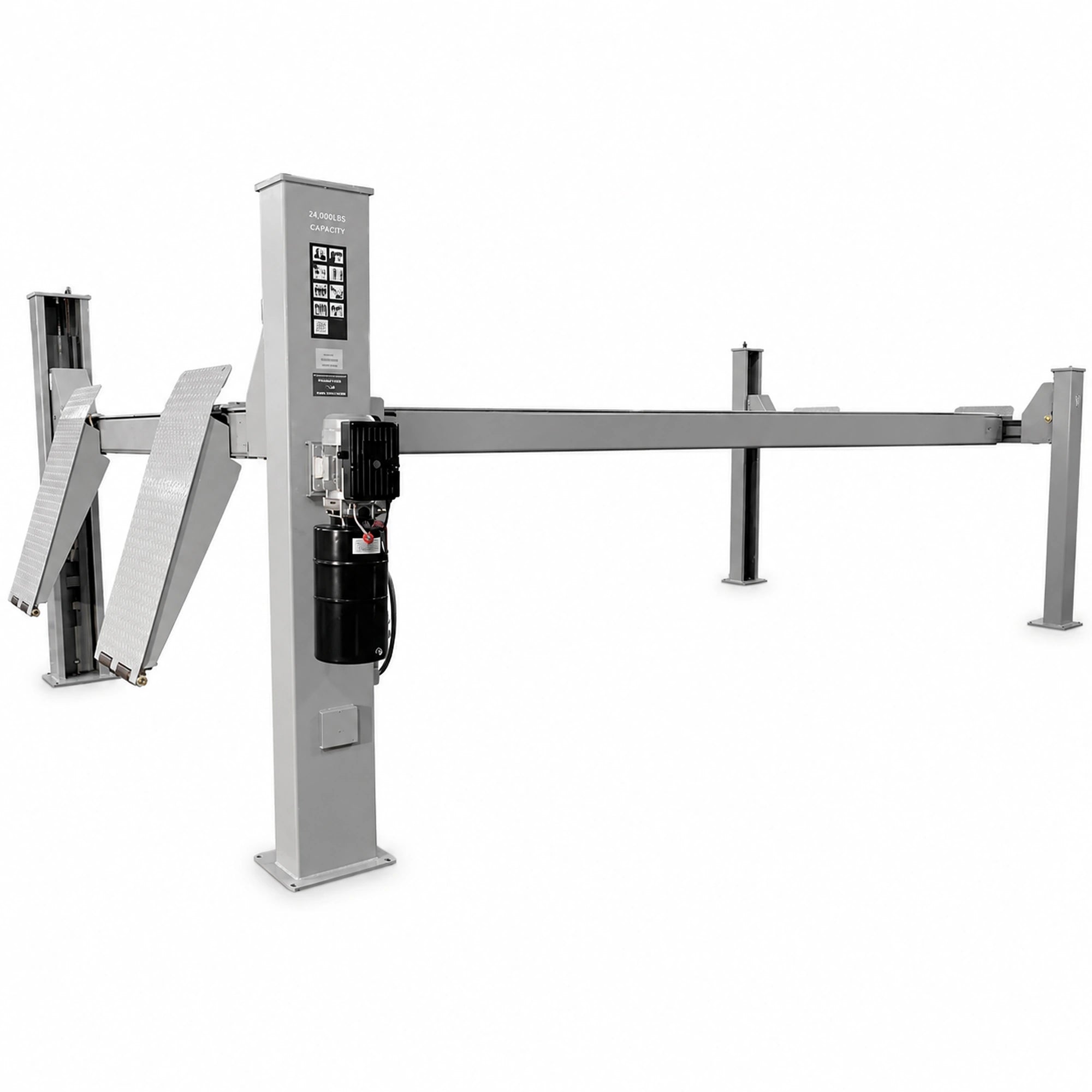

- Hydraulic power unit with pump and motor
- Control pedal and raise/lower controls
- Safety latches and lock mechanisms (12 positions)
- Anchor bolts and fasteners for concrete installation

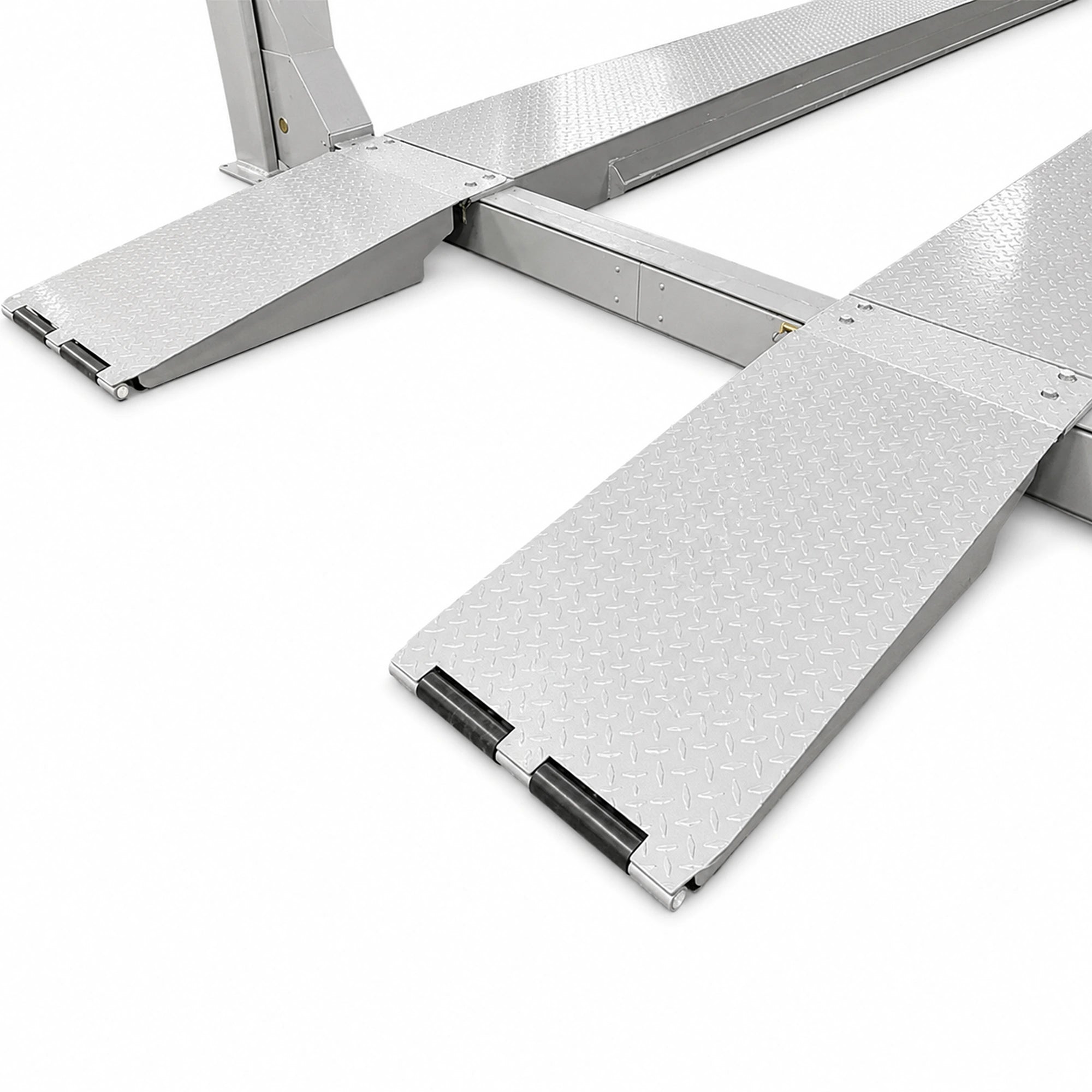

- Approach ramps
Rolling bridge jacks (such as the RJ-9) are sold separately and add wheels-free lifting capability for brake and suspension work.
Installation and Setup
Concrete Requirements
Your floor needs a minimum of 4 to 4.25 inches of solid, reinforced concrete rated at 3,000 PSI or higher. The slab must be level and free of cracks. Anchor bolts require 3.25 inches of embedment depth, and all anchoring points must sit at least 6 inches from slab edges, expansion seams, or control joints. New concrete needs a full 28-day cure before you operate under load. Do not install on asphalt or hand-mixed concrete.
Electrical Requirements
The NTR-16 runs on a 220V single-phase dedicated circuit. A licensed electrician must handle the wiring and install a disconnect switch within sight of the lift, per code. All connections must be properly grounded. Check with your local building authority on permits and inspections before scheduling the install.
Space and Ceiling
Plan for a minimum ceiling height of 10 feet, though 12 feet or higher gives your techs much better working clearance. The lift footprint measures 161 inches wide by 235 inches long without ramps. Allow 3 to 4 feet of clearance on each side for workspace access, and make sure the approach path is level with at least 7.5 inches of clearance to the runway front edge.
Professional Installation Recommended
At 3,112 lb, this isn't a weekend project. Professional installation ensures proper anchoring, correct electrical hookup, and full warranty compliance. Call us at (855) 498-2147 for installer referrals in your area.
Applications
Service pickups, SUVs, and vans alongside smaller vehicles without oversized equipment. The 16,000 lb capacity covers the majority of vehicle types that roll through a general repair bay.
Keep commercial vans, delivery trucks, and service vehicles on schedule. Four-post stability makes the NTR-16 a dependable platform for repetitive fleet maintenance and undercarriage inspections.
Twelve lock positions give you precise height control for different truck configurations, from stock half-tons to lifted crew cabs with extended wheelbases.
Complement your two-post lifts with a stable four-post platform for vehicle storage, service staging, and alignment prep between jobs.
Shipping
Your NTR-16 ships via LTL freight with free shipping to most continental U.S. locations. Transit time runs 3 to 14 days depending on destination. You'll receive email notification with carrier info and tracking once it ships.
You're responsible for unloading. At 3,112 lb, you'll need heavy machinery on-site: a forklift, bobcat, tractor, tow truck, or backhoe. The driver does not provide unloading service. If you don't have unloading equipment, we can route the shipment to the carrier's nearest terminal for pickup with your own trailer.
Free shipping excludes government secure locations, state and national parks, construction sites, islands, Alaska, and Hawaii. Additional fees may apply for remote areas or special routing. Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
The NTR-16 includes a 1-year parts warranty covering manufacturer defects in materials and workmanship. Parts and ground shipping are provided at no charge during the coverage period. Labor is not covered.
Rubber lifting pads are excluded from warranty coverage. Hydraulic cylinders carry a 30-day full replacement warranty. After 30 days, seal kits are available at cost for maintenance.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Order?
Our team can help with floor prep, electrical planning, unloading logistics, vehicle fitment, and bridge jack compatibility. Call (855) 498-2147.
Frequently Asked Questions
What vehicles can the Triumph NTR-16 handle?
The NTR-16 lifts up to 16,000 lb, covering full-size pickups, SUVs, commercial vans, and light-duty trucks. The 224.5-inch runway length accommodates extended-cab and crew-cab trucks, and the adjustable runway width (42.5 to 46.4 inches) fits everything from compact trucks to full-size SUVs.
Will low-clearance vehicles fit on the NTR-16?
Yes. The minimum runway height is only 7.5 inches, which accommodates sports cars, lowered trucks, and modified vehicles that can't clear the 9-inch or higher drive-on height found on many competing four-post lifts.
Can I add rolling bridge jacks later?
Yes. The NTR-16 is compatible with rolling bridge jacks such as the RJ-9, sold separately. Bridge jacks ride on the runways and let you lift individual wheels for brake, tire, and suspension service without moving the vehicle off the lift.
What concrete specs does my floor need?
You need a minimum of 4 to 4.25 inches of reinforced concrete with at least 3,000 PSI compressive strength. The slab must be level, crack-free, and fully cured (28 days minimum for new pours). Anchor bolts require 3.25 inches of embedment depth, with at least 6 inches of clearance from edges and expansion joints.
What power does the NTR-16 require?
It runs on a 220V single-phase dedicated circuit, which is standard in most commercial shops. A licensed electrician needs to install the circuit and a disconnect switch within sight of the lift. Single-phase is simpler and less expensive to wire than three-phase power.
How much ceiling height do I need?
A minimum of 10 feet is required, though 12 feet or higher is recommended for comfortable working clearance. The lift measures 88.7 inches tall when lowered, and vehicles on the runways add to the total height depending on the vehicle profile.
What equipment do I need to unload the lift?
The NTR-16 ships at 3,112 lb, so you'll need a forklift, bobcat, tractor, tow truck, or backhoe on-site. The freight driver does not unload. If you don't have equipment available, we can route delivery to the carrier's nearest terminal for pickup with your own trailer.
How long does shipping take?
Transit time ranges from 3 to 14 days depending on your location. The lift ships LTL freight with free shipping to most continental U.S. addresses. You'll receive tracking information via email once it ships.
What does the warranty cover?
The 1-year parts warranty covers manufacturer defects in materials and workmanship, with free parts and ground shipping. Labor, rubber lifting pads, and hydraulic cylinders (after 30 days) are excluded. Seal kits for cylinders are available at cost after the 30-day window.
How does the NTR-16 compare to higher-capacity Triumph lifts?
The NTR-16 at 16,000 lb is sized for pickups, SUVs, and light commercial vehicles. If your shop handles heavier trucks, the NTR-24 (24,000 lb) and NTR-32 (32,000 lb) offer more capacity but require additional floor space and facility planning. The NTR-16 fits the sweet spot for most general repair and fleet maintenance operations.
Features
Drive-On Runways
Bay Planning
Pre-Order Site Review
Specifications
| Model / Package | NTR-16 |
|---|---|
| Product Type | Four-Post Vehicle Lift |
| Rated Capacity | 16,000 lb |
|---|---|
| Minimum Runway Height | 7.5 in |
| Overall Height | 88.7 in |
| Overall Length Without Ramps | 235 in |
| Overall Width | 161 in |
| Runway Length | 224.5 in |
| Runway Width | 20 in |
| Power | 220V, single phase |
| Motor | 3.0 kW |
| Lock Release | Pneumatic |
