Product highlights
- Jet Blast Inflation on the Changer
- 5,500 lb Bead Breaker
- One-Parameter Data Entry on the Balancer
Triumph NTC-950 Tire Changer + NTB-800 Wheel Balancer Combo
SKU: NTC-950 + NTB-800
$3,765.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a tire equipment specialistExpert product and freight support before you order855-498-2147
- Authorized Triumph Dealer
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

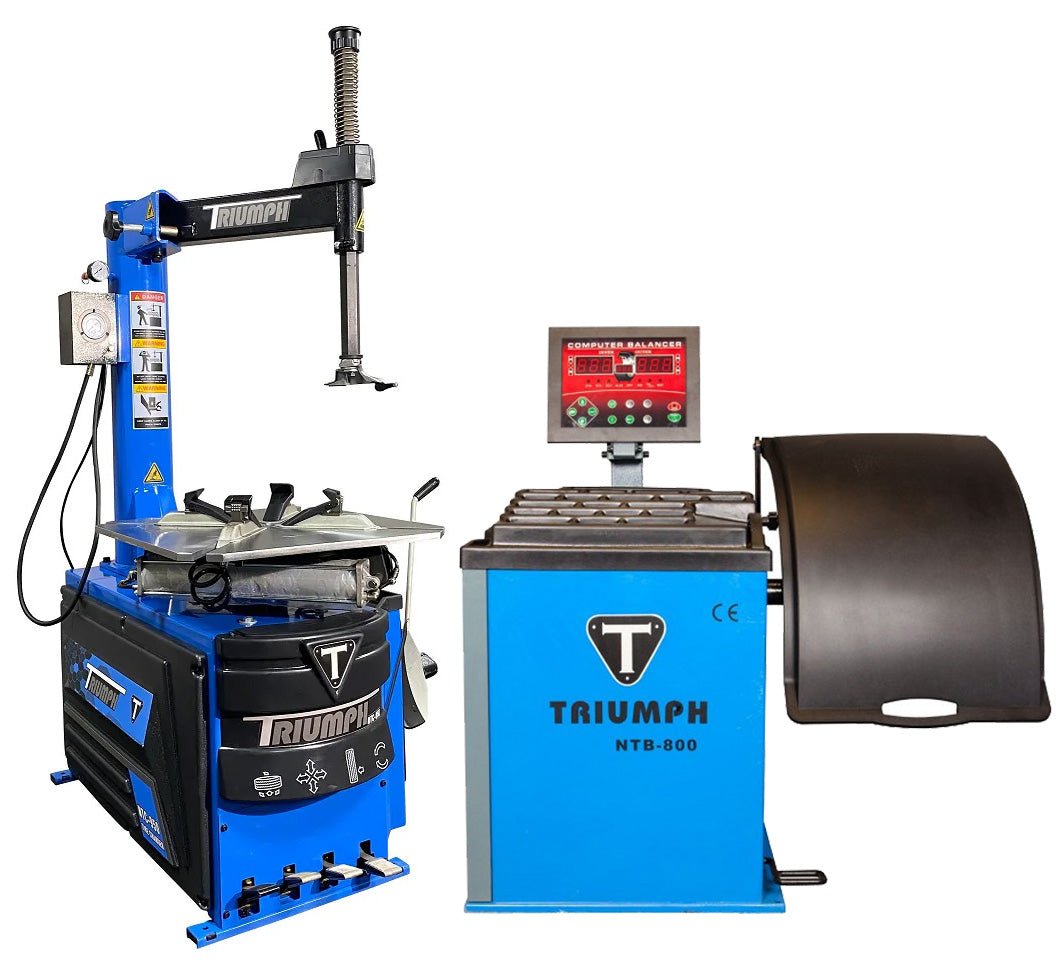

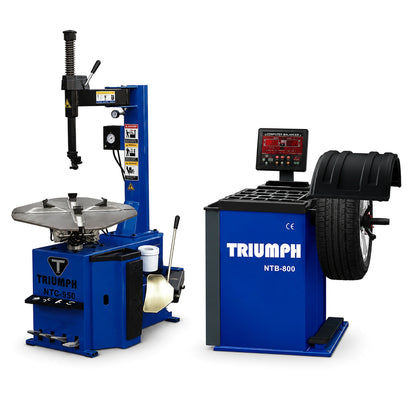

This combo pairs the NTC-950 tire changer with the NTB-800 wheel balancer, the two machines a shop needs to pull a wheel, swap the tire, and hand it back balanced. Both run on standard 110V single phase, so outfitting a startup bay comes down to two outlets and shop air, not an electrical contractor.
On the changer side, a 5,500 lb bead breaker handles seized and corroded wheels and the Jet Blast Inflation System seats stubborn beads at up to 120 PSI. On the balancer side, automatic data entry means you type one parameter and the NTB-800 measures the other two itself, then a wheel brake holds the wheel still while you place weights exactly where the readout says.
Know the limits before ordering: the NTB-800 tops out at 150 lb per wheel and 28 in rims, which covers passenger and light truck work but not commercial truck wheels. If medium duty wheels are in your lane, the NTB-1200 balancer is the better pairing. Call us and we will walk the combos with you.
Features

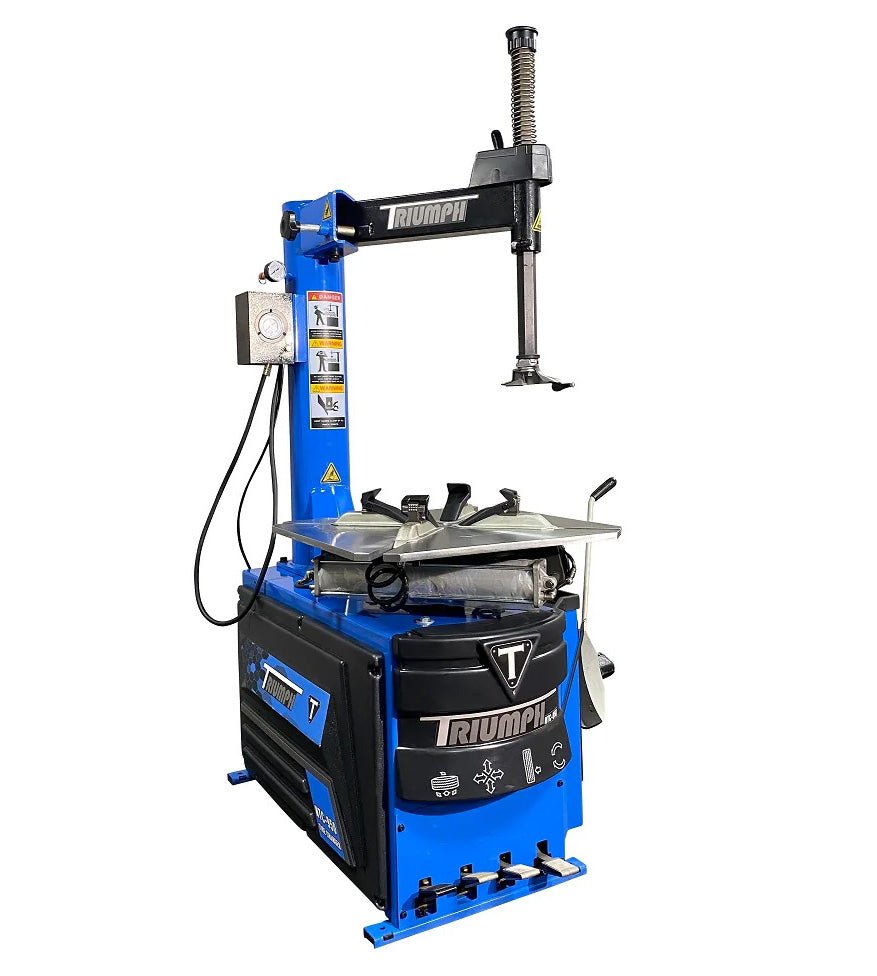

Jet Blast Inflation on the Changer
The NTC-950's built-in Jet Blast Inflation System delivers a burst of air at up to 120 PSI to seat beads that conventional inflation cannot, which is exactly where low-profile and run-flat tires get frustrating. It runs off the same shop air feed as the rest of the machine.
5,500 lb Bead Breaker
Breaking beads on wheels that have corroded to the rim is the roughest job in tire service. The NTC-950's breaker puts 5,500 lb of force behind it, which spares the operator and keeps the job moving instead of stalling at the first stuck bead.

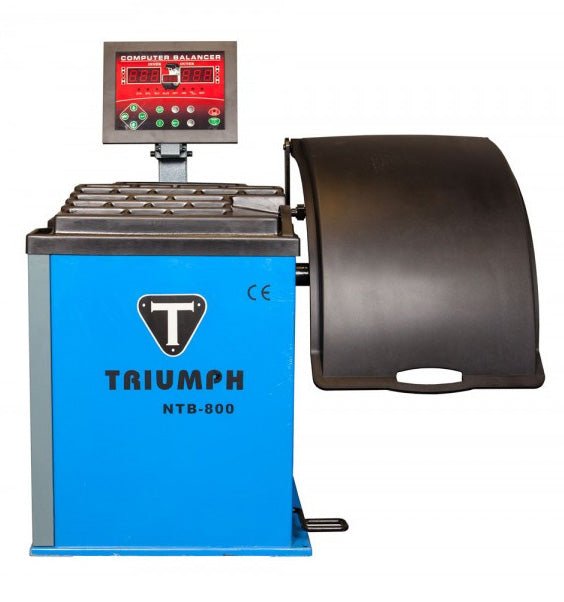

One-Parameter Data Entry on the Balancer
Instead of manually entering diameter, width, and offset, you enter one parameter and the NTB-800 measures and inputs the other two. Over a day of wheels, that is a real time saving and one less place for operator error to put a weight in the wrong spot.
Wheel Brake for Weight Placement
After the spin cycle, the NTB-800's wheel brake holds the wheel in position so you can apply weights precisely at the indicated locations without the wheel drifting. Small feature, direct effect on how often a wheel needs a second spin.
Matched Coverage Across Both Machines
The changer clamps 14 to 26 in outside and 16 to 28 in inside with a 43 in tire limit; the balancer takes 10 to 28 in wheels, rim widths from 1.5 to 20 in, tires to 44 in, and wheels to 150 lb. What the changer can mount, the balancer can spin.
Both Machines on 110V
The changer and balancer each run on standard 110V single phase. No high-voltage circuits or special wiring, which keeps setup cost down; dedicate an outlet to each machine and you are running.
Working Tooling Included
The NTC-950 ships with metal and plastic demount heads, plastic wheel clamp covers, a tire iron, and a lube bucket with brush. The NTB-800 includes its safety hood, quick release wing nut, cone adapters, wheel weight hammer, and rim caliper. Neither machine needs an accessory order to start working.
Specifications
| Inside Clamping | 16-28 in |
|---|---|
| Outside Clamping | 14-26 in |
| Max Wheel Width | 15 in |
| Max Tire Diameter | 43 in |
| Assembled Size | 56 x 40 x 80 in |
|---|---|
| Shipping Size | 51 x 38 x 51 in |
| Shipping Weight | 700 lb |
| Accuracy | ±1 g |
|---|---|
| Cycle Time | 6-9 seconds |
| Automatic Data Entry | Yes |
| Display | Standard or Metric |
| Motor | 1/4 HP |
| Voltage | 110V |
| Total Shipping Weight | 1,000 lb |
|---|
| Bead Breaker Force | 5,500 lb |
|---|---|
| Motor | 1.5 HP |
| Bead Blast | Yes |
| Max PSI | 120 PSI |
| Voltage | 110V |
| Wheel Size Range | 10-28 in |
|---|---|
| Max Tire Diameter | 44 in |
| Rim Width Range | 1.5-20 in |
| Max Wheel Weight | 150 lb |
| Shaft Size | 36 mm |
| Assembled Size | 28 x 48 x 62 in |
|---|---|
| Shipping Size | 30 x 39 x 51 in |
| Shipping Weight | 300 lb |
Installation Requirements
Floor and Space
Level concrete recommended for both machines. Plan a minimum 56 x 40 in footprint for the tire changer and 28 x 48 in for the balancer, each with working clearance around it.
Electrical and Air
Both machines run on 110V single phase; dedicate an outlet to each. The tire changer needs compressed air at up to 120 PSI, and the compressor is not included in the combo.
Ceiling Height
The assembled NTC-950 stands 80 in and the NTB-800 stands 62 in. Allow headroom above the changer for handling larger tires.
Assembly
Some assembly is required on both machines, and moving them into position is on you; the freight driver does not assemble or place equipment.
Shipping & Delivery
Warranty
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
What is the largest wheel the NTC-950 tire changer takes?
Outside clamping to 26 in and inside clamping to 28 in, with a 43 in maximum tire diameter and 15 in maximum wheel width. That covers most cars, crossovers, SUVs, and light trucks.
What wheel sizes can the NTB-800 balancer accommodate?
Wheels from 10 to 28 in diameter, rim widths from 1.5 to 20 in, tire diameters to 44 in, and wheel weights up to 150 lb.
What electrical power does this combo need?
Both machines run on standard 110V single phase. No special wiring or high-voltage circuits; we recommend dedicating one outlet to each machine.
What does automatic data entry mean on the balancer?
You manually enter one wheel parameter instead of three. The NTB-800 measures and inputs the other two itself, which saves time on every wheel and removes a common source of balancing error.
Do I need an air compressor?
Yes, the NTC-950 tire changer requires compressed air and works with pressure up to 120 PSI. A compressor is not included, so source one separately if your shop does not already have suitable air.
How accurate is the NTB-800?
Balancing accuracy of plus or minus 1 gram with a 6 to 9 second cycle per wheel, and the display reads in standard or metric units.
