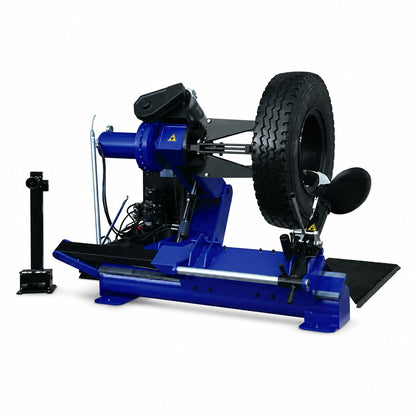

Triumph NTC-690 Heavy Duty Tire Changer
Most tire changers top out around 30 inches. The Triumph NTC-690 goes to 56 inches of clamping range and handles tires up to 90 inches in diameter. That's the number that matters when you're servicing semi trucks, buses, tractors, and heavy construction equipment. This machine exists for the work that standard shop changers simply can't do.
The power-assisted robotic bead breaker arm does the hard part. Breaking beads on a stiff 22.5-inch truck tire by hand is brutal work. The NTC-690's robotic system applies consistent, controlled force so you're not fighting the machine or the tire. Pair that with the included wireless remote and you can operate from a safe vantage point, keeping your hands free to guide the tire and staying clear of pinch points the whole time.
This is a special order item with a 2 to 3 month lead time. If your shop is ready to bring big-truck tire service in-house, the NTC-690 is the machine built to handle it. Questions about fitment, electrical requirements, or lead times? Call us before you order.
Specifications
| Clamping Distance | 14 - 56 in |
| Max Tire Diameter | 90 in |
| Max Wheel Width | 42 in |
| Max PSI | 120 PSI |
| Voltage | 220 V |
| Bead Blast | No |
| Shipping Weight | 2,400 lb |
| Shipping Dimensions | 78 x 63 x 35 in |
What's Included
- NTC-690 Tire Changer Unit
- Robotic Bead Breaker Arm
- Wireless Remote Control
- Crow Bar
- Clamp Covers
- Bead Press Clamp
- Instructional Video
Installation & Setup
The NTC-690 requires a 220 V electrical supply on a dedicated circuit. Run that before the machine arrives. Electrical connections should be handled by a qualified electrician.
Your shop air needs to deliver 120 PSI with adequate CFM for inflating large commercial and industrial tires. A light-duty compressor won't cut it here. Size your air supply for the volume these tires demand.
Floor Requirements: Level concrete floor with secure anchoring. Allow enough clearance around the machine to maneuver tires up to 90 inches in diameter. The machine ships at 2,400 lb - you'll need material handling equipment to position it after delivery.
Delivery Note: The freight driver lowers the equipment to the ground but does not move it inside your shop or assemble it. Plan your rigging accordingly. Professional assembly is recommended given the machine's size and weight.
Applications
Semi trucks, delivery vehicles, and heavy commercial fleets. The 56 in clamping range covers the full spectrum of 22.5 in and 24.5 in truck wheel sizes.
School buses, transit buses, and coach vehicles all run wheels that exceed the capacity of standard shop changers. The NTC-690 handles them without adapters or workarounds.
Tractor tires, combine wheels, and other farm equipment run large, stiff-sidewall tires that demand the robotic bead breaker's consistent force to service reliably.
Loaders, graders, and excavators carry oversized tires with up to 90 in diameter. This is where the NTC-690's full capacity range comes into play.
Bringing truck and equipment tire service in-house eliminates downtime waiting on outside shops. The NTC-690 handles the volume and variety a busy fleet operation demands.
Shipping
Special Order Lead Time: This is a special order item. Allow 2 to 3 months from order date before shipment.
Free LTL Freight: Ships free to the lower 48 United States via LTL common carrier on a 48-foot semi truck. Transit time after shipment is 3 to 14 days depending on your location.
Liftgate Service: Liftgate service is included - the driver will lower the equipment to the ground at the rear of the truck. The driver does not move equipment inside your facility or perform any assembly.
Delivery Scheduling: We'll email your carrier information and tracking number when your order ships. You're responsible for contacting the freight company to schedule a delivery appointment.
Terminal Pickup: If you prefer, we can ship to the carrier's nearest freight terminal for pickup with a trailer or moving van.
Exclusions: Free shipping does not apply to government secure locations, state and national parks, construction sites, islands, Alaska, or Hawaii. Contact us for a quote to these locations.
Warranty
Coverage: 1-year parts warranty with free replacement parts and free ground shipping on covered components.
Cylinders: 30-day full warranty on cylinders. After 30 days, a seal kit is provided for cylinder repairs.
Process: Call us to troubleshoot over the phone. We'll ship the needed part at no charge.
Labor: Warranty does not cover labor costs. You install replacement parts yourself or arrange for a technician. Most repairs are straightforward for a qualified mechanic.
Exclusions: Rubber lifting pads, plastic protective pads, tooling on clamps, heads, bead breakers, assist arms, the tire inflation hose, lube brush, and bucket are not covered.
Questions About the Triumph NTC-690?
Sizing this machine to your shop, confirming electrical requirements, or working through the special order timeline - our team is here to help before you commit. Call us at (855) 498-2147.
Frequently Asked Questions
What is the special order lead time for the NTC-690?
The Triumph NTC-690 is a special order item with a lead time of 2 to 3 months from the date your order is placed. After it ships, LTL freight transit adds another 3 to 14 days depending on your location. Plan accordingly and contact us at (855) 498-2147 if you have a specific deadline to work around.
What electrical supply does the NTC-690 require?
The NTC-690 runs on 220 V and a dedicated circuit is recommended for consistent performance. Electrical connections should be made by a qualified electrician before the machine arrives. If your shop is currently set up for 110 V only, budget time and cost for an electrical upgrade.
What tire sizes does the NTC-690 handle?
The NTC-690 clamps wheels from 14 to 56 inches and handles tires up to 90 inches in diameter and 42 inches wide. That range covers semi truck, bus, tractor, and most heavy industrial equipment wheel sizes. The 120 PSI maximum inflation capacity supports the air volume needed to seat beads on large-format commercial tires.
Does the NTC-690 include a bead blast feature?
No, the NTC-690 does not have a bead blast feature. Bead seating on large commercial and agricultural tires is handled through the 120 PSI shop air connection and the included bead press clamp system. If bead blast is a firm requirement for your application, contact us at (855) 498-2147 to discuss your options.
Will the freight driver move the machine inside my shop or assemble it?
No. Liftgate service is included, so the driver will lower the NTC-690 to the ground at the rear of the truck. Beyond that, moving the machine inside your facility and assembly are your responsibility. The machine ships at 2,400 lb, so plan for a forklift or comparable equipment to position it after delivery. An instructional video is included to guide assembly.
What does the wireless remote control operate?
The wireless remote gives you full control over the NTC-690's functions from a safe distance. This lets you position yourself for the best view of the work, keep your hands free to guide the tire, and stay clear of pinch points during operation. It's particularly valuable when changing large truck and agricultural tires solo.
What is and is not covered under the 1-year parts warranty?
The warranty covers parts for 1 year with free replacement parts shipped at no charge. Cylinders carry a full 30-day warranty; after 30 days, a seal kit is provided for repairs. Not covered: rubber and plastic protective pads, tooling on clamps, heads, bead breakers, assist arms, the tire inflation hose, lube brush, and bucket. Labor is never covered - you install parts yourself or hire a technician.
Can I pick up the NTC-690 at a freight terminal instead of scheduling home delivery?
Yes. If you'd rather not coordinate a delivery appointment to your shop, we can ship to the carrier's nearest freight terminal. You'll pick it up with a trailer or moving van. We'll email your tracking number and carrier details when the order ships so you can make arrangements directly with the freight company.
What shop air supply does the NTC-690 need?
Your compressor needs to deliver 120 PSI with sufficient CFM to inflate large commercial and agricultural tires. Light-duty shop compressors are typically undersized for this application. If you're servicing semi truck or tractor tires regularly, size your air supply for the volume those tires require, not a standard passenger car tire.
