Triumph NSS-8 8,000 lb Four Post Automotive Lift
SKU: NSS-8
$2,875.00
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Product highlights
- Jack Tray Turns Storage Into Service
- Caster Kit, No Anchor Bolts
- Ten Locks That Set Themselves
Talk to a lift specialist
Expert product and freight support before you order
855-498-2147
- Authorized Triumph Dealerdirect manufacturer relationship
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

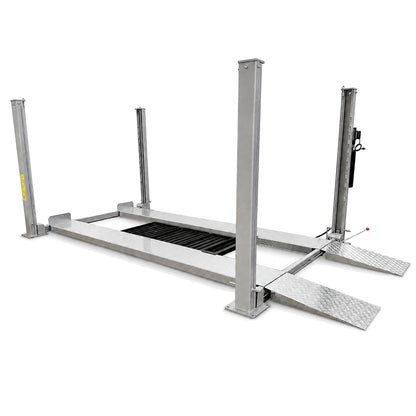

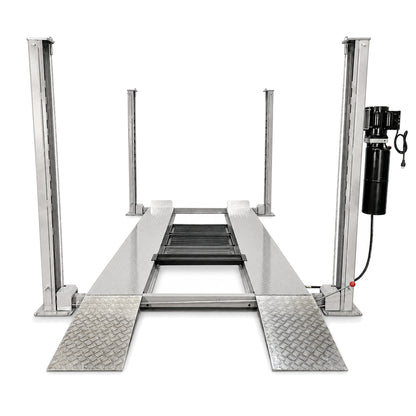

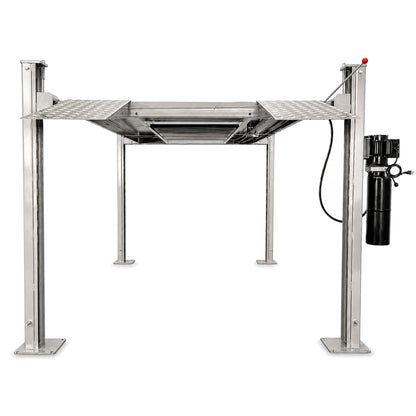

The Triumph NSS-8 is an 8,000 lb four post lift that earns its floor space twice: park a second car on the runways, then use the included jack tray to do brake, suspension, and tire work on it instead of treating the lift as a parking shelf. At the full 72 in lift height there is 69 in of clearance under the runways, enough to work standing up.
Nothing anchors to the floor. The included caster kit lets you roll the lift to a new spot and lock it down, so the garage layout is never permanent. Power is a standard 110V outlet, and a full rise takes 40 seconds with ten automatic lock positions engaging on the way up.
For a single-bay home garage that needs to hold two cars, this is the practical route: no permits, no concrete work, no electrician. Measure first, though. The lift stands 84 in tall and runs 106 in wide by 195 in long with the ramps installed.
Features

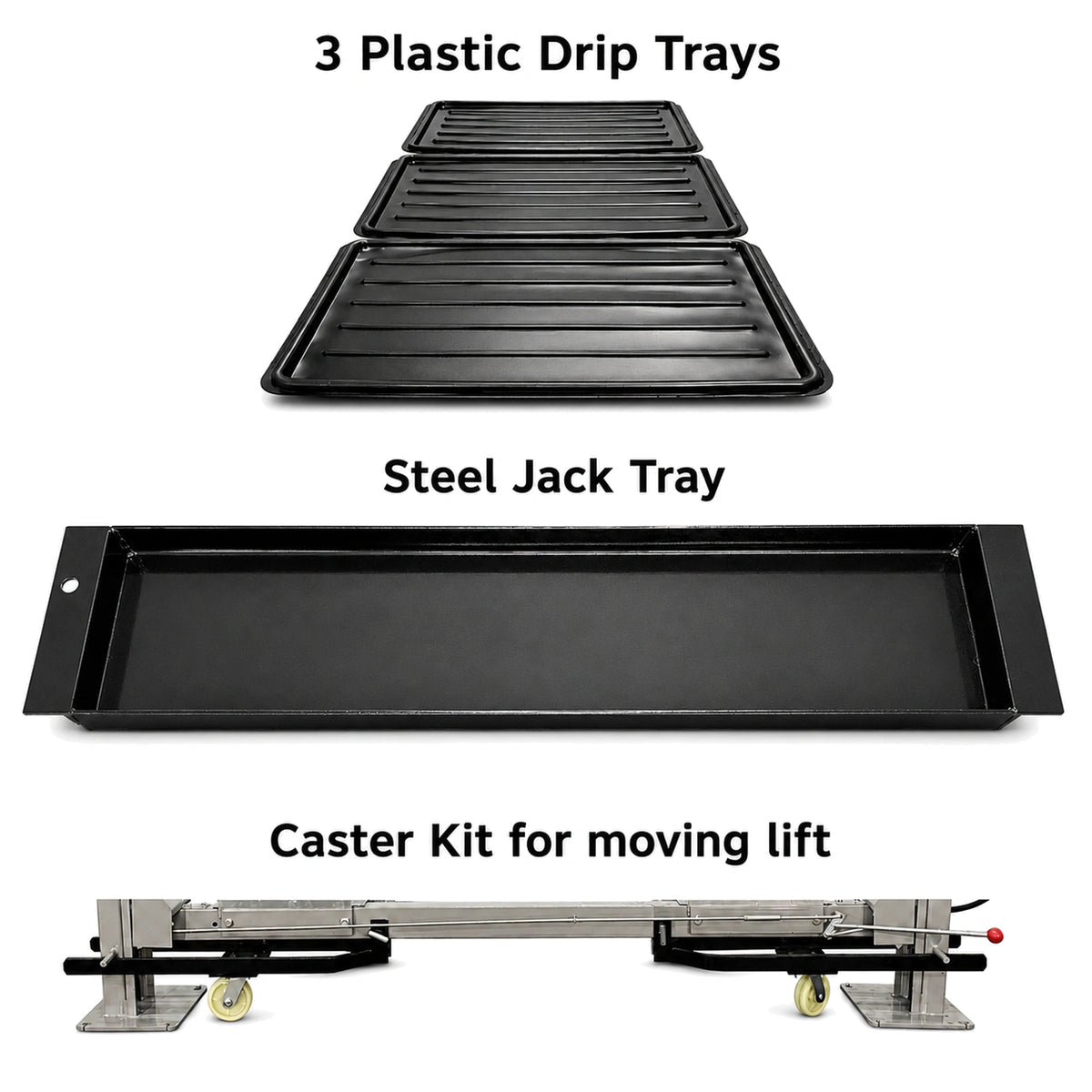

Jack Tray Turns Storage Into Service
The included jack tray gives a bottle jack or floor jack a solid base under the raised vehicle, which covers brake jobs, tire rotations, and suspension work at height. With 69 in of clearance under the runways, you are working upright, not crawling.
Caster Kit, No Anchor Bolts
The NSS-8 sits on 12 x 12 in base plates and never gets bolted down. Fit the caster kit, roll the lift out of the way when you need the whole floor, and lock the casters before lifting. An anchored lift can never give the bay back.
Ten Locks That Set Themselves
The safety locks engage automatically as the runways rise through ten positions, so the lift is already secured wherever you stop. Lowering releases from a single point instead of a walk around each column.

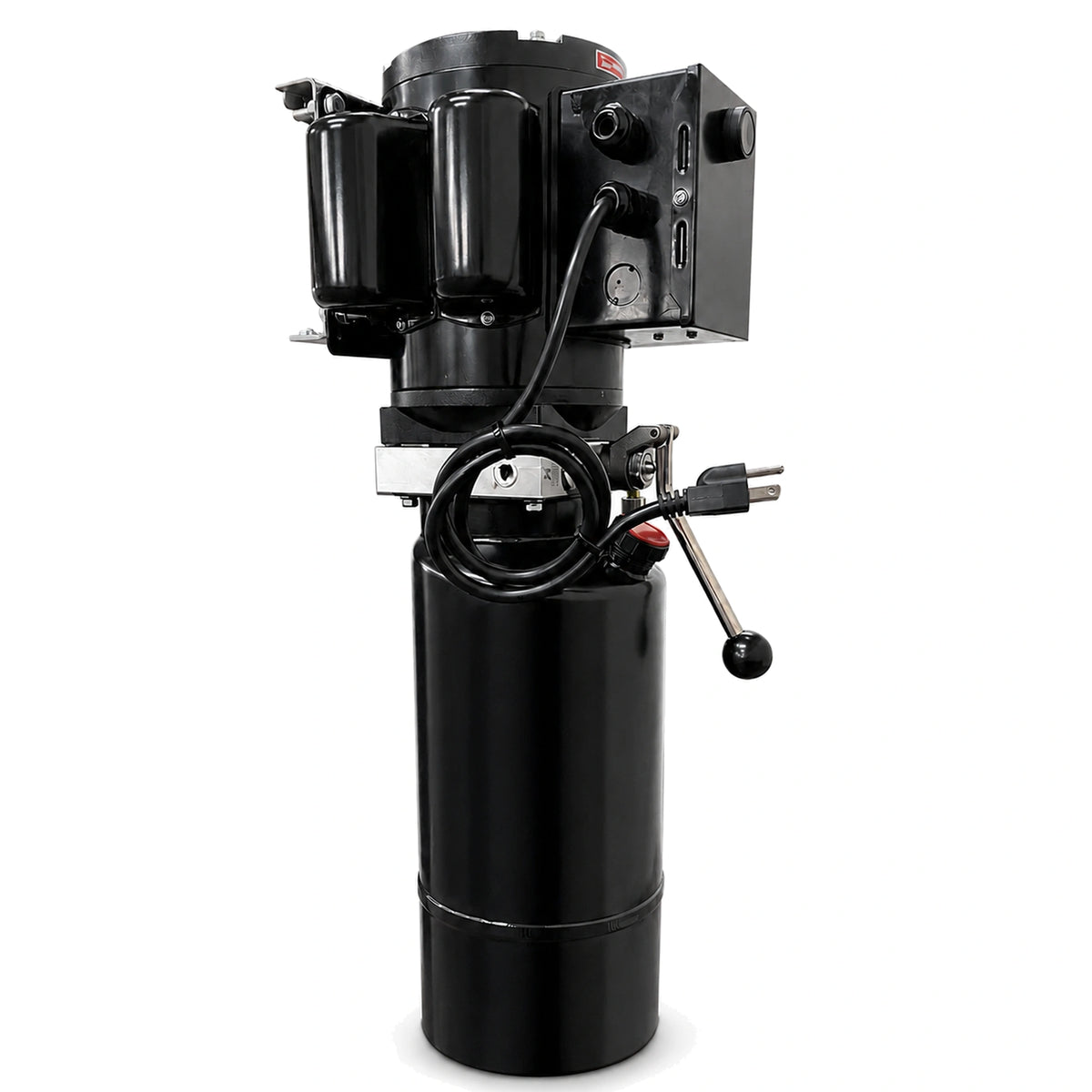

Runs on a Wall Outlet
The power unit is 110V, so the lift plugs into standard residential wiring with no 220V circuit and no electrician. A dedicated circuit is recommended. A full rise takes 40 seconds.
Drip Trays Protect the Car Below
Three included drip trays sit between the runways and catch whatever the top vehicle sheds before it reaches the paint below. For anyone storing a clean car under a daily driver, this is the detail that matters most.
Sized for Real Vehicles
Runways are 18 in wide, 165 in long, and set 37 in apart, with 93 in of drive-thru width. The 8,000 lb rating covers most passenger cars, light trucks, and SUVs. Check curb weight and track width against those numbers before ordering.
Best For
Two Cars, One Bay
Park one vehicle on the runways and the daily driver underneath. A single-bay garage effectively becomes a two-car garage without construction.
Collector Storage
The three drip trays keep fluids off whatever sits below, which is the difference between confidently stacking a project car over a prized one and doing it under a tarp.
Specifications
| Lifting Capacity | 8,000 lb |
|---|
| Lift Height | 72 in |
|---|---|
| Height Under Runway | 69 in |
| Rise Time | 40 seconds |
| Locking Positions | 10 |
| Lock Release | Single Point |
| Overall Height | 84 in |
|---|---|
| Overall Width | 106 in |
| Overall Length (without ramps) | 175 in |
| Overall Length (with ramps) | 195 in |
| Runway Length | 165 in |
| Runway Width | 18 in |
| Between Runways | 37 in |
| Drive-Thru Width | 93 in |
| Lowered Height | 5 in |
| Base Plate Size | 12 x 12 in |
| Voltage | 110V |
|---|---|
| Color | Grey |
| Shipping Weight | 1,600 lb |
Installation Requirements
Floor and Footprint
Level concrete is recommended, and no anchoring is required. The footprint is 106 in wide by 195 in long with the approach ramps installed, so measure the bay before ordering.
Ceiling Height
The lift structure stands 84 in tall, and the vehicle stored on top adds its own height above that. A 10 ft or taller ceiling is recommended for comfortable access to the upper vehicle.
Electrical
Standard 110V household power with a dedicated circuit recommended. No 220V work needed.
Assembly
Basic hand tools, a helper, and several hours. The included manual covers the sequence.
Unloading
The lift ships at 1,600 lb and the freight driver does not unload it. Liftgate service is not available for auto lifts, so plan on a forklift, tractor, tow truck, backhoe, or similar equipment rated for the weight.
Shipping & Delivery
Warranty
Documents
Questions About This Product?
Our team can help with installation planning, freight coordination, and configuration.
Call (855) 498-2147Frequently Asked Questions
Does the NSS-8 need to be bolted to the floor?
No. It is designed as a portable lift; the caster kit moves it and the locked casters keep it planted during lifting. No anchors, no floor drilling.
How much ceiling height do I need?
The lift stands 84 in tall, and you add the height of the vehicle parked on the runways. A 7 ft ceiling technically clears the frame but leaves almost nothing above a raised car; 10 ft or more is recommended.
Can I do real service work on it, or is it storage only?
Both. The runways rise to 72 in with 69 in of clearance underneath, and the included jack tray gives a jack a base under the raised vehicle for brakes, suspension, and tire rotations.
Will my vehicle fit between the runways?
Drive-thru width is 93 in. The runways are 18 in wide, 165 in long, and 37 in apart, and the lift is 106 in wide overall. Check your vehicle's track width and length against those numbers.
What power does it need?
A standard 110V outlet. A dedicated circuit is recommended, but there is no 220V requirement and no electrician involved.
How do I unload it at delivery?
It arrives at 1,600 lb and the driver does not unload. You need a forklift, Bobcat, tractor, tow truck, or backhoe rated for the weight; liftgate service is not available for auto lifts.
