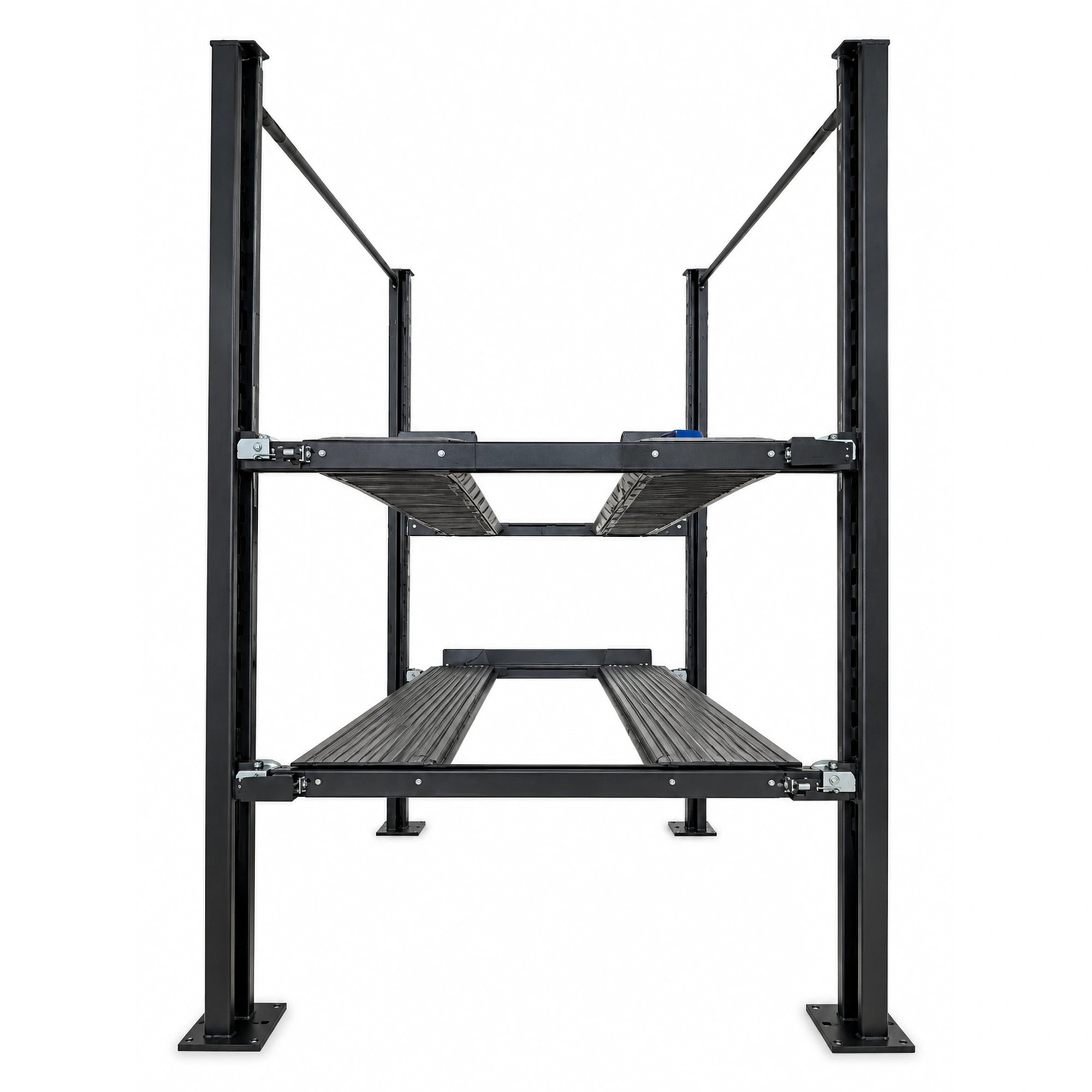

Triumph NSS-5x2, Four Post Double Parking Lift

$9,900.00

Product variants

$ Save 3% with ACH / Wire Payment. Call for details

Authorized Triumph Dealer direct manufacturer relationship
Manufacturer Warranty included with purchase
Expert Product & Freight Support +1 (855) 498-2147
Authorized Dealer Price Match verification required
Fast Delivery some products may have lead times
No Sales Tax outside PA where applicable

The Triumph NSS-5x2 is a four post double parking lift, built to store one vehicle above another where floor space is limited. It suits home garages, dealership storage and collectors who need to double up on parking without expanding the building.

Delivery and receiving

Freight on this lift is quoted per delivery rather than charged at a flat rate, because cost varies with destination. Add it to your cart and we will confirm the freight figure with you before anything is charged.

This unit ships by LTL freight and requires a forklift at delivery. The driver brings it to the curb, unloading is on the receiving end.

Questions before you order

Full specifications, install requirements and lead time are worth confirming for your bay before you buy. Call or message us and we will go through it with you.

Features

Drive-On Runways

The vehicle loads onto runways for storage or service.

Bay Planning

Footprint, clearances, power, and vehicle dimensions are checked together.

Pre-Order Site Review

Concrete, unloading, and installation requirements are confirmed before shipment.

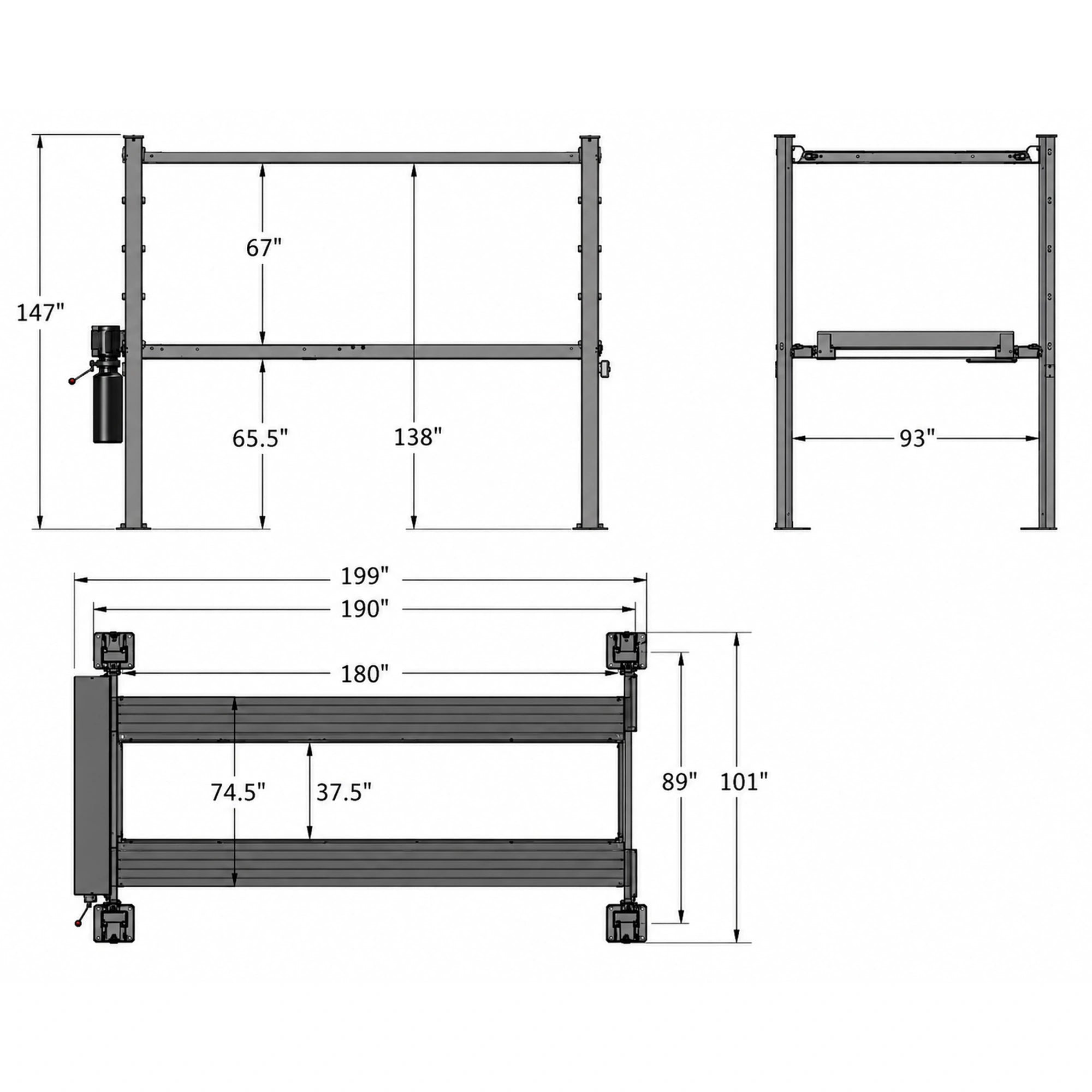

Specifications

Product Identity
Model / Package	NSS-5x2
Product Type	Four-Post Parking Lift

Specifications
Rated Capacity	5,000 lb per vehicle
Overall Height	147 in
Overall Length Without Ramps	199 in
Overall Length With Ramps	225 in
Overall Width	101 in
Lift Height	143 in top vehicle; 71 in middle vehicle
Height Under Runway	65.5 in
Runway Length	180 in
Drive-Through Width	93 in
Runway Width	19 in
Between Runways	37.5 in
Lowered Height	5 in
Lock Release	Single point, 24V electric
Lift Time	125 sec
Voltage	110V
Shipping Weight	3,500 lb

Shipping & Delivery

Freight shipping within the lower 48 states; the delivery charge for your address is shown at checkout.

You are responsible for unloading. Lifts and large machines require a forklift, tractor, or other heavy machinery; liftgate service is not available for them and the driver does not assist. If unloading isn't possible at your location, choose a warehouse pickup option where offered.

Inspect your order before signing the Bill of Lading. Note visible freight damage or shortages on the delivery receipt at delivery, and report a missing power unit or motor at delivery. Other missing or incorrect equipment must be reported within 14 days.

Warranty

Triumph equipment is covered by the manufacturer's 1 year parts warranty; labor is not covered. Support is handled by phone: we troubleshoot the issue with you, then ship the needed replacement part at no cost, with ground shipping on warranty parts covered by Garage Supply Guys.

Hydraulic cylinders carry a 30 day full warranty; after 30 days, a seal kit and instructions are provided. Rubber lifting pads are wear items and are not covered.
