Triumph NSS-11 11,000 lb Four Post Automotive Lift
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

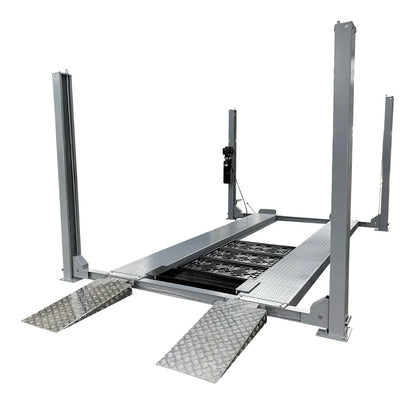

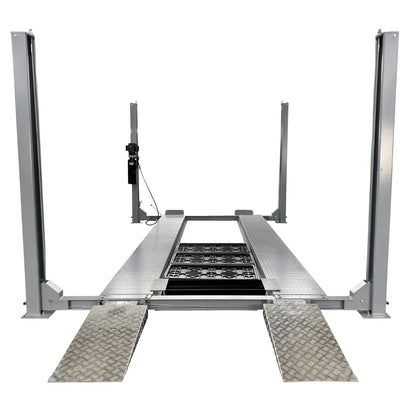

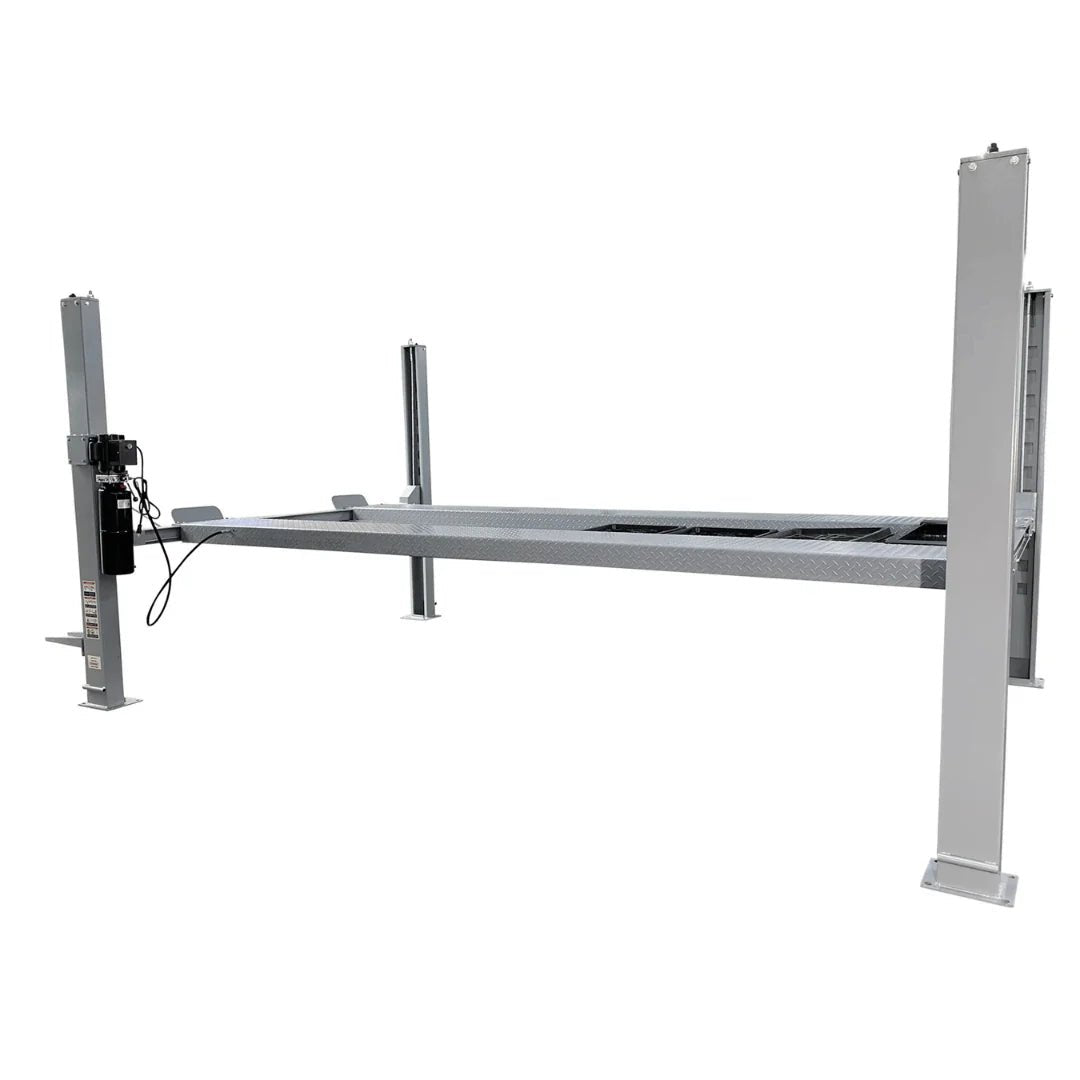

Triumph NSS-11 Four Post Lift - 11,000 lb Capacity
You've got more cars than floor space. The Triumph NSS-11 four post lift solves that problem by letting you stack vehicles safely, doubling your garage's usable footprint without pouring a new slab or renting extra bays. With 11,000 lb of lifting capacity, it handles everything from lightweight sports cars to full-size trucks and SUVs on the upper platform while keeping your daily driver accessible below.

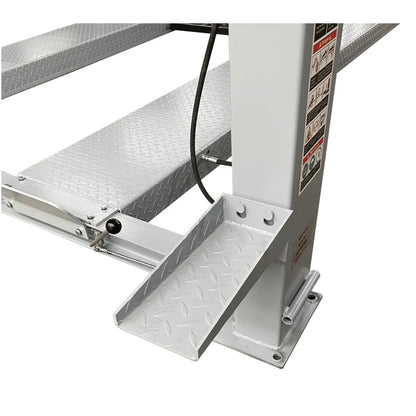

What sets the NSS-11 apart from storage-only lifts is versatility. The included jack tray lets you use a bottle jack or floor jack to raise one end of a vehicle for brake work, tire rotations, and suspension jobs. You're not locked into a single function. Plug it into a standard 110V outlet, roll it into position with the included caster kit, and you're lifting in 40 seconds flat. No expensive electrical upgrades, no permanent anchoring required.
This isn't a new or untested design. Triumph has been building the NSS-11 platform for over 20 years, and it shows in the details: 11 automatic locking positions, single-point lock release, six drip trays to protect the vehicle underneath, and 196 in runways that fit a wide range of wheelbases. When you buy from Garage Supply Guys, you get direct phone support from people who know this lift inside and out. If something goes wrong, you're not navigating a phone tree.
Specifications
| Lifting Capacity | 11,000 lb |
| Overall Height | 97 in |
| Overall Length (without ramps) | 216 in |
| Overall Width | 130 in |
| Lowered Height | 5 in |
| Runway Length | 196 in |
| Runway Width | 19.5 in |
| Between Runways | 39 in or 44.5 in |
| Drive Thru Width | 118 in |
| Lift Height | 86.5 in |
| Height Under Runway | 81 in |
| Locking Positions | 11 |
| Lock Release | Single Point |
| Lift Time | 40 seconds |
| Voltage | 110V |
| Base Plate Size | 11.5 in x 9.75 in |
| Shipping Weight | 2,400 lb |
| Color | Grey |
What's Included
- Triumph NSS-11 Four Post Lift
- Caster Kit for portability
- Jack Tray for service applications
- 6 Drip Trays for vehicle protection
- Drive-on ramps
- Power unit (110V)
- Hardware and installation manual
Installation & Setup
Floor Requirements
A level concrete floor is recommended for stability. The four base plates measure 11.5 in x 9.75 in each. Because the NSS-11 comes with a caster kit, you can place it on any level surface without permanent anchoring, which makes it a strong fit for residential garages where bolting down a lift isn't an option.
Electrical Requirements
The NSS-11 runs on standard 110V household power. No special wiring, no 220V circuits, no electrician visits. A dedicated circuit is recommended for consistent operation, but that's a best practice, not a hard requirement.
Space Requirements
You'll need a minimum footprint of 216 in long by 130 in wide for the lift itself. Ceiling height must be at least 97 in to accommodate the lift at full height, plus additional clearance for the vehicle stored on top. Allow working space around the lift for safe vehicle entry and exit.
Applications

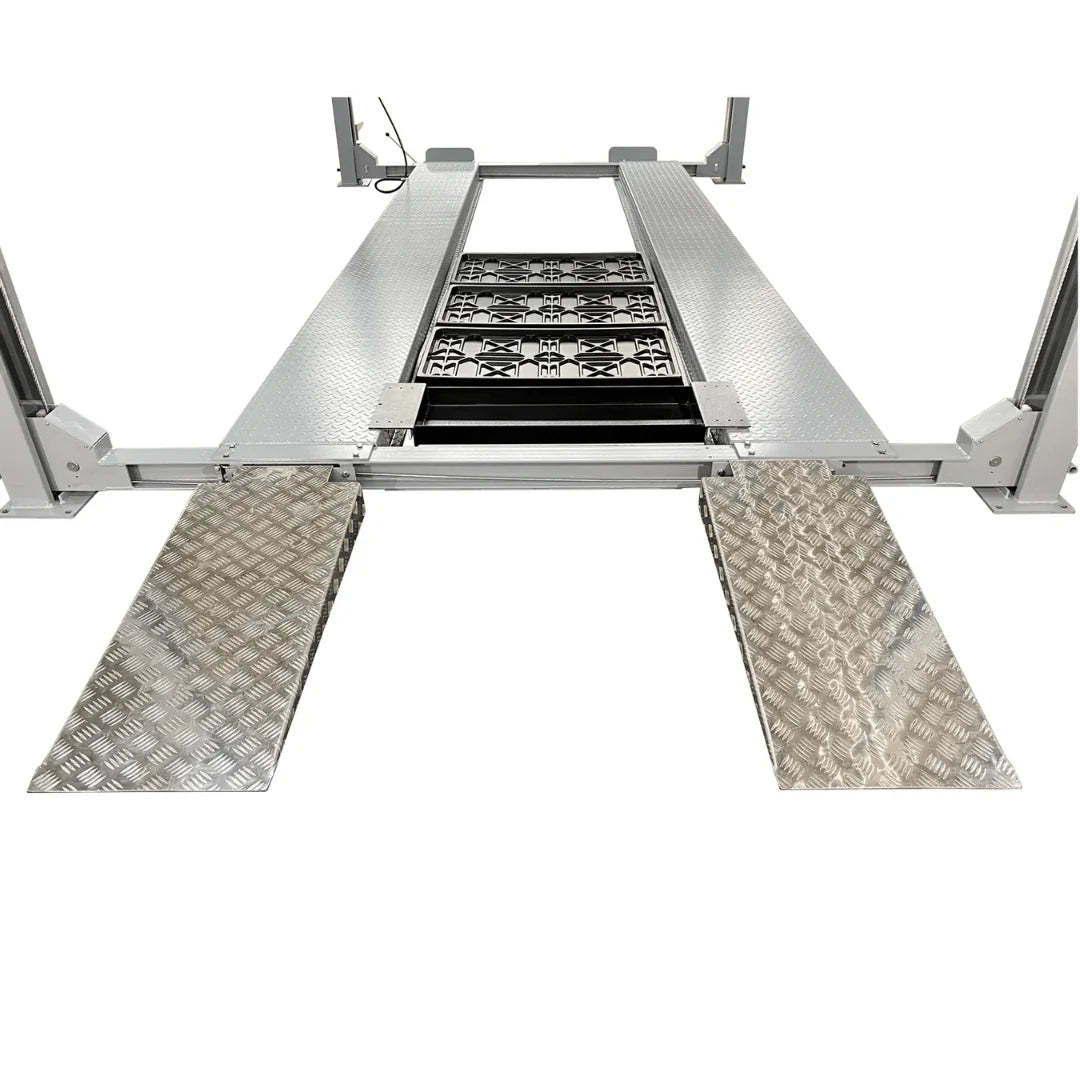

Stack multiple vehicles in the same footprint. The six drip trays keep fluids from the upper car off the paint and interior of your prized vehicle below.
Standard 110V power and the included caster kit make this lift practical for residential garages where permanent installation isn't possible or desired.
The included jack tray turns this storage lift into a service platform. Use a bottle jack or floor jack to lift one end for brake work, tire rotations, and suspension maintenance.
Maximize storage density in your facility. The portable caster design lets you rearrange your floor plan as inventory and workflow needs change.
Store classics, convertibles, or recreational vehicles during the off-season while keeping your daily driver accessible underneath, all within the same parking spot.
Shipping
Free LTL freight shipping to the lower 48 United States. Your lift ships via common carrier freight on a 48 ft semi truck. Delivery typically takes 3 to 14 days depending on your location.
You're responsible for unloading at delivery. The shipping weight is 2,400 lb, so you'll need machinery such as a forklift, bobcat, tractor, tow truck, or backhoe. Lift gate service is not available for auto lifts, and unloading by hand is not possible.
When your lift ships, we'll email you carrier information and a tracking number. You'll need to contact the freight company to schedule a delivery appointment. If you can't unload from a truck at your location, we can ship to the carrier's nearest freight terminal for pickup with a trailer or moving van.
Free shipping excludes government secure locations, state and national parks, construction sites, islands, Alaska, and Hawaii. Contact us for a shipping quote to these locations.
Warranty
1 year parts warranty with free ground shipping on replacement parts. Cylinders carry a 30 day full warranty; after 30 days, a seal kit is provided. Rubber lifting pads are not covered.
Support is handled over the phone. We'll troubleshoot the issue with you, then ship the needed part at no charge. Labor costs for installing replacement parts are not covered, though most repairs are straightforward enough for a car mechanic to complete without outside help.
Questions Before You Buy?
Need help with capacity, ceiling height, vehicle fitment, or shipping logistics? Call us at (855) 498-2147.
Frequently Asked Questions
What vehicles can the Triumph NSS-11 handle?
The NSS-11 has an 11,000 lb lifting capacity, so it handles compact cars, sedans, full-size trucks, and SUVs. The 196 in runways accommodate a wide range of wheelbases, and the adjustable runway spacing of 39 in or 44.5 in lets you dial in the right fit for different tire widths.
How much ceiling height do I need?
The lift stands 97 in tall at full height. You'll need at least that much ceiling clearance, plus enough additional height to accommodate the vehicle stored on top. Measure the total height of the lift plus the tallest vehicle you plan to store before committing.
Does the NSS-11 need special electrical wiring?
No. The NSS-11 runs on standard 110V household power. You can plug it into a regular outlet. A dedicated circuit is recommended for consistent operation, but no 220V wiring or electrician visit is required.
Can I do service work on the NSS-11 or is it storage only?
Both. The included jack tray lets you use a bottle jack or floor jack to raise one end of a vehicle for brake work, tire rotations, and suspension maintenance. It's a storage lift that doubles as a service platform when you need it to.
How do I unload the lift when it arrives?
The NSS-11 ships at 2,400 lb on a 48 ft semi truck. You'll need machinery to unload, such as a forklift, bobcat, tractor, tow truck, or backhoe. Lift gate delivery is not available, and the driver does not assist with unloading.
Is the NSS-11 portable or does it need permanent installation?
It's portable. The included caster kit lets you roll the lift around your garage. No permanent anchoring or bolting to the floor is required, though a level concrete surface is recommended for stability.
Will fluids from the top vehicle drip on the car below?
Not with the included drip trays. Six drip trays come standard and catch oil, coolant, and condensation before it can reach the vehicle stored underneath. They're positioned to protect the lower car's paint and interior.
How long does it take to raise a vehicle?
Full rise time is 40 seconds. The lift locks automatically at 11 different height positions as it goes up, and a single-point lock release makes lowering simple and controlled.
What clearance does the vehicle stored underneath get?
You get 81 in of clearance under the runway. That's enough headroom for most sedans, coupes, sports cars, and many crossovers. Measure the overall height of your lower vehicle to confirm it fits comfortably.
What does the warranty cover?
The NSS-11 carries a 1 year parts warranty with free ground shipping on replacement parts. Cylinders have a 30 day full warranty, with a seal kit provided after that period. Rubber lifting pads are excluded from coverage. Labor for installing replacement parts is not covered.
