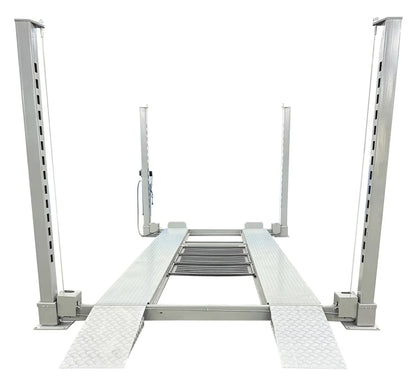

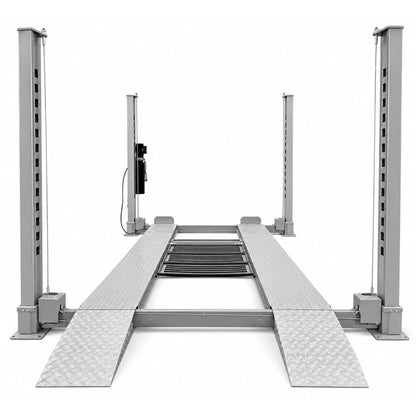

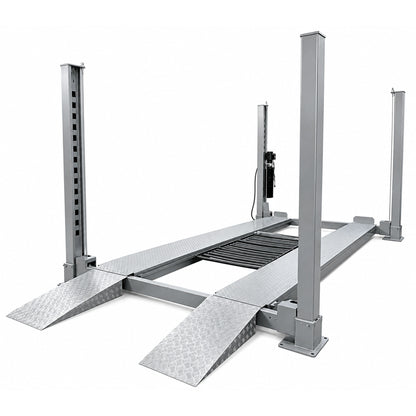

Triumph NOS10000 10,000 lb 4 Post Car Lift for Storage and Service
The Triumph NOS10000 is a heavy-duty 4 post car lift with a 10,000 lb capacity, built for vehicle storage, maintenance, and service work in home garages and professional shops. Triumph's proven outside slider design pairs 4.75 in x 4.75 in posts with 6.5 in x 6.5 in slide collars for exceptional stability. The 3 HP power unit reaches full height in 60 seconds, with 14 locking positions and dual safety systems for precise, secure height control. The lift includes lightweight 36 in aluminum approach ramps, a rolling jack tray, drip trays, and heavy-duty poly coated casters. Triumph backs this four post lift with a 1 year parts warranty.
Triumph NOS10000: Who It's For
- Home Garage Enthusiasts: The generous 109 in drive-thru width and straightforward 110V single phase power (with a dedicated 30 amp circuit) make this 4 post car lift for home garage use accessible to serious hobbyists who want professional-grade vehicle storage and service capability.
- Car Collectors: As a 4 post car storage lift, the NOS10000 doubles your garage capacity by letting you store one vehicle above another. The 5.5 in lowered height allows most vehicles to drive underneath a stored car with ease.
- DIY Mechanics: The rolling jack tray and 81.5 in clearance under the runways give you room to work beneath vehicles. Perform oil changes, brake jobs, and suspension work from below.
- Small Shops and Service Centers: At 10,000 lb capacity, this lift handles most passenger vehicles, light trucks, and SUVs that come through your shop doors.
- Fleet Maintenance Operations: The boxed track design and heavy-duty construction stand up to daily commercial use while the single point lock release speeds up workflow.
Triumph NOS10000 Features

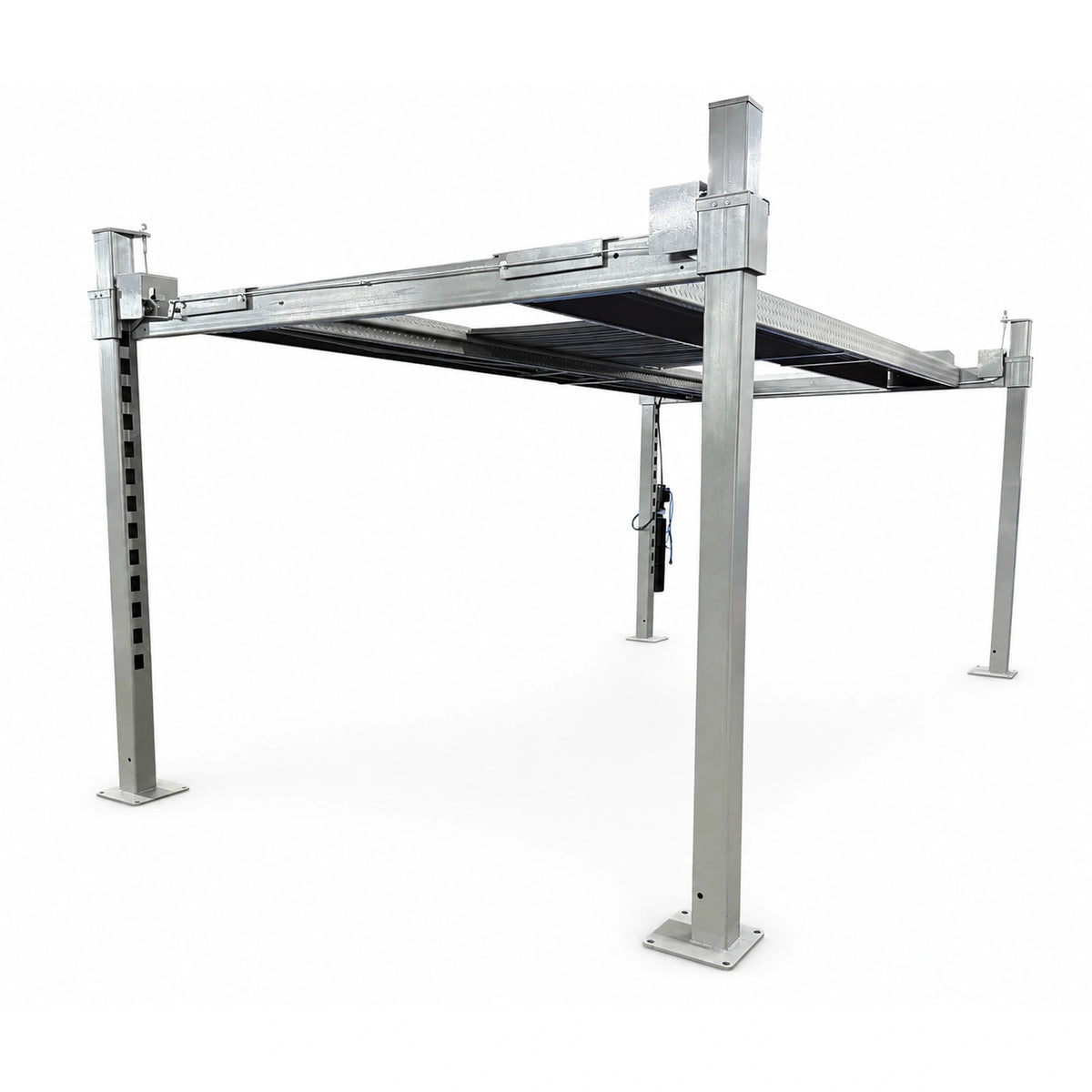

Outside Slider Design for Superior Stability
The NOS10000 uses Triumph's proven outside slider configuration with 4.75 in x 4.75 in posts paired with 6.5 in x 6.5 in slide collars. This design creates a sturdy, rigid stance that minimizes sway and movement during operation. The larger slide collars riding on the outside of the posts provide more contact surface area compared to inside slider designs common on cheaper 4 post car lifts.
Dual Safety Lock System
Your safety is protected by two independent systems working together. Manual dead bolt locks with oversized release linkage provide the primary locking mechanism, while a secondary redundant safety system adds an extra layer of protection. The single point lock release makes raising and lowering the lift quick and convenient, and the 14 locking positions let you set the perfect working height.

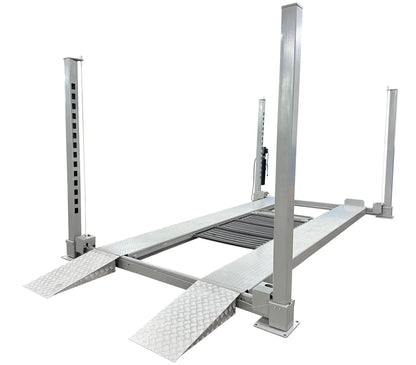

Lightweight Aluminum Approach Ramps
The 36 in aluminum approach ramps weigh just 29 lb each, making them easy to position and store. Despite their light weight, these ramps are built to handle the full rated capacity of the lift. The manageable weight means one person can easily move and set up the ramps without strain.

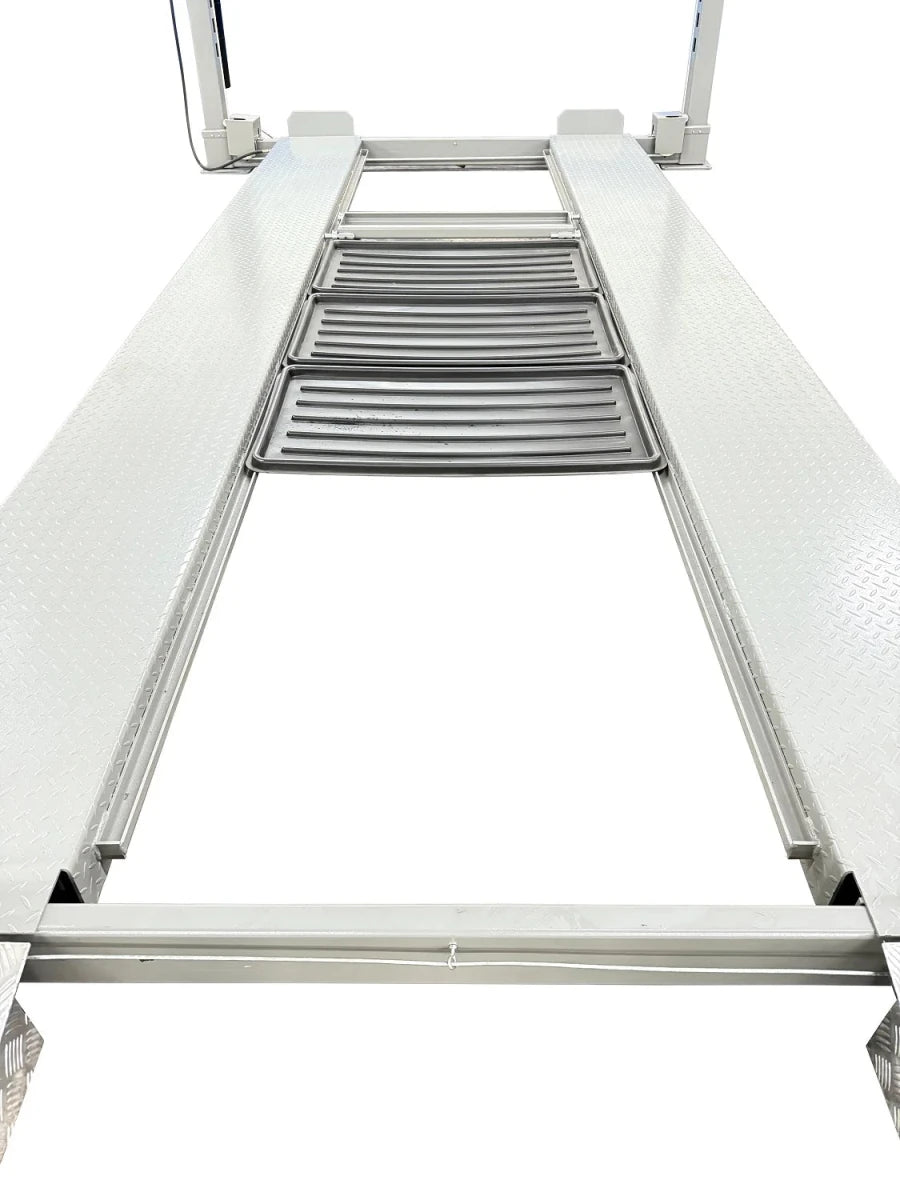

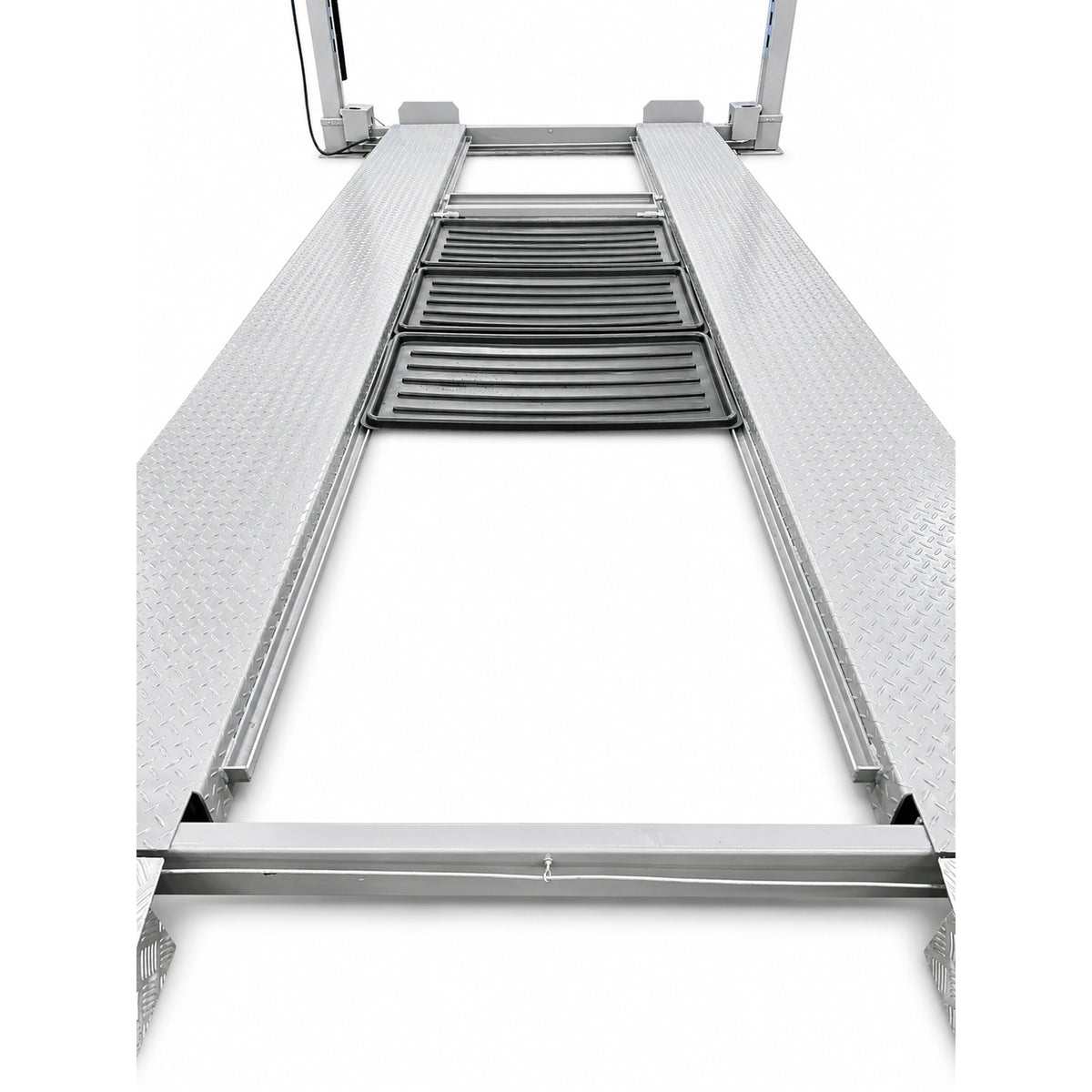

Boxed Track Construction
The runways feature boxed track construction that adds significant structural strength compared to open channel designs. This enclosed profile resists twisting and bending under load, maintaining alignment over years of use. The 204 in runway length and 20 in runway width accommodate a wide range of vehicle wheelbases and track widths.

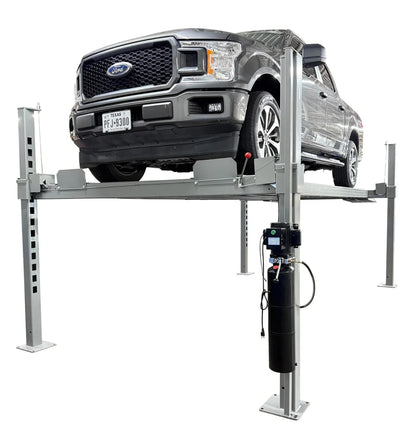

Rolling Jack Tray for True Service Capability
The included rolling jack tray slides between the runways, giving you a stable platform to position a transmission jack, floor jack, or other equipment directly under the vehicle. This feature transforms your four post lift into a true service lift, not just a storage solution. For dedicated wheel-off service, the optional RJ-5000 5,000 lb rolling jack is the purpose-built companion accessory for the NOS10000.
3/8 in Aircraft Quality Cables with Cable Keepers
The NOS10000 uses 3/8 in aircraft quality cables routed through multiple pulleys to lift the runways evenly. Cable keepers prevent cable run-off from the sheaves, protecting the lift mechanism and ensuring reliable operation. Combined with the heavy-duty 12 in x 12 in base plates with 5/8 in thickness and poly coated casters, the NOS10000 is built for years of dependable service.

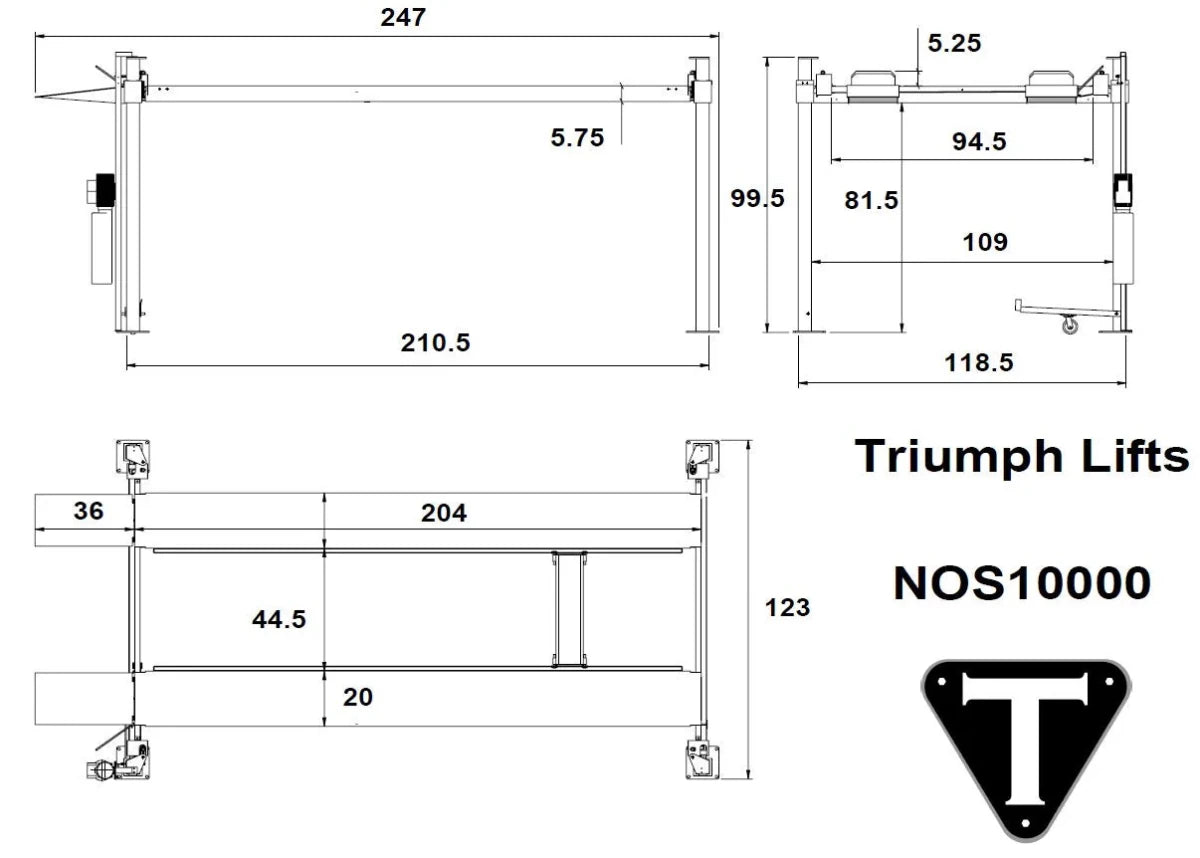

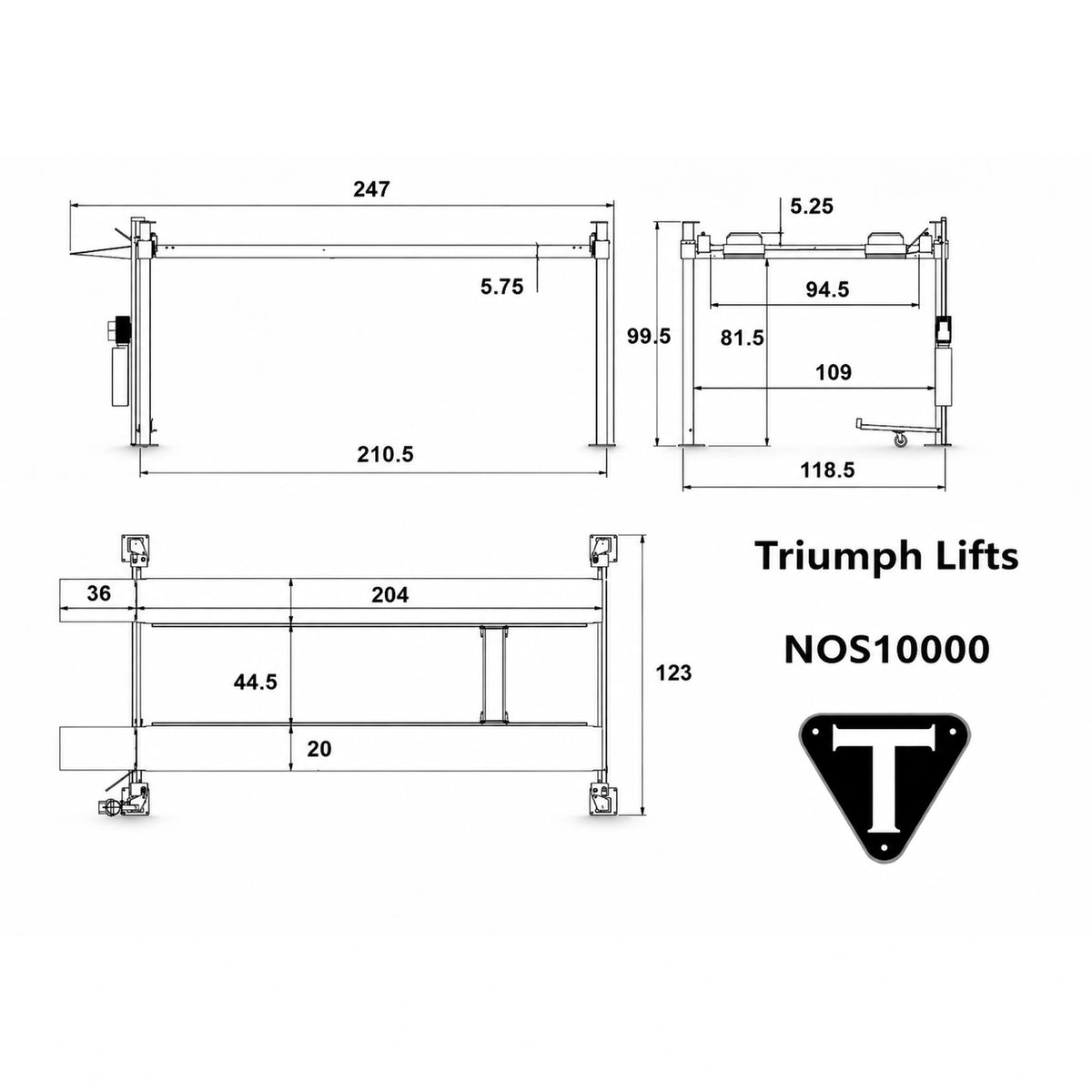

Triumph NOS10000 Specifications
| Lifting Capacity | 10,000 lbs |
|---|
| Overall Height | 99.5 in |
|---|---|
| Overall Length | 210.5 in (247 in / 20.6 ft with ramps extended) |
| Overall Width | 123 in (base plate to base plate) |
| Width Between Posts | 94.5 in |
| Lift Height | 87 in |
| Lowered Height | 5.5 in |
| Runway Length | 204 in |
|---|---|
| Runway Width | 20 in |
| Drive Thru Width | 109 in |
| Height Under Runway | 81.5 in |
| Space Between Runways | 44.5 in |
| Lift Time | 60 seconds |
|---|---|
| Locking Positions | 14 |
| Lock Release | Single Point |
| Voltage | 110V single phase |
|---|---|
| Motor | 3 HP |
| Recommended Circuit | 30 amp dedicated, 10 gauge wiring |
| Hydraulic Fluid | ~3 gallons ATF or clear hydraulic oil (do not mix) |
| Lifting Cables | 3/8 in aircraft quality |
| Base Plate Size | 12 in x 12 in |
|---|---|
| Base Plate Thickness | 5/8 in |
| Shipping Weight | 2,535 lbs |
|---|---|
| Shipping Dimensions | 206 in x 22 in x 36 in |
Triumph NOS10000 Installation Requirements
Floor Requirements
- Surface: Level concrete floor in good condition
- Concrete Strength: 3,000 psi minimum recommended
- Footprint: Minimum 247 in x 123 in (approximately 20.6 ft x 10.25 ft) to account for ramps extended
- Base Plates: Four 12 in x 12 in anchor points required
Electrical Requirements
- Power: 110V single phase, 3 HP motor
- Circuit: Dedicated 30 amp circuit with 10 gauge wiring strongly recommended
- Note: Triumph's installation manual lists 20 amp capability, but the 3 HP motor can draw over 22 amps under load with a peak near 26 amps. A 30 amp dedicated circuit prevents nuisance breaker tripping and extends motor life. Most homeowners will need an electrician to install the proper circuit if one is not already present.
Ceiling Height
- Minimum: 100 in (8.3 ft) to clear lift at full height
- Recommended: 10 ft or higher for comfortable working clearance with vehicle raised
Installation Notes
- Professional Installation: Recommended for proper alignment and anchor bolt installation
- Documentation: Review the installation manual thoroughly before beginning
- Permits: Check local building codes for any permit requirements
What's Included with the Triumph NOS10000
- Four post lift assembly with 4.75 in x 4.75 in posts and 6.5 in x 6.5 in slide collars
- Two 36 in aluminum approach ramps (29 lb each)
- Rolling jack tray
- Set of drip trays
- Heavy-duty poly coated caster kit
- Cable keepers

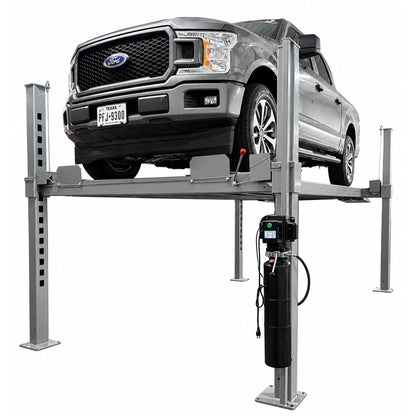

- 3 HP 110V power unit
- 3/8 in aircraft quality cables (pre-installed in runways)
- Hardware and anchor bolts
- Installation manual
Triumph NOS10000 Documents
Click to open in a new tab.
Triumph NOS10000 Shipping and Delivery
LTL Freight Delivery
Your Triumph NOS10000 ships via LTL common carrier freight on a 48 foot semi truck. Transit time typically ranges from 3 to 14 days depending on your location. Once your lift ships, we will email you the carrier information and tracking number so you can monitor delivery progress.
Unloading Requirements
You are responsible for unloading the lift from the truck. The driver does not unload it for you, and lift gate service is not available for auto lifts. You will need machinery capable of lifting the full 2,535 lb shipping weight. Suitable equipment includes a forklift, Bobcat, tractor, tow truck, or backhoe. You cannot unload this lift by hand.
Alternative Pickup Option
If you cannot unload from a delivery truck, we can ship to the carrier's nearest freight terminal for you to pick up with a trailer or moving van. This is a good option if you have access to appropriate transport but not unloading equipment at your location.
Delivery Scheduling
You are responsible for contacting the freight company to schedule your delivery appointment. We do not schedule this for you since we do not know your availability. Shipping availability excludes government secure locations, state and national parks, construction sites, islands, Alaska, or Hawaii.
Triumph NOS10000 Warranty
1 Year Parts Warranty
- Coverage: 1 year parts warranty, no labor coverage
- Process: Call us and we will troubleshoot the problem with you over the phone, then ship the replacement part free of charge
- Shipping: Free ground shipping on warranty parts
- Labor: You must install replacement parts yourself or hire someone to do it. Most repairs are straightforward for anyone with mechanical experience.
- Exclusions: Rubber lifting pads are not covered under warranty
- Cylinders: 30 day full warranty on cylinders. After 30 days, we provide a seal kit for cylinder repairs.
Questions About the Triumph NOS10000?
Need help determining if this lift fits your garage, vehicle, or application? Have questions about installation requirements, shipping logistics, or warranty coverage? Our team is ready to help.
Triumph NOS10000 FAQ

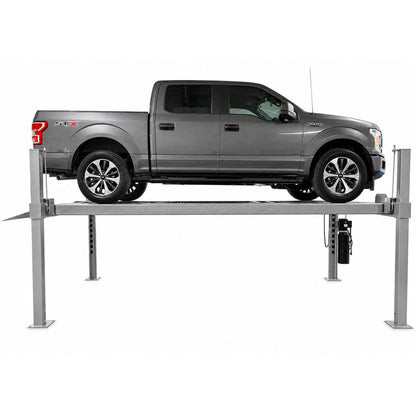

What vehicles can the Triumph NOS10000 lift?
The NOS10000 has a 10,000 lb capacity, which handles most passenger cars, SUVs, crossovers, and light trucks. The 109 in drive-thru width accommodates vehicles up to about 9 feet wide, and the 204 in runway length fits wheelbases up to approximately 17 feet. This covers the vast majority of consumer vehicles including full-size trucks and SUVs.
What kind of electrical power does the NOS10000 require?
The Triumph NOS10000 runs on 110V single phase power with a 3 HP motor. While Triumph's manual lists 20 amp capability, the motor can draw over 22 amps under load with peaks near 26 amps, which will trip a standard 20 amp breaker over time. We strongly recommend a dedicated 30 amp circuit with 10 gauge wiring. Most homeowners will need an electrician to install the proper circuit if one is not already present in the garage.
How much ceiling height do I need for this lift?
The overall height of the lift is 99.5 in (about 8.3 ft), so you need at least that much clearance. For comfortable working room with a vehicle on the lift, we recommend a ceiling height of 10 ft or higher. If you have a 9 foot ceiling, the NOS10000 will fit but headroom for working on tall vehicles will be tight. The lift height of 87 in gives you 81.5 in of clearance under the runways when fully raised.
How much floor space do I need?
Plan for 247 in x 123 in (approximately 20.6 ft x 10.25 ft). The lift itself is 210.5 in long, but the approach ramps add another 36 in when extended, so the full footprint with ramps down is 247 in. Many buyers make the mistake of only planning for the 210.5 in base length and find themselves short on space at install.
What hydraulic fluid does the NOS10000 use?
The NOS10000 uses approximately 3 gallons of ATF (automatic transmission fluid) or clear hydraulic oil. Do not mix the two. Pick one type and stick with it. The fluid is not included with the lift and needs to be purchased separately for initial fill.

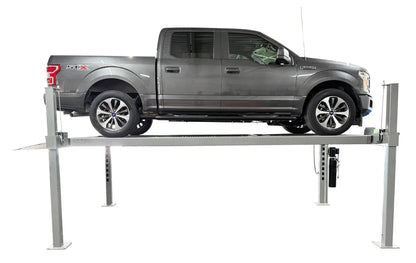

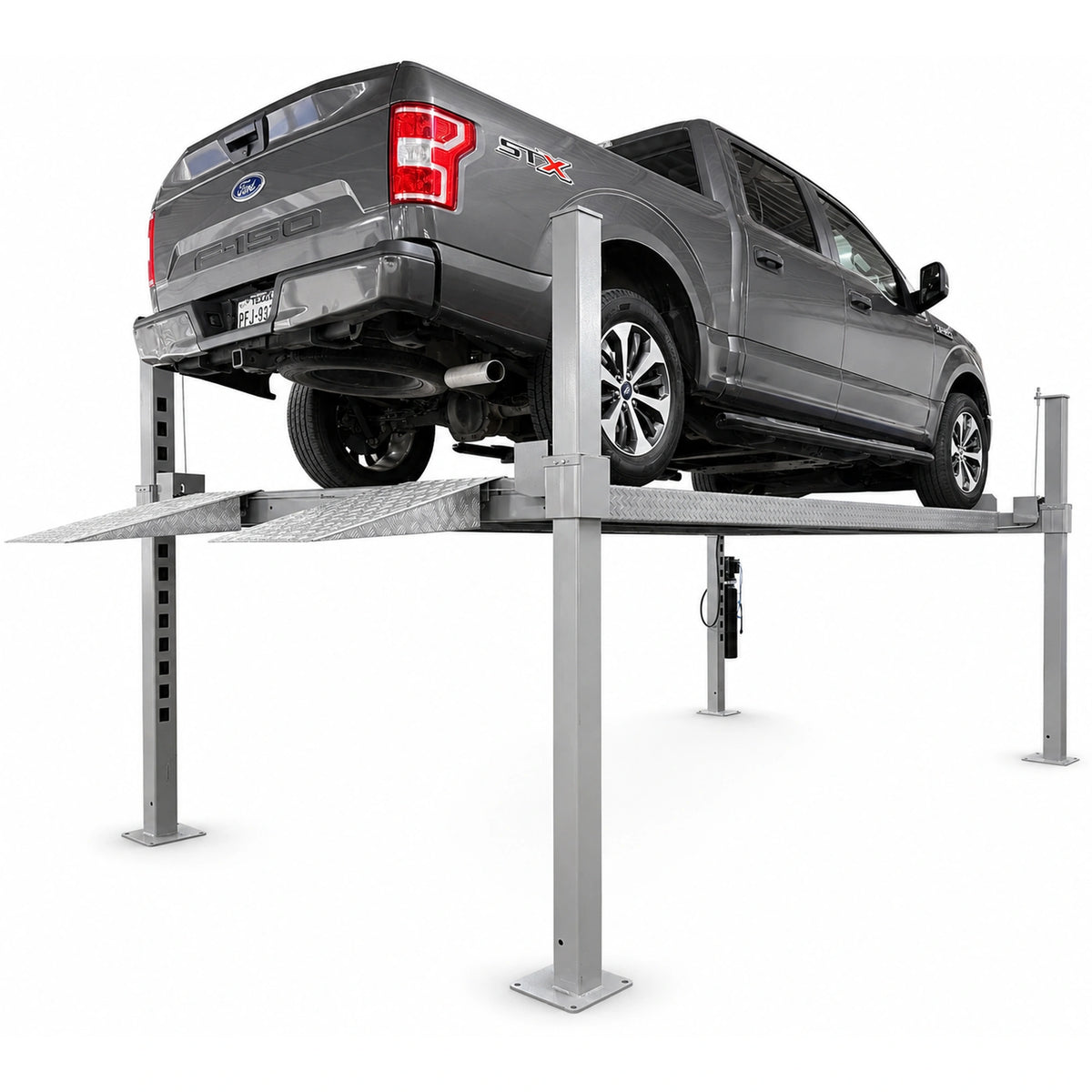

Can I store a car underneath another car on this lift?
Yes, this is one of the primary uses for a four post lift. With a lowered height of just 5.5 in, most vehicles can drive underneath a car stored on the lifted runways. This effectively doubles your garage parking capacity. Just verify that your lower vehicle's height plus 5.5 in does not exceed the clearance in your garage.
How do I unload the lift when it arrives?
You need machinery capable of lifting the full 2,535 lb shipping weight. Suitable options include a forklift, Bobcat, tractor with loader, tow truck, or backhoe. The freight driver will not unload the lift for you, and lift gate service is not available. If you lack unloading equipment, you can have the lift shipped to a freight terminal for pickup with your own trailer.
Can I do service work on this lift or is it just for storage?
The NOS10000 works great for both storage and service. The included rolling jack tray lets you position equipment under the vehicle for transmission work, exhaust repairs, and other undercar service. For dedicated wheel-off service, the optional Triumph RJ-5000 5,000 lb rolling jack is the purpose-built accessory for this lift. The 81.5 in clearance under the runways provides good working room, and the 14 locking positions let you set the ideal height for different tasks.
What does the warranty cover?
Triumph provides a 1 year parts warranty with no labor coverage. If something fails, call us and we will troubleshoot over the phone and ship replacement parts free of charge via ground shipping. You handle installation yourself. Rubber lifting pads are excluded, and cylinders have a 30 day full warranty followed by seal kit coverage.
How long does shipping take?
LTL freight shipping typically takes 3 to 14 days depending on your location. Once your lift ships, you will receive carrier information and a tracking number by email. You are responsible for scheduling a delivery appointment with the carrier.
What safety features does the NOS10000 have?
The lift features dual safety systems: manual dead bolt locks with oversized release linkage as the primary system, plus a secondary redundant safety mechanism. Cable keepers prevent cable run-off, and the outside slider design with large slide collars provides inherent stability. The 14 locking positions ensure secure positioning at any working height.
