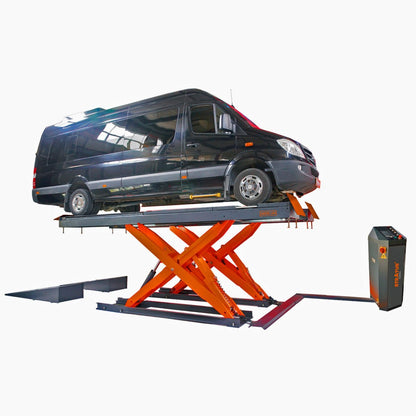

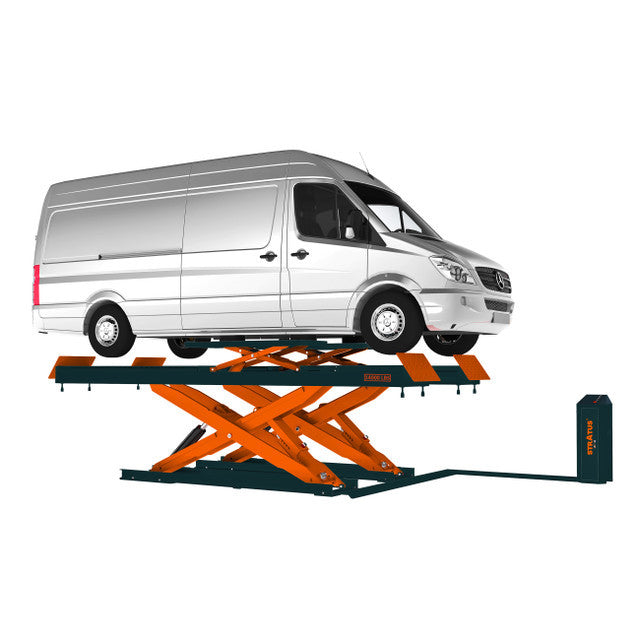

Stratus FS11AP: an alignment scissor lift built for long wheelbases
You're aligning everything from compact sedans to extended cab trucks, and the lift you're stuck with keeps shorting you on platform length. The Stratus Commercial Grade 11,000 lbs Alignment Scissor Vehicle Lift, model FS11AP, fixes that. With a main runway that stretches past 196 inches and an overall footprint built for full-size vehicles, this scissor alignment lift gives you room to set up a proper alignment on the rigs other lifts can't hold.
This is an open center, full rise alignment scissor lift driven by four hydraulic cylinders and backed by a dual air cylinder safety structure. The pneumatic safety lock release lets you drop the lift smoothly across 11 lock positions, each spaced 1 5/8" (42mm) apart, so you can park the deck exactly where the job needs it. Pair the rear slip plates with the included bridge jacks and you've got a complete wheel alignment scissor lift ready for production work.
Every unit is proofed with a dynamic test at 115% of rated capacity and a static test at 150% of rated capacity before it ships. You can run it as an in-ground flush mount for a clean bay floor or set it up as an on-ground surface mount when you need flexibility. Either way, it's a scissor lift alignment rack you can build a real alignment business around. Buy it from us and you get free freight to the lower 48 plus direct phone support to talk through power, mounting, and fitment before you commit.
Specifications
| Model | FS11AP |
| Lifting Capacity | 11,000 lbs |
| Main Platform Length | 196.85" |
| Main Platform Width | 85.039" |
| Second Platform Length | 63" - 74.8" |
| Second Platform Width | 21.65" |
| Platform Height | 13" |
| Overall Length | 214.65" |
| Overall Width | 84.65" |
| Lock Positions | 11 positions, 1 5/8" (42mm) spacing |
| Power | 220V, 1-Phase |
| Motor | 1-Phase |
| Lifting Time | <50 sec |
| Second Lift Time | <30 sec |
| Noise Level | <76 dB |
| Air Supply | 4 - 6 bar |
| Finish | Granite Gray (RAL 7026) + Rein Orange (RAL 2004) |
| Overall Weight | 5,070 lbs |
What's Included
- 2 bridge jacks
- 2 ramps (optional accessory)
- 2 turntable plates (optional accessory)
- Hose cover (optional accessory)
Call to confirm the configuration you need before ordering.
Installation & Setup
This lift runs on 220V single-phase power, so confirm you've got the right circuit at the bay before delivery. The electric hydraulic drive system feeds four hydraulic cylinders, and the dual air cylinder safety structure needs a shop air supply running between 4 and 6 bar to operate the pneumatic safety lock release.
You've got two mounting paths. Set it as an in-ground flush mount for a level floor and clean walkways, or run it as an on-ground surface mount when you want the option to relocate later. Either configuration carries the same 11,000 lbs capacity and the same 13" platform height. Plan your concrete and air drops around the layout you choose, and reach out if you want to talk through the setup before it lands.
Applications
If wheel alignment is your bread and butter, this is the alignment lift built for the volume. Slip plates and bridge jacks let you set up and align without juggling separate equipment.
An open front alignment lift that doubles as a heavy service platform. Run alignments in the morning and brake or suspension work the rest of the day.
The long runway and 11,000 lbs capacity make this a car alignment lift that doesn't quit when an extended cab or full-size truck rolls in.
A four post alignment lift alternative with a compact scissor footprint. You get the alignment capability without giving up floor space to posts.
Shipping
Free shipping to the lower 48. Our team coordinates the freight shipment and helps manage scheduling details.
Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
This lift is covered by a 5-year structural warranty, a 3-year hydraulic warranty, and a 2-year electrical warranty from the date of delivery.
Warranty registration may be required after purchase. Refer to included documentation for details.
Talk to Us Before You Buy
Questions about power requirements, mounting, or fitment for your bay? Call (855) 498-2147 and we'll get you set up with the right configuration.
Frequently Asked Questions
What power supply does this alignment scissor lift require?
It runs on 220V single-phase power with a 1-phase motor. Make sure your bay has the correct circuit in place before delivery so you're ready to run it on arrival.
Can I install this as both in-ground and surface mount?
Yes. The FS11AP supports an in-ground flush mount for a level bay floor or an on-ground surface mount for flexibility. Both setups carry the full 11,000 lbs capacity and 13" platform height.
How long is the platform, and will it fit longer vehicles?
The main platform is 196.85" long with an overall length of 214.65". That runway is built to hold extended cabs and full-size trucks, not just compact cars.
What's the lifting capacity?
11,000 lbs. Every unit is proofed with a dynamic test at 115% of rated capacity and a static test at 150% before it ships.
Does it need a shop air supply to operate?
Yes. The pneumatic safety lock release and dual air cylinder safety structure run on shop air between 4 and 6 bar. You'll want that air drop in place at the lift location.
How fast does the lift raise?
The main lift completes its rise in under 50 seconds, and the second lift raises in under 30 seconds. Noise stays under 76 dB during operation.
What comes with the lift, and what's sold separately?
It ships with 2 bridge jacks. Ramps, turntable plates, and a hose cover are available as optional accessories. Call to confirm your configuration before ordering.
How many lock positions does it have?
11 lock positions, spaced 1 5/8" (42mm) apart. The pneumatic release lets you set the deck at the exact height the alignment job calls for.
How does it ship and how do I schedule delivery?
It ships free to the lower 48 via freight. At 5,070 lbs, it moves by LTL, so contact us before ordering if you need a delivery window, residential delivery, or liftgate service.
