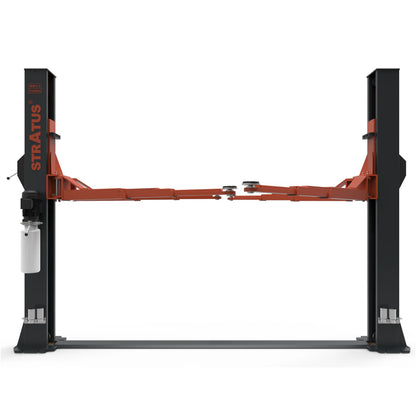

Stratus SAE-F12X Extra Wide 2-Post Lift - 12,000 lb Capacity
Most two-post lifts make you choose between capacity and clearance. The Stratus SAE-F12X doesn't. With a 12,000 lb rated capacity and an extra wide floor plate design, this lift handles the heavy stuff - full-size trucks, vans, and performance builds - without the clearance headaches you get from narrower column footprints. It's the kind of lift that earns its spot on the shop floor by just staying out of the way and getting the job done.

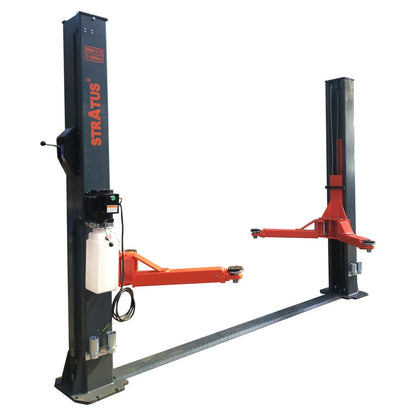

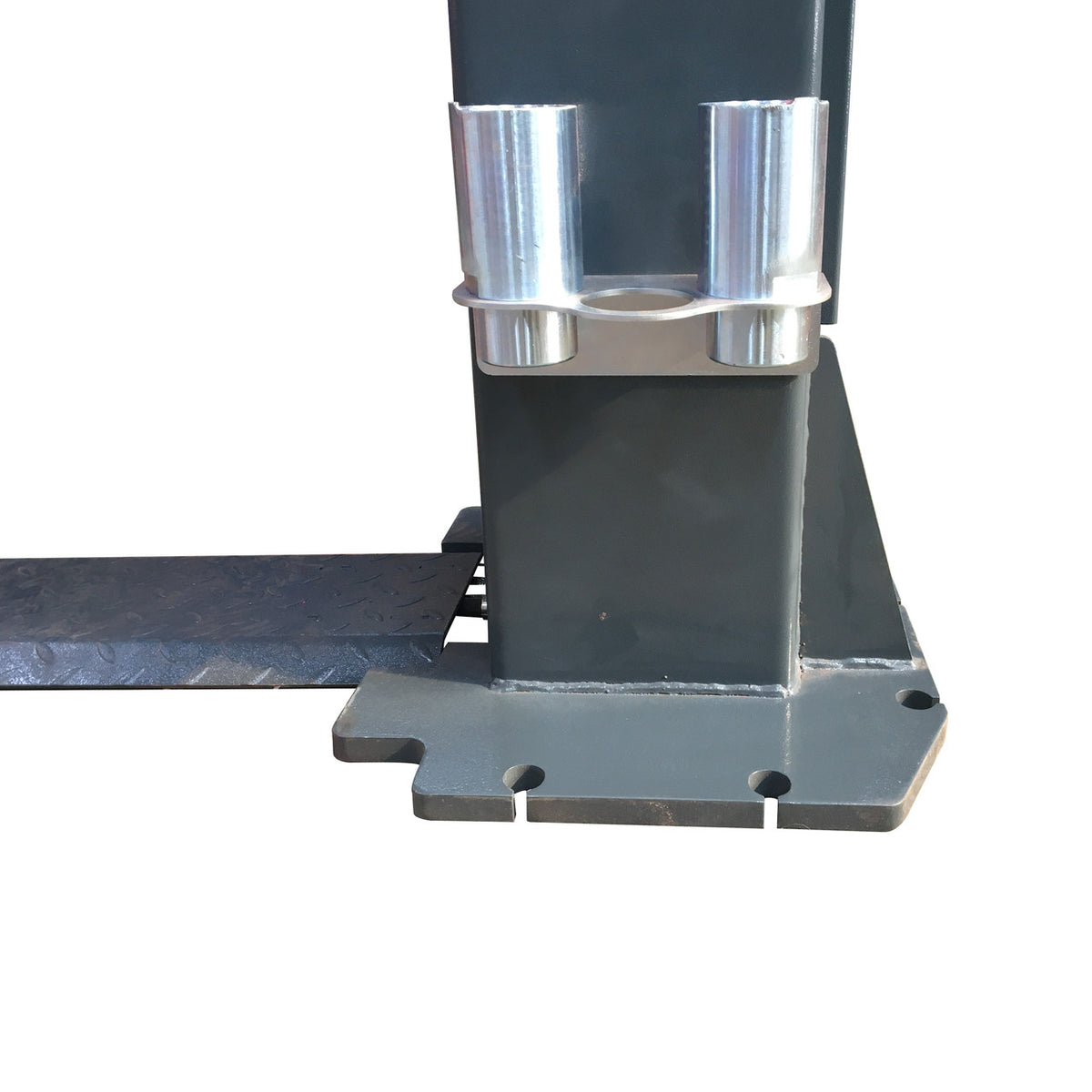

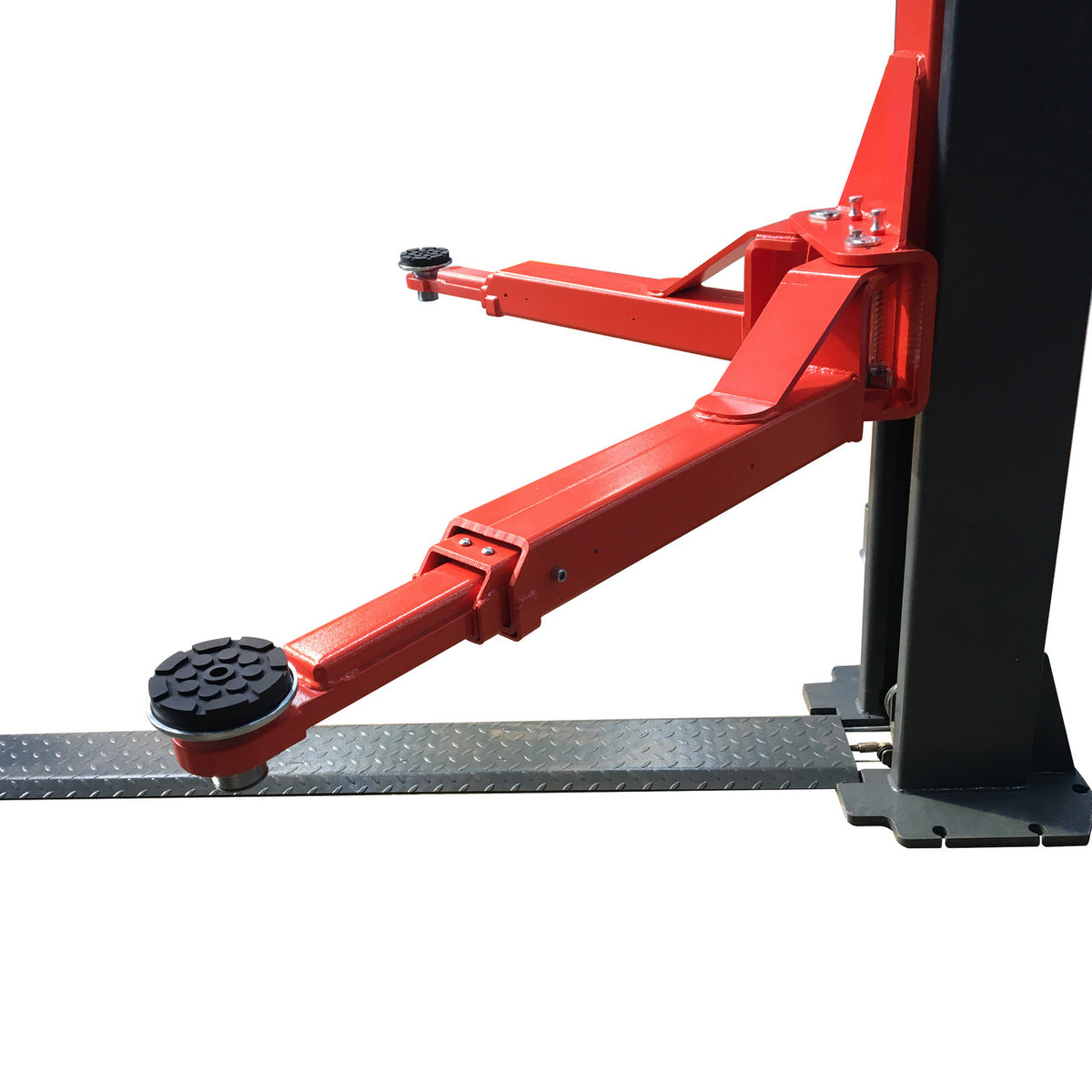

The floor plate configuration means the columns anchor to a wide base plate rather than relying solely on the floor anchor bolts for lateral stability. That translates to a more planted feel under load, especially with heavier vehicles where column flex is a real concern. Single point manual release keeps the lowering process controlled and consistent - one release, both sides come down together. No cross-threading a dual-release system or worrying about uneven descent.

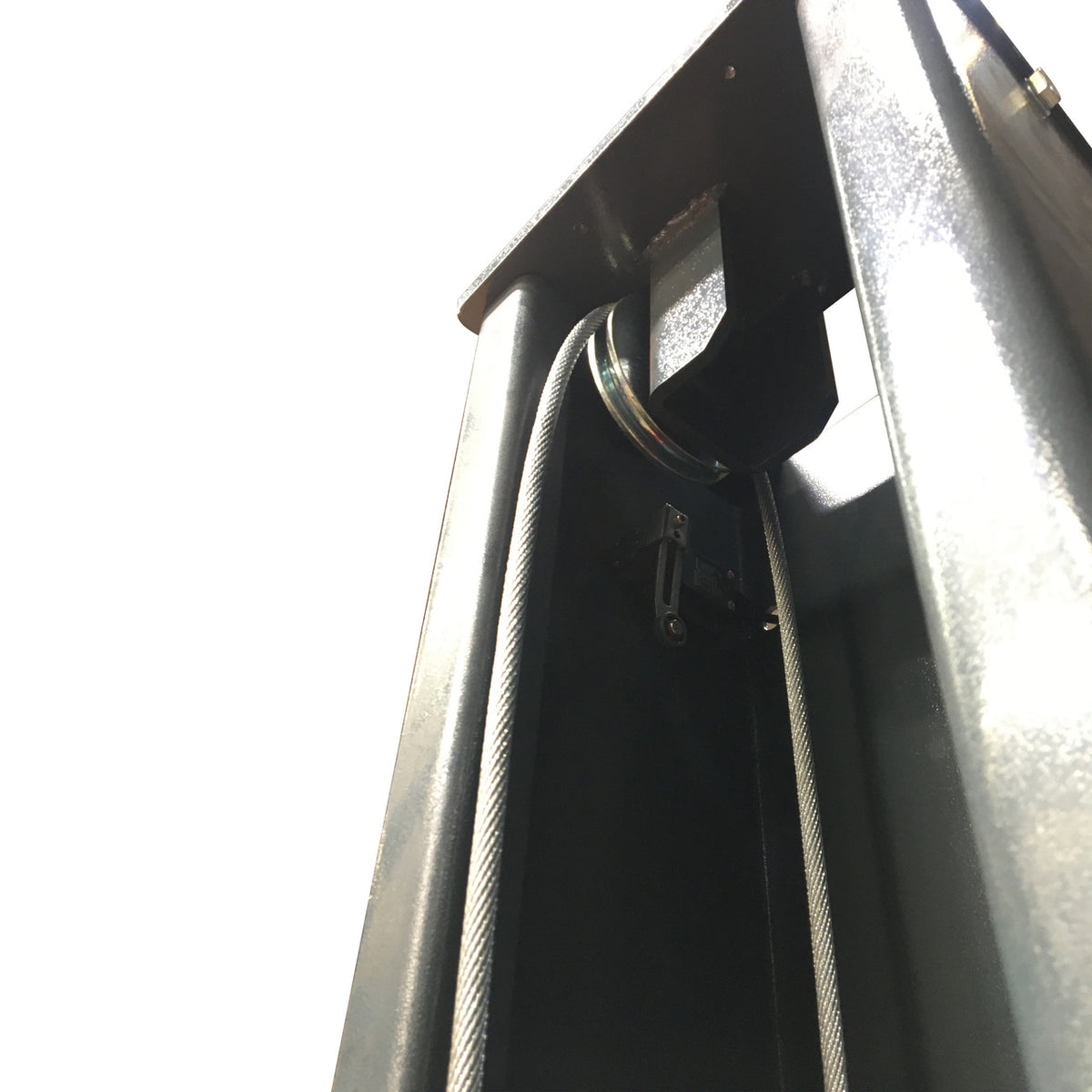

Stratus proofed this lift at 115% of rated capacity dynamically and 150% statically before it left the factory. The multi-strand, non-rotary cable won't stretch or coil over time, which matters when you're cycling this thing dozens of times a week. Rise time clocks in around 55 seconds, and the top limiter switch cuts the ascent automatically so you're not riding the button to avoid ceiling strikes.
Need a lift that's ready to work the moment the freight truck leaves? Garage Supply Guys carries the F12X with the documentation and support to help you get it installed and running fast. Questions before you order? Call us.
Specifications
| Model | SAE-F12X |
| Capacity | 12,000 lbs |
| Max Lift Height (with adaptors) | 78 13/16" (2,002 mm) |
| Min Lift Height (with adaptors) | 8 1/8" (207 mm) |
| Max Lift Height (without adaptors) | 74 13/16" (1,900 mm) |
| Min Lift Height (without adaptors) | 4 1/8" (105 mm) |
| Rise Time | ~55 seconds |
| Overall Height | 122 13/16" (3,120 mm) |
| Overall Width | 21 1/4" (540 mm) |
| Overall Length | 160 7/16" (4,075 mm) |
| Inside Column Width | 129 15/16" (3,300 mm) |
| Drive-Thru Width | 116 1/8" (2,949 mm) |
| Front Arm Reach (max) | 70 7/8" (1,800 mm) |
| Front Arm Reach (min) | 35 1/16" (890 mm) |
| Rear Arm Reach (max) | 70 7/8" (1,800 mm) |
| Rear Arm Reach (min) | 35 1/16" (890 mm) |
| Motor | 4 HP, 220V, 60 Hz, 1-phase |
| Hydraulic Oil | AW32 or AW46 |
| Breaker Required | 30A |
| Shipping Weight | 1,980 lbs |
| Shipping Dimensions | 111" L x 42" W x 27" H |
| Minimum Concrete | 6" thick, 3,000 PSI |
| Finish | Granite Gray (RAL 7026) + Rein Orange (RAL 2004) |
What's Included
- Stratus SAE-F12X 2-post lift (base unit)

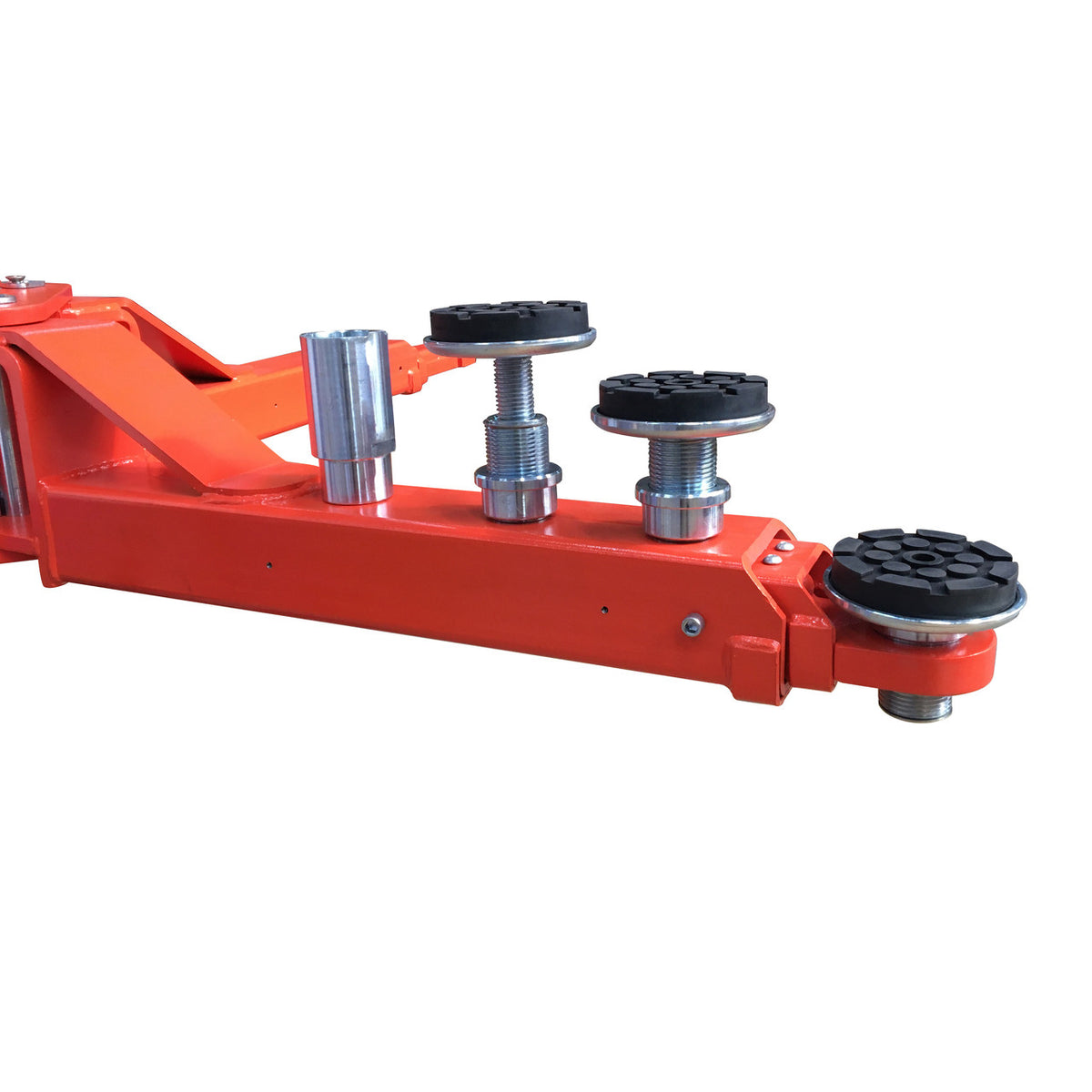

- 4x screw-up rubber pads - Peg 60mm (2 5/16")
- 4x 4" truck adaptors - Peg 60mm (2 5/16")
Installation & Setup
The F12X runs on 220V single-phase power and requires a dedicated 30A breaker. If your shop is still on 110V drops for service bays, you'll need an electrician to run the right circuit before install day. Don't skip this step - running undersized power to a 4 HP motor is how you get nuisance trips and premature wear on the contactor.
Concrete requirements are firm: minimum 6" thick slab at 3,000 PSI. Thinner slabs or older poured concrete that hasn't been tested should be assessed before you commit to anchor placement. The floor plate design distributes the load well, but the slab still has to be up to spec. If you're pouring new concrete for a bay build-out, this is the time to go thicker.
The lift ships at 1,980 lbs on a freight pallet. You'll need equipment on site to offload - freight companies allow 30 minutes for unloading, and anything beyond that is billed to you. Plan for a forklift or pallet jack capable of handling the weight before the truck arrives.
Applications

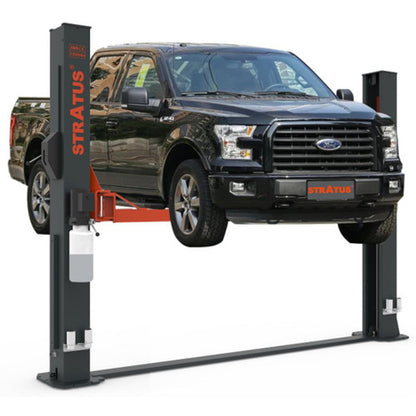

The extra wide floor plate and 129 15/16" inside column measurement give you room to work on wide-body vehicles without arm reach compromises. F-250s, Suburbans, Sprinter vans - all fit within the drive-thru width.
A 55-second rise time and single point release keep the bay moving. You're not waiting on the lift between jobs, and the top limiter switch removes the ceiling-check habit from your workflow.
Full under-vehicle access with no center post means exhaust work, suspension swaps, and drivetrain pulls go faster. The open-top design doesn't restrict your movement under the vehicle at full height.
The 12,000 lb capacity handles commercial vehicles and light duty fleet units. A durable powder coat finish and non-stretch cable system hold up to the daily cycling a fleet bay demands.
Warranty
Structural Components: 5-year warranty
Hydraulic Components: 3-year warranty
Electrical Components: 2-year warranty
Warranty coverage applies to the original purchaser and is not transferable. Components are warranted to be free from defects in workmanship and materials from the date of delivery. Warranty registration may be required after purchase. Refer to included documentation for details.
Documents
Click to open in a new tab.
Questions Before You Order?
Our team can help you confirm bay clearance, electrical requirements, and delivery logistics before you buy. Call us at (855) 498-2147.
Frequently Asked Questions
What power supply does the SAE-F12X require?
The F12X runs on 220V single-phase power with a dedicated 30A breaker. It's a 4 HP motor, so a properly rated circuit is required before installation. If your shop doesn't have a 220V drop in that bay, you'll need an electrician to run one ahead of time.
What are the concrete requirements for installation?
Stratus specifies a minimum 6-inch thick slab at 3,000 PSI. Thinner or older concrete should be assessed before you commit to anchor placement. The floor plate design distributes load well, but the slab still needs to meet spec to support 12,000 lbs safely.
What vehicles will fit on this lift?
The F12X is rated for vehicles up to 12,000 lbs, with a 129 15/16" (3,300 mm) inside column width and a 116 1/8" (2,949 mm) drive-thru clearance. Full-size trucks, SUVs, and Sprinter-style vans are well within the lift's design envelope. Always confirm your specific vehicle's width and pickup points before lifting.
What accessories come with the lift, and what's sold separately?
The F12X ships with four screw-up rubber pads (Peg 60mm / 2 5/16") and four 4" truck adaptors (Peg 60mm / 2 5/16") as standard included accessories. Optional accessories available separately include cradle pads (Peg 60mm) and a tripod jack stand.
How does single point manual release work compared to dual release?
Single point manual release means one handle lowers both sides of the lift simultaneously. This keeps descent synchronized, reducing the risk of one arm dropping faster than the other. It's a simpler system mechanically and a more consistent lowering experience compared to dual-handle setups where you have to coordinate both sides manually.
What is the warranty on the SAE-F12X?
Stratus covers structural components for 5 years, hydraulic components for 3 years, and electrical components for 2 years from the date of delivery. Coverage applies to the original purchaser and is non-transferable. Warranty registration may be required - refer to included documentation for details.
How is the lift delivered, and what do I need to do when it arrives?
The F12X ships via LTL freight and weighs 1,980 lbs on a pallet (111" L x 42" W x 27" H). You're responsible for offloading - freight carriers allow 30 minutes, and time beyond that is billed to you. Have a forklift or capable pallet jack on site before the truck arrives. Upon delivery, inspect the shipment for any damage or missing parts and note anything on the carrier receipt before the driver leaves.
Has this lift been load tested?
Yes. The SAE-F12X is proofed with a dynamic test at 115% of rated capacity (13,800 lbs) and a static test at 150% of rated capacity (18,000 lbs) before leaving the factory. That's above the lift's 12,000 lb rating, confirming structural integrity under real overload conditions.
