Stratus SAE-F10P 2 Post Vehicle Lift 10,000 lbs
SKU: SAE-F10P
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
- Authorized Stratus Auto Equipment Dealer
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

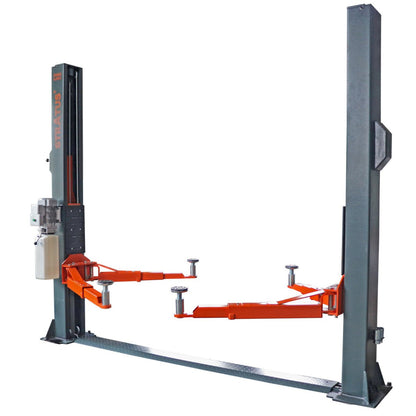

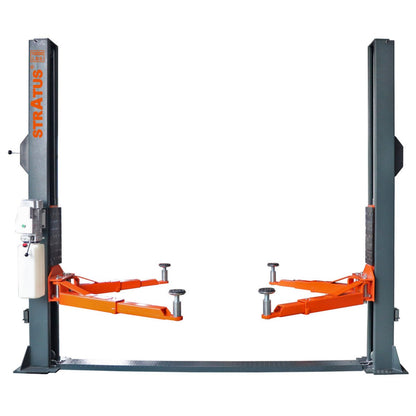

Stratus SAE-F10P - 10,000 lb Two-Post Floor Plate Lift
If you're running a shop that sees everything from compact cars to full-size trucks and SUVs, the Stratus SAE-F10P gives you the lift to handle it all. This is a 10,000 lb capacity two-post floor plate lift with an open top design, which means no overhead crossbar cutting into your clearance. You're not working around the lift structure - it's working around you.

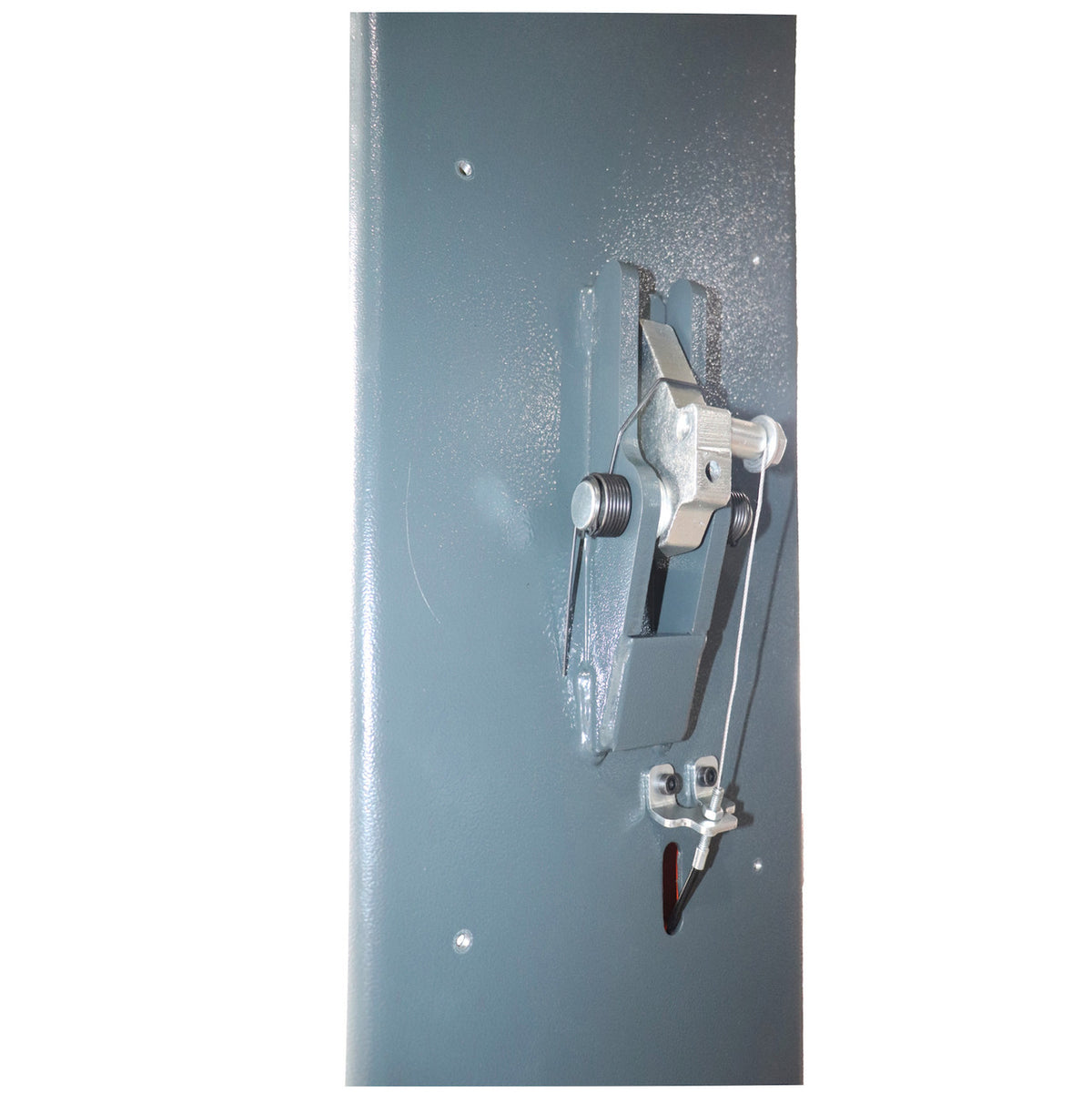

The floor plate base keeps both posts firmly anchored to your concrete without a connecting baseplate running across the drive-thru, so positioning is clean and flexible. Single-point manual release controls the descent across both posts simultaneously - one action, both sides drop together. That's not a convenience feature, it's a safety feature. The built-in top limiter switch cuts power before the arms travel past their safe range, giving you another layer of protection on every cycle.
CE certified and proof-tested at 115% of rated capacity dynamically and 150% statically, this lift isn't just rated to 10,000 lbs - it's been verified beyond that threshold before it ever shipped. The Granite Gray and Reinorange powder coat finish isn't just cosmetic; it's a durable barrier against the shop environment. Arm reach front and rear covers the full range of modern vehicle wheelbases, from short-wheelbase coupes to extended-cab trucks.
When you have questions before you buy or need guidance after delivery, our team is here. You're buying from GSG, not navigating through a manufacturer's customer service queue.

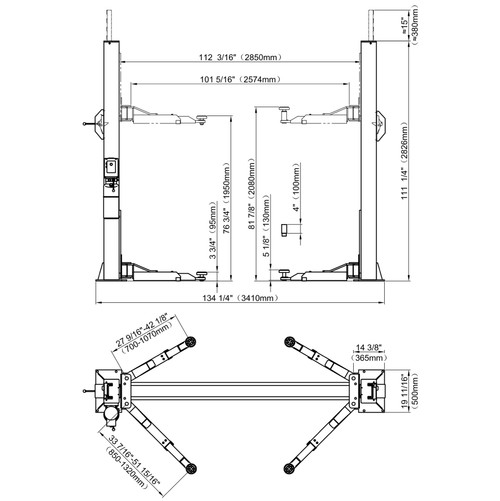

Specifications
| Capacity | 10,000 lbs |
| Max Lift Height (with adaptors) | 81 7/8" (2,080 mm) |
| Min Lift Height (with adaptors) | 5 1/8" (130 mm) |
| Max Lift Height (without adaptors) | 76 3/4" (1,950 mm) |
| Min Lift Height (without adaptors) | 3 3/4" (95 mm) |
| Rise Time | ~50 sec |
| Overall Height | 111 1/4" (2,826 mm) |
| Overall Width | 19 11/16" (500 mm) |
| Overall Length | 134 1/4" (3,410 mm) |
| Inside Column Width | 112 3/16" (2,850 mm) |
| Drive-Thru Width | 101 5/16" (2,574 mm) |

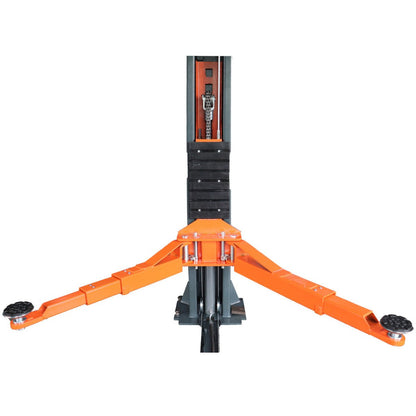

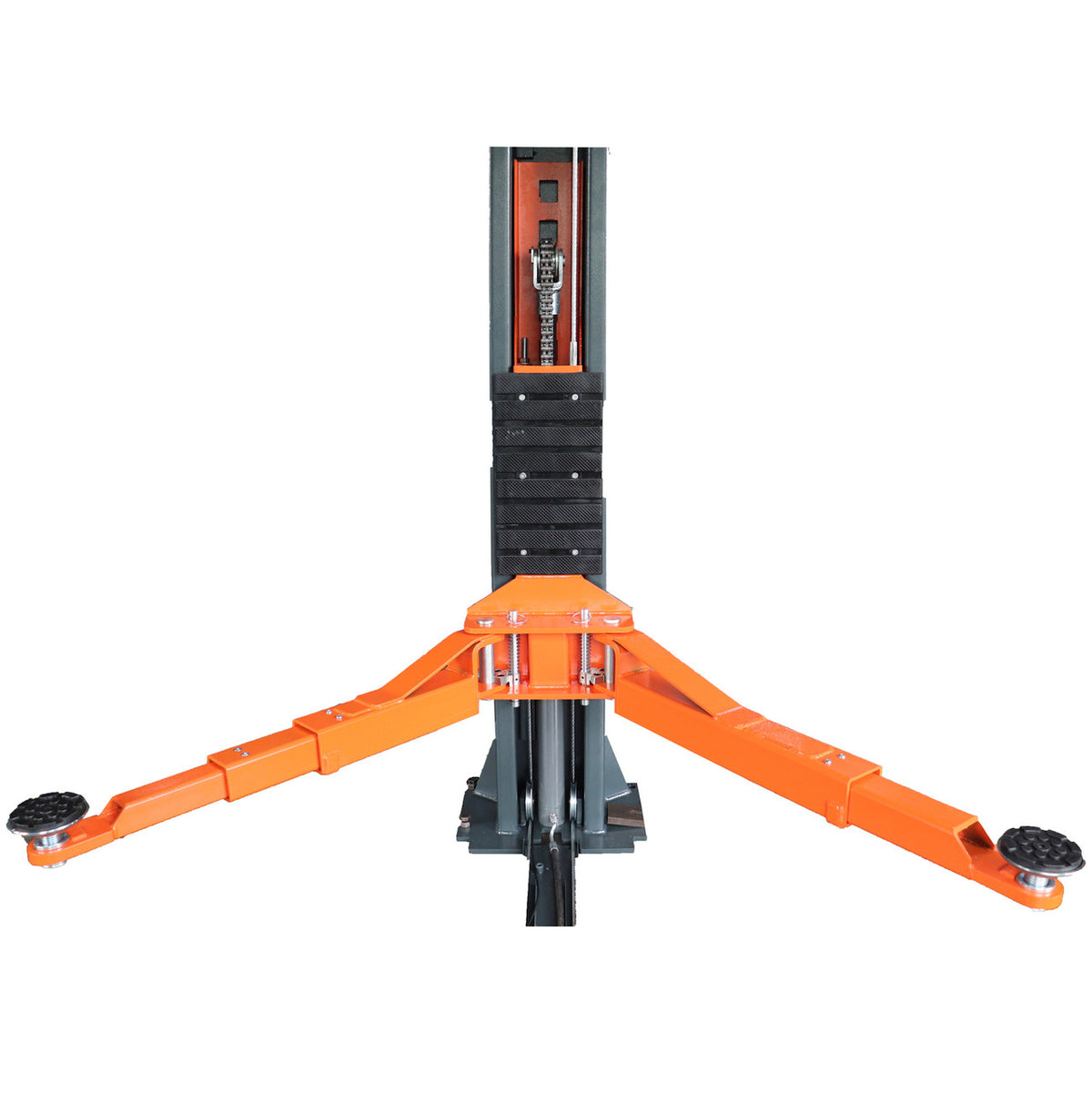

| Front Arm Reach (max) | 51 15/16" (1,320 mm) |
| Front Arm Reach (min) | 33 7/16" (850 mm) |
| Rear Arm Reach (max) | 42 1/8" (1,070 mm) |
| Rear Arm Reach (min) | 27 9/16" (700 mm) |

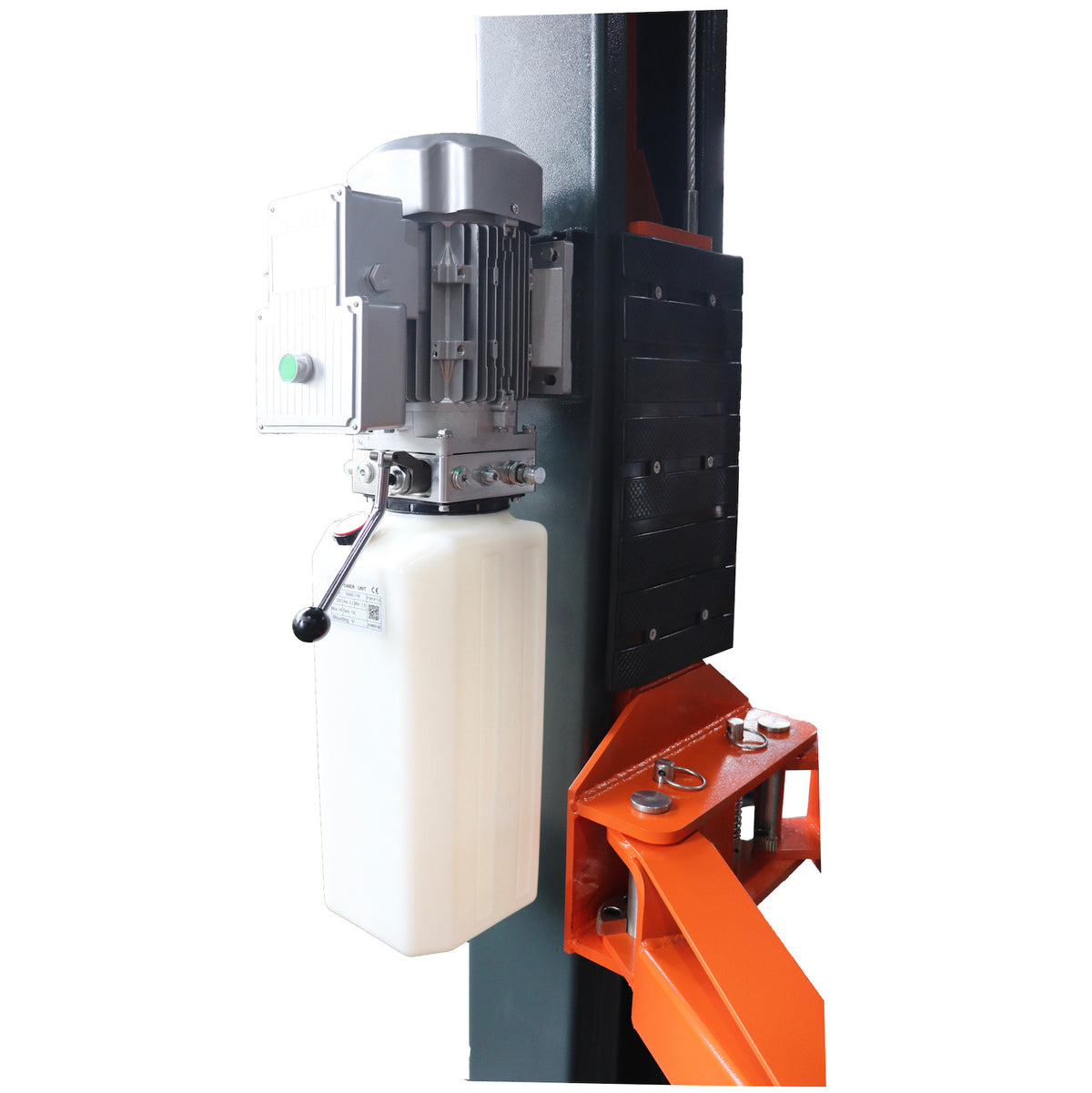

| Motor | 3 HP, 220V, 60 Hz, 1-Phase |
| Hydraulic Oil | AW32 or AW46 |
| Breaker Requirement | 30A |
| Shipping Weight | 1,411 lbs |
| Shipping Dimensions | 115" L x 24" W x 35" H |
| Concrete Requirement | 6" thick, 3,000 PSI minimum |
| Certification | CE Certified |
| Finish | Granite Gray (RAL 7026) + Reinorange (RAL 2004) powder coat |
What's Included
- Stratus SAE-F10P two-post floor plate lift

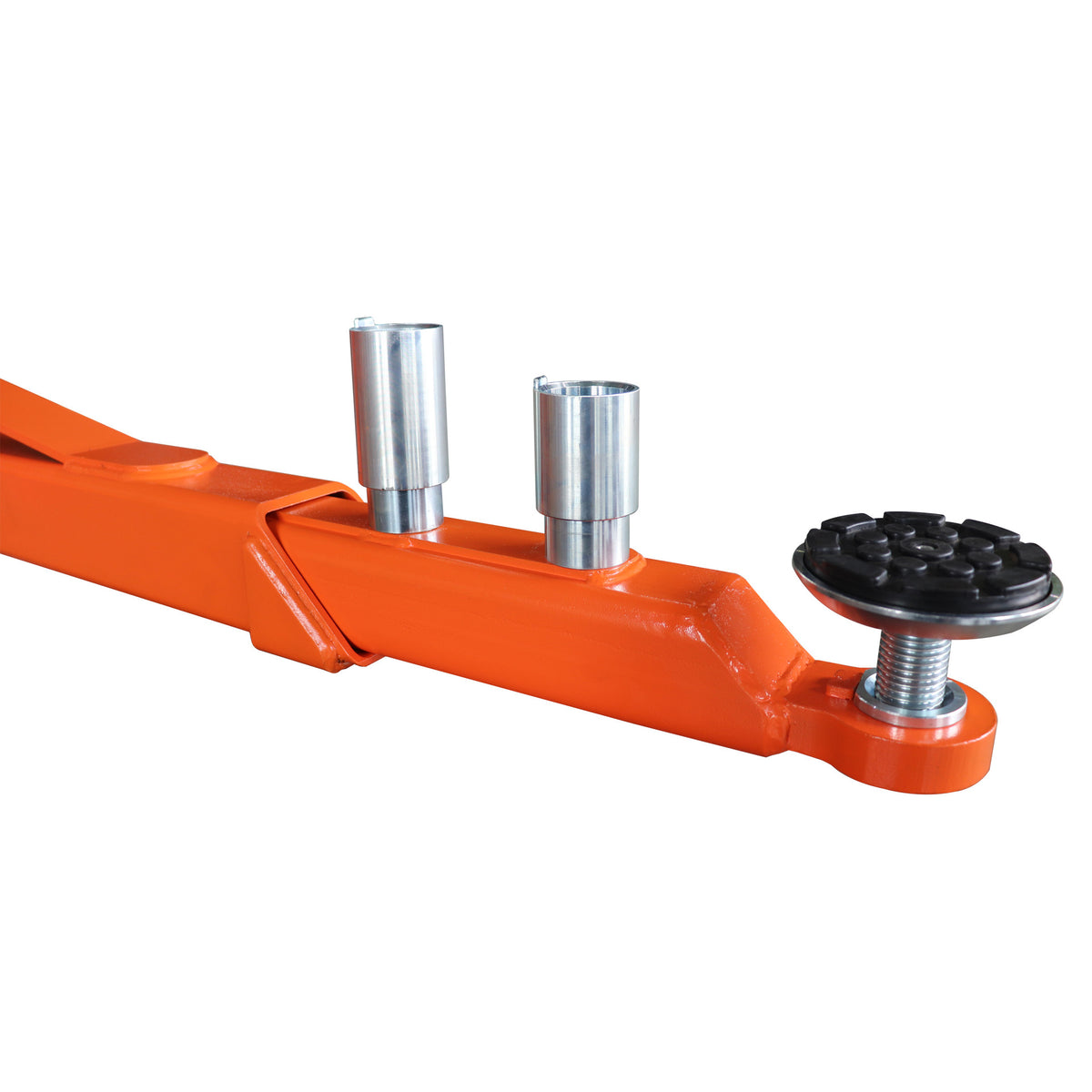

- 4x screw-up rubber pads - Peg 50mm (4")

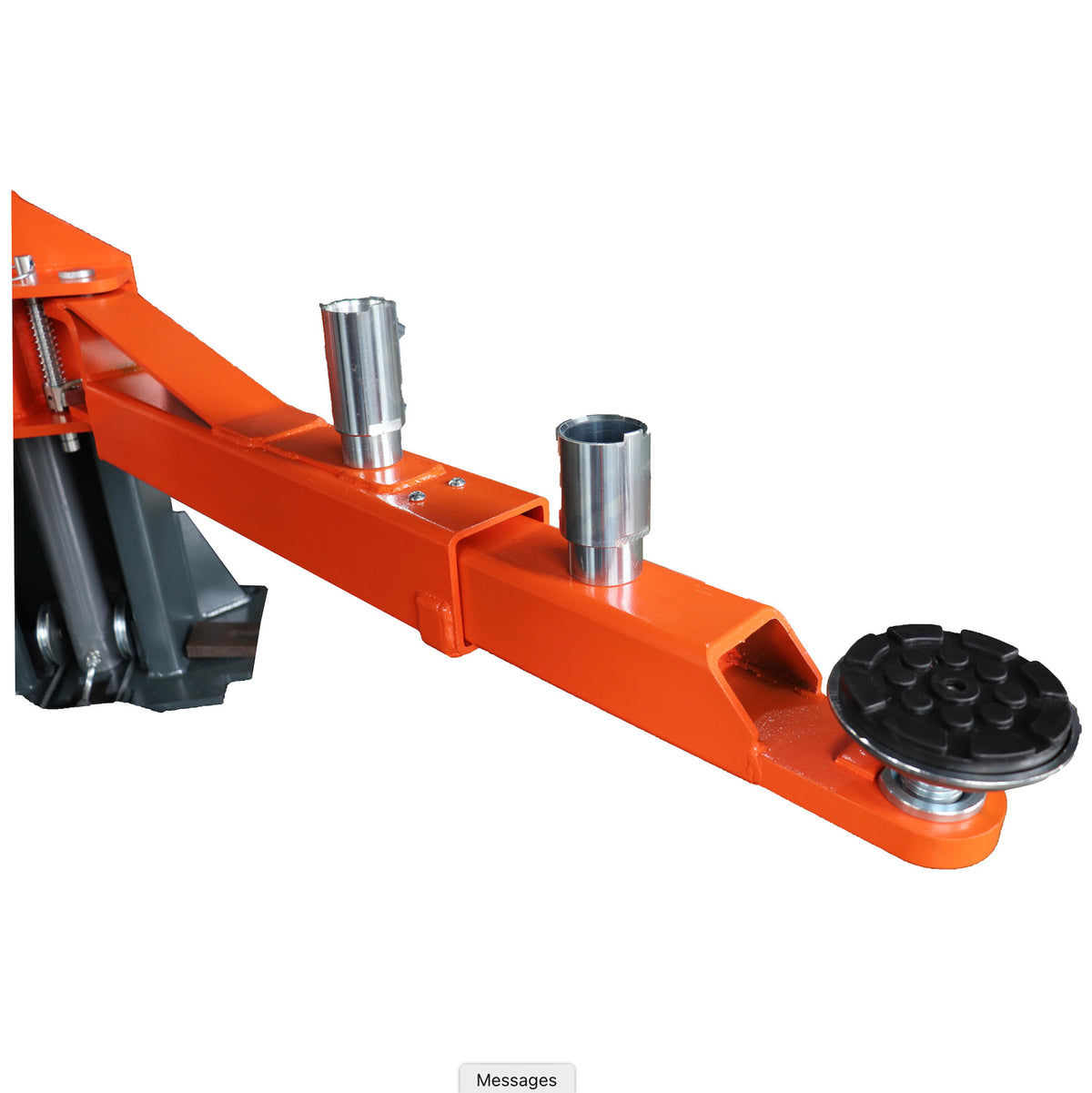

- 8x truck adaptors - 4 of each height: 2 3/4" and 4"
Installation & Setup
The SAE-F10P runs on 220V single-phase power with a 3 HP motor, and your electrical panel needs to support a dedicated 30A breaker for this circuit. If your shop is still running older single-phase service without a spare 220V slot, plan for that work before the lift arrives.
Concrete is non-negotiable. This lift requires a 6"-thick slab poured to 3,000 PSI minimum. Don't anchor into thinner concrete or aging slabs that don't meet that spec - the floor plate base distributes load differently than a clear-floor design, but the concrete requirement is the same. If you're unsure about your slab, have it evaluated before ordering.
The lift ships at 1,411 lbs. You'll need equipment on-site to offload the freight - the delivery driver handles transport, not unloading. Coordinate your rigging or forklift before the truck arrives.
Applications
Oil changes, brake jobs, suspension work, exhaust - the open top gives you unrestricted vertical access on any standard passenger car or light truck up to 10,000 lbs.
The 101 5/16" drive-thru width and extended arm reach accommodate full-size SUVs and extended-cab pickup trucks that narrower lifts can't handle comfortably.
The open top design removes the overhead crossbar restriction entirely - vans, lifted trucks, and taller vehicles clear the structure without modification or repositioning.
Single-point manual release and a 50-second rise time keep your throughput moving. This is a production bay lift, not a hobby unit.
Shipping
The SAE-F10P ships freight to all 50 states. Our team coordinates the freight shipment and helps manage scheduling details. Free shipping applies to commercial addresses and local installer or truck terminal deliveries. Residential delivery carries an additional fee - contact us before ordering if your delivery address is residential.
A surcharge applies to shipments to OR, WA, ID, MT, ND, SD, and ME. Contact us before ordering if you're in one of those states so we can confirm the correct shipping total.
The lift ships at 1,411 lbs. You are responsible for unloading freight on your end - freight companies allow 30 minutes for unloading, and any time beyond that is billed to the customer. Have equipment ready when the truck arrives.
Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
5 Years - Structural Components
3 Years - Hydraulic Components
2 Years - Electrical Parts
Warranty registration may be required after purchase. Refer to included documentation for details.
Documents
Click to open in a new tab.
Questions Before You Order?
Our team can help you confirm compatibility, concrete requirements, electrical needs, and delivery details before you buy. Call us at (855) 498-2147.
Frequently Asked Questions
What electrical power does the SAE-F10P require?
The SAE-F10P runs on 220V single-phase power with a 3 HP motor. Your panel needs to support a dedicated 30A breaker for this circuit. It does not run on standard 110V household current - a 220V drop is required before installation.
What are the concrete requirements for this lift?
The SAE-F10P requires a minimum 6"-thick concrete slab poured to at least 3,000 PSI. Thinner slabs or concrete that doesn't meet the PSI rating are not safe for this installation. If you're unsure about your existing floor, have a contractor evaluate it before ordering.
What's the difference between the floor plate and clear floor design?
A floor plate lift anchors each post to individual base plates on the floor - there's no connecting bar running between the posts at floor level. That makes it easier to position vehicles and eliminates a trip hazard across the bay opening. A clear floor design uses an overhead crossmember to tie the columns together instead. The SAE-F10P uses the floor plate approach and also has an open top, meaning there's no overhead bar either - both entrances are completely clear.
What vehicles fit on the SAE-F10P?
The lift handles vehicles up to 10,000 lbs. The drive-thru opening is 101 5/16" wide and the inside column span is 112 3/16". Front arms reach between 33 7/16" and 51 15/16", and rear arms reach between 27 9/16" and 42 1/8". That range covers most passenger cars, SUVs, light trucks, and extended-cab pickups. The included truck adaptors add clearance for vehicles with higher lift points.
Does the open top design affect vehicle height limits?
Yes - in a good way. Without an overhead crossmember, there's no structure above the lift to limit how tall a vehicle can be when driven in. The columns themselves are 111 1/4" tall, and maximum lift height with adaptors is 81 7/8". Taller vehicles like full-size vans or lifted trucks clear the bay without any overhead obstruction.
Does this lift ship to my state?
Yes, the SAE-F10P ships nationwide to all 50 states. A surcharge applies to OR, WA, ID, MT, ND, SD, and ME. Free shipping applies to commercial addresses and local installer or truck terminal deliveries. Residential delivery carries an additional fee. Contact us at (855) 498-2147 before ordering if your state or delivery address applies to any of those conditions.
Who is responsible for unloading the lift when it arrives?
You are. This is a freight shipment and the lift arrives on a pallet at 1,411 lbs. The delivery driver handles transport only - unloading is your responsibility. Freight companies allow 30 minutes for unloading; any time beyond that is billed to the customer. Have a forklift or other unloading equipment staged and ready before the truck arrives.
What warranty does the SAE-F10P carry?
The SAE-F10P carries a 5-year warranty on structural components, 3 years on hydraulic components, and 2 years on electrical parts. Warranty registration may be required after purchase - refer to the included documentation for details.
