Stratus SAE-EX48 Excavator
SKU: SAE-EX48
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

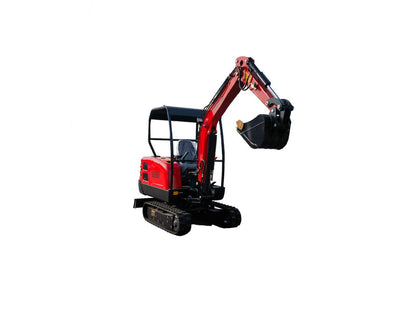

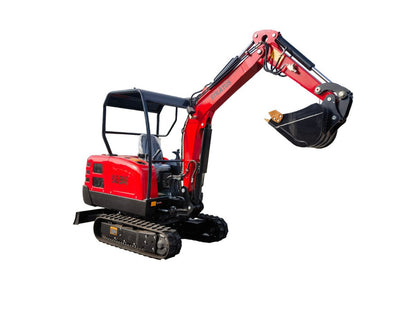

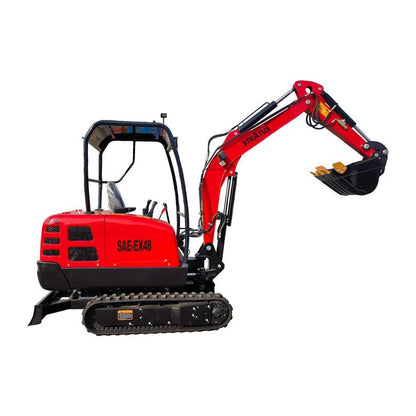

Stratus SAE-EX48 Mini Excavator - 4,800 lb Capacity
The Stratus SAE-EX48 is a 4,800 lb mini excavator built for job sites where you need real digging power in a compact footprint. It runs a Kubota engine - EPA certified at 18.8 HP - and delivers a max digging radius of 172 inches and a max digging depth of 96 inches. That's the combination most compact excavator buyers are looking for: enough reach and depth to handle utility trenching, landscaping, and light demolition without the overhead of a full-size machine.
The structural components are all high-strength manganese steel, robot-welded for consistency. You're not getting a hand-fab frame. The big swing arm configuration comes standard, and the machine ships ready for auxiliary attachments - crushing pipeline included. If you need a cab or A/C for operator comfort on long days, those are available as optional add-ons you can configure before ordering.
The SAE-EX48 finishes in Granite Gray (RAL 7026) with Rein orange (RAL 2004) accents - a clean, professional look that holds up on site. Stable, low-maintenance, and backed by a warranty that covers structural, hydraulic, and electrical components separately so you know exactly what's protected and for how long.
Questions about configuration or delivery? Our team is here before, during, and after the sale. Call (855) 498-2147 and we'll walk you through it.
Specifications
| Model | SAE-EX48 |

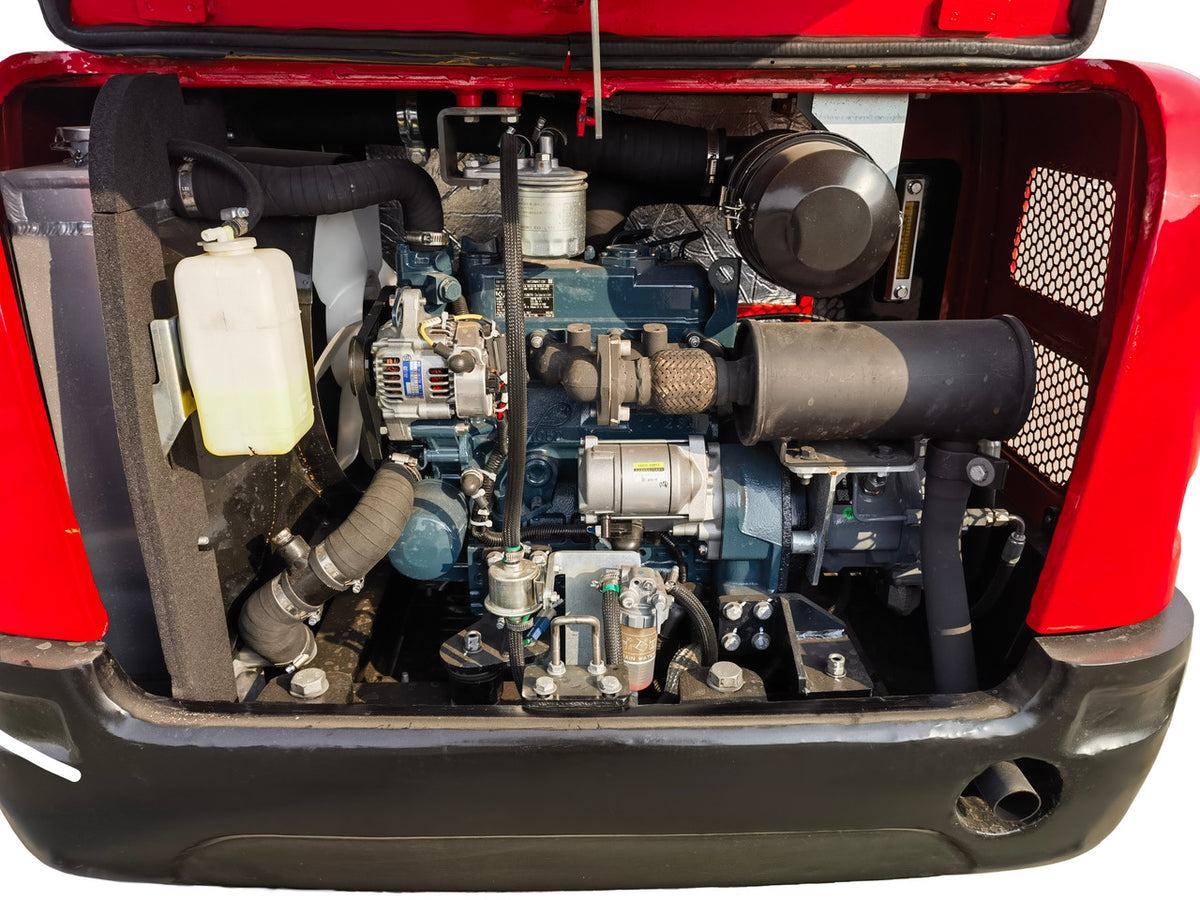

| Engine | Kubota - EPA Certified |
| Rated Power | 18.8 HP |
| Operating Weight | 4,850 lbs (2.2 metric ton) |
| Bucket Capacity | 0.131 yd³ (0.1 m³) |
| Max Digging Radius | 172" (4,370 mm) |
| Max Digging Depth | 96" (2,450 mm) |
| Max Digging Height | 145.5" (3,700 mm) |
| Max Dumping Height | 90" (2,290 mm) |
| Travel Speed | 1.74 - 1.86 mph (2.8 - 3.0 km/h) |
| System Pressure | 20 MPa |
| Frame Material | High-strength manganese steel, robot-welded |
| Finish | Granite Gray (RAL 7026) / Rein orange (RAL 2004) |
| Shipping Dimensions | 161"L x 51"W x 90"H |
What's Included
- Stratus SAE-EX48 mini excavator
- Big swing arm configuration
- Crushing pipeline
- Tool box
Optional cab, air conditioner, and auxiliary equipment are available - contact us to configure before ordering.
Installation & Setup
The SAE-EX48 ships via freight on a pallet at shipping dimensions of 161"L x 51"W x 90"H. Receiving requires a forklift or equivalent unloading equipment at the delivery site. If your location does not have a forklift on-site, residential delivery with liftgate service is available - confirm this before your order is placed so the right delivery arrangement is set up.
The machine arrives assembled and ready for operation. No major setup is required beyond fueling, a pre-operation inspection, and attachment configuration per the included documentation.
Applications
The 96" max digging depth and 172" reach cover most residential and light commercial utility trench work - water lines, electrical conduit, drainage runs.
Compact footprint gets into tight yards and residential lots where a full-size excavator can't maneuver. The 4,850 lb operating weight keeps ground disturbance manageable.
The crushing pipeline comes standard, making the SAE-EX48 ready for concrete breaking, stump removal, and light structural demo without a separate attachment order.
Footings, foundation prep, and material moving on small to mid-size job sites. The 90" max dumping height clears most standard dump truck beds for clean loading.
Product Video
Shipping
Free shipping to all 48 lower contiguous states. Residential delivery and liftgate service are included at no additional charge. Our team coordinates the freight shipment and helps manage scheduling details.
Need a specific delivery window, or shipping to a limited-access location such as a farm, rural property, or dealership? Contact us before ordering so we can confirm the best delivery setup and any applicable accessorial charges.
Upon delivery, inspect the shipment for any damage or missing parts and note any issues directly on the receiving receipt from the shipping carrier. Document with photos as needed.
We deliver across all 48 lower states: Alabama, Arizona, Arkansas, California, Colorado, Connecticut, Delaware, Florida, Georgia, Idaho, Illinois, Indiana, Iowa, Kansas, Kentucky, Louisiana, Maine, Maryland, Massachusetts, Michigan, Minnesota, Mississippi, Missouri, Montana, Nebraska, Nevada, New Hampshire, New Jersey, New Mexico, New York, North Carolina, North Dakota, Ohio, Oklahoma, Oregon, Pennsylvania, Rhode Island, South Carolina, South Dakota, Tennessee, Texas, Utah, Vermont, Virginia, Washington, West Virginia, Wisconsin, Wyoming.
Warranty
5 Years - Structural components
3 Years - Hydraulic components
2 Years - Electrical parts
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Our team can walk you through configuration options, delivery logistics, and any specs you need to verify before committing. Call us at (855) 498-2147.
Frequently Asked Questions
What engine does the SAE-EX48 use, and is it EPA certified?
The SAE-EX48 runs a Kubota engine rated at 18.8 HP, and it is EPA certified. Kubota is a widely recognized engine brand in the compact equipment space, known for reliability and part availability - a practical consideration for long-term ownership and maintenance.
How deep can the SAE-EX48 dig?
Max digging depth is 96 inches (2,450 mm). Max digging radius is 172 inches (4,370 mm), and max digging height reaches 145.5 inches (3,700 mm). For most residential utility, landscaping, and light construction work, those dimensions cover the full scope of the job.
Does the machine come with a cab or air conditioning?
The cab and air conditioner are optional accessories - they are not included in the standard configuration. If you need either for your application, contact us before ordering at (855) 498-2147 so we can set up your unit accordingly prior to shipment.
What is the warranty coverage on the SAE-EX48?
The SAE-EX48 carries a tiered warranty: 5 years on structural components, 3 years on hydraulic components, and 2 years on electrical parts. Warranty registration may be required after purchase - refer to the included documentation for the process.
How is the SAE-EX48 delivered, and do I need a forklift on-site?
The machine ships freight at dimensions of 161"L x 51"W x 90"H. Free shipping, residential delivery, and liftgate service are all included. If your site does not have a forklift for unloading, the liftgate covers you at a residential or limited-access location - just let us know your delivery situation before ordering so we can confirm the right setup.
What attachments or auxiliary equipment are compatible with the SAE-EX48?
The SAE-EX48 comes standard with a big swing arm configuration and crushing pipeline. A variety of auxiliary equipment is available as optional accessories. Contact us at (855) 498-2147 to discuss which attachments fit your intended application and to confirm availability before ordering.
What states does GSG ship the SAE-EX48 to?
We ship free to all 48 contiguous lower states. Alaska and Hawaii are not included in the standard free shipping program - contact us if you need delivery outside the lower 48.
What should I do if the excavator arrives damaged?
Inspect the shipment thoroughly when the freight carrier arrives. Note any damage or missing parts directly on the carrier's receiving receipt before signing, and document everything with photos. Call us at (855) 498-2147 as soon as possible so we can assist with a claim or replacement parts.
About the Brand
Stratus Auto Equipment
