Stratus SAE-C14X Two Post Overhead Clear Floor Auto Vehicle Lift
SKU: SAE-C14X
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
- Authorized Stratus Auto Equipment Dealer
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax
Stratus SAE-C14X Two Post Car Lift, 14,000 lbs

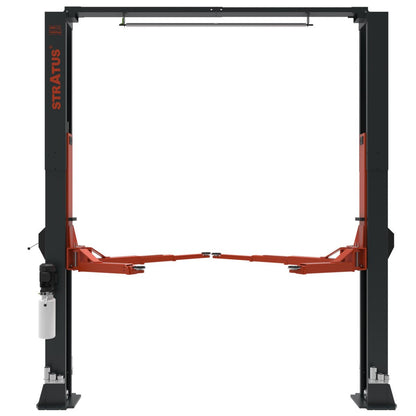

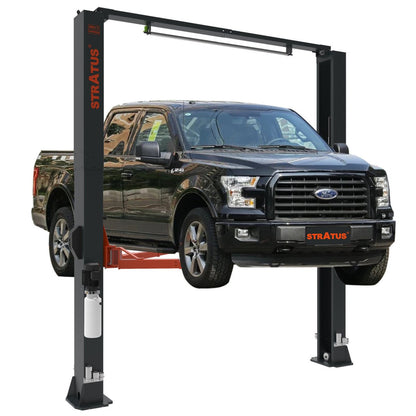

You've got a bay, a concrete floor, and a steady stream of trucks and SUVs that won't fit on a lighter-duty machine. The Stratus 2 Post Overhead Clear Floor Direct Drive Auto Vehicle Lift (model SAE-C14X) is built for exactly that. This is a 2 post car lift rated at 14,000 lbs, with an overhead crossbar design that keeps the floor between the columns completely open. No base plate to trip over, no cables underfoot, no obstruction when you're rolling a transmission jack or creeper across the bay.

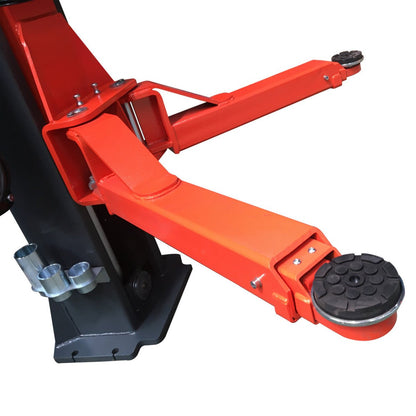

The clear floor car lift layout matters more than it sounds. With a 115 11/16" drive-through and 129 15/16" between the columns, you've got room to pull a dually or a long-wheelbase work van straight in without the door-to-door pinch you get on tighter two post car lifts. Three-stage telescoping arms reach front and rear, so you spot the same lift under a compact sedan or a heavy pickup without swapping hardware.
Direct drive means the power unit acts on the carriages with fewer moving links between motor and load, and a single point manual release lets you drop the safety locks on both columns from one spot. Every Stratus lift in this line is proofed with a dynamic test at 115% of rated capacity and a static test at 150%, so the 14,000 lb number on the plate is a working figure, not a hopeful one. If you're shopping two post car lifts for sale and want a clear floor car lift that handles real shop weight, this is the one to look at.
Specifications
| Model | SAE-C14X |
| Capacity | 14,000 lbs (6,300 kg) |
| Max Lift Height (with adapters) | 78 13/16" (2,001 mm) |
| Min Lift Height (with adapters) | 8 1/8" (206 mm) |
| Max Lift Height (no adapters) | 74 13/16" (1,900 mm) |
| Min Lift Height (no adapters) | 4 1/8" (105 mm) |
| Rise Time | ~60 sec |
| Lowering Time | ~40 sec |
| Overall Height | 173 3/8" (4,403 mm) |
| Overall Width | 155 1/8" (3,940 mm) |
| Inside Columns | 129 15/16" (3,300 mm) |
| Drive Thru | 115 11/16" (2,939 mm) |
| Front Arm Reach | 39 3/8" - 61 1/4" (1,000 - 1,555 mm) |
| Rear Arm Reach | 23 13/16" - 42 5/16" (605 - 1,075 mm) |
| Motor | 4 HP, 220V, 60 Hz, 1 Ph |
| Hydraulic Oil | AW32 or AW46 |
| Breaker | 30A |
| Column Steel Thickness | 6.0 mm |
| Arm Steel Thickness | 7.75 mm |
| Finish | Granite Gray (RAL 7026) + Rein Orange (RAL 2004) |
| Weight | 2,360 lbs (1,071 kg) |
| Shipping Size | 118" L x 44" W x 28" H |
What's Included
- 4 screw-up rubber pads, 60 mm (2 5/16") peg
- 4 truck adapters, 4", 60 mm (2 5/16") peg
- 3-stage telescoping arms (front and rear)
- Overhead limit switch assembly
- Single point manual release hardware
- Anchor bolt set and installation hardware
- Power unit with mounting frame
- User's manual
Cradle pads (60 mm peg) and a tripod jack stand are available as optional accessories. Call to confirm optional accessory availability before ordering.
Installation & Setup
This is a permanent, anchored install, not a portable unit. Before the lift ships, get your slab sorted. Stratus calls for concrete a minimum of 200 mm (7 7/8") thick, free of reinforcing bar in the anchor zone, fully cured and dry, with a minimum test strength of 3,500 PSI. The floor needs to be level with no cracks or holes in the mounting area. Anchor bolts seat at least 150 mm into the slab.
Power is a 220V, single-phase, 60 Hz circuit on a 30A breaker, and it must be wired in by a certified electrician. The hydraulic reservoir takes AW32 or AW46 oil. Run NO. 46 when your shop averages above 18°C and NO. 32 when it runs colder, since oil viscosity sets your rise speed. Plan to bleed the cylinders and cycle the lift several times during commissioning to bring it to full height.
The columns stand 173 3/8" tall, so confirm your ceiling clearance before you commit a bay. Full step-by-step assembly, cable routing, and trial-run instructions are in the manual linked in the Documents section below.
Applications
A 14,000 lb clear floor lift covers everything from daily-driver cars to 3/4 and 1-ton pickups without juggling multiple machines.
The wide drive-through and long inside-column span suit full-size trucks, vans, and fleet vehicles that crowd a tighter two post car lift.
A 60-second rise and single point release keep a busy bay moving when you're cycling vehicles up and down all day.
If you wrench on heavy classics, lifted trucks, or a mixed fleet at home, the clear floor design keeps your work area open and clean.
Shipping
Free shipping to the lower 48 states. Our team coordinates the freight shipment and helps manage scheduling details.
Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
This Stratus lift is backed by a 5-year structural warranty, 3-year hydraulic warranty, and 2-year electrical warranty.
Warranty registration may be required after purchase. Refer to included documentation for details.
Documents
Click to open in a new tab.
Manual
Questions Before You Buy?
Talk to a lift specialist about fitment, slab requirements, or delivery scheduling.
Call (855) 498-2147
Frequently Asked Questions
How thick does my concrete need to be for this two post car lift?
Stratus specifies concrete at least 200 mm (7 7/8") thick, with a minimum test strength of 3,500 PSI, fully cured and level with no cracks. Anchor bolts seat at least 150 mm into the slab. If your floor doesn't meet that, you'll need to pour a proper pad before installing.
What's the weight capacity, and is it tested?
It's rated at 14,000 lbs. Every lift in this line is proofed with a dynamic test at 115% of rated capacity and a static test at 150%, so the rating is verified, not just printed on the plate.
What electrical does it require?
A 4 HP motor running on 220V, single-phase, 60 Hz power, protected by a 30A breaker. The hookup must be done by a certified electrician.
Will a full-size truck fit between the columns?
Yes. You get 129 15/16" between the columns and a 115 11/16" drive-through, which is wide enough for full-size trucks, duallies, and work vans that crowd a tighter lift.
What does "clear floor" actually mean here?
The overhead crossbar design routes everything across the top instead of through a base plate on the ground. The floor between the columns stays completely open, so nothing trips up your jacks, creepers, or carts.
How tall is the lift? Will it fit my ceiling?
Overall height is 173 3/8" (4,403 mm). Measure your ceiling clearance against that number before you dedicate a bay, since this is a tall overhead-style lift.
How fast does it raise and lower?
Rise time is 60 seconds and lowering is 40 seconds. Speed depends partly on hydraulic oil viscosity, so run AW46 in warmer shops and AW32 in colder ones.
What comes with the lift, and what's extra?
It ships with 4 screw-up rubber pads, 4 truck adapters (4", 60 mm peg), the three-stage arms, power unit, anchor hardware, and the manual. Cradle pads and a tripod jack stand are available separately. Call to confirm optional accessory availability.
How does shipping work on a lift this size?
It ships free to the lower 48 as palletized freight at 2,360 lbs. Our team coordinates the shipment. If you need a delivery window, residential delivery, or liftgate service, contact us before ordering so we can set it up.
What's the warranty?
5 years on structure, 3 years on hydraulics, and 2 years on electrical components. Registration may be required after purchase; check the included documentation.
