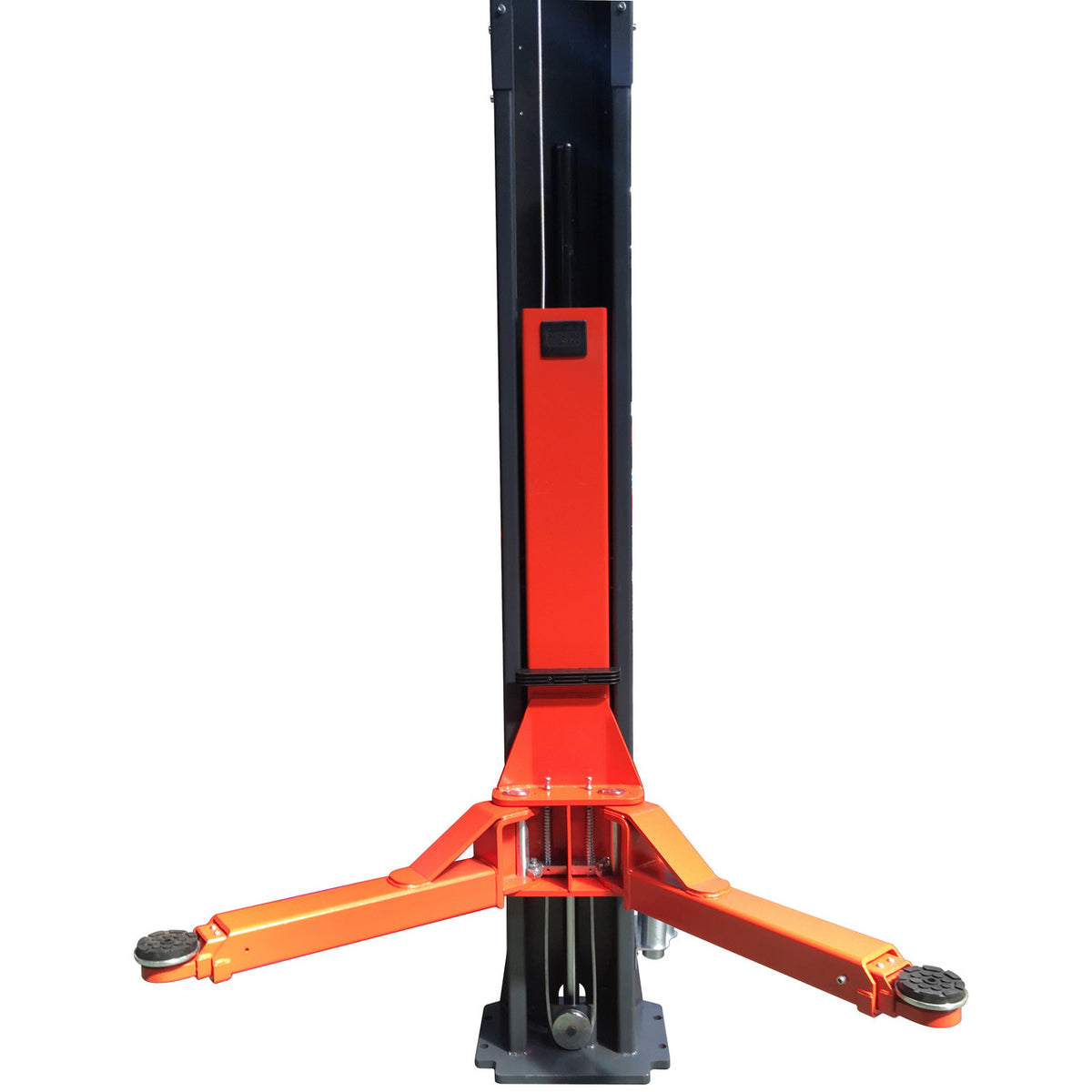

Stratus SAE-C12X 2 Post Vehicle Lift
SKU: SAE-C12X
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
- Authorized Stratus Auto Equipment Dealer
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

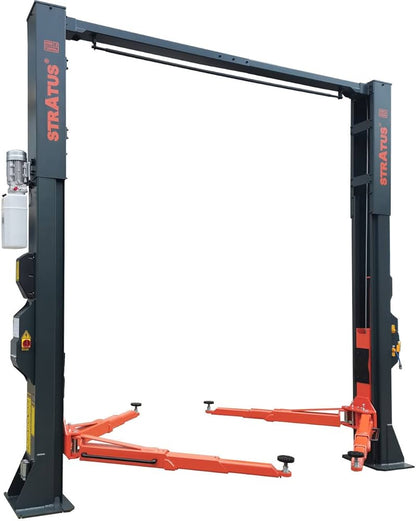

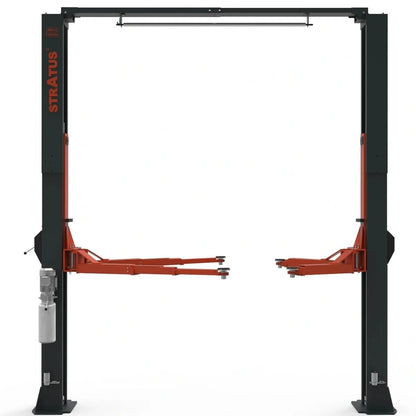

Stratus SAE-C12X - 2-Post Overhead Clear Floor Direct Drive Lift
If you're running a busy bay and need a 12,000 lb two-post lift that stays out of your way, the Stratus SAE-C12X is built for exactly that job. The overhead design keeps the lifting mechanism up top and the floor completely clear underneath, so you're not working around cables, struts, or anything else at ground level. You get full, unobstructed access to the undercarriage on every vehicle you put up.
The direct drive system powers the lift without cables or chains in the drive path, which means fewer wear components and a cleaner lifting motion. Single-point manual release gives you one-lever control when it's time to lower, so you're not fumbling with dual releases when your hands are full. The lift ships with a Granite Gray and Rein Orange powder coat finish, and both columns are rated to 6mm steel throughout.
Every SAE-C12X is proofed at 115% of rated capacity dynamically and 150% statically before it leaves the factory. That's not a label claim; it's a test standard. At 12,000 lbs and a 115 11/16" drive-through width, you've got enough capacity and clearance for most passenger vehicles, light trucks, and vans in a typical shop lineup.
Questions before you order? Our team at Garage Supply Guys can help you confirm clearances, power requirements, and delivery details before anything ships. Call us at (855) 498-2147.
Specifications
| Lifting Capacity | 12,000 lbs |
| Drive-Through Width | 115 11/16" |
| Overall Height | 173 1/4" |
| Width Inside Column | 129 15/16" |
| Max Lift Height (with truck adapters) | 78" |
| Max Lift Height (without adapters) | 74 13/16" |
| Min Height | 3 15/16" |
| Lifting Time | 60 seconds max |
| Lowering Time | 40 - 50 seconds |
| Motor Power | 4 HP |
| Motor Voltage | 220V |
| Rated Frequency | 60 Hz |
| Phase | Single phase (1 PH) |
| Recommended Hydraulic Oil | AW46 / AW32 |
| Column Steel Thickness | 6mm |
| Carriage Steel Thickness | 6mm |
| Arm Steel Thickness | 8mm |
| Cable Diameter | 0.315" |
| Finish | Granite Gray (RAL 7026) + Rein Orange (RAL 2004) |
| Shipping Weight | 2,200 lbs |
| Shipping Dimensions | 111"L x 44"W x 28"H |
What's Included

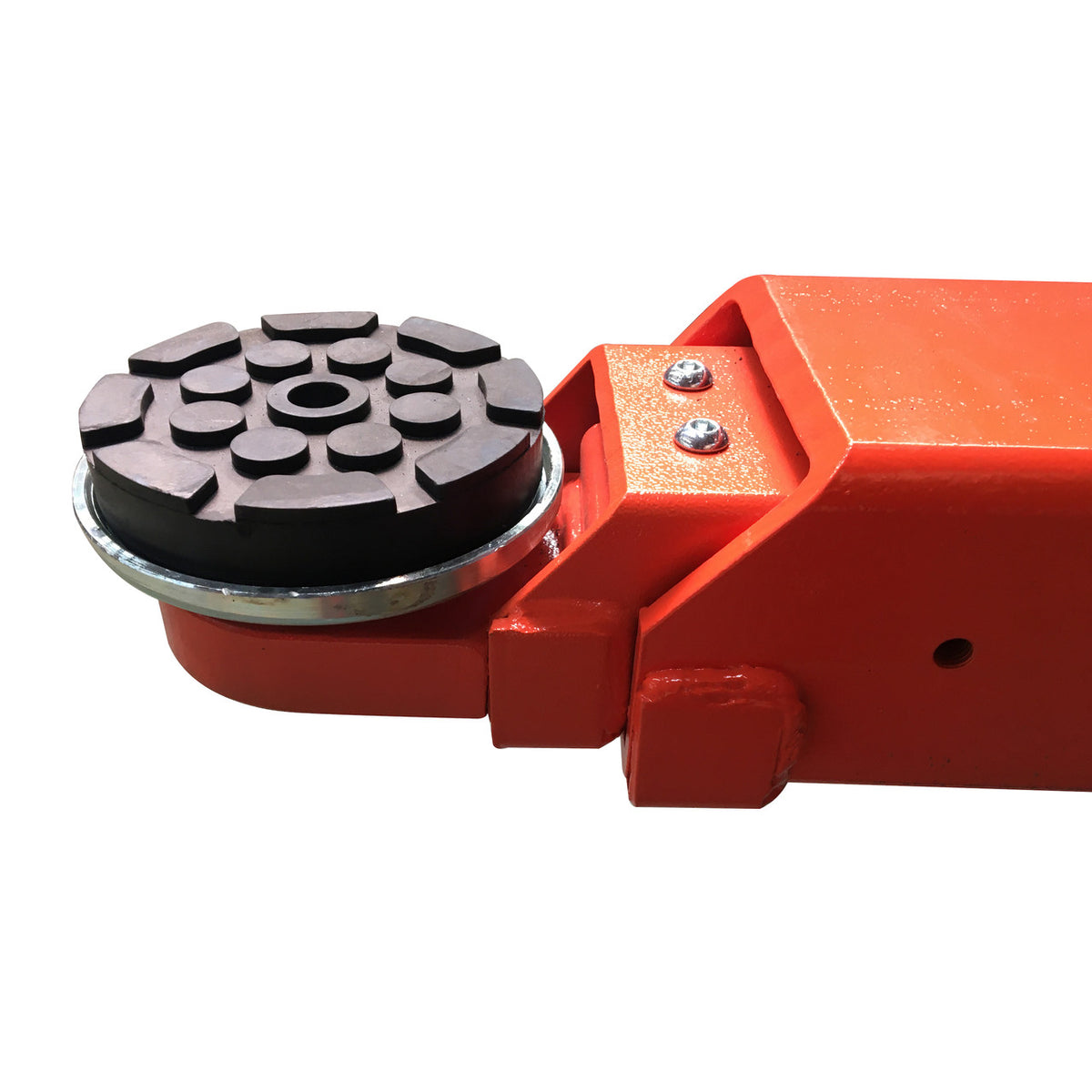

- 4x Screw-up rubber pads - Peg 60mm (2 5/16")

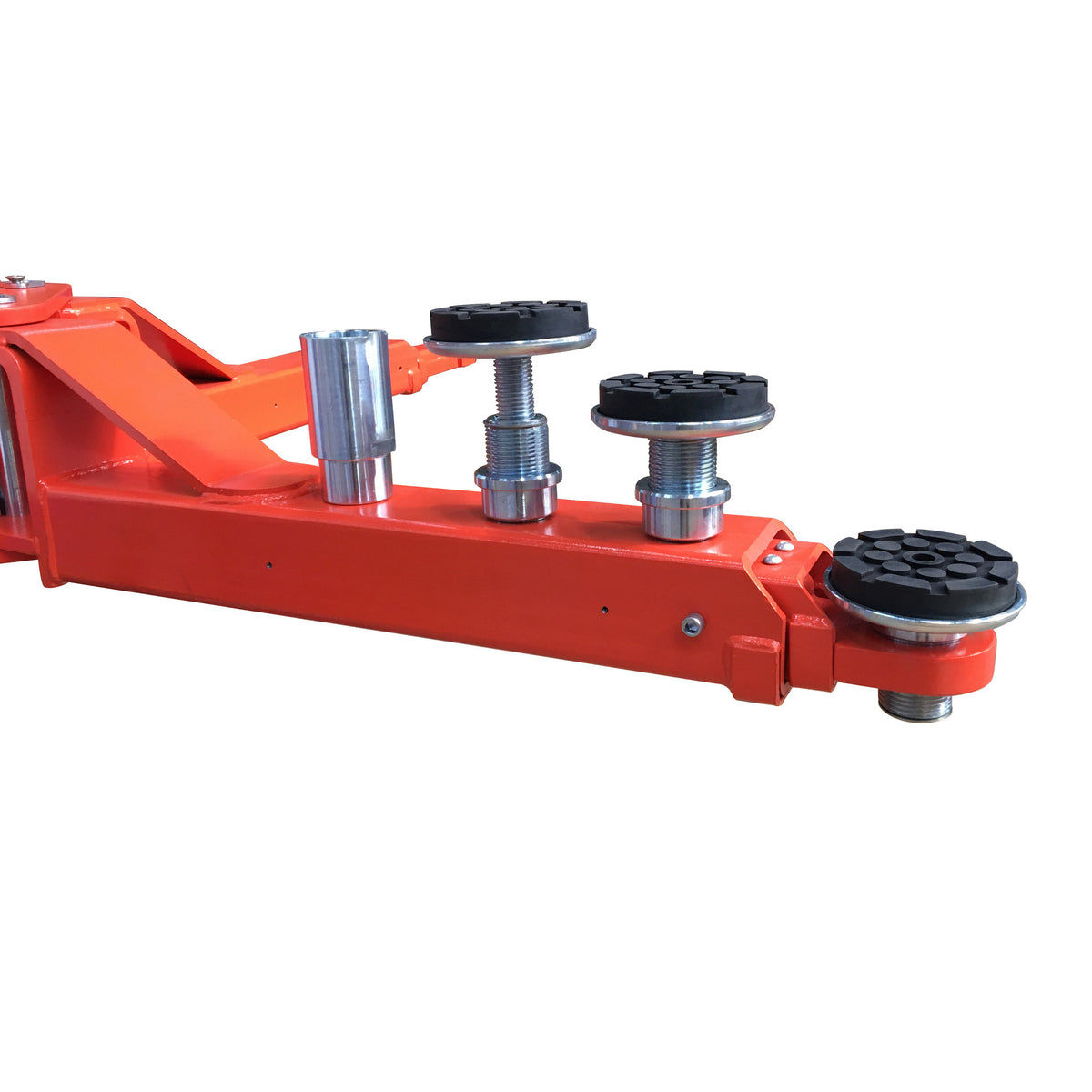

- 4x 4" Truck adapters - Peg 60mm (2 5/16")
Installation & Setup
The SAE-C12X runs on 220V single-phase power at 60 Hz. You'll need a dedicated 220V circuit in place before installation day. The motor pulls 4 HP, so confirm your panel and breaker sizing with your electrician beforehand.
Shipping weight is 2,200 lbs, so you'll need appropriate equipment or enough hands on site to unload from freight. The lift ships to commercial addresses at standard freight rates. Residential delivery requires an additional fee, and you'll want to confirm liftgate service if you don't have a loading dock. Contact us before ordering so we can dial in the right delivery setup for your location.
Installation requires anchoring both columns into a concrete floor. Slab depth and concrete PSI requirements should be verified against the installation manual before you start drilling. The manual is available in the Documents section below.
Applications
Oil changes, brake jobs, exhaust work, suspension - anything that needs you underneath the vehicle. The clear floor overhead design means nothing's blocking your path to the undercarriage.
With a 12,000 lb capacity and truck adapters included, the SAE-C12X handles most half-ton and three-quarter-ton trucks without needing additional setup. Max lift height of 78" with adapters gives you the clearance to work comfortably.
No floor-level obstructions means your team can walk the full length of the vehicle from either side. Good for thorough undercar inspections where visibility matters.
Single-point manual release and a raise time under 60 seconds means you're not burning time on each cycle. For shops running multiple vehicles through a bay in a day, that adds up.
Shipping
The SAE-C12X ships freight nationwide to all 50 states. Our team coordinates the freight shipment and helps manage scheduling details. Standard delivery is to a commercial address or freight terminal. Residential delivery carries an additional fee.
Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Delivery coverage includes: Alabama, Arizona, Arkansas, California, Colorado, Connecticut, Delaware, Florida, Georgia, Idaho, Illinois, Indiana, Iowa, Kansas, Kentucky, Louisiana, Maine, Maryland, Massachusetts, Michigan, Minnesota, Mississippi, Missouri, Montana, Nebraska, Nevada, New Hampshire, New Jersey, New Mexico, New York, North Carolina, North Dakota, Ohio, Oklahoma, Oregon, Pennsylvania, Rhode Island, South Carolina, South Dakota, Tennessee, Texas, Utah, Vermont, Virginia, Washington, West Virginia, Wisconsin, Wyoming.
Warranty
5 Years - Structural components
3 Years - Hydraulic components
2 Years - Electrical parts
Warranty registration may be required after purchase. Refer to included documentation for details.
Documents
Click to open in a new tab.
Questions Before You Buy?
Our team can help you confirm power requirements, concrete specs, delivery logistics, and anything else you need before this lift ships. Call us at (855) 498-2147.
Frequently Asked Questions
What power supply does the SAE-C12X require?
The SAE-C12X runs on 220V single-phase power at 60 Hz. The motor is rated at 4 HP. You'll need a dedicated 220V circuit with appropriate breaker sizing installed before the lift arrives. Confirm requirements with a licensed electrician prior to installation.
What's the maximum lifting height?
With the included 4" truck adapters, the SAE-C12X reaches a maximum lifting height of 78". Without adapters, max lift height is 74 13/16". Minimum platform height is 3 15/16".
Does this lift fit trucks and vans?
Yes. The lift has a 12,000 lb capacity, a drive-through width of 115 11/16", and a width inside the columns of 129 15/16". Four 4" truck adapters are included in the box. It's sized to handle most half-ton and three-quarter-ton trucks and full-size vans in a standard service bay configuration.
What type of hydraulic oil does it use?
Stratus recommends AW46 or AW32 hydraulic oil. Use the recommended specification to maintain performance and protect the hydraulic components under the 3-year warranty.
How is the lift shipped and who handles delivery?
The SAE-C12X ships freight. Shipping weight is 2,200 lbs and crated dimensions are 111"L x 44"W x 28"H. Standard delivery goes to a commercial address or freight terminal. Residential delivery is available but carries an additional fee. You're responsible for unloading from the freight carrier. Contact us at (855) 498-2147 before ordering if you need liftgate service, a delivery window, or have specific site access requirements.
What does the warranty cover and for how long?
The SAE-C12X carries a 5-year warranty on structural components, a 3-year warranty on hydraulic components, and a 2-year warranty on electrical parts. Warranty registration may be required after purchase - refer to the included documentation for details.
Is there anything I need to do before the lift arrives on site?
Yes, a few things. First, confirm your concrete slab is adequate for anchoring both columns - check the installation manual in the Documents section for slab depth and PSI requirements. Second, have your 220V single-phase circuit installed and ready. Third, arrange appropriate unloading equipment for a 2,200 lb freight shipment. The freight carrier allows 30 minutes for unloading, so have your setup ready before the truck arrives.
Does the SAE-C12X ship to my state?
Yes, the SAE-C12X ships nationwide to all 50 states. Note that there is a freight surcharge for deliveries to Oregon, Washington, Idaho, Montana, North Dakota, South Dakota, and Maine. Contact us before ordering and we'll confirm total delivery costs for your location.
About the Brand
Stratus Auto Equipment
