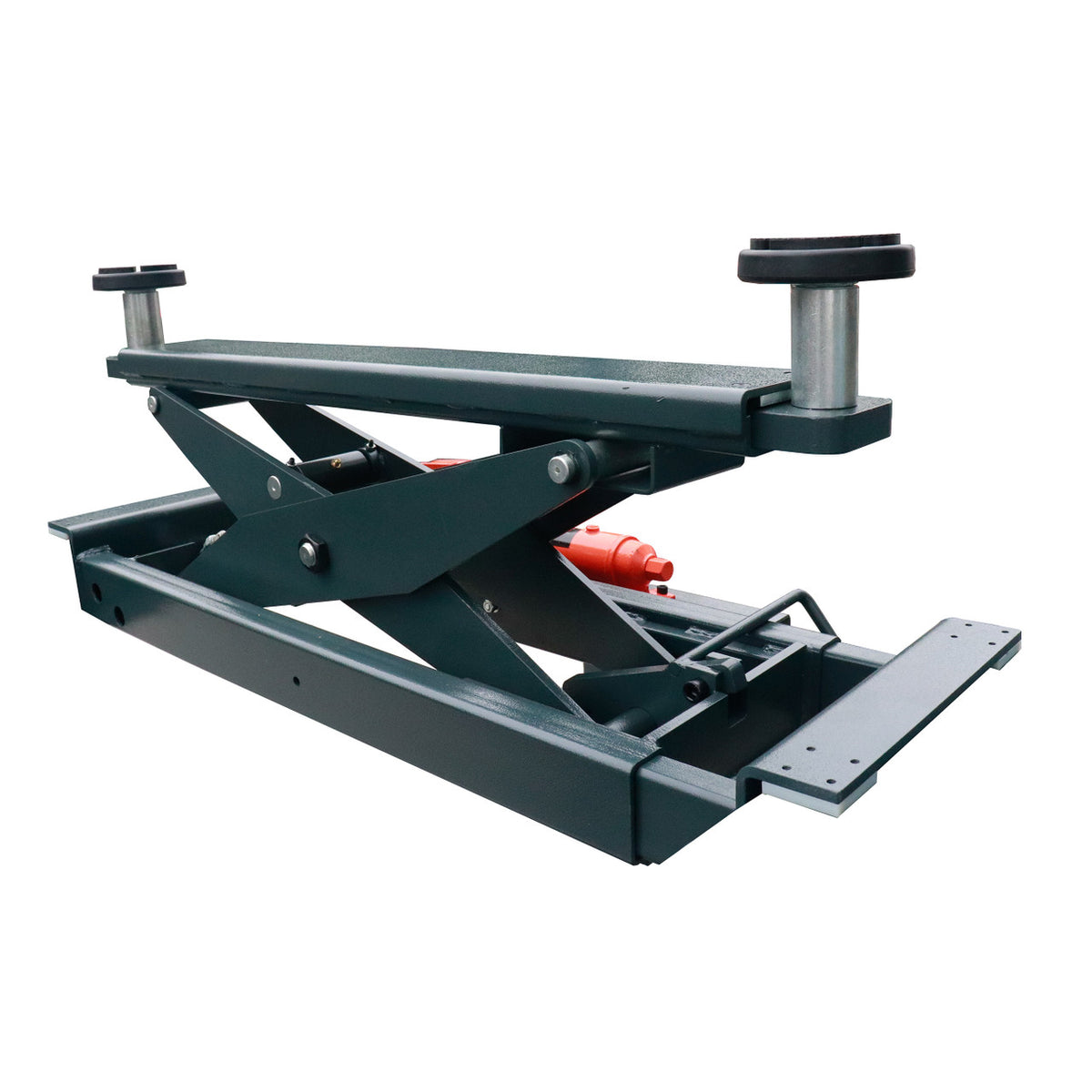

Stratus SAE-BJ5 Rolling Bridge Jack - 5,000 lb Sliding Bridge Jack for 4-Post Lifts

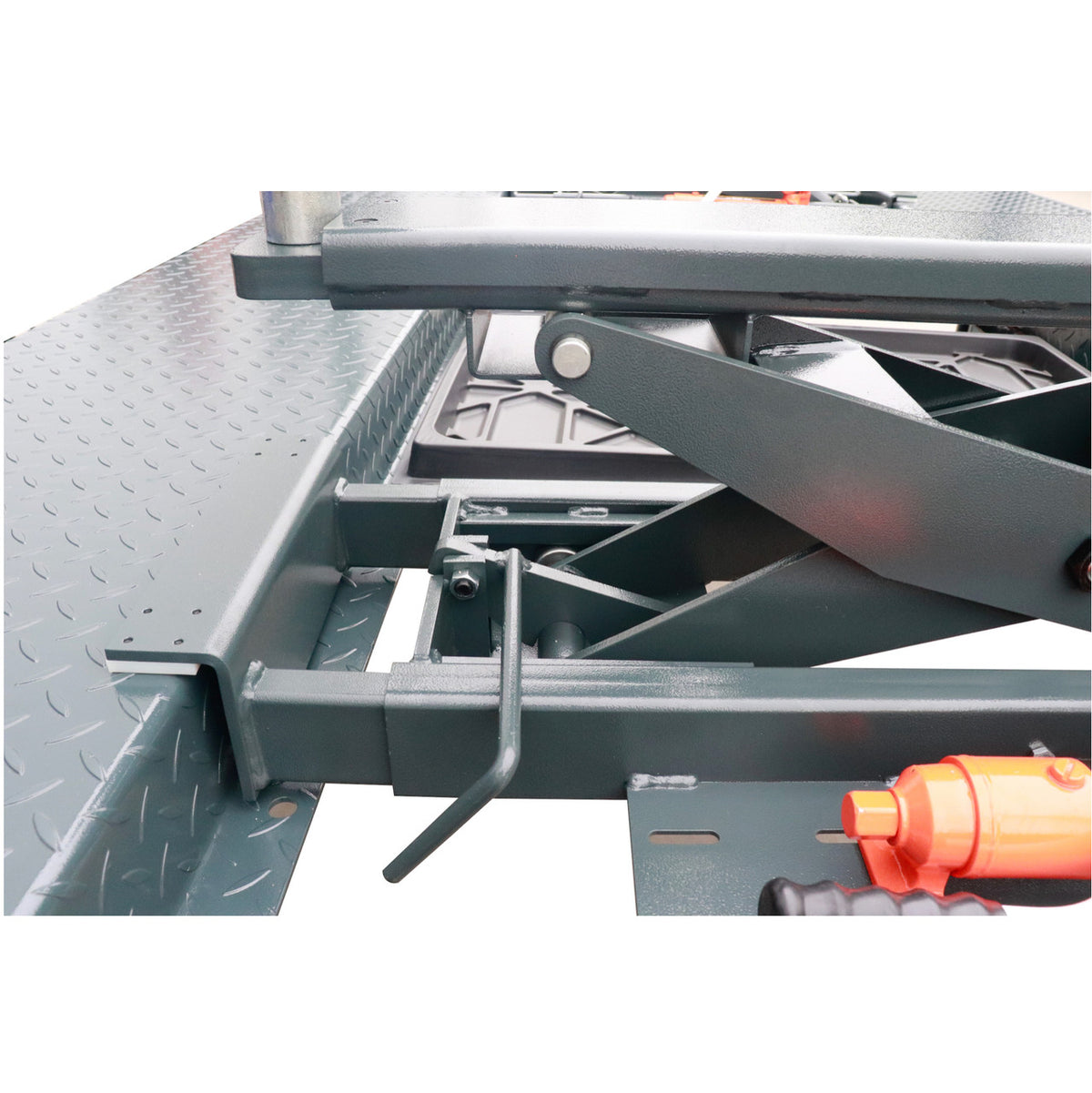

If you're running a Stratus 4-post lift and need to get under the vehicle for brake work, suspension service, or any underhood task while the car is elevated, the SAE-BJ5 Rolling Bridge Jack is the piece your setup is missing. It slides into position across the lift's runways, jacks up the axle or differential, and lets you drop the wheels - no second lift needed, no repositioning the car.

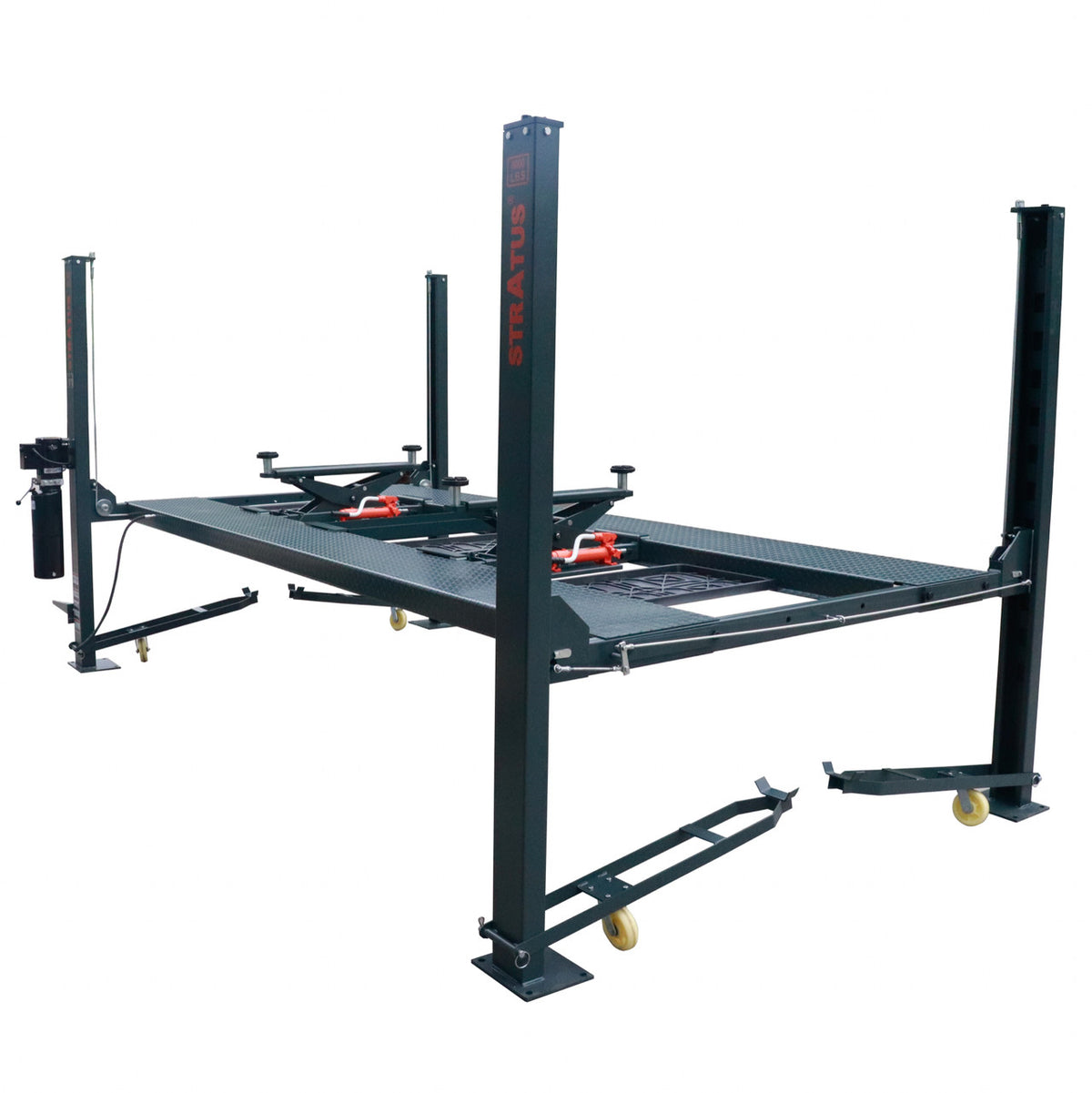

The SAE-BJ5 is purpose-built for Stratus SAE-P48, SAE-P49, SAE-P49D, and SAE-P410 four-post lifts. That's a direct fit guarantee - no adapters to source, no guesswork about runway width clearance. It carries 5,000 lbs and extends from 35 inches all the way to 60 inches in overall length, giving you the reach to position it precisely regardless of where you need to support the vehicle.
Hand pump operation keeps it simple. No air lines to route, no power hookup required. You pump it up, do your work, and the 10-second lowering time means you're not standing around waiting when you're ready to move to the next car. The included 3-1/8-inch extension adapter adds versatility for vehicles with higher differential or axle contact points.
Garage Supply Guys stocks the full Stratus SAE accessory line. Questions about fitment or delivery? Call us directly and we'll get you sorted fast.
Specifications
| Model | SAE-BJ5 |
| Lifting Capacity | 5,000 lbs |

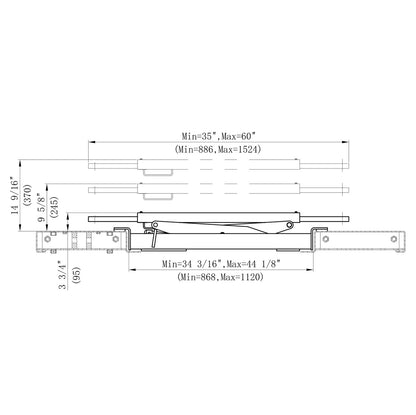

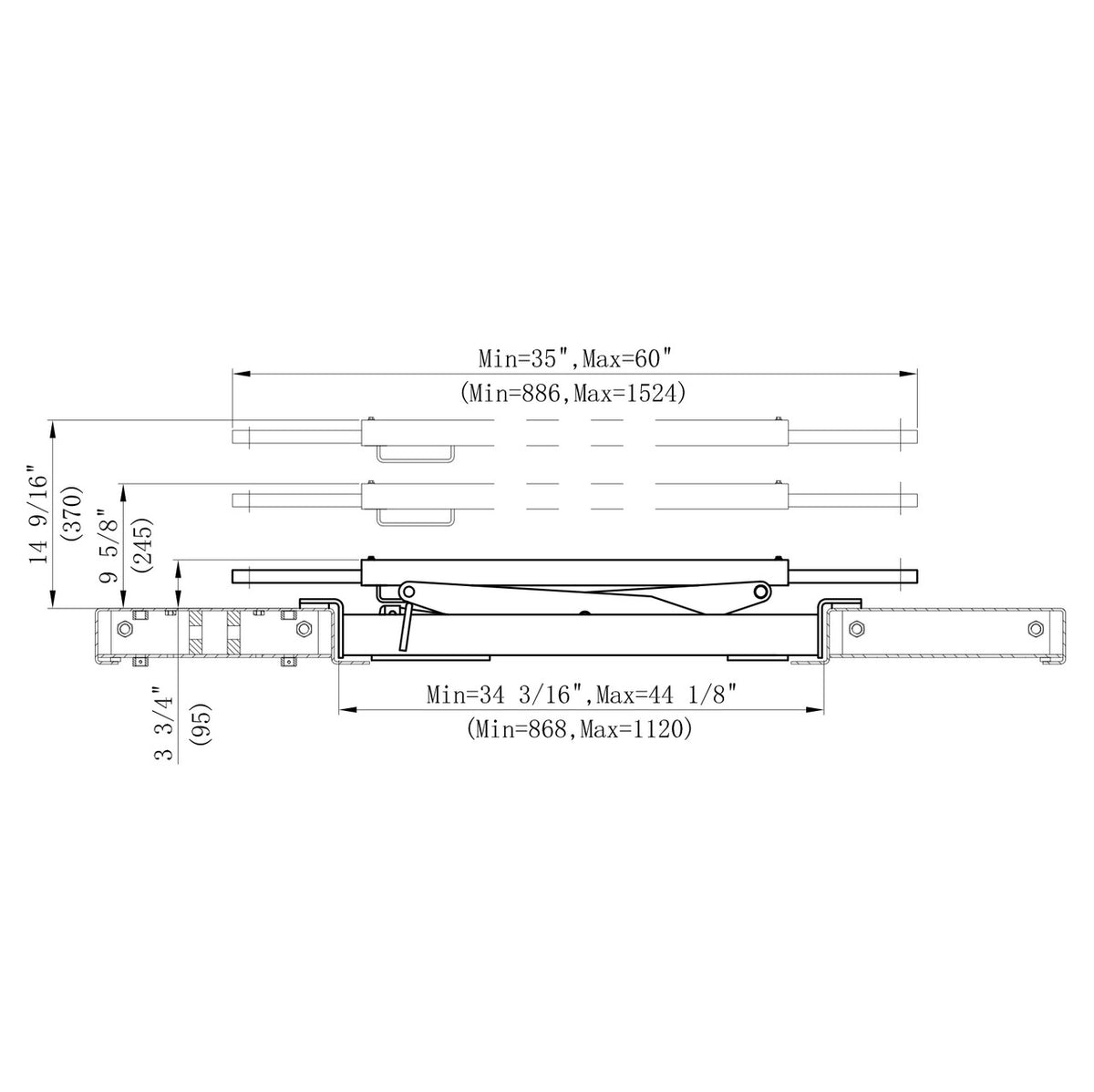

| Overall Length (extended range) | 35" - 60" |

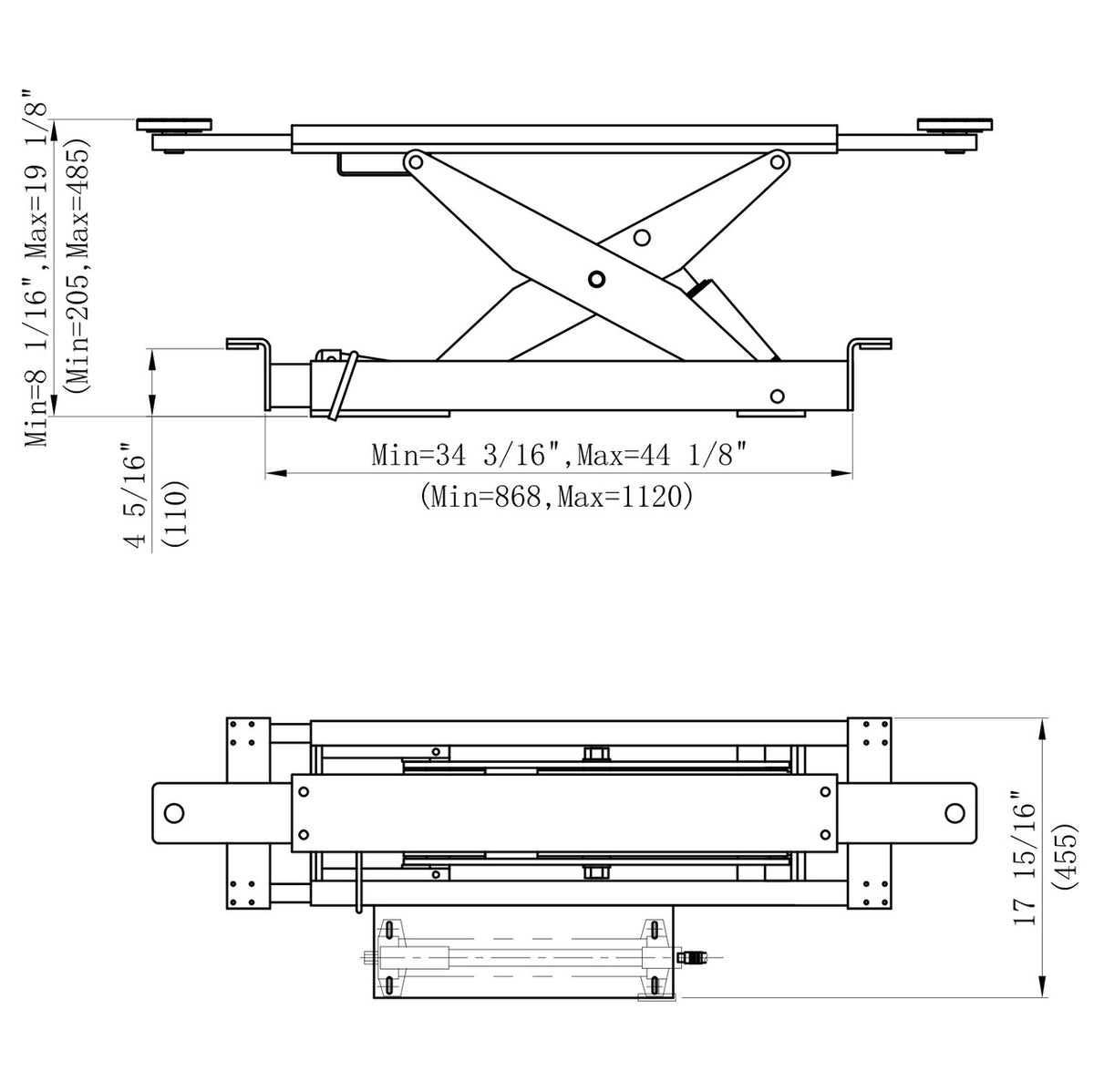

| Max Lifting Height | 19-1/8" |
| Lowering Time | 10 seconds |
| Compatible Lifts | Stratus SAE-P48, SAE-P49, SAE-P49D, SAE-P410 |
| Operation | Hand pump |
| Shipping Dimensions | 42"L x 20"W x 14"H |
| Shipping Weight | 273 lbs |
What's Included
- SAE-BJ5 Sliding Bridge Jack
- Hand pump
- 3-1/8" extension adapter
Applications
Raise a single axle while the vehicle sits on the four-post runways. Drop the wheels and get full access to calipers, rotors, control arms, and struts without repositioning the car.
Support the differential or rear axle housing while you pull driveshafts or service the differential. The 19-1/8" max lift height gives you working clearance on most passenger cars and light trucks.
Spot-jack a section of the underbody to relieve tension on a component while you're working underneath. Particularly useful on heavy exhausts or subframes that shift when unbolted.
The 10-second lowering time and hand-pump operation mean no compressed air or power connections to manage between vehicles. Keep workflow moving without setup delays.
Questions Before You Order?
Call Garage Supply Guys at (855) 498-2147. We'll confirm fitment with your specific lift model and help you get the right configuration before you buy.
Frequently Asked Questions
Which Stratus four-post lifts is the SAE-BJ5 compatible with?
The SAE-BJ5 is compatible with the Stratus SAE-P48, SAE-P49, SAE-P49D, and SAE-P410 four-post lifts. These are the only confirmed compatible models. If your lift isn't on that list, call us at (855) 498-2147 before ordering and we'll help verify fitment.
What is the weight capacity of the SAE-BJ5?
The SAE-BJ5 has a lifting capacity of 5,000 lbs. That covers the majority of passenger cars, crossovers, and light trucks you'd typically service on a four-post lift.
How does the bridge jack extend and what's the range?
The SAE-BJ5 adjusts from 35 inches to 60 inches in overall length. That telescoping range lets you position the saddle precisely under the axle, differential, or support point you need without modifying the jack itself.
Does the SAE-BJ5 require air or electricity to operate?
No. It operates entirely by hand pump, so there's no need for an air line or power outlet near the lift. The included hand pump is all you need to raise it. Lowering takes about 10 seconds via the release valve.
What is the maximum lifting height?
The SAE-BJ5 reaches a maximum lifting height of 19-1/8 inches. Combined with the included 3-1/8-inch extension adapter, that gives you additional saddle height for vehicles with higher contact points like differentials on trucks or larger SUVs.
What comes with the SAE-BJ5 when it ships?
The SAE-BJ5 ships with the bridge jack unit, a hand pump, and a 3-1/8-inch extension adapter. If you have questions about specific hardware or assembly components, call (855) 498-2147 before ordering.
How is the SAE-BJ5 shipped and how long does delivery take?
The SAE-BJ5 ships LTL freight - the shipping package is 42 inches long, 20 inches wide, and 14 inches tall, and weighs 273 lbs. Delivery timing depends on your location. Call us at (855) 498-2147 if you need to confirm delivery details or discuss accessorial services like liftgate or residential delivery before placing your order.
Does the SAE-BJ5 come with a warranty?
No manufacturer warranty is included with the SAE-BJ5. If warranty coverage is a factor in your decision, contact us at (855) 498-2147 to discuss options before purchasing.
