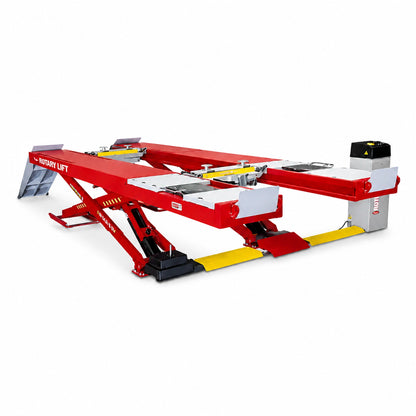

Rotary XA14 - 14,000 lb ALI Certified Alignment Scissor Lift with Rolling Jacks
The Rotary XA14 delivers 14,000 lb capacity in an open scissor design engineered for automotive service facilities performing wheel alignments and general underbody service. Featuring two 7,000 lb rolling jacks with internal airlines, stainless steel turning radius gauges, and a 4-wheel alignment wheelbase range of 85-1/2 inches to 193 inches, this alignment rack handles passenger vehicles through light commercial trucks while occupying a narrower footprint than traditional four-post lifts.
Model Numbers: XA14N110 (Surface Mount), XA14N111 (Recessed Mount)
Key Features & Benefits

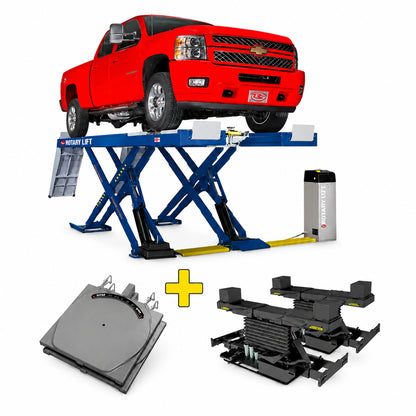

Standard Rolling Jacks with 7,000 lb Capacity

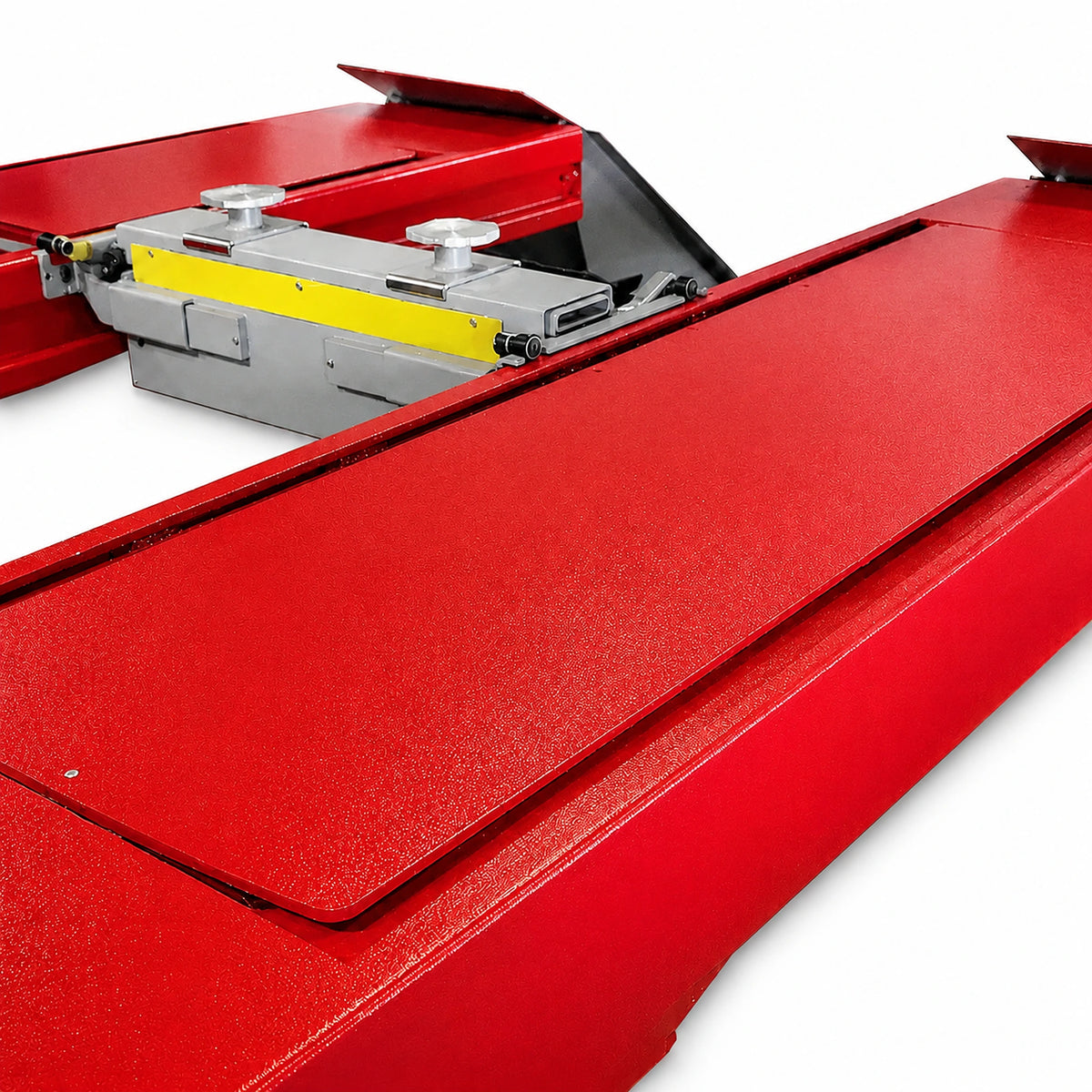

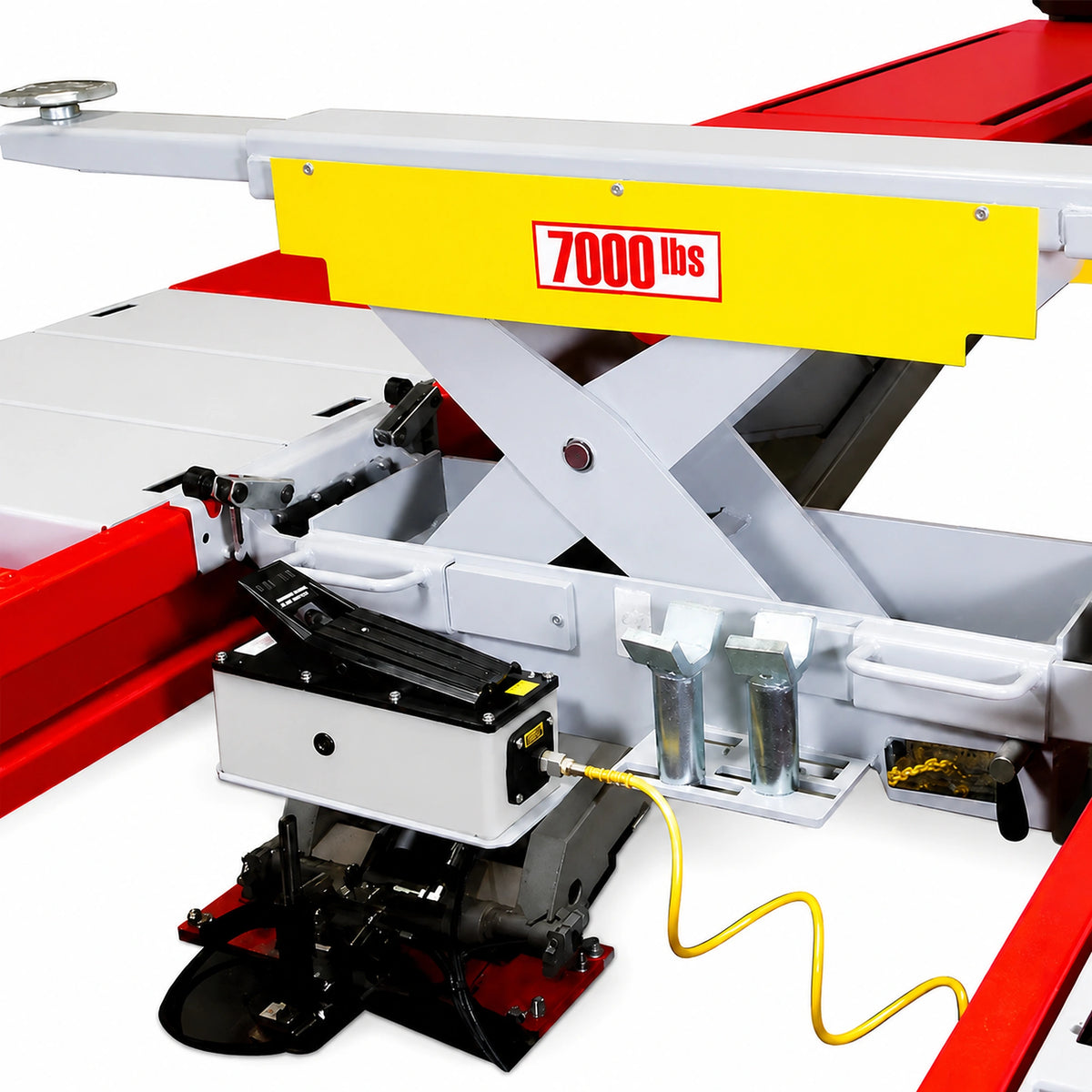

The XA14 includes two 7,000 lb rolling jacks with internal airlines as standard equipment, enabling wheels-free brake, suspension, and tire service directly on the alignment rack. The internal airline design keeps hoses organized and out of the work area while maintaining full pneumatic functionality for air-powered tools.
Many alignment lifts require rolling jacks as an expensive add-on or leave technicians without a specified capacity rating. The XA14 addresses this by including jacks with published capacity figures that handle the full range of passenger vehicle and light truck wheel assemblies without separate purchases or compatibility concerns.
This enables complete drivetrain service without moving vehicles between stations. Technicians can perform alignments, then raise the vehicle on rolling jacks for brake inspections, tire rotations, or suspension component replacement in a single bay location.
Open Scissor Design with 34% Narrower Footprint

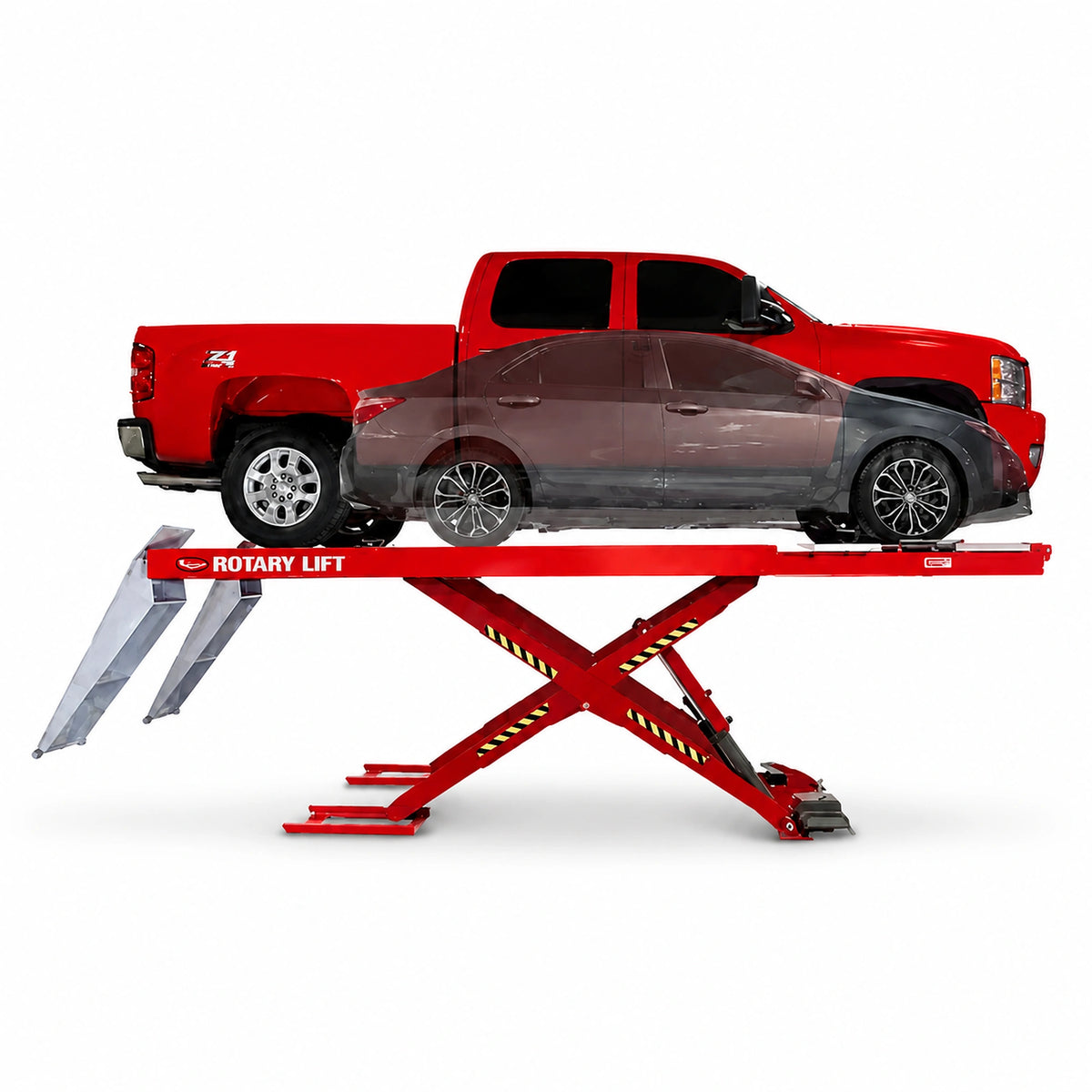

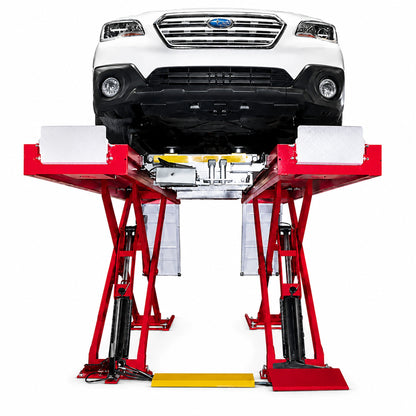

The scissor configuration delivers 91 inches overall width while providing unrestricted front-to-rear technician access with no cross-beam obstruction. This open design allows technicians to work around the entire vehicle perimeter without repositioning or working around structural barriers common to four-post designs.
Traditional four-post alignment lifts consume significant floor space and restrict lateral access with their column placement. The XA14's scissor architecture provides equivalent capacity and stability while fitting into narrower bays, allowing shop owners to maximize alignment bay density per square foot of facility space.
This enables more efficient shop layouts and faster service throughput. The recommended bay size of 14 feet by 27 feet accommodates the lift with working clearance while leaving room for alignment equipment positioning and technician movement.
Documented Wheelbase Range for Alignment Applications
The XA14 supports 4-wheel alignment wheelbases from 85-1/2 inches to 193 inches, with extended ranges for 2-wheel alignment (195 inches) and general service applications (198 inches). These specifications are published with explicit application context rather than single maximum figures that leave compatibility questions unanswered.
Alignment lift wheelbases are frequently listed inconsistently across the industry, with some manufacturers publishing general service maximums that don't reflect actual alignment capability. The XA14's tiered wheelbase specifications clarify exactly which vehicles can receive 4-wheel versus 2-wheel alignment service.
This eliminates guesswork when evaluating vehicle compatibility. Service writers and shop managers can reference documented specifications to confirm alignment capability before scheduling appointments for extended wheelbase trucks, vans, or specialty vehicles.
Air-Locking Rear Steers with Console Control

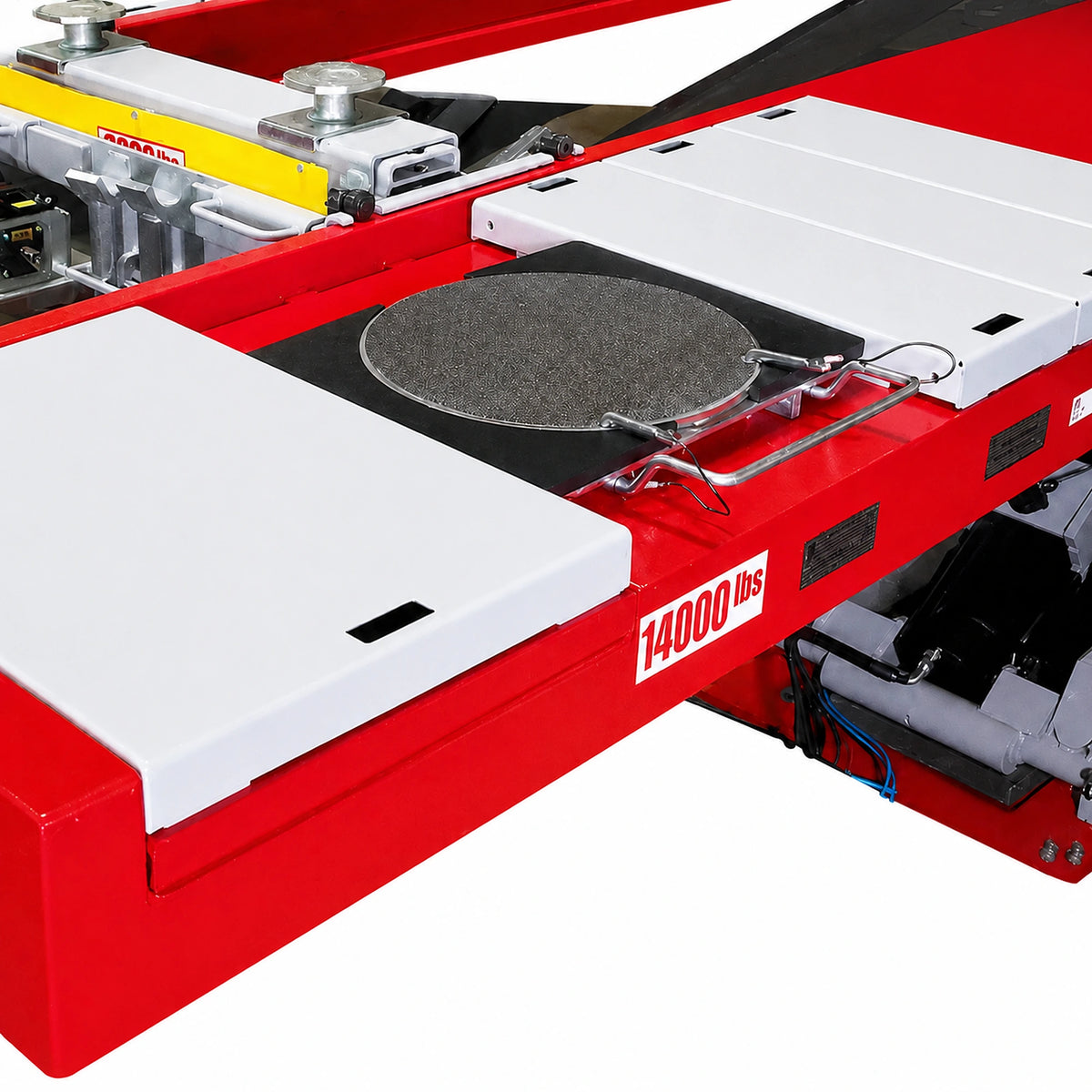

The rear slip plates feature air-actuated locking mechanisms controlled directly from the lift console, allowing technicians to engage or release locks without leaving the alignment position. Locking slip plates and stainless steel turning radius gauges are included as standard equipment for complete alignment setup.
Manual lock mechanisms require technicians to walk around the vehicle and physically engage each lock, interrupting workflow and adding time to every alignment procedure. Console-controlled air locks eliminate this interruption while providing positive engagement confirmation.
This improves alignment bay efficiency by reducing the physical steps required between alignment phases. Technicians maintain position at the console or alignment equipment while controlling slip plate status, keeping focus on alignment readings rather than equipment manipulation.
Surface and Recessed Mount Flexibility
The XA14 is available in surface mount (XA14N110) and recessed mount (XA14N111) configurations to support varied shop buildout requirements. Surface mount installation sits on top of existing concrete, while recessed installation positions the runways flush with the shop floor when lowered.
Low-profile vehicles can challenge surface-mounted alignment lifts due to approach angle constraints and minimum ride height clearance. Recessed installation addresses this by eliminating the step-up onto runways, allowing sports cars, lowered vehicles, and vehicles with aerodynamic body kits to drive on without scraping.
This enables service of the full vehicle spectrum in a single bay. Shops servicing both standard vehicles and low-profile performance cars can specify recessed installation to eliminate approach angle limitations while maintaining the clean aesthetic of flush-mounted equipment.
ALI Gold Label Certification
The XA14 carries Automotive Lift Institute (ALI) Gold Label certification along with ETL listing, meeting ANSI/ALI ALCTV safety and performance standards and ANSI/ALI ALOIM operational safety requirements. Third-party certification validates capacity claims through independent testing protocols.
Uncertified lifts may display capacity ratings without independent verification, creating liability exposure and potential safety concerns. ALI certification requires lifts to meet specific design, construction, and performance criteria verified through standardized testing procedures.
This provides documented compliance for insurance, OSHA, and facility safety audits. Shop owners can demonstrate due diligence in equipment selection with third-party certification documentation that validates the 14,000 lb capacity rating.
Applications & Use Cases

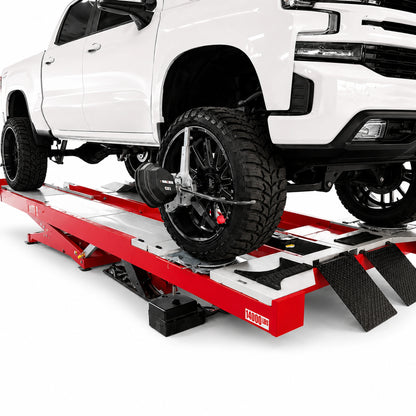

- Four-Wheel Alignments: Primary application for passenger vehicles, SUVs, crossovers, and light trucks with wheelbases from 85-1/2 inches to 193 inches
- Two-Wheel Alignments: Extended wheelbase service up to 195 inches for vans, extended cab trucks, and commercial vehicles requiring front-only alignment
- General Automotive Service: Underbody access for exhaust, drivetrain, and chassis inspection with wheelbases up to 198 inches
- Tire and Wheel Service: Complete tire replacement, rotation, and balancing workflows using included 7,000 lb rolling jacks
- Brake Service: Wheels-free brake inspection, rotor replacement, and caliper service with vehicle elevated on rolling jacks
- Suspension Work: Component replacement, bushing service, and suspension geometry adjustments with full underbody access
- Dealership Service Departments: High-volume alignment and maintenance operations for new vehicle prep and customer service
- Fleet Maintenance Operations: Light commercial vehicle service for delivery fleets, service vehicles, and municipal equipment
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 14,000 lb (6,350 kg) |
| Rolling Jack Capacity | 7,000 lb each (2 included) |
| Rise Time (Full Load) | 77 seconds |
| Lowering Time | 47 seconds |
| Motor | 5 HP (3.7 kW) |
| Voltage | 230V / Single Phase / 60Hz |
| Specification | Value |
|---|---|
| Maximum Rise (Surface Mount) | 72-3/4 inches (1,848 mm) |
| Lowered Height | 10-3/4 inches (275 mm) |
| Overall Length | 277 inches (7,035 mm) |
| Overall Width | 91 inches (2,310 mm) |
| Runway Length | 216 inches (5,486 mm) |
| Runway Width | 25-1/2 inches (648 mm) |
| Width Between Platforms | 40 inches (1,015 mm) |
| Application | Minimum | Maximum |
|---|---|---|
| Four-Wheel Alignment | 85-1/2 inches (2,172 mm) | 193 inches (4,902 mm) |
| Two-Wheel Alignment | - | 195 inches (4,953 mm) |
| General Service | - | 198 inches (5,029 mm) |
Installation Requirements
Foundation Requirements
- Concrete Depth: Minimum 5 inches
- Concrete Condition: Free from cracks and structural defects
- Curing: Minimum 28 days properly cured
- Mount Options: Surface mount (XA14N110) or recessed/flush mount (XA14N111)
Power Requirements
- Voltage: 230V, Single Phase, 60Hz
- Motor: 5 HP
- Circuit: Dedicated circuit required per local electrical codes
Compressed Air Requirements
- Air Supply: 85-110 PSI
- Air Treatment: Filter/Regulator/Lubricator (FRL) required (warranty requirement)
- Connection: Air line kit included
Space Requirements
- Recommended Bay Size: 14 feet x 27 feet (168 inches x 324 inches)
- Additional Clearance: May be required for tower alignment systems or ADAS calibration equipment
- Professional Installation: Recommended for warranty validity
Shipping & Delivery
Freight Delivery
Shipping Method: Ships via flatbed freight truck (48-foot semi typical). Shipping estimates are not guaranteed and subject to freight scheduling.
Special Order: This is a special order item through most dealers.
Delivery Requirements
Unloading Equipment: Customer responsible for unloading. Forklift or machinery required.
Lift Gate: Lift gate delivery not available for auto lifts.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Installation
Professional Installation: Recommended for warranty validity. Contact dealer for installation options and Rotary Authorized Installer (RAI) referrals in your area.
Warranty Coverage
Rotary Warranty Program
5 Years - Structural Parts: Carriage, columns, yokes, arms, runways, plungers
1 Year - Functional Parts: Power units, cylinders, latches, adapters, controls
1 Year - Labor: Installation-related warranty service
Warranty Requirements
Start Date: Warranty begins from invoice date to authorized distributor
Adjustment: Can be adjusted by submitting Warranty Activation Form with installation date
Extended Coverage: Functional parts warranty may be extendable to 2 years if installed by Rotary Authorized Installer (RAI)
What's Included
- (2) 7,000 lb Rolling Jacks - with internal airlines for wheels-free service
- (2) Stainless Steel Turning Radius Gauges - for alignment setup
- Locking Slip Plates - air-actuated with console control
- Air Line Kit - complete pneumatic connection package
- Folding Hinged Ramps - with self-chocking rear wheel chocks
- Console Controls - installable on either side of lift
- Recessed Adjustable Runway Lights - standard equipment
Ready to Upgrade Your Alignment Bay?
Get expert guidance on the Rotary XA14 for your facility. Our team can help with product selection, installation planning, bay layout requirements, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Rotary XA14?
The Rotary XA14 has a 14,000 lb (6,350 kg) lifting capacity, verified with ALI Gold Label certification from the Automotive Lift Institute. This capacity handles passenger vehicles, SUVs, crossovers, and light commercial trucks through Class 1-3 classifications. The lift also includes two 7,000 lb rolling jacks as standard equipment, enabling wheels-free brake, suspension, and tire service directly on the alignment rack without moving the vehicle to a separate station.
What is included with the Rotary XA14 alignment lift?
The XA14 includes two 7,000 lb rolling jacks with internal airlines for wheels-free service, two stainless steel turning radius gauges for alignment setup, locking slip plates with air-actuated locks controlled from the console, a complete air line kit, folding hinged ramps with self-chocking rear wheel chocks that engage automatically when raised, console controls that can be installed on either side of the lift, and recessed adjustable runway lights as standard equipment.
What are the electrical requirements for the Rotary XA14?
The XA14 requires 230V, single phase, 60Hz electrical power with a 5 HP (3.7 kW) motor. A dedicated circuit is required per local electrical codes and should be installed by a qualified electrician. The lift also requires compressed air supply at 85-110 PSI (5.9-7.6 bar), and a filter/regulator/lubricator (FRL) assembly is required on the air supply for warranty compliance. Concrete foundation must be minimum 5 inches deep and properly cured for at least 28 days.
What is the wheelbase range for four-wheel alignments on the XA14?
The XA14 supports four-wheel alignments on vehicles with wheelbases from 85-1/2 inches (2,172 mm) to 193 inches (4,902 mm), covering compact cars through full-size trucks and SUVs. For two-wheel alignments on extended wheelbase vehicles like cargo vans and crew cab trucks, the maximum extends to 195 inches. General service applications without alignment requirements support wheelbases up to 198 inches for underbody access and inspection work.
What is the recommended bay size for the Rotary XA14?
The recommended bay size is 14 feet by 27 feet (168 inches by 324 inches), providing adequate working clearance around the lift for technician access and equipment positioning. The lift itself measures 277 inches long by 91 inches wide with an overall width that is 34 percent narrower than traditional four-post alignment racks. Additional clearance beyond the recommended bay size may be required when using tower-style alignment systems or ADAS calibration equipment.
What certifications does the Rotary XA14 have?
The XA14 carries ALI Gold Label certification from the Automotive Lift Institute, providing third-party verification of the 14,000 lb capacity rating through independent testing protocols. The lift is also ETL Listed and designed to meet ANSI/ALI ALCTV safety and performance standards along with ANSI/ALI ALOIM operational safety requirements. These certifications provide documented compliance for insurance requirements, OSHA inspections, and facility safety audits in commercial service environments.
What is the warranty on the Rotary XA14?
The XA14 includes a 5-year warranty on structural parts including the carriage, columns, yokes, arms, runways, and plungers. Functional parts such as power units, cylinders, latches, adapters, and controls are covered for 1 year, along with 1-year labor coverage for installation-related warranty service. Warranty begins from the invoice date to the authorized distributor but can be adjusted by submitting a Warranty Activation Form with the installation date. Functional parts warranty may be extendable to 2 years when installed by a Rotary Authorized Installer.
What is the difference between surface mount and recessed mount XA14 models?
The surface mount model (XA14N110) installs on top of existing concrete with the lowered height at 10-3/4 inches above floor level. The recessed mount model (XA14N111) installs into a prepared pit so the runways sit flush with the shop floor when lowered, eliminating the step-up and allowing easier drive-on access for low-profile vehicles, sports cars, and vehicles with aerodynamic body kits. Both models share the same 14,000 lb capacity, 72-3/4 inch maximum rise, and performance specifications.
