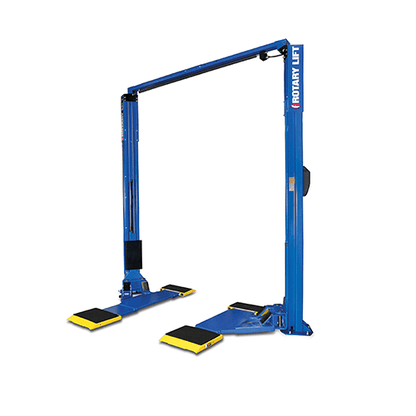

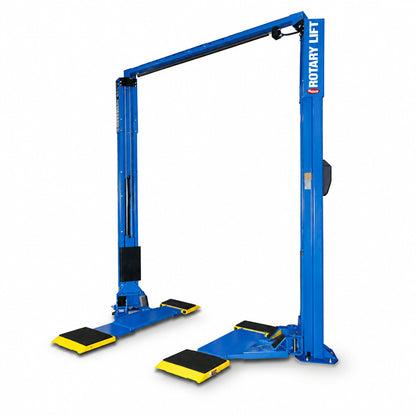

Rotary SPOA7-MP - 7,000 lb ALI Gold Certified Two-Post Asymmetrical Pad Lift for Quick-Service Bays
The Rotary SPOA7-MP delivers 7,000 lb capacity in a purpose-built asymmetric two-post configuration engineered for high-volume quick-lube and express service operations. Featuring ultra-low profile movable drive-over pads with just 2.625" clearance, "Double S" single-piece column construction, and optional SHOCKWAVE DC power for 25-second rise times, this lift handles unibody passenger vehicles and light trucks under 7,000 lb with maximum throughput efficiency.
Key Features & Benefits

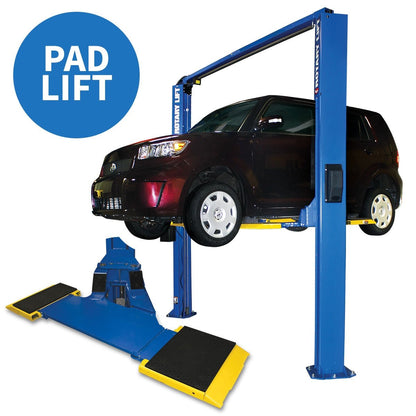

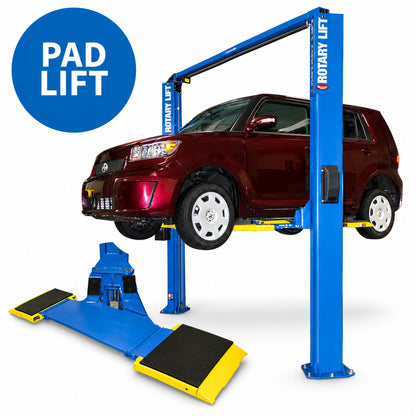

Ultra-Low Profile Drive-Over Pad Design
The SPOA7-MP's movable pad system delivers just 2.625" drive-over clearance, enabling fast vehicle spotting without the arm swinging or manual positioning required by traditional two-post designs. Four movable pad assemblies accommodate lowered vehicles, compact cars, and sport coupes that challenge conventional arm-style lifts.
Traditional swing-arm two-post lifts require technicians to physically adjust and position arms under each vehicle, adding time to every service cycle. The drive-over pad configuration eliminates this workflow friction, allowing vehicles to simply drive onto the pads for immediate positioning.
This enables dramatically faster vehicle throughput in high-volume quick-service environments. For express oil change and tire service operations where per-vehicle cycle time directly impacts revenue, the time saved on each vehicle compounds throughout the workday.
"Double S" Single-Piece Column Construction
Rotary's signature "Double S" column design is bent from a single piece of steel for maximum structural rigidity. This construction method creates a dedicated bearing channel that guides carriage travel throughout the full lift stroke, maintaining precise alignment under load. Columns are factory-rotated 30 degrees for true asymmetric vehicle positioning.
Welded multi-piece column assemblies common on economy lifts introduce stress points and potential alignment drift over years of use. The single-piece forming process eliminates internal weld seams in the load-bearing structure, distributing forces across a continuous steel profile.
This improves long-term carriage tracking and reduces maintenance requirements. The 30-degree asymmetric rotation positions vehicles to allow full front door opening while lifted, enabling technicians to access interior controls and components without repositioning.
SHOCKWAVE DC Power System Option
The optional SHOCKWAVE upgrade delivers 25-second rise times and 19-second descent, nearly doubling the speed of the standard 45-second rise configuration. Powered by a 5 HP DC motor, the SHOCKWAVE system operates on a standard 110V outlet, potentially eliminating expensive 220V electrical installation in facilities without adequate circuits.
Standard two-post lifts require dedicated 208-230V circuits with 25+ amp service, adding installation cost and limiting placement flexibility. SHOCKWAVE's DC battery system also maintains operation during power outages, providing an operational advantage for facilities in areas with unreliable power infrastructure.
This enables faster service cycles and greater installation flexibility. Shops can position SHOCKWAVE-equipped lifts anywhere a standard outlet is available, reducing electrical contractor costs and expanding bay configuration options.
ALI Gold Certification with Third-Party Validation
The SPOA7-MP carries ALI Gold Certification from the Automotive Lift Institute, with independent verification meeting ANSI/ALI ALCTV-2017 requirements. ETL Listed for electrical safety and compliant with ANSI/UL 201, this lift meets International Building Code requirements accepted by most jurisdictions.
Many economy lifts lack third-party certification, leaving shops to rely solely on manufacturer claims. ALI Gold certification requires rigorous testing by an independent laboratory, verifying that the lift meets published capacity ratings and safety standards under real-world conditions.
This enables confident code compliance and simplified permitting. Building inspectors recognize ALI certification as verification of safety standards, streamlining the approval process for new lift installations and facility build-outs.
Integrated Safety Systems
Multiple redundant safety features protect technicians and vehicles during operation. The padded overhead shut-off bar automatically stops lift travel before vehicle contact with the crossbar. Multi-position column locks engage every 4 inches throughout the lift stroke, with a single-point lock release for controlled descent.
The overhead cable equalization system maintains synchronized column travel, preventing uneven lifting that can stress vehicle frames or compromise stability. Automatic mechanical locks engage independently of the hydraulic system, providing failsafe support even in the event of hydraulic pressure loss.
This eliminates common lift-related vehicle damage and technician safety incidents. The padded shut-off bar specifically addresses the costly mistake of over-raising vehicles into overhead obstructions, while synchronized equalization prevents the frame stress caused by uneven lifting.
Complete Accessory Package Included
The SPOA7-MP ships with a comprehensive accessory kit including four 1.5" rubber spacer blocks and four 3" rubber spacer blocks for height adjustment flexibility. A wheel spotting dish aids vehicle positioning, and the complete electric-hydraulic power unit and control box are included for turnkey installation.
Competitor lifts often sell spacer blocks, adapters, and accessories separately, adding hidden costs after the initial purchase. Rotary's included accessory package reduces incremental purchases and ensures technicians have the tools needed for common vehicle lifting scenarios on day one.
This reduces total acquisition cost and speeds time to productivity. New installations can begin servicing vehicles immediately after setup without waiting for back-ordered accessories or discovering missing components during the first week of operation.
Applications & Use Cases
- Quick-Lube Bays: Purpose-built for high-volume express oil change operations where vehicle throughput and fast spotting directly impact revenue.
- Express Service Departments: Ideal for auto dealership service lanes handling no-appointment maintenance including fluids, filters, and routine inspections.
- Tire Service Centers: Drive-over pad design simplifies tire rotation, balancing, and replacement workflows on unibody passenger vehicles.
- Fleet Maintenance Facilities: Handles light-duty fleet vehicles under 7,000 lb for preventive maintenance programs and scheduled service intervals.
- Unibody Vehicle Service: Asymmetric configuration provides proper lift point access for modern unibody construction without frame adapters.
- Light-Duty Vehicle Maintenance: 7,000 lb capacity covers passenger cars, crossovers, compact SUVs, and light trucks within the weight rating.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Capacity | 7,000 lb (3,175 kg) |
| Capacity per Platform | 3,500 lb (1,588 kg) |
| Rise (Standard) | 70-5/8" to 73-5/8" |
| Rise (SHOCKWAVE) | 73-5/8" to 76-5/8" |
| Time of Rise (Standard) | 45 seconds |
| Time of Descent (Standard) | 40 seconds |
| Time of Rise (SHOCKWAVE) | 25 seconds |
| Time of Descent (SHOCKWAVE) | 19 seconds |
| Specification | Value |
|---|---|
| Overall Height | 11' 8-1/2" |
| Overall Width | 11' 5-3/8" |
| Width Between Columns | 107-1/4" |
| Drive-Over Clearance | 2-5/8" (2.625") |
| Drive-Thru Clearance | 78-1/8" |
| Specification | Value |
|---|---|
| Motor (Standard) | 2 HP, 208-230V, 60Hz, 1-phase |
| Motor (SHOCKWAVE) | 5 HP DC, 110V |
| Lock Positions | Every 4" |
Installation Requirements
Bay & Clearance Requirements
- Minimum Bay Size: 12' x 24'
- Minimum Ceiling Height (Standard): 12'
- Minimum Ceiling Height (SHOCKWAVE): 12' 6"
Foundation Requirements
- Minimum Concrete Thickness: 4-1/4" (108 mm)
- Minimum Concrete Strength: 3,000 PSI
- Anchor Size: 3/4" x 5-1/2" (10 per lift)
- Anchor Torque: 150 ft-lb
Electrical Requirements
- Standard Configuration: 208-230V, 60Hz, single-phase, 25 amp dedicated circuit
- SHOCKWAVE Configuration: 110V standard outlet
Installation Notes
- Forklift Required: 5,000 lb minimum lifting capacity on-site for unloading and positioning column assemblies.
- Permits: Verify local code compliance and permit requirements before installation. ALI Gold certification meets most jurisdictional requirements.
Shipping & Delivery
Freight Information
Origin: Ships from Madison, Indiana (Rotary Lift headquarters).
Shipping: Freight charges are NOT included in base price and will be calculated at order placement.
Delivery Method: LTL freight delivery standard. Liftgate services may incur additional charges.
Delivery Requirements
Forklift Required: 5,000 lb minimum capacity forklift must be available on-site for unloading. Standard freight delivery is curbside only.
Local Pick-Up: Will-call available at select distributor warehouses.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Standard Warranty
5 Years - Structural Parts: Columns, carriage, and arms covered against manufacturing defects.
1 Year - Functional Parts: Power units, cylinders, and controls.
1 Year - Labor: Warranty labor coverage for qualifying repairs.
Extended Warranty with RAI Installation
5 Years - Structural Parts: Full structural coverage maintained.
2 Years - Functional Parts: Extended hydraulic and control coverage - exceeds typical 1-year industry standard.
1 Year - Labor: Warranty labor coverage for qualifying repairs.
Installation by a Rotary Authorized Installer (RAI) extends functional parts coverage from 1 year to 2 years.
Warranty Exclusions
Exclusions include: batteries (covered by battery manufacturer), paint defects from external influences, wear items (cables, sheaves, adapter pads), and damage from improper handling, installation, or abuse.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Rotary SPOA7-MP?
The SPOA7-MP has a maximum lifting capacity of 7,000 lb (3,175 kg) with 3,500 lb capacity per platform. This handles most unibody passenger vehicles, crossovers, compact SUVs, and light trucks within the weight rating. The asymmetric pad configuration positions vehicle weight appropriately across both columns, and the lift is ALI Gold Certified to verify it meets published capacity ratings under real-world loading conditions.
What are the concrete requirements for installing the SPOA7-MP?
The SPOA7-MP requires a minimum concrete thickness of 4-1/4 inches (108 mm) with a minimum compressive strength of 3,000 PSI. Ten 3/4" x 5-1/2" anchors are required per lift, torqued to 150 ft-lb specifications. The concrete must be fully cured, unreinforced in the anchor zones, and free of cracks or voids at column mounting locations. Minimum bay size is 12 feet by 24 feet. If your existing slab does not meet these requirements, concrete remediation or a new pour may be necessary before installation can proceed.
What is the minimum ceiling height needed for the SPOA7-MP?
The standard SPOA7-MP requires a minimum ceiling height of 12 feet, with an overall lift height of 11 feet 8-1/2 inches. If ordering with the optional SHOCKWAVE DC power system, minimum ceiling height increases to 12 feet 6 inches due to the additional 3 inches of rise capability. Always verify clearance for overhead obstructions including HVAC ducts, lighting fixtures, and sprinkler systems before installation.
What is included with the Rotary SPOA7-MP?
The SPOA7-MP includes two column assemblies with Rotary's signature "Double S" single-piece construction, an overhead equalization assembly with padded shut-off bar, and four movable drive-over pad assemblies. For height adjustment flexibility, the lift ships with four 1.5" rubber spacer blocks and four 3" rubber spacer blocks. The package also includes the electric-hydraulic power unit, control box, wheel spotting dish for vehicle positioning, all installation hardware and anchors, plus complete operation and installation manuals. No additional accessories are required to begin servicing vehicles immediately after setup.
What is the drive-over clearance on the SPOA7-MP?
The SPOA7-MP features an ultra-low 2-5/8 inch (2.625") drive-over clearance, which is significantly lower than traditional swing-arm two-post lifts. This accommodates lowered vehicles, sport compacts, and other low-profile cars that challenge conventional lift designs. The drive-thru clearance between columns measures 78-1/8 inches, and the movable pad system enables fast vehicle spotting without manual arm positioning for high-throughput quick-service operations.
What electrical power does the SPOA7-MP require?
The standard SPOA7-MP requires 208-230V, 60Hz, single-phase power on a dedicated 25 amp circuit, powered by a 2 HP motor. The optional SHOCKWAVE DC power system operates on a standard 110V outlet with a 5 HP DC motor, eliminating the need for expensive 220V electrical installation. SHOCKWAVE also provides backup operation during power outages through its DC battery system, making it ideal for facilities with unreliable power infrastructure.
Is the Rotary SPOA7-MP ALI certified?
Yes, the SPOA7-MP is ALI Gold Certified by the Automotive Lift Institute with independent third-party verification meeting ANSI/ALI ALCTV-2017 requirements. It is also ETL Listed for electrical safety and compliant with ANSI/UL 201 standards. ALI Gold certification requires rigorous testing to verify that the lift meets its published 7,000 lb capacity rating under real-world conditions. This certification is recognized by most building inspectors and simplifies the permitting process for new installations.
What is the warranty on the Rotary SPOA7-MP?
The standard warranty covers structural parts (columns, carriage, arms) for 5 years, functional parts (power units, cylinders, controls) for 1 year, and labor for 1 year. Installation by a Rotary Authorized Installer (RAI) extends functional parts coverage to 2 years, which exceeds the typical 1-year industry standard for hydraulic components. Warranty exclusions include batteries, paint defects from external influences, wear items such as cables and adapter pads, and damage from improper installation or abuse.
