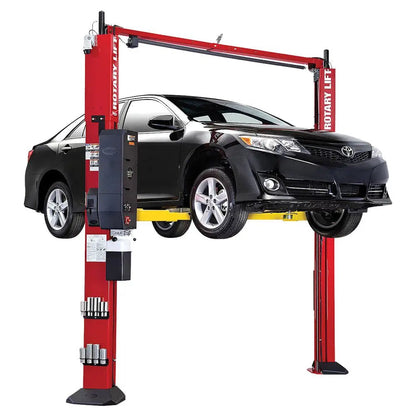

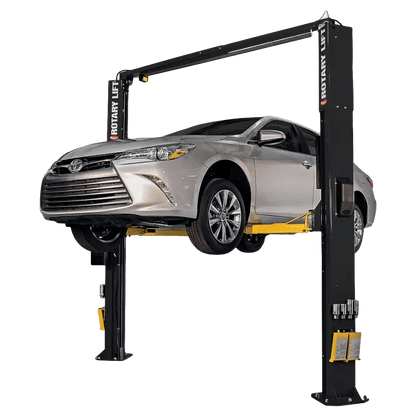

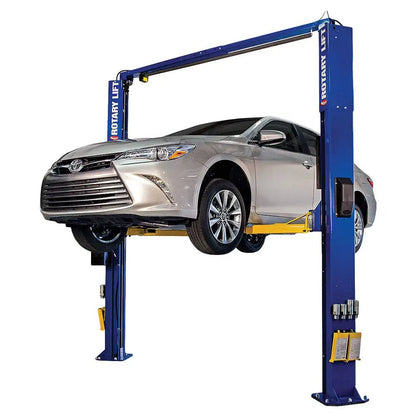

ROTARY SPOA10 10K Two-Post Asymmetrical Lift
ROTARY | SPOA10 | 10K Two-Post Asymmetrical Lift
The Rotary SPOA10 is a 10,000 lbs. capacity two-post asymmetric lift designed to accommodate a wide range of vehicles, including unibody, exotic, and battery electric models. Its true asymmetric rotated column design allows for easy vehicle entry and exit, with factory-rotated columns enabling full door opening while the vehicle is positioned on the lift. The lift features Rotary’s patented two-piece, three-stage asymmetrical arms, providing versatility and ease in vehicle spotting and positioning. Built with durability and safety in mind, the SPOA10 is performance-tested to 20,000 lift cycles and is ALI Gold Certified, making it a reliable choice for any professional automotive service facility.
SPOA10 Features
Easy Spotting & Positioning
With easy spotting and positioning, technicians can lift vehicles faster, which means more throughput and profits per bay.
Highest Capacity Low-Profile Lift
Easily spot lower profile vehicles with the industry's lowest profile arm of any 10,000 lb. capacity lift. More flexibility means more efficiency for your shop.
Industry's Lowest Adapter Height
The outer arm and adapter height are the same measurement, reducing the possibility of the arm contacting a vehicle's underbody.
Ultimate Lifting Versatility
Service any vehicle within the lift's rated capacity with the shortest arm retraction and most extensive pickup range of any two-post lift.
Reach Small EV Pickup Points
Easily spot, lift, and repair unibody, exotic, and electric battery vehicles with the SPOA10-AV's adjustable, low adapter height.
Variety of Adapter Extensions

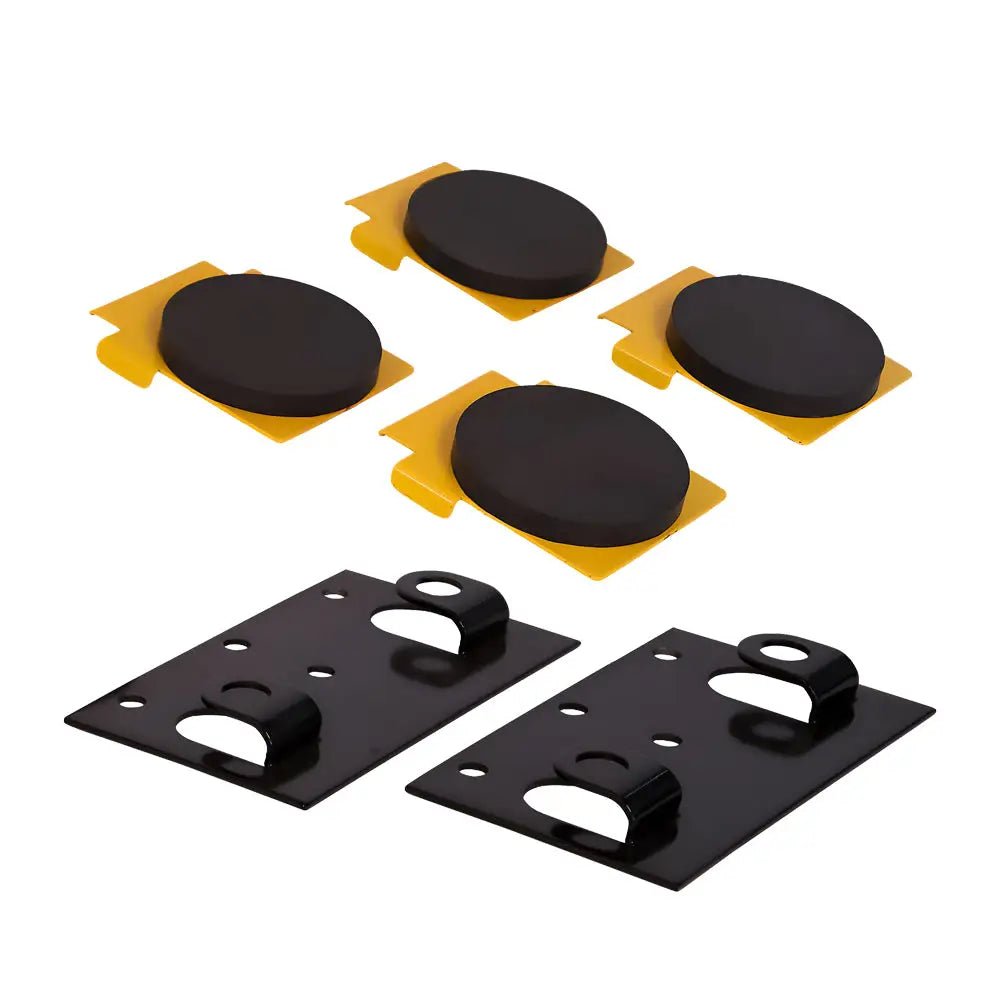

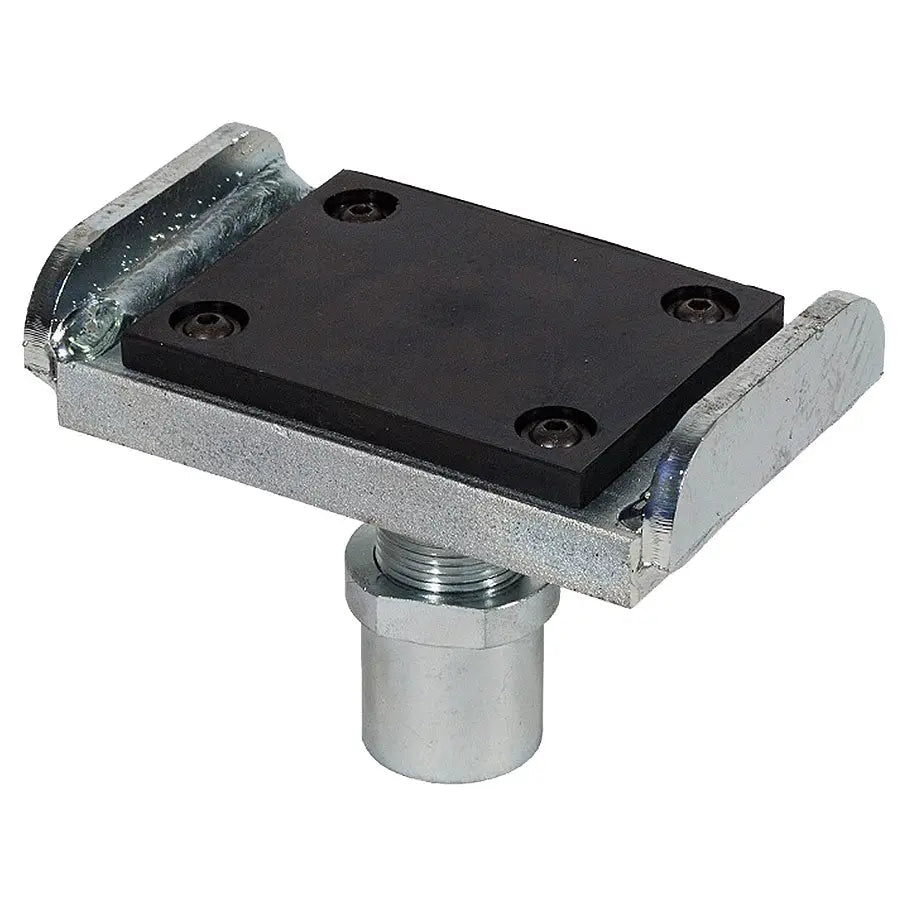

Included Comes standard with adjustable round, truck, and stackable adapter extensions
SPOA10 Specifications
| Specification | SPOA10 |
|---|---|
| Lifting Capacity | 10,000 lbs. (4,535 kg) |
| Lift Type | Two-Post Asymmetrical |
| Arm Design | Patented two-piece, three-stage asymmetrical arms |
| Rise Height | 72 3/4" to 78 3/8" (1848 mm to 1991 mm) |
| Overall Height | 11' 8 1/2" (3159 mm) |
| Overall Width | 11' 5 3/8" (3489 mm) |
| Drive-Thru Clearance | 95 1/4" (2419 mm) |
| Front Arm Reach | 20 1/2" to 40 3/4" (521 mm to 1035 mm) |
| Rear Arm Reach | 40 1/4" to 61 7/8" (1022 mm to 1572 mm) |
| Minimum Adapter Height | 4 3/4" (121 mm) |
| Motor | 2 HP, 208-230V |
| Lift Time | Approximately 45 seconds to full rise |
| Column Design | True asymmetrical rotated column design |
| Certifications | ALI Gold Certified |

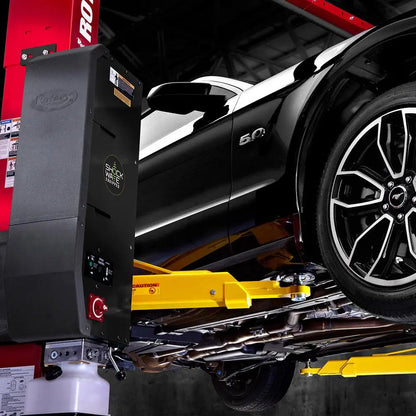

| Optional Features | Available with Shockwave™ for faster lifting times; various adapter options |
